Siqura HSD620PRH User manual

Siqura
HSD620PRH/621PRH
Pressurized IP PTZ Camera with Day/Night, WDR
Installation Manual
PRH

Note: To ensure proper operation, please read this manual thoroughly before using the product and retain the
information for future reference.
Copyright © 2011 Siqura B.V.
All rights reserved.
Siqura HSD620PRH and HSD621PRH 1.0.0
Installation Manual v1.0 (113005-1)
AIT5.4-MW07SP2
Nothing from this publication may be copied, translated, reproduced, and/or published by means of printing,
photocopying, or by any other means without the prior written permission of Siqura.
Siqura reserves the right to modify specifications stated in this manual.
Brand names
Any brand names mentioned in this manual are registered trademarks of their respective owners.
Liability
Siqura accepts no liability for claims from third parties arising from improper use other than that stated in this
manual.
Although considerable care has been taken to ensure a correct and suitably comprehensive description of all
relevant components, the manual may nonetheless contain errors and inaccuracies.
Should you detect any errors or inaccuracies in the manual, we would be grateful if you would inform us. This helps
us to further improve our documentation.
More information
If you have any comments or queries concerning any aspect related to the product, please do not hesitate to
contact:
The Netherlands
Corporate Headquarters
Siqura B.V.
Zuidelijk Halfrond 4
2801 DD Gouda, The Netherlands
General : [phone]
Fax : [phone]
E-mail : [email protected]
WWW : www.siqura.com
USA
US Corporate Offices
TKH Security Solutions USA, Inc.
12920 Cloverleaf Center Drive
Germantown, Maryland 20874, USA
General : [phone]
Fax : [phone]
E-mail : [email protected]
WWW : www.tkhsecurity-usa.com

Page i
Contents
1INTRODUCTION 1
2SAFETY 3
2.1 SAFETY INFORMATION 3
2.2 CAUTIONS 4
2.3 REGULATIONS 5
3PRODUCT DESCRIPTION 7
3.1 PRODUCT OVERVIEW 7
3.2 GENERAL OPERATION REQUIREMENTS 8
3.3 PACKAGE CONTENTS 8
4DOME SETUP AND CABLE CONNECTION 9
4.1 PREPARING THE SIQURA HSD620PRH AND HSD621PRH FOR INSTALLATION 9
4.2 SWITCH DEFINITION 10
4.3 COMMUNICATION SWITCH CONFIGURATION 11
4.4 ESTABLISHING A NETWORK CONNECTION 12
4.5 SYSTEM COMPATIBILITY 13
4.6 DOME CABLE DEFINITION AND REQUIREMENTS 13
4.6.1 Cable Requirements 13
4.6.2 Verifying Ethernet connectivity 13
4.6.3 Connecting, Aligning, and Mounting the Camera 14
5PRESSURIZING THE CAMERA 17
5.1 PRESSURE SWITCH CALIBRATION 17
5.2 PRESSURIZING 18
6DOME INSTALLATION 19
6.1 DOME DIMENSIONS 19
6.2 INSTALLATION SCENARIOS 19
6.3 CEILING MOUNT 20
6.3.1 Ceiling Mounting with a straight tube 20
6.4 WALL MOUNT 21
6.4.1 Mini wall mount 21
6.4.2 Wall mounting with gooseneck tube 22
6.4.3 Wall box mounting 23
6.5 CORNER MOUNT 24
6.6 POLE MOUNT 25
6.6.1 Pole thin/wide direct mounting 25
6.6.2 Pole thin/wide box mounting 27
7APPENDIX A: CAMERA ACCESSORIES 29
7.1 MOUNTING ACCESSORIES 29
7.2 SIQURA HSD620PRH AND HSD621PRH ACCESSORIES 33
8APPENDIX B: TECHNICAL SPECIFICATION 35

Page 1
Chapter 1
1Introduction
Document scope
This manual applies to Siqura's pressurized IP PTZ dome cameras, the Siqura HSD620PRH and
HSD621PRH. It describes how to install and connect the Siqura HSD620PRH and HSD621PRH
cameras. Operation and configuration of the Siqura HSD620PRH and HSD621PRH cameras is
covered in the user manual.
Intended audience
This manual is aimed at installers and technicians involved in the installation of network devices,
such as the Siqura HSD620PRH and HSD621PRH.
Assumed skills and know-how
To work with the Siqura HSD620PRH and HSD621PRH camera, an installer or technician must
have adequate knowledge and skills in the fields of:
CCTV systems and components
Electrical wiring and low-voltage electrical connections
Ethernet network technologies and Internet Protocol (IP)
Windows environments
Web browsers
Video, audio, data, and contact closure transmissions
Video compression methods
Specifications
The information given in this manual was current when published. Siqura reserves the right to
revise and improve its products. All specifications are subject to change without notice.
Important information
Before proceeding, please read and observe all instructions and warnings in this manual. Retain
this manual with the original bill of sale for future reference and, if necessary, warranty service.
When unpacking your product, check for missing or damaged items. If any item is missing, or if
damage is evident, do not install or operate this product. Contact your supplier for assistance.

Siqura HSD620PRH/621PRH
Page 2
Typographical Conventions
Before you start using this guide, it is important to understand the typographical conventions
used in the documentation. The following kinds of formatting in the text identify special
information.
Formatting convention Type of Information
Numbered list Step-by-step procedures. You can follow these instructions to
complete a specific task.
Special Bold Items you must select, such as menu options, command buttons, or
items in a list.
Emphasis Used to emphasize the importance of a point or for variable
expressions such as parameters.
CAPITALS Names of keys on the keyboard. for example, SHIFT, CTRL, or
ALT.
KEY+KEY Key combinations for which the user must press and hold down one
key and then press another, for example, CTRL+P, or ALT+F4.

Page 3
Chapter 2
2Safety
In This Chapter
Safety Information ............................................................. 3
Cautions ........................................................................... 4
Regulations ....................................................................... 5
2.1 Safety Information
Introduction
The safety information contained in this section, and on other pages of this manual, must be
observed whenever this unit is operated, serviced, or repaired. Failure to comply with any
precaution, warning, or instruction noted in the manual is in violation of the standards of design,
manufacture, and intended use of the module. Siqura assumes no liability for the customer's
failure to comply with any of these safety requirements.
Trained Personnel
Installation, adjustment, maintenance, and repair of this equipment are to be performed by
trained personnel aware of the hazards involved. For correct and safe use of the equipment and
in order to keep the equipment in a safe condition, it is essential that both operating and
servicing personnel follow standard safety procedures in addition to the safety precautions and
warnings specified in this manual, and that this unit be installed in locations accessible to trained
service personnel only.
Safety Requirements
The equipment described in this manual has been designed and tested according to the
UL/IEC/EN 60950-1 safety requirements.
Warning: If there is any doubt regarding the safety of the equipment, do not put it into
operation.
This might be the case when the equipment shows physical damage or is stressed beyond
tolerable limits (for example, during storage and transportation).
Important: Before opening the equipment, disconnect it from all power sources.
The equipment must be powered by a SELV*power supply. This is equivalent to a Limited Power
source (LPS, see UL/IEC/EN 60950-1 clause 2.5) or a "NEC Class 2" power supply. When this
module is operated in extremely elevated temperature conditions, it is possible for internal and
external metal surfaces to become extremely hot.
*SELV: conforming to IEC 60950-1, <60VDC output, output voltage galvanically isolated from mains. All
power supplies or power supply cabinets available from Siqura comply with these SELV requirements.

Siqura HSD620PRH/621PRH
Page 4
EMC
The equipment has been tested and found to meet the CE-regulations relating to EMC, and
complies with the limits for a Class B device, pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection against interference to radio communications in
any installation. The equipment generates, uses, and can radiate radio frequency energy;
improper use or special circumstances may cause interference to other equipment or a
performance decrease due to interference radiated by other equipment. In such cases, the user
will have to take appropriate measures to reduce such interactions between this and other
equipment.
Any interruption of the shielding inside or outside the equipment could make the equipment
more prone to fail EMC requirements.
Non-video signal lines must use appropriate shielded Cat 5 cabling (S-FTP), or at least an
equivalent. Ensure that all electrically connected components are carefully earthed and
protected against surges (high voltage transients caused by switching or lightning).
ESD
Electrostatic discharge (ESD) can damage or destroy electronic components. Proper precautions
should be taken against ESD when opening the equipment.
2.2 Cautions
Handle the camera carefully.
Do not abuse the camera. Avoid striking, shaking, etc. as the camera can be damaged by
improper handling or storage.
Install electrical wiring carefully.
Ask a qualified electrician to perform the wiring for the installation. Please note that input
electricity to the unit is at a tolerance of 24VAC 50/60 Hz ± 10%. Ground the camera
appropriately to prevent electric shock or damage.
Power input: 3-pin terminal block
Do not disassemble the camera.
To prevent electric shock, do not remove screws or covers. There are no user serviceable parts
inside. Please consult technical support if a camera is suspected of malfunctioning.
Do not operate the camera beyond the specified temperature,
humidity, and power source ratings
Use the indoor camera under conditions where the temperature is between 0°C~40°C
(32°F~104°F).
Do not use strong or abrasive detergents when cleaning the
camera.
Use a dry cloth to clean the camera when it is dirty. If the dirt is hard to remove, use a mild
detergent and wipe gently. To clean the lens, use lens tissue or a cotton tipped applicator and
ethanol. DO NOT clean the lens with strong detergents.

Safety
Page 5
Never face the camera towards the sun.
Do not aim the camera at bright objects. Whether the camera is in use or not, never aim it at the
sun or other extremely bright objects, as this can damage the camera.
2.3 Regulations
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following conditions.
This device may not cause harmful interference.
This device must accept any interference received, including interference
that may cause undesired operation.
This symbol on the product or on its packaging indicates that this product shall not
be treated as household waste in accordance with Directive 2002/96/EC. Instead
it shall be handed over to the applicable collection point for the recycling of
electrical and electronic equipment. By proper waste handling of this product you
ensure that it has no negative consequences for the environment and human
health, which could otherwise be caused if this product is thrown into the garbage
bin. The recycling of materials will help to conserve natural resources.
For more information on how to recycle this product, please contact your local city
office, your household waste disposal service or the seller of the product.
Compliance is evidenced by written declaration from our suppliers, assuring that
any potential trace contamination levels of restricted substances are below the
maximum level set by EU Directive 2002/95/EC, or are exempted due to their
application.

Page 7
Chapter 3
3Product Description
The Siqura HSD620PRH and HSD621PRH high-speed pressurized IP dome cameras are designed
to deliver superb performance and durability with a pressurized housing. Pressurization
eliminates the effects of moisture, dirt, and pollution on valuable camera equipment.
This manual covers the installation of both the Siqura HSD620PRH and HSD621PRH IP cameras.
In This Chapter
Product Overview............................................................... 7
General Operation Requirements ......................................... 8
Package Contents .............................................................. 8
3.1 Product Overview
Siqura HSD620PRH Features
Outdoor High Speed Network PTZ dome
Quad stream support: Dual H.264, MPEG-2, MPEG-4 and MJPEG
26x optical zoom/12x digital zoom
Day/Night with IR-cut filter
Back Light Compensation
Wide Dynamic Range
400°/second preset targeting
360° endless panning
256 presets/8 programmable cruises
3 alarm in
Two-way audio
24 privacy masks
Pressurized to 7psi; able to hold pressure for up to 1 year
Low pressure sensor, Shrader and pressure relief valves standard
IP 67 ingress protection
Siqura HSD621PRH Features
Quad stream support Dual H.264, MPEG-2, MPEG-4 and MJPEG
35x optical zoom/12x digital zoom
Day/Night with IR-cut filter
Wide Dynamic Range
Back Light Compensation
Electronic Image Stabilization
400°/second preset targeting
360° endless panning
256 presets/8 programmable cruises
3 alarm in
Two-way audio
8 privacy masks

Siqura HSD620PRH/621PRH
Page 8
3.2 General Operation Requirements
A minimum of one control device is required for operation, such as a control keyboard, a DVR, or
a PC. The Siqura HSD620PRH and HSD621PRH contains a built-in receiver that decodes
commands originating from a control device.
The built-in Pelco D protocol provides connectivity to other surveillance systems and allows the
Siqura HSD620PRH and HSD621PRH to be integrated with other suppliers' surveillance systems.
For more detailed information, see the Technical Specifications appendix.
3.3 Package Contents
Before proceeding, please verify that the box contains the items listed here. If any item is
missing or has defects, do not install or operate the product. Contact your supplier for
assistance.

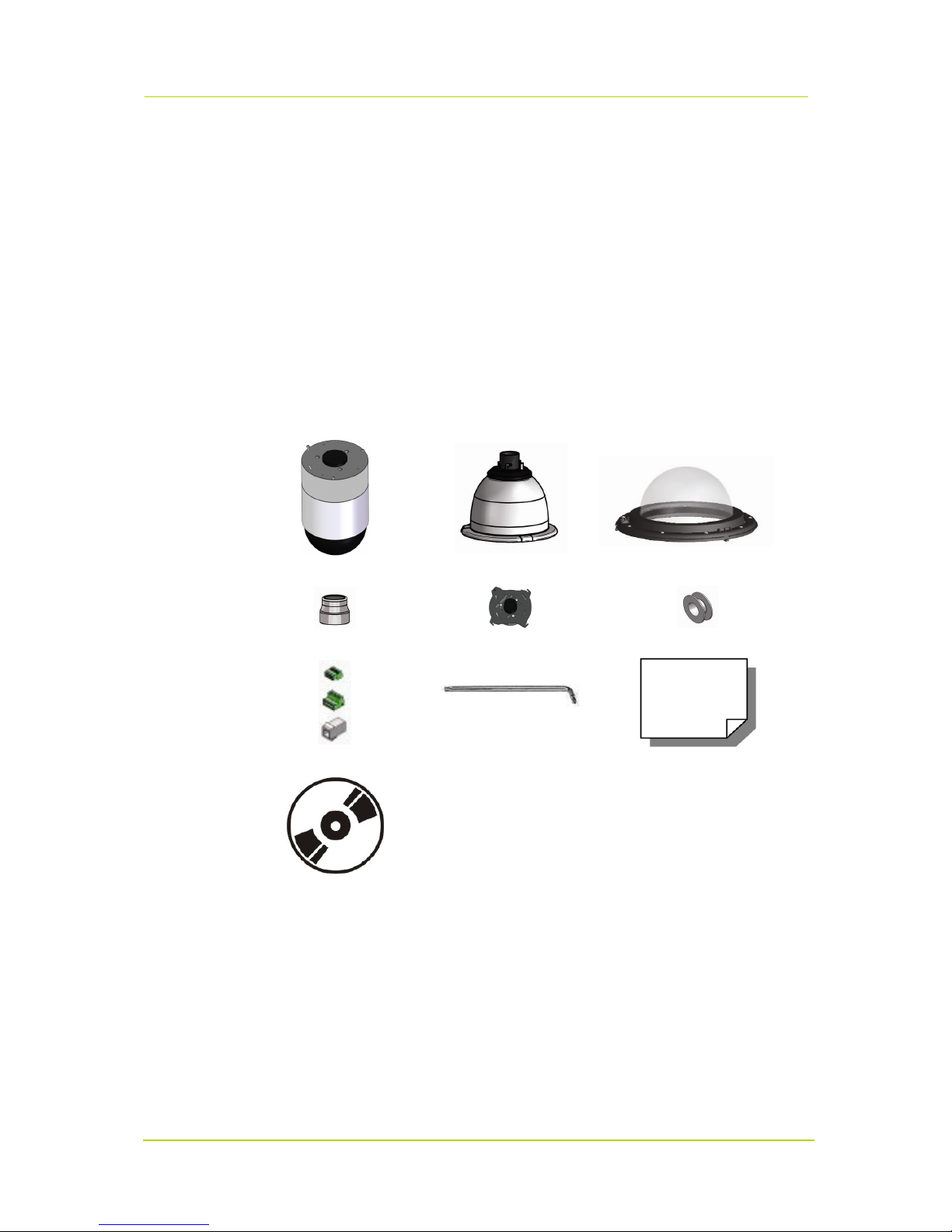

Siqura HSD620PRH and HSD621PRH
Dome camera Pressurized housing Dome cover
Ring Bracket Teflon tape
Connectors Security TORX Quick start guide
CD containing manuals

Page 9
Chapter 4
4Dome Setup and Cable Connection
Before installing or connecting the Siqura HSD620PRH and HSD621PRH, please refer to this
section and complete the preliminary preparations for setting up the dome camera and
establishing switch settings.
In This Chapter
Preparing the Siqura HSD620PRH and HSD621PRH for Installation 9
Switch Definition................................................................ 10
Communication Switch Configuration.................................... 11
Establishing a Network Connection ....................................... 12
System Compatibility.......................................................... 13
Dome Cable Definition and Requirements.............................. 13
4.1 Preparing the Siqura HSD620PRH and HSD621PRH
for Installation
This preliminary installation procedure is for the Siqura HSD620PRH and HSD621PRH dome
cameras.
Perform the following steps to prepare the dome camera for installation
1. Unpack the dome package and take out the dome body.
2. Loosen the screws that secure the bracket to the camera as indicated in the figure below.
Camera unit before bracket attached
3. Temporarily remove the screw indicated below.
4. Assemble the bracket and rotate it into position.
5. Replace the removed screw and then tighten all four screws.

Siqura HSD620PRH/621PRH
Page 10

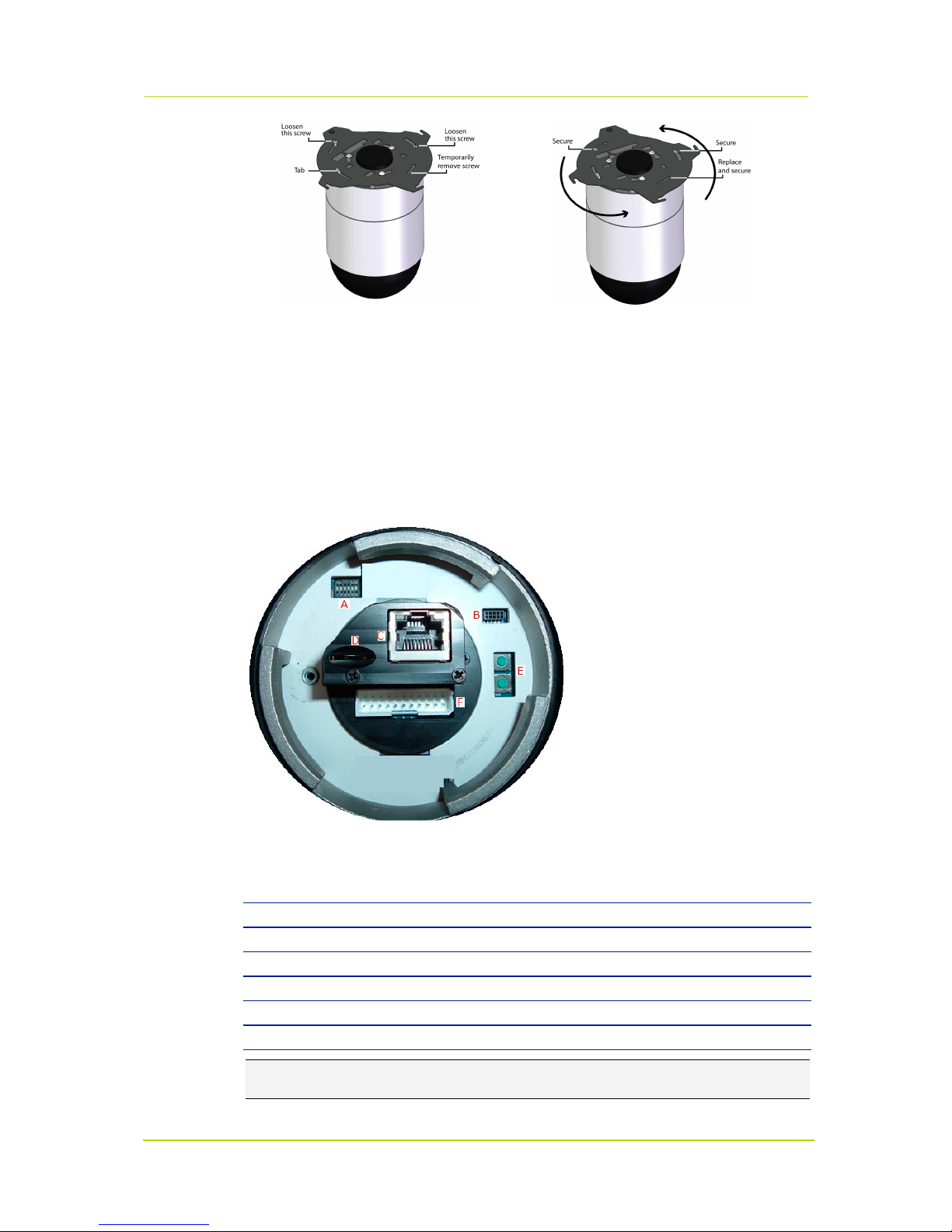

Removing the bracket Replacing the bracket
4.2 Switch Definition
It is necessary that the dome ID and communication protocol remain in the default modes when
connecting the Siqura HSD620PRH and HSD621PRH cameras to other devices. The switches
used for configuring these settings are located on the bottom of the dome camera. These
settings are preset to operate the camera with the IP hardware. Changing the settings may make
the camera inoperative using the IP connection.
Refer to the figure and table below for switch location and definitions.
Siqura HSD620PRH and HSD621PRH switches
Switch Definition
A Communication switch
B ISP connector (for firmware upgrades)
C RJ-45/SFP connector
D SD card slot
E Reset buttons
F 22-pin connector
Note: Switch E has two buttons. Only the button closest to the 22-pin connector is used to
restore factory server defaults. The other button is reserved.

Dome Setup and Cable Connection
Page 11
To restore factory server defaults
Power up the camera while holding button E. Continue to hold the button for 30 seconds
after powering the camera.
Note: The dome control protocol is set to Pelco-D. Do not change the dome control switches on
the IP cameras.
4.3 Communication Switch Configuration
The Siqura HSD620PRH and HSD621PRH's communication switch is specified in the table below.
The default settings are depicted in the figure. You are advised to verify the accuracy of the
communication switch configuration but do not change the default settings, or some functions
may not work properly.

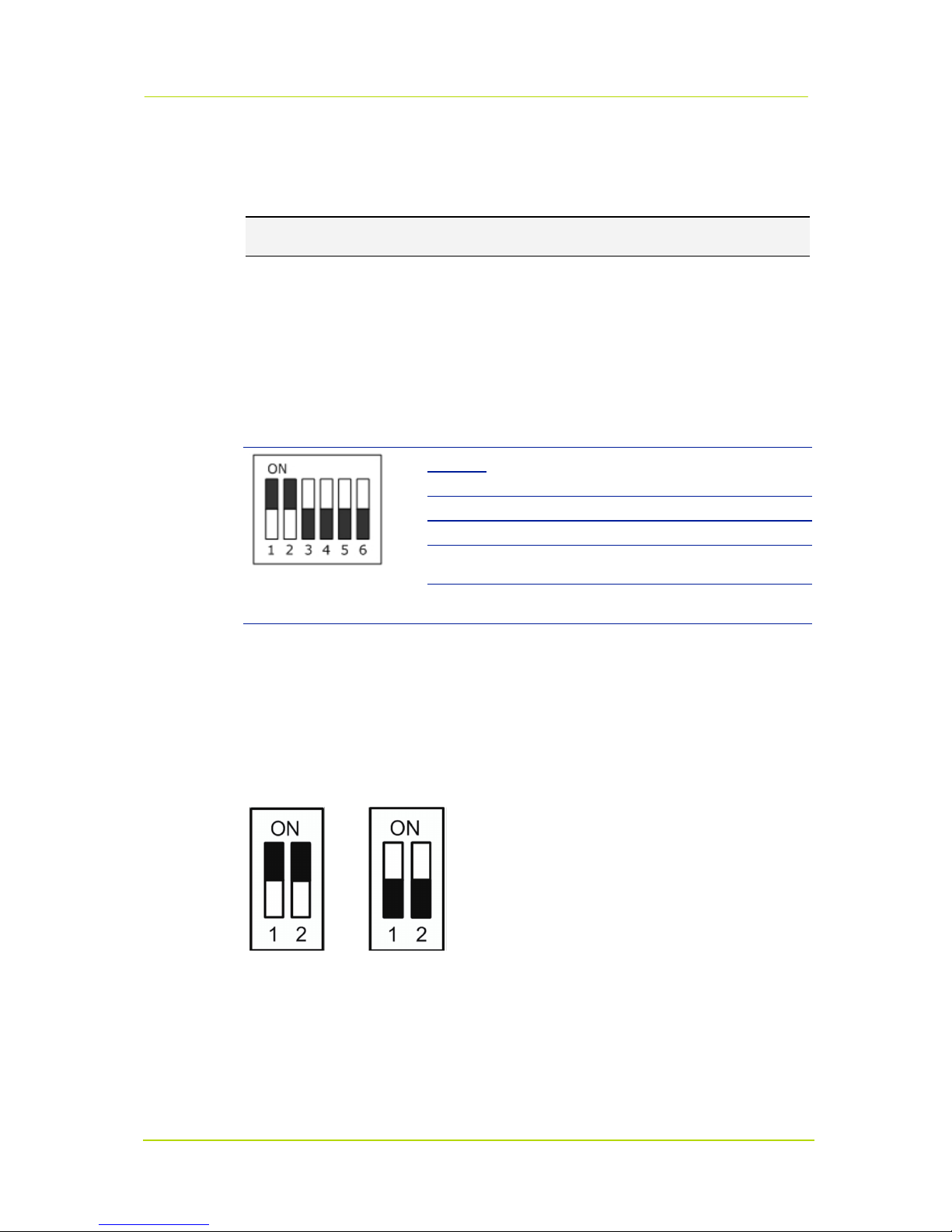

Communication Switch Switch Description
1 RS-485
2
3 Termination
4 Line lock
5 System initialization. Switch 5 is mainly used to restore the
camera's factory defaults.
6 Camera upgrade. Users must reset switch 6 after firmware
upgrades are carried out.
RS-485 is the interface that enables communication between the Siqura HSD620PRH and
HSD621PRH and its control device. This means that the camera's RS-485 setup and that of the
control device must be the same. The RS-485 default setting is half-duplex, as shown in the
figure below. Please do not change the default setting without consulting a qualified specialist or
supplier.
Half duplex Full duplex
RJ-485 settings

Siqura HSD620PRH/621PRH
Page 12
4.4 Establishing a Network Connection
To open communication with the Siqura HSD620PRH and HSD621PRH from a host PC and
change the unit's network settings, perform the following steps.
Step 1: Set the PC's network adapter to the unit's factory default subnet and connect
the two devices.
Step 2: Access the unit from a web browser or other tool installed on the PC.
Step 3: Set the unit's IP address and subnet mask to the subnet it will be used in and
reboot the unit.
To address the unit from the same PC again, configure the PC's network adapter once more to
assign the PC to the same subnet as the unit.
Step 1: Setting the host PC to the factory default subnet of the unit
To configure the network adapter on the host PC
1. In the Control Panel, open Network Connections.
2. Right-click the connection to be configured, and select Properties.
3. In the items list, select Internet Protocol (TCP/IP).
4. Click
Properties.
5. In the Internet Protocol (TCP/IP) Properties dialog, click Use the following IP address.
6. Enter an IP address that will assign your PC to the same subnet as the unit (i.e., within the
10.x.x.x range). Use 255.0.0.0 as a subnet mask.
Important: To prevent conflicts, be sure to choose a unique IP address. No two devices on a
network can have the same IP address.
7. To apply the new settings, click OK, and then click Close.
Opening IP settings on the host PC Changing host PC IP settings to the factory-default
settings of the unit
At this point, connect your PC to the Siqura HSD620PRH and HSD621PRH. You can connect them
directly using a crossover cable, or connect both to a switch.

Dome Setup and Cable Connection
Page 13
Step 2: Accessing the unit
Using a standard web browser you can now log on to the Siqura HSD620PRH and HSD621PRH's
internal web server.
Step 3: Changing the unit's network settings
The Network web page enables you to make the unit's network addressing compatible with the
network it will be hooked into. You can set a fixed IP address or have the IP address assigned by
a DHCP server. In the latter case, open the Advanced Settings and enable DHCP. Do not forget
to save and reboot the unit after changing the settings.
4.5 System Compatibility
To ensure system compatibility, download the latest firmware from Support > Software on the
Siqura web site at http://www.siqura.com/. Registration is required.
4.6 Dome Cable Definition and Requirements
For operation, the Siqura HSD620PRH and HSD621PRH cameras require either an Ethernet cable
or an appropriate fiber optic cable to carry the signals to a remote viewing site and a cable to
power the dome.
4.6.1 Cable Requirements
For operation, the camera requires a video and cable harness, as described below.
A cable to provide a 24 VAC power supply to the dome.
A Cat-5 Ethernet cable.
Optional cable for alarms.
Important: Ensure the power supply corresponds with the dome's power requirement, or damage
will occur. If any mistake happens, contact a qualified technician.
4.6.2 Verifying Ethernet connectivity
Refer to the following figure to determine whether you have established an Ethernet connection.
Ethernet socket LEDs green/yellow
Green on/off : 100/10 Mbit
Yellow on/blink
Yellow off/flash

Siqura HSD620PRH/621PRH
Page 14
4.6.3 Connecting, Aligning, and Mounting the Camera
Once you have configured the protocol and network switches, connect the main cable to the base
of the camera and make the appropriate connections.
To align mount the pressurized camera:
1. Attach the cable harness to the camera
Attaching cable to the pressurized camera
2. Secure the camera to the housing
Securing the camera to the housing

Dome Setup and Cable Connection
Page 15
3. Attach the dome to the housing
Align the dome Secure the dome
4. Connect the cable as follows:
IP connection configuration

Siqura HSD620PRH/621PRH
Page 16
Cable connection in a mini wall mount
