Siqura FD820M1IR-SFP
HD fixed dome camera with SFP interface
Quick Start Guide
© Siqura B.V. 2016
Version 2.1 (131211-2.1)
FD820M1IR-SFP QSG (MW10)
Connector overview
Figure 6 FD820M1IR-SFP Printed Circuit Board (PCB) connectors
Check package contents
Figure 1 FD820M1IR-SFP package contents
Verify that your FD820M1IR-SFP package contains the following
items.
FD820M1IR-SFP
camera
Conduit
Security torx
Self-tapping
screws (x5)
2-Pin connector
Plastic screw
anchors (x5)
Quick Start Guide
12 Vdc Power adapter
Install the camera
The fixed dome camera can be installed directly on a wall or ceiling.
Make sure that the provided surface has sufficient strength to support the
camera.

1. Make sure that the provided surface has sufficient strength to support
the camera.
To remove the camera from the dome
housing
1. Release the two screws indicated in
figure 2, and then open the dome
cover.
2. Press both sides of the inner cover
and remove it.
3. Loosen the two camera-fastening
screws (figure 3) and detach the
camera housing.
To mount the dome housing
Attach the dome housing to the wall
or ceiling with the supplied screws
and screw anchors. If necessary,
replace the screws with mounting
screws that are more appropriate for
the mounting surface.
To connect the cabling
1. Run the cables through the cable
gland (figure 4).
2. Thread the cables through the
conduit entry (figure 5).
3. Connect the cables to the camera
body as indicated in the following
sections.
4. Place the camera body back onto the
camera housing and tighten the
camera-fastening screws.
5. Fasten the gland body to the
side/back conduit entry.
Figure 4
Connect audio and alarms
3-Pin connector
Figure 5
www.siqura.com
www.tkhsecurity-usa.com
No.
Connector
Pin
Definition
Remarks
1
BNC
-
For analogue video output
2
Micro SD card slot
-
For video recording storage
3
Default button
-
Press the button to restore the defaults.
4
SFP Network
-
For SFP Cable connection
5
Network LEDs
-
Network connection and activity indication
6
Alarm & Audio I/O
1
Audio In (L)
Line In
2
Audio In (R)
3
GND
4
Audio Out (L)
Line Out
5
Audio Out (R)
6
Alarm Out +)
Alarm connection
7
Alarm Out (-)
8
Alarm In (+)
9
Alarm In (-)
7
Power connector
DC 12 V
12 V
Power
Power connection
GND
8
Power connector
AC 24 V
AC1
Power-1
Power connection
GND
AC2
Power-2
Table 1 FD820M1IR-SFP Printed Circuit Board (PCB) connectors description
Attach cabling
Figure 2
2aconne
ctor
Figure 3
Note: Insert the SD card into the Micro SD
card slot before you power on the camera. If
the camera is already powered on, reboot the
camera after the SD card is inserted.
Connect power and network cables to the camera as described in
figure 6 and table 1.
To connect to network
Connect one end of the SFP cable to the SFP connector of the camera
(see figure 6), and connect the other end of the cable to the network
switch.
Note: Check the status of the link indicator and activity LEDs. If the LEDs
are unlit, check the LAN connection.
A green LINK light indicates a good network connection.
The orange ACT light flashes to indicate network activity.
To power on the camera
Plug the 12 Vdc or 24 Vac cable into the power terminal block.
Figure 7 ACT and LINK network LEDs
If microphones and speakers are implemented, the camera can be
used to provide a two-way audio channel.
Connecting an alarm device to the camera input can trigger an output
action to occur based on contact closure settings.
To connect audio
Connect the audio input and output connectors to the terminal block
on the back of the camera (figures 6 and 8).
Via the camera’s Audio webpage, you can set audio streaming to full-
duplex, half-duplex, simplex, or you can disable audio streaming.
To connect an alarm device
Connect the alarm relay connectors
to the terminal block on the back
of the camera (figures 6 and 8).
Use the Application, Motion
Detection, and Tampering
webpages to configure the alarms
as desired.
123456789
Audio
In
GND Audio
Out
Alarm
Out
Alarm
In
L R L R + +
Figure 8 Audio and alarm I/O terminal block
Attach the power, network, audio, and alarms cables to the back of
the camera.
Rubber ring
Find additional manuals for this Siqura product
at: www.siqura.com/support-files

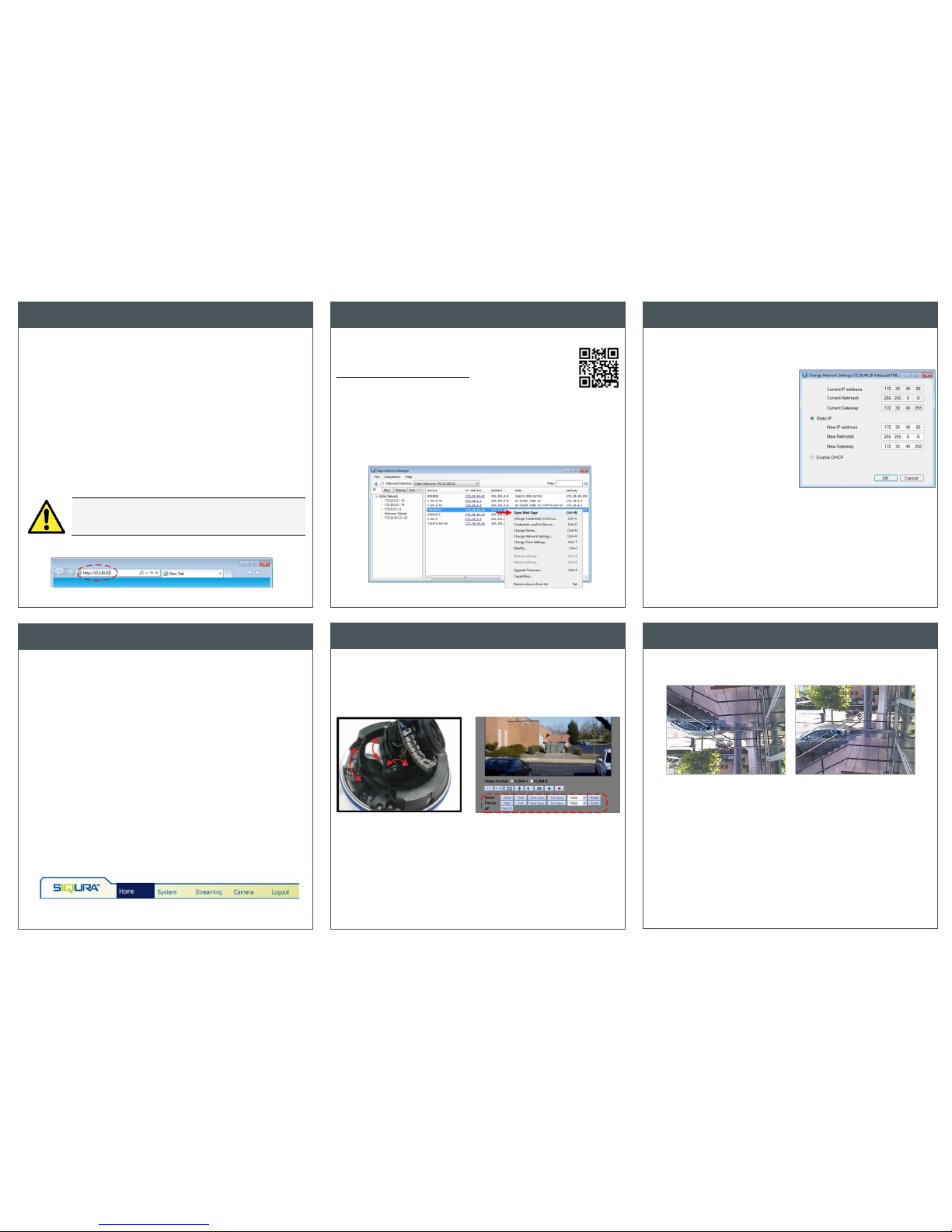

Adjust the lens
Depending on how the FD820M1IR-SFP is mounted, you may need to
rotate the camera image.
Change video rotation
With Siqura Device Manager you can detect the FD820M1IR-SFP on
your network and access its webpages.
You can download Siqura Device Manager at:
http://www.siqura.com/support-files.
The tool detects and lists all Siqura IP devices found on the
network.
To access the webpages of the camera
1. Start Siqura Device Manager.
The network is scanned. Detected devices appear in the List View.
2. Right-click the entry for the camera, and then click Open Web Page.
The login page of the camera is opened in your web browser.
3. Right-click a device and select Browse to access the internal settings
of the camera via a web interface.
Log on to the camera
Use Siqura Device Manager
Across the top of the FD820M1IR-SFP home page are five main menu
items.
Home
Here you can monitor a live video stream or double-click the image to
view stream details.
System
Here you can set the host name, system time, root password, and
other network related settings.
Streaming
Here you can set video and audio formats and compression
parameters.
Camera
Here you can adjust various camera settings, including exposure, white
balance, brightness, sharpness, contrast, and digital zoom.
Logout
The Logout option signs the user out of the camera’s webpages and
opens the Login page.
Figure 12 The FD820M1IR-SFP web interface menus
To open communication with the FD820M1IR-SFP
1. Make an IP connection between the camera and the PC.
To achieve initial access, the network adapter of the PC must be set to
the same subnet as the camera. The factory-set IP address is printed
on a label located on the bottom of the camera.
2. Type the IP address of the camera in the address bar of the browser.
3. Enter the default user name (Admin) and password (1234).
Note that the user name is case sensitive.
4. When prompted by the camera, install the add-on, Siqura Viewer.
5. Make sure that ActiveX controls are enabled in your web browser.
Figure 9 Enter the IP address of the camera into the address bar of your browser
Change the network settings
The FD820M1IR-SFP has a motorised lens.
Manually adjust the Pan/Tilt/Spin holders of the camera to point the lens for
the desired camera view (figure 13). Use Siqura Viewer to check the image
quality and the field of view as you make changes.
Figure 13 Adjust the pan, rotation,
and tilt of the camera as necessary
Figure 14 Zoom and focus buttons on
the home page of the FD820M1IR-SFP
Note: You can set the IR function of FD820M1IR-SFP via the Camera menu.
Navigate the webpages
Figure 15 The FD820M1IR-SFP installation requires rotation
To select a video rotation type
1. On the Streaming tab menu, click Video Format.
2. Choose the required rotation type:
Normal video. The camera’s orientation is not modified.
Flip video. The image rotates across the horizontal axis.
Mirror video. The image rotates across the vertical axis.
90 degree clockwise. The image rotates 90° clockwise.
180 degree rotate. The image rotates 180°.
90 degree counterclockwise. The image rotates 90°
counterclockwise.
3. Click Save.
To change the network settings
1. Right-click the camera in
Siqura Device Manager.
2. Click Change Network Settings.
3. Click Enable DHCP.
- or -
click Static IP, and then enter
the new IP address, subnet
mask, and gateway address.
4. Click OK.
Figure 10 Open the FD820M1IR-SFP webpages with Siqura Device Manager
With Siqura Device Manager you can directly change the network
settings of the FD820M1IR-SFP.
Note: A DHCP server must be installed on the network in order to apply
DHCP network support.
Alternatively, you can change these settings on the Network webpage of the
camera. For more information, see the User Manual.
You can access the settings of the camera via its webpages.
Use Internet Explorer 6.x or higher, Chrome, Firefox or Safari to browse the
webpages.
Figure 11 Network settings
CAUTION: MAKE SURE THAT YOU CHANGE THE DEFAULT ADMIN PASSWORD AT
THE FIRST LOGIN. TO KEEP THE ACCOUNT SAFE, CREATE A STRONG, COMPLEX
PASSWORD. THIS HELPS TO PREVENT UNAUTHORISED ACCESS FROM PEOPLE
WHO TRY TO USE THE DEFAULT ACCOUNT.
