SIRS-E Pilotino WiFi PCB User manual

E518483

1. Introduction
2. Safety Information
3. Specification Characteristics
4. Onboard Features (Nomenclature)
5. Mechanical Details
6. Installation

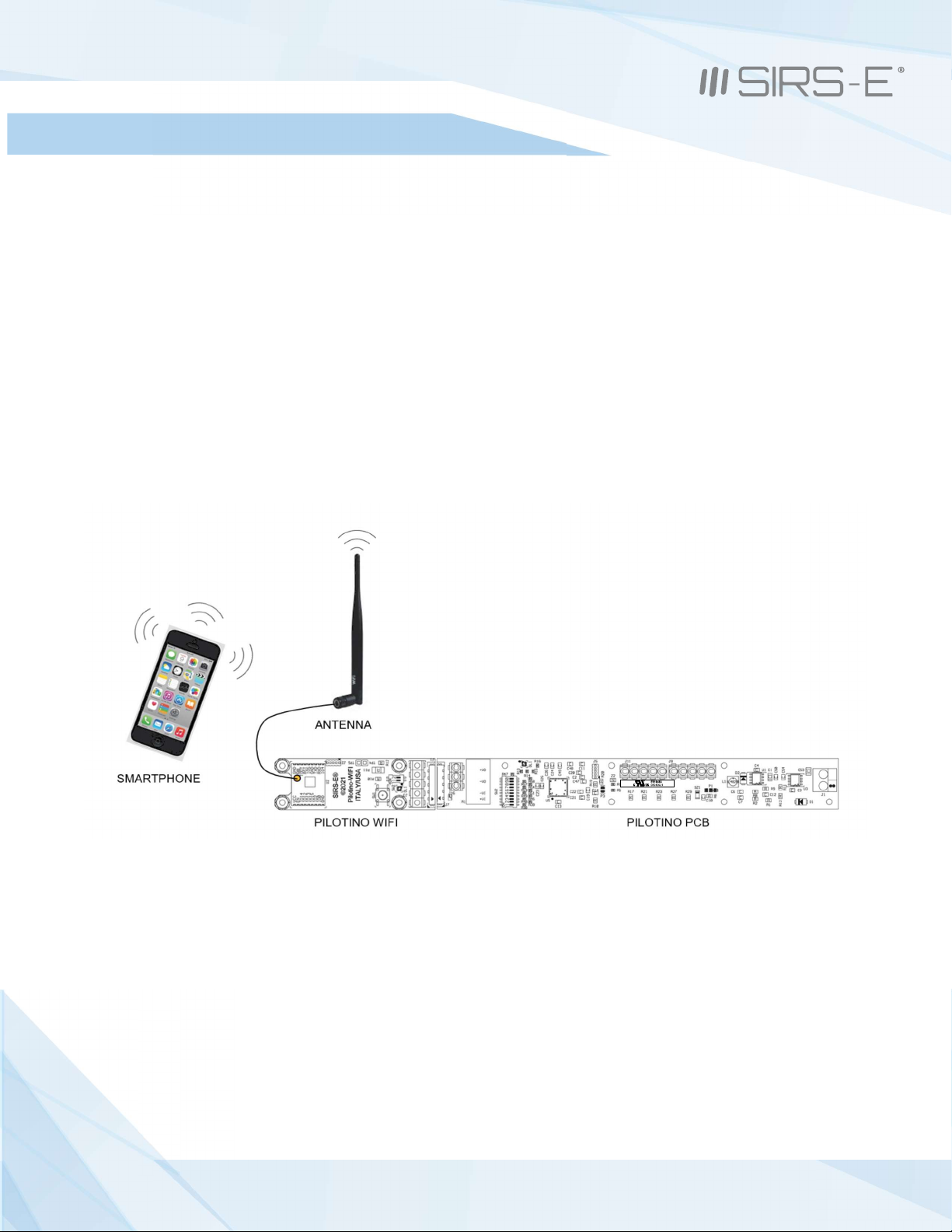

6.1 Access Point Mode Installation
6.1.1 Basic Connection
6.1.2 Daisy Chain
6.2 Station Mode Installation
6.2.1 Basic Connection
6.2.2 Daisy Chain
6.3 Stand Alone Mode Installation
6.3.1 Basic Connection (Access point)
6.3.2 Daisy Chain (Access point)
6.3.3 Basic Connection (Station)
6.3.4 Daisy Chain (Station)
7. WiFi - Access point Mode
7.1 Basic Connection
7.2 Art-Net App Connection
8. WiFi - Station Mode
8.1 Network Connection (WPS)
8.2 IP address
8.3 Art-Net App connection
9. Default Setting
10. Mode LED Indicator
11. Hardware and Accessories
UL Certification
Pg. 3
Pg. 4
Pg. 4
Pg. 5
Pg. 6
Pg. 7
Pg. 8
Pg. 8
Pg. 9
Pg. 10
Pg. 10
Pg. 11
Pg. 12
Pg. 12
Pg. 13
Pg. 14
Pg. 15
Pg. 16
Pg. 16
Pg. 16
Pg. 17
Pg. 17
Pg. 18
Pg. 18
Pg. 19
Pg. 19
Pg. 20
Pg. 21
INDEX
2
3307 West Street Rosenberg, TX 77471 USA - [phone]
Copyright © 2006-2021 SIRS Electronics Inc. All Rights Reserved P WiFi™ PCB Instruction Manual
ILOTINO
Updated 12/2021. Rev 2.7

1. Introduction
One of the most important features of this product involves the onboard IO socket. This socket is
meant to be used with the P ™ PCB with onboard WiFi or capabilities. With the WiFi
ILOTINO
module, you instantly convert this P ™ PCB into an ArtNet node receiving unit. Allowing for
ILOTINO
a completely wireless solution.
Key Features: P WiFi™ PCB
ILOTINO
Compatible with any ArtNet App
Robust Wireless 2.4GHz Signal
Standalone WiFi Network
Onboard IO socket for quick integration
Wire to Board Quick Connectors
Plug and Play with Onboard IO Socket
5 Year Limited Warranty
Made in Italy
UL Recognized

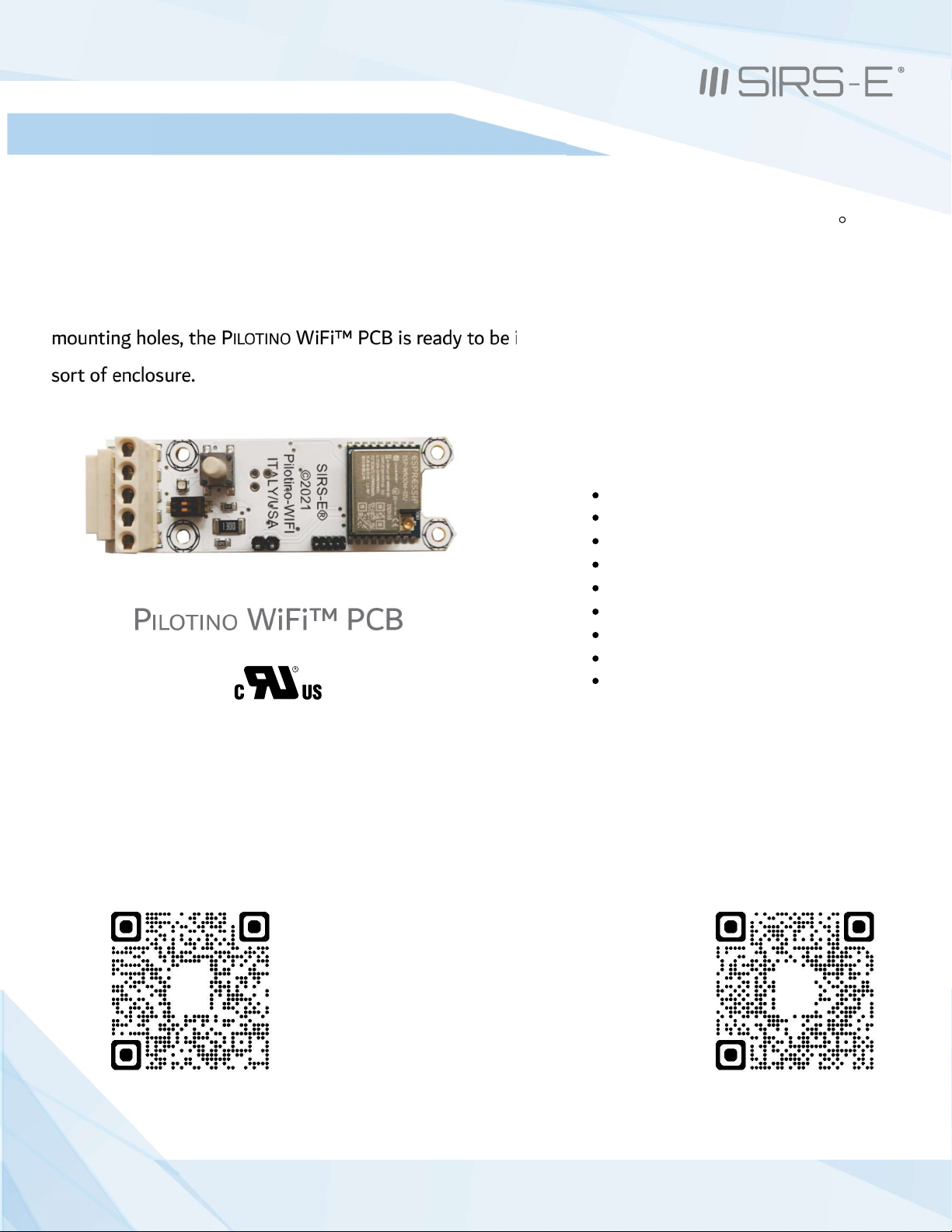

The P WiFi™ PCB is the newest addition to the LED CV DMX decoder family for SIRS-E. This
ILOTINO
version of the P ™ comes in a bare PCB format. This product is intended to be embedded into
ILOTINO
custom fixtures and lighting control systems in which component size is critical. Equipped with four
mounting holes, the P WiFi™ PCB is ready to be installed with M2.5 X 5mm stand-offs into any
ILOTINO
sort of enclosure.
R
P WiFi™ PCB
ILOTINO
3
3307 West Street Rosenberg, TX 77471 USA - [phone]
Copyright © 2006-2021 SIRS Electronics Inc. All Rights Reserved
E518483
Check our YouTube Video!
Package Contents
+ PILOTINO™ WiFi PCB - : Pilotino-WifiSKU
+ u.FL to Female SMA Coax Cable (10 cm)
+ Dipole Tilt Swivel Antenna
Check our page
P WiFi™ PCB Instruction Manual
ILOTINO
Updated 12/2021. Rev 2.7

2. Safety Information
Safety Information
3 Specification Characteristics.
The exposed PCB design of this product results in a major reduction in its foot print. With a slim and narrow design, this
configuration is intended to be used in applications that would benefit from this feature. Some examples of applications
include: fixture integration, custom control enclosures, and others. The exposed design comes with few precautions to
take notice of.
The P WiFi™ PCB is a non-waterproof device with an IP 20 rating. Keep the unit dry at all times and away from
ILOTINO
liquids and humid environments. Make all connections to the ply, the DMX line and the antenna prior to power sup
powering on the circuit. All lead voltage connections to the drivers must be performed by a licensed electrician. Do not
touch any of the surfaces of the device once the unit is powered on. Ensure that all connections are secure and eliminate
all possibilities of shorting the unit. Use the proper wire gauge for the wire to board connections. We recommend using
18 awg stranded wire for the power input, and the DMX daisy chain connection. Do not mount the unit where
vibrations or shock are present.
WiFi mode: Station/SoftAP
Security: WPA/WPA2
Encryption: WEP/TKIP/AES
Working Humidity: 0% - 90% non-condensing
IP Rating: IP 20 Non-waterproof (Keep dry)
Ventilation: Do not install in airtight spaces
Software Specification
Min current from supply: 500 mA
Working Voltage: 5V DC
Operating current: 80 mA
Operating temperature: -10 °C to 45 °C
Hardware Specifications
Frequency: 2.4 GHz - 2.5 GHz
Antenna connector: u.FL
4
3307 West Street Rosenberg, TX 77471 USA - [phone]
Copyright © 2006-2021 SIRS Electronics Inc. All Rights Reserved P WiFi™ PCB Instruction Manual
ILOTINO
Updated 12/2021. Rev 2.7

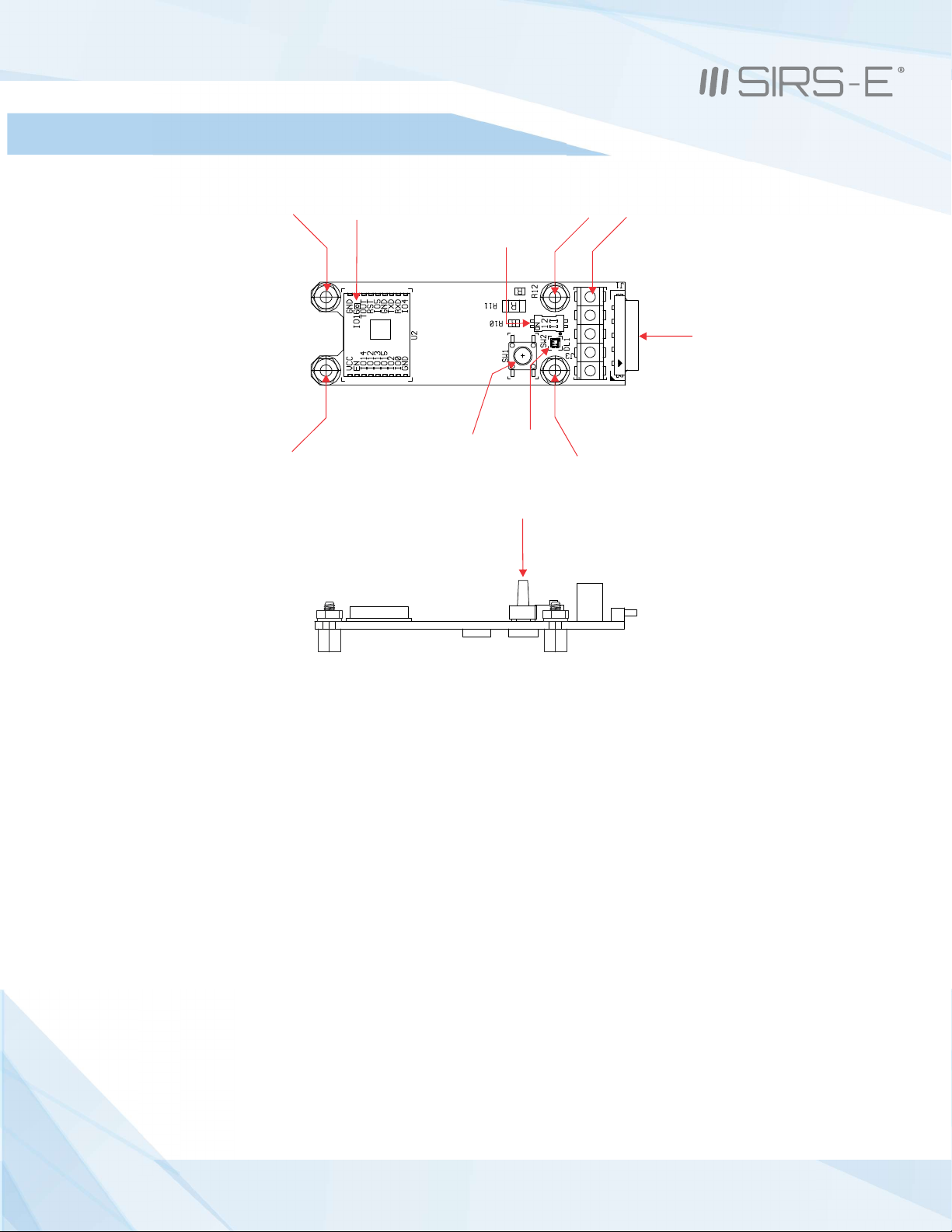

4. Onboard Features
1
44
442
3
6
5
7
1. I/O Connection Socket + DMX out (For P ™ PCB)
ILOTINO
2. I/O wire to board quick connectors
3. Dip Switches to set the DMX line termination
4. Mounting holes for Standoffs M2.5 (metric)
5. Pairing button for WiFi connections
6. Mode Indicator LED
7. u.FL connector to connect a receiving Antenna
5
5
3307 West Street Rosenberg, TX 77471 USA - [phone]
Copyright © 2006-2021 SIRS Electronics Inc. All Rights Reserved P WiFi™ PCB Instruction Manual
ILOTINO
Updated 12/2021. Rev 2.7

5. Mechanical Details
15.84mm
P WiFi™ PCB Top View
ILOTINO
22.2 mm5
68.00mm
16.00mm
49 50. mm
16 25. mm
P WiFi™ PCB Side View
ILOTINO
6
3307 West Street Rosenberg, TX 77471 USA - [phone]
Copyright © 2006-2021 SIRS Electronics Inc. All Rights Reserved P WiFi™ PCB Instruction Manual
ILOTINO
Updated 12/2021. Rev 2.7

6 Installation.
Standoffs
Four 2.5M x 5mm standoffs should be used to properly mount the unit onto a smooth and level surface. It is recommended
that the included factory 2.5M stand offs be used. To fasten the P WiFi™ PCB onto a surface, first the four
ILOTINO screw
screws in a crisscross pattern. To tighten the screws, torqued them down to ¼ turn past hand tight, in in a crisscross aga
pattern. Always tighten the screw opposite to the last screw that was torqued down. Do not over tighten the screws as doing
so will result in damage to the device.
Clearance
Due to the exposed contact points on the P WiFi™ PCB, the risk of shorting the unit should be considered. A minimum
ILOTINO
of 10mm of clearance space is recommended. Never install the P WiFi™ PCB within an enclosed space in which the ILOTINO
P WiFi™ PCB does not have sufficient space away from other components.
ILOTINO
Connections
The P WiFi™ PCB comes equipped with wire to board quick connectors, and a socket connector
ILOTINO to connect to the
P ™ PCB
ILOTINO ILOTINO ILOTINO
. Properly connect the P WiFi™ PCB to the P ™ PCB with the boards facing the same direction.
All wire connections should fit securely into the connectors. Be sure to insert each wire into the connectors deep enough so
that no bare wire is exposed. A good rule of thumb is to strip the wires so that only about 3mm of insulation is removed.
To have the best network connection, place the P WiFi™ PCB in a location where the antenna has a clear line of
ILOTINO
sight from the device connected to.
7
3307 West Street Rosenberg, TX 77471 USA - [phone]
Copyright © 2006-2021 SIRS Electronics Inc. All Rights Reserved P WiFi™ PCB Instruction Manual
ILOTINO
Updated 12/2021. Rev 2.7

6.1 Access Point Mode Installation
6.1.1 Basic Connection
Make sure the P WiFi™ PCB and antenna are connected to the P ™ PCB.
ILOTINO ILOTINO
Power on the P ™ PCB board once proper wiring connections are done to eliminate
ILOTINO
short circuiting the board.
With the smartphone device, go to the “Settings -> WiFi/Network -> PilotWiFi_####, where #### is a
random sequence of four numbers.
When first prompted for a password, type PilotWiFi_0000.
Use any Art-Net IOS or Android App to drive the P ™ PCB
ILOTINO .
8
3307 West Street Rosenberg, TX 77471 USA - [phone]
Copyright © 2006-2021 SIRS Electronics Inc. All Rights Reserved P WiFi™ PCB Instruction Manual
ILOTINO
Updated 12/2021. Rev 2.7

6.1 Access Point Mode Installation
6.1.2 Daisy Chain
Make sure the P WiFi™ PCB and antenna are connected to the P ™ PCB.
ILOTINO ILOTINO
Connect the DMX IN/OUT wires to each of the P ™ PCB boards in a sequence, similar
ILOTINO
to a daisy flower ring, to each corresponding connector.
Power on the P ™ PCB boards once proper wiring connections are done to eliminate
ILOTINO
short circuiting the boards.
With the smartphone device, go to the “Settings -> WiFi/Network -> PilotWiFi_####, where #### is a
random sequence of four numbers.
When first prompted for a password, type PilotWiFi_0000.
Use any Art-Net iOS or Android App to drive the P ™ PCB
ILOTINO .
9
3307 West Street Rosenberg, TX 77471 USA - [phone]
Copyright © 2006-2021 SIRS Electronics Inc. All Rights Reserved P WiFi™ PCB Instruction Manual
ILOTINO
Updated 12/2021. Rev 2.7

6.2 Station Mode Installation
6.2.1 Basic Connection
Make sure when connecting each PCB and antenna to a P ™ PCB.P WiFi™
ILOTINO ILOTINO
Power on the P ™ PCB boards once proper wiring connections are done to eliminate
ILOTINO
short circuiting the boards.
Connect the P WiFi™ PCB to a router by a WPS procedure (for more details see chapter 8.1).
ILOTINO
Also, connect the smartphone to the router and use any Art-Net iOS or Android App to drive each
P ™ PCB.
ILOTINO
10
3307 West Street Rosenberg, TX 77471 USA - [phone]
Copyright © 2006-2021 SIRS Electronics Inc. All Rights Reserved P WiFi™ PCB Instruction Manual
ILOTINO
Updated 12/2021. Rev 2.7

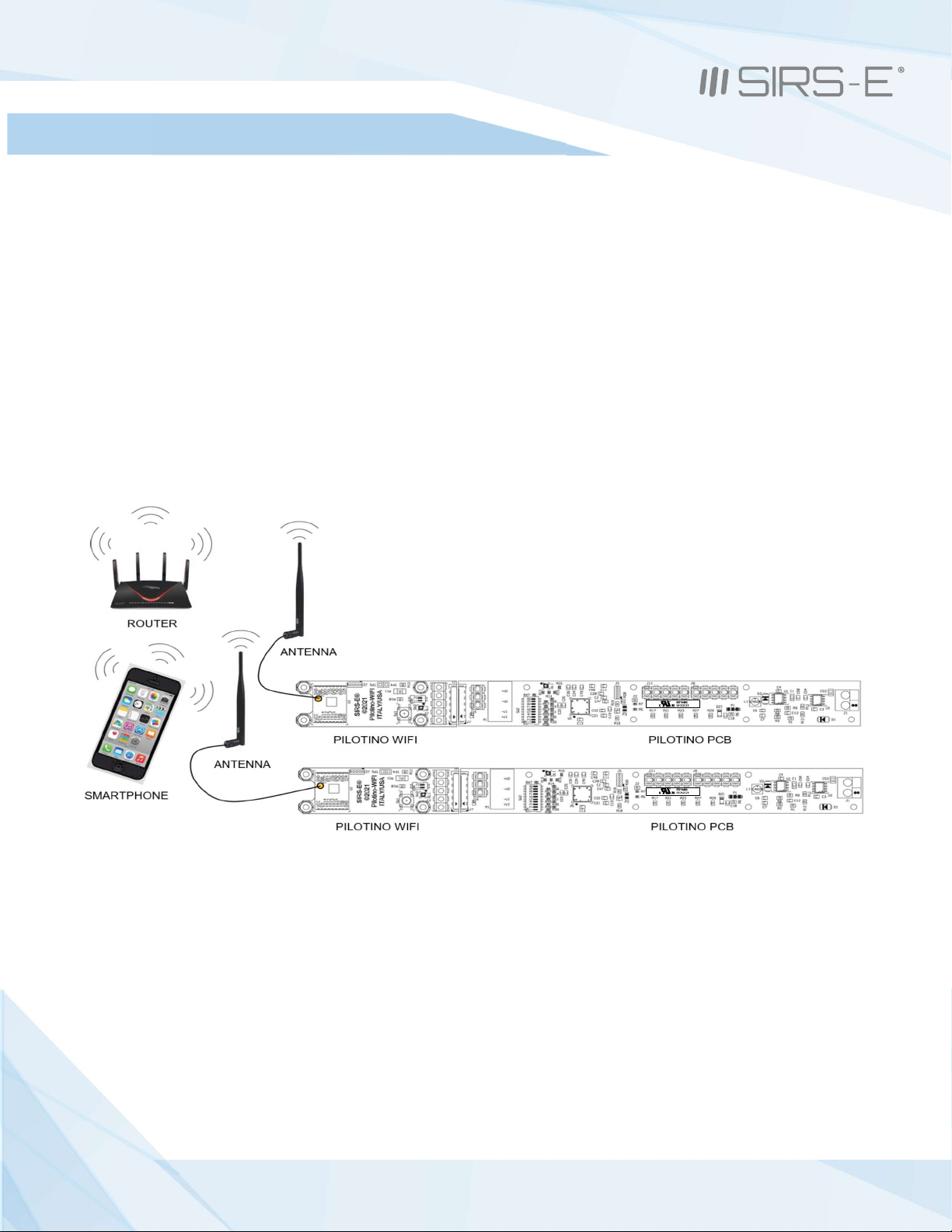

6.2 Station Mode Installation (cont.)
6.2.2 Daisy Chain
Make sure the P WiFi™ PCB and antenna are connected to the P ™ PCB
ILOTINO ILOTINO
that is used individually and another P ™ PCB that is being daisy chained.
ILOTINO
Connect the DMX IN/OUT wires to each of the P ™ PCB boards in a sequence, similar
ILOTINO
to a daisy flower ring, to each corresponding connector that are being daisy chained.
Power on the P ™ PCB boards once proper wiring connections are done to eliminate
ILOTINO
short circuiting the boards.
Connect the P WiFi™ PCB to a router PS procedure (for more details see chapter 8.1).
ILOTINO by a W
Also connect the smartphone to the router and use any Art-Net iOS or Android App to drive each
PI ™ PCB.
LOTINO
11
3307 West Street Rosenberg, TX 77471 USA - [phone]
Copyright © 2006-2021 SIRS Electronics Inc. All Rights Reserved P WiFi™ PCB Instruction Manual
ILOTINO
Updated 12/2021. Rev 2.7

6.3 Stand Alone Mode Installation
6.3.1 Basic Connection (Access Point)
Make sure the P WiFi™ PCB and antenna are connected to a power source (5 Vdc).
ILOTINO
Properly connect the P WiFi™ PCB to a DMX Driver utilizing the DMX IN/OUT connectors.
ILOTINO
Power on the P WiFi™ PCB once proper wiring connections are done to eliminate
ILOTINO
short circuiting the boards or controller.
With the smartphone device, go to the “Settings -> WiFi/Network -> PilotWiFi_####, where #### is a
random sequence of four numbers.
When first prompted for a password, type PilotWiFi_0000.
Use any Art-Net iOS or Android App to drive the DMX device.
12
3307 West Street Rosenberg, TX 77471 USA - [phone]
Copyright © 2006-2021 SIRS Electronics Inc. All Rights Reserved P WiFi™ PCB Instruction Manual
ILOTINO
Updated 12/2021. Rev 2.7

6.3 Stand Alone Mode Installation (cont.)
6.3.2 Daisy Chain (Access Point)
Make sure the P WiFi™ PCB and antenna are connected to a power source (5 Vdc).
ILOTINO
Connect the DMX IN/OUT wires to each of the MX Drivers in a sequence, similar to a daisy flower ring, to D
each corresponding connector.
Power on the P WiFi™ PCB once proper wiring connections are done to eliminate short circuiting the
ILOTINO
boards or controllers.
With the smartphone device, go to the “Settings -> WiFi/Network -> PilotWiFi_####, where #### is a
random sequence of four numbers.
When first prompted for a password, type PilotWiFi_0000.
Use any Art-Net iOS or Android App to drive the DMX devices.
13
3307 West Street Rosenberg, TX 77471 USA - [phone]
Copyright © 2006-2021 SIRS Electronics Inc. All Rights Reserved P WiFi™ PCB Instruction Manual
ILOTINO
Updated 12/2021. Rev 2.7

6.3 Stand Alone Mode Installation (cont.)
6.3.3 Basic Connection (Station)
Make sure each P WiFi™ PCB and antenna are connected to a power source (5 Vdc).
ILOTINO
Properly connect each P WiFi™ PCB to a DMX Driver utilizing the DMX IN/OUT connectors.
ILOTINO
Power on the P WiFi™ PCB once proper wiring connections are done to eliminate
ILOTINO
short circuiting the boards.
Connect each P WiFi™ PCB to the same router
ILOTINO by a WPS procedure (for more details see chapter 8.1).
Also connect the smartphone to the router and use any Art-Net iOS or Android App to drive each DMX
device.
14
3307 West Street Rosenberg, TX 77471 USA - [phone]
Copyright © 2006-2021 SIRS Electronics Inc. All Rights Reserved P WiFi™ PCB Instruction Manual
ILOTINO
Updated 12/2021. Rev 2.7

6.3 Stand Alone Mode Installation (cont.)
6.3.4 Daisy Chain (Station)
Make sure the P WiFi™ PCB and antenna are connected to a power source (5 Vdc).
ILOTINO
Connect the DMX IN/OUT wires to each of the DMX Drivers boards in a sequence, similar
to a daisy flower ring, to each corresponding connector.
Power on the P WiFi™ PCB once proper wiring connections are done to eliminate
ILOTINO
short circuiting the boards or controllers.
Connect each P WiFi™ PCB to the same router by WPS procedure (for more details see chapter 8.1)
ILOTINO
Also connect the smartphone to the router and use any Art-Net iOS or Android App to drive each DMX
device.
15
3307 West Street Rosenberg, TX 77471 USA - [phone]
Copyright © 2006-2021 SIRS Electronics Inc. All Rights Reserved P WiFi™ PCB Instruction Manual
ILOTINO
Updated 12/2021. Rev 2.7

The Access Point (default mode) is the P WiFi™ PCB acting as its own network. A cyan indicator LED turns steady ILOTINO
on the P WiFi™ PCB. This allows for a complete wireless solution for a smartphone to act as a DMX controller. ILOTINO
7. Wi-Fi - Access Point Mode
7.1 Basic Connection
7.1 Basic Connection
7.1 Network Connection
7.2 Art-Net App Connection
Art-Net App works on any compatible IOS or Android
When connecting the Art-Net App, make sure that the device being used is connected to the same WiFi network
that the P WiFi™ PCB
ILOTINO is broadcasting
After setting up the App on the smartphone device, a cyan indicator LED on the P WiFi™ PCB will blink slowly
ILOTINO
Art-Net signal present!
After turning on the power to the P WiFi™ PCB, a green indicator LED turns steady.
ILOTINO
After a few seconds, the indicator LED turns from green to cyan; the P ™’s internal WiFi network is
ILOTINO
now ready to pair.
With the smartphone device, go to the “Settings -> WiFi/Network -> PilotWiFi_####, where #### is a
random sequence of four numbers.
When first prompted for a password, type PilotWiFi_0000
16
3307 West Street Rosenberg, TX 77471 USA - [phone]
Copyright © 2006-2021 SIRS Electronics Inc. All Rights Reserved P WiFi™ PCB Instruction Manual
ILOTINO
Updated 12/2021. Rev 2.7

8. Wi-Fi - Station Mode
8.1 Network Connection (WPS)
The Station mode is when the P WiFi™ PCB connects to a near by wireless internet router. A blue indicator LED ILOTINO
on the P WiFi™ PCB turns steady. This allows for a complete wireless solution for a smartphone to act as a DMX ILOTINO
controller. With the Station Mode, the router can connect to multiple P WiFi™ PCB with a combination of basic
ILOTINO
connection and daisy chain connections. Very user friendly when working on different projects from residential to a
business., or personal use.
After turning on the power to the P WiFi™ PCB, a green indicator LED turns steady. ILOTINO
After a few seconds, the indicator LED turns from green to cyan; the P ™’s internal WiFi network is ready
ILOTINO
to pair.
On a near by wireless router, press the WPS button to initialized scanning for new devices.
Locate the paring button, on the P WiFi™ PCB, then press and hold the button until the LED ILOTINO
changes color, from cyan to white.
A steady blue indicator LED is shown on the P WiFi™ PCB representing a successful connection
ILOTINO
with a wireless router.
A slow flashing white indicator LED is shown on the P WiFi™ PCB representing a failed connection ILOTINO
with a wireless router. In this case, repeat the WPS procedure.
Perform the same operation for all P WiFi™ PCB
ILOTINO
17
3307 West Street Rosenberg, TX 77471 USA - [phone]
Copyright © 2006-2021 SIRS Electronics Inc. All Rights Reserved P WiFi™ PCB Instruction Manual
ILOTINO
Updated 12/2021. Rev 2.7

8.2 IP Address
8.3 Art-Net App Connection
Art-Net App works on any compatible IOS or Android
Configure the WiFi settings and connect the smartphone device to the router in which will be connected on the
same network as the P WiFi™ PCB
ILOTINO .
Launch an application on the smartphone device that has configuration with Art-Net
After setting up the App on the smartphone device, a blue indicator LED on the P WiFi™ PCB will blink slowly:
ILOTINO
Art-Net signal present!
The IP addresses are an identifier assigned from the router and are required for connecting devices to
access the network.
On a computer or smartphone device, access the Network & Internet settings and locate the P WiFi™ PCB
ILOTINO
IP settings in the properties section to correctly set the Art-Net App.
Note: P WiFi™ PCB support only a DHCP protocol.
ILOTINO
18
3307 West Street Rosenberg, TX 77471 USA - [phone]
Copyright © 2006-2021 SIRS Electronics Inc. All Rights Reserved P WiFi™ PCB Instruction Manual
ILOTINO
Updated 12/2021. Rev 2.7

9. Default Setting
To return the P WiFi™ PCB to the default settings, press and hold the pairing button, for about 10
ILOTINO
seconds, until the indicator LED turns green and has blinked once.
The indicator LED will turn cyan after a few seconds to indicate the P WiFi™ PCB is acting as an access point
ILOTINO
10. Mode LED Indicator
- Green Led Static: Power ON
- Cyan LED static: P WiFi™ PCB
ILOTINO working with the internal network
- Cyan LED slow blinking: Art-Net or sCAN signal present
- Blue LED static: Module connected to an external WiFi network
- Blue LED slow blinking: Art-Net or sACN signal present
- Blue LED fast blinking: Module disconnected from the external WiFi network
- White LED static: WPS connection
- White LED slow blinking: WPS connection failed
- Yellow LED: DMX signal present on J1 and J3 connector
19
3307 West Street Rosenberg, TX 77471 USA - [phone]
Copyright © 2006-2021 SIRS Electronics Inc. All Rights Reserved P WiFi™ PCB Instruction Manual
ILOTINO
Updated 12/2021. Rev 2.7

11. Hardware and Accesories
The expansion module is to equip the with onboard WiFi capabilities can be instantlyP ™ PCB
ILOTINO
converted into an ArtNet node receiving unit. The has an ANT pin to connect a P WiFi™ PCB
ILOTINO
receiving Antenna opposite from the IO socket.
3307 West St.
Rosenberg , Texas 77471
Phone: [phone]
www.sirs-e.com
20
3307 West Street Rosenberg, TX 77471 USA - [phone]
Copyright © 2006-2021 SIRS Electronics Inc. All Rights Reserved
Key Features:
Frequency of 2.4-2.5GHz
50 ohm impedance
u.FL to Female SMA connection
Coax cable at 10 cm in length
P WiFi™ PCB Instruction Manual
ILOTINO
Updated 12/2021. Rev 2.7
