3One data IMC100-2T1F-1D User manual

IMC100-2T1F-1D(3IN1)
Industrial Media Converter
Quick Installation Guide
3onedata Co., Ltd.
Address:
3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili, Nanshan District,
Shenzhen
Website:
www.3onedata.com
Te l :
[phone]
Fax:
[phone]
【
Package Checklist
】
Please check whether the package and accessories are intact
while using the media converter for the first time
1. Media converter (equipped
with terminal blocks)
2.
Quick installation
guide
3. DIN-
Rail mounting
attachment
4. CD
5.
Certification
6.
Warranty card
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【
Product Overview
】
The product is industrial media converter. Its model is:
IMC100-2T1F-1D(3IN1) (1 100M fiber port+2 100M copper
ports+1 3IN1 serial port)
【
Panel Design
】
Rear view, top view and bottom view
Front view and side view
1. DIN-Rail mounting kit
2. Power supply terminal
3. Grounding screw
4. Power supply indicator
5. Running indicator
6. Port indicator
7. 100M fiber port
8. 100M copper port
9. 3IN1 serial port
10. Serial port indicator
【
Mounting Dimension
】
Unit: mm
【
DIN-Rail Mounting
】
For convenient usage in industrial environments, the product
adopts 35mm DIN-Rail mounting, mounting steps as below:
Step 1 Check if the DIN-Rail mounting kit is installed firmly.
Step 2 Insert the bottom of DIN-Rail mounting kit (one side
with spring support) into DIN-Rail, and then insert
the top into DIN-Rail.
Tips:
Insert a little to the bottom, lift upward and then insert
to the top.
Step 3 Check and confirm the product is firmly installed on
DIN-Rail, then mounting ends.
【
Disassembling DIN-Rail
】
Step 1 Device power off.
Step 2 After lift the device upward slightly, first shift out the
top of DIN-Rail mounting kit, then shift out the
bottom of DIN-Rail, disassembling ends.

Notice:
Don't place or install the device in area near water or
moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power
supply specification to avoid over-voltage damaging the
device.
The device surface temperature is high after running;
please don't directly contact to avoid scalding.
【

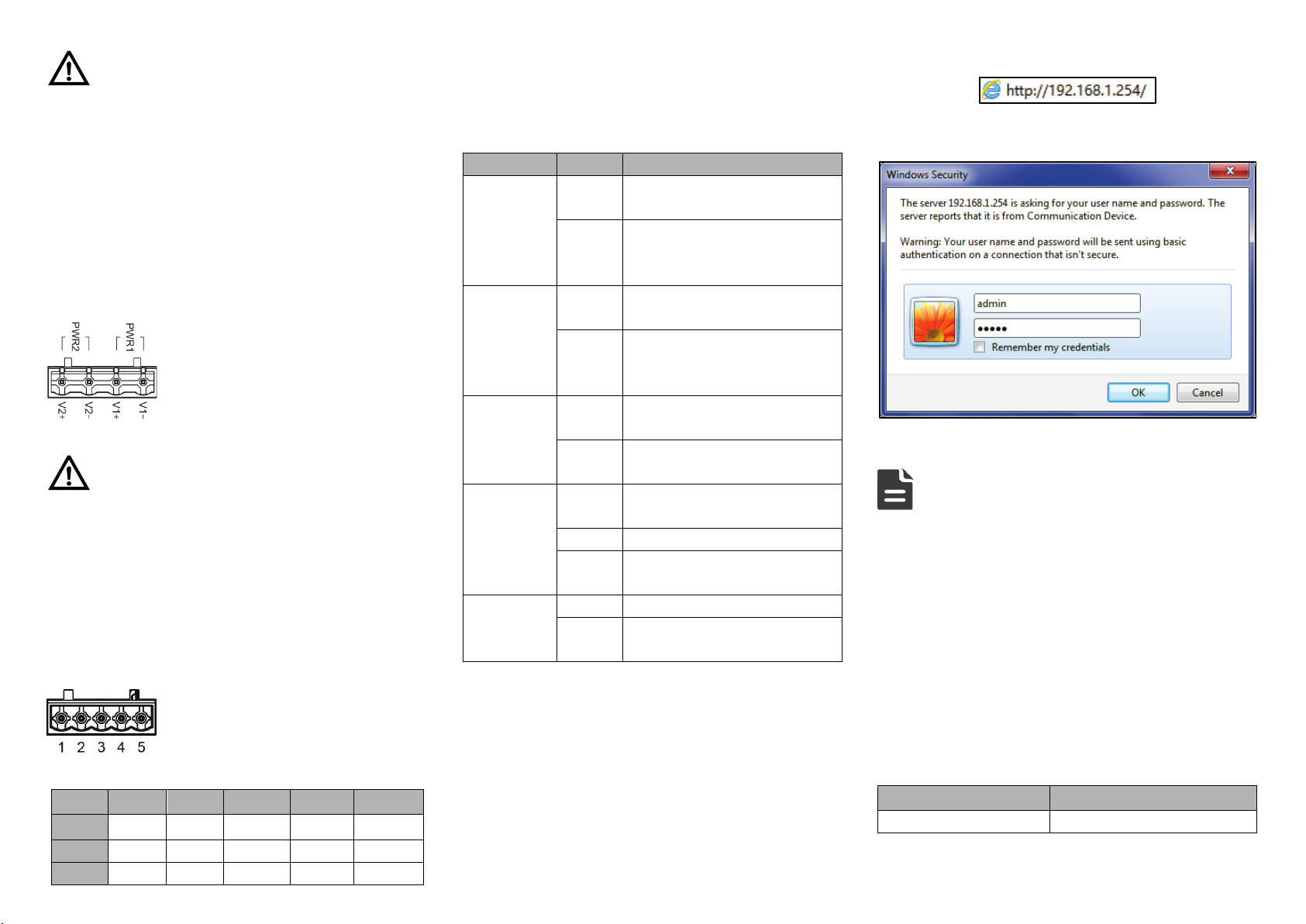

Power Supply Connection
】
DC power supply
This device provides 4-pin power supply
terminal blocks and 2 independent DC
power supply systems, PWR1 and PWR2.
This power supply has non-polarity and
reverse connection protection.
Power supply range: 9 ~ 70VDC
Notice
：
Power ON operation: first connect power line to the
connection terminal of device power supply, then power
on.
Power OFF operation: first unpin the power plug, then
remove the power line, please note the operation order
above.
【
Serial Port Connection
】
3IN1 serial port
This device provides 3IN1 serial port and
supports RS232, RS485 and RS422 at
the same time. The interface type is
terminal blocks and its pin definitions are
shown in the table below:
PIN 1 2 3 4 5
RS-232 —TXD GND —RXD
RS-485
D+
D-
GND
—
—
RS-422
T+
T-
GND
R+
R-
【
Checking LED Indicator
】
The device provides LED indicators to monitor its operating
status, which has simplified the overall troubleshooting
process. The function of each LED is described in the table
below:
LED
Status
Description
P1
ON Power supply P1
is connected
and running normally
OFF
Power supply P1 is
disconnected and running
abnormally
P2
ON Power supply P2
is connected
and running normally
OFF
Power supply P2 is
disconnected and running
abnormally
RUN
OFF Device is not powered on or in
an abnormal state
Blinking Blinks once per second, device
runs normally
1-3
ON Port
has established valid
connection
Blinking
Data is being transmitted
OFF Port hasn’
t established valid
connection
COM
ON
Data is being transmitted
OFF No data is being transmitted or
port is in an abnormal state
【
Logging in to WEB Interface
】
This device supports WEB management and configuration.
Computer can access the device via Ethernet interface. The
way of logging in to device’s configuration interface via IE
browser is shown as below:
Step 3 Configure the IP addresses of computer and the
device to the same network segment, and the
network between them can be mutually accessed.
Step 4 Enter device’s IP address in the address bar of the
computer browser.
Step 5 Enter device’s username and password in the login
window as shown below.
Step 6 Click “OK” button to login to the WEB interface of
the device.
Note:
The default IP address of the device is “192.168.1.254”.
The default username and password of the device is
“admin”.
If the username or password is lost, user can restore it to
factory settings via device DIP switch or management
software; all modified configurations will be cleared
after restoring to factory settings, so please backup
configuration file in advance.
Please refer to user manual for specific configuration
method of logging in to WEB interface and other
configurations about network management function.
【
Specification
】
Panel
100M fiber port
100 Base-FX

100M copper port 10/100Base-T(X)self-adaption,
RJ45 port, self-adaptive
full/half duplex mode or forced
operating
mode, supports
MDI/MDI-X self-adaption
Indicator P
ower supply indicator,
running indicator, port
indicator, data indicator
Power supply
Input power supply 9～70VDC
Support dual power supply
Terminal blocks 4-pin 7.62mm
pitch terminal
blocks
Switch property
Backplane bandwidth
5.6G
Buffer size
4Mbits
MAC address
16K
Power consumption
No-load
3.00W@24VDC
Full-load
3.24W@24VDC
Operating environment
Operating temperature
-40
～
85
℃
Storage temperature
-40
～
85
℃
Operating humidity
5%
～
95% (no condensation)
Protection grade
IP40 (metal housing)
