Skandia Elevator I Series User manual

BTI
ASSEMBLY INSTRUCTIONS
I-LINE
ZMA0720US 2020-10-01

Inspection of Goods
Check that the number of packages agrees with the delivery note and that
the packing and goods are not damaged. Make a note of any damage and
missing materials on the consignment note and report it to the carrier and
to us. Make sure the delivery is complete after unpacking the goods. Any
materials that are found to be incorrect must not be assembled.
Warranty
A 2-year factory warranty from the day of delivery applies to all models
of Skandia Elevator AB machinery. A condition of the warranty and any
subsequent compensation is that Skandia Elevator AB is contacted and an
agreement reached between the customer and Skandia Elevator AB on how
any faults should be rectied. The warranty covers all parts that are damaged
or break due to faulty design or manufacture. Faults and damage caused by
faulty assembly, incorrect use, or lack of maintenance will not be covered by
the warranty.
CE mark
A CE mark is located on the transmission side of the drive and is proof
that the machine has been manufactured in accordance with EU machine
directives and complies with safety requirements. The CE mark contains
information concerning year of manufacture, model designation, and order
number. Always specify the order number in the event of a claim and when
ordering spare parts.
EC Declaration
Skandia Elevator AB
Arentorp
S-53494 Vara
SWEDEN
declare under our sole responsibility that the product:
BTI
order number:
.............................................................................................................................................................................
to which this declaration relates is in conformity with Council Directive of
December 29, 2009, on the harmonization of the member States relating to
machinery, 2006/42/EC.
Unless otherwise specied on the CE mark, the product is manufactured
in accordance with EU Machinery Directive and is classied as Category II
0D/0D.
Vara 29/12 2009
Joakim Larsson, CEO
SKANDIA ELEVATOR – BTI
Delivery information

Machine overview..................................................................................................................6
Safety information...................................................................................................................7
General safety information...............................................................................................................................7
Electrical safety .............................................................................................................................................................8
Safety decals....................................................................................................................................................................9
Before assembly.................................................................................................................... 11
Transport in both directions ........................................................................................................................12
Connection of the machine.................................................................................... 13

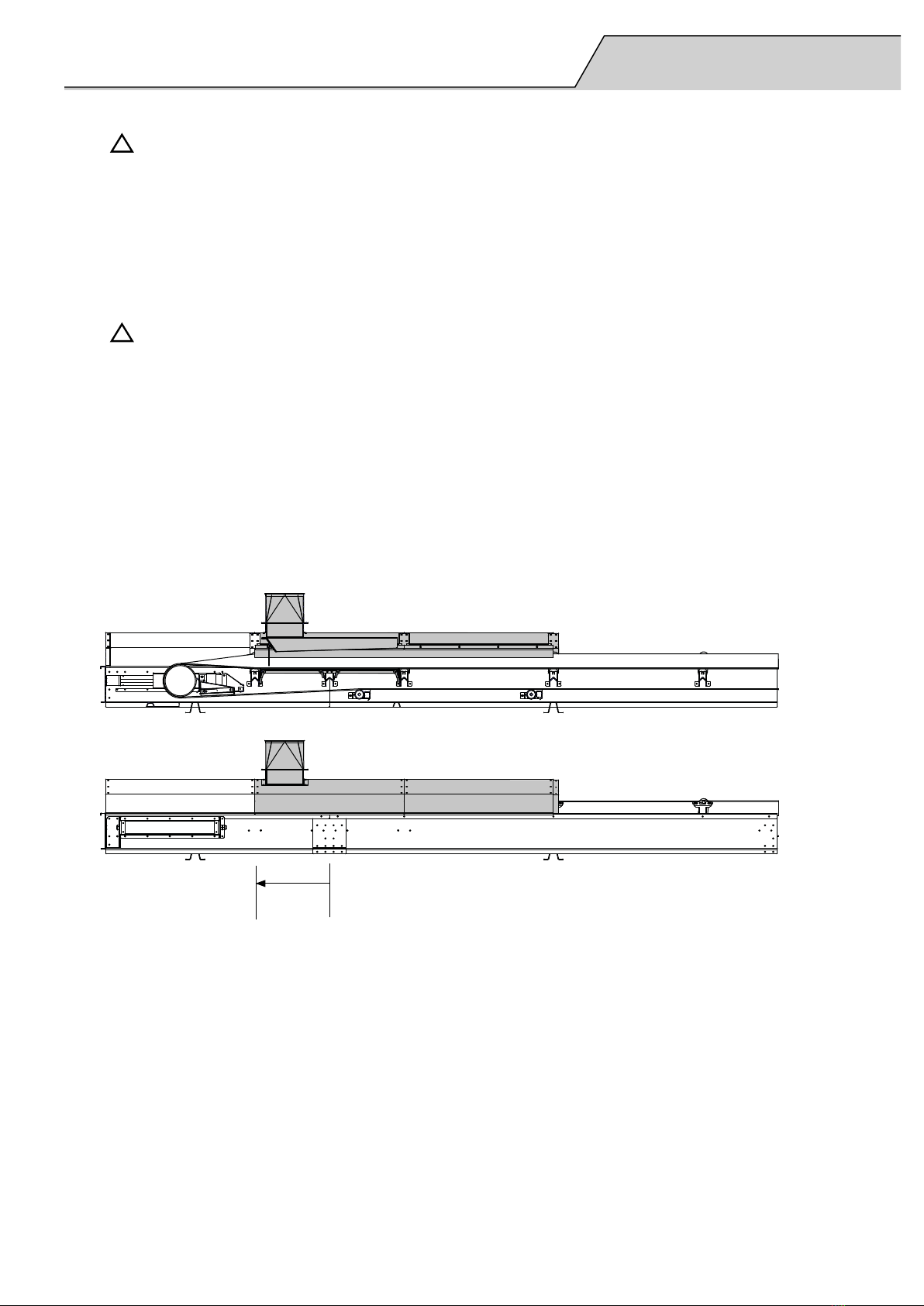

Inlet.........................................................................................................................................................................................13
Connection to following machine...........................................................................................................13
Assembling the machine............................................................................................ 14
Belt steering................................................................................................................................. 20
Basic setting for carrying idlers and return idlers...............................................................20
Adjustments of carrying idlers for conveying in both directions .........................20
Belt steering adjustments..............................................................................................................................21
Thank you for choosing Skandia Elevator!
Your conveyor system must be assembled correctly and maintained
thoroughly if it is to operate satisfactorily. These assembly instructions and
the separate maintenance instructions must be followed for the warranty to
apply.
We hope you will be pleased with your Skandia conveyor equipment for a long
time.
SKANDIA ELEVATOR – BTI

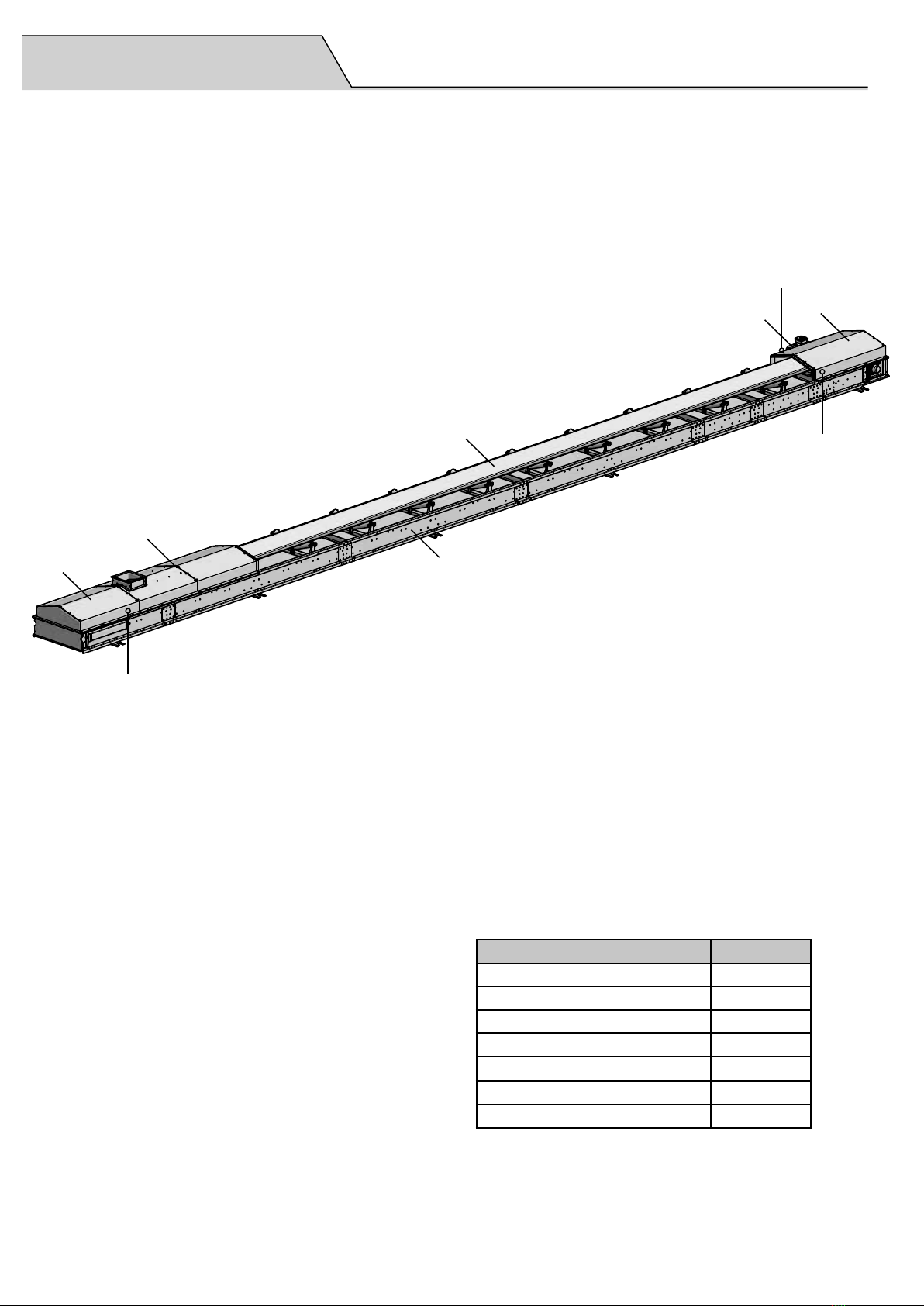

Contents

Parts Pos.
Tail end 1
Intermediate section 2
Drive 3
Loading Unit 4
Conveyor belt 5
Angle gear motor 6
Safety decals DEK X X X X
2
1
3
4
5
6
DEK3150
DEK3150
DEK3070
6 SKANDIA ELEVATOR – BTI
Machine overview

The owner of the transport equipment is responsible for these assembly
instructions always being available to the tters, electricians, maintenance
technicians and engineering technicians concerned.
Incorrect assembly and/or operation may lead to personal injury or damage
to the conveyor equipment and/or other equipment. It can also cause
malfunctions or a reduction in capacity.
Read the assembly instructions carefully before assembly, electrical
connection, maintenance or operation commences. If any part of these
instructions should be difcult to comprehend, please get in touch with your
reseller for assistance.
The safety information is presented and interpreted as follows:
!
WARNING!
Disregarding instructions given in warnings can cause serious personal
injury or death.
!
IMPORTANT!
Ignoring the instructions given in important texts may cause damage
to the conveyor equipment and/or other equipment. It can also cause
malfunctions or a reduction in capacity.
Note! indicates that the text contains information that will simplify the
assembly process.
General
!
WARNING!
• Ensure that everyone responsible for assembly, electrical connection,
maintenance and operation of the conveyor equipment has read and
understood the instructions and safety information.
• Use protective gloves, helmet, steel-toed boots, ear defenders,
protective goggles and high-vis vest when carrying out assembly,
electrical connection, maintenance and operation of conveyor
equipment.
7
SKANDIA ELEVATOR – BTI
Safety information

!
WARNING!
• Stop the machinery and turn off electric power before attempting any
type of assembly, electrical connection or maintenance work.
• Do not start the machinery without the lid, hatches, covers, guards,
and connections attached in such a way that they can only be opened
with tools.
• Connections to, from and between machinery must be permanently
mounted and fully enclosed.
!
IMPORTANT!
• If the machine is being assembled outdoors, the motors and
transmissions must be fitted with a weather cover.
• If a short circuit should occur, make sure that the electrical equipment
is in working order before continuing operation.
• Make usre that the electrical equipment is kept free from dirt, dust,
moisture, and electrostatic charge.
• The machine is not designed to be stood or walked on.
Electrical connection
Incorrect electrical connection may lead to personal injury or damage to the
conveyor equipment and/or other equipment. It can also cause malfunctions
or a reduction in capacity.
!
WARNING!
• All electrical equipment must be connected by a qualified electrician.
See separate connecting directions for electronics.
• The power switch must be permanently mounted and located to allow
easy access when performing maintenance work.
• Fit inlet cable-operated emergency stop according to the
manufacturer's instructions. Cable-operated emergency stop is a
requirement for CE certification of the machine if it is accessible
during operation.
• Make sure the speed monitor is engaged during operation.
!
IMPORTANT!
• Make sure the motor protection is set to the correct ampere setting for
the motor.
Maintenance
Inadequate maintenance may lead to personal injury or damage to the
conveyor equipment and/or other equipment. It can also cause malfunctions
or a reduction in capacity.
!
WARNING!
Connections to, from, and between machinery must be permanently
mounted and fully enclosed. If the installation design does not allow
this at an outlet, nish off with a 1 m (3.3 ft) pipe.
8 SKANDIA ELEVATOR – BTI

Part number/Safety decal
Refer to the "Machine Overview" chapter for location.
Written denition
DEK3090 Read the "Back stop" section in the
elevator's assembly instructions before
test starting the motor for the rst time.
DEK3100 Do not place the valve with the motor
side face down.
DEK3140 Changing settings and equipment is
prohibited.
DEK3150 Warning for conveyor belt and idler!
DEK3060 Warning for bucket belt!
S
K
A
N
D
I
A
E
L
E
V
A
T
O
R
–
D
E
K
3
0
9
0
SKANDIA ELEVATOR – DEK3060
S
K
A
N
D
I
A
E
L
E
V
A
T
O
R
–
D
E
K
3
1
0
0
S
K
A
N
D
I
A
E
L
E
V
A
T
O
R
–
D
E
K
3
1
4
0
SKANDIA ELEVATOR – DEK3150
Safety decals
!
WARNING!
The machine is supplied with safety decals on delivery. They must not be removed or defaced. If
a safety decal becomes damaged, you can order a new one free of charge from Skandia Elevator
AB. Specify the part number of the decal. See the section below and the previous chapter Machine
Overview.
There are safety decals for:
- Mandatory (white symbol on round blue background).
- Forbidden (black strike-through symbol on round white background with red surround).
- Warning (black symbol on triangular yellow background with black surround).
!
WARNING!
The mandatory instruction, forbiddance or warning given on all safety decals must be considered or
serious injury or death may follow.
Skandia Elevator machines may have the following safety decals:
9
SKANDIA ELEVATOR – BTI

DEK3030 Warning for conveyor chain!
DEK3040 Warning for chain drive!
DEK3070 Warning for rotating conveyor drive
shaft!
DEK3080 Warning for rotating elevator drive shaft!
DEK3160 Warning for moving machinery!
DEK3110/DEK3120 Warning for moving machinery!
DEK3010 Warning for dust explosion!
DEK3130 Warning, maximum 2 persons = 200
kg/440 lbs may be on the platform and
ladders at one time!
SKANDIA ELEVATOR – DEK3070
SKANDIA ELEVATOR – DEK3080
SKANDIA ELEVATOR – DEK3110
SKANDIA ELEVATOR - DEK3010
SKANDIA ELEVATOR – DEK3130
MAX
200 440
/
=kg lb
SKANDIA ELEVATOR – DEK3120
SKANDIA ELEVATOR - DEK3030
SKANDIA ELEVATOR – DEK3040
SKANDIA ELEVATOR– DEK3160
10 SKANDIA ELEVATOR – BTI

1.
Note! Bolts for assembly are included in a bag attached to a joint plate for
each intermediate section and for the drive end.
2.
!
IMPORTANT!
On delivery, carrying idlers and plow scraper in tail end and carrying
idler and snub idler in drive end are secured with straps. Make sure that
the straps are removed.

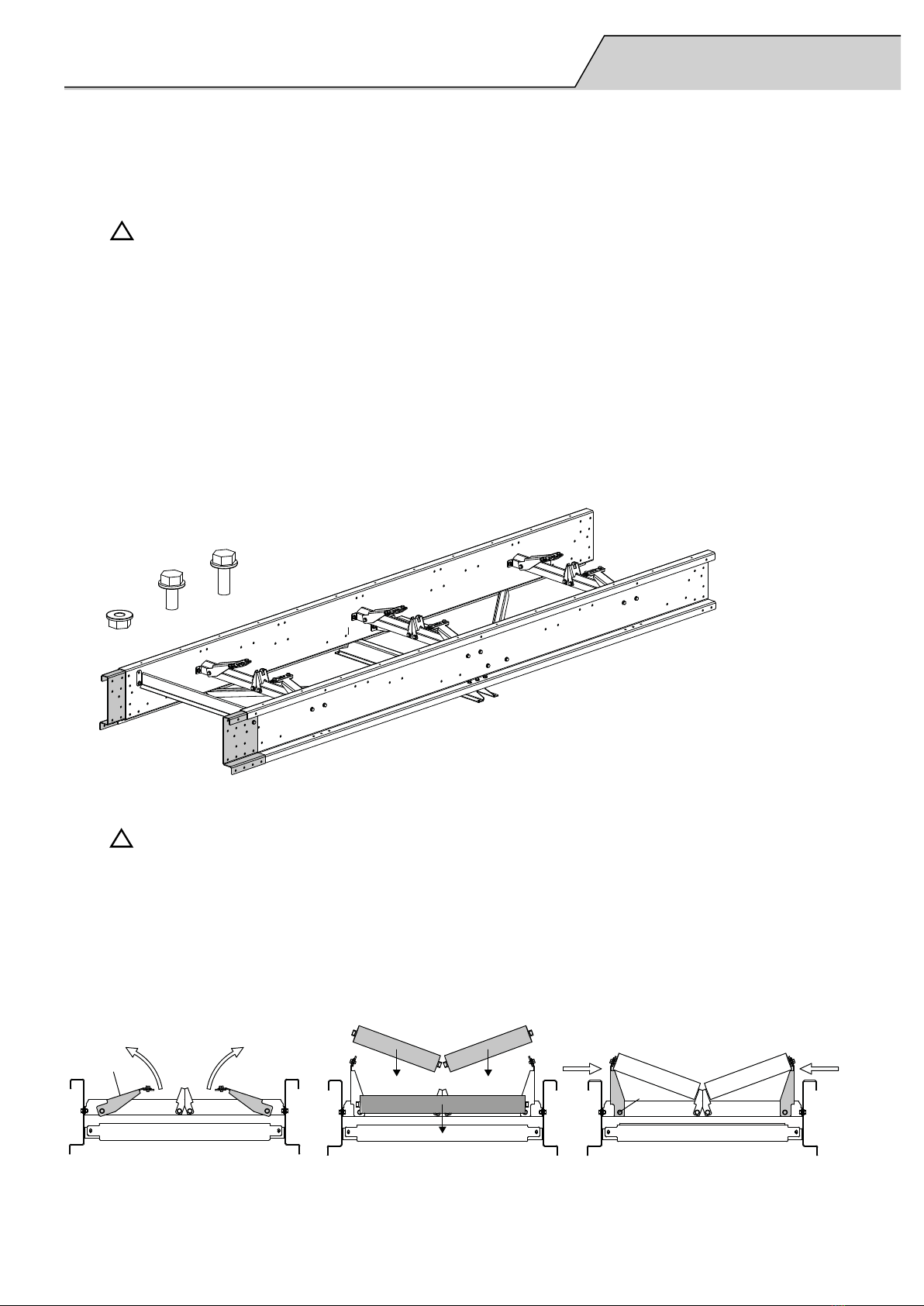

Assemble return idlers and carrying idlers in the intermediate sections. Insert
return idlers (A). Fold out the holders (B) and insert carrying idlers (C). Push
back the holders so that they do not t loosely. Tighten the bolts (D).
The conveyor can be assembled directly in place in the installation or
separately and then lifted in place. The design and space requirements of
the installation and the length of the conveyor will determine which method is
most suitable.
!
IMPORTANT!
• Make sure that the machine is situated correctly in relation to the
planned connections.
• The conveyor length must not exceed 14 meters (45.9 ft) if being
lifted after assembly. Its weight must be distributed over several lifting
points. The distance between the lifting points must be a maximum of
12 meters (39.4 ft).
•The maximum span between supports for a standard conveyor is 6
meters (19.7 ft).
M8x16
M8x20
B
D
C
A
11
SKANDIA ELEVATOR – BTI
Before assembly

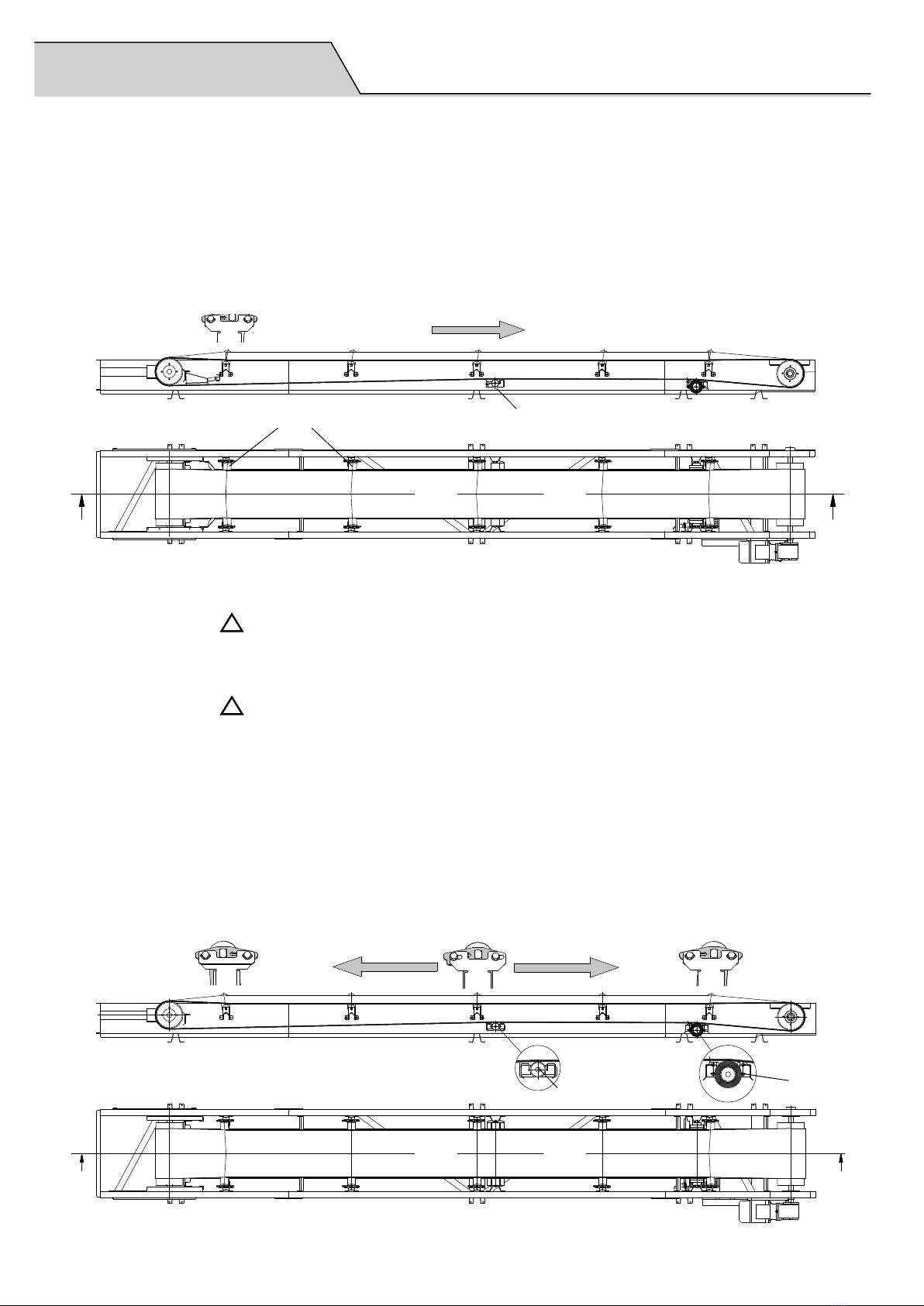

Transport in both directions
!
WARNING!
Pinch guard is required on both sides of return idler and snub idler
when conveying in both directions. See "Belt steering" chapter at the
back of the assembly instructions.
!
IMPORTANT!

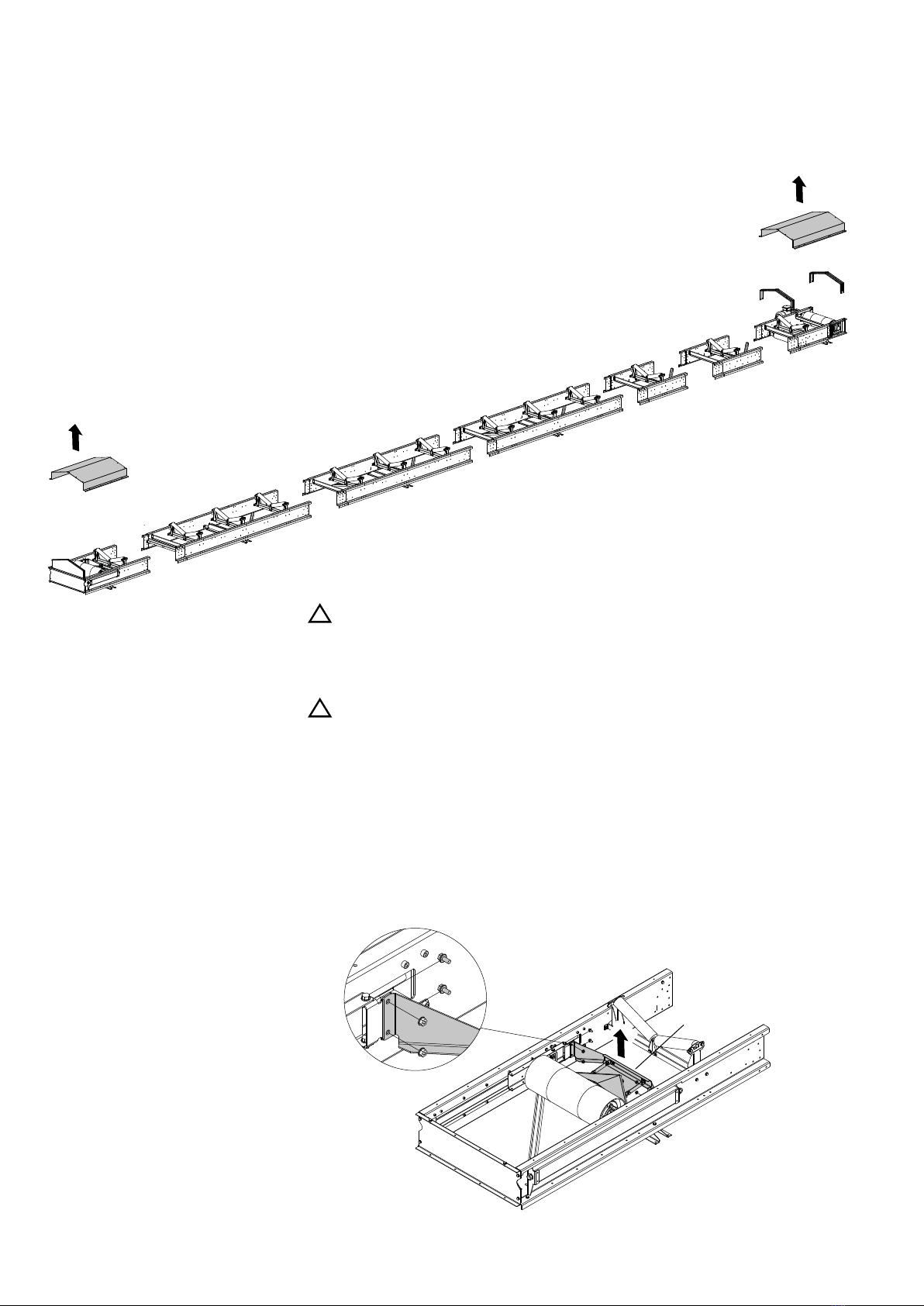

• When conveying in both directions, remove the plow scraper (E) in tail
end.
• When conveying in both directions, the carrying idlers must be
repositioned before the conveyor belt is installed. See "Belt steering"
chapter at the back of the assembly instructions.
• When conveying in both directions, more frequent checks of the belt
steering are required.

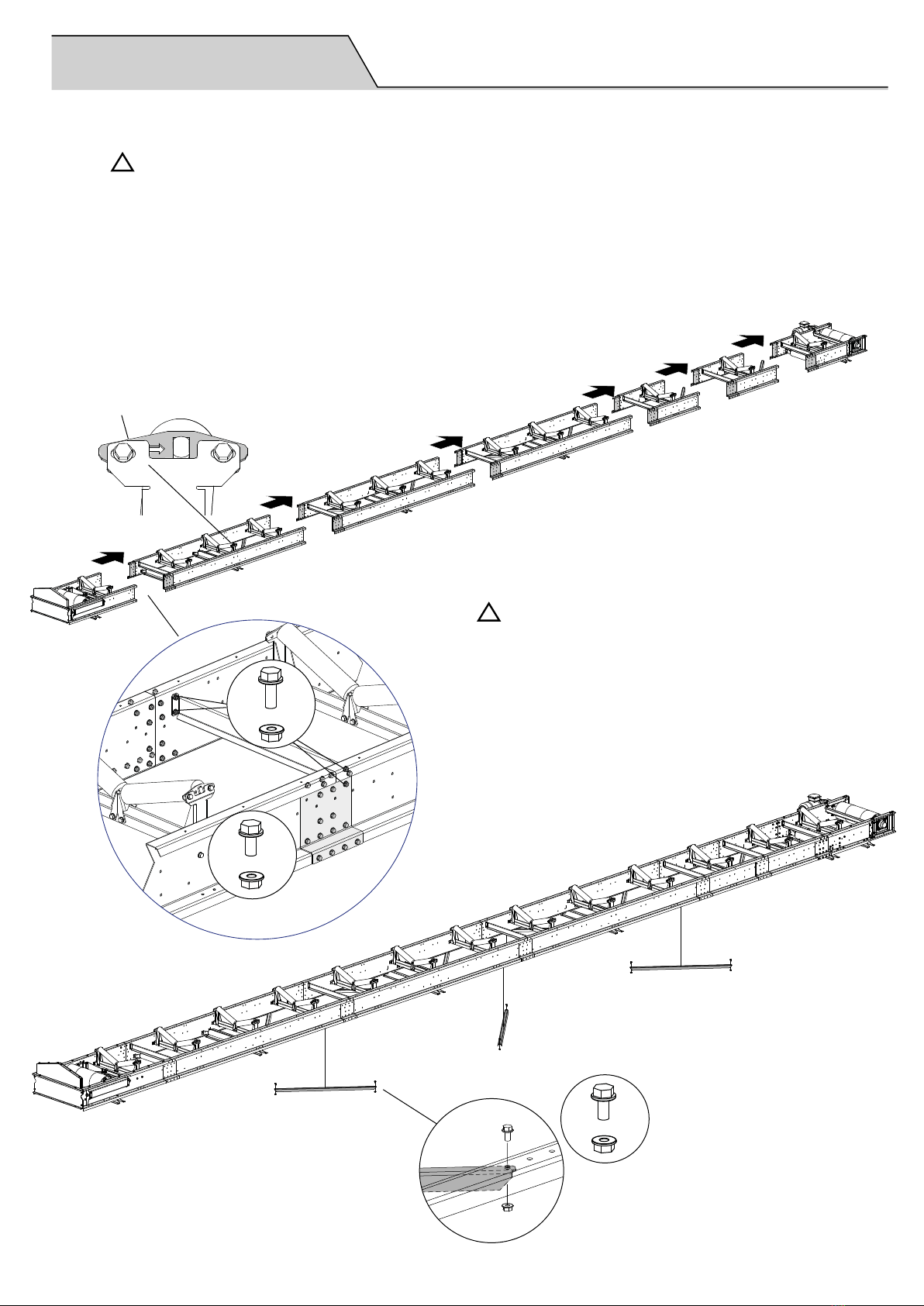

3.
Lay out the machine parts in the order in which they are to be assembled.
4.
Remove cover components.
E
12 SKANDIA ELEVATOR – BTI

500 mm
!
WARNING!
Connections to, from and between machinery must be permanently
mounted and fully enclosed.
Assemble the loading unit in accordance with the instructions in the section
"Assemble the machine." Assemble more loading units, the discharge
tripper, and outlet enclosure (protective equipment) in accordance with their
respective assembly instructions, but not until stated in the assembly order in
these assembly instructions.
!
IMPORTANT!
• Use only recommended inlet, outlet, and connecting components.
• Make sure the ducting is dimensioned sufficiently and that its angle of
inclination is at least 45°.
Inlet
A loading unit is used when feeding from a machine with matched capacity.
A loading unit in tail end is positioned according to illustration. For several
loading units (accessory), position the units according to the separate
assembly instructions.
Connection to following machine
Connect the conveyor to the following machine according to its assembly
instructions.
13
SKANDIA ELEVATOR – BTI

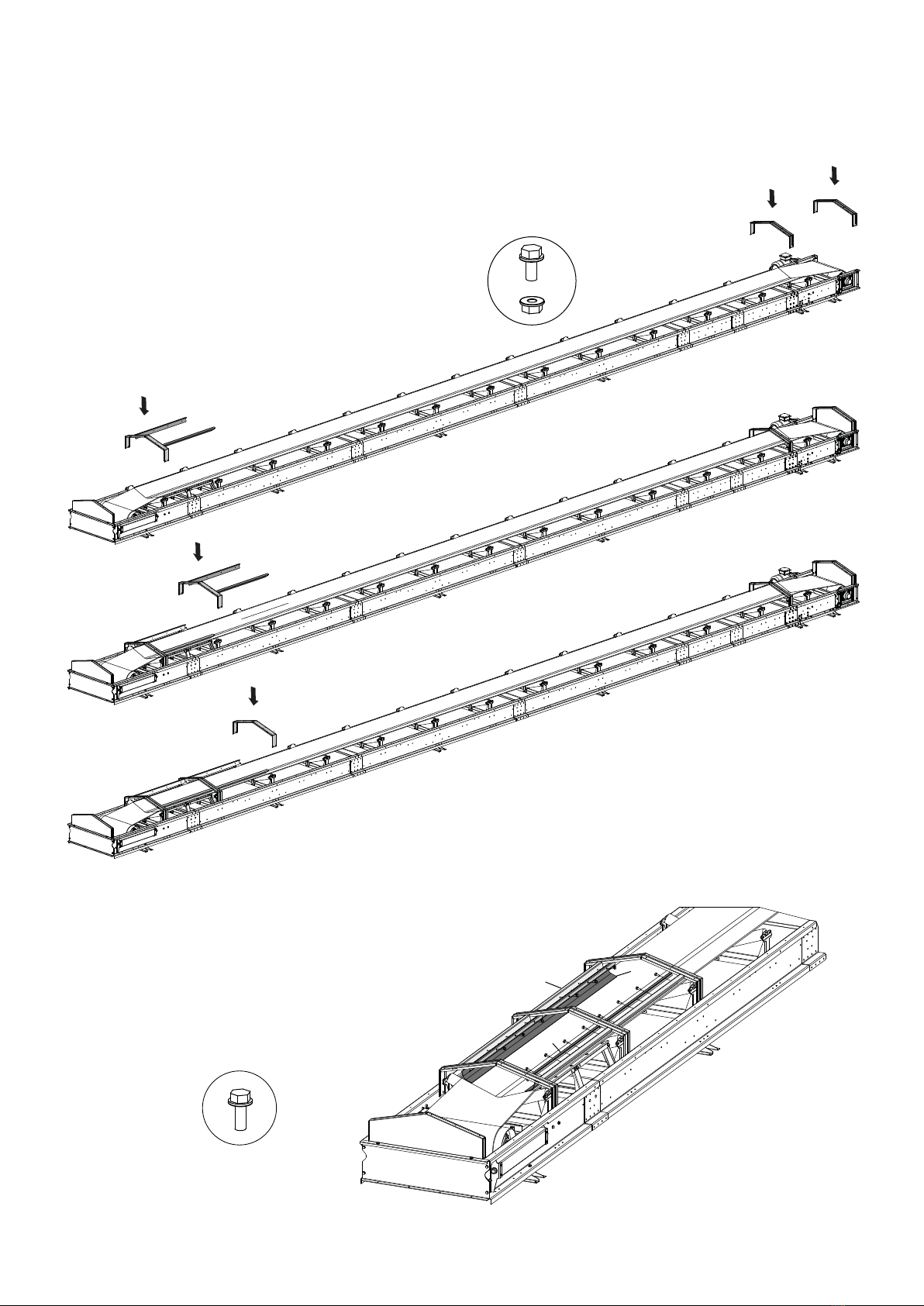

Connection of the machine

2.
Assemble the joints.
!
IMPORTANT!
For outdoor installation, extra diagonal
bracing must be mounted over the joints so
that the diagonal bracing continues alongside
the entire machine.
1.
!
IMPORTANT!
•Make sure that the intermediate sections are aligned so that the arrows on the
holders for the carrying idlers (B) are aligned in the direction of travel of the conveyor.
• Make sure that machine parts are assembled in a straight line and are not twisted.
• Make sure that if the machine is long enough to need a tracking idler set, 20 meters
(65.6 ft) or longer, the first section with a tracking idler set must be assembled directly
to the tail end and additional tracking idler sets attached every 20 meters (65.6 ft)
after that.
Push the machine parts together.
M8x16
M8x16
M8x20
B
14 SKANDIA ELEVATOR – BTI
Assembling the machine

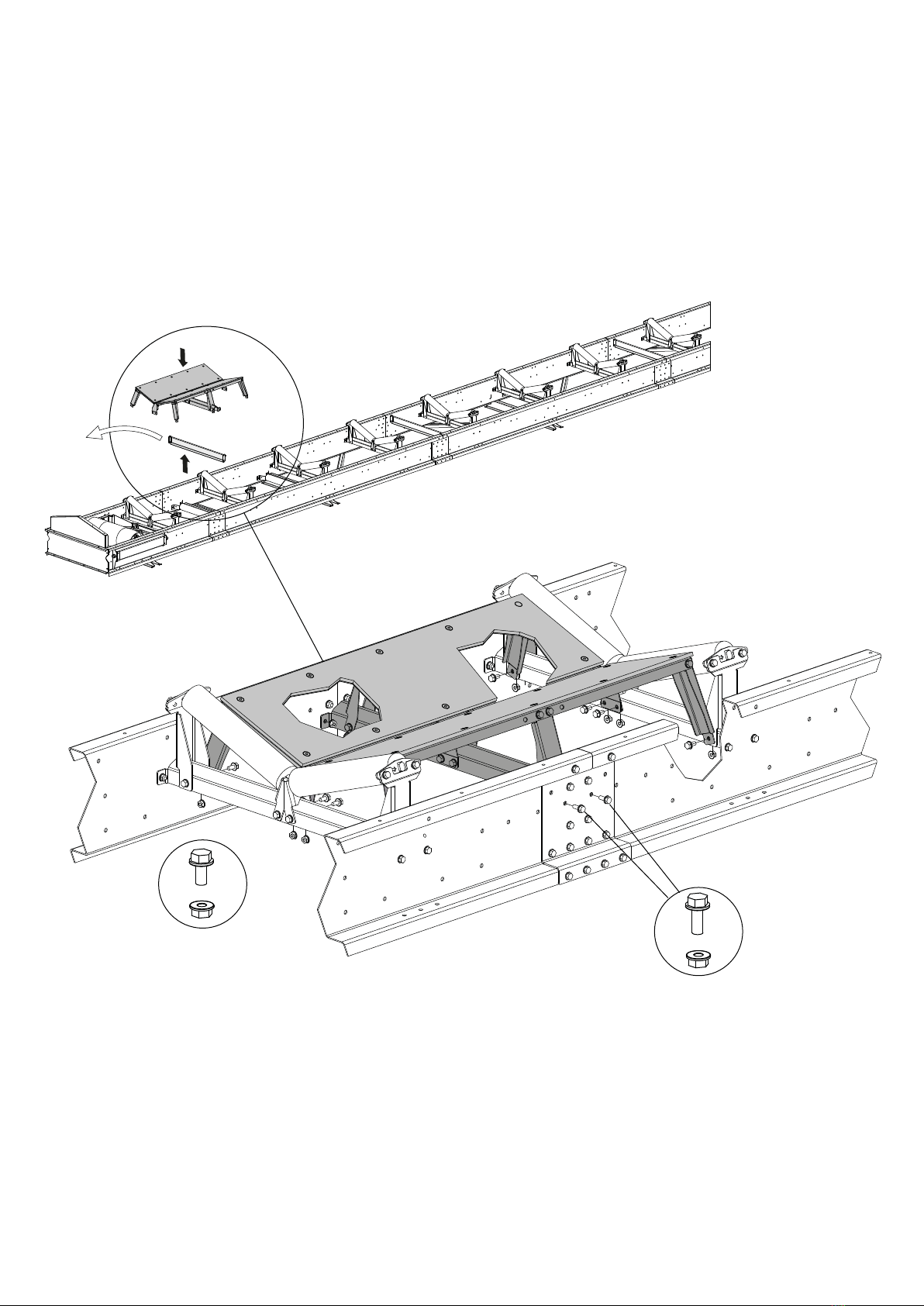

3.
Remove brace (F).
4.
Put slider bed into place (G).
Note! Assemble any intermediate loading units (xings) in accordance
with the separate assembly instructions. Then return to these assembly
instructions for the remaining instructions.
M8x16
M8x20
F
G
15
SKANDIA ELEVATOR – BTI

Tail end with tension bolts
Tail end for counterweight tension
Assemble the counterweight tower for
counterweight tension according to the separate
assembly instructions.
5.
!
IMPORTANT!
Push the tail pulley in the direction of the drive end before the conveyor
belt ends are vulcanized together. On delivery, the tail pulley is placed
in nominal position and this should be the tail pulley position to aim for
when the correct tension of the conveyor belt is achieved for the rst
time. Make sure that the tail pulley nominal position is marked before
the tail pulley is moved.
Note! Assemble the discharge tripper (xings) before assembling the conveyor
belt. See the separate assembly instructions for the discharge tripper. Then
return to these assembly instructions for the remaining instructions.
6.
!
IMPORTANT!
• Make sure that the side of the conveyor belt with thickest cover plates
(H) is facing outward.
• Make sure that the conveyor belt is properly tensioned after the
conveyor belt ends have been vulcanized together and the tail pulley is
backed up in its nominal position; see picture/table for the respective
tail end types.
• Make sure that the tail pulley shaft is perpendicular to the conveyor
belt.
• Vulcanization of conveyor belts should be done by a professional
vulcanizer.
Pull the conveyor belt into the machine, vulcanize the ends together and
tighten correctly.
H
16 SKANDIA ELEVATOR – BTI

4-6 mm
8.
Install the speed monitor (S) in the holder (T) in the
drive end.
!
WARNING!
• Make sure the speed monitor is engaged
during operation.
• All electrical equipment must be connected
by a qualified electrician. See separate
connecting directions for electronics.
Correct tension - Tail end with tension bolts
Measure how much the conveyor belt slackens (X) between 2 return idler sets that are 3 meters apart, X = A - B.
Correct tension - Tail end for counterweight tension
Use the correct counterweight.
X
A B
3000
Motor output
(kW)
BTI-xxx
(mm)
Sag X
(mm)
1,5 kW
400 39 mm
500 44 mm
650 30 mm
2,2 kW
400 26 mm
500 40 mm
650 30 mm
3,0 kW
400 19 mm
500 34 mm
650 30 mm
4,0 kW
400 22 mm
500 37 mm
650 30 mm
5,5 kW
400 18 mm
500 30 mm
650 28 mm
7,5 kW
400 14 mm
500 23 mm
650 21 mm
Motor output
(kW)
BTI-xxx
(mm)
Counter weight
(kg)
1,5 kW
400 170 kg
500 200 kg
650 380 kg
2,2 kW
400 260 kg
500 220 kg
650 380 kg
3,0 kW
400 340 kg
500 260 kg
650 380 kg
4,0 kW
400 300 kg
500 240 kg
650 380 kg
5,5 kW
400 380 kg
500 300 kg
650 400 kg
7,5 kW
400 500 kg
500 380 kg
650 520 kg
7.
!
IMPORTANT!/WARNING!
• Test-run the machine to check the belt
steering. If misalignment is detected,
switch off immediately and make
adjustments. See the Belt steering
chapter in the assembly instructions.
• Make sure that no one touches the
machine during test operation.
T
S
17
SKANDIA ELEVATOR – BTI

11.
Attach the skirt strips (J) to the brackets (I) with the
clamping strips (K).
9.
Position the cover rails in the drive end and tail end
and insert the rst brackets (I).
10.
Install the cover rails of the loading unit one at a
time and insert the last brackets (I) in between
them.
M8x20
M8x16
I
J
K
I
18 SKANDIA ELEVATOR – BTI

15.
!
WARNING!
The rotating drive shaft is partially exposed between the angle gear
motor and the drive if the weather cover is not used.
16.
!
WARNING!
Fit inlet cable-operated emergency stop according to the manufacturer's
instructions. Cable-operated emergency stop is a requirement for CE
certication of the machine if it is accessible during operation.
12.
!
IMPORTANT!
Fit the rubber strip centered on the holders (I) and the cover rails.
13.
!
WARNING!
If the machine is equipped with discharge tripper, assemble the
safety end (S). Otherwise, assemble the outlet enclosure (protective
equipment) after tting the cover. See the separate assembly
instructions for the outlet enclosure.
14.
Put the covers into place.
I
M8x16
S
19
SKANDIA ELEVATOR – BTI

Basic setting for carrying idlers and return idlers
On delivery, the carrying idlers (L) are forward-angled "knocked" about 1.5 degrees in the conveying
direction to center the conveyor belt on the carrying idlers during operation. The idlers can be angled
less and more for further ne tuning.Note! The angle can be a maximum of 3 degrees.
On delivery, the nominal position of the return idler (M) brackets are marked with a scribe line; see
illustration on the following page.
See instructions for adjusting carrying idlers and return idlers on the following page.
L
NNO
M
+ 1,5° + 1,5° + 1,5° + 1,5° + 1,5°
–1,5° 0° 0° 0° + 1,5°
M
20 SKANDIA ELEVATOR – BTI
Belt steering
Adjustments of carrying idlers for conveying in both directions
!
WARNING!
Pinch guard (N) is required on both sides of return idler (M) and snub idler (O) when
conveying in both directions.
!
IMPORTANT!
• When conveying in both directions, the carrying idlers must be repositioned before
the conveyor belt is installed. See instructions below.
• When conveying in both directions, remove the plow scraper in the tail end.
• When conveying in both directions, more frequent checks of the belt steering are
required.
When the conveyor belt is to be driven in both directions, all carrying idlers except the pair
closest to the drive section must be adjusted as shown. The pair closest to the tail end
should be angled -1.5 degrees and the pairs between those closest to the tail end and
drive end should be neutral without angle.
