Skil PWRCORE 20 GH4396E-00 User manual

WARNING: To reduce the risk of injury, the user must read and understand the
Owner’s Manual before using this product. Save these instructions for future reference.
For Customer Service
Cordless Shrub/Grass Shear
Model: GH4396E-00
TM
1300-000-346 OR www.skil.com.au

2
1
Shrub shear
blade
Blade covers (2) Ventilation
slots
Safety switch
Handle
Trigger switch
Easy
storage
hook
Blade
release
button
Grass shear
blade
Blade covers (2)
Easy storage rail
Battery level
indicator
button
Battery
lever
indicator
2SPECIFICATIONS
Rated Voltage 18V (20 V max d.c.)
Weight 1.4Kg (with 2.5Ah battery pack attached)
1.7Kg (with 5.0Ah battery pack attached)
Length of Shrub Shear Blade 200mm
Width of Grass Shear Blade 120mm
Max Cutting Capacity 8mm
No-Load Speed 1050/min

3
3
8
75
4
6 9
q
wwa
wb
wc
e
1
2
Safety
switch
Trigger
switch
o
Battery level
indicator
button
Battery lever indicator

4
t
Blade release button
2
3
4
1
1
Click
ra
rc
rb
rd

5
100 cm
10 cm
y
u
Grass shear blade
Shrub shear blade

6
i
Easy
storage
hook

7
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do not
use a power tool while you are tired or under the
inuence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in
serious personal injury.
b) Use personal protective equipment. Always wear
eye protection. Protective equipment such as a dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
c) Prevent unintentional starting. Ensure the switch
is in the o-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your nger on the
switch or energising power tools that have the switch on
invites accidents.
d) Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to
a rotating part of the power tool may result in personal
injury.
e) Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power tool
in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can
be caught in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of
tools allow you to become complacent and ignore
tool safety principles. A careless action can cause
severe injury within a fraction of a second.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
b) Do not use the power tool if the switch does not turn
it on and o. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the
power tool accidentally.
d) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
e) Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage
of parts and any other condition that may aect the
power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused
by poorly maintained power tools.
INTRODUCTION
• This tool has been designed for trimming grass, shrubs
and hedges, and is intended for domestic use only
• This tool is not intended for professional use
• Read this instruction manual carefully before use and
save it for future reference 3
• Pay special attention to the safety instructions
and warnings; failure to follow these may result in
serious injury

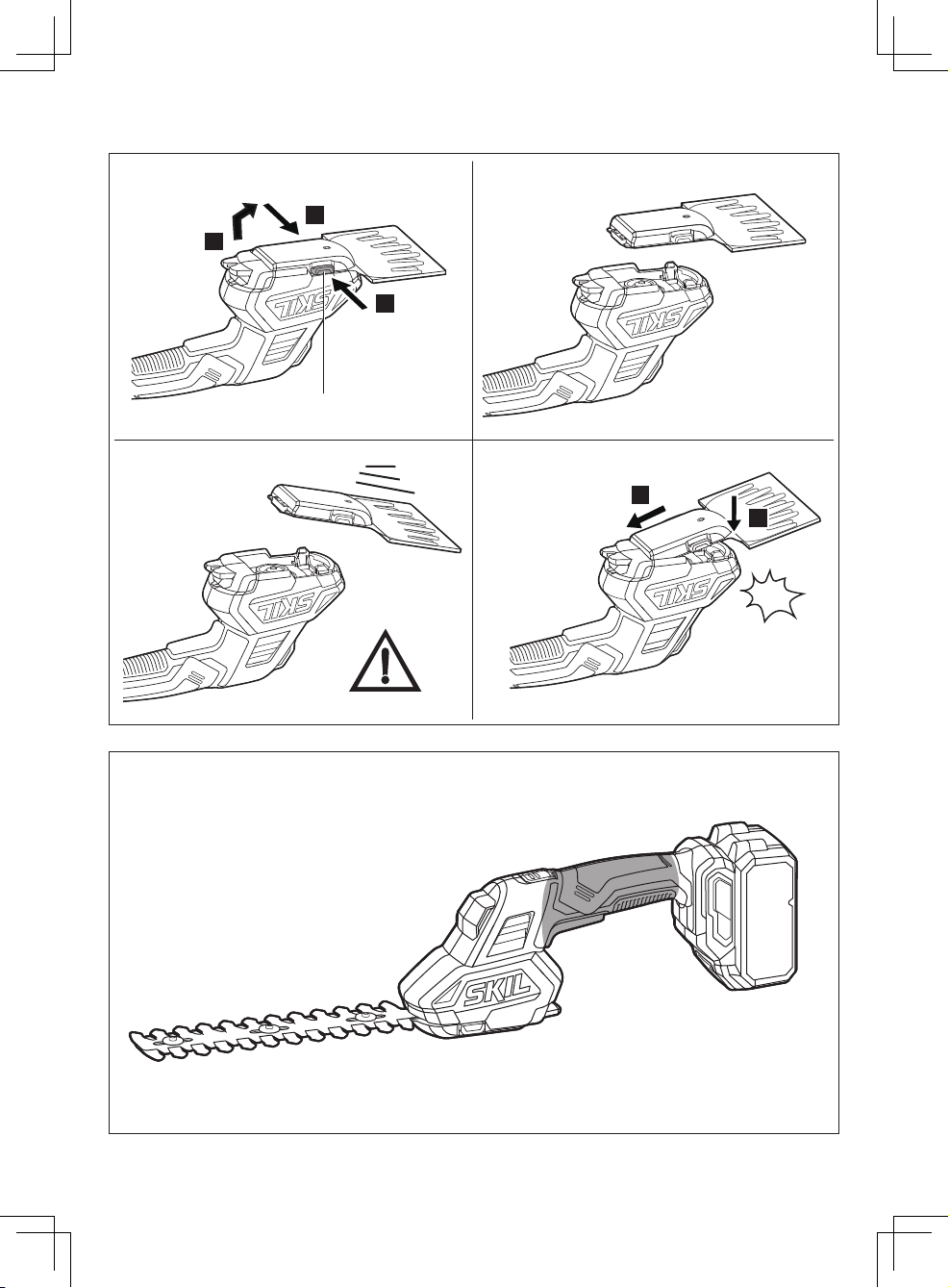

• Check whether the packaging contains all parts as
illustrated in drawing 2
• When parts are missing or damaged, please contact your
dealer
SAFETY
GENERAL POWER TOOL SAFETY WARNINGS
-WARNING Read all safety warnings, instructions,
illustrations and specications provided with this
power tool. Failure to follow all instructions listed below may
result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your
mainsoperated (corded) power tool or battery-operated
(cordless) power tool.
1) WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks which
may ignite the dust or fumes.
c) Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.
Unmodied plugs and matching outlets will reduce risk of
electric shock.
b) Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk of
electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.

8
a) Carry the hedge trimmer by the handle with the
blade stopped and taking care not to operate any
power switch. Proper carrying of the hedge trimmer will
decrease the risk of inadvertent starting and resultant
personal injury from the blades.
b) When transporting or storing the hedge trimmer,
always t the blade cover. Proper handling of the
hedge trimmer will decrease the risk of personal injury
from the blades.
c) When clearing jammed material or servicing the
unit, make sure all power switches are o and
the battery pack is removed or disconnected.
Unexpected actuation of the hedge trimmer while
clearing jammed material or servicing may result in
serious personal injury.
d) Hold the hedge trimmer by insulated gripping
surfaces only, because the blade may contact
hidden wiring. Blades contacting a “live” wire may make
exposed metal parts of the hedge trimmer “live” and
could give the operator an electric shock.
e) Keep all power cords and cables away from cutting
area. Power cords or cables may be hidden in hedges or
bushes and can be accidentally cut by the blade.
f) Do not use the hedge trimmer in bad weather
conditions, especially when there is a risk of
lightning. This decreases the risk of being struck by
lightning.
GENERAL
• This tool is not intended for use by children and
persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge or
people unfamiliar with the instructions
• Local regulations may restrict the age of the
operator
• Ensure that children do not play with the tool
• Only use the tool in daylight or with appropriate articial
lighting
• Do not trim hedges when they are wet
• Never operate the tool in the direct vicinity of persons
(especially children) and animals
• The user is responsible for accidents or hazards
occurring to other people or their property
• Always switch o the tool and remove the battery
-whenever leaving the tool unattended
-before clearing jammed material
-before checking, cleaning or working on the tool
-after striking a foreign object
-whenever the tool starts vibrating abnormally
BEFORE USE
• Before using the tool for the rst time, it is recommended
to receive practical information
• Check the functioning of the tool before each use and,
in case of a defect, have it repaired immediately by a
qualied person; never open the tool yourself
• Before use, thoroughly inspect the cutting area and
remove all foreign objects that could be entangled in the
cutting blades (such as stones, nails, wire fences, metal
plant supports)
DURING USE
• Wear protective gloves, safety glasses, close-tting
clothes and hair protection (for long hair)
• Always wear long trousers, long sleeves and sturdy
shoes when operating the tool
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc.,
in accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations dierent
from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
5) BATTERY TOOL USE AND CARE
a) Recharge only with the charger specied by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of re when used with
another battery pack.
b) Use power tools only with specically designated
battery packs. Use of any other battery packs may
create a risk of injury and re.
c) When battery pack is not in use, keep it away from
other metal objects like paper clips, coins, keys,
nails, screws, or other small metal objects that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause burns
or a re.
d) Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, ush with water. If liquid
contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged
or modied. Damaged or modied batteries may exhibit
unpredictable behaviour resulting in re, explosion or risk
of injury.
f) Do not expose a battery pack or tool to re or
excessive temperature. Exposure to re or temperature
above 130°C may cause explosion.
g) Follow all charging instructions and do not charge
the battery pack or tool outside the temperature
range specied in the instructions. Charging
improperly or at temperatures outside the specied range
may damage the battery and increase the risk of re.
6) SERVICE
a) Have your power tool serviced by a qualied repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
SPECIFIC SAFETY INSTRUCTIONS FOR CORDLESS
SHRUB/GRASS SHEARS
a) Keep all parts of the body away from the blade. Do
not remove cut material or hold material to be cut
when blades are moving. Blades continue to move
after the switch is turned o. A moment of inattention
while operating the hedge trimmer may result in serious
personal injury.

9
operating temperature range
-the battery is nearly empty (to protect against
deep discharge) --> a low battery level or ashing low
battery level wb is shown by the battery level indicator
when pressing the battery level indicator button ;
charge battery
! do not continue to press the on/o switch after the
tool is switched o automatically; battery may be
damaged
• On/o e
Prevents the tool from being switched on accidentally
-switch on tool by rst pressing safety switch and then
pulling trigger switch
-switch o tool by releasing trigger switch
-move tool away from cutting area before switching o
! after switching o the tool the blade continues to
rotate for a few seconds
• Changing the blades r
To prevent injuries, slip the blade guard over the blade.
To remove the blade ra and rb
! wear protective gloves
-turn tool upside down
-press the two blade release buttons simultaneously
and pull out the shrub shear blade or grass shear blade
from the tool housing. Make sure that no dirt gets into
the housing when you change the blade.
! When the two blade release buttons are pressed,
the shrub shear blade or grass shear blade will
drop out! rc
To install the blade rd
Insert the narrow end of the shrub shear blade or grass
shear blade into the tool housing. Press the blade
housing against the tool housing until it engages with an
audible click.
• Holding and guiding the tool
! while working, always hold the tool at the grey-
coloured handle t
-maintain a stable working position
-keep your other hand away from the cutting blades

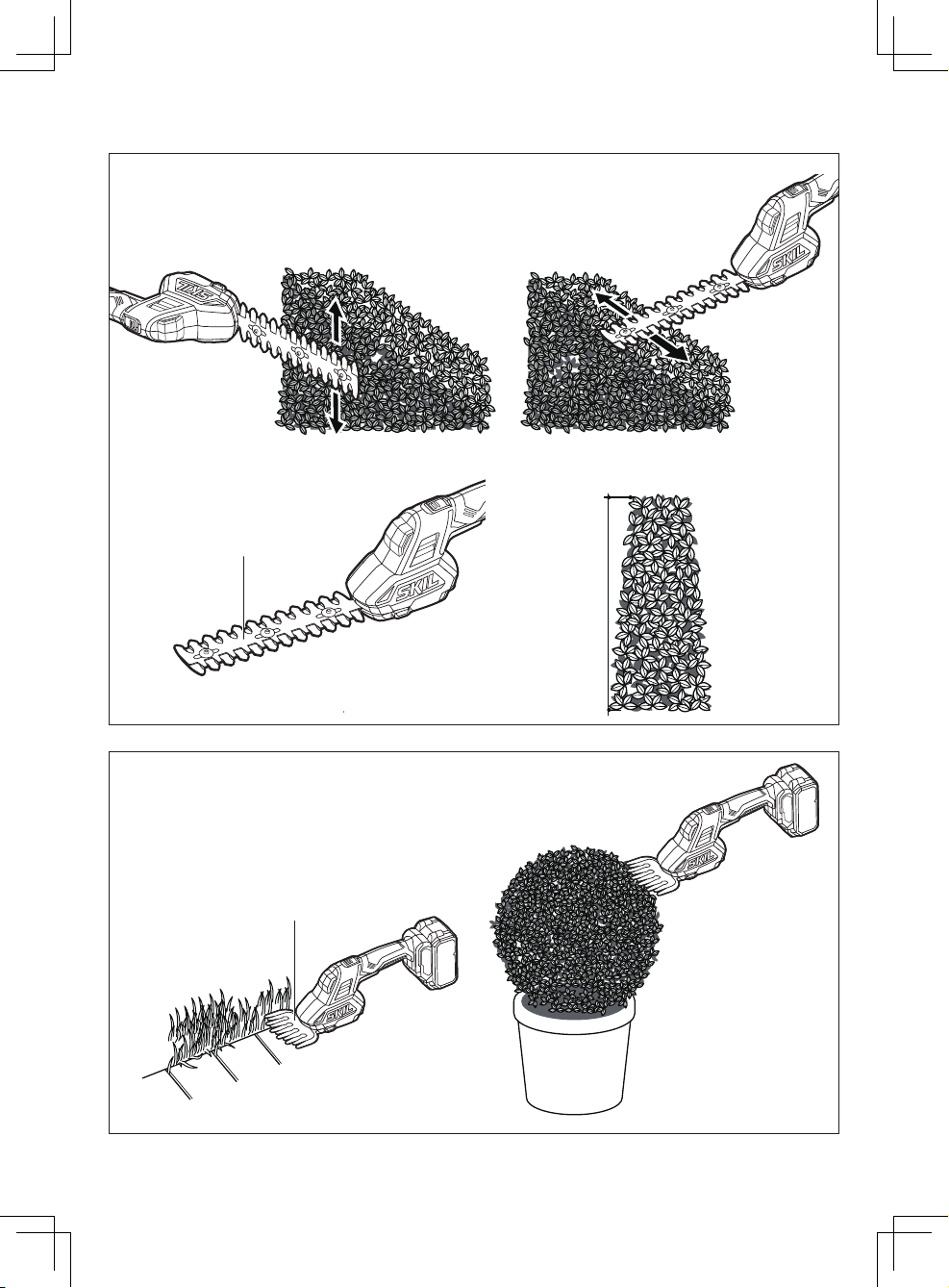

• Trimming hedges y
-trim the sides of the hedge rst (from the bottom
upwards), then cut the top
-trim the side of a hedge in such a way that it will be
slightly narrower at the top
-use a hand saw or pruning shears to cut thicker
branches
• Trimming grass and shrubs u
-when cutting long grass, work in stages from the top
and take small cuts
-for optimal cutting results, only cut dry grass
-keep the tool away from solid objects in order to protect
the cutting blades against excessive wear
APPLICATION ADVICE
• For trimming a hedge at a uniform height level
-fasten a piece of string along the length of the hedge at
the desired height
-trim the hedge just above this string
MAINTENANCE / SERVICE
• This tool is not intended for professional use
! always switch o the tool and remove the battery
• Take a secure stance when working (do not overreach,
especially when using steps or a ladder)
• Always ensure that the ventilation openings are kept
clear of debris
AFTER USE
• Always switch o the tool and remove the battery
BATTERIES
• The battery supplied is partially charged (to ensure
full capacity of the battery, completely charge the battery
in the battery charger before using your power tool for the
rst time)
• Only use the following batteries and chargers with
this tool
-SKIL battery: BY5197E-03, BY5196E-03
-SKIL charger: SC5358E-01, QC5360E-01,
QC5359E-00
• Do not use the battery when damaged; it should be
replaced
• Do not disassemble the battery
• Do not expose tool/battery to rain
• Permitted ambient temperature (tool/charger/battery):
-when charging 4...40°C
-during operation –20...+50°C
-during storage –20...+50°C
EXPLANATION OF SYMBOLS ON TOOL/BATTERY
3 Read the instruction manual before use
4 Do not expose tool to rain
5 Warning! cutter blade continues to run after the motor is
switched o
6 Keep bystanders away
7 Batteries may explode when disposed of in re, so do not
burn battery for any reason
8 Do not dispose of electric tools and batteries together
with household waste material
9 Store tool/charger/battery in locations where temperature
will not exceed 50°C
q Keep hands away from blade
oWear protective glasses
USE
• Charging battery
! read the safety warnings and instructions
provided with the charger
• Removing/installing the battery 2
• Battery level indicator w
-press the battery level indicator button to show the
current battery level wa
! when the lowest level of the battery indicator
starts ashing after pressing the battery level
indicator button wb, the battery is empty
! when 2 levels of the battery indicator start
ashing after pressing the battery level indicator
button wc, the battery is not within the allowable
operating temperature range
• Battery protection
The tool is suddenly being switched o or prevented from
being switched on, when
-the load is too high --> remove load and restart
-the battery temperature is not within the allowable
operating temperature range of -20 to +50°C -->
2 levels of the battery level indicator start ashing
when pressing the battery level indicator button wc;
wait until battery has returned within the allowable

10
• Keep tool and cutting blades clean
-clean the tool with a damp cloth (do not use cleaning
agents or solvents)
-after use, always carefully clean and lightly lubricate the
cutting blades
! wear gloves when handling or cleaning the cutting
blades
• Regularly check the condition of the cutting blades and
the tightness of the blade bolts
• Regularly check for worn or damaged components and
have them repaired/replaced when necessary
• Sharpening the cutting blades
-remove cutting blades from tool before sharpening
-sharpen the cutting blades with a small and smooth le,
in case a solid object damaged them
-we advise you, however, to have the blades sharpened
by a specialist
-lubricate the cutting blades after sharpening
• Storage i
-store the tool indoors in a dry and locked-up place, out
of reach of children
-securely mount storage rail on the wall with 2 screws
(not supplied) and horizontally leveled
-use blade covers when storing the tool
-lubricate the cutting blades before storing the tool
TROUBLESHOOTING
• The following listing shows problem symptoms, possible
causes and corrective actions (if these do not identify
and correct the problem, contact your dealer or service
station)
Tool operates intermittently
-internal wiring defective -> contact dealer/service
station
-on/o switch defective -> contact dealer/service station
Motor runs but blades remain stationary
-internal fault -> contact dealer/service station
Cutting blades hot
-cutting blades blunt -> have blades sharpened
-cutting blades have dents -> have blades inspected
-too much friction due to lack of lubricant -> lubricate
blades
ENVIRONMENT
• Do not dispose of electric tools, batteries,
accessories and packaging together with household
waste material. The electric tools, batteries, accessories
and packaging should be sorted for environmental-
friendly recycling
! Prior to disposal protect battery terminals with
heavy tape to prevent short-circuit

11
WARRANTY
For all SKIL warranty and enquiries, please contact Australia 1300 000 346 or New Zealand 0508 000 346 Monday to Friday
9:00am to 5:00pm EST
Chervon Australia Pty Ltd ABN 36 165 077 501 (“Chervon”) warrants to the original purchaser that this product will be free
from defects in materials and workmanship for the period stated in the warranty table below from date of purchase by the end
user.
PRODUCT OR MODEL NUMBER
LIMITED WARRANTY FOR
CONSUMER USE
(PERSONAL / DIY)
LIMITED WARRANTY FOR
PROFESSIONAL USE
(TRADE)
CORDLESS BRUSHED POWER
TOOLS 5 YEARS 90 DAYS
CORDLESS BRUSHLESS POWER
TOOLS 5 YEARS 1 YEAR
CORDLESS OPE RANGE
(OUTDOOR POWER EQUIPMENT) 5 YEARS N/A
BATTERIES & CHARGERS 3 YEARS 1 YEAR
CORDED (240V) 1 YEAR 90 DAYS
ACCESSORY / CONSUMABLES 3 MONTHS 3 MONTHS
This SKIL product warranty is only applicable to purchases from authorised SKIL retailers. This SKIL product warranty does
not apply to any parallel imported product and does not apply to any SKIL products that are not purchased from an authorised
SKIL retailer.To make a claim, return the faulty item together with proof of purchase directly to your closest service agent or to
the place of purchase. Any handling and transportation costs (and other expenses incurred in claiming this warranty) are not
covered by this warranty and will not be borne by Chervon.The replacement product or part or repaired product will be made
available for your collection at an address nominated by Chervon. Where a valid warranty claim is made, Chervon will replace
the defective product or repair the fault. Where the product is repaired, Chervon may use refurbished parts.This warranty does
not cover normal wear and tear, misuse or abuse. This warranty may also be further limited or voided as specically detailed in
the product Manual. Chervon has no other liability under this warranty.
The benets to you given by this warranty are in addition to other rights and remedies imposed by State and Federal legislation
that cannot be excluded.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law and the New Zealand
Consumer Guarantee Act 1993.You are entitled to a replacement or refund for a major failure and compensation for any other
reasonably foreseeable loss or damage.You are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.
The warranty applies to purchases made from authorised SKIL Dealers, which can be conrmed on the website store locator.
For avoidance of doubt, 3rd party online stores such as eBay, Gumtree, Amazon, etc. are excluded.
Chervon Australia Pty Ltd, Unit 14, 5 Kelletts Rd, Rowville, VIC. 3178.
Chervon New Zealand Subsidiary Ltd, 4th Floor, Smith & Caughey Building, 253 Queen St, Auckland, 1141.
Phone Number: Australia 1300 000 346. Email: suppor[email protected]
Phone Number: New Zealand 0508 000 346. Email: [email protected]
