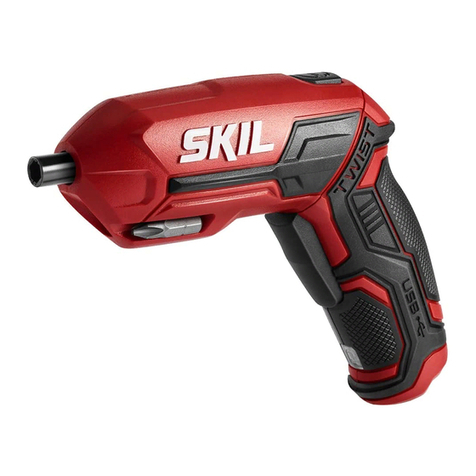

Skil SD5619-00 User manual

4V Twist 2.0 Rechargeable Screwdriver
Visseuse rechargeable 4V Twist 2.0
Atornillador recargable Twist 2.0 de 4 V
Model/ Modelo/ Modèle: #SD5619-00
WARNING: To reduce the risk of injury, the user must read and
understand the Owner’s Manual before using this product. Save
these instructions for future reference.
AVERTISSEMENT : Afin de réduire les risques de blessure, l’util-
isateur doit lire et comprendre le guide d’utilisation avant d’utiliser
cet article. Conservez le présent guide afin de pouvoir le consulter
ultérieurement.
ADVERTENCIA : Para reducir el riesgo de lesiones, el usuario
debe leer y comprender el Manual del operador antes de utilizar
este producto. Guarde estas instrucciones para consultarlas en caso
sea necesario.
Owner’s Manual
Guide d’utilisation
Manual del propietario
1-877-SKIL-999 OR www.skiltools.com
For Customer Service
Pour le service à la clientèle
Servicio al cliente

2
TABLE OF CONTENTS
General Power Tool Safety Warnings............................................................3-5
Safety Warnings for Screwdriver..................................................................... 5
FCC Caution ..................................................................................................... 6
Symbols........................................................................................................7-8
Get to Know Your Screwdriver......................................................................... 9
Specications.................................................................................................. 9
Operating Instructions .............................................................................. 10-14
Maintenance.................................................................................................. 15
Troubleshooting ........................................................................................16-17
Limited Warranty for SKIL Consumer Tools...............................................18-19
WARNING
• Some dust created by power sanding, sawing, grinding, drilling and other
construction activities contains chemicals known to the State of California to
cause cancer, birth defects or other reproductive harm. Some examples of
these chemicals are:
- Lead from lead-based paints.
- Crystalline silica from bricks, cement, and other masonry products.
- Arsenic and chromium from chemically-treated lumber.
• Your risk from these exposures varies, depending upon how often you do this
type of work. To reduce your exposure to these chemicals:
- Work in a well-ventilated area.
- Work with approved safety equipment, such as dust masks that are specially
designed to filter out microscopic particles.
- Avoid prolonged contact with dust from power sanding, sawing, grinding,
drilling, and other construction activities. Wear protective clothing and wash
exposed areas with soap and water. Allowing dust to get into your mouth or
eyes or to lie on the skin may promote absorption of harmful chemicals.

3
GENERAL POWER TOOL SAFETY WARNINGS
WARNING Read all safety warnings, instructions, illustrations and
specications provided with this power tool. Failure to
follow all instructions listed below may result in electric shock, fire and/or serious
injury.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.
The term “power tool” in the warnings refers to your mains-operated (corded) power
tool or battery-operated (cordless) power tool.
Work area safety
Keep work area clean and well lit. Cluttered or dark areas invite accidents.
Do not operate power tools in explosive atmospheres, such as in the presence
of ammable liquids, gases or dust. Power tools create sparks which may
ignite the dust or fumes.
Keep children and bystanders away while operating a power tool. Distractions
can cause you to lose control.
Electrical safety
Power tool plugs must match the outlet. Never modify the plug in any way. Do
not use any adapter plugs with earthed (grounded) power tools. Unmodified
plugs and matching outlets will reduce risk of electric shock.
Avoid body contact with earthed or grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric shock
if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or unplugging
the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric
shock.
If operating a power tool in a damp location is unavoidable, use a ground fault
circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of
electric shock.
Personal safety
Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use a power tool while you are tired or under the inuence
of drugs, alcohol or medication. A moment of inattention while operating power
tools may result in serious personal injury.
Use personal protective equipment. Always wear eye protection. Protective
equipment such as a dust mask, non-skid safety shoes, hard hat or hearing
protection used for appropriate conditions will reduce personal injuries.

4
Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and/or battery pack, picking up or carrying the
tool. Carrying power tools with your finger on the switch or energising power
tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may result in
personal injury.
Do not overreach. Keep proper footing and balance at all times. This enables
better control of the power tool in unexpected situations.
Dress properly. Do not wear loose clothing or jewellery. Keep your hair and
clothing away from moving parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of dust collection
can reduce dust-related hazards.
Do not let familiarity gained from frequent use of tools allow you to become
complacent and ignore tool safety principles. A careless action can cause severe
injury within a fraction of a second.
Power tool use and care
Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was
designed.
Do not use the power tool if the switch does not turn it on and off. Any power
tool that cannot be controlled with the switch is dangerous and must be repaired.
Disconnect the plug from the power source and/or remove the battery pack,
if detachable, from the power tool before making any adjustments, changing
accessories, or storing power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
Maintain power tools and accessories. Check for misalignment or binding of
moving parts, breakage of parts and any other condition that may affect the
power tool’s operation. If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.
Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
Use the power tool, accessories and tool bits etc. in accordance with these
instructions, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from those intended
could result in a hazardous situation.
Keep handles and grasping surfaces dry, clean and free from oil and grease.
Slippery handles and grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.

5
Battery tool use and care
Recharge only with the charger specied by the manufacturer. A charger
that is suitable for one type of battery pack may create a risk of fire when
used with another battery pack.
Use power tools only with specically designated battery packs. Use of
any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects,
like paper clips, coins, keys, nails, screws or other small metal objects,
that can make a connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.
Under abusive conditions, liquid may be ejected from the battery; avoid
contact. If contact accidentally occurs, ush with water. If liquid contacts
eyes, additionally seek medical help. Liquid ejected from the battery may
cause irritation or burns.
Do not use a battery pack or tool that is damaged or modied. Damaged
or modified batteries may exhibit unpredictable behaviour resulting in fire,
explosion or risk of injury.
Do not expose a battery pack or tool to re or excessive temperature.
Exposure to fire or temperature above 265 °F (130 °C) may cause explosion.
Follow all charging instructions and do not charge the battery pack or
tool outside the temperature range specied in the instructions. Charging
improperly or at temperatures outside the specified range may damage the
battery and increase the risk of fire.
Service
Have your power tool serviced by a qualied repair person using only
identical replacement parts. This will ensure that the safety of the power
tool is maintained.
Never service damaged battery packs. Service of battery packs should
only be performed by the manufacturer or authorized service providers.
SAFETY WARNINGS FOR SCREWDRIVER
Hold the power tool by insulated gripping surfaces, when performing an
operation where fastener may contact hidden wiring. Fastener contacting
a “live” wire may make exposed metal parts of the power tool “live” and
could give the operator an electric shock.

6
FCC CAUTION
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference
that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
DANGER People with electronic devices, such as pacemakers, should
consult their physician(s) before using this product. Operation
of electrical equipment in close proximity to a heart pacemaker could cause
interference or failure of the pacemaker.

7
SYMBOLS
Safety Symbols
The purpose of safety symbols is to attract your attention to possible dangers.
The safety symbols and the explanations with them deserve your careful attention
and understanding. The symbol warnings do not, by themselves, eliminate any
danger. The instructions and warnings they give are no substitutes for proper
accident prevention measures.
WARNING Be sure to read and understand all safety instructions in this
Owner’s Manual, including all safety alert symbols such as
“DANGER,” “WARNING,” and “CAUTION” before using this tool. Failure to
following all instructions listed below may result in electric shock, fire, and/or
serious personalinjury.
The definitions below describe the level of severity for each signal word.
Please read the manual and pay attention to these symbols.
This is the safety alert symbol. It is used to alert you
to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible
injury or death.
DANGER DANGER indicates a hazardous situation which, if
not avoided, will result in death or serious injury.
WARNING WARNING indicates a hazardous situation which, if
not avoided, could result in death or serious injury.
CAUTION CAUTION, used with the safety alert symbol,
indicates a hazardous situation which, if not
avoided, will result in minor or moderate injury.
Damage Prevention and Information Messages
These inform the user of important information and/or instructions that could
lead to equipment or other property damage if they are not followed. Each
message is preceded by the word “NOTICE”, as in the example below:
NOTICE: Equipment and/or property damage may result if these instructions are
not followed.
WARNING The operation of any power tools can
result in foreign objects being thrown
into your eyes, which can result in severe eye damage. Before
beginning power tool operation, always wear safety goggles
or safety glasses with side shields and a full face shield when
needed.We recommend aWide Vision Safety Mask for use
over eyeglasses or standard safety glasses with side shields.
Always use eye protection which is marked to comply with
ANSI Z87.1.

8
SYMBOLS (CONTINUED)
IMPORTANT: Some of the following symbols may be used on your tool. Please
study them and learn their meaning. Proper interpretation of these symbols will
allow you to operate the tool better and more safely.
Symbol Designation / Explanation
V Volts (voltage)
A Amperes (current)
Wh Watt-hours (battery capacity)
Ah Ampere-hours (battery capacity)
Ø Diameter (size of drill bits, grinding wheels, etc.)
n0No load speed (rotational speed, at no load)
.../min
Revolutions or reciprocation per minute (revolutions, strokes, surface
speed, orbits etc. per minute)
Nm Newton meter (torque)
Ibs.in Inch pounds (torque)
Direct current (type or a characteristic of current)
Designates Li-ion battery recycling program
Alerts user to read manual
Alerts user to wear eye protection
This symbol designates that this tool is listed by Underwriters
Laboratories, to United States and Canadian Standards.
This symbol designates that this tool is listed by the California
Energy Commission.

9
GET TO KNOW YOUR SCREWDRIVER
4V Twist 2.0 Rechargeable Screwdriver
Fig. 2
Pivot Head
Forward/reverse
Switch Handle
Battery/Torque
Indicator
Pivot-head Release Button Lock-off Indicator Torque Button
(Lock-off Button)
LED Work
Light
USB-C Charging Cable
USB-C
Charging Port
Magnetic
Bit Holder
SPECIFICATIONS
Battery Voltage 4V d.c. Lithium
Battery Capacity 0.8 Ah (3.2 Wh)
USB-C Charging Port Input 5V, max. 1A
Bit Holder 1/4’’ (Hex)
No-load Speed 240/min (RPM)
Torque Range 3.5 - 22 lbs.in
(0.4 - 2.5 Nm)
Pivot Angle Settings 0°/ 22.5° / 45°
Recommended Charging Temperature 41 – 104°F (5 – 40°C)
Recommended Operating Temperature 50 – 95°F (10 – 35°C)
Recommended Storage Temperature 32 – 104°F (0 – 40°C)

10
OPERATING INSTRUCTIONS
WARNING To reduce the risk of re, personal injury, and product
damage due to a short circuit, never immerse your tool
and charger in uid or allow a uid to ow inside them. Corrosive or
conductive fluids, such as seawater, certain industrial chemicals, and bleach, or
bleach-containing products, etc., can cause a short circuit.
WARNING If any parts are damaged or missing, do not operate this
product until the parts are replaced. Use of this product
with damaged or missing parts could result in serious personal injury.
Intended Use
This tool is intended for driving or removing screws in wood, metal, plastic, and
other materials.
Charging the Tool (Fig. 2)
This screwdriver features an integrated battery.
NOTE: Fully charge the tool before using it for the first use. The optimal charge is
achieved after 3 hours.
WARNING The screwdriver is only to be charged with a certied USB
power supply or power source (5V, max. 1A). Never
charge the tool with any power supply or power source that is not certied.
Failure to obey this warning could cause battery damage and serious personal
injury.
1. Insert the USB-A connector of the USB-C charging cable into the USB power
supply (not included).
2. Insert the other connector of the USB-C charging cable into the charging port
of the tool, make sure that they are properly connected.
3. Plug the power supply into a standard power outlet. The battery/torque
indicators will flash to indicate the tool charging status:
Battery/Torque Indicator Tool Charging Status
3 LEDs flash alternately Battery capacity is below 30%
1 LED on, 2 LEDs flash alternately Battery capacity is within 30% – 60%
2 LED on, 1 LED flashes Battery capacity is above 60%
3 LEDS on Battery is fully charged
4. When charging is complete, the three battery/torque indicators will glow solid
green. Disconnect the USB-C charging cable from the tool.
NOTE: The tool will not operate during charging.
NOTE: It is normal for the tool to become warm during charging.
NOTE: Do not charge the tool in extremely hot or cold conditions. Charging is
best achieved at normal room temperature.

11
Fig. 2
USB Power Supply
(Not Included)
USB-A Connector USB-C Charging Port
USB-C
Connector
Lock-off Button (Fig. 3)
This tool features a lock-off button to
prevent unintentional starting.
To lock the tool
Press and hold the lock-off button for
more than 1 second and the lock-off
indicator will light up.
NOTE: The lock-off indicator will go
off automatically after approximately 1
minute of inactivity.
To unlock the tool
Press and hold the lock-off button for more than 1 second and the lock-off
indicator will turn off.
NOTE: The tool is shipped unlocked by default.
NOTE: When the tool is locked and the lock-off indicator is off, press the forward/
reverse switch or lock-off button and the lock-off indicator will light up.
Selecting the Rotation Direction
(Fig. 4)
NOTICE: To prevent the gear damage, do
not change the rotation direction while
the tool is operating. Let the tool come
to a complete stop first.
1. Unlock the tool by pressing the lock-
off button until the lock-off indicator
goes off.
2. For forward rotation (driving/
tightening screws), press the front
half of the forward/reverse switch (A).
3. For reverse rotation (loosening/removing screws), press the rear half of the
forward/reverse switch (B).
Fig. 3
Torque
Indicator
Lock-off
Indicator
Torque Button
(Lock-off Button)
Fig. 4
AB

12
Setting the Torque (Fig. 3)
Torque is a turning or force that drives a fastener. The greater the torque the
greater the force. Different type of materials require different amount of torque.
The torque can be set depending on the size and type of fastener and the material
in which the fastener is driven.
Use the lower torque for driving screws with a small diameter or when driving
screws into soft materials.
Higher torque is for driving larger screws or when driving screws into hard
materials.
Once the set torque has been reached, the tool will stop automatically.
1. Unlock the tool by pressing the lock-off button until the lock-off indicator goes
off.
2. Briefly press the torque (same as lock-off button) button and the torque
indicators will display the current torque setting.
3. Press the torque button to switch between the three torque settings.
4. The torque indicators light up accordingly:
Battery/Torque Indicator Torque
1 LED on Lowest torque
2 LEDs on Medium torque
3 LEDs on Highest torque
NOTE: When the tool is re-started after a break, the torque setting will return to
the previously used torque setting.
NOTE: The torque indicator will go off automatically after approximately 1 minute
of inactivity.
Using the LED Work Light (Fig. 5)
NOTICE: The tool is equipped with a LED
work light that will illuminate when the
forward/reverse switch is pressed. This
provides additional light on the surface
of the workpiece for operation in low
light areas.
The LED work light switches off
automatically approximately 10 seconds
after the forward/reverse switch is
released.
The LED work light will rapidly flash when the tool becomes overloaded or too
hot and the internal sensors will turn the tool off. Rest the tool for a while or
place the tool under airflow for cooling.
The LED work light will flash more slowly to indicate that the battery charge is
low. Recharge the tool.
Fig. 5
Forward/reverse
Switch

13
Changing the Angle of the Pivot
Head (Fig. 6)
The pivot head can be placed into one of
the three working positions: 0°, 22.5°,
and 45°.
1. While pressing the pivot-head release
button, rotate the pivot head to switch
between the three positions.
2. Release the release button. An audible
click indicates that the pivot head is
locked in place.
Installing/Removing a Bit (Fig. 7)
WARNING To prevent
unintentional
starting that may result in possibly
serious injury, always lock-off the tool
when installing or removing bits.
- Insert a bit into the magnetic bit holder.
The magnetized holder will secure the
bit in place (Fig. 7).
-
To remove the bit, pull it out of the
magnetic bit holder.
WARNING Risk of injury! The bit may be hot after prolonged use.
Allow the bit to cool or use gloves to remove it.
Installing a Bit with Hex Shank Bit
Extension (Fig. 8)
WARNING To prevent
unintentional
starting that may result in possibly
serious injury, always lock-off the tool
when installing or removing bits.
1. Insert the hex shank bit extension
into the magnetic bit holder. The
magnetized holder will secure the hex
shank bit extension in place.
2. Insert a bit into the hex shank bit extension.
Tips
NOTICE:
• Always use the correct type and size of bit for the application.
• Drill a pilot hole when driving fastener in hard wood, or at or near the cross cut
end or an edge of wood, in order to avoid cracking of the wood.
Fig. 6
Pivot-head Release
Button
Pivot Head
45°
22.5°
a
b
Fig. 7
Fig. 8
Hex Shank Bit
Extension

14
• Only apply the tool to the fastener when the tool is switched off. Rotating bits
can slip off and damage the fastener head.
• It is recommended to perform the first few turns manually by hand, key, or a
screwdriver to ensure the correct driving of a fastener.
• In case of working with threaded components, do not exert too much pressure
on the tool. This can lead to the damage of the thread.
• Always hold the tool bit perpendicularly aligned with the fastener (Fig. 9).
Holding it at an angle may cause slipping or jamming of the fastener.
Driving and Removing Screws
(Fig. 9)
1. Select and install a suitable bit.
2. Adjust the pivot head to a desired
angle.
3. Unlock the tool by pressing the lock-
off button until the lock-off indicator
goes off.
4. Apply just enough pressure to keep
the bit engaged on the screw.
5. Press the front half of the forward/
reverse switch to drive screws in. Press the rear half of the forward/reverse
switch to remove/loosen screws.
6. If the tool stops before a screw is completely driven in, increase the torque
setting (see chapter “Setting the Torque”) or finish driving the screw
manually (see chapter “ Automatic Spindle Lock”).
Automatic Spindle Lock
The automatic spindle lock allows you to use the screwdriver as a manual
screwdriver. You can give an extra twist to firmly tighten a screw, loosen a very
tight screw, or continue working when the battery charge is depleted.
Fig. 9

15
MAINTENANCE
WARNING Before performing maintenance or cleaning, always
lock-off the tool by pressing the lock-off button until the
lock-off indicator lights up. This will help prevent unintentional starting.
Service
WARNING Preventive maintenance performed by unauthorized
personnel may result in misplacing of internal wires and
components which could cause serious hazard. We recommend that all tool
service be performed by a SKIL Factory Service Center or Authorized SKIL Service
Station.
General Maintenance
WARNING When servicing, use only identical replacement parts.
Use of any other parts could create a hazard or cause
product damage.
Periodically inspect the entire product for damaged, missing, or loose parts such
as screws, nuts, bolts, caps, etc. Tighten securely all fasteners and caps and do
not operate this product until all missing or damaged parts are replaced. Please
contact customer service or an authorized service center for assistance.
Cleaning
The tool may be cleaned most effectively with compressed dry air.
WARNING Always wear safety goggles when cleaning tools with
compressed air. Ventilation openings and switch levers
must be kept clean and free of foreign matter. Do not attempt to clean by
inserting pointed objects through openings.
WARNING Certain cleaning agents and solvents damage plastic
parts. Some of these are: gasoline, carbon tetrachloride,
chlorinated cleaning solvents, ammonia and household detergents that contain
ammonia.
Storage
Lock the tool by pressing the lock-off button until the lock-off indicator lights up.
Store the tool indoors in a place that is inaccessible to children. Keep away from
corrosive agents.

16
TROUBLESHOOTING
Problem Cause Remedy
Tool does not work.
1. The built-in battery
charge is depleted. 1. Charge the tool.
2. The tool is locked. 2. Unlock the tool by
pressing the lock-off
button until the lock-off
indicator goes off.
3. The tool is being
charged. 3. Disconnect the USB-C
power cable for the tool.
The tool stops working
during operation.
1. The built-in battery
charge is depleted. 1. Charge the tool.
2. The torque setting is
insufficient. 2. Increase the torque
setting.
During operation the
LED work light rapidly
flashes.
The tool becomes
overloaded or too hot. Rest the tool for a while or
place the tool under airflow
for cooling.
During operation the
LED work light flashes
more slowly.
The battery charge is
low. Charge the tool.
The battery/torque
indicator does not flash
during charging.
1. Wrong USB-C
charging cable used. 1. Use only included USB-C
charging cable or other
certificated USB charging
cables.
2. The built-in battery is
damaged. 2. Have the tool serviced
by an Authorized SKIL
Service Station.
3. Surrounding air
temperature is too
hot or too cold.
3. Move the tool to an
environment with
appropriate temperature
for charging.
During charging the
middle battery/torque
indicator LED goes off,
the other two LEDs
flash simultaneously.
The built-in battery is
briefly
over-temperature.
This is normal. The tool
will automatically resume
charging after a period of
time.
Bit cannot be installed. Bit does not fit the 1/4’’
hex bit holder. Use suitable bit or adaptor.

17
RECYCLING
To preserve natural resources, please recycle or dispose of
batteries properly. This product contains lithium-ion batteries.
Local, state, or federal laws may prohibit disposal of
lithium-ion batteries in ordinary trash. Consult your local
waste authority for information regarding available recycling
and/or disposal options.

18
LIMITED WARRANTY FOR SKIL CONSUMER TOOL
2 YEAR LIMITED WARRANTY
Chervon North America, Inc. ("Seller") warrants to the original purchaser only,
that all SKIL consumer POWER TOOLS will be free from defects in material
or workmanship for a period of two years from date of purchase, if original
purchaser registers the product. BATTERIES AND CHARGERS are warranted for 2
years. Product registration can be completed online at www.Registermyskil.com.
Original purchasers should also retain their receipt as proof of purchase.
Notwithstanding the foregoing, if a SKIL consumer portable power tool is used
for industrial, professional or commercial purposes, the foregoing warranty will
apply for a duration of ninety days, regardless of registration.
SELLER’S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this
Limited Warranty and, to the extent permitted by law, any warranty or condition
implied by law, shall be the repair or replacement of parts, without charge, which
are defective in material or workmanship and which have not been misused,
carelessly handled, or repaired by persons other than Seller or Authorized
Service Station. To make a claim under this Limited Warranty, you must return
the complete product, transportation prepaid, to any SKIL Factory Service Center
or Authorized Service Station. For Authorized SKIL Power Tool Service Stations,
please visit www.Registermyskil.com or call 1-877-SKIL-999 (1-877-754-5999).
THIS LIMITED WARRANTY DOES NOT APPLY TO ACCESSORY ITEMS SUCH
AS CIRCULAR SAW BLADES, DRILL BITS, ROUTER BITS, JIGSAW BLADES,
SANDING BELTS, GRINDING WHEELS AND OTHER RELATED ITEMS.
ANY IMPLIED WARRANTIES APPLICABLE TO A PRODUCT SHALL BE LIMITED
IN DURATION EQUAL TO THE DURATION OF THE EXPRESS WARRANTIES
APPLICABLE TO SUCH PRODUCT, AS SET FORTH IN THE FIRST PARAGRAPH
ABOVE. SOME STATES IN THE U.S., SOME CANADIAN PROVINCES DO NOT
ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE
ABOVE LIMITATION MAY NOT APPLY TO YOU.
IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES (INCLUDING BUT NOT LIMITED TO LIABILITY
FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT.
SOME STATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT
ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO
YOU.
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU
MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE IN THE
U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY TO COUNTRY.
THIS LIMITED WARRANTY APPLIES ONLY TO PRODUCTS SOLD WITHIN
THE UNITED STATES OF AMERICA, CANADA AND THE COMMONWEALTH OF
PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER COUNTRIES,
CONTACT YOUR LOCAL SKIL DEALER OR IMPORTER.
© Chervon North America, 1203 E. Warrenville Rd, Naperville, IL 60563.

19

20
TABLE DES MATIÈRES
Avertissements généraux relatifs à la
sécurité pour les outils électriques ..........................................................21-24
Avertissements relatifs à la sécurité pour la visseuse .................................. 24
Mise en garde de la FCC...........................................................................24-25
Symboles..................................................................................................26-28
Familiarisez-vous avec votre visseuse. ......................................................... 29
Spécications................................................................................................ 29
Instructions pour l’utilisation....................................................................30-35
Maintenance.................................................................................................. 36
Recherche de la cause des problèmes..................................................... 37-38
Garantie limitée des outils grand public SKIL...........................................39-40
AVERTISSEMENT
• La poussière créée pendant le ponçage, le sciage, le polissage, le perçage
et d’autres activités liées à la construction peut contenir des produits
chimiques reconnus par l’État de la Californie comme étant la cause de
cancers, d’anomalies congénitales et d’autres problèmes liés aux fonctions
reproductrices. Voici des exemples de ces produits chimiques:
- Plomb provenant de peintures à base de plomb.
- De la silice cristalline provenant de la brique, du ciment ou d’autres matériaux
de maçonnerie.
- l’arsenic et le chrome contenus dans le bois d’œuvre traité avec des produits
chimiques.
• Les risques liés à l’exposition à ces produits varient selon le nombre de fois
où vous pratiquez ces activités. Pour réduire votre exposition à ces produits
chimiques:
- Travaillez dans un endroit bien ventilé.
- Munissez-vous de l’équipement de sécurité approuvé tel que des masques
antipoussières conçus spécialement pour filtrer les particules microscopiques.
- Évitez l’exposition prolongée à la poussière causée par le ponçage mécanique,
le sciage, le polissage, le perçage et d’autres activités liées à la construction.
Portez un équipement de protection et lavez à l’eau et au savon toutes les
parties exposées. Les poussières pénétrant dans votre bouche ou dans vos
yeux et les poussières se déposant sur votre peau peuvent causer l’absorption
de produits chimiques dangereux.
Table of contents
Languages:
Other Skil Power Screwdriver manuals
