12V BL Auto Hammer
Marteau auto BL de 12 V
Martillo automático BL de 12 V
1-877-SKIL-999 OR www.skil.com
Model/ Modelo/ Modèle: AH6552A-00

2
TABLE OF CONTENTS
General Power Tool Safety Warnings .............................3-5
Safety Instructions for Auto Hammer ...............................5
Symbols .....................................................6-9
Get to Know Your Auto Hammer ..................................10
Specications .................................................10
Operating Instructions .......................................11-14
Maintenance...................................................15
Troubleshooting ...............................................16
Limited Warranty of SKIL Cordless Tools...........................17
WARNING
• Some dust created by power sanding, sawing, grinding, drilling and other construction
activities contains chemicals known to the State of California to cause cancer, birth defects or
other reproductive harm. Some examples of these chemicals are:
– Lead from lead-based paints.
– Crystalline silica from bricks, cement, and other masonry products.
– Arsenic and chromium from chemically-treated lumber.
• Your risk from these exposures varies, depending upon how often you do this type of work.
To reduce your exposure to these chemicals:
– Work in a well-ventilated area.
– Work with approved safety equipment, such as dust masks that are specially designed to
lter out microscopic particles.
– Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and
other construction activities. Wear protective clothing and wash exposed areas with soap
and water. Allowing dust to get into your mouth or eyes or to lie on the skin may promote
absorption of harmful chemicals.

3
GENERAL POWER TOOL SAFETY WARNINGS
WARNING Read all safety warnings, instructions, illustrations and specifications
provided with this power tool. Failure to follow all instructions listed
below may result in electric shock, re and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
Work area safety
Keep work area clean and well lit. Cluttered or dark areas invite accidents.
Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or
fumes.
Keep children and bystanders away while operating a power tool. Distractions can cause
you to lose control.
Electrical safety
Power tool plugs must match the outlet. Never modify the plug in any way. Do not use
any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching
outlets will reduce risk of electric shock.
Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is earthed or
grounded.
Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a ground fault circuit
interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.
Personal safety
Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol
or medication. A moment of inattention while operating power tools may result in serious
personal injury.
Use personal protective equipment. Always wear eye protection. Protective equipment
such as a dust mask, non-skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
Prevent unintentional starting. Ensure the switch is in the off-position before connecting
to power source and/or battery pack, picking up or carrying the tool. Carrying power
tools with your nger on the switch, or energizing power tools that have the switch on invites
accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key
left attached to a rotating part of the power tool may result in personal injury.
Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.

4
Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving
parts.
If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of dust collection can reduce dust-
related hazards.
Do not let familiarity gained from frequent use of tools allow you to become complacent
and ignore tool safety principles. A careless action can cause severe injury within a fraction
of a second.
Power tool use and care
Do not force the power tool. Use the correct power tool for your application. The correct
power tool will do the job better and safer at the rate for which it was designed.
Do not use the power tool if the switch does not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
Disconnect the plug from the power source and/or the battery pack from the power tool
before making any adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
Store idle power tools out of the reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
Maintain power tools and accessories. Check for misalignment or binding of moving
parts, breakage of parts and any other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired before use. Many accidents are
caused by poorly maintained power tools.
Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the
power tool for operations different from those intended could result in a hazardous situation.
Battery tool use and care
Recharge only with the charger specified by the manufacturer. A charger that is suitable
for one type of battery pack may create a risk of re when used with another battery pack.
Use power tools only with specifically designated battery packs. Use of any other battery
packs may create a risk of injury and re.
When battery pack is not in use, keep it away from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal objects, that can make a connection from
one terminal to another. Shorting the battery terminals together may cause burns or a re.
Under abusive conditions, liquid may be ejected from the battery; avoid contact. If
contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery may cause irritation or burns.
Do not use a battery pack or tool that is damaged or modified. Damaged or modied
batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury.
Do not expose a battery pack or tool to fire or excessive temperature. Exposure to re or
temperature above 265 °F (130°C) may cause explosion.
Follow all charging instructions and do not charge the battery pack or tool outside the
temperature range specified in the instructions. Charging improperly or at temperatures
outside the specied range may damage the battery and increase the risk of re.

5
Service
Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
Never service damaged battery packs. Service of battery packs should only be performed
by the manufacturer or authorized service providers.
SAFETY WARNINGS FOR AUTO HAMMER
Wear ear protectors. Exposure to noise can cause hearing loss.
Hold power tools by the insulated gripping surfaces when performing an operation
where the tool may contact hidden wiring. Contact with a “live” wire will also make exposed
metal parts of the tool “live” and shock the operator.
Do not insert or try to insert your finger into the hammer sleeve at any time, failure to do
so could result in personal injury. Your nger may get hurt.
Do not stare into the LED worklight directly; never direct the worklight into others’ eyes.
Never put your hand continuously on the nail when hammering. Only use your hand to
root the nail on the workpiece at the beginning of hammering.
This auto hammer is suggested to be used for the nails with length no more than 3-1/2
inches / 89 mm (Penny Size: 16d).
Use clamps or another practical way to secure and support the workpiece to a stable
platform before hammering. Holding the work by hand against your body leaves it unstable
and may lead to loss of control.
Know your power tool. Read operator’s manual carefully. Learn its applications and
limitations, as well as the specific potential hazards related to this tool. Following this rule
will reduce the risk of electric shock, re or serious injury.
Battery tools do not have to be plugged into an electrical outlet; therefore, they are
always in operation condition. Be aware of possible hazards when not using your
battery tool or when changing accessories. Following this rule will reduce the risk of electric
shock, re or serious personal injury.
Do not place battery tools near fire or heat. This will reduce the risk of explosion and
possibly injury.
Do not charge battery tool in a damp or wet location. Following this rule will reduce the risk
of electric shock.
For best results, your battery tool should be charged in a location where the
temperature is more than 32℉(0℃) but less than 104℉(40℃). Do not store outside or in
vehicles.
Save these instructions. Refer to them frequently and use them to instruct others who may
use this tool. If you loan someone this tool, also loan them these instructions,

6
SYMBOLS
Safety Symbols
The purpose of safety symbols is to attract your attention to possible dangers. The safety
symbols and the explanations with them deserve your careful attention and understanding. The
symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings
they give are no substitutes for proper accident prevention measures.
WARNING Be sure to read and understand all safety instructions in this Owner's
Manual, including all safety alert symbols such as “DANGER”, “WARNING”,
and “CAUTION” before using this tool. Failure to following all instructions listed below may result
in electric shock, re, and/or serious personal injury.
The denitions below describe the level of severity for each signal word. Please read the
manual and pay attention to these symbols.
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that follow this
symbol to avoid possible injury or death.
DANGER DANGER indicates a hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING WARNING indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION CAUTION, used with the safety alert symbol, indicates a hazardous
situation which, if not avoided, will result in minor or moderate
injury.
Damage Prevention and Information Messages
These inform the user of important information and/or instructions that could lead to equipment
or other property damage if they are not followed. Each message is preceded by the word
“NOTICE”, as in the example below:
NOTICE: Equipment and/or property damage may result if these instructions are not followed.
WARNING The operation of any power tools can result in foreign
objects being thrown into your eyes, which can result
in severe eye damage. Before beginning power tool operation, always
wear safety goggles or safety glasses with side shields and a full face
shield when needed. We recommend a Wide Vision Safety Mask for use
over eyeglasses or standard safety glasses with side shields. Always use
eye protection which is marked to comply with ANSI Z87.1.

7
SYMBOLS (CONTINUED)
IMPORTANT: Some of the following symbols may be used on your tool. Please study them
and learn their meaning. Proper interpretation of these symbols will allow you to operate the
tool better and more safely.
Symbol Name Designation/Explanation
V Volts Voltage (potential)
AAmperes Current
Hz Hertz Frequency (cycles per second)
WWatt Power
kg Kilograms Weight
min Minutes Time
s Seconds Time
Wh Watt-hours Battery capacity
Ah Ampere-hours Battery capacity
øDiameter Size of drill bits, grinding wheels, etc.
n0No load speed Rotational speed, at no load
nRated speed Maximum attainable speed
…/min Revolutions or reciprocations per
minute (rpm)
Revolutions, strokes, surface speed,
orbits, etc. per minute
OOff position Zero speed, zero torque...
1,2,3,…
Ⅰ,Ⅱ,Ⅲ, Selector settings Speed, torque, or position settings.
Higher number means greater speed
Innitely variable selector with off Speed is increasing from 0 setting
Arrow Action in the direction of arrow
Alternating current (AC) Type or a characteristic of current
Direct current (DC) Type or a characteristic of current
Alternating or direct current
(AC / DC) Type or a characteristic of current
Class II tool Designates Double Insulated Construction
tools.
Protective earth Grounding terminal
Li-ion RBRC seal Designates Li-ion battery recycling
program
Read the instructions Alerts user to read manual

8
Symbol Name Designation/Explanation
Wear eye protection symbol Alerts user to wear eye protection
Always operate with two hands Alerts user to always operate with two
hands
Do not use the guard for cut-off
operations
Alerts user not to use the guard for
cut-off operations

9
SYMBOLS (CERTIFICATION INFORMATION)
IMPORTANT: Some of the following symbols for certication information may be used on your
tool. Please study them and learn their meaning. Proper interpretation of these symbols will
allow you to operate the tool better and more safely.
Symbol Designation/Explanation
This symbol designates that this tool is listed by Underwriters
Laboratories.
This symbol designates that this component is recognized by
Underwriters Laboratories.
This symbol designates that this tool is listed by Underwriters
Laboratories, to United States and Canadian Standards.
This symbol designates that this tool is listed by the Canadian
Standards Association.
This symbol designates that this tool is listed by the Canadian
Standards Association, to United States and Canadian Standards.
This symbol designates that this tool is listed by the Intertek Testing
Services, to United States and Canadian Standards.

10
GET TO KNOW YOUR AUTO HAMMER
Auto Hammer
Fig. 1
Magnetic Sleeve
Hammer-head
Collet (recessed
within magnetic
sleeve)
LED Worklight
Trigger Switch
Trigger Lock
Hammer-head
Pivot-lock Button
SPECIFICATIONS
Rated voltage 12V d.c.
Hammer-head collet 15/32 inch
Hammer-head pivot angles 0°, 45°and 90°
Recommended operating temperature 14–104°F (-10–40°C)
Recommended storage temperature 32–104°F (0–40°C)

11
OPERATING INSTRUCTIONS
WARNING To reduce the risk of fire, personal injury, and product damage due to
a short circuit, never immerse your tool, battery pack or charger in
fluid or allow a fluid to flow inside them. Corrosive or conductive uids, such as seawater,
certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short
circuit.
WARNING If any parts are damaged or missing, do not operate this product until
the parts are replaced. Use of this product with damaged or missing parts
could result in serious personal injury.
WARNING Do not attempt to modify this tool or create accessories not
recommended for use with this tool. Any such alteration or modication
is misuse and could result in a hazardous condition leading to possible serious injury.
WARNING To prevent accidental starting that could cause serious personal
injury, always remove the battery pack from the tool when assembling
parts, making adjustments, cleaning, or performing maintenance. This cordless auto
hammer must be used only with the battery packs and chargers listed below:
Battery Pack Charger
2Ah 4Ah SKIL QC535701
SKIL SC536501
SKIL BY500101
SKIL BY519901 SKIL BY519801
NOTICE: Please refer to the battery and charger manual for detailed operating information.
To Attach/Detach Battery Pack
(Fig.2)
Avoid the possibility of accidental starting:
Set the trigger lock in the locked position before
attaching or detaching the battery pack. See
the detailed instructions in the section “Trigger
Switch and Trigger Lock”.
To attach the battery pack:
Align the raised rib on the battery pack with the
grooves in the tool, and then slide the battery
pack onto the tool.
To detach the battery pack:
Depress the battery-release button, located
on the front of the battery pack, to release the
battery pack. Pull the battery pack out and remove it from the tool.
NOTICE: When placing the battery pack on the tool, be sure that the raised rib on the battery
pack aligns with the groove inside the tool and that the latches snap into place properly.
Improper attachment of the battery pack can cause damage to internal components.
Fig. 2
Attach
Battery-release
Button
Detach

12

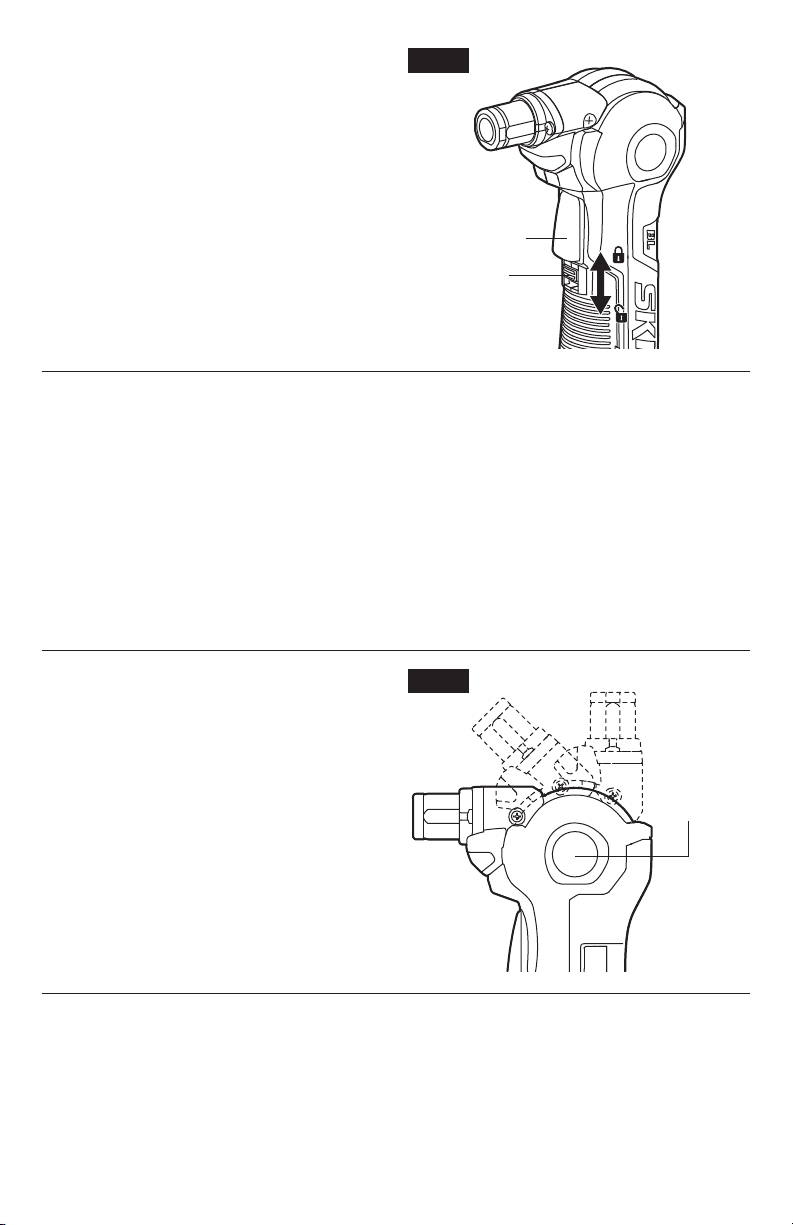

Trigger Switch and Trigger Lock
(Fig.3)
To lock the trigger switch, push the trigger lock
upward. The trigger switch will not work while
the trigger lock is in the locked position. Lock
the trigger switch when storing the tool and
when the tool is not in use. To unlock the trigger
switch, push the trigger lock downward.
LED Worklight
The LED worklight, located on the front of the auto hammer, will turn on when the trigger switch
is depressed. The LED worklight will turn off approximately 10 seconds after the trigger switch
is released. This provides additional lighting on the surface of the workpiece for operation in
lower-light areas.
The LED light will rapidly ash when the tool and/or the battery pack are outside the
recommended temperature range, and the internal sensors will turn the tool off. Rest the tool
and battery pack for a while in room temperature if they are too cold or place the tool and
battery pack separately under air ow to cool them if they are too hot.
The LED light will ash more slowly to indicate that the battery is at low-battery capacity.
Recharge the battery pack.
Articulating Hammer-head (Fig. 4)
The hammer-head pivot-lock button allows you
to position the head at 0°, 45°, or 90°. Depress
the hammer-head pivot-lock button to release
the hammer-head. Pivot the head to one of
operating angles suitable for the task and then
release the pivot-lock button.
Fig. 3
Trigger Switch
Trigger Lock
Fig. 4
Hammer-
head Pivot-
lock Button

13
Magnetic Sleeve (Fig.5)
The magnetic sleeve holds the head of the
inserted nail against the recessed hammer-
head for the beginning of nail driving. The
sleeve retracts at the end of nail driving to allow
the hammer-head to drive the nail head ush
with the workpiece surface.

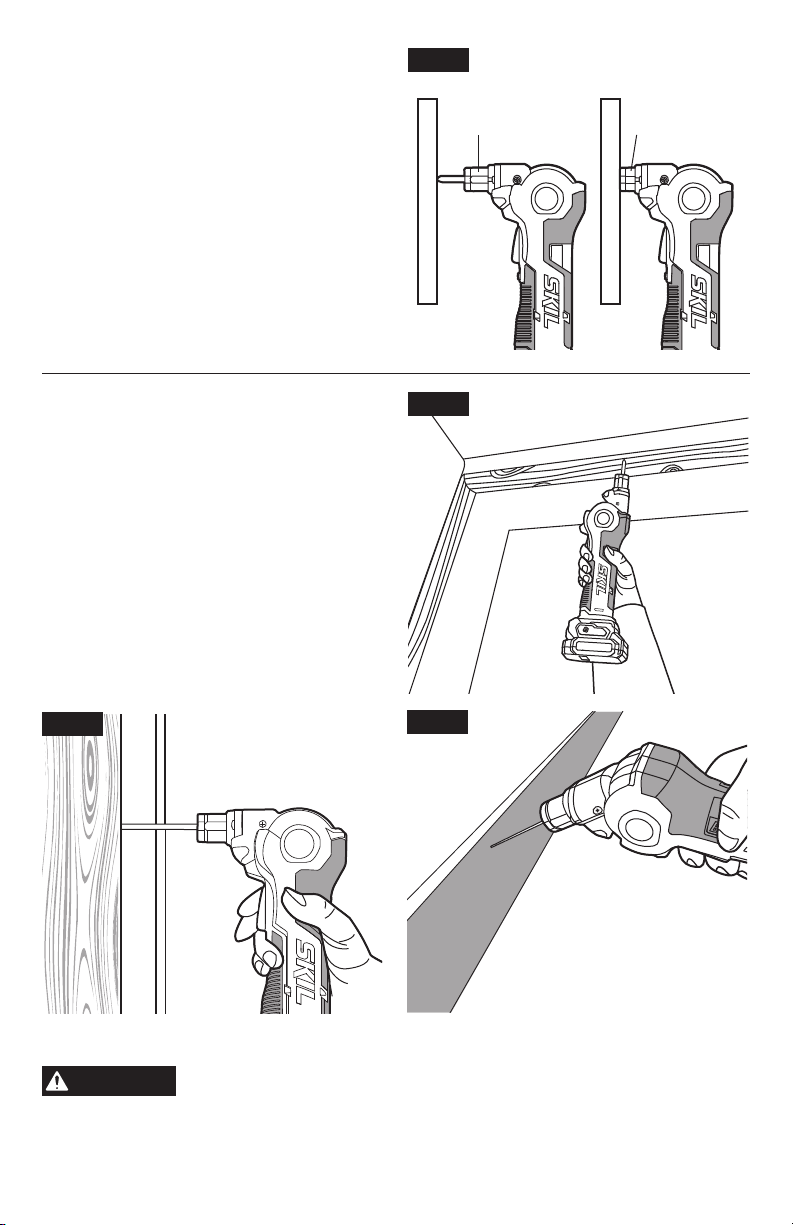

Hammering Nails (Fig. 6)
1. Attach the battery pack to the auto hammer.
2. Secure the material to be nailed with clamps
to keep it from moving when hammering.
3. Set the hammer head to the angle
appropriate for your job.
• For hammering nails on the oor or ceiling, set
your hammer-head at 0°as shown in Fig. 6.
• For hammering nails on the walls or other
vertical surfaces, set your hammer-head at
90° (Fig. 6a).
• For hammering nails on an angle or in tight
places, set your hammer-head at 45° (Fig. 6b).
Fig. 6a Fig. 6b
4. Insert the head of the nail into the magnetic sleeve and up against the hammer-head, where
it will be held in place by magnetic force. Place the tip of the nail against the workpiece.
WARNING Before depressing the trigger switch to start hammering, make sure that
the articulating head of the auto hammer is locked in place. Otherwise, the
hammer-head would move, causing serious personal injury.
Fig. 6
Fig. 5
Magnetic
Sleeve Magnetic Sleeve

14
5. Holding the shaft of the nail steady with your hand, push down on the tool and press the
trigger switch to initiate the hammering action and drive the nail deep enough into the
workpiece so that it stands on its own. Release the trigger switch and remove your hand
from the nail.
WARNING Be especially careful when driving shorter nails, such as brads, and remove
your hand as soon as the nail stands on its own in the workpiece.
6. Resume pushing down on tool and pressing the trigger switch to continue hammering until
the nail is fully driven into the workpiece. Near the end of hammering, the magnetic sleeve
will retract to allow the hammer-head to drive the nail head ush into the workpiece.
WARNING To avoid possible serious injury, do not overly force the hammer or apply
side pressure. Hold the tool rmly while pushing steadily to allow the
hammer-head to drive the nail automatically.
Recommended Nailing Materials for the Auto Hammer
The auto hammer may be used for nailing into all types of wood, wood-like materials, and
plaster board.
NOTICE: The tool is not suitable for nailing in hard metal or concrete.

15
MAINTENANCE
WARNING To avoid serious personal injury, always remove the battery pack from the
tool when cleaning or performing any maintenance.
Service
WARNING Preventive maintenance performed by unauthorized personnel may
result in misplacing of internal wires and components which could
cause serious hazard. We recommend that all tool service be performed by a SKIL Factory
Service Center or Authorized SKIL Service Station.
General Maintenance
WARNING When servicing, use only identical replacement parts. Use of any
other parts may create a hazard or cause product damage.
NOTE: Periodically inspect the entire product for damaged, missing, or loose parts such as
screws, nuts, bolts, caps, etc. Tighten securely all fasteners and caps and do not operate this
product until all missing or damaged parts are replaced. Please contact customer service or an
authorized service center for assistance.
Cleaning
The tool may be cleaned most effectively with compressed dry air.
WARNING Always wear safety goggles when cleaning tools with compressed air.
Ventilation openings and switch levers must be kept clean and free of
foreign matter. Do not attempt to clean by inserting pointed objects through openings.
WARNING Certain cleaning agents and solvents damage plastic parts. Some of
these are: gasoline, carbon tetrachloride, chlorinated cleaning solvents,
ammonia and household detergents that contain ammonia.
Storage
Store the tool indoors in a place that is inaccessible to children. Keep away from corrosive
agents.

16
TROUBLESHOOTING
Problem Cause Remedy
Tool does not work. 1. Battery pack is depleted. 1. Charge the battery.
2. Battery pack is not installed
properly. 2. Conrm that the battery is locked and secured to the
tool.
3. Burned out switch. 3. Have the switch replaced
by an Authorized SKIL
Service Center or Service
Station.
LED worklight rapidly
ashes. Battery pack or tool and/or tool are outside the recommended
temperature range.
Rest the tool and battery
pack for a while in room
temperature if they are too
cold or place the tool and
battery pack separately under
air ow to cool them if they
are too hot.
The LED worklight ashes
more slowly. The battery is at low-battery capacity. Recharge the battery pack.

17
LIMITED WARRANTY FOR SKIL CONSUMER TOOLS
5 YEAR LIMITED WARRANTY
Chervon North America, Inc. (“Seller”) warrants to the original purchaser only, that all SKIL
consumer TOOLS will be free from defects in material or workmanship for a period of ve
years from date of purchase, if original purchaser registers the product within 30 days from
purchase. BATTERIES AND CHARGERS are warranted for 2 years. Product registration
can be completed online at www.Registermyskil.com. Original purchasers should also retain
their receipt as proof of purchase. THE FIVE-YEAR WARRANTY PERIOD FOR TOOLS IS
CONDITIONED ON REGISTRATION OF THE PRODUCT WITHIN 30 DAYS OF PURCHASE.
If original purchasers do not register their product timely, the foregoing limited warranty will
apply for a duration of three years for tools. All batteries and chargers will remain under the
two-year limited warranty.
Notwithstanding the foregoing, if a SKIL consumer tool is used for industrial, professional
or commercial purposes, the foregoing warranty will apply for a duration of ninety days,
regardless of registration.
SELLER’S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited
Warranty and, to the extent permitted by law, any warranty or condition implied by law, shall
be the repair or replacement of parts, without charge, which are defective in material or
workmanship and which have not been misused, carelessly handled, or repaired by persons
other than Seller or Authorized Service Station. To make a claim under this Limited Warranty,
you must return the complete product, transportation prepaid, to any SKIL Factory Service
Center or Authorized Service Station. For Authorized SKIL Power Tool Service Stations, please
visit www.Registermyskil.com or call 1-877-SKIL-999 (1-877-754-5999).
THIS LIMITED WARRANTY DOES NOT APPLY TO ACCESSORY ITEMS SUCH AS
CIRCULAR SAW BLADES, DRILL BITS, ROUTER BITS, JIGSAW BLADES, SANDING
BELTS, GRINDING WHEELS AND OTHER RELATED ITEMS.
ANY IMPLIED WARRANTIES APPLICABLE TO A PRODUCT SHALL BE LIMITED IN
DURATION EQUAL TO THE DURATION OF THE EXPRESS WARRANTIES APPLICABLE TO
SUCH PRODUCT, AS SET FORTH IN THE FIRST PARAGRAPH ABOVE. SOME STATES IN
THE U.S., SOME CANADIAN PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG
AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES (INCLUDING BUT NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS)
ARISING FROM THE SALE OR USE OF THIS PRODUCT. SOME STATES IN THE U.S.
AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT APPLY TO YOU.
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO
HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO
PROVINCE IN CANADA AND FROM COUNTRY TO COUNTRY.
THIS LIMITED WARRANTY APPLIES ONLY TO PRODUCTS SOLD WITHIN THE UNITED
STATES OF AMERICA, CANADA AND THE COMMONWEALTH OF PUERTO RICO. FOR
WARRANTY COVERAGE WITHIN OTHER COUNTRIES, CONTACT YOUR LOCAL SKIL
DEALER OR IMPORTER.
© Chervon North America, 1203 E. Warrenville Rd, Naperville, IL 60563.

18
TABLE DES MATIÈRES
Avertissements de sécurité généraux
relatifs aux outils électriques..................................19-21
Avertissements relatifs à la sécurité pour le marteau automatique...21-22
Symboles ..................................................23-26
Familiarisez-vous avec votre marteau automatique ..................27
Spécications .................................................27
Mode d’emploi ..............................................28-31
Entretien......................................................32
Recherche de la cause des problèmes .............................33
Garantie limitée de l’outil sans l SKIL ..........................34-35
AVERTISSEMENT
• La poussière créée pendant le ponçage, le sciage, le polissage, le perçage et d’autres acti-
vités liées à la construction peut contenir des produits chimiques reconnus par l’État de la
Californie comme étant la cause de cancers, d’anomalies congénitales et d’autres problèmes
liés aux fonctions reproductrices. Voici des exemples de ces produits chimiques :
–Plomb provenant de peintures à base de plomb.
–Silice cristallisée contenue dans les briques, le ciment et d’autres produits de maçonnerie.
–Arsenic et chrome contenus dans le bois d’œuvre traité avec des produits chimiques.
• Les risques liés à l’exposition à ces produits va-rient selon le nombre de fois où vous
pratiquez ces activités. Pour réduire votre exposition à ces produits chimiques :
–travaillez dans un endroit bien ventilé;
–munissez-vous de l’équipement de sécurité ap-prouvé tel que des masques antipoussières
conçus spécialement pour ltrer les particules microscopiques;
–évitez l’exposition prolongée à la poussière causée par le ponçage mécanique, le sciage, le
polissage, le perçage et d’autres activités liées à la construction. Portez un équipement de
pro-tection et lavez à l’eau et au savon toutes les parties exposées. Les poussières pénétrant
dans votre bouche ou dans vos yeux et les poussières se déposant sur votre peau peuvent
causer l’absorption de produits chimiques dangereux.

19
AVERTISSEMENTS DE SÉCURITÉ GÉNÉRAUX RELATIFS AUX
OUTILS ÉLECTRIQUES
AVERTISSEMENT Lisez tous les avertissements et toutes les ins-tructions,
illustrations et spécifications fournis avec cet outil
électrique. Le non-respect des consignes de sécurité ci-dessous peut occasionner un choc
électrique, un in-cendie ou des blessures graves.
CONSERVEZ TOUS LES AVERTISSEMENTS ET TOUTES LES INSTRUCTIONS AFIN DE
POUVOIR LES CON-SULTER ULTÉRIEUREMENT.
L’expression « outil électrique » utilisée dans les avertissements correspond aux outils
électriques alimentés sur secteur (à l) ou alimentés par piles (sans l).
Mesures de sécurité dans l’aire de travail
Maintenez l’aire de travail propre et bien éclairée. Les aires de travail sombres et en-
combrées sont propices aux accidents.
N’utilisez pas d’outils électriques dans un en-droit présentant un risque d’explosion,
par exemple en présence de liquides, de gaz ou de poussières inflam-mables. Les outils
électriques produisent des étincelles pouvant causer un incendie en raison de la poussière et
des fumées.
Gardez les enfants et les autres personnes à l’écart lorsque vous utilisez un outil
électrique. Une distraction peut vous faire perdre la maîtrise de l’outil.
Consignes de sécurité relatives à l’électricité
Les fiches des outils électriques doivent cor-respondre à la prise. Ne modifiez jamais
la fiche de quelque façon que ce soit. N’utilisez pas d’adaptateur avec les outils
électriques mis à la terre. L’utilisation de ches non modiées dans les prises compatibles
réduit les risques de choc électrique.
Évitez de toucher à des surfaces mises à la terre, par exemple, un tuyau, un radiateur,
une cuisi-nière ou un réfrigérateur. Le contact du corps avec une surface mise à la terre
augmente les risques de choc électrique.
N’exposez pas les outils électriques à la pluie ni à tout environnement humide. L’inltration
d’eau dans un outil électrique augmente les risques de choc électrique.
N’utilisez pas le cordon d’alimentation de façon à l’endommager. Ne transportez jamais
un outil électrique en le tenant par son cordon, et ne tirez jamais sur le cordon pour le
débrancher. Tenez le cordon d’alimentation éloigné des sources de chaleur, de l’huile,
des objets cou-pants et des pièces mobiles. Les risques de choc électrique sont plus
élevés si le cordon d’alimentation est endommagé ou emmêlé.
Lorsque vous utilisez un outil électrique à l’extérieur, utilisez une rallonge conçue pour
être utilisée à l’extérieur. Ce type de rallonge réduit les risques de choc électrique.
Si vous n’avez d’autre choix que d’utiliser un outil électrique dans un endroit humide,
utilisez une alimentation protégée par un disjoncteur différentiel. L’utilisation d’un
disjoncteur dif-férentiel réduit les risques de choc électrique.
Sécurité personnelle
Soyez vigilant, prêtez attention à ce que vous faites et usez de votre jugement lorsque
vous utilisez un outil électrique. N’utilisez pas un outil électrique lorsque vous êtes
fatigué ou sous l’effet de drogues, d’alcool ou de médicaments. Un moment d’inattention
lorsque vous utilisez des outils électriques peut occasionner des blessures graves.

20
Utilisez un équipement individuel de protec-tion. Portez toujours des lunettes de sécurité.
Le port d’équipement de protection, comme un masque antipoussières, des chaussures de
sécu-rité antidérapantes, un casque de protection et des protecteurs auditifs, lorsque les
conditions l’exigent, réduit les risques de blessures.
Prenez des mesures afin d’éviter que l’outil se mette en marche accidentellement.
Assu-rez-vous que l’interrupteur est à la position d’arrêt avant de brancher l’outil sur
une source d’alimentation ou un bloc-piles, de ramasser l’outil ou de le transporter.
Transporter les outils électriques avec le doigt sur la gâchette ou brancher les outils lorsque
l’interrupteur est à la position de marche augmente les risques d’accident.
Retirez toutes les clés de réglage de l’outil électrique avant de mettre celui-ci en marche.
Une clé de réglage oubliée sur une pièce rotative de l’outil électrique peut occasionner des
blessures graves.
Ne vous étirez pas pour étendre votre portée. Gardez une posture sécuritaire et un bon
équi-libre en tout temps. Cela vous permet de mieux maîtriser l’outil électrique lorsque des
situations inattendues se présentent.
Habillez-vous convenablement. Ne portez pas de vêtements amples ni de bijoux. Gardez
vos cheveux, vos vêtements et vos gants loin des pièces mobiles. Les vêtements amples,
les bijoux et les cheveux longs risquent de se prendre dans les pièces en mouvement.
Si un dispositif permet de raccorder un dé-poussiéreur, assurez-vous que celui-ci est
branché et utilisé correctement. L’emploi d’un dépoussiéreur contribue à réduire les dangers
liés à la pous-sière.
Restez toujours sur vos gardes et suivez les principes de sécurité des outils, même s’il
s’agit d’un outil que vous utilisez fréquemment. Il suft d’être négligent une fraction de
seconde pour se blesser gravement.
Utilisation et entretien d’un outil électrique
Ne forcez pas l’outil électrique. Utilisez l’outil électrique approprié à la tâche que vous
sou-haitez accomplir. L’utilisation de l’outil élec-trique approprié permet d’obtenir de meilleurs
résultats, de façon plus sécuritaire, selon le ré-gime de fonctionnement prévu.
N’utilisez pas l’outil électrique si l’interrupteur ne fonctionne pas. Tout outil électrique qui
ne peut être commandé au moyen de l’interrupteur est dangereux et doit être réparé.
Débranchez la fiche de la prise ou retirez, si possible, le bloc-piles de l’outil électrique
avant d’effectuer des réglages, de changer d’accessoire ou de le ranger. Ces mesures de
sécurité pré-ventives réduisent les risques de mise en marche accidentelle de l’outil électrique.
Rangez les outils électriques inutilisés hors de la portée des enfants et ne laissez pas
les personnes ne connaissant pas bien l’outil ou ces instruc-tions utiliser l’outil. Les
outils électriques sont dangereux s’ils se retrouvent entre les mains d’utilisateurs qui ne savent
pas s’en servir.
Entretenez vos outils électriques et vos acces-soires. Vérifiez les pièces mobiles pour
vous assurer qu’elles ne sont pas désalignées, en-rayées, brisées, ou dans un état
qui pourrait nuire à leur fonctionnement. Si l’outil électrique est endommagé, faites-le
réparer avant de l’utiliser. De nombreux accidents sont provo-qués par des outils électriques
mal entretenus.
Gardez vos outils tranchants affûtés et propres. Des outils tranchants bien entretenus dont
les lames sont affûtées risquent moins de se bloquer et sont plus faciles à maîtriser.
Utilisez l’outil électrique, les accessoires, les embouts et les autres éléments
conformément aux présentes instructions, en tenant compte des conditions de travail
et du travail à effectuer. L’utilisation de l’outil électrique à des ns autres que celles pour
lesquelles il a été conçu pourrait créer une situation dangereuse.
