Skil 1035 User manual

ROTARY HAMMER
1035 (F0151035 . . )
SKIL Europe BV - Konijnenberg 60 07/13 2610Z04665
4825 BD Breda - The Netherlands
www.skil.com
 ORIGINAL INSTRUCTIONS 8
NOTICE ORIGINALE 11
ORIGINALBETRIEBSANLEITUNG 14
 ORIGINELE GEBRUIKSAANWIJZING 18
BRUKSANVISNING I ORIGINAL 21
 ORIGINAL BRUGSANVISNING 25
ORIGINAL BRUKSANVISNING 28
 ALKUPERÄISET OHJEET 31
MANUAL ORIGINAL 34
MANUAL ORIGINAL 38
ISTRUZIONI ORIGINALI 41
EREDETI HASZNÁLATI UTASÍTÁS 45
 PŮVODNÍM NÁVODEM K POUŽÍVÁNÍ 48
 ORİJİNAL İŞLETME TALİMATI 51
 INSTRUKCJA ORYGINALNA 55
 ПОДЛИННИК РУКОВОДСТВА
ПО ЭКСПЛУАТАЦИИ 58
 ОРИГІНАЛЬНА ІНСТРУКЦІЯ
З ЕКСПЛУАТАЦІЇ 63
 ΠΡΩΤΟΤΥΠΟ Ο∆ΗΓΙΩΝ ΧΡΗΣΗΣ 66
 INSTRUCŢIUNI DE FOLOSIRE
ORIGINALE 70
 ОРИГИНАЛНО РЪКОВОДСТВО
ЗА ЕКСПЛОАТАЦИЯ 74
 PÔVODNÝ NÁVOD NA POUŽITIE 78
 ORIGINALNE UPUTE ZA RAD 81
 ORIGINALNO UPUTSTVO ZA RAD 85
 IZVIRNA NAVODILA 88
 ALGUPÄRANE KASUTUSJUHEND 91
 ORIĢINĀLĀ LIETOŠANAS PAMĀCĪBA 94
 ORIGINALI INSTRUKCIJA 98
 ИЗВОРНО УПАТСТВО ЗА РАБОТА 101
 UDHËZIMET ORIGJINALE 105
 113
 111

2
H
B
K
J
F
C
DEG
A
2
11035
ʿˁÅÅ
ʾˀÅÅ
ʽƘ˅ˀʽ
ʽƘˀʾ˂ʽ
ÈƯÅÁÆ
ˀˁ
ʿˀʽ
Ƙ
ʿˁʽ
ˀƓˆÿ
ʽʾƯʿʽʽˀ
˄ʿʽ
¹ÌÌ
✱

3
3
C
6
5
4

4
8
DF
E
7

5
9
0

6
PHILLIPS
POZIDRIV
SLOTTED
HSS
!
@
#$
NOT STANDARD
INCLUDED

7
% ^
& *
ACCESSORIES ➞WWW.SKIL.COM

8

Rotary hammer 1035
INTRODUCTION
• This tool is intended for hammer drilling in concrete, brick
and stone as well as for light chiseling work; for drilling in
wood, metal and plastic as well as for screwdriving
specic accessories should be used
• The hammering system in this tool outperforms any
traditional ratcheting drill when drilling in concrete
• This tool is designed for use in combination with all
standard SDS+ accessories
• This tool is not intended for professional use
• Read and save this instruction manual 3
TECHNICAL SPECIFICATIONS 1
✱) Impact energy per stroke according to EPTA-Procedure
05/2009 (value not available yet)

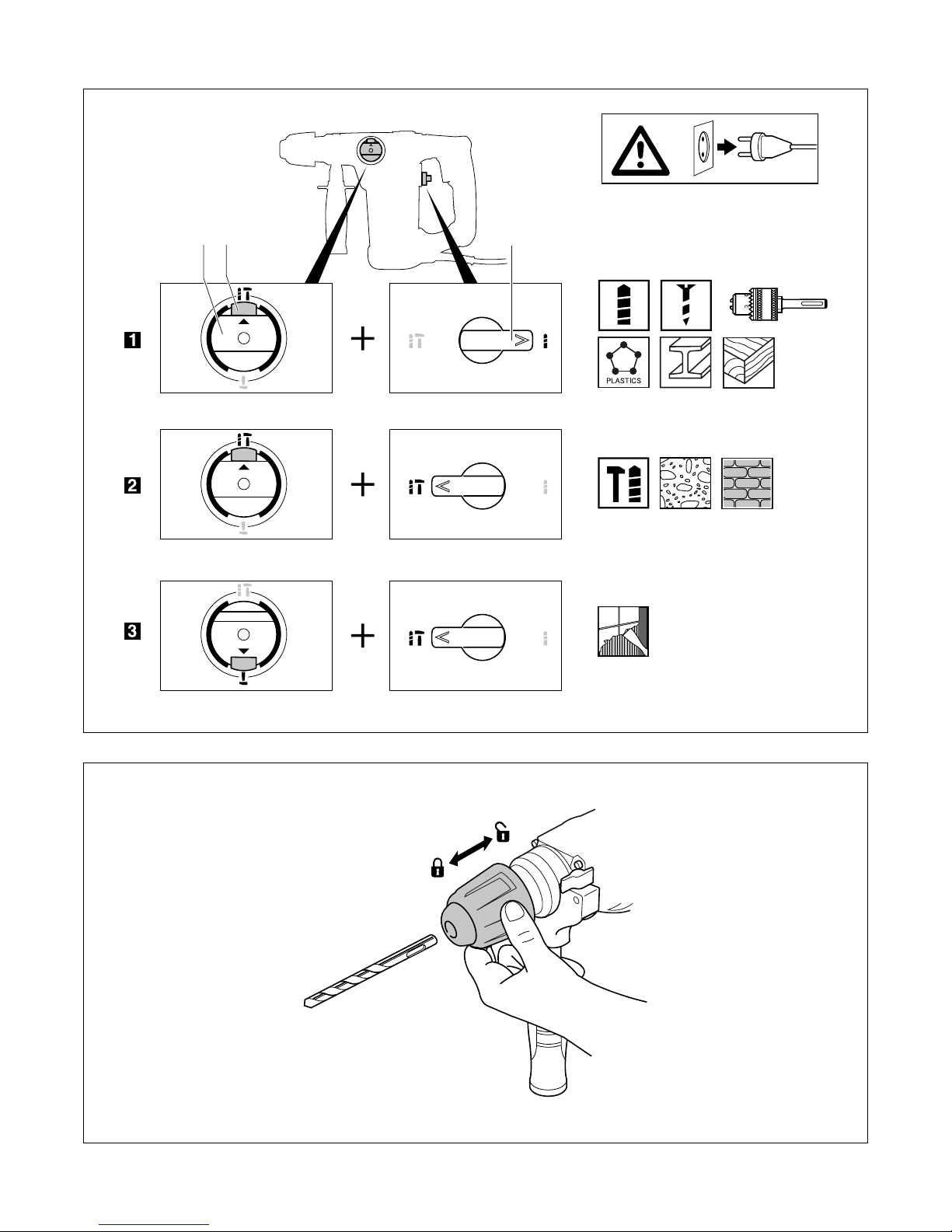

TOOL ELEMENTS 2
A Switch for on/o
B Button for switch locking
C Wheel for maximum speed control
DUnlocking button
E Switch for selecting operating mode
F Second switch for selecting operating mode
G Locking sleeve
H Auxiliary handle
JVentilation slots
KDepth gauge
SAFETY
GENERAL SAFETY INSTRUCTIONS
WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury. Save
all warnings and instructions for future reference. The
term “power tool” in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
power tool.
1) WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which
may ignite the dust or fumes.
c) Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.
Unmodied plugs and matching outlets will reduce risk of
electric shock.
b) Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk of
electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is
unavoidable, use an earth leakage circuit breaker.
Use of an earth leakage circuit breaker reduces the risk
of electric shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do not
use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in
serious personal injury.
b) Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
c) Prevent unintentional starting. Ensure the switch is
in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your nger on the
switch or energising power tools that have the switch on
invites accidents.
d) Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal
injury.
e) Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power tool
in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewelry. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewelry or long hair
can be caught in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power
tool for your application. The correct power tool will do
the job better and safer at the rate for which it was
designed.
b) Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or
the battery pack from the power tool before making

9
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
e) Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in
accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations dierent
from those intended could result in a hazardous situation.
5) SERVICE
a) Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
SAFETY INSTRUCTIONS FOR HAMMERS
GENERAL
• Always check that the supply voltage is the same as the
voltage indicated on the nameplate of the tool (tools with
a rating of 230V or 240V can also be connected to a
220V supply)
• This tool should not be used by people under the age of
16 years
• Do not work materials containing asbestos (asbestos
is considered carcinogenic)
• Never use the tool when cord is damaged; have it
replaced by a qualied person
• Alwaysdisconnectplugfrompowersourcebefore
making any adjustment or changing any accessory
ACCESSORIES
• SKIL can assure awless functioning of the tool only
when original accessories are used
• Use only accessories with an allowable speed matching
at least the highest no-load speed of the tool
BEFORE USE
• Use completely unrolled and safe extension cords with a
capacity of 16 Amps (U.K. 13 Amps)
• Avoid damage that can be caused by screws, nails and
other elements in your workpiece; remove them before
you start working
• Secure the workpiece (a workpiece clamped with
clamping devices or in a vice is held more securely than
by hand)
• Use suitable detectors to find hidden utility lines or
call the local utility company for assistance (contact
with electric lines can lead to re or electrical shock;
damaging a gas line can result in an explosion;
penetrating a water pipe will cause property damage or
an electrical shock)
• Dust from material such as paint containing lead, some
wood species, minerals and metal may be harmful
(contact with or inhalation of the dust may cause allergic
reactions and/or respiratory diseases to the operator or
bystanders); wear a dust mask and work with a dust
extraction device when connectable
• Certain kinds of dust are classied as carcinogenic (such
as oak and beech dust) especially in conjunction with
additives for wood conditioning; wear a dust mask and
work with a dust extraction device when
connectable
• Follow the dust-related national requirements for the
materials you want to work with
DURING USE
• Wear ear protectors (exposure to noise can cause
hearing loss)
• Use auxiliary handle(s), if supplied with the tool
(loss of control can cause personal injury)
• Hold power tool by insulated gripping surfaces,
when performing an operation where the cutting
accessory may contact hidden wiring or its own
cord (a cutting accessory contacting a “live” wire may
make exposed metal parts of the power tool “live” and
could give the operator an electric shock)
• Always keep the cord away from moving parts of the tool
• In case of electrical or mechanical malfunction,
immediately switch o the tool and disconnect the plug
• If the cord is damaged or cut through while working, do
not touch the cord, but immediately disconnect the plug
• If the drill bit becomes unexpectedly jammed (causing a
sudden, dangerous reaction), immediately switch o the
tool
• Be aware of the forces that occur as a result of jamming
(especially when drilling metals); always use auxiliary
handle H 2and take a secure stance
AFTER USE
• When you put away the tool, switch o the motor and
ensure that all moving parts have come to a complete
standstill
WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):
• Do not connect the blue (= neutral) or brown (= live) wire
in the cord of this tool to the earth terminal of the plug
• If for any reason the old plug is cut o the cord of this tool,
it must be disposed of safely and not left unattended
USE
• On/o 4
• Switch locking for continuous use 5
• Maximum speed control 6
With wheel C the maximum speed can be adjusted from
low to high (1-6)
• Selecting operating mode 7
! select operating mode only when tool is switched
off and plug is disconnected
- press button D to unlock switch E
- rst turn switch E to the desired operating mode until it
snap-locks
- then turn switch F to the desired operating mode
1 = normal drilling/screwdriving
2 = impact drilling
3 = chiseling
! start working only when switch E is locked

10
- for drilling in wood, metal and plastic as well as for
screwdriving the corresponding adapter should be
used (see: Application Advice)
- the hammer mechanism is activated by applying a
slight pressure on the tool when the drill bit is in
contact with the workpiece
- it takes a short time for the hammer mechanism to
reach full impact power
- do not apply too much pressure on the tool; let the tool
do the work for you
• Changing bits 8
! clean and lightly lubricate the SDS+ accessory
before insertion
- pull back locking sleeve G 2 and insert accessory in
SDS+ chuck while turning and pushing it until it
engages; the accessory locks in position automatically
- pull accessory to check that it is locked correctly
- remove accessory by pulling back locking sleeve G
! the SDS+ accessory requires freedom of
movement which causes eccentricity when tool is
off-load; however, the accessory automatically
centres itself during operation without affecting
drilling precision
! do not use bits/chisels with a damaged shank
• Safety clutch
If the accessory gets jammed, the drive to the spindle is
interrupted
- immediately switch o tool
- remove the jammed accessory
- switch on tool again
• Adjusting drilling depth 9
• Holding and guiding the tool 0
! while working, always hold the tool at the
grey-coloured grip area(s)
- always use auxiliary handle H 2(can be adjusted
as illustrated)
- keep ventilation slots J 2 uncovered
APPLICATION ADVICE
• Use the appropriate bits !
! only use sharp bits/chisels
• For drilling in wood, metal and plastic as well as for
screwdriving use the corresponding adapter (SKIL
accessory 2610395660) @
- clean and lightly lubricate adapter before insertion
- pull back locking sleeve G 2and insert adapter in
SDS+ chuck while turning and pushing it until it
engages; the adapter locks in position automatically
- pull adapter to check whether is it locked correctly
- set switch E 2to normal drilling (only activate when
tool is switched off and plug is disconnected)
• When drilling ferrous metals
- pre-drill a smaller hole, when a large hole is required
- lubricate drill bit occasionally with oil
• When turning in a screw at/near the cross cut end or an
edge of wood, pre-drill a hole in order to avoid cracking of
the wood
• Splinterfree drilling in wood @
• Dustfree drilling in walls $
• Dustfree drilling in ceilings %
• Drilling in tiles without skidding ^
• For more tips see www.skil.com
MAINTENANCE / SERVICE
• This tool is not intended for professional use
• Never open the tool yourself &
• Always keep tool and cord clean (especially ventilation
slots J 2)
! disconnect the plug before cleaning
• If the tool should fail despite the care taken in
manufacturing and testing procedures, repair should be
carried out by an after-sales service centre for SKIL
power tools
- send the tool undismantled together with proof of
purchase to your dealer or the nearest SKIL service
station (addresses as well as the service diagram of
the tool are listed on www.skil.com)
ENVIRONMENT
• Do not dispose of electric tools, accessories and
packaging together with household waste material
(only for EU countries)
- in observance of European Directive 2002/96/EC on
waste of electric and electronic equipment and its
implementation in accordance with national law,
electric tools that have reached the end of their life
must be collected separately and returned to an
environmentally compatible recycling facility
- symbol * will remind you of this when the need for
disposing occurs
DECLARATION OF CONFORMITY
• We declare under our sole responsibility that this product
is in conformity with the following standards or
standardized documents: EN 60745, EN 61000, EN
55014, in accordance with the provisions of the directives
2004/108/EC, 2006/42/EC, 2011/65/EU
• Technical file at: SKIL Europe BV (PT-SEU/ENG1),
4825 BD Breda, NL
¹ÊÁÂÆιÆ¼½ÊÇǾ¼½Æ
ȽʹÌÁÇÆËŵÆ¿Áƽ½ÊÁÆ¿
ÍÊÇȽƓˁ˅ʿ˂ʽ¼¹Ɠ
Ĺ¾ÁÂÿʹ¹¾
ÈÈÊÇιÄ¹Æ¹¿½Ê
11.07.2013
NOISE/VIBRATION
• Measured in accordance with EN 60745 the sound
pressure level of this tool is 90 dB(A) and the sound
power level 101 dB(A) (standard deviation: 3 dB), and the
vibration ✱ (hand-arm method; uncertainty K = 1.5 m/s²)
✱ when hammer drilling in concrete 14.5 m/s²
✱ when chiseling 12.9 m/s²
• The vibration emission level has been measured in
accordance with a standardised test given in EN 60745; it
may be used to compare one tool with another and as a
preliminary assessment of exposure to vibration when
using the tool for the applications mentioned
