Skope B550-2 User manual

B550/660-2
BME550-2
User Manual MAN0528 Rev 7.1 Aug. 2013
SKOPE Gen2: Single Door Chiller
Type: B550-2 V48BA / V48SA
B660-2 D66BA
BME550-2 E48BA

B550/660-2
BME550-2
SKOPE Gen2: Single Door Chiller
User Manual
MAN0528
Rev 7.1 Aug. 2013
© 2004 SKOPE Industries Limited. All rights reserved.
SKOPE Industries Limited reserve the right to alter specifications without notice.
is a registered trademark of SKOPE Industries Limited.
SKOPE INDUSTRIES LIMITED
Head Office
PO Box 1091, Christchurch
New Zealand
Freephone: 0800 947 5673
Fax: [phone]
E-mail: [email protected]
Website: www.skope.co.nz
Trademark Infringement
The SKOPE trademark on this product is infringed if the owner, for the time being, does
any of the following:
• Applies the trade mark to the product after their state, condition, get-up or packaging
has been altered in any manner
• Alters, removes (including part removal) or obliterates (including part obliteration) the
trade mark on the product
• Applies any other trade mark to the product
• Adds to the product any written material that is likely to damage the reputation of the
trade mark
Notice of the above contractual obligations passes to:
• Successors or assignees of the buyer
• Future owners of the product
Type: B550-2 V48BA / V48SA
B660-2 D66BA
BME550-2 E48BA

SKOPE B550/660-2 and BME550-2
User Manual iii
CONTENTS
1 Installation
Safety First . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Positioning the Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Installation Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Fitting the Kick Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Fitting the Illuminated Sign . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Fitting the Shelves. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
2 Operation
Automatic Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Loading Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Electronic Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Controller Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

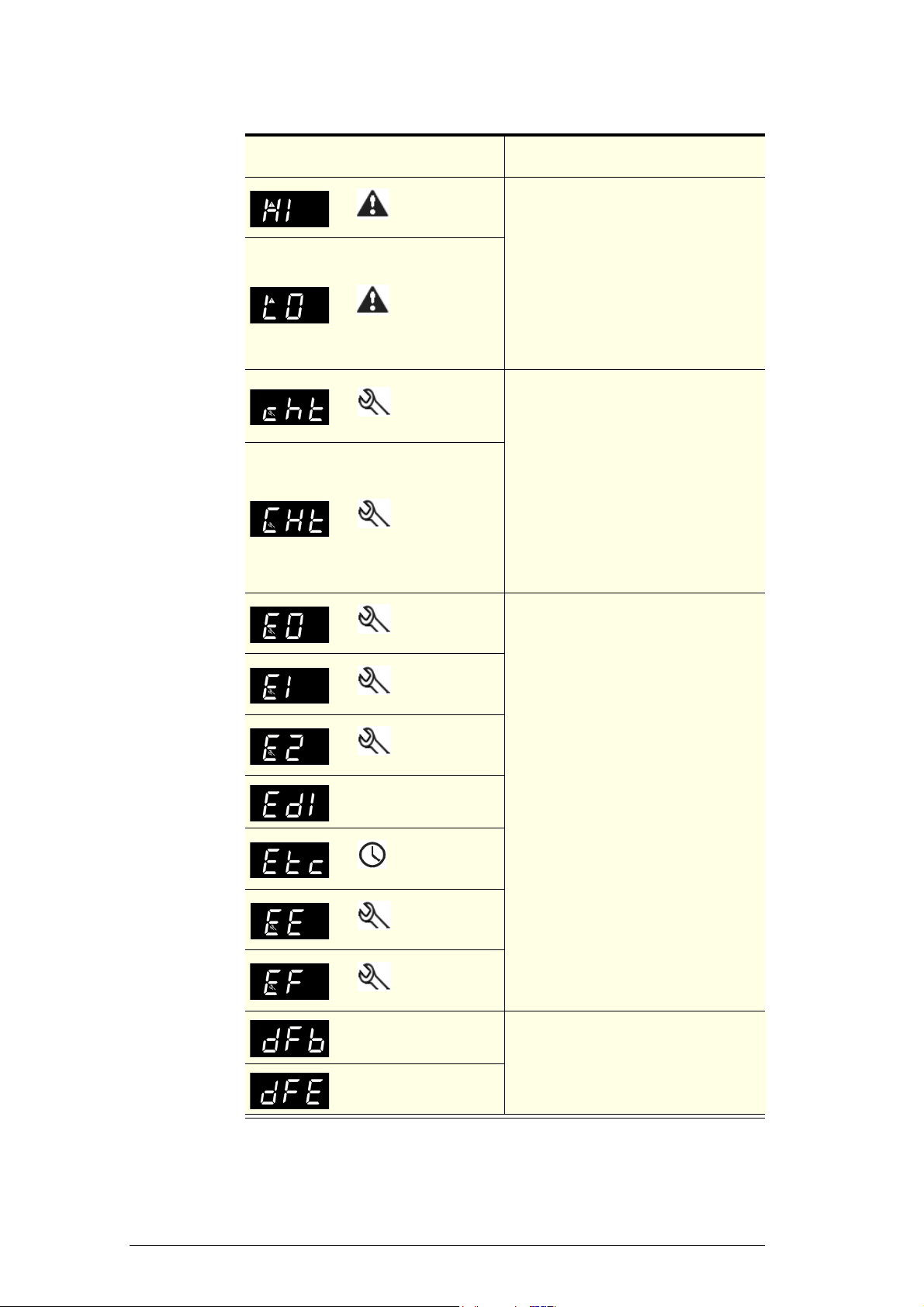

Controller Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Temperature Setpoint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3 Servicing
Isolating Electrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Condenser coil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Centre Pillar Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Sign Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4Installation
User Manual
SKOPE B550/660-2 and BME550-2
1Installation
Safety First
Always observe safety precautions when using any electrical appliance.
Read these instructions carefully and retain them for future reference.
When the appliance is used by or near young children or infirm persons,
close supervision is necessary, especially to ensure children do not play
with it.
Do not use this appliance for other than its intended use.
Do not cover the grilles or block the entry or exhaust of airflow by
placing objects up against the refrigeration unit.
Do not probe any opening.
Only use this appliance with the voltage specified on the cabinet rating
label affixed to the refrigeration unit.
Ensure the chiller has adequate ventilation as this is essential to
economical, high performance.
Be careful not to touch moving parts and hot surfaces.
For your own safety and that of others, ensure that all electrical work is
done by authorised personnel.
If the power supply flexible cord becomes damaged, it must be replaced
by an authorised service agent or similarly qualified person in order to
avoid a hazard.
Ensure all necessary safety precautions are observed during installation
or removal of the refrigeration unit.
The chiller is not designed to be stable while in motion. Use extreme
caution when moving or transporting it..
Caution
Never overload the power supply, which could damage the
chiller and product. See the rating label inside the cabinet for
the safe power supply and current draw.
Caution
Always disconnect the cabinet from the mains power supply
before cleaning or maintenance.

5
SKOPE B550/660-2 and BME550-2
Installation
User Manual
Positioning the Cabinet
Location When positioning the cabinet, avoid direct sunlight and warm draughts etc.
The cabinet must NOT be situated where it is affected by hot air from
adjacent equipment, as this will compromise the airflow and performance of
the chiller.
Ventilation For efficient operation of the chiller, it is essential that adequate ventilation
be provided around the refrigeration unit. The maximum recommended
ambient temperature (at place of installation) is 40°C, although the chiller
will generally use less power when installed in a cooler location.
Installation
Guidelines When installing the chiller:
Ensure the cabinet is positioned on a level surface so the door shuts
and seals correctly and to prevent the condensate tray from
overflowing.
Allow adequate space for door opening. The self-closing door has an
internal torsion bar which is pretensioned at the factory.
Do not overload the power supply (see the rating label inside the
cabinet for power supply and current draw)

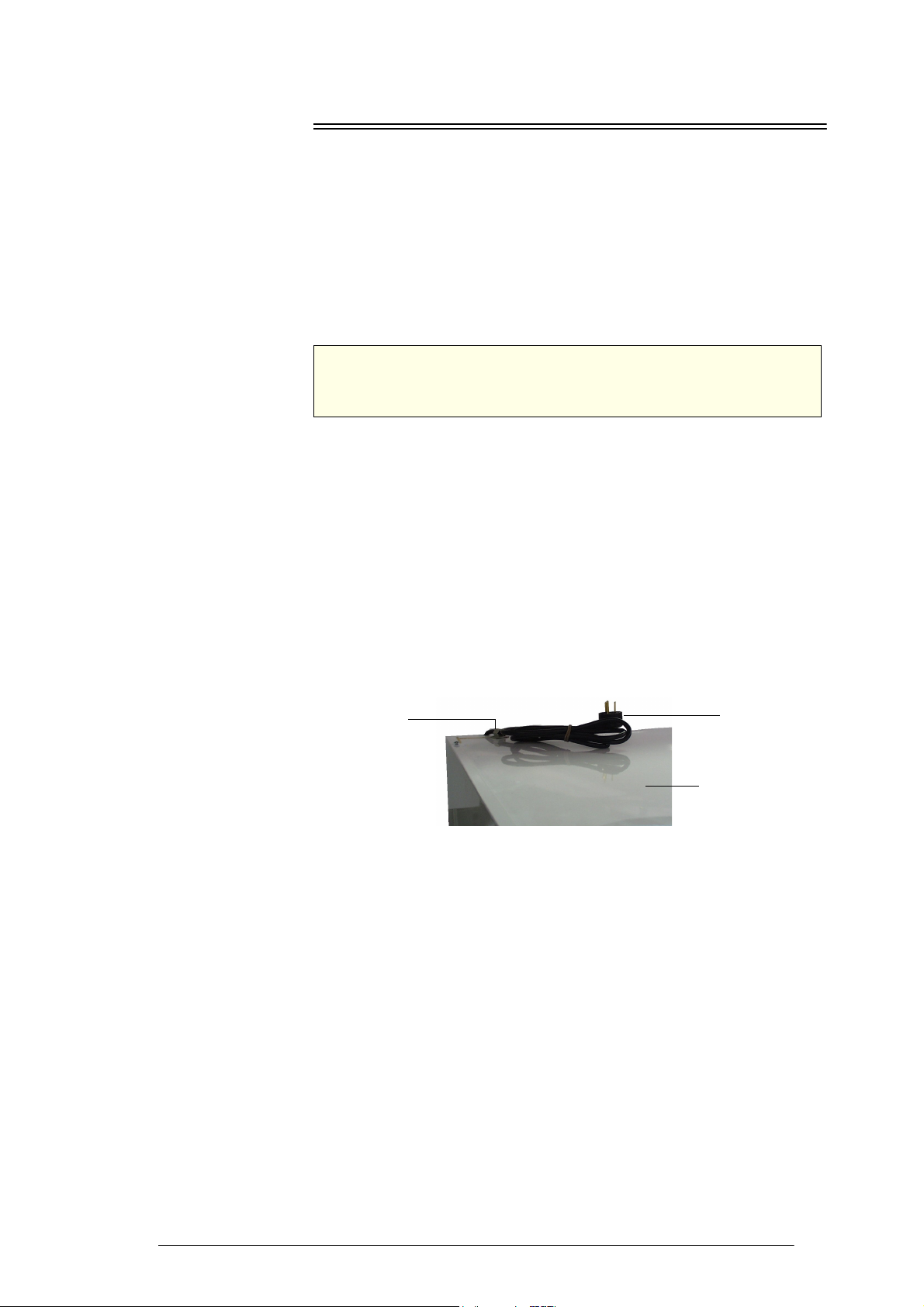

Power Cord The chiller is supplied with a 3.0m flexible power cord fitted with a 3-pin plug.
For transit purposes the power cord is clipped to the roof of the cabinet (see
Figure 1 below). For convenience, the cord should be retrieved before the
machine is positioned, when walls and partitions may make access difficult.
Warning:
For efficient operation of the chiller it is essential that adequate
ventilation be provided around the refrigeration unit.
Power Cord
Clip
Cabinet Roof Top
Figure 1: Flex and
Plug

6Installation
User Manual
SKOPE B550/660-2 and BME550-2
Fitting the Kick Panel
For transit purposes the kick panel is packed inside the cabinet, with the
electronic controller temporarily attached to the front of the refrigeration unit.
Before fitting the kick panel to the cabinet the controller must be attached to
the inside of the kick panel.
To fit the kick panel
1. Loosen the two keyhole screws holding the controller box onto the
refrigeration unit. Lift the controller box off the keyhole screws and
carefully pull out from the unit compartment.
2. Locate the controller box onto the back of the kick panel, so the two
screws in the top of the controller box slot into the keyholes in the kick
panel. Tighten the keyhole fixing screws through the top set of slots (see
Figure 2 below).
3. Open the cabinet doors wide open (this is to allow fitting of the kick
panel). Sit the kick panel over the two corner bottom locating brackets
and push on to the two top keyhole fixing screws. Tighten both the
screws. Ensure the controller cables are well clear of any sharp objects
on the refrigeration unit.
Fitting the Illuminated Sign
For transit purposes the illuminated sign is packed inside the cabinet.
To fit the illuminated sign
1. Loosen the four retaining screws on top of cabinet, and fit both the sign
side panels over the screws. Slide the panels forward, flush with edges
of the cabinet, and tighten the screws.
2. Clip the sign rear panel into retaining slots on the rear of the sign sides
(see Figure 5 over page).
3. Fit sign unit by engaging clips into both retaining slots on the front of
each side panel, and pull sign unit firmly down. Ensure the two screws
in the back of the sign unit fit into slots in the cabinet top angle bracket,
and then tighten all the screws.
4. Turn the sign retaining clips, on top of each side panel, to hold sign unit
firmly in position (see Figure 4 over page).
5. Connect the sign ENSTO 3 pole plug into the roof top power supply
socket.

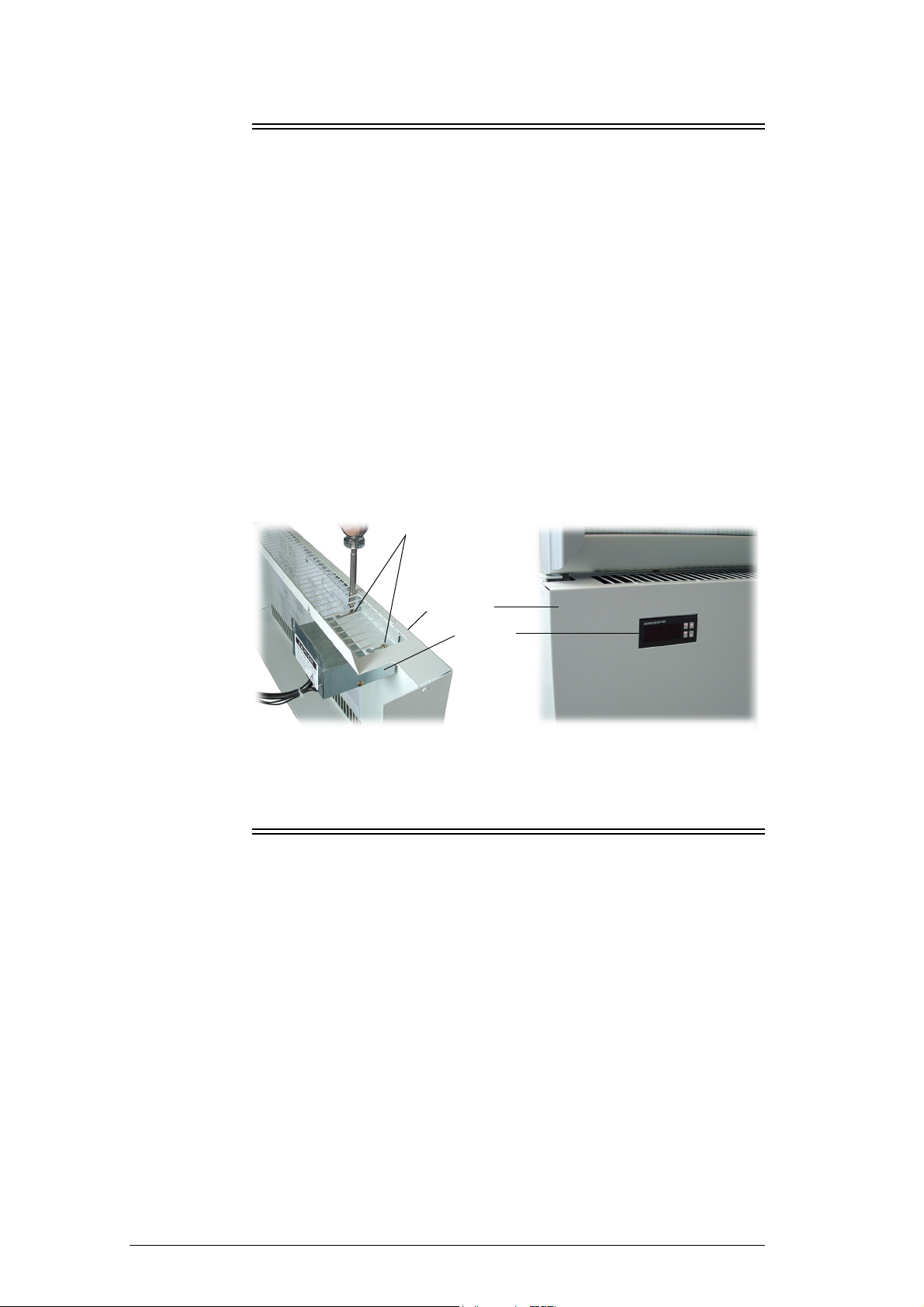

Figure 2:
Attaching the Electronic Controller
Figure 3:
Electronic Controller Relocated
Fixing Screws
Controller
Kick Panel

7
SKOPE B550/660-2 and BME550-2
Installation
User Manual
Fitting the Shelves
Depending on the model, the chiller is supplied with four or five wire shelves
which may be positioned at different heights to suit various products. Each
shelf is held in place with eight shelf clips, which engage in the shelf support
strips. The support strips are marked with a ‘+’ for easy location of shelf clips.
To fit the cabinet shelves
1. Unpack the wire shelves and shelf clips from inside the cabinet.
2. Establish the desired position for the shelves and securely engage a
shelf clip in each of the shelf support strips (see Figure 6 below).
3. Sit the shelves onto the shelf support clips.
• Remove some product if the shelves are flexing or bending.
Figure 4: Sign Retaining Clip Figure 5: Sign Back Panel
Sign Retaining Clip Sign Side Panel
Sign Back
Panel
Figure 6:
Shelf Clip
Shelf Support Strip
Shelf Clip
‘+’ Mark
Shelf

8Operation
User Manual
SKOPE B550/660-2 and BME550-2
2Operation
Automatic Start-Up
After the cabinet has been positioned in a suitable place, plug it in and check
the following activity.
Loading Product
The chiller should be left running for 30 minutes before loading with product.
When loading the cabinet shelves with product:
Allow air space around all product for even cooling and efficient
operation of the chiller.
Leave an airspace of at least 15mm above product on the top shelf.
Do not allow products to overhang the front of the shelves as this could
effect airflow and prevent the doors from shutting properly.
Do not exceed a maximum loading of 20kg per shelf.
Remove some product if the shelves are flexing or bending.
Item Activity
Lighting
The lights which illuminate the top sign and cabinet interior will
initially come on when the machine is turned on. The lights will
require a period of time to stabilise following initial start up.
On some models the lights can be turned off via the UP/AUX
button on the electronic controller (see next page for details).
Electronic
Controller
The electronic controller, located in the front kick panel, will
either display the internal cabinet temperature or the controller
set point. The compressor ‘ON’ icon will indicate when the
compressor is operating (see controller display on next page).
Compressor,
Evaporator Fans
and Condenser
Fan
The compressor, and evaporator and condenser fans should
all operate initially. This may be verified by listening for
compressor switch on and checking air movement out of the
slots in the front kick panel. The internal cabinet air will
continue to circulate at all times, as the evaporator fan
operates continuously.
The compressor should switch off when the cabinet internal
temperature reaches approximately +2°C, and switch on
again at approximately +4°C.
The condenser fan operates continuously. A fan reversing
device, reverses the condenser fan motor for a period of time
during the compressor ‘off-cycle’. This rotation change is to
assist with self-cleaning of the condenser coil.

9
SKOPE B550/660-2 and BME550-2
Operation
User Manual

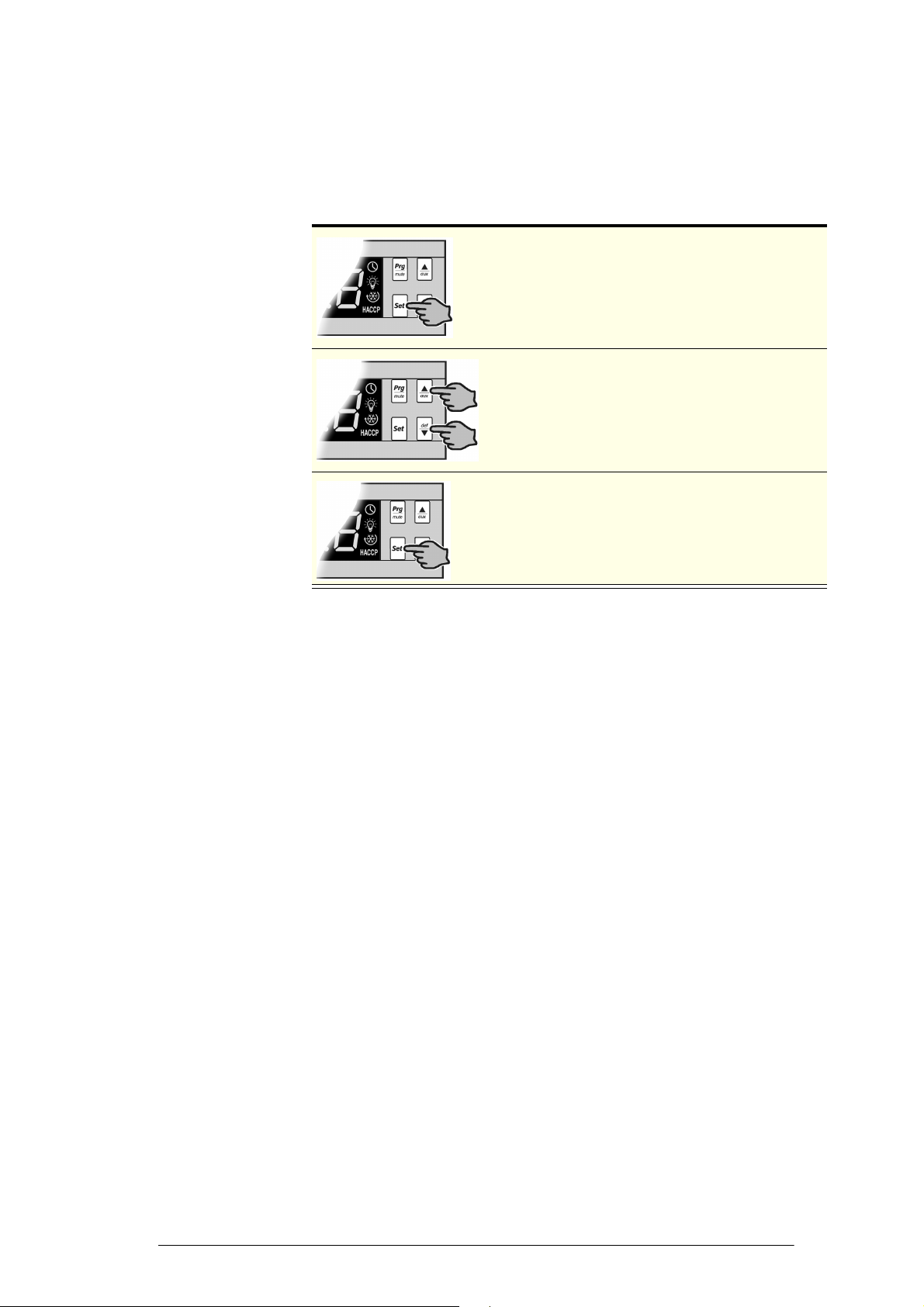

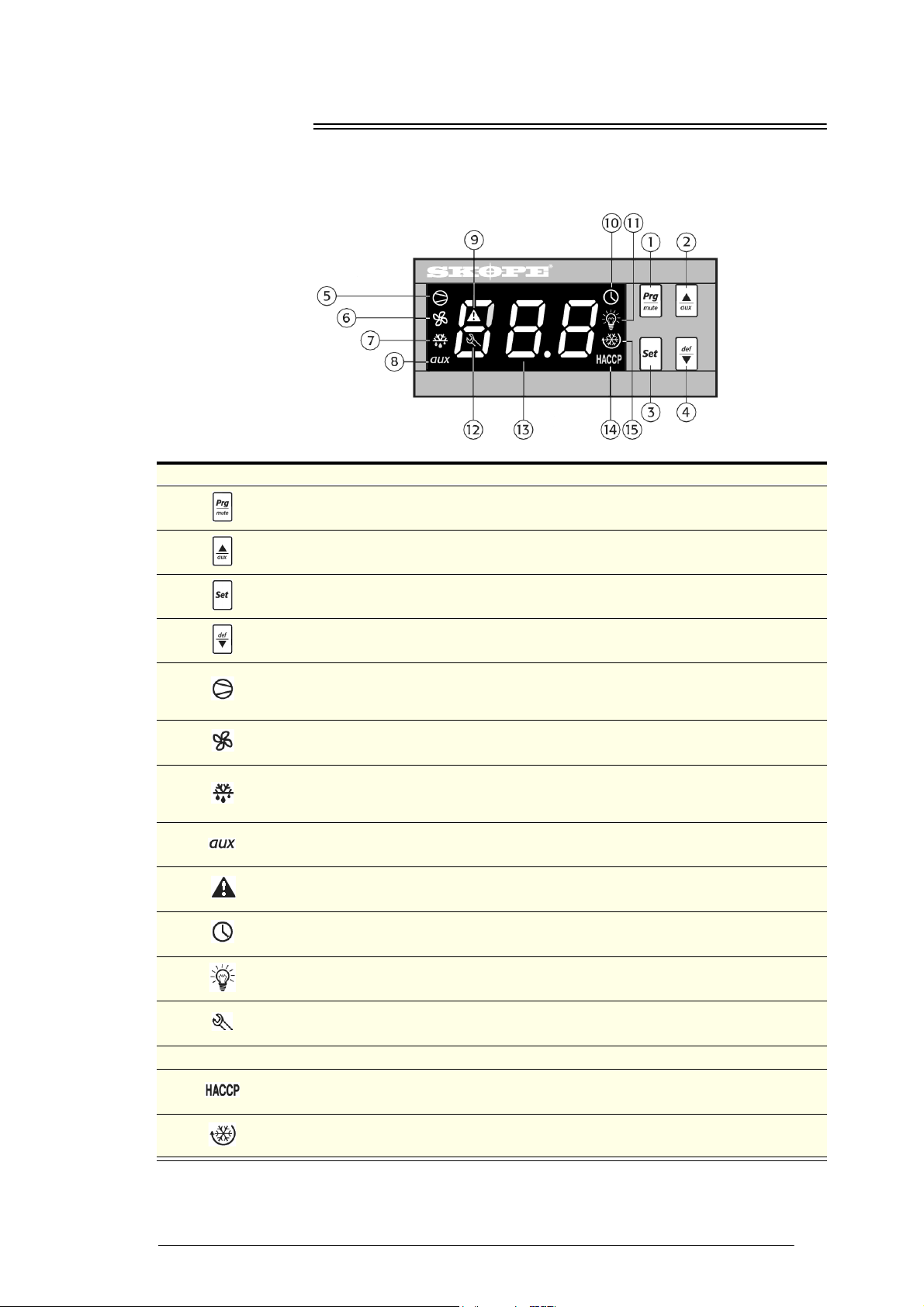

Electronic Controller
Controller
Display Because the controller plays such an important role, it’s helpful to know the
parts of the faceplate you will use.
No. Item Description
1Prg / mute: To initiate programme sets, press for 5 seconds. Mutes the audible alarm
(buzzer) and deactivates the alarm relay.
2UP / aux: To scroll settings UP (in programme mode). Press and hold to switch light on or
off (some models only).
3Set: If pressed for more than 2 seconds displays and / or enables changing the temperature
setpoint (see page 16).
4DOWN / def: To scroll settings DOWN (in programme mode).
5
COMPRESSOR:
ON when the compressor and condenser fan starts. Flashes when activation of the
compressor is temporarily delayed.
6FAN: n.a.
7
DEFROST:
ON when the defrost is activated. Flashes when the activation of the defrost is temporarily
delayed due to procedures in progress.
8AUX: n.a.
9ALARM: Flashes in the event of alarms.
10 CLOCK: n.a.
11 LIGHT: Some models only.
12 SERVICE: Flashes in the event of malfunctions.
13 DISPLAY: Shows the cabinet temperature.
14 HACCP: n.a.
15 CONTINUOUS CYCLE: n.a.
Figure 7: Controller
Display

10 Operation
User Manual
SKOPE B550/660-2 and BME550-2
Controller
Alarms
Code Display
Icon
Alarm
Description
Initial Action
Flashing
Product HIGH
temperature
alarm
1. Check the cabinet product loading to
ensure ventilation slots are not blocked and
that product does not overhang the
shelves.
2. Ensure the cabinet is installed with good
refrigeration unit ventilation.
3. Check and clean the condenser coil (see
pages 12-13).
4. Unplug cabinet from the power supply for 1
minute, then reconnect to power supply.
If problems persist, contact SKOPE
Flashing
Product LOW
temperature
alarm
Flashing
Refrigeration
system high
temperature
pre-warning
1. Clean the condenser coil (see pages 12-
13).
2. Check refrigeration ventilation. Ensure
clear airpath at the top and front of the
cabinet (to extract hot air). A minimum of
200mm clear space is required in front of
the refrigeration unit.
3. Ensure the cabinet is installed in a suitable
environment.
4. Unplug cabinet from the power supply for 1
minute, then reconnect to power supply.
If problems persist, contact an authorised
service agent.
Flashing
Refrigeration
system high
temperature
shutdown
Flashing
Ambient probe
fault
Unplug cabinet from the power supply for 1
minute, then reconnect to power supply.
If problems persist, contact an authorised
service agent.
Flashing
Evaporator
probe fault
Flashing
Condenser
probe fault
None Defrost over-
time limit
Flashing
Real-time clock
fault
Flashing
Controller E
prom error
Flashing
Controller E
prom error
None Start defrost
request
None
None End defrost
request

11
SKOPE B550/660-2 and BME550-2
Operation
User Manual
Temperature
Setpoint The chiller temperature setpoint is factory set at 2.0°C. If necessary the
standard setting can be adjusted between 1°C and 3.5°C (see below).
SKOPE do not recommend that the setpoint be changed unless it is
absolutely necessary, and then only by small increments at a time.
To view and adjust the temperature setpoint:
1. To view the setpoint: press and hold the SET
key for 2 seconds, until the setpoint value
flashes.
2. To adjust the setpoint: press either the UP or
DOWN keys to display the required setpoint
value.
3. Press the SET key again to memorise the new
setpoint value. If this is not done within 60
seconds, changes will be lost and you will
need to repeat the above procedure.

12 Servicing
User Manual
SKOPE B550/660-2 and BME550-2
3Servicing
Isolating Electrics
The refrigeration unit can be totally isolated from the mains power,
irrespective of whether the refrigerator is plugged into the mains. To achieve
this, switch off the mains isolating switch and disconnect the refrigeration
unit mains flex
To isolate the cabinet
1. Disconnect cabinet from the power supply.
2. Remove cabinet kick panel, by loosening the screws along top back
flange of the kick panel. Raise the kick panel vertically to clear keyholes
off the screw heads, then tilt panel forward and lift up and off the bottom
fixing brackets. Access to top screws can be made easier by opening
the cabinet doors.
3. Remove the controller from the kick panel, by loosening the two top
fixing screws through the top slots in the kick panel.
4. Switch off isolating switch, and unplug refrigeration unit mains flex from
the mains isolating box.

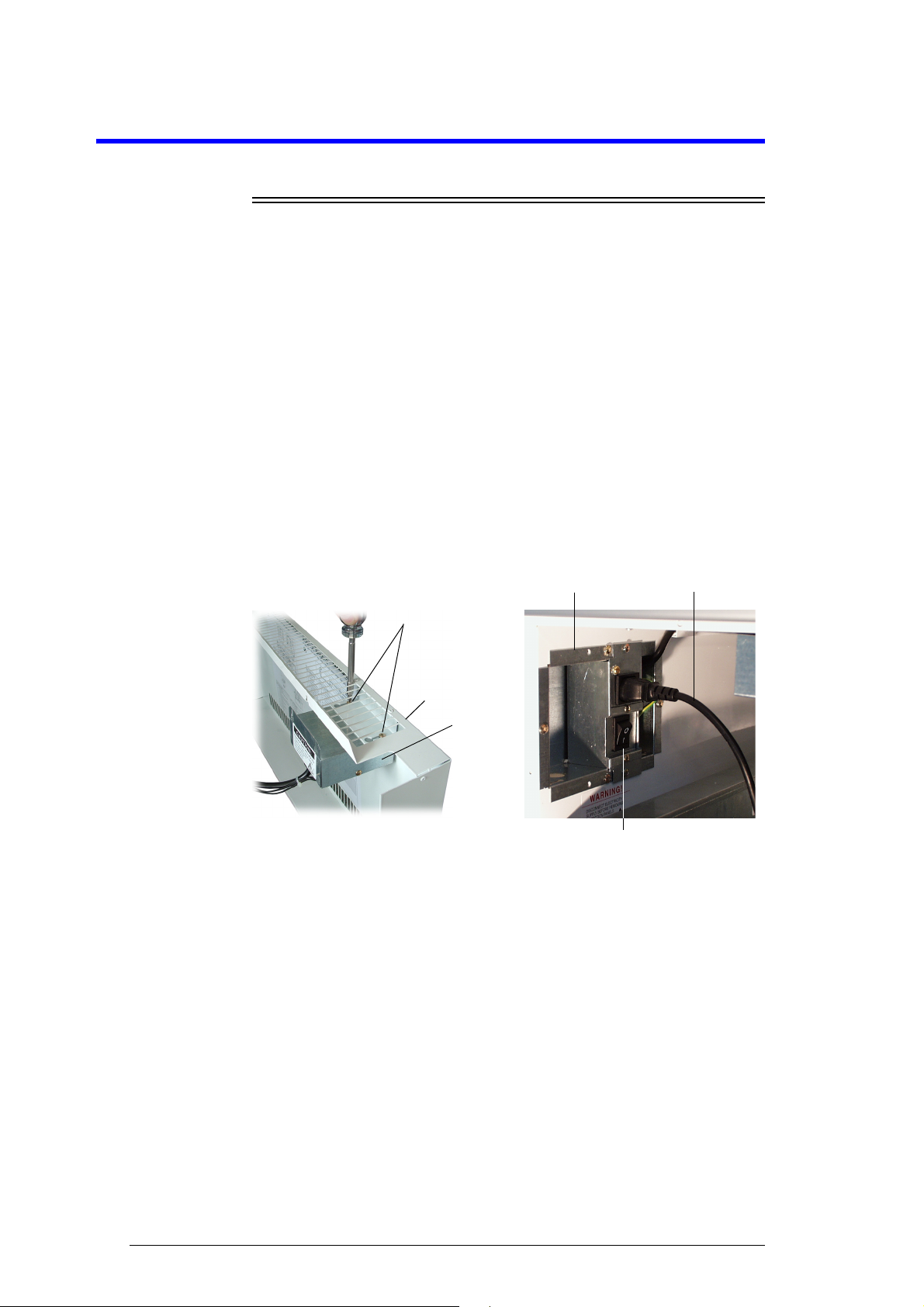

Figure 8:
Removing the Controller Figure 9: Mains Isolating Box
Mains Isolating Box
Isolating Switch
Refrigeration Unit
Mains Flex
Fixing Screws
Controller
Kick Panel

13
SKOPE B550/660-2 and BME550-2
Servicing
User Manual
Cleaning
When necessary, wipe the interior and exterior of the cabinet with a damp
cloth. Ensure the cabinet is disconnected from the mains power supply
before cleaning. Periodic cleaning of the condenser coil is also
recommended.
Condenser
coil The condenser coil MUST be kept clean for efficient and reliable operation.
Clean the condenser coil with a brush and vacuum cleaner regularly. The
condenser coil is located behind a side baffle, on the right hand side of the
refrigeration unit.
To access the condenser coil
1. Isolate the cabinet from the mains power supply and remove the front
kick panel (see “Isolating Electrics” on page 12).
2. Remove the cabinet wiring junction box by loosening both the end
keyhole fixing screws.
3. Remove the two screws holding the side baffle to the condenser coil
and carefully pull the baffle out from the unit.
4. The condenser coil can now be accessed for cleaning. Clean the
condenser coil with a brush and vacuum cleaner.
5. Refit the side baffle and cabinet wiring junction box.
6. Refit the cabinet kick panel.
7. Reconnect the cabinet to the mains power supply.
Caution:
Disconnect the cabinet from the mains power supply before cleaning
the condenser coil.

14 Servicing
User Manual
SKOPE B550/660-2 and BME550-2
Lighting
The cabinet is equipped with interior and sign lighting. On some models
(type B39SB) the lights can be turned off and on via the UP/AUX button on
the electronic controller (see page 9 for details).
Interior Side
Light The cabinet can have one or two interior side lights. Each side light houses
one 28 Watt T5 fluorescent tube, which may be replaced without removing
shelves or product from the cabinet.
To replace the fluorescent tube:
1. Disconnect the cabinet from the mains power supply.
2. Remove the side light diffuser, by compressing the back section of the
diffuser until it disengages from the aluminium housing and then push
the diffuser back (see Figure 10 below).
3. The fluorescent tube can now be removed. Revolve the tube until the
pin position allows withdrawal.
4. When refitting the new fluorescent tube ensure the printing on the tube
is at the bottom, as the tube orientation is important.
5. When refitting the diffuser, engage the back section into the housing,
and then compress and snap the front section of diffuser back into place
working down the full length of the light.
Sign Light The illuminated sign unit is located on top of the cabinet and houses a 28
Watt fluorescent tube (Ø16mm x 1150mm).
To change the sign fluorescent tube
To access the fluorescent tube, the curved sign panel must first be removed
from the sign unit. No tools are required for this procedure.
1. Isolate the cabinet from the mains power supply (see “Isolating
Electrics” on page 12).
2. Start at one of the top corners of the sign unit and pull the sign panel out
from under the sign top cover (see figure 10 on next page).
3. Work along the length of the sign unit, pulling the sign panel out as you
go.
4. Carefully remove the sign panel away from the sign unit.
5. The fluorescent tube can now be accessed for replacement (see figure
11 on page 30).
Fluorescent Tube
Diffuser

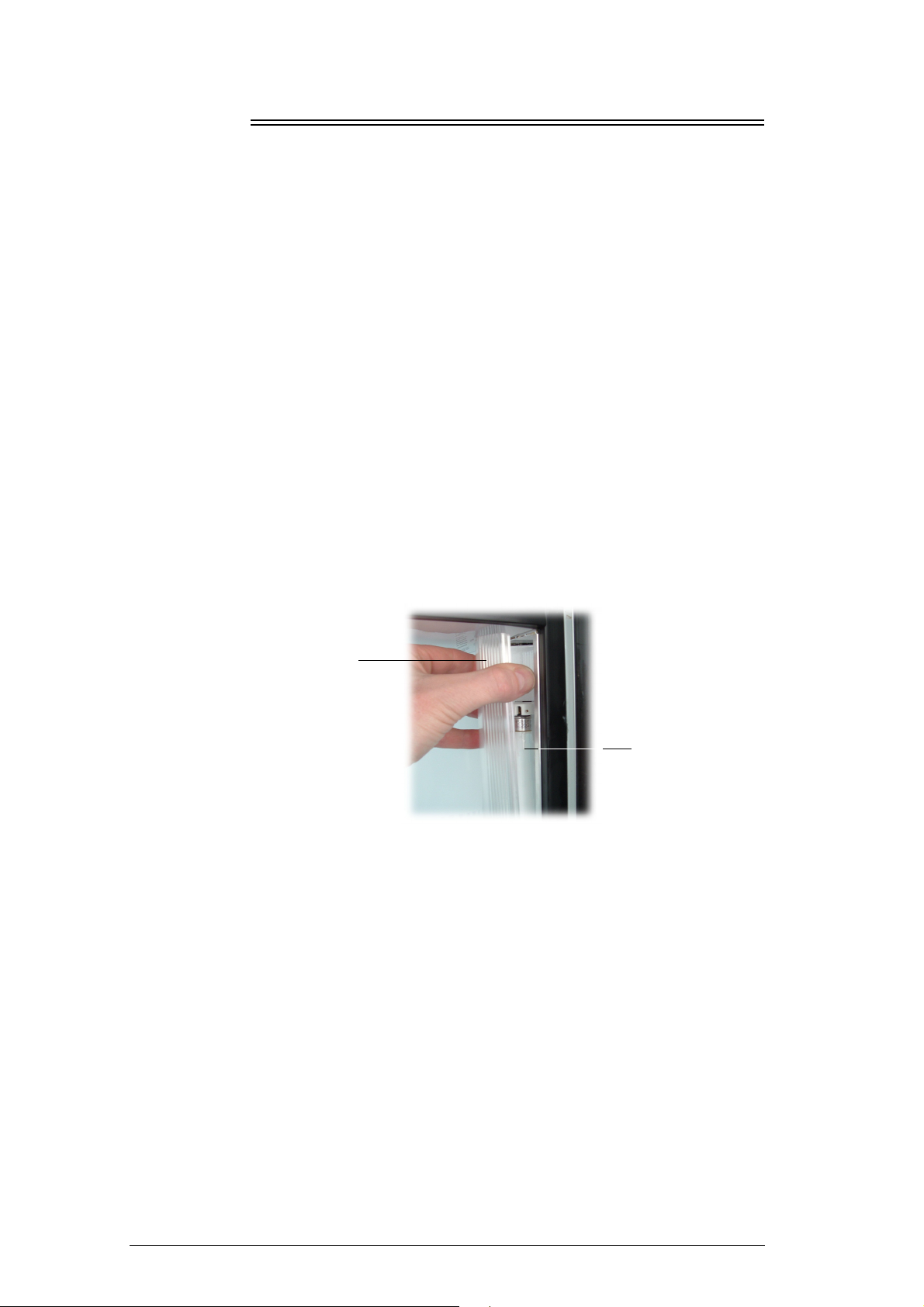

Figure 10: Replacing the
Fluorescent Tube

15
SKOPE B550/660-2 and BME550-2
Servicing
User Manual
Troubleshooting
Figure 12: Sign
Corner Detail
Sign Top Cover
Corner Notch
SignPanel
End Strip
Sign Panel
Figure 11: Removing
Sign Panel
Sign Top Cover
Corner
Notch
Complaint Possible Cause Repair
1. Cabinet not
operating and no
controller display:
• Loss of power
supply.
• Check mains power supply and
check the cabinet isolating switch is
turned on (see “Isolating Electrics”
on page 12).
2. Cabinet interior
light not
operating:
• Failed
fluorescent tube.
• Replace fluorescent tube (see
“Lighting” on page 14).
• Controller alarm. • Determine cause and eliminate
(“Controller Alarms” on page 10).
• Not switched on • Switch on at controller (some
models only, see “Controller Display”
on page 9)
3. Power
consumption is
higher than
expected:
• Unit operating too
hot.
• Clean the condenser coil (see
“Cleaning” on page 13). Ensure the
chiller is installed with good
ventilation around the refrigeration
unit and within its maximum
operating temperature (see
“Positioning the Cabinet” on page 5).
• Cabinet door is
opened
excessively.
• Keep door open for minimum time.
4. Product is too
warm and
spoiling:
• Restricted
cabinet airflow.
• Ensure product is not blocking
airflow slots and there is air space
around all the product.
• Temperature
setpoint to too
warm.
• Adjust setpoint (“Temperature
Setpoint” on page 11).
5. Warm cabinet
temperatures
and/or
compressor
operating for long
periods (more
than 1 hour):
• Blocked
condenser.
• Clean the condenser coil (see
“Cleaning” on page 13).
• Poor refrigeration
unit ventilation.
• Ensure the cabinet is installed with
good ventilation around the
refrigeration unit and within its
maximum operating temperature
(see “Positioning the Cabinet” on
page 5).
