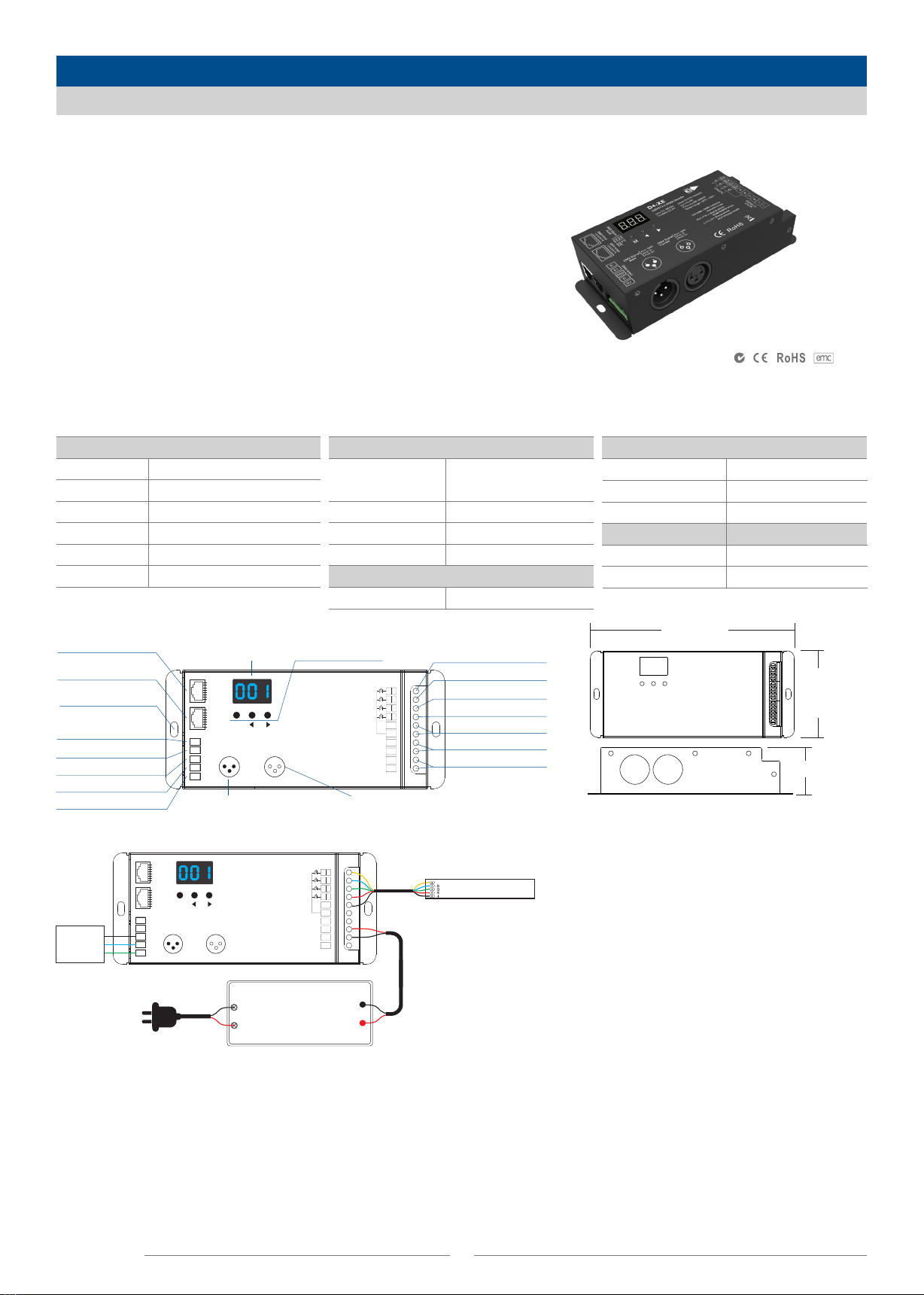

SKYDANCE D4-XE User manual

Technical Parameters
1
User Manual Ver 1.1.3
Features
Model No.: D4-XE
4 Channel Constant Voltage DMX512 & RDM Decoder
RDM/Stand-alone function/Seven PWM frequency/Linear or logarithmic dimming/Numeric display
● Comply with the DMX512 standard protocols.
● Digital numeric display, set DMX decode start address by buttons.
● RDM function can realize intercommunication between DMX master and decoder. For example,
DMX decoder address can be set by DMX master console.
● 1/2/4 DMX channel output selectable.
● 16bit (65536 levels) /8bit (256 levels) grey level selectable.
● PWM frequency 250/500/1000/2000/4000/8000/16000Hz selectable.
● Logarithmic or linear dimming curve selectable.
● Stand-alone RGB/RGBW mode and 4 channel dimmer mode selectable,
which be controlled by buttons with built-in programs, instead of DMX signal.
● Green terminal, XLR3 and RJ45 port DMX signal input.
● Over-heat / Short circuit protection, recover automatically.
LVD
Input and Output
Operation temperature
Environment
Ta: -30
O
C ~ +55
O
C
Gross weight
Size
Package
Case temperature (Max.)
IP rating IP20
Ta: +75
O
C
Safety and EMC
EMC standard (EMC) ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-17 V3.2.4
Radio Equipment(RED) ETSI EN 300 328 V2.2.2
Certication CE,EMC,LVD,RED
EN 62368-1:2020+A11:2020
Safety standard(LVD)
Warranty
5 years
Warranty
L175x W80 x H45mm
0.426kg
Mechanical Structures and Installations
Output type Constant voltage
Output power 4 x (96-288)W
Output voltage 4 x (12-36)VDC
Output current 4CH,8A/CH
Input voltage 12-36VDC
Input current 32.5A
DMX input/output +
DMX input/output -
Power Input -
Power Input +
Output Red LED -
Output Green LED -
Output Blue LED -
Output White LED -
Installation rack
Output LED +
GND
D+
D-
D+
D-
GN D
DM X in/o ut
1 2
3
12
3
+
+
+
+
-
M
O UTP UT
1 2 3
GB
WW C W
R
WW
W
CW
4
-
I N PU T 12 -36V DC
1 2 3 4 5 6 7 8
DM X in/o ut
1 2
3
12
3
1 2 3 4 5 6 7 8
DM X in/o ut
Setting key
Digital display
DMX input/output +
DMX input/output -
RJ45 DMX signal
RJ45 DMX signal
XLR3 male DMX signal XLR3 female DMX signal
165.00 mm
70.00 mm
37.00 mm
Wiring Diagram
DMX
Master
D+
D-
D+
D-
GN D
DM X in/o ut
1 2
3
12
3
+
+
+
+
-
D4-XE
M
OU TPU T
1 2 3
GB
WW C W
R
WW
W
CW
4
-
IN P UT 12- 36V DC
1 2 3 4 5 6 7 8
DM X in/o ut
1 2
3
12
3
1 2 3 4 5 6 7 8
DM X in/o ut
AC100-240V Power Supply
12-36VDC
Constant Voltage
RGBW LED strip
W
Note:
1. An DMX signal amplifier is needed if more than 32 decoders are connected,
or use overlong signal line, signal amplification should not be more than 5 times
continuously.
2. If the recoil effect occurs because of longer signal line or bad line quality,
please try to connect 0.25W 90-120Ω terminal resistor at the end of each DMX
signal line.

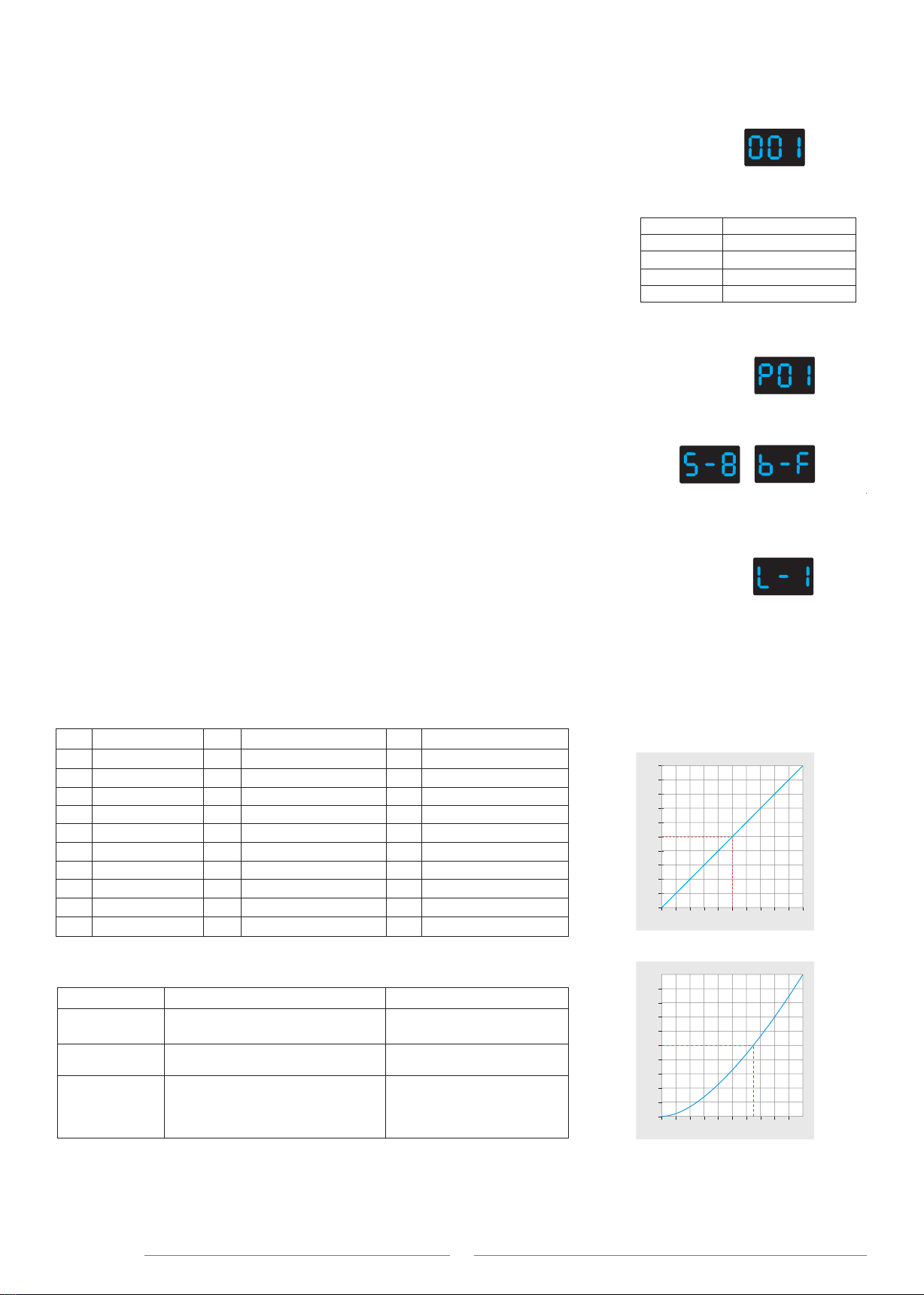

Operation
● Long press M and ◀ key in the same time for 2s, prepare for setup system parameter: decode mode, grey level, output PWM frequence, output brightness curve,
default output level, automatic blank screen. short press M key to switch six item.
● Decode mode: short press ◀ or ▶ key to switch 1/2/4 channel decode mode("d-1","d-2" or "d-4"). When set as 1 channel decode, the decoder occupy only
1 DMX address, and four channel output the same brightness of this DMX address.
● Grey level: short press ◀ or ▶ key to switch 8bit("b08") or 16 bit("b16"). choose 16 bit if the DMX master support 16 bit.
● Output PWM frequency: short press ◀ or ▶ key to switch 250Hz("F02"), 500Hz("F05"), 1000Hz("F10"), 2000Hz("F20"), 4000Hz("F40"), 8000Hz("F80")
or 16000Hz("F16").
Higher PWM frequency, will cause lower output current, higher power noise, but more suitable for camera(No ickers for video).
System parameter setting

● Output brightness curve: short press ◀ or ▶ key to switch linear curve("C-L") or logarithmic curve("C-E").
● Default output level: press ◀ or ▶ key to change default 0-100% level ("d00" to "dFF" ) when no DMX input signal.
● Automatic blank screen: short press ◀ or ▶ key to switch enable ("bon") or disable("boF") automatic blank screen.
● Long press M key for 2s or timeout 10s, quit system parameter setting.
● Short press M key, when display 001~512, enter DMX mode.
● Press ◀ or ▶ key to change DMX decode start address(001~512), long press for fast adjustment.
● If there is a DMX signal input, will enter DMX mode automatically.
● DMX Dimming: Each D4-XE DMX decoder occupy 4 DMX address when connecting the DMX console.
For example, the defaulted start address is 1, their corresponding relationship in the form:
DMX mode
Stand-alone dimmer mode
(L-1~L-8)
Stand-alone RGB/RGBW mode
Speed
(8 level)
Brightness
(10 level,100％)
(P01~P30)
DMX mode
(001~512)
CH1 0-255
CH2 0-255
CH3 0-255
CH4 0-255
CH1 PWM 0-100% (LED R)
DMX Console DMX Decoder Output
CH2 PWM 0-100% (LED G)
CH3 PWM 0-100% (LED B)
CH4 PWM 0-100% (LED W)
● Enter stand-alone RGB/RGBW mode only when DMX signal is disconnected or lost.
● Short press M key, when display P01~P30, enter stand-alone RGB/RGBW mode.
● Press ◀ or ▶ key to change dynamic mode number(P01~P30).
● Each mode can adjust speed and brightness.
Long press M key for 2s, prepare for setup mode speed, brightness, W channel brightness.
Short press M key to switch three item. Press ◀ or ▶ key to setup value of each item.
Mode speed: 1-10 level speed(S-1, S-9, S-F).
Mode brightness: 1-10 level brightness(b-1, b-9, b-F).
W channel brightness: 0-255 level brightness(400-4FF).
Long press M key for 2s, or timeout 10s, quit setting.
Stand-alone RGB/RGBW mode
● Enter stand-alone dimmer mode only when DMX signal is disconnected or lost.
● Short press M key, when display L-1~L-8, enter stand-alone dimmer mode.
● Press ◀ or ▶ key to change dimmer mode number(L-1~L-8).
● Each dimmer mode can adjust each channel brightness independently.
Long press M key for 2s, prepare for setup four channel brightness.
Short press M key to switch four channel(100~1FF, 200~2FF, 300~3FF, 400~4FF).
Press ◀ or ▶ key to setup brightness value of each channel.
Long press M key for 2s, or timeout 10s, quit setting.
Stand-alone dimmer mode
● Long press ◀ and ▶ key for 2s, restore factory default parameter, display“RES“.
● Factory default parameter: DMX decode mode, DMX decode start address is 1, four channel decode, 8 bit grey level, 2000Hz PWM frequence output,
logarithmic brightness curve, output 100% level when no DMX input, RGB mode number is 1, dimmer mode number is 1, disable automatic blank screen.
RGB change mode list
No. Name
P01
P02
P03
P04
P05
P06
P07
P08
P09
P10
Static red
Static green
Static blue
Static yellow
Static cyan
Static purple
Static white
RGB jump
7 color jump
Red strobe
No. Name No. Name
P11
P12
P13
P14
P15
P16
P17
P18
P19
P20
P21
P22
P23
P24
P25
P26
P27
P28
P29
P30
Green strobe
Blue strobe
White strobe
RGB strobe
7 color strobe
Red fade in and out
Green fade in and out
Blue fade in and out
White fade in and out
RGBW fade in and out
Red yellow smooth
Green cyan smooth
Blue purple smooth
Blue white smooth
RGB+W smooth
RGBW smooth
RGBY smooth
Yellow cyan purple smooth
RGB smooth
6 color smooth
Restore factory default parameter
1
User Manual Ver 1.1.3
Dimming curve setting
Linear dimming curve
Logarithmic dimming curve
100
90
80
70
60
50
40
30
20
10
PWM duty(%)
100
90
80
70
60
50
40
30
20
10
PWM duty(%)
50 60 70 80 90 100
Brightness(%)
10 20 30 40
Gamma=1.6
50 60 70 80 90 100
Brightness(%)
10 20 30 40
Gamma=1.0
100
90
80
70
60
50
40
30
20
10
PWM duty(%)
Malfunctions analysis & troubleshooting
1. Wrong connection of R/G/B/W wires.
2. DMX decode address error.
Causes
1. Output cable is too long.
2. Wire diameter is too small.
3. Overload beyond power supply capability.
4. Overload beyond controller capability.
1. No power.
2. Wrong connection or insecure.
Wrong color
Malfunctions
Uneven intensity
between front and
rear,with voltage drop
No light
1. Reconnect R/G/B/W wires.
2. Set corrrect decode address.
Troubleshooting
1. Reduce cable or loop supply.
2. Change wider wire.
3. Replace higher power supply.
4. Add power repeater.
1. Check the power.
2. Check the connection.

型号:D4-XE
版本1.1.3 1
晴电
特点
LVD
机械结构和安装
接线图
4通道恒压DMX512/RDM解码器
RDM/独⽴控制器模式/七种PWM频率可选/线性或对数调光/数码管显⽰
●符合DMX512标准协议。
●数码管显⽰，通过按键设置DMX解码起始地址。
●⽀持RDM功能，实现DMX主控和解码器之间的通讯；例如，
通过DMX主控设置DMX解码器地址。
●1/2/4DMX通道输出可选。
●16位（65536级）/8位（256级）灰度可选。
●250/500/1000/2000/4000/8000/16000Hz输出PWM频率可选。
●对数或线性调光曲线可选。
●RGB/RGBW控制器模式或4通道调光器模式可选（⽆DMX信号输⼊时）；
在没有DMX信号输⼊的情况下，所有的输出模式都由内置程序控制。
●绿⾊端⼦，XLR3和RJ45端⼝DMX信号输⼊。
●过热/短路保护，⾃动恢复。
GND
D+
D-
D+
D-
GN D
DM X in/o ut
1 2
3
12
3
+
+
+
+
-
M
O UTP UT
1 2 3
GB
WW C W
R
WW
W
CW
4
-
I N PU T
12 -36V DC
1 2 3 4 5 6 7 8
DM X in/o ut
1 2
3
12
3
1 2 3 4 5 6 7 8
DM X in/o ut
RJ45DMX信号
RJ45DMX信号
XLR3 DMX 信号母头
数码管显⽰屏 设置按键
XLR3 DMX 信号公头
输出LED绿-
输出LED蓝-
输出LED⽩-
输出LED红-
电源输⼊-
电源输⼊+
输出LED+
DMX输⼊/输出+
DMX输⼊/输出-
DMX输⼊/输出+
DMX输⼊/输出-
安装孔
165.00mm
70.00mm
37.00mm
D+
D-
D+
D-
GN D
DM X in/o ut
1 2
3
12
3
+
+
+
+
-
D4-XE
M
O UTP UT
1 2 3
GB
WW C W
R
WW
W
CW
4
-
I N PU T
12 -36V DC
1 2 3 4 5 6 7 8
DM X in/o ut
1 2
3
12
3
1 2 3 4 5 6 7 8
DM X in/o ut
AC100-240V
W
恒压电源
12-36VDC
DMX
主控
RGBWLED灯带
注意：
1.如果连接的解码器超过32个，或者使⽤超⻓信号线，则需要DMX信号放⼤器，信号放⼤不应连续超过5次。
2.如果由于信号线较⻓或线路质量较差⽽发⽣过冲效应，请在每条DMX信号线末端连接0.25W90-120Ω终端电阻。

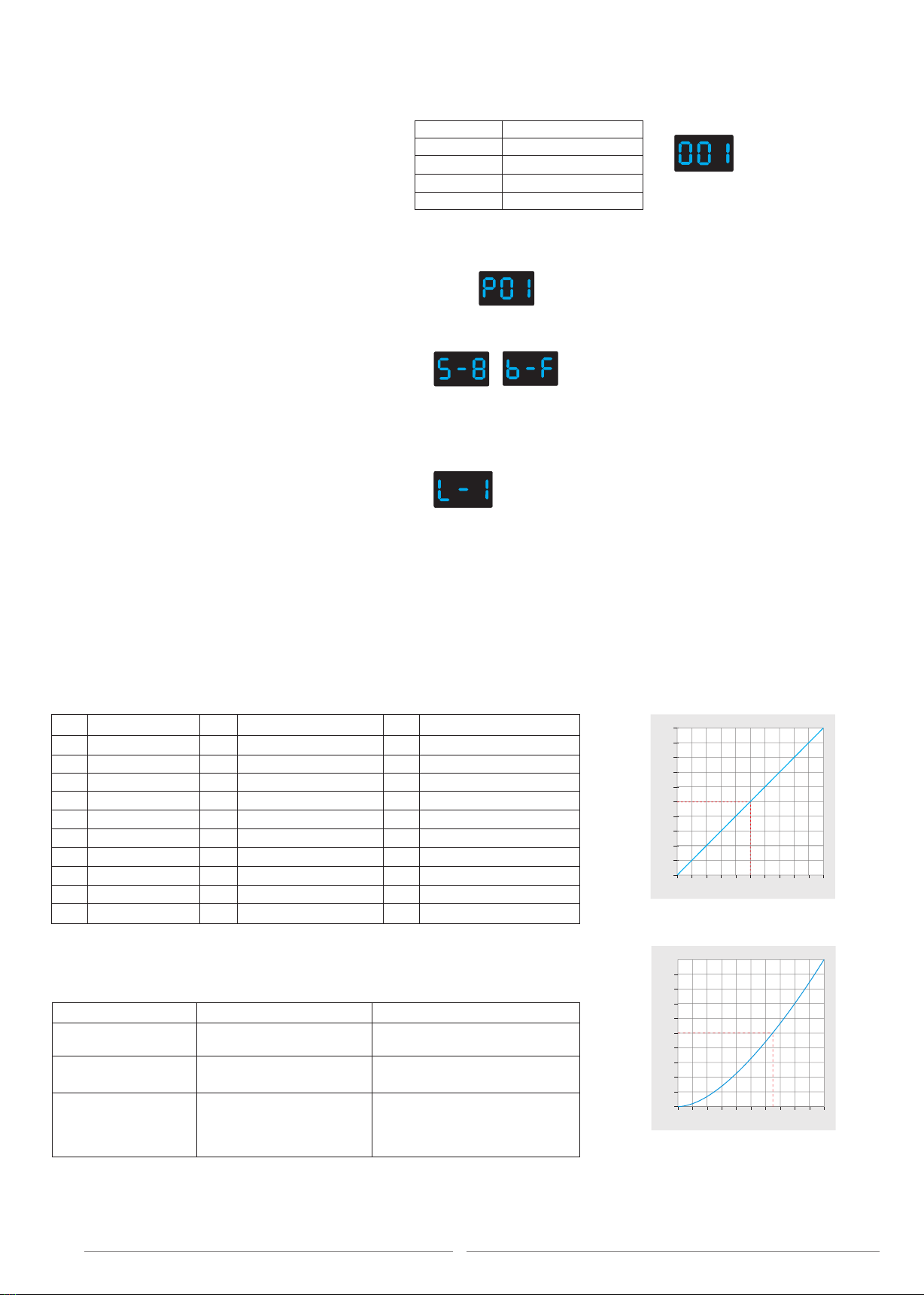

●同时⻓按M和◀键2秒，准备设置系统参数：解码模式，8/16位灰度，输出PWM频率，输出亮度曲线，默认输出亮度，⾃动⿊屏。短按M键切换六个设置项。
●解码模式：短按◀ 或者 ▶键切换1/2/4通道解码模式（“d-1”，“d-2”或“d-4”）。设置为1通道解码时，解码器只占⽤1个DMX地址，4个通道输出相同的亮度。
● 灰度：短按◀或者▶键，切换8位（“b08”）或16位（“b16”）。如果DMX主控⽀持16位则选择16位。
●输出PWM频率：输出PWM频率：短按◀或者▶键，切换250Hz“(F02”),500Hz“(F05”),1000Hz“(F10”),2000Hz“(F20”),4000Hz“(F40”),8000Hz“(F80”)或16000Hz“(F16”)。
较⾼的PWM频率，会导致较低的输出电流，较⾼的电源噪声，但更适合于视频拍摄（⽆闪烁）。
●输出亮度曲线：短按◀ 或者 ▶键切换线性曲线（“C-L”）或对数曲线（“C-E”）。
⼯作模式
系统参数设置
输出电流
输⼊电压
质保
输⼊和输出 安全和EMC
EMC标准(EMC)
认证
安全标准(LVD)
技术参数
12-36VDC
输⼊电流
输出电压
输出功率
输出类型
4x(96-288)W
4x(12-36)VDC
4CH,8A/CH
32.5A
恒压
5年
ETSIEN301489-1V2.2.3
ETSIEN301489-17V3.2.4
CE,EMC,LVD,RED
EN62368-1:2020+A11:2020
⼯作温度
外壳最⾼温度
Ta:-30
O
C~+55
O
C
Tc:+85
O
C
L175xH54xW27(mm)
0.129kg
环境
包装和尺⼨
包装尺⼨
⽑重

RGB/RGBW控制器模式
●仅在DMX信号断开或丢失时才能进⼊RGB/RGBW控制器模式。
●短按M键，当显⽰P01~P30时，进⼊RGB/RGBW控制器模式。
●按◀ 或者 ▶键切换变化模式序号（P01~P30）。
●每种模式都可以调节速度和亮度。
⻓按M键2秒，准备设置模式速度，亮度，W通道亮度。
短按M键切换三项参数。
按◀ 或者 ▶键设置每个参数的值。
模式速度：1-10级速度（S-1，S-9，S-F）。
模式亮度：1-10级亮度（b-1，b-9，b-F）。
W通道亮度：0-255级亮度（400-4FF）。
⻓按M键2秒，或超时10秒，退出设置。
4通道调光器模式
●仅在DMX信号断开或丢失时才能进⼊调光器模式。
●短按M键，当显⽰L-1~L-8时，进⼊调光器模式。
●按◀ 或者 ▶键切换调光器模式序号（L-1~L-8）。
●每个调光模式可以独⽴调节每个通道的亮度。
⻓按M键2秒，准备设置四通道亮度。
短按M键切换四通道（100~1FF，200~2FF，300~3FF，400~4FF）。
按◀ 或者 ▶键设置每个通道亮度值。
⻓按M键2秒，或超时10秒，退出设置。
(L-1~L-8)
速度
(8级)
亮度
(10级,100％)
(P01~P30)
RGB/RGBW控制器模式
调光器模式
DMX模式
●短按M键，显⽰001~512时，进⼊DMX模式。
●按◀ 或者 ▶键更改DMX解码起始地址（001~512），⻓按地址快速变化。
●如果有DMX信号输⼊，将⾃动进⼊DMX模式。
●DMX调光：连接DMX控制台时,每个D4-XE解码器占⽤4个DMX地址。
例如，默认的起始地址是1， 它们的对应关系：
1通道0-255 1通道 PWM 0-100% (LED 红)
DMX控台
2通道 PWM 0-100% (LED 绿)
3通道 PWM 0-100% (LED 蓝)
4通道 PWM 0-100% (LED ⽩)
DMX解码器输出
2通道0-255
3通道0-255
4通道0-255
(001~512)
DMX模式
恢复出⼚默认设置
●同时⻓按◀ 和 ▶键2秒，恢复出⼚默认参数，显⽰“RES”。
●出⼚默认参数：DMX解码模式，DMX解码起始地址为1，四通道解码，8位灰度，2000HzPWM输出频率，对数亮度曲线，
⽆DMX信号输⼊时输出100%亮度，RGB模式序号为1，调光模式序号为1，禁⽤⾃动⿊屏。
P01
P02
P03
P04
P05
P06
P07
P08
P09
P10
P11
P12
P13
P14
P15
P16
P17
P18
P19
P20
P21
P22
P23
P24
P25
P26
P27
P28
P29
P30
 
RGB变化模式列表
静态红⾊
静态绿⾊
静态蓝⾊
静态⻩⾊
静态⻘⾊
静紫⾊
静态⽩⾊
RGB跳变
7彩跳变
红⾊频闪
绿⾊频闪
蓝⾊频闪
⽩⾊频闪
RGB频闪
7彩频闪
红⾊渐明渐暗
绿⾊渐明渐暗
蓝⾊渐明渐暗
⽩⾊渐明渐暗
RGBW渐明渐暗
   
红⻩渐变
绿⻘渐变
蓝紫渐变
蓝⽩渐变
RGB+W渐变
RGBW渐变
RGBY渐变
⻩⻘紫渐变
RGB渐变
6⾊渐变
● 默认输出亮度：没有DMX信号输⼊时，按◀或者▶键，设置0-100%级默认输出亮度（“d00”-“ dFF”）。
●⾃动⿊屏：短按◀ 或者 ▶键，切换启⽤（“bon”）或禁⽤（“boF”）⾃动⿊屏。
●⻓按M键2秒,或超时10秒，退出系统参数设置。
故障
原因 解决办法
1.输出电线过⻓
2.线径太⼩
3.电源功率⼩
4.过载
1.减⼩电线⻓度或环型供电
2.更换电线
3.更换更⼤功率电源
4.增加功率扩展器
1.没电
2.接线错误
1.检查电源
2.检查接线
灯不亮
灯带前后亮度不⼀致
故障分析和故障排除
颜⾊错乱
1.R/G/B/W接线错误
2.DMX解码地址错误
1.按正确⽅式连接R/G/B/W线
2.设置正确的解码地址
10 0
90
80
70
60
50
40
30
20
10
PWM duty(%)
100
90
80
70
60
50
40
30
20
10
PWM占 空 比(%)
50 6 0 70 80 90
亮度(%)
10 2 0 30 40
Gamma=1.6
50 6 0 70 80 90 1 00
亮度(%)
10 2 0 30 40
Gamma=1.0
10 0
90
80
70
60
50
40
30
20
10
PWM占 空 比(%)
调光曲线设置
线性调光曲线
对数调光曲线
10 0
版本1.1.3 2
⼴州景晴光电科技有限公司GuangzhouSkyacneCo.,Ltdwww.iskydance.cn
本资料上的内容均经过认真核对，如有任何印刷错漏或内容上的误解，本公司保留最终解释权。
产品若有技术改进，会编⼊新版说明书中，恕不另⾏通知。
