Skyjack 3219 SJIII Compact Series User manual

.
DC ELECTRIC SCISSORS
MODELS SJIII 3215 SJIII 3219 SJIII 3220 SJIII 3226 SJIII 4626 SJIII 4632
OPERATING MANUAL (AS)
158002AG-A February 2014

This manual is based on Serial Number(s):
SJIII 3215 10 000 839 - 10 000 995
SJIII 3219 22 032 963, 22 032 964, 22 035 881, 22 037 437 - 22 057 771
SJIII 3220 60 003 131 - 60 004 188
SJIII 3226 27 010 035, 27 010 036, 27 010 207, 27 010 423 - 27 017 550
SJIII 46XX 70 010 111, 70 010 112, 70 010 671, 70 010 916 - 70 017 595
Please refer to the website (www.skyjack.com) for older Serial Numbers.
Parts (North America)
Toll Free: 1-800-965-4626
Toll Free Fax: [phone]
E-mail: [email protected]
Skyjack Australia Pty Ltd.
4 Coates Place
Wetherill Park
New South Wales 2164
Australia
Tel: [phone]
Fax: [phone]
Skyjack Brasil
Indaiatuba, SP, Brasil 13347-653
Tel: [phone]
Alameda Júpiter, 710
Loteamento American Park Empresarial
Skyjack Service Center
3451 Swenson Ave. St. Charles,
Phone: [phone]
Toll Free: 1-800-275-9522
Fax: [phone]
Email: [email protected]om
Illinois, 60174 USA
Parts & Service (Europe)
Unit 1 Maes Y Clawdd
Oswestry, Shropshire SY10 8NN UK
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Maesbury Road Industrial Estate

SJIII DC Electric
December 2007 Page 3
DANGER
DANGER indicates an imminently hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury. It may also be used to alert against
unsafe practices.
IMPORTANT
IMPORTANT indicates a procedure essential for safe operation and which,
if not followed, may result in a malfunction or damage to the MEWP.
The Safety Alert Symbol identifies important
safety messages on MEWP, safety signs in
manuals or elsewhere. When you see this
symbol, be alert to the possibility of personal
injury or death. Follow the instructions in the
safety message.
This Safety Alert Symbol means attention!
Become alert! Your safety is involved.

Page 4 December 2007
SJIII DC Electric
Table of Contents
Section 1 - About Your Mobile elevating work platform (MEWP)....................................................... 5
Read and Heed .....................................................................................................................................................5
Safety Rules...........................................................................................................................................................6
Section 2 - Familiarization ................................................................................................................... 11
2.1 Familiarization of SJIII Series...........................................................................................................11
2.2 Component Identification ................................................................................................................12
2.3 Visual & Daily Maintenance Inspections .........................................................................................16
2.4 Function Tests..................................................................................................................................23
2.5 Winching and Towing Procedures ..................................................................................................31
2.6 Emergency Lowering Procedure.....................................................................................................33
Section 3 - Operation ........................................................................................................................... 35
3.1 General ............................................................................................................................................35
3.2 Major Components..........................................................................................................................36
3.3 Major Assemblies ............................................................................................................................37
3.4 Serial Number Nameplate ...............................................................................................................37
3.5 Component Identification ................................................................................................................38
3.6 Component Identification (Optional Equipment/Attachments).......................................................41
3.7 Operator’s Responsibility ................................................................................................................43
3.8 Start Operation ................................................................................................................................44
3.9 Guardrail Folding Procedure...........................................................................................................49
3.10 Loading/Unloading ..........................................................................................................................52
3.11 Moving the MEWP Through a Doorway..........................................................................................54
3.12 Maintenance Support Procedure ....................................................................................................56
3.13 Battery Maintenance........................................................................................................................57
Section 4 - Tables.................................................................................................................................. 61
Table 4.1 Standard and Optional Features .....................................................................................................61
Table 4.2 Owner’s Annual Inspection Record.................................................................................................62
Table 4.3a Specifications and Features ............................................................................................................63
Table 4.3b Specifications and Features ............................................................................................................64
Table 4.4 Maximum Platform Capacities (Evenly Distributed)........................................................................65
Table 4.5 Floor Loading Pressure ...................................................................................................................66
Table 4.6 Maintenance and Inspection Schedule...........................................................................................68
Table 4.7 Operator’s Checklist ........................................................................................................................69
Section 5 - Labels.................................................................................................................................. 71

SJIII DC Electric
December 2007 Page 5
Section 1 - About Your Aerial Platform Read and Heed
SKYJACK is continuously improving and expanding product features on its equipment, therefore, specifications
and dimensions are subject to change without notice.
Mobile Elevating Work Platform (MEWP) and Aerial Platform Definition
A mobile device that has a positionable platform supported from ground level by a structure.
Purpose of Equipment
The SKYJACK SJIII DC Electric series MEWP are designed to transport and raise personnel, tools and materials to
overhead work areas.
Use of Equipment
The MEWP is a highly maneuverable, mobile work station. Work platform elevation and elevated driving must only
be done on a firm, level surface.
Manual
The operating manual is considered a fundamental part of the MEWP. It is a very important way to communicate
necessary safety information to users and operators. A complete and legible copy of this manual must be kept in
the provided weather-resistant storage compartment on the MEWP at all times.
Operator
The operator must read and completely understand both this operating manual and the safety panel label located
on the platform and all other warnings in this manual and on the MEWP. Compare the labels on the MEWP with the
labels found within this manual. If any labels are damaged or missing, replace them immediately.
Service Policy and Warranty
SKYJACK warrants each new SJIII Series work platform to be free of defective parts and workmanship for the first
24 months. Any defective part will be replaced or repaired by your local SKYJACK dealer at no charge for parts or
labor. Contact the SKYJACK Service Department for warranty statement extensions or exclusions.
Optional Accessories
The SKYJACK MEWP is designed to accept a variety of optional accessories. These are listed under “Standard and
Optional Features” in Table 4.1.
Operating instructions for these options (if equipped) are located in Section 3 of this manual.
For options not listed under “Standard and Optional Features,” contact the SKYJACK Service Department at
(: 61 (0) 28786 3200
7: 61 (0) 28786 3222
Include the model and serial number for each applicable MEWP.
Scope of this Manual
a. This MEWP meets requirements of the Guideline published by the National Regulators’ Committee on High
Risk Plant dated 27 May 2010.
b. Operators are required to conform to national, state or territorial/provincial and local health and safety regulations
applicable to the operation of this MEWP.
1
1
1
1
Section 1 - About Your Mobile elevating work platform (MEWP)
Read and Heed

Page 6 December 2007
SJIII DC Electric

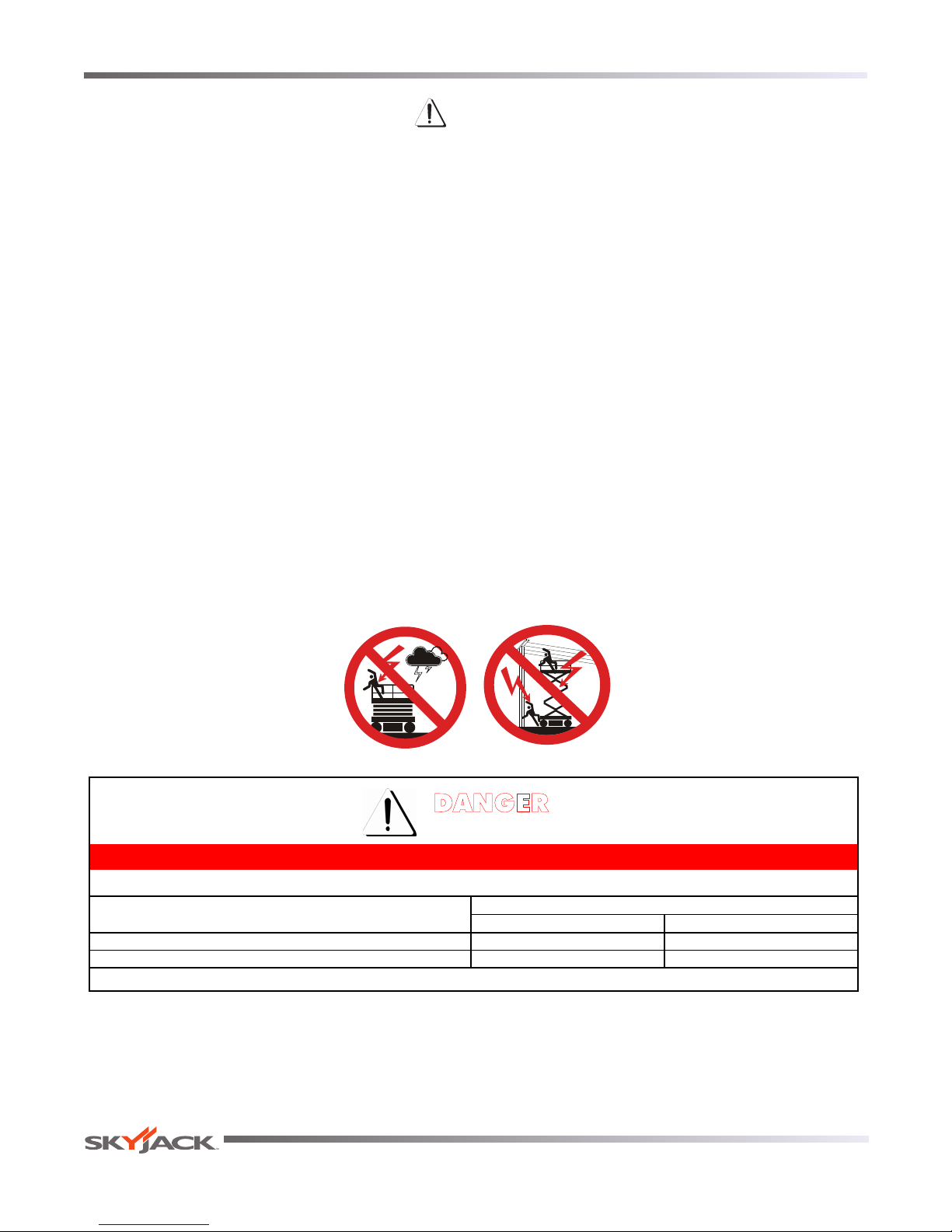

Safety Rules Section 1 - About Your Aerial Platform
WARNING
Failure to comply with your required responsibilities in the use and operation of the MEWP could
result in death or serious injury!
Operator Safety Reminders
A study conducted by St. Paul Travelers showed that most accidents are caused by the failure of the operator to
follow simple and fundamental safety rules and precautions.
You, as a careful operator, are the best insurance against an accident. Therefore, proper usage of this MEWP is
mandatory. The following pages of this manual should be read and understood completely before operating the
MEWP.
Common sense dictates the use of protective clothing when working on or near machinery. Use appropriate safety
devices to protect your eyes, ears, hands, feet and body.
Any modifications from the original design are strictly forbidden without written permission from SKYJACK.
Electrocution Hazard
This MEWP is not electrically insulated. Maintain a Minimum Safe Approach Distance (MSAD) from energized
power lines and parts as listed below. The operator must allow for the platform to sway, rock or sag. This MEWP
does not provide protection from contact with or proximity to an electrically charged conductor.
DO NOT USE THE MEWP AS A GROUND FOR WELDING.
DO NOT OPERATE THE MEWP DURING LIGHTNING OR STORMS.
DO NOT OPERATE THE MEWP NEAR POWER LINES. MAINTAIN A MININUM SAFE APPROACH
DISTANCE (MSAD) FROM ENERGIZED POWER LINES.
Without Spotter With Spotter
Up to and including 133KV 6.4 3
Greater than 133KV 10 8
1013AA
Voltage Range (Phase to Phase)
DANGER
FAILURE TO AVOID THIS HAZARD WILL RESULT IN DEATH OR SERIOUS INJURY!
Avoid Power Lines
Minimum Safe Approach Distance
AS 2550.10-2006 Requirements
Minimum Safe Approach Distance (Meters)
Safety Rules

SJIII DC Electric
December 2007 Page 7
Section 1 - About Your Aerial Platform Safety Rules
Safety Precautions
Know and understand the safety precautions before going on to next section.
WARNING
Failure to heed the following safety
precautions could result in tip over,
falling, crushing, or other hazards leading
to death or serious injury.
• KNOW all national, state or territorial/provincial
and local rules which apply to your MEWP and
jobsite.
• TURN main power disconnect switch “ ” off
when leaving the MEWP unattended. Remove
the key to prevent unauthorized use of the MEWP.
• WEAR all the protective clothing and personal
safety devices issued to you or called for by job
conditions.
• DO NOT wear loose clothing,
dangling neckties, scarves,
rings, wristwatches or other
jewelry while operating this lift.
• AVOID entanglement with
ropes, cords or hoses.
• AVOID falling. Stay within the
boundaries of the guardrails.
• DO NOT raise the MEWP or
operate elevated in windy or
gusty conditions that exceed
the limits specified in Section 4,
Table 4.4.
• DO NOT increase the lateral
surface area of the platform.
Increasing the area exposed
to the wind will decrease
MEWP stability. Avoid tenting.
• DO NOT drive elevated on a
soft or uneven surface.
• DO NOT elevate the MEWP if
it is not on a firm, level surface.
• DO NOT drive elevated near
depressions or holes of any
type, loading docks, debris,
drop-offs or surfaces that
may affect the stability of the
MEWP.
• IF OPERATION IN AREAS
WITH HOLES OR DROP-
OFFS IS ABSOLUTELY
NECESSARY, elevated driving
shall not be allowed. Position
the MEWP horizontally only
with the platform fully-lowered.
After ensuring that all 4 wheels
or outriggers (if equipped)
have contact with a firm, level
surface, the MEWP can be
elevated. After elevation, the
drive function must not be
activated.
• DO NOT elevate or drive
elevated on a slope. Elevated
driving must be done on a
firm, level surface.
• DONOT ascend or descend
a grade when elevated.
When fully-lowered, ascend
or descend grades not
exceeding those listed in
Table 4.3a and Table 4.3b.

Page 8 December 2007
SJIII DC Electric

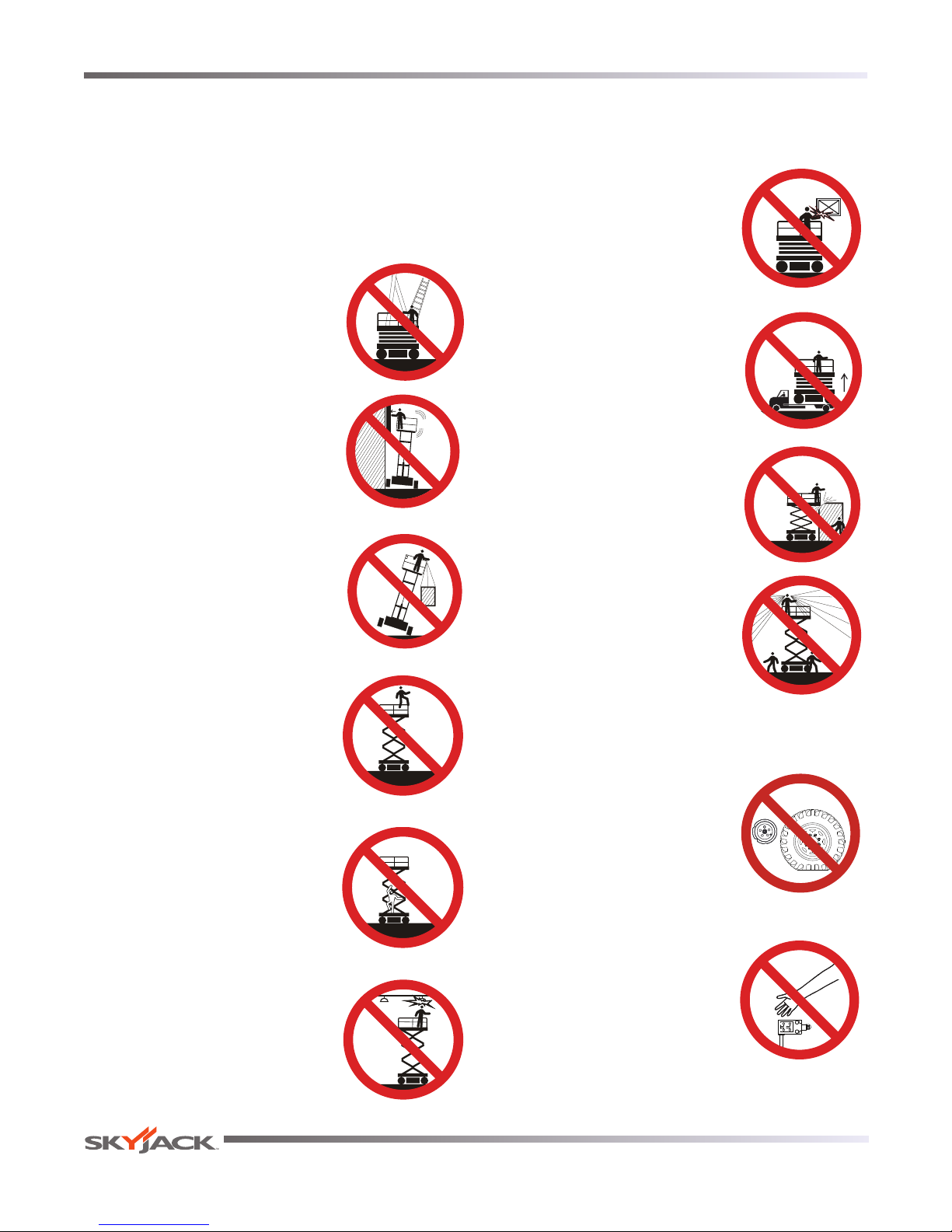

Safety Rules Section 1 - About Your Aerial Platform
• DO NOT operate on surfaces not capable of
holding the weight of the MEWP including the
rated load, e.g. covers, drains, and trenches.
• DO NOT operate a MEWP
that has ladders, scaffolding or
other devices mounted on it to
increase its size or work height.
It is prohibited.
• DO NOT exert horizontal
(manual) force on MEWP that
exceeds the limits specified in
Table 4.4.
• DO NOT use the MEWP as a
crane. It is prohibited.
• DONOT sit, stand or climb on
the guardrails. It is prohibited.
• DONOTclimb on scissor arm
assembly. It is prohibited.
• AVOID overhead obstructions.
Be aware of overhead
obstructions or other possible
hazards around MEWP when
lifting or driving.
• AVOID crushing hazards. Be
aware of crushing hazards
when lifting or driving. Keep
all body parts inside the
MEWP.
• DO NOT raise the MEWP
while the MEWP is on a truck,
fork lift or other device or
vehicle.
• DO NOT lower the platform
unless the area below is clear
of personnel and obstructions.
• ENSURE that there are no
personnel or obstructions in
the path of travel, including
blind spots.
• BE AWARE of blind spots
when operating the MEWP.
• DONOTuse with improperly
inflated/damaged tires or
wheels. Refer to Section 2:
Wheel/Tire Assembly.
• ENSURE ALL tires are in good
condition and lug nuts are
properly tightened.
• DO NOT alter or disable
limit switches or other safety
devices.
Safety Precautions (Continued)
Know and understand the safety precautions before going on to next section.

SJIII DC Electric
December 2007 Page 9

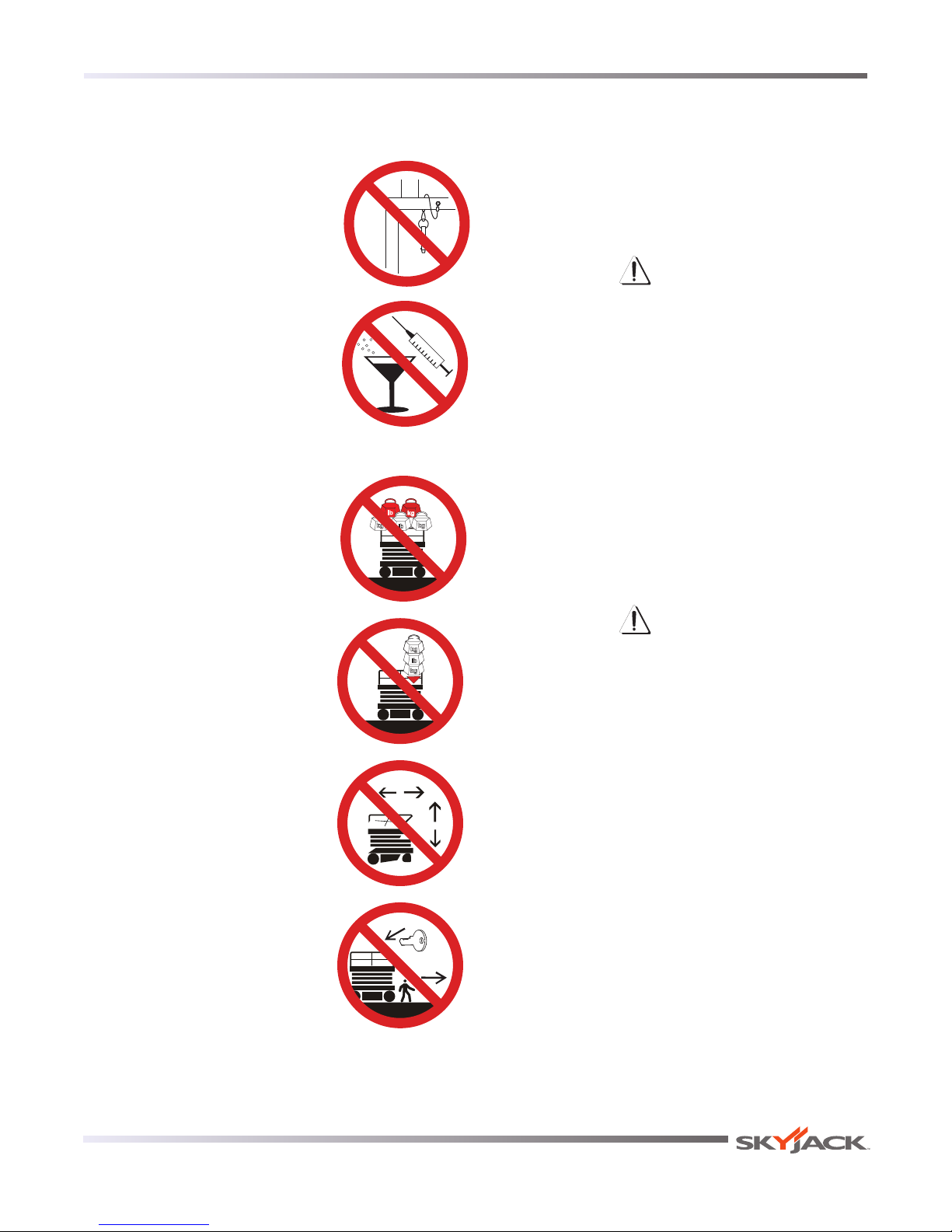

Section 1 - About Your Aerial Platform Safety Rules
Safety Precautions (Continued)
Know and understand the safety precautions before going on to next section.
• DO NOT  use the MEWP
without guardrails, locking pins
and the entry gate(s) in place.
• DO NOT use under influence
of alcohol or drugs.
• STUNT driving and horseplay are prohibited.
• DO NOT exceed the rated
capacity of the MEWP.
• DO NOT distribute load
unevenly.
• DO NOT operate if MEWP is
not working properly or if any
parts are damaged or worn.
• DO NOT leave MEWP
unattended with key in key
switch.
• DO NOT position the MEWP
against another object to steady the platform.
• DO NOT place materials on the guardrails
or materials that exceed the confines of the
guardrails unless approved by Skyjack.
WARNING
Entering and exiting the MEWP should
only be done using the three points of
contact.
• Useonlyequippedaccessopenings.
• EnterandexitonlywhentheMEWPisinthe
fully retracted position.
• Do use three points of contact to enter and exit
the platform. Enter and exit the platform from the
ground only. Face the MEWP when entering or
exiting the platform.
• Three points of contact means that two hands and
one foot or one hand and two feet are in contact
with the MEWP or the ground at all times during
entering and exiting.
WARNING
An operator should not use any MEWP
that:
• does not appear to be working
properly.
• has been damaged or appears to have
worn or missing parts.
• has alterations or modifications not
approved by the manufacturer.
• has safety devices which have been
altered or disabled.
• has been tagged or locked out for
non-use or repair.
Failure to avoid these hazards could
result in death or serious injury.
Jobsite Inspection
• Do not use in hazardous locations.
• Perform a thorough jobsite inspection prior to
operating the MEWP, to identify potential hazards
in your work area.
• Be aware of moving equipment in the area. Take
appropriate actions to avoid collision.

Page 10 December 2007
SJIII DC Electric
Notes

SJIII DC Electric
December 2007 Page 11
Section 2- Familiarization SJIII Series
2.1 Familiarization of SJIII Series
WARNING
MEWP Familiarization should be given only to individuals who are COMPETENT And
TRAINED to operate a MEWP.
Do not operate this MEWP without proper authorization and training. Failure to avoid this
hazard could result in death or serious injury.
It is the responsibility of the operator to read, completely understand and follow all
instructions and warnings contained in this operating manual and on the MEWP.

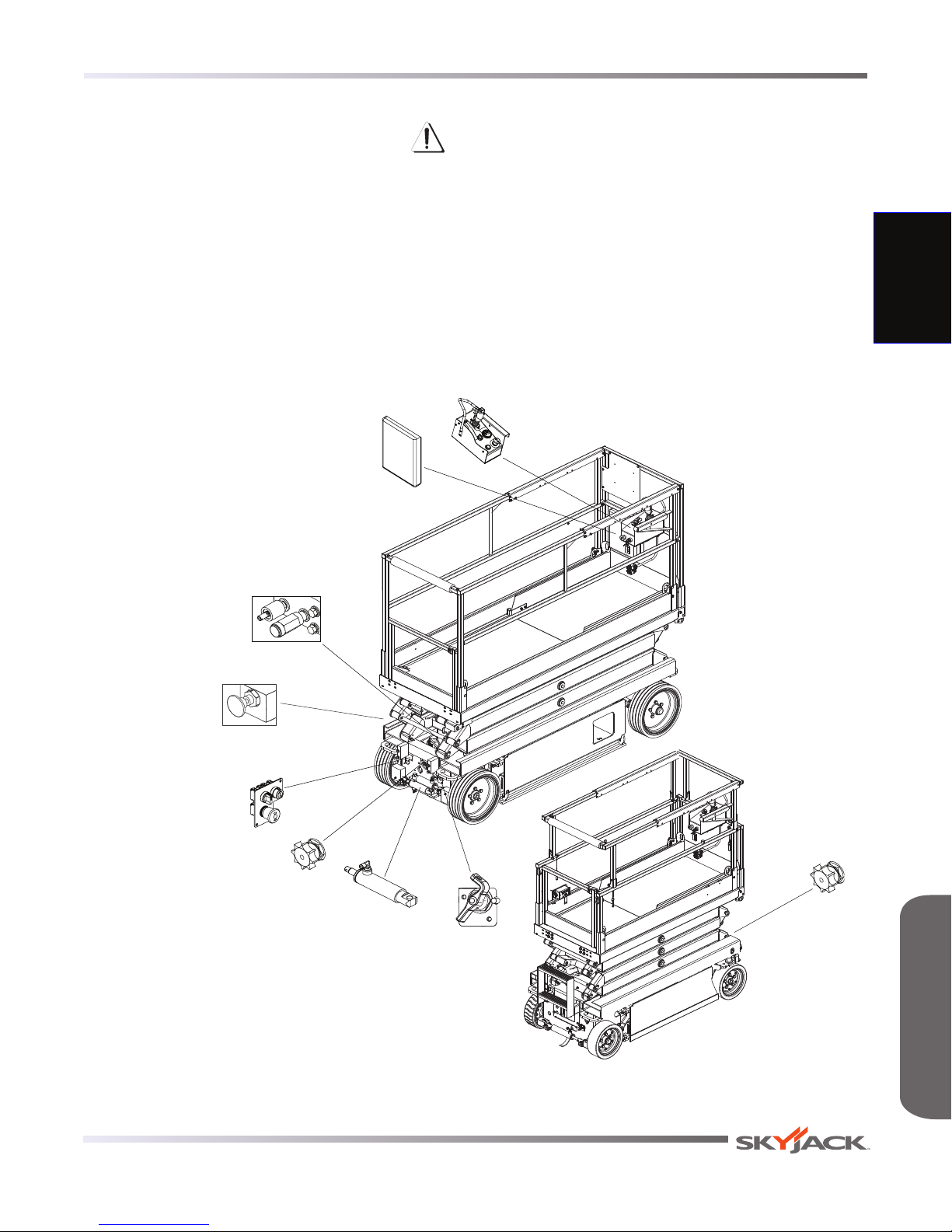

SJIII 3215 & 3219
Manual
Box
Platform Control
Console
Main Power
Disconnect
Holding Valve
Manual Override
Knob
Base
Control
Console
Free-wheeling
Valve
Free-
wheeling
Valve
SJIII 3220, 3226 & 46xx
Brake
(If Equipped)
Emergency
Lowering
Valve

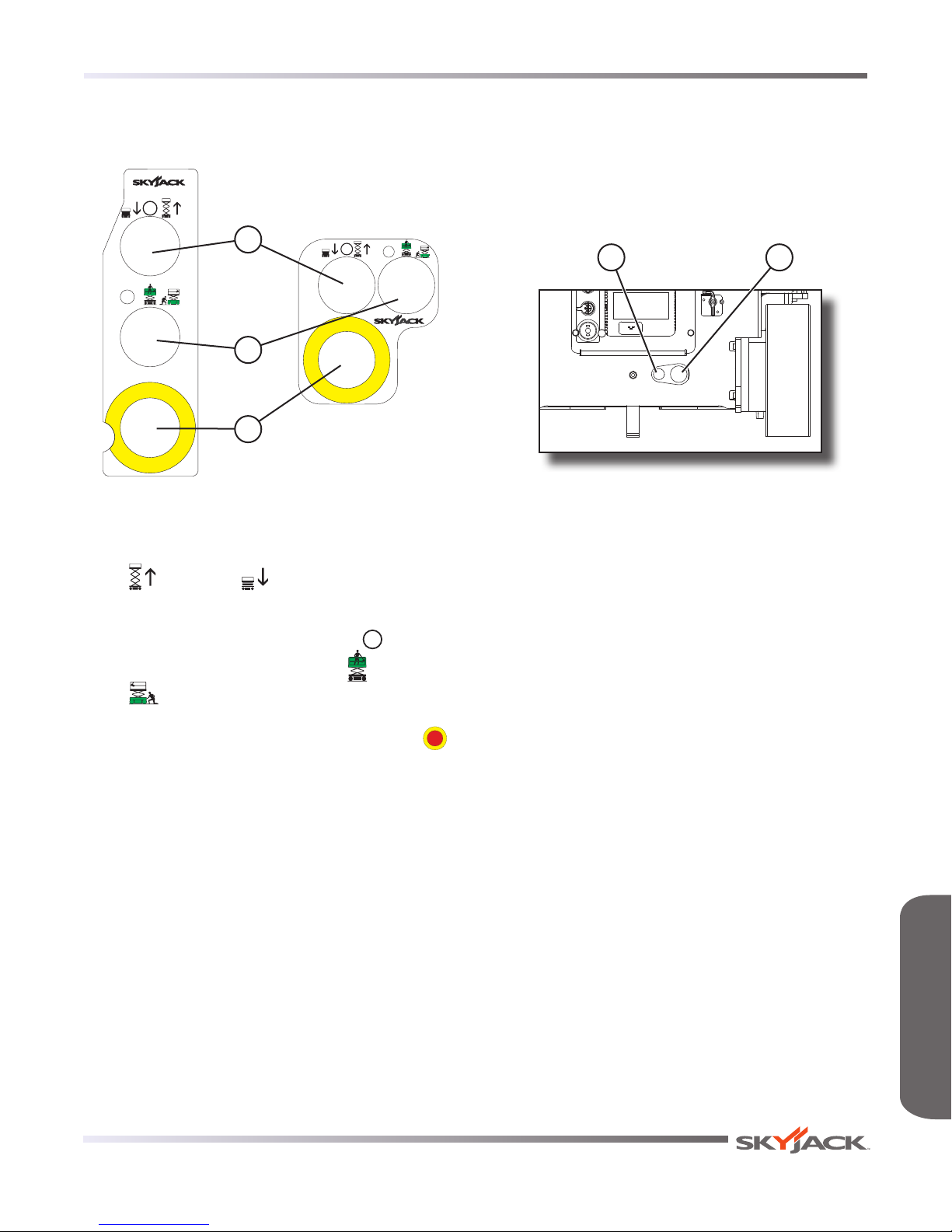

1
2
1
2
1
2
FAMILIARIZATIONFAMILIARIZATION
Section 2 - Familiarization

Page 12 December 2007
SJIII DC Electric
Control Functions Section 2 - Familiarization
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
2.2 Component Identification
The following descriptions are for identification,
explanation and locating purposes only.
2.2-1 Main Power Disconnect Switch
This switch is located at the rear of the base.

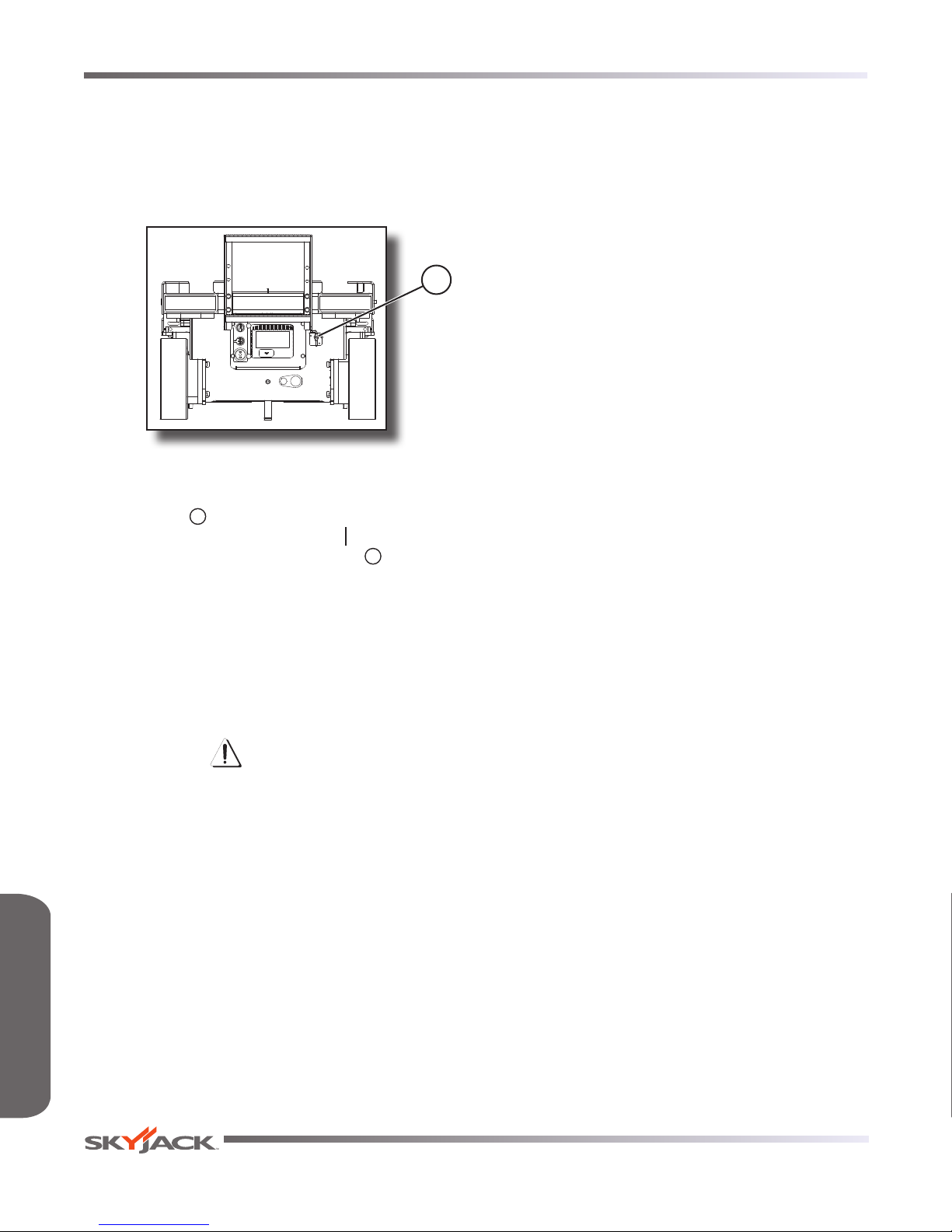

1
Figure 2-1. Main Power Disconnect Switch
1. Main Power Disconnect Switch - This switch,
when in “ ” off position, disconnects power to
all circuits. Switch must be in “ ” on position to
operate any circuit. Turn switch “ ” off when
transporting MEWP.
2.2-2 Tilt Alarm
The MEWP is equipped with a device which senses
when the MEWP is on a slope in any direction. It is
designed to prevent driving and activate audible and
visual alarms when MEWP is on a slope greater than a
predetermined limit.
WARNING
If the tilt alarm sounds and the
platform does not, or only partially
raises, immediately lower the platform
completely and ensure that the MEWP is
on a firm level surface.
2.2-3 Lowering Alarm
The MEWP is equipped with an audible alarm which
sounds while the MEWP is lowering.
NOTE
On MEWP with certain options, a flashing
amber light will accompany this alarm.
2.2-4 Load Sensing System
This system is a safety device that will prevent any
normal movement of the MEWP from a stationary
working position after the rated load is reached and
exceeded. Refer to Table 4.4 for maximum platform
capacities.
• When 90% of the rated load is reached:
The red power indicator light on the platform
control console flashes.
• When the rated load is reached:
An audible alarm sounds for approximately 2
seconds, 5 times per minute.
• When the rated load is exceeded:
The flashing light and audible alarm continue
and all electrically controlled MEWP movement
functions stop. To resume normal operation,
remove the overload from the platform.
• If the MEWP comes in contact with an overhead
obstruction:
The platform could become overloaded and all
functions would stop. Release of the platform
from this situation can only be effected by use
of the emergency lowering system. Refer to
Section 2.6.
NOTE
After reaching full extension and upon
lowering, the MEWP could stop and take
an overload reading. Return the controller
to the neutral center position, and release
the enable trigger switch. If the MEWP
is overloaded, the flashing light and
audible alarm continue and all electrically
controlled MEWP movement functions
stop. To resume normal operation, remove
the overload from the platform.
FAMILIARIZATIONFAMILIARIZATION

SJIII DC Electric
December 2007 Page 13
Section 2 - Familiarization Control Functions
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
2.2-5 Base Control Console
This control console is located at the rear of the base.
It contains the following controls:
TM
TM
1
2
3
Figure 2-2. Base Control Console
1. Lower/Neutral/Raise Switch - This switch controls
“ ” raising or “ ” lowering of platform.
2. Off/Platform/Base Key Switch - This three-way
switch allows the operator to turn “ ” off power
to MEWP or to activate either “ ” platform or
“ ” base controls.
3. Emergency Stop Button - This button “ ”,
when depressed, disconnects power to the control
circuit.
2.2-6 Disc Brake System

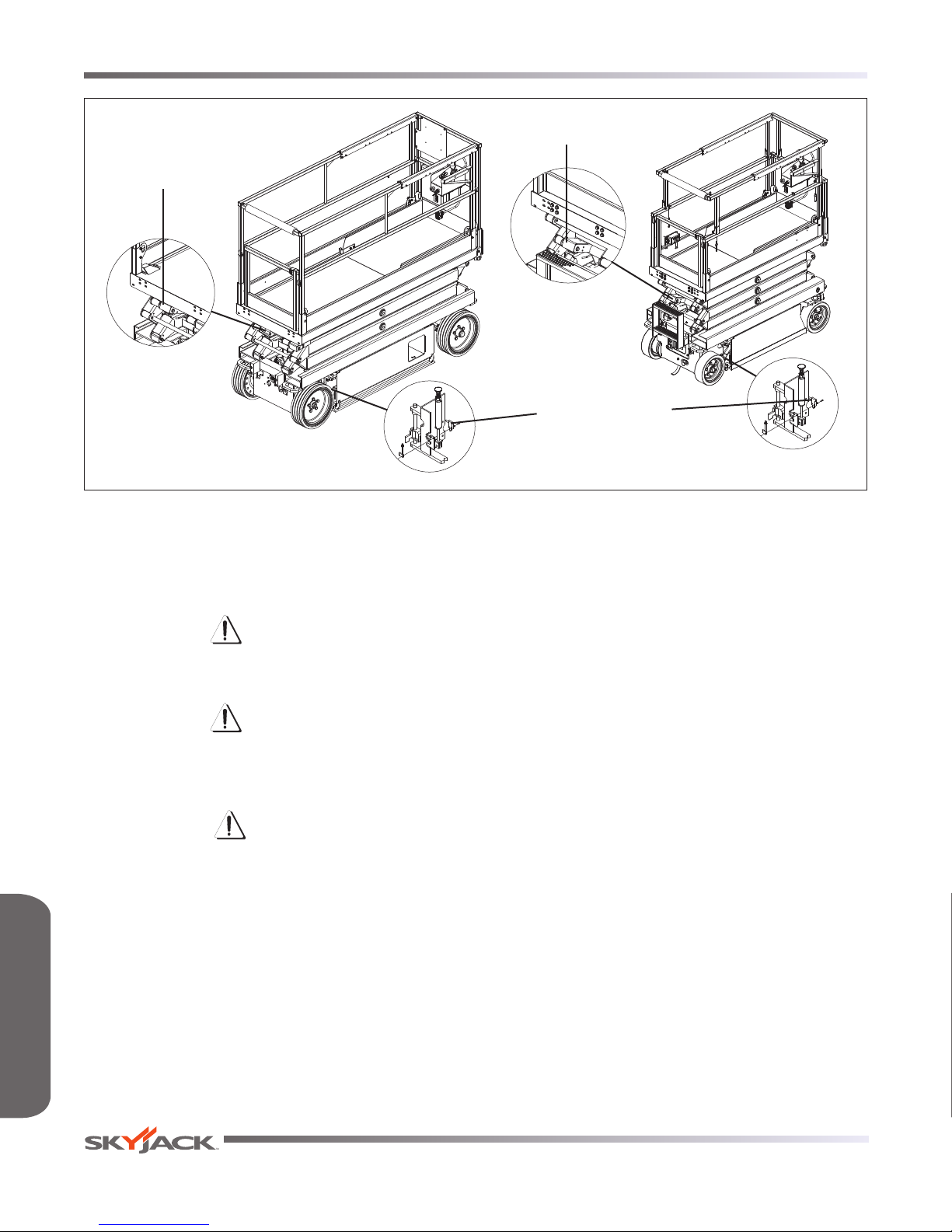

The brake system is located at the rear of the base. The
brakes must be manually disengaged before pushing,
winching or towing. Refer to Section 2.5-2 for procedure
on how to release brakes manually. The system contains
the following controls:
21
Figure 2-3. Disc Brake System
1. Brake auto reset valve plunger
2. Brake hand pump
FAMILIARIZATIONFAMILIARIZATION

Page 14 December 2007
SJIII DC Electric
Control Functions Section 2 - Familiarization
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.

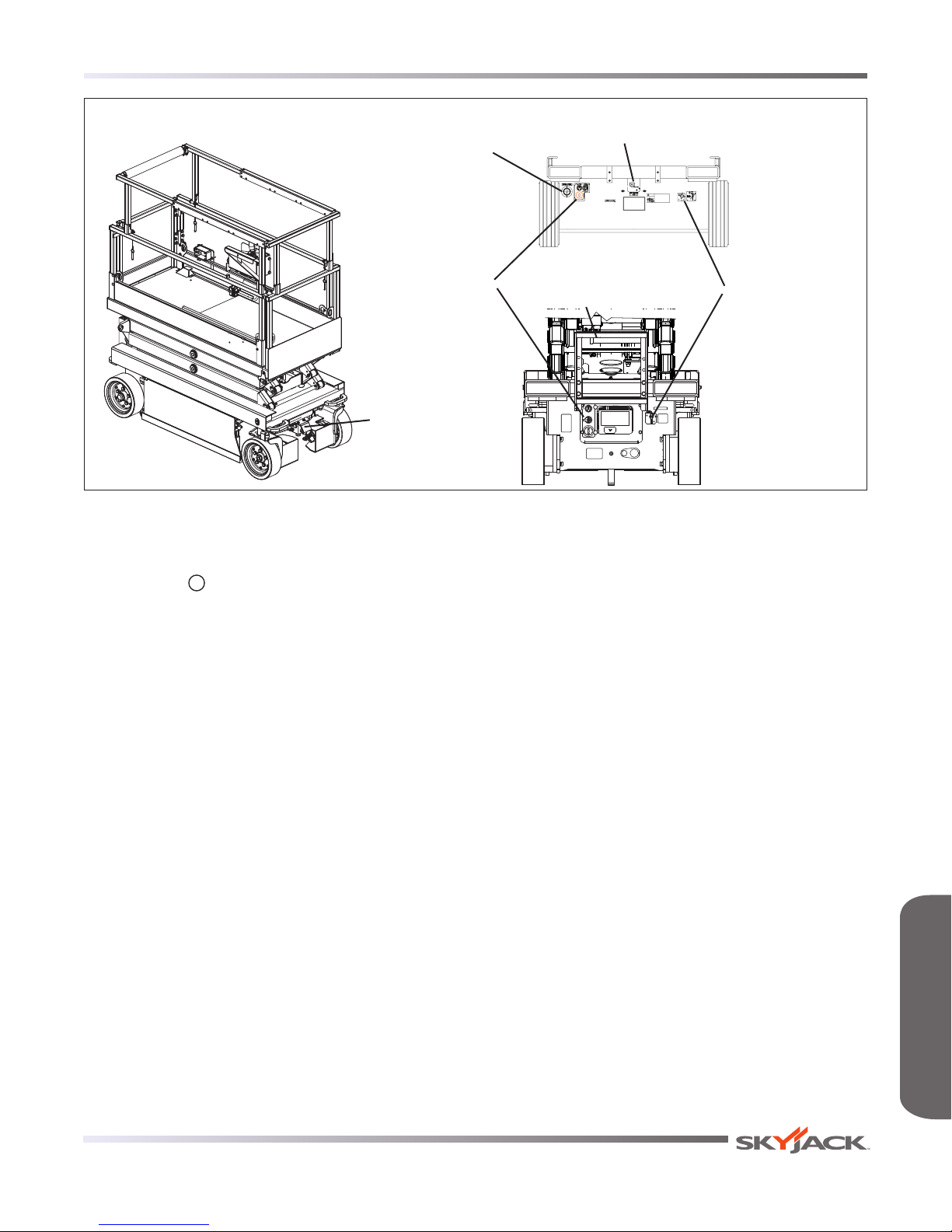

2.2-7 Free-wheeling Valve
1
Models 3220, 3226 and 46xx
1
Models 3215 and 3219
Figure 2-4. Free-wheeling Valve
1. Free-wheeling Valve - The free-wheeling valve
is located at the front and/or rear of the MEWP
(depending on the model). Refer to Section 2.5-1
for procedure on how to release the free-wheeling
valve.
2.2-8 Emergency Lowering System
This emergency lowering system allows platform
lowering in the event of an emergency or an electrical
system failure. Refer to Section 2.6 for the emergency
lowering procedure. The system contains the following
controls:

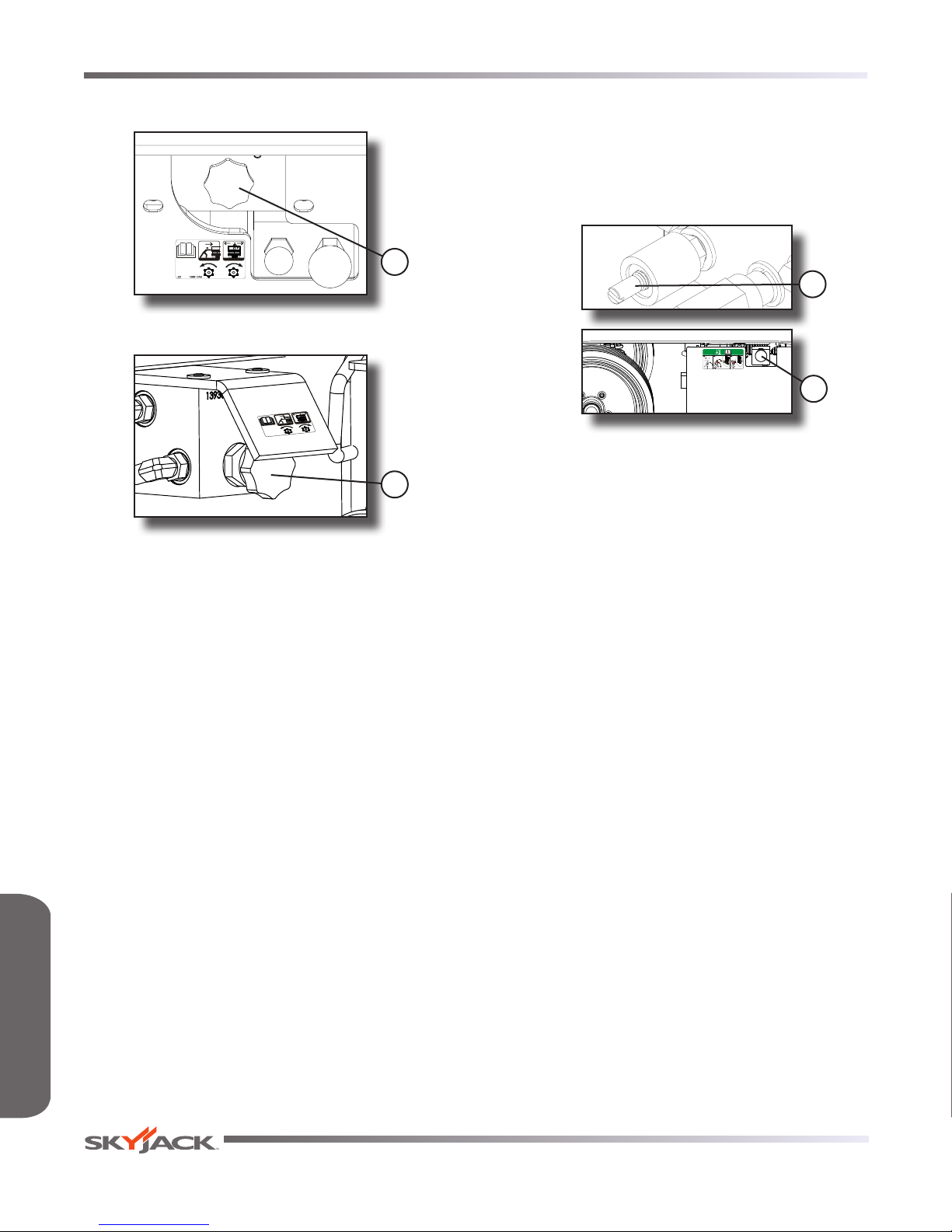

1
158914AA
ZZ
23
A
B
1
2
Figure 2-5. Emergency Lowering System
1. Holding Valve Manual Override Knob - Located
on the holding valve at the bottom of each lift
cylinder.
2. Emergency Lowering Valve - Located at the rear
of the hydraulic/electric tray.
FAMILIARIZATIONFAMILIARIZATION

SJIII DC Electric
December 2007 Page 15
Section 2 - Familiarization Control Functions
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
2.2-9 Platform Control Console
This removable control console is mounted at the right
front of the platform. It contains the following controls:
12
3
5
6
Figure 2-6. Platform Control Console
with Toggle Switch
1. Lift/Drive/Steer Enable Trigger Switch -This
momentary “ ” switch energizes the controller.
It must be held depressed continuously while
engaging either the lift/drive or steer functions.
2. Lift/Drive/Steer Controller - This one-hand lever
controls lift/drive and steer motions. Internal
springs return it to neutral when controller is
released.
3. Emergency Stop Button/Operation Light - This
button “ ”, when depressed, disconnects
power to the control circuit. The operation light
indicates upper control availability and overload
status. When the light is continuously illuminated,
upper controls are available. When the light is
flashing, it signals an overload function. Refer to
Section 2.2-3.
4. Horn Pushbutton - This “ ” pushbutton sounds
an automotive-type horn.
5. Inclined Drive/Level Drive Switch (If Equipped)
- This switch selects “ ” inclined drive (low
speed/high torque) or “ ” level drive (high
speed/low torque).
NOTE
Inclined drive (low speed/high torque) is
not available on models 3215 and 3219.
6. Lift/Off/Drive Switch - Selecting “ ” off position
disconnects power from both lift and drive circuits.
Selecting “ ” lift position energizes the lift circuit.
Selecting “ ” drive position energizes the drive
circuit.
WARNING
Skyjack scissor lifts are to be operated
from the operator’s position on the
platform with the control box secured on
the mounting bracket at the front right
portion of the platform. Operation of the
unit from the ground is permissible only
when maintaining the lift or, in limited
circumstances, when an obstruction
precludes the safe operation of the
lift from the operator’s position on the
platform. Operation from the ground is to
be performed as set forth in the Operating
Manual.
FAMILIARIZATIONFAMILIARIZATION
4

Page 16 December 2007
SJIII DC Electric
Visual & Maintenance Inspection Section 2 - Familiarization
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
2.3 Visual & Daily Maintenance
Inspections
Begin the visual and daily maintenance inspections
by checking each item in sequence for the conditions
listed in this section.
WARNING
To avoid injury, do not operate a MEWP
until all malfunctions have been corrected.
WARNING
To avoid possible injury, ensure MEWP
power is off during your visual and daily
maintenance inspections.
CAUTION
Ensure MEWP is on a firm, level
surface.
NOTE
While performing visual and daily
inspections in different areas, be aware to
also inspect limit switches, electrical and
hydraulic components.
2.3-1 Labels
Refer to Section 5 - Labels in this manual and determine
that all labels are in place and are legible.
2.3-2 Electrical
Maintaining the electrical components is essential to
good performance and service life of the MEWP.
Inspect the following areas for chafed, corroded and
loose wires:
• base to platform cables and wiring harness
• battery tray wiring harnesses
• hydraulic/electrical wiring harnesses
2.3-3 Limit Switches
Ensure limit switches are properly secured with no signs
of visible damage and movement is not obstructed.
2.3-4 Hydraulic
Maintaining the hydraulic components is essential to
good performance and service life of the MEWP.
Perform a visual inspection around the following
areas:
• hoses and fittings
• all hydraulic cylinders
• all hydraulic manifolds
• the underside of the base
• ground area under the MEWP
FAMILIARIZATIONFAMILIARIZATION
CONVENTIONALS COMPACTS
Pothole Protection
Limit Switch
High Speed
Limit Switch
High Speed
Limit Switch

SJIII DC Electric
December 2007 Page 17
Section 2 - Familiarization Visual & Maintenance Inspection
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
2.3-5 Entrance Side
• Main Power Disconnect Switch
- Turn main power disconnect switch to
“” off position.
- Ensure all cables are secure and switch
is in proper working condition.
• Base Control Switches
- Ensure there are no signs of visible
damage and all switches are in their
neutral positions.
• Free-wheeling Valve Knob
(SJIII 3215 & 3219 - Front Side)
- Ensure there are no loose or missing
parts and there is no visible damage.
• Brakes
- Ensure there are no loose or missing
parts and there is no visible damage.
• 220V Outlet Receptacle
- Ensure receptacle is free from dirt and
obstructions.
• Ladder
- Ensure there are no loose or missing
parts and there is no visible damage.
FAMILIARIZATIONFAMILIARIZATION
CAUTION
A106515AC
Main Power
Disconnect
Switch
Base Control
Console
220V Outlet
Receptacle
Ladder
Free-wheeling
Valve
Free-wheeling
Valve
SJIII 3215 & 3219 SJIII 3220, 3226 & 46xx
(Back View)
SJIII 3215 & 3219
(Back View)

Page 18 December 2007
SJIII DC Electric
Visual & Maintenance Inspection Section 2 - Familiarization
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
2.3-6 Battery Tray Side
• Pothole Protection Device
- Ensure mechanisms have no sign of
visible damage and are free from dirt and
obstructions.
• Battery Tray
- Ensure tray latch is secure and in proper
working order.
• Battery Charger
(SJIII 3215 & 3219 - Entrance Side)
- Ensure charger is secure and shows no
visible damage.
• Battery
Proper battery condition is essential to
good performance and operational safety.
Improper fluid levels or damaged cables and
connections can result in component damage
and hazardous conditions.
WARNING
Explosion hazard. Keep flames
and sparks away. Do not smoke
near batteries.
WARNING
Battery acid is extremely corrosive -
Wear proper eye and facial protection as
well as appropriate protective clothing.
If contact occurs, immediately flush with
cold water and seek medical attention.
1. Check battery case for damage.
2. Clean battery terminals and cable ends
thoroughly with a terminal cleaning tool or
wire brush.
3. Ensure all battery connections are tight.
4. If applicable, check battery fluid level. If plates
are not covered by at least 13 mm of solution,
add distilled or demineralized water.
5. Replace battery if damaged or incapable of
holding a lasting charge.
WARNING
Use original or manufacturer-approved
parts and components for the MEWP.
FAMILIARIZATIONFAMILIARIZATION
SJIII 3220, 3226 & 46xx SJIII 3215 & 3219
Pothole Protection Device Battery Tray
Battery
Charger Battery
Battery Tray
Hydraulic/Electric
Tray
Battery Fuse Box
Battery
Charger

SJIII DC Electric
December 2007 Page 19
Section 2 - Familiarization Visual & Maintenance Inspection
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
• Steer Cylinder Assembly
- Ensure steer cylinder assembly is
properly secured and there are no loose
or missing parts.
• Wheel/Tire Assembly
The MEWP is either equipped with solid
rubber tires or foam-filled tires. Tire and/or
wheel failure could result in an MEWP tip-
over. Component damage may also result if
problems are not discovered and repaired in
a timely fashion.
- Check all tire treads and sidewalls for
cuts, cracks, punctures and unusual
wear.
- Check each wheel for damage and
cracked welds.
- Check each lug nut for proper torque to
ensure none are loose.
- Check wheel motor assembly for loose
or missing parts and signs of visible
damage.
- Ensure wheels are aligned and true
vertically and horizontally.
WARNING
Intermixing tires of different types or
using tires of types other than those
originally supplied with this equipment
can adversely affect stability. Therefore,
replace tires only with the exact Skyjack-
approved type. Failure to operate
with matched approved tires in good
condition may result in death or serious
injury.
• Tie Rod (SJIII 3220, 3226 & 46xx)
- Ensure there are no loose or missing
parts, tie rod end studs are locked and
there is no visible damage.
• Greasing Points
- Ensure greasing points have no sign of
visible damage and are free from dirt and
obstructions.
FAMILIARIZATIONFAMILIARIZATION
Steer Cylinder
Tie Rod
Battery Tray
Wheel/Tire
SJIII 3220, 3226 & 46xx

Page 20 December 2007
SJIII DC Electric
Visual & Maintenance Inspection Section 2 - Familiarization
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
2.3-7 Hydraulic/Electric Tray Side
- Ensure tray latch is secure and in proper
working order.
• Pothole Protection Device
- Ensure mechanisms have no sign of
visible damage and are free from dirt and
obstructions.
• Hydraulic Tank
- Ensure hydraulic filler cap is secure.
- Ensure tank shows no visible damage
and no evidence of hydraulic leakage.
• Hydraulic Oil
- Ensure platform is fully lowered, and then
visually inspect the sight gauge located
on the side of the hydraulic oil tank.
- The hydraulic oil level should be at or
slightly above the top mark of the sight
glass.
• Hydraulic Pump and Motor
- Ensure there are no loose or missing
parts and there is no visible damage.
• Electrical Panel
- Ensure panel is properly secured and
there is no visible damage.
- Ensure there are no loose wires or
missing fasteners.
• Proportional and Main Manifolds
- Ensure all fittings and hoses are properly
tightened and there is no evidence of
hydraulic leakage.
- Ensure there are no loose wires or
missing fasteners.
• Load/Tilt Sensor
- Ensure load/tilt sensor is properly secure
and there is no visible damage.
• Emergency Lowering Access Rod
(If Equipped)
- Ensure rod is properly secured and there
is no visible damage.
FAMILIARIZATIONFAMILIARIZATION
Hydraulic Tank
Hydraulic Pump and
Motor
Electrical Panel
Main Manifold
Load/Tilt
Sensor
Hydraulic/Electric
Tray
Emergency Lowering
Access Rod
Greasing Point
Greasing Point
SJIII 3215 & 3219
