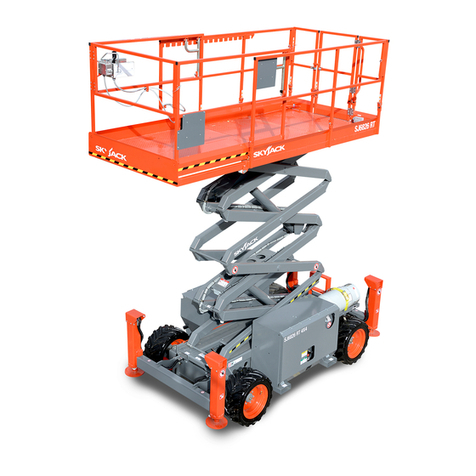

Skyjack Compact Rough Terrain Series User manual

Compact Rough Terrain Series
Maintenance and Parts Manual
Models 6826RT & 6832RT
Printed in Canada Month 2018
Part No. 129946AH
Go to Discount-Equipment.com to order your parts

Discount-Equipment.com is your online resource for quality parts & equipment.
Florida: 561-964-4949 Outside Florida TOLL FREE: 877-690-3101
Need parts?
Click on this link: http://www.discount-equipment.com/category/5443-parts/ and
choose one of the options to help get the right parts and equipment you are looking
for. Please have the machine model and serial number available in order to help us
get you the correct parts. If you don’t find the part on the website or on one of the
online manuals, please fill out the request form and one of our experienced staff
members will get back to you with a quote for the right part that your machine needs.
We sell worldwide for the brands: Genie, Terex, JLG, MultiQuip, Mikasa, Essick, Whiteman,
Mayco, Toro Stone, Diamond Products, Generac Magnum, Airman, Haulotte, Barreto,
Power Blanket, Nifty Lift, Atlas Copco, Chicago Pneumatic, Allmand, Miller Curber, Skyjack,
Lull, Skytrak, Tsurumi, Husquvarna Target, Stow, Wacker, Sakai, Mi-T-M, Sullair, Basic,
Dynapac, MBW, Weber, Bartell, Bennar Newman, Haulotte, Ditch Runner, Menegotti,
Morrison, Contec, Buddy, Crown, Edco, Wyco, Bomag, Laymor, EZ Trench, Bil-Jax, F.S.
Curtis, Gehl Pavers, Heli, Honda, ICS/PowerGrit, IHI, Partner, Imer, Clipper, MMD, Koshin,
Rice, CH&E, General Equipment ,Amida, Coleman, NAC, Gradall, Square Shooter, Kent,
Stanley, Tamco, Toku, Hatz, Kohler, Robin, Wisconsin, Northrock, Oztec, Toker TK, Rol-Air,
APT, Wylie, Ingersoll Rand / Doosan, Innovatech, Con X, Ammann, Mecalac, Makinex, Smith
Surface Prep,Small Line, Wanco, Yanmar

SKYJACK, Page 3
SJRT Compact Series
Engine Powered
Section - Paragraph
Section 1 - About Your Aerial Platform
Aerial Platform Definition .................................................................................................................... 1
Purpose of Equipment ....................................................................................................................... 1
Use of Equipment .............................................................................................................................. 1
Manuals .............................................................................................................................................. 1
Operator ............................................................................................................................................. 1
Service Policy and Warranty .............................................................................................................. 1
Scope of this Manual ......................................................................................................................... 2
Operator Safety Reminders ............................................................................................................... 3
Electrocution Hazard ......................................................................................................................... 3
Safety Precautions ............................................................................................................................. 4
Section 2 - List of Tables
Table of Contents ............................................................................................................................... 1
Section 3 - System Component Identification and Schematics - Operation
Table of Contents ............................................................................................................................... 1
Section 4 - Troubleshooting Information - Operation
Table of Contents ............................................................................................................................... 1
Section 5 - Maintenance and Service - Operation
Table of Contents ............................................................................................................................... 1
Section 6 - Parts Lists - Operation
Table of Contents ............................................................................................................................... 2
2
1
3
4
5
6
Page No.
Table of Contents
S
E
C
T
I
O
N
I
N
D
E
X
Go to Discount-Equipment.com to order your parts

SKYJACK, Page 4
SJRT Compact Series
Engine Powered
The Safety Alert Symbol identifies important
safety messages on machines, safety signs
in manuals or elsewhere. When you see this
symbol, be alert to the possibility of personal
injury or death. Follow the instructions in the
safety message.
This Safety Alert Symbol means attention!
Become alert! Your safety is involved.
DANGER
DANGER indicates an imminently hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
CAUTION indicates a potentionally hazardous situation which, if not avoided,
may result in minor or moderate injury. It may also be used to
alert against unsafe practices.
IMPORTANT
IMPORTANT indicates a procedure essential for safe operation and which,
if not followed, may result in a malfunction or damage to the machine.
Go to Discount-Equipment.com to order your parts

Section 1 - About Your Aerial Platform
SKYJACK, Page 5
SJRT Compact Series
Engine Powered
SKYJACK is continuously improving and expanding product features on its equipment, therefore, specifications
and dimensions are subject to change without notice.
Aerial Platform Definition
A mobile device that has an adjustable position platform supported from ground level by a structure.
Purpose of Equipment
The SKYJACK Rough Terrain Compact Series aerial platform is designed to transport and raise personnel, tools
and materials to overhead work areas.
Use of Equipment
The aerial platform is a highly maneuverable, mobile work station. Lifting and driving must be on a flat, level, com-
pacted surface. It can be driven over uneven terrain only when the platform is fully lowered.
Manuals
Operating
The operating manual is considered a fundamental part of the aerial platform. It is a very important way to
communicate necessary safety information to users and operators. A complete and legible copy of this manual
must be kept in the provided weather-resistant storage compartment on the aerial platform at all times.
Maintenance & Parts
The purpose of this is to provide the customer with the servicing and maintenance procedures essential for
the promotion of proper machine operation for its intended purpose.
All information in this manual should be read and understood before any attempt is made to service the machine.
The updated copy of the manuals are found on the website: www.discount-equipment.com.
Operator
The operator must read and completely understand both the operating manual and the safety panel label located
on the platform and all other warnings in this manual and on the aerial platform. Compare the labels on the aerial
platform with the labels found within this manual. If any labels are damaged or missing, replace them immediately.
Service Policy and Warranty
Discount-equipment warrants each new SJRT Series aerial platform to be free of defective parts and workmanship
for the first 12 months. Any defective part will be replaced or repaired by Discount-equipment at no charge for
parts or labor. Contact Discount-equipment for warranty statement extensions or exclusions.
Optional Accessories
The SKYJACK aerial platform is designed to accept a variety of optional accessories. These are listed under “Standard
and Optional Features” in Table 2.1 of the Operating Manual. Operating instructions for these options (if equipped)
are located in Section 2 of the Operating Manual.
For non-standard components or systems, contact Discount-equipment
1
Go to Discount-Equipment.com to order your parts

Section 1 - About Your Aerial Platform
SKYJACK, Page 6
SJRT Compact Series
Engine Powered
Scope of this Manual
a. This manual applies to the ANSI/SIA, CSA and CE versions of the Mid Size and Full Size Rough Terrain
aerial platform models listed on Table 2.1.
- Equipment identified with “ANSI” meets the ANSI SIA-A92.6-2006 standard.
- Equipment identified with “CSA” meets the CSA B354.2-01 standard.
- Equipment identified with “CE” meets the requirements for the European countries, i.e., Machinery
Directive 98/37/EC, 89/392/EEC and EMC Directive 89/336/EEC and the corresponding EN standards.
b. CSA (Canada) and CE (Europe)
Operators are required to conform to national, territorial/provincial and local health and safety regulations
applicable to the operation of this aerial platform.
c. ANSI/SIA (United States)
Operators are required by the current ANSI/SIA A92.6 standards to read and understand their responsibilities
in the manual of responsibilities before they use or operate this aerial platform.
Go to Discount-Equipment.com to order your parts

Section 1 - About Your Aerial Platform
SKYJACK, Page 7
SJRT Compact Series
Engine Powered
WARNING
Failure to comply with your required responsibilities in the use and operation of the aerial platform
could result in death or serious injury!
Operator Safety Reminders
A study conducted by St. Paul Travelers showed that most accidents are caused by the failure of the operator to
follow simple and fundamental safety rules and precautions.
You, as a careful operator, are the best insurance against an accident. Therefore, proper usage of this aerial plat-
form is mandatory. The following pages of this manual should be read and understood completely before operat-
ing the aerial platform.
Common sense dictates the use of protective clothing when working on or near machinery. Use appropriate safety
devices to protect your eyes, ears, hands, feet and body.
Any modifications from the original design are strictly forbidden without written permission from SKYJACK.
Electrocution Hazard
This aerial platform is not electrically insulated. Maintain a Minimum Safe Approach Distance (MSAD) from energized
power lines and parts as listed below. The operator must allow for the platform to sway, rock or sag. This aerial
platform does not provide protection from contact with or proximity to an electrically charged conductor.
DO NOT USE THE MACHINE AS A GROUND FOR WELDING.
DO NOT OPERATE THE MACHINE DURING LIGHTNING OR STORMS.
CE Guidance Note
“Avoidance of danger from overhead lines”
Voltage Range Minimum Safe Approach Distance
(Phase to Phase) (Feet)
0 to 300V Avoid Contact
Over 300V to 50KV 10
Over 50KV to 200KV 15
Over 200KV to 350KV 20
Over 350KV to 500KV 25
Over 500KV to 750KV 35
Over 750KV to 1000KV 45
60023AD
D
D
A
A
N
N
G
G
E
E
R
R
FAILURE TO AVOID THIS HAZARD WILL RESULT IN DEATH OR SERIOUS INJURY!
Avoid Power Lines
Minimum Safe Approach Distance
ANSI/SIA A92.6-2006
and CSA B354.2-01 Requirements
Adhere strictly to the governmental rulings
and regulations applicable in your country.
Go to Discount-Equipment.com to order your parts

Section 1 - About Your Aerial Platform
SKYJACK, Page 8
SJRT Compact Series
Engine Powered

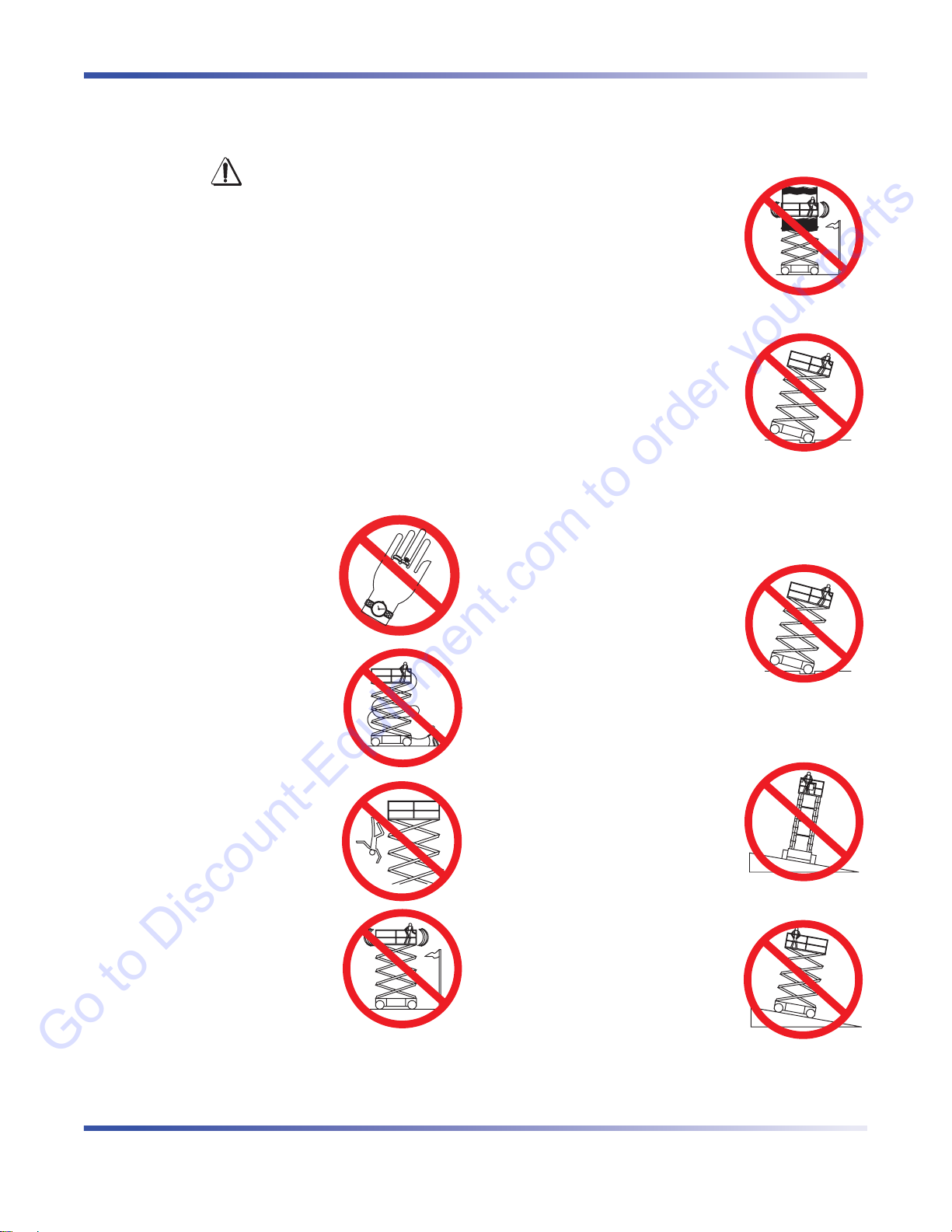

Safety Precautions
Know and understand the safety precautions before going on to next section.
WARNING
Failure to heed the following safety
precautions could result in tip over,
falling, crushing, or other hazards leading
to death or serious injury.
• KNOW all national, state/provincial and local
rules which apply to your aerial platform and job-
site.
• TURN the (emergency) main power disconnect
switch off when leaving the aerial platform unat-
tended. Remove the key to prevent unauthorized
use of the aerial platform.
• WEAR all the protective clothing and personal
safety devices issued to you or called for by job
conditions.
• DO NOT wear loose clothing,
dangling neckties, scarves,
rings, wristwatches or other
jewelry while operating this
aerial platform.
• AVOID entanglement with
ropes, cords or hoses.
• AVOID falling. Stay within the
boundaries of the guardrails.
• DO NOT raise the aerial plat-
form in windy or gusty condi-
tions.
• DO NOT increase the lateral
surface area of the platform.
Increasing the area exposed
to the wind will decrease aerial
platform stability.
• DO NOT drive or elevate the
aerial platform if it is not on a
firm level surface. Do not drive
elevated near depressions
or holes of any type, loading
docks, debris, drop-offs and
surfaces that may affect the
stability of the aerial platform.
• If operation in areas with
holes or drop-offs is abso-
lutely necessary, elevated
driving shall not be allowed.
Position the aerial platform
horizontally only with the
platform fully lowered. After
ensuring that all 4 wheels or
outriggers (if equipped) have
contact with level firm surface,
the aerial platform can be el-
evated. After elevation, the
drive function must not be ac-
tivated.
• Elevated driving must only
be done on a firm level sur-
face.
• DO NOT ascend or descend
a grade when elevated. When
fully lowered, ascending or
descending, only grades up
to rated maximum listed in
Table 2.1 are permissible.



Go to Discount-Equipment.com to order your parts

Section 1 - About Your Aerial Platform
SKYJACK, Page 9
SJRT Compact Series
Engine Powered
Safety Precautions (Continued)
Know and understand the safety precautions before going on to next section.
• DO NOT operate on surfaces not capable of
holding the weight of the aerial platform including
the rated load, e.g. covers, drains, and trenches.
• DO NOT operate an aerial plat-
form that has ladders, scaffold-
ing or other devices mounted
on it to increase its size or work
height. It is prohibited.
• DO NOT exert side forces on
aerial platform while elevated.
• DO NOT use the aerial plat-
form as a crane. It is prohibited.
• DO NOT sit, stand or climb on
the guardrails. It is prohibited.
• DO NOT climb on scissor arm
assembly. It is prohibited.
• BE AWARE of overhead ob-
structions or other possible
hazards around the aerial plat-
form when driving or lifting.
• DO NOT raise the platform
while the aerial platform is on a
truck, fork lift or other device or
vehicle.
• BE AWARE of crushing haz-
ards. Keep all body parts inside
platform guardrail.
• DO NOT lower the plat-
form unless the area below
is clear of personnel and
obstructions.
• ENSURE that there are no personnel or obstruc-
tions in the path of travel, including blind spots.
• BE AWARE of blind spots when operating the
aerial platform.
• STUNT driving and horseplay are prohibited.
• ENSURE ALL tires are in good condition and lug
nuts are properly tightened.
• DO NOT alter or disable limit switches or other
safety devices.
• DO NOT use the aerial platform without guard-
rails, locking pins and the entry gate/chain/bar in
place.
Go to Discount-Equipment.com to order your parts

Section 1 - About Your Aerial Platform
SKYJACK, Page 10
SJRT Compact Series
Engine Powered
Safety Precautions (Continued)
Know and understand the safety precautions before going on to next section.
• DO NOT exceed the rated capacity of the aerial
platform. Do make sure the load is evenly distrib-
uted on the platform.
• DO NOT attempt to free a snagged platform with
lower controls until personnel are removed from
the platform.
• DO NOT position the aerial platform against an-
other object to steady the platform.
• DO NOT place materials on the guardrails or ma-
terials that exceed the confines of the guardrails
unless approved by Skyjack.
WARNING
Entering and exiting the aerial platform
should only be done using the three
points of contact.
• Use only equipped access openings.
• Enter and exit only when the aerial
platform is in the fully retracted position.
• Do use three points of contact to enter and exit
the platform. Enter and exit the platform from the
ground only. Face the aerial platform when enter-
ing or exiting the platform.
• Three points of contact means that two hands
and one foot or one hand and two feet are in con-
tact with the aerial platform or the ground at all
times during entering and exiting.
WARNING
An operator should not use any aerial
platform that:
• does not appear to be working properly.
• has been damaged or appears to have worn or
missing parts.
• has alterations or modifications not approved by
the manufacturer.
• has safety devices which have been altered or
disabled.
• has been tagged or blocked out for non-use or
repair.
Failure to avoid these hazards could
result in death or serious injury.
Jobsite Inspection
• Do not use in hazardous locations.
• Perform a thorough jobsite inspection prior to
operating the aerial platform, to identify potential
hazards in your work area.
• Be aware of moving equipment in the area. Take
appropriate actions to avoid collision.
Go to Discount-Equipment.com to order your parts

SKYJACK, Page 11
SJRT Compact Series
Engine Powered
Section 2
Maintenance Tables and Diagrams
Table of Contents
Table 2-1a Specifications and Features - ANSI/CSA ................................................................................................2
Table 2-1b Specifications and Features - CE ............................................................................................................3
Table 2-1c Specifications and Features - AS ............................................................................................................4
Table 2-2 Owner’s Annual Inspection Record ........................................................................................................5
Table 2-3a Maximum Platform Capacities (Evenly Distributed) - ANSI/CSA ............................................................6
Table 2-3b Maximum Platform Capacities (Evenly Distributed) - CE .......................................................................6
Table 2-3c Maximum Platform Capacities (Evenly Distributed) - AS ........................................................................7
Table 2-4a Floor Loading Pressure - ANSI/CSA .......................................................................................................8
Table 2-4b Floor Loading Pressure - CE .................................................................................................................10
Table 2-4c Floor Loading Pressure - AS .................................................................................................................12
Table 2-5 Rough Terrain Scissor Fluids ................................................................................................................14
Table 2-6a Maintenance and Inspection Schedule - ANSI/CSA .............................................................................16
Table 2-6b Maintenance and Inspection Schedule - CE ........................................................................................17
Table 2-6c Maintenance and Inspection Schedule - AS .........................................................................................18
Table 2-7a Operator’s Checklist - ANSI/CSA ..........................................................................................................19
Table 2-7b Operator’s Checklist - CE ......................................................................................................................20
Table 2-7c Operator’s Checklist - AS ......................................................................................................................21
2
Go to Discount-Equipment.com to order your parts

SKYJACK, Page 12
SJ800 - E Series
Battery Powered
Section 2 - List of Tables
Table 2.1a Specifications and Features - ANSI/CSA
No Outriggers 6400 lb. 2903 kg 7660 lb. 3475 kg
With Outriggers 7500 lb. 3402 kg 8060 lb. 3656 kg
68” 1.73 m 68” 1.73 m
No Outriggers 106.6” 2.71 m 106.6” 2.71 m
With Outriggers 131.4” 3.34 m 131.4” 3.34 m
56” x 99” 1.4 m x 2.5 m 56” x 99” 1.4 m x 2.5 m
Working 32 ft. 9.8 m 38 ft. 11.7 m
Platform Elevated 26 ft. 8 m 32 ft. 9.8 m
Platform Lowered 7.8 ft. 2.37 m 8.25 ft. 2.52 m
Drive 26 ft. 7.95 m 32 ft. 9.8 m
Normal Drive 4 mph 6.3 km/h 4 mph 6.3 km/h
Elevated Drive 0.39 mph 0.63 km/h 0.39 mph 0.63 km/h
Lift (Rated Load)
Lower (Rated Load)
Kubota Diesel
Kubota Dual Fuel
Foam-filled
Air-filled
60440AG-ANSI
*
Platform Size
36 sec
36 sec
39 sec
36 sec
Speed
Model
Compact RT’s
Weight*
50% 40%
6826 6832
Width
LengthHeight
3500 (High Throttle) / 2050 (Low Throttle)
Weights are approximate; refer to serial nameplate for specific weight.
Gradeability (Torque Equivalent To)
Tires
OTR Outrigger - 26 x 12
N/A
96 dB(A)
Engine
(RPM)
Sound Pressure
3500 (High Throttle) / 2050 (Low Throttle)
Go to Discount-Equipment.com to order your parts

Section 2 - List of Tables
SKYJACK, Page 13
SJ800 - E Series
Battery Powered
Table 2.1b Specifications and Features - CE
No Outriggers 2903 kg 6400 lb. 3475 kg 7661 lb.
With Outriggers 3305 kg 7286 lb. 3655 kg 8058 lb.
1.73 m 68.1 in. 1.73 m 68.1 in.
No Outriggers 2.7 m 106.3 in. 2.7 m 106.3 in.
With Outriggers 3.34 m 131.5 in. 3.34 m 131.5 in.
1.4 m x 2.5 m 55 in. x 98 in. 1.4 m x 2.5 m 55 in. x 98 in.
Working 9.8 m 32 ft. 11.7 m 38 ft.
Platform Elevated 7.9 m 25.9 ft. 9.7 m 31.8 ft.
Platform Lowered 2.37 m 7.8 ft. 2.51 m 8.2 ft.
Drive 7.9 m 25.9 ft. 9.7 m 31.8 ft.
Normal Drive 6.3 km/h 4 mph 6.3 km/h 4 mph
Elevated Drive 0.63 km/h 0.39 mph 0.63 km/h 0.39 mph
Lift (Rated Load)
Lower (Rated Load)
Kubota Diesel
Kubota Dual Fuel
Foam-filled
Air-filled
60440AH-CE
*
Platform Size
36 sec
36 sec
39 sec
36 sec
Speed
Model
Compact RT’s
Weight*
50% 40%
6826 6832
Width
LengthHeight
3500 (High Throttle) / 2050 (Low Throttle)
Weights are approximate; refer to serial nameplate for specific weight.
Gradeability (Torque Equivalent To)
Tires
OTR Outrigger - 26 x 12D
N/A
96 dB(A)
Engine
(RPM)
Sound Pressure
3500 (High Throttle) / 2050 (Low Throttle)
Go to Discount-Equipment.com to order your parts

SKYJACK, Page 14
SJ800 - E Series
Battery Powered
Section 2 - List of Tables
Table 2.1c Specifications and Features - AS
6826 6832
No Outriggers 2900 kg 3475 kg
With Outriggers 3305 kg 3655 kg
1.73 m 1.73 m
No Outriggers 2.71 m 2.71 m
With Outriggers 3.34 m 3.34 m
1.4 m x 2.5 m 1.4 m x 2.5 m
Working 9.8 m 11.6 m
Platform Elevated 8.0 m 9.8 m
Platform Lowered 2.37 m 2.51 m
Drive 8.0 m 9.8 m
Normal Drive 6.3 km/h 6.3 km/h
Elevated Drive 0.63 km/h 0.63 km/h
Lift (Rated Load) 36 sec 39 sec
Lower (Rated Load) 36 sec 36 sec
Kubota Diesel
Kubota Dual Fuel
Foam-filled
Air-filled
50% 40%
60440AD-AS
*
Platform Size
Speed
Model
Compact RT’s
Weight*
Width
LengthHeight
Weights are approximate; refer to serial nameplate for specific weight.
Gradeability (Torque Equivalent To)
Tires Engine
(RPM)
Sound Pressure 96 dB(A)
3500 (High Throttle) / 2050 (Low Throttle)
3500 (High Throttle) / 2050 (Low Throttle)
OTR Outrigger - 26 x 12
N/A
Go to Discount-Equipment.com to order your parts

Section 2 - List of Tables
SKYJACK, Page 15
SJ800 - E Series
Battery Powered
Table 2.2 Owner’s Annual Inspection Record
60141AB
Owner’s Name
Recording Year #
Recording Date
Model Number: ____________________________ Serial Number: ____________________________
91 2 3 85 6 74
As described earlier in this section, this decal is located on the scissor assembly. It must be completed after an annual inspection has
been completed. Do not use the aerial platform if an inspection has not been recorded in the last 13 months.
Inspected By
Go to Discount-Equipment.com to order your parts

SKYJACK, Page 16
SJ800 - E Series
Battery Powered
Section 2 - List of Tables
Table 2.3a Maximum Platform Capacities (Evenly Distributed) - ANSI/CSA
Number of
Occupants
Number of
Occupants
6826 One Extension
Platform 1250 lb. 567 kg 4 300 lb. 136 kg 1
6832 One Extension
Platform 1000 lb. 453.6 kg 4 300 lb. 136 kg 1
60441AC-ANSI
NOTE:
Occupants and materials are not to exceed rated load.
Refer to capacity label for additional information and for models equipped with options.
MODEL
ExtensionTotal Machine Weight
Capacity Capacity
Table 2.3b Maximum Platform Capacities (Evenly Distributed) - CE
Capacity Number of
Occupants Capacity Number of Occupants
6826 One Extension
Platform 567 kg 4 136 kg 1
6832 One Extension
Platform 454 kg 2 136 kg 1
60441AB-CE
NOTE: Occupants and materials are not to exceed rated load.
Refer to capacity label for additional information and for models equipped with options.
MODEL
ExtensionTotal
m/s km/h ft/s mph
3
3.4 – 5.4 12.5 – 19.4 11.5 – 17.75 5 – 12.0 Papers and thin branches move, flags wave
4
5.4 – 8.0 19.4 – 28.8 17.75 – 26.25 12.0 – 18 Dust is raised, paper whirls up, and small
branches sway.
5
8.0 – 10.8 28.8 – 38.9 26.25 – 35.5 18 – 24.25 Shrubs with leaves start swaying. Wave crests are
apparent in ponds or swamps.
6
10.8 – 13.9 38.9 – 50.0 35.5 – 45.5 24.5 – 31 Tree branches move. Power lines whistle. It is
difficult to open an umbrella.
7
13.9 – 17.2 50.0 – 61.9 45.5 – 65.5 31 – 38.5 Whole trees sway. It is difficult to walk against the
wind.
60338AC
Wind Speed
Ground Conditions
BEAUFORT
SCALE
Go to Discount-Equipment.com to order your parts

Section 2 - List of Tables
SKYJACK, Page 17
SJ800 - E Series
Battery Powered
Table 2.3c Maximum Platform Capacities (Evenly Distributed) - AS
Capacity Number of
Occupants Capacity Number of
Occupants
6826 One Extension
Platform 567 kg 4 136 kg 1
6832 One Extension
Platform 454 kg 4 136 kg 1
60441AC-AS
NOTE:
Occupants and materials are not to exceed rated load.
Refer to capacity label for additional information and for models equipped with options.
MODEL
ExtensionTotal
Go to Discount-Equipment.com to order your parts

SKYJACK, Page 18
SJ800 - E Series
Battery Powered
Section 2 - List of Tables
Table 2.4a Floor Loading Pressure - ANSI/CSA
lb. kg lb. kg psi kPa psf kg/m
2
min* 6400 2903 2560 1161 157.4 1085 206 1007
max* 8730 3960 3492 1584 175.41 1209 281 1373
min* 7661 3475 3064 1390 165.59 1142 247 1205
max* 9235 4189 3605 1635 181.36 1250 297 1452
60442AE-ANSI
*
**
NOTE:
MODEL
6832
Total Aerial Platform Load
6826
Total Aerial Platform
Weight Wheel OUP**
min - Total aerial platform weight with no options
max - aerial platform weight + all options + full capacity
The LCP or OUP that an individual surface can withstand varies from structure to structure and is generally determined by the engineer or architect
for that particular structure.
LCP**
LCP – Locally Concentrated Pressure is a measure of how hard the aerial platform presses on the areas in direct contact with the floor. The floor
covering (tile, carpet, etc.) must be able to withstand more than the indicated values above.
OUP – Overall Uniform Pressure is a measure of the average load the aerial platform imparts on the whole surface directly underneath it. The
structure of the operating surface (beams, etc.) must be able to withstand more than the indicated values above.
Go to Discount-Equipment.com to order your parts

Section 2 - List of Tables
SKYJACK, Page 19
SJ800 - E Series
Battery Powered
Floor Loading Pressure
Length
Width
Width
LengthLength
Length
Width
Diameter
(Feet)
Minimum safe approach distance
A
Over 750KV to 1000KV
Over 500KV to 750KV
Over 50KV to 200KV
Over 200KV to 350KV
Over 350KV to 500KV
Over 300V to 50KV
0 to 300V
128742AA
13.72
10.67
7.62
6.10
4.60
(Meters)
3.05
Avoid contact
45
35
25
15
20
10
WARNING
Intermixing tires of different types or using tires of types other than those originally supplied with
this equipment can adversely affect stability. Therefore, replace tires only with the exact original
Skyjack-approved type. Failure to operate with matched approved tires in good condition may
result in death or serious injury.
Locally Concentrated Pressure (LCP): Overall Uniform Pressure (OUP):
Foot Print Area = Length x Width
= πr2
Base Area = Length x Width
LCP = Weight of Aerial Platform + Capacity
Foot Print Area x 4 (Tires)
OUP = Weight of Aerial Platform + Capacity
Base Area
Go to Discount-Equipment.com to order your parts

SKYJACK, Page 20
SJ800 - E Series
Battery Powered
Section 2 - List of Tables
Table 2.4b Floor Loading Pressure - CE
kg lb. kg lb. kPa psi kg/m
2
psf
min* 2903 6400 1161 2560 1085 157.4 1007 206
max* 3960 8730 1584 3492 1209 175.41 1373 281
min* 3475 7661 1390 3064 1142 165.59 1205 247
max* 4189 9235 1635 3605 1250 181.36 1452 297
60442AE-CE
*
**
NOTE:
MODEL
6832
Total Machine Load
6826
Total Machine Weight
Wheel OUP**
min - Total machine weight with no options
max - Machine weight + all options + full capacity
The LCP or OUP that an individual surface can withstand varies from structure to structure and is generally determined by the engineer or architect
for that particular structure.
LCP**
LCP – Locally Concentrated Pressure is a measure of how hard the machine presses on the areas in direct contact with the floor. The floor covering
(tile, carpet, etc.) must be able to withstand more than the indicated values above.
OUP – Overall Uniform Pressure is a measure of the average load the machine imparts on the whole surface directly underneath it. The structure of
the operating surface (beams, etc.) must be able to withstand more than the indicated values above.
Go to Discount-Equipment.com to order your parts
