Skyjack SJ6826 RT User manual

.
ROUGH TERRAIN SCISSORS
MODELS SJ6826 RT SJ6832 RT
159172AA-A December 2013
OPERATING MANUAL (AS)

This manual is based on Serial Number(s):
SJ 68XXRT 37 004 671 & Above
Please refer to the website (www.skyjack.com) for older Serial Numbers.
Skyjack Service Center 3451 Swenson Ave. St. Charles, Illinois, 60174 USA
Phone: [phone]
Toll Free: 1-800-275-9522
Fax: [phone]
Email: [email protected]om
Parts (North America)
Toll Free: 1-800-965-4626
Toll Free Fax: [phone]
Email: [email protected]
Parts & Service (Europe) Unit 1 Maes Y Clawdd, Maesbury Road Industrial Estate
Oswestry, Shropshire SY10 8NN UK
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Skyjack Brasil
Alameda Júpiter, 710
American Park Empresarial
Indaiatuba, SP, Brasil 13347-653
Tel.: [phone]
Skyjack Australia Pty Ltd.
4 Coates Place
Wetherill Park
New South Wales
2164
Australia
Tel: [phone]
Fax: [phone]

Rough Terrain Scissors
December 2007 Page 3
The Safety Alert Symbol identifies important
safety messages on MEWP, safety signs in
manuals or elsewhere. When you see this
symbol, be alert to the possibility of personal
injury or death. Follow the instructions in the
safety message.
This Safety Alert Symbol means attention!
Become alert! Your safety is involved.
DANGER
DANGER indicates an imminently hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury. It may also be used to alert against
unsafe practices.
IMPORTANT
IMPORTANT indicates a procedure essential for safe operation and which,
if not followed, may result in a malfunction or damage to the MEWP.

Page 4 December 2007
Rough Terrain Scissors
TM
Section 1 - About Your MEWP................................................................................................................ 5
Read and Heed .....................................................................................................................................................5
Safety Rules...........................................................................................................................................................6
Section 2 - Familiarization ................................................................................................................... 11
2.1 Familiarization of SJ68RT Series...............................................................................................................11
2.2 Component Identification ..........................................................................................................................12
2.3 Visual & Daily Maintenance Inspections ...................................................................................................16
2.4 Function Tests............................................................................................................................................25
2.5 Winching and Towing Procedure ..............................................................................................................34
2.6 Emergency Lowering Procedure ..............................................................................................................36
Section 3 - Operation ........................................................................................................................... 37
3.1 General ......................................................................................................................................................37
3.2 Major Components....................................................................................................................................38
3.3 Major Assemblies ......................................................................................................................................39
3.4 Serial Number Nameplate.........................................................................................................................39
3.5 Component Identification ..........................................................................................................................40
3.6 Component Identification (Optional Equipment/Attachments) ................................................................42
3.7 Operator’s Responsibility ..........................................................................................................................43
3.8 Start Operation ..........................................................................................................................................44
3.9 Refueling Procedure..................................................................................................................................51
3.10 Loading/Unloading....................................................................................................................................53
3.11 Guardrail Folding Procedure.....................................................................................................................56
3.12 Moving the MEWP through a Doorway.....................................................................................................58
3.13 Maintenance Support Procedure ..............................................................................................................60
Section 4 - Tables.................................................................................................................................. 61
Table 4.1 Standard and Optional Features.....................................................................................................61
Table 4.2 Specifications and Features ............................................................................................................62
Table 4.3 Owner’s Annual Inspection Record.................................................................................................63
Table 4.4 Maximum Platform Capacities (Evenly Distributed)........................................................................64
Table 4.5 Floor Loading Pressure ...................................................................................................................65
Table 4.6 Maintenance and Inspection Schedule...........................................................................................67
Table 4.7 Operator’s Checklist ........................................................................................................................68
Section 5 - Labels.................................................................................................................................. 69
Table of Contents

Rough Terrain Scissors
December 2007 Page 5
Section 1 - About Your Aerial Platform Read and Heed
SKYJACK is continuously improving and expanding product features on its equipment, therefore, specifications
and dimensions are subject to change without notice.
Mobile Elevating Work Platform (MEWP) Definition
A mobile device that has a positionable platform supported from ground level by a structure.
Purpose of Equipment
The SKYJACK Rough Terrain Compact Series MEWP is designed to transport and raise personnel, tools and
materials to overhead work areas.
Use of Equipment
The MEWP is a highly maneuverable, mobile work station. Work platform elevation and elevated driving must only
be done on a firm, level surface. It can be driven over uneven terrain only when the platform is fully lowered.
Manual
The operating manual is considered a fundamental part of the MEWP. It is a very important way to communicate
necessary safety information to users and operators. A complete and legible copy of this manual must be kept in
the provided weather-resistant storage compartment on the MEWP at all times.
Operator
The operator must read and completely understand both this operating manual and the safety panel label located
on the platform and all other warnings in this manual and on the MEWP. Compare the labels on the MEWP with the
labels found within this manual. If any labels are damaged or missing, replace them immediately.
Service Policy and Warranty
SKYJACK warrants each new SJRT Compact Series MEWP to be free of defective parts and workmanship for the
first 24 months. Any defective part will be replaced or repaired by your local SKYJACK dealer at no charge for parts
or labor. Contact the SKYJACK Service Department for warranty statement extensions or exclusions.
Optional Accessories
The SKYJACK MEWP is designed to accept a variety of optional accessories. These are listed under “Standard
and Optional Features” in Table 4.1. Operating instructions for these options (if equipped) are located in Section 3
of this manual.
For non-standard components or systems, contact the SKYJACK Service Department at
(: 61 (0) 28786 3200
7: 61 (0) 28786 3222
Include the model and serial number for each applicable MEWP.
Scope of this Manual
a. This MEWP meets requirements of the Guideline published by the National Regulators’ Committee on High
Risk Plant dated 27 May 2010.
b. Operators are required to conform to national, state or territorial/provincial and local health and safety regulations
applicable to the operation of this MEWP.
1
1
1
1
Section 1 - About Your MEWP
Read and Heed

Page 6 December 2007
Rough Terrain Scissors
TM
Safety Rules Section 1 - About Your Aerial Platform
WARNING
Failure to comply with your required responsibilities in the use and operation of the MEWP could
result in death or serious injury!
Operator Safety Reminders
A study conducted by St. Paul Travelers showed that most accidents are caused by the failure of the operator to
follow simple and fundamental safety rules and precautions.
You, as a careful operator, are the best insurance against an accident. Therefore, proper usage of this MEWP is
mandatory. The following pages of this manual should be read and understood completely before operating the
MEWP.
Common sense dictates the use of protective clothing when working on or near machinery. Use appropriate safety
devices to protect your eyes, ears, hands, feet and body.
Any modifications from the original design are strictly forbidden without written permission from SKYJACK.
Electrocution Hazard
This MEWP is not electrically insulated. Maintain a Minimum Safe Approach Distance (MSAD) from energized
power lines and parts as listed below. The operator must allow for the platform to sway, rock or sag. This MEWP
does not provide protection from contact with or proximity to an electrically charged conductor.
DO NOT USE THE MEWP AS A GROUND FOR WELDING.
DO NOT OPERATE THE MEWP DURING LIGHTNING OR STORMS.
DO NOT OPERATE THE MEWP NEAR POWER LINES. MAINTAIN A MININUM SAFE APPROACH
DISTANCE (MSAD) FROM ENERGIZED POWER LINES.
Without Spotter With Spotter
Up to and including 133KV 6.4 3
Greater than 133KV 10 8
1013AA
Voltage Range (Phase to Phase)
DANGER
FAILURE TO AVOID THIS HAZARD WILL RESULT IN DEATH OR SERIOUS INJURY!
Avoid Power Lines
Minimum Safe Approach Distance
AS 2550.10-2006 Requirements
Minimum Safe Approach Distance (Meters)
Safety Rules

Rough Terrain Scissors
December 2007 Page 7

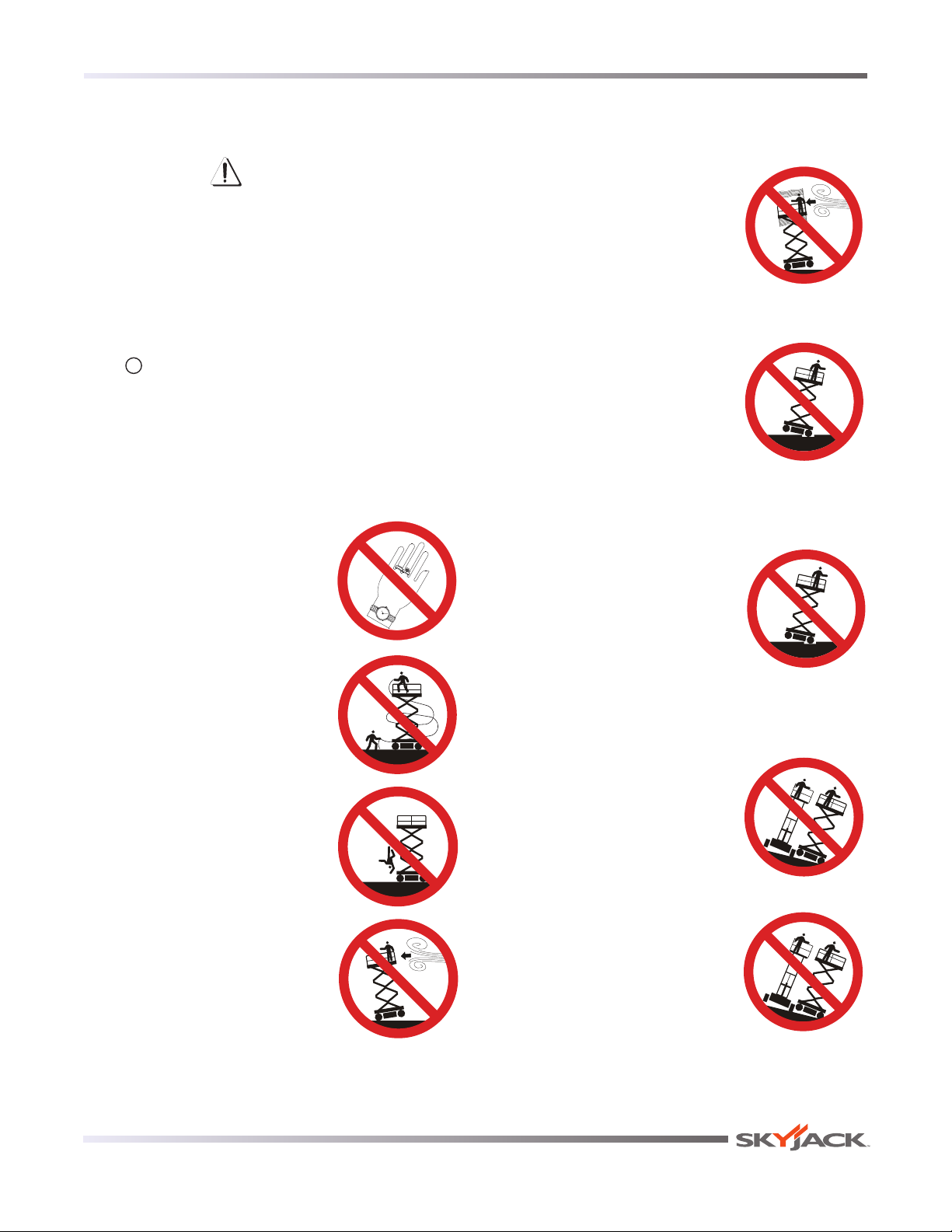

Section 1 - About Your Aerial Platform Safety Rules
Safety Precautions
Know and understand the safety precautions before going on to next section.
WARNING
Failure to heed the following safety
precautions could result in tip over,
falling, crushing, or other hazards
leading to death or serious injury.
• KNOW all national, state/provincial and local
rules which apply to your MEWP and jobsite.
• TURN emergency main power disconnect switch
“” off when leaving the MEWP unattended.
Remove the key to prevent unauthorized use of
the MEWP.
• WEAR all the protective clothing and personal
safety devices issued to you or called for by job
conditions.
• DONOT wear loose clothing,
dangling neckties, scarves,
rings, wristwatches or other
jewelry while operating this
MEWP.
• AVOID entanglement with
ropes, cords or hoses.
• AVOID falling. Stay within the
boundaries of the guardrails.
• DO NOT raise the MEWP or
operate elevated in windy or
gusty conditions that exceed
the limits specified in Section
4, Table 4.4.
• DO NOT increase the lateral
surface area of the platform.
Avoid tenting.
• DONOTelevate the MEWP if
it is not on a firm, level surface.
• DO NOT drive elevated near
depressions or holes of any
type,loading docks, debris,
drop-offs or surfaces that may
affect the stability of the MEWP.
• IF OPERATION IN AREAS
WITH HOLES OR DROP-
OFFS IS ABSOLUTELY
NECESSARY,elevated driving
shall not be allowed. Position
the MEWP horizontally only
with the platform fully-lowered.
After ensuring that all 4 wheels
or outriggers (if equipped)
have contact with a firm, level
surface, the MEWP can be
elevated. After elevation, the
drive function must not be
activated.
• DO NOTelevate or drive
elevated on a slope. Elevated
driving must be done on a
firm, level surface.
• DO NOT ascend or descend
a grade when elevated.
When fully-lowered, ascend
or descend grades not
exceeding those listed in
Table 4.2.

Page 8 December 2007
Rough Terrain Scissors
TM
Safety Rules Section 1 - About Your Aerial Platform

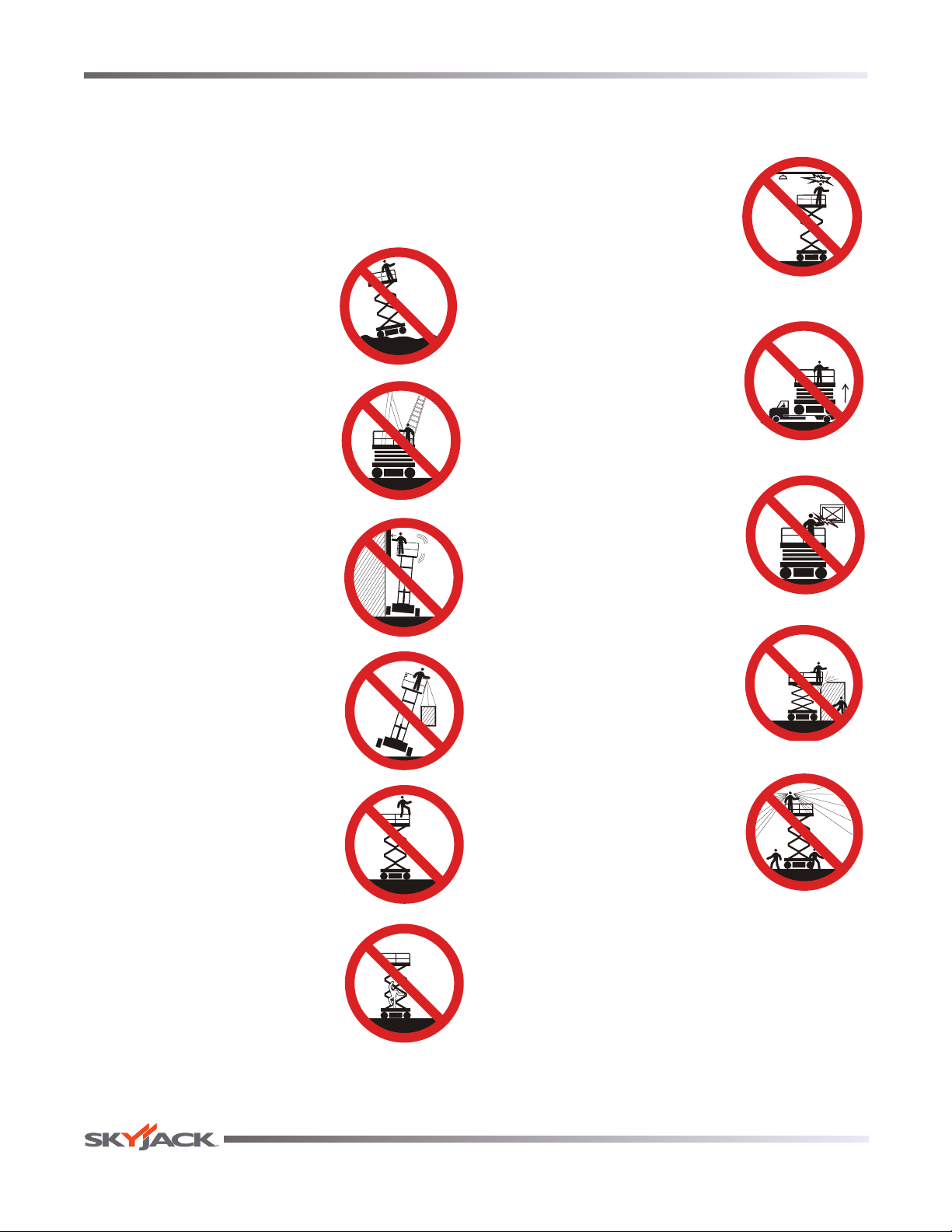

Safety Precautions (Continued)
Know and understand the safety precautions before going on to next section.
• DO NOT operate on surfaces not capable of
holding the weight of the MEWP including the
rated load, e.g. covers, drains, and trenches.
• DO NOT drive elevated on a
soft or uneven surface.
• DO NOT operate an MEWP
that has ladders, scaffolding or
other devices mounted on it to
increase its size or work height.
It is prohibited.
• DO NOT exert horizontal
(manual) force on MEWP that
exceeds the limits specified in
Table 4.4.
• DO NOT use the MEWP as a
crane. It is prohibited.
• DO NOT sit, stand or climb on
the guardrails. It is prohibited.
• DO NOT climb on scissor arm
assembly. It is prohibited.
• AVOIDoverhead obstructions.
Be aware of overhead
obstructions or other possible
hazards around MEWP when
lifting or driving.
• DONOT raise the MEWP while
the MEWP is on a truck, fork lift
or other device or vehicle.
• AVOID crushing hazards. Be
aware of crushing hazards
when lifting or driving. Keep all
body parts inside the MEWP.
• DO NOT lower the platform
unless the area below is clear
of personnel and obstructions.
• ENSURE that there are no
personnel or obstructions in the
path of travel, including blind
spots.
• BEAWARE of blind spots when
operating the MEWP.

Rough Terrain Scissors
December 2007 Page 9
Section 1 - About Your Aerial Platform Safety Rules
Safety Precautions (Continued)
Know and understand the safety precautions before going on to next section.
• ENSUREALL tires are in good condition and lug
nuts are properly tightened.
• DO NOT use with improperly
inflated/damaged tires or wheels.
Refer to Section 2: Wheel/Tire
Assembly.
• DO NOT exceed the rated
capacity of the MEWP.
• DO NOT distribute load
unevenly.
• DO NOT alter or disable limit
switches or other safety devices.
• DONOT use the MEWP without
guardrails, locking pins and the
entry gate/chain/bar in place.
• DONOToperate if MEWP is not
working properly or if any parts
are damaged or worn.
• DO NOT leave MEWP
unattended with key in key
switch.
• DO NOT use under influence
of alcohol or drugs.
• DONOT attempt to free a snagged platform with
lower controls until personnel are removed from
the platform.
• DO NOT position the MEWP against another
object to steady the platform.
• DO NOT place materials on the guardrails
or materials that exceed the confines of the
guardrails unless approved by Skyjack.
• STUNT driving and horseplay are prohibited.

Page 10 December 2007
Rough Terrain Scissors
TM
Safety Rules Section 1 - About Your Aerial Platform
Safety Precautions (Continued)
Know and understand the safety precautions before going on to next section.
WARNING
Entering and exiting the MEWP should
only be done using the three points of
contact.
• Useonlyequippedaccessopenings.
• EnterandexitonlywhentheMEWPisinthe
fully retracted position.
• Do use three points of contact to enter and exit
the platform. Enter and exit the platform from the
ground only. Face the MEWP when entering or
exiting the platform.
• Three points of contact means that two hands and
one foot or one hand and two feet are in contact
with the MEWP or the ground at all times during
entering and exiting.
WARNING
An operator should not use any MEWP
that:
• does not appear to be working
properly.
• has been damaged or appears to have
worn or missing parts.
• has alterations or modifications not
approved by the manufacturer.
• has safety devices which have been
altered or disabled.
• has been tagged or locked out for
non-use or repair.
Failure to avoid these hazards could
result in death or serious injury.
Jobsite Inspection
• Do not use in hazardous locations.
• Perform a thorough jobsite inspection prior to
operating the MEWP, to identify potential hazards
in your work area.
• Be aware of moving equipment in the area. Take
appropriate actions to avoid collision.

Rough Terrain Scissors
December 2007 Page 11
Section 2- Familiarization SJRT Series
FAMILIARIZATIONFAMILIARIZATION
1
2
1
2
1
2
2.1 Familiarization of SJ68RT Series
WARNING
MEWP Familiarization should be given only to individuals who are COMPETENT and
TRAINED to operate an MEWP.
Do not operate this MEWP without proper authorization and training. Failure to avoid this
hazard could result in death or serious injury.
It is the responsibility of the operator to read, completely understand and follow all
instructions and warnings contained in this operating manual and on the MEWP.
Manual
Box
Holding Valve
Manual Override
Knob
Emergency
Lowering
Valve
Base
Control
Console Main Power
Disconnect
Free-wheeling
Valve
Platform Control
Console
Main Manifold
Brake Hand
Pump
Brake Auto Reset
Valve Plunger
Section 2 - Familiarization

Page 12 December 2007
Rough Terrain Scissors
TM
Control Functions Section 2 - Familiarization
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
FAMILIARIZATIONFAMILIARIZATION
2.2 Component Identification
The following descriptions are for identification,
explanation and locating purposes only.
2.2-1 Main Power Disconnect Switch
This switch is located at the left side of the engine
compartment.
1
Figure 2-1. Main Power Disconnect Switch
1. Main Power Disconnect Switch - This switch,
when in “ ” off position, disconnects power to
all circuits. Switch must be in “ ” on position to
operate any circuit. Turn switch “ ” off when
transporting MEWP.
2.2-2 Motion Alarm
The alarm produces an audible sound when any control
function is selected. On MEWPs with certain options, a
flashing amber light will accompany this alarm.
2.2-3 Tilt Alarm
The MEWP is equipped with a device which senses
when the MEWP is on a slope in any direction. It is
designed to alarm and prevent driving or lifting if the
slope exceeds the limits specified in
Table 4.4.
NOTE
If the tilt alarm sounds and the platform does
not, or only partially raises, immediately
lower the platform completely and ensure
that the MEWP is on a firm level surface.
2.2-4 Load Sensing System
This system is a safety device that prevents any normal
movement of the MEWP from a stationary working
condition after the rated load is reached and exceeded.
Refer to Table 4.4 for maximum platform capacities.
• When 90% of the rated load is reached:
The red power indicator light on the platform
control console flashes.
• When the rated load is reached:
An audible alarm sounds for approximately
2 seconds, 5 times per minute.
• When the rated load is exceeded:
The flashing light and audible alarm continue
and all electrically controlled MEWP movement
functions stop. To resume normal operation,
remove the overload from the platform.
• If the MEWP during the operation comes in
contact with an overhead obstruction:
The platform could become overloaded and all
functions would stop. Release of the platform
from this situation can only be effected by use
of the emergency lowering system. Refer to
Section 2.6.
NOTE
After reaching full extension and upon
lowering, the MEWP could stop and take an
overload reading. Return the proportional
controller to the neutral center position,
and release the enable trigger switch. If the
MEWP is overloaded, the flashing light and
audible alarm continue and all electrically
controlled MEWP movement functions stop.
To resume normal operation, remove the
overload from the platform.

Rough Terrain Scissors
December 2007 Page 13
Section 2 - Familiarization Control Functions
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
FAMILIARIZATIONFAMILIARIZATION
2.2-5 Brake System
The brake system is located on the main manifold in
the hydraulic/fuel compartment. The brakes must be
manually disengaged before pushing, winching or
towing. Refer to Section 2.5-2 for procedure on how to
release the brakes manually. The system contains the
following controls:
2
1
Figure 2-2. Brake System
1. Brake hand pump
2. Brake auto reset valve plunger
2.2-6 Emergency Lowering System
The emergency lowering system allows platform
lowering in the event of an emergency or an electrical
system failure. Refer to Section 2.6 for the emergency
lowering procedure. The system contains the following
controls:
1
158914AA
ZZ
23
A
B
1
2
3
Figure 2-3. Emergency Lowering System
1. Holding Valve Manual Override Knob - Located
on the holding valve at the bottom of each lift
cylinder.
2. Emergency Lowering Valve - Located at the
hydraulic/fuel compartment.
3. Emergency Lowering Access Rod - Located at
the right side of the base.
2.2-7 Free-wheeling Valve
1
Figure 2-4. Free-wheeling Valve
1. Free-wheeling Valve - The free-wheeling valve is
located on the main manifold in the hydraulic/fuel
compartment. Refer to Section 2.5-1 for procedure
on how to release the free-wheeling valve.

Page 14 December 2007
Rough Terrain Scissors
TM
Control Functions Section 2 - Familiarization
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
FAMILIARIZATIONFAMILIARIZATION

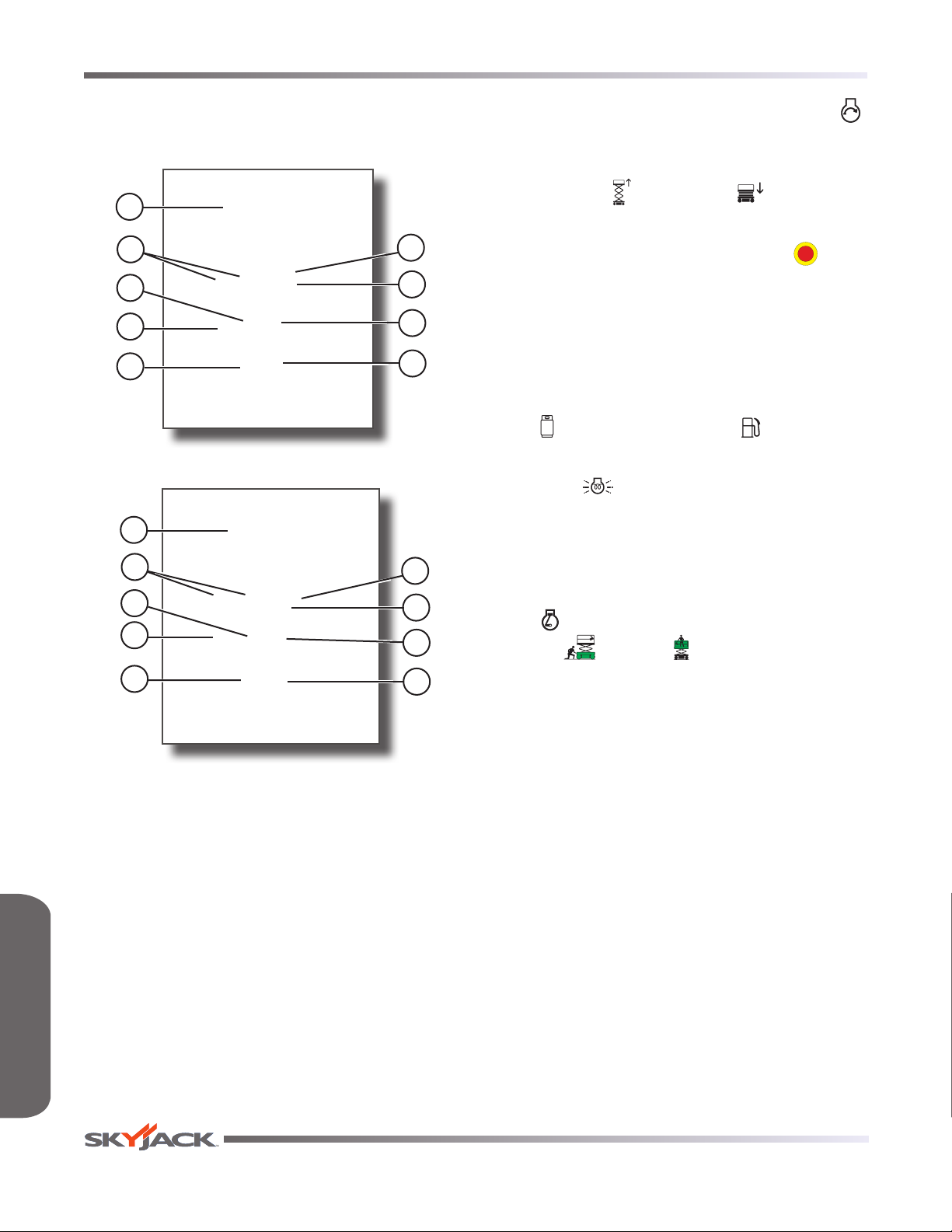

2.2-8 Base Control Console
The control console is located on the left side of the
engine compartment. It contains the following controls:`
5
1
2
3
48
9
7
6
Figure 2-5. Base Control Console - Dual Fuel
5
1
2
3
48
9
7
6
Figure 2-6. Base Control Console - Diesel
1. Hourmeter - This gauge records accumulated
operating time of engine.
2. Circuit Breakers -In the event of a power overload
or positive circuit grounding, the circuit breaker
pops out. Push breaker back in to reset.
3. Choke Pushbutton (Dual Fuel) - This pushbutton
switch aids in starting a cold dual-fuel engine.
Glow Plug Pushbutton (Diesel) - This pushbutton
switch energizes the glow plugs to aid in starting
a cold diesel engine.
4. Engine Start Pushbutton - This pushbutton “ ”
energizes the engine starter motor.
5. Platform Raise/Lower Switch -This switch
controls “ ” raising or “ ” lowering of
platform.
6. Emergency Stop Button -This button “ ”, when
depressed, disconnects power to control circuit
and shuts engine off.
7. Power Indicator Light - When the emergency
stop button on the base control console is pulled
out, this light glows.
Fuel Switch (Dual Fuel) - Used to switch between
“” liquid propane gas and “ ” gasoline.
8. Glow Plug Indicator Light (Diesel) - This red
lamp “ ” illuminates until the glow plugs
have completed their timed heating cycle. When
the lamp goes out, the engine is ready to be
started.
9. Platform/Engine/Base Key Switch - This three-
way selector switch allows the operator to turn the
“” engine in an idling mode or to activate either
the “ ” base or “ ” platform controls.

Rough Terrain Scissors
December 2007 Page 15
Section 2 - Familiarization Control Functions
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
FAMILIARIZATIONFAMILIARIZATION
2.2-9 Platform Control Console
This removable control console is mounted at the right
front of the platform. It contains the following controls:
2
10
1
3
8
9
7
6
5
Figure 2-7. Platform Control Console
1. Torque Switch - This selector switch, when in
“” low speed position, it allows drive functions
to operate at low speed and maximum torque
when climbing grades and on rough terrain.
When in “ ” high speed position, it allows drive
functions to operate at high speed with minimum
torque.
2. Lift/Drive Switch - Selecting “ ” lift position
energizes the lift circuit. Selecting “ ” drive
position energizes the drive circuit.
3. Engine Start Switch - This “ ” switch energizes
the engine starter motor.
NOTE
The engine start switch is interlocked with
the oil pressure switch. If engine stalls or
does not start immediately, this button will
not work for a few seconds while oil pressure
bleeds off.
4. Horn Pushbutton - This “ ” pushbutton sounds
an automotive-type horn.
5. Emergency Stop Button - This button “ ”,
when depressed, disconnects power to the control
circuit.
6. Power Indicator Light - This light glows when “ ”
platform is selected from the platform/engine/base
key switch on the base control console. It also
glows when both emergency stop buttons
on the platform control console and the base
control console are pulled out. When the light is
flashing, it signals an overload function. Refer to
Section 2.2-4.
7. Choke Switch (Dual Fuel) - This switch sets the
“” choke for starting a cold gasoline/propane
engine.
Glow Plug Switch (Diesel) - This switch energizes
the “ ” glow plugs to aid in starting a cold diesel
engine.
8. Low/High Throttle Switch - This switch allows
selection between “ ” low and “ ” high
engine throttle speeds.
9. Lift/Drive/Steer Controller - This one-hand lever
controls lift/drive and steer motions. Internal
springs return it to neutral when controller is
released. The rocker switch on top of controller
handle controls steering function.
10. Lift/Drive/Steer Enable Trigger Switch - This
momentary “ ” switch energizes the controller.
It must be held depressed continuously while
engaging either the lift/drive or steer functions.
4

Page 16 December 2007
Rough Terrain Scissors
TM
Visual & Maintenance Inspection Section 2 - Familiarization
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
FAMILIARIZATIONFAMILIARIZATION
2.3 Visual & Daily Maintenance
Inspections
Begin the visual and daily maintenance inspections
by checking each item in sequence for the conditions
listed in this section.
WARNING
To avoid injury, do not operate an
MEWP until all malfunctions have been
corrected.
WARNING
To avoid possible injury, ensure MEWP
power is off during your visual and daily
maintenance inspections.
CAUTION
Ensure MEWP is on a firm, level
surface.
NOTE
While doing visual and daily inspections
in different areas, be aware to also inspect
limit switches, electrical and hydraulic
components.

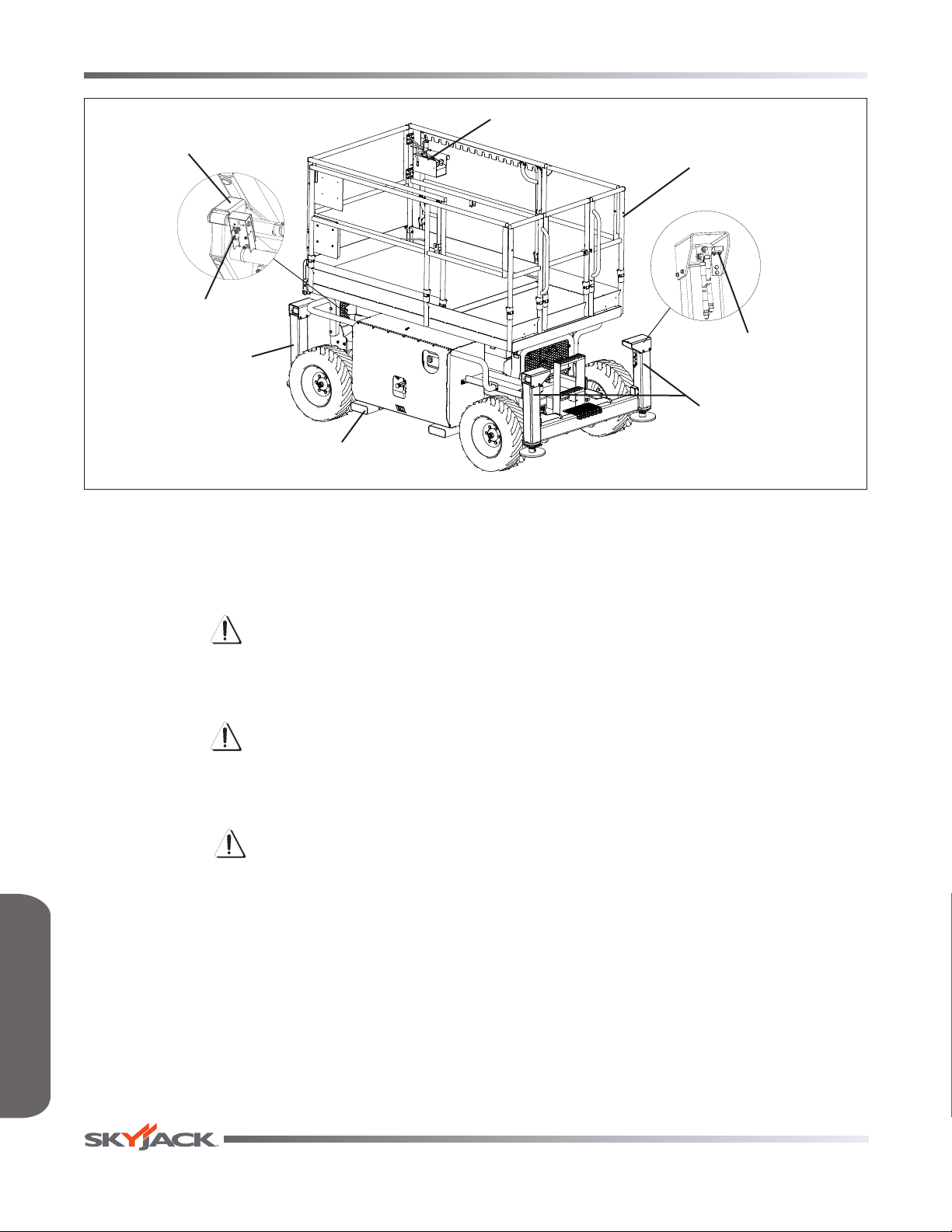

2.3-1 Labels
Refer to Section 5 - Labels section in this manual and
determine that all labels are in place and are legible.
2.3-2 Electrical
Maintaining the electrical components is essential to
good performance and service life of the MEWP.
Inspect the following areas for chafed, corroded and
loose wires:
• base to platform cables and wiring harness
• engine compartment electrical panel
• engine wiring harness
• hydraulic/electrical wiring harnesses
2.3-3 Limit Switches
Ensure limit switches are properly secured with no signs
of visible damage and movement is not obstructed.
2.3-4 Hydraulic
Maintaining the hydraulic components is essential to
good performance and service life of the MEWP.
Perform a visual inspection around the following
areas:
• hydraulic tank filter, fittings, hoses,
emergency power unit (if equipped) and
base surfaces
• engine compartment fittings, hoses, main
pump, and filter
• all hydraulic cylinders
• all hydraulic manifolds
• the underside of the base
• ground area under the MEWP
• outriggers
Base
Outriggers
Platform Assembly
Scissor
Assembly
Limit Switch
Platform Control Console
Outriggers
Limit Switch

Rough Terrain Scissors
December 2007 Page 17
Section 2 - Familiarization Visual & Maintenance Inspection
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
FAMILIARIZATIONFAMILIARIZATION

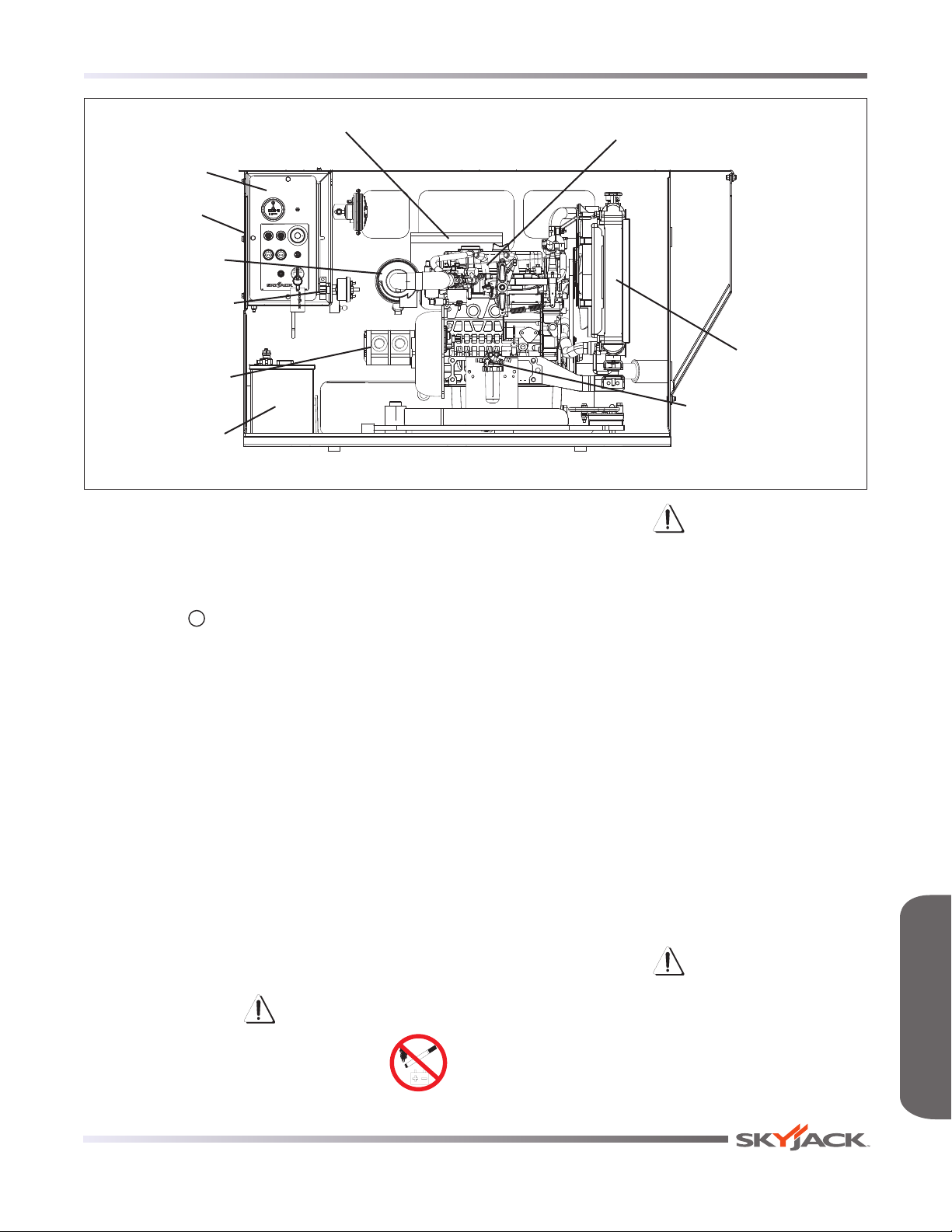

2.3-5 Engine Compartment
- Ensure compartment latch is secure and
in proper working order.
• Main Power Disconnect Switch
- Turn main power disconnect switch to
“” off position.
- Ensure all cables are secure and switch
is in proper working condition.
• Base Control Switches
- Ensure there are no signs of visible
damage and all switches are in their
neutral positions.
• Load/Tilt Sensor
- Ensure load/tilt sensor is properly secure
and there is no visible damage.
• Battery
Proper battery condition is essential to
good performance and operational safety.
Improper fluid levels or damaged cables and
connections can result in component damage
and hazardous conditions.
WARNING
Explosion hazard. Keep flames
and sparks away. Do not smoke
near batteries.
WARNING
Battery acid is extremely corrosive -
Wear proper eye and facial protection as
well as appropriate protective clothing.
If contact occurs, immediately flush with
cold water and seek medical attention.
1. Check battery case for damage.
2. Clean battery terminals and cable ends
thoroughly with a terminal cleaning tool
or wire brush.
3. Ensure all battery connections are tight.
4. If applicable, check battery fluid level. If
plates are not covered by at least 13 mm
of solution, add distilled or demineralized
water.
5. Replace battery if damaged or incapable
of holding a lasting charge.
WARNING
Use original or manufacturer-approved
parts and components for the MEWP.
• Hydraulic Pump
- Ensure there are no loose or missing
parts and there is no visible damage.
Main Power
Disconnect Switch
Battery
Base Control
Console
Engine Air Filter
Hydraulic Pump
Radiator
Muffler and Exhaust Engine
Fuel Shut-off Valve
Load/Tilt
Sensor

Page 18 December 2007
Rough Terrain Scissors
TM
Visual & Maintenance Inspection Section 2 - Familiarization
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
FAMILIARIZATIONFAMILIARIZATION
- Ensure all bolts are properly tightened.
- Ensure all fittings and hoses are properly
tightened and there is no evidence of
hydraulic leakage.
• Radiator
- Ensure radiator is secure.
- Ensure there are no loose or missing
parts and there is no visible damage.
- Check coolant level and add as
needed.
• Muffler and Exhaust
- Ensure muffler and exhaust system are
properly secured, with no evidence of
damage.
• Engine Pivot Tray
- Ensure there are no loose or missing
parts and no visible damage to the engine
pivot tray. Ensure that both tray-securing
bolts are in place.
• Engine Oil Level
- Maintaining the engine components
is essential to good performance and
service life of the MEWP.
WARNING
Beware of hot engine components.
Check oil level on dipstick
- Oil level should be in the “safe” zone. Add
oil as needed.
• Fuel Shut-off Valve
- Ensure there are no loose or missing
parts and there is no visible damage.
• Engine Air Filter
- Ensure there are no loose or missing
parts and there is no visible damage.
• Fuel Leaks
Failure to detect and correct fuel leaks will
result in an unsafe condition. An explosion or
fuel fire may cause death or serious injury.
DANGER
Engine fuels are combustible. Inspect
the MEWP in an open, well-ventilated
area away from heaters, sparks and
flames. Always have an approved fire
extinguisher within easy reach.
Perform a visual inspection around the following
areas:
• hoses and fittings
• fuel pump
• fuel filter
Main Power
Disconnect Switch
Battery
Base Control
Console
Engine Air Filter
Hydraulic Pump
Radiator
Muffler and Exhaust Engine
Fuel Shut-off Valve
Load/Tilt
Sensor

Rough Terrain Scissors
December 2007 Page 19
Section 2 - Familiarization Visual & Maintenance Inspection
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
FAMILIARIZATIONFAMILIARIZATION
Hydraulic
Tank Fuel Tank
Hydraulic Oil
Filter
Gear Type
Flow Divider
Main
Manifold
Oil Level
Gauge
Fuel Level
Gauge
2.3-6 Hydraulic/Fuel Compartment
- Ensure compartment latch is secure and
in proper working order.
• Hydraulic Tank
- Ensure hydraulic filler cap is secure.
- Ensure tank shows no visible damage
and no evidence of hydraulic leakage.
• Hydraulic Oil
- Ensure platform is fully lowered, and then
visually inspect the sight gauge located
on the side of the hydraulic oil tank.
- The hydraulic oil level should be at or
slightly above the top mark of the sight
glass.
• Hydraulic Return Filter
- Ensure filter element is secure.
- Ensure there are no signs of leakage or
visible damage.
• Fuel Tank
IMPORTANT
Before using your MEWP ensure there
is enough fuel for expected use.
- Ensure fuel filler cap is secure.
- Ensure tank shows no visible damage
and no evidence of fuel leakage.
• Fuel Leaks
Failure to detect and correct fuel leaks will
result in an unsafe condition. An explosion or
fuel fire may cause death or serious injury.
DANGER
Engine fuels are combustible. Inspect
the MEWP in an open, well-ventilated
area away from heaters, sparks and
flames. Always have an approved fire
extinguisher within easy reach.
Perform a visual inspection around the following
areas:
• fuel tank
• hoses and fittings

Page 20 December 2007
Rough Terrain Scissors
TM
Visual & Maintenance Inspection Section 2 - Familiarization
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
FAMILIARIZATIONFAMILIARIZATION
• Main Manifold
- Ensure all fittings and hoses are properly
tightened and there is no evidence of
hydraulic leakage. Pull and tilt main
manifold to check thoroughly.
- Ensure there are no loose wires or
missing fasteners.
- Restore to original position.
• Gear Type Flow Divider
- Ensure there are no loose or missing
parts and there is no visible damage.
Hydraulic
Tank Fuel Tank
Hydraulic Oil
Filter
Gear Type
Flow Divider
Main
Manifold
Oil Level
Gauge
Fuel Level
Gauge
