Skystar FS-400X User manual

Http://www.lightskystar.com
PROFESSIONAL SHOW LIGHTING
USER MANUAL
GUANGZHOU LIGHTSTAR LIGHT CO.,LTD
400W LED FOLLOW SPOT
FS - 400X

page4
EN I
page1
1.INDEX
2.Packing
Many thanks for choosing FS-400X..The
design&production are passed through the full quality
control to ensure the fineness ability.
This manual covers important information about install-
ation&operation of this projector.Please rsad this user manual
carefully before installing or operating this projector.Please do
follow the safety instruction.list as below carefully and keep this
manual in a safety place for future reference.
Note:As part of our ongoing commitment to continuos products
development,company will keep the right to improve this products,
the information in this menu may be changed in the future,the
company reserve the right to change the data without any advise.
2.1 The packing of the series of products is paper carton,the
flycase can order.
2.2 To open the carton
First please open the carton and take out the relative accessories,
Take out the projector from the polybad and put it on a very smooth
& horizontal surface place for the next operation.
Attention:Do not press the plastics parts to avoid any damage and
distortion.
2.3 Packing list
The following parts are packed
together with the projector:
Attachment
User manual 1pc
POWER CABLE 1pc
4.MAX series function sheet,channel sheet
WORK MODE
COLOR
ZOOM
FOCUS
IRIS
300w LED follow spot light
Voltage: AC90-240V 50Hz/60Hz
Light source: 400w led
Power: 450W
Beam angle: 3 to 15 degrees adjustable
Cast distance: 50-60 meters
4colors+open, adjustable , zoomable.
Lightweight , high brightness , 20M/3000LUX
Manual control, very easy to use
Convection cooling-fan, optimize internal air duct way,
heat elimination rapidly
Conforms to a variety of security protection,
Ip20 protection level
Suitable for stage, wedding, multi-functional performance hall
and disco and other occasions.
size: 78 × 27 × 20 (cm)
Net weight: 11 kg
Gross weight: 14 kg

page2
3.Install and safe usage
3.1 Install the porjector:
3.1.1 Requirement for the installing place:
Please do ensure fasten the mount bracket firmly before installing.
The mount bracket must share the weight 10 multiple weight of the
projector`s.
3.1.2 The method of installstion and caution:
3.1.2.1 Connect the mount bracket well and fix the clamp firmly
to the truss in order to avoid the projector loose or falling.
3.1.2.2 The projector should be mounted via its clamp by using 2
bolts.The clamp itself attached tothe underside of the projector with
4 boltsprovided in the package. Always make sure that the projector
is anchored firmly to avoid any vibration or falling.
3.1.2.3 For safety the projector should have a secondary fixing with
a safety cord through the truss and the handle of projector.The safety
cord will fasten the projector on the truss tightly to avoid any vibration
or falling directly if the clamp or the truss is loose.
3.1.2.4 When in stalling the projector, not allow any person pass by,
3.1.2.5 After installing the light.Please inspect whether the safety
cord atrried,clamp or truss is loose in order to avoid the projector will
slip. If any dangers is happened by falling,the manufacturer won`t be
risponsible for it.
3.1.2.6 Other safety terms

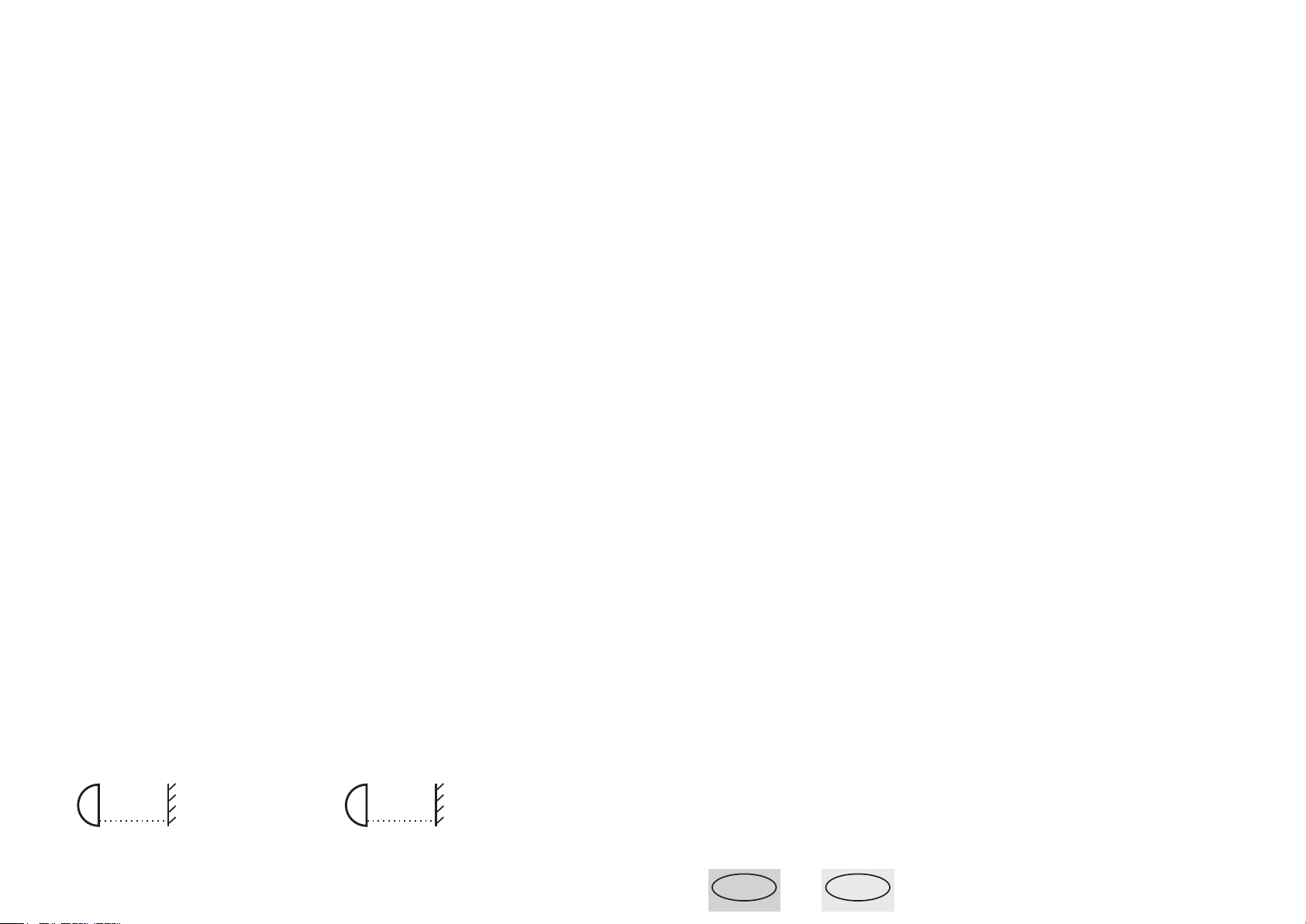

3.1.2.6.1 Mininum distance between the projector`s shot&goal
project:
0.8M 2.0M
Picture 1 Picture 2
EN I
page3
When fix the orientation of the projector. Please keep the minimum
distance between the flammable retarding subject and the porjector`s
shot is 0.8M at least.(Picture1) But the minimum distance between the
inflammable and the projector`s lens should be kept away 2m at least.
(Picture2).
3.1.2.6.2 The minimum distance between the inflaming retarding
subject and any other part of the light:
When fix the orientation of the projector.Please keep the minimum
distance between the inflaming retarding subject and the projector
shot is 0.3m at least.
3.1.2.6.3 MAX ambient temperature:
In order to ensure the light could operate normally, the ambient te-
mperature couldn`t be highter than33 degree and no lower than 2
degree.
3.1.2.6.4 Electric shock&static electricity portection:
These projectors are designed depends on the electric shock
protection, the projector should be connected when the power supply
is enough.The projector`s ground cable should be connected with the
ground cable of the power supply system as well.
3.1.2.6.5 Surface temperature:
Under normal condition,the highest sectional surface temperature
may be up to 90-120 degree.
3.1.2.6.6 Connct the main power supply:
Connecting the main power supply should be done by the professi-
onal person.
