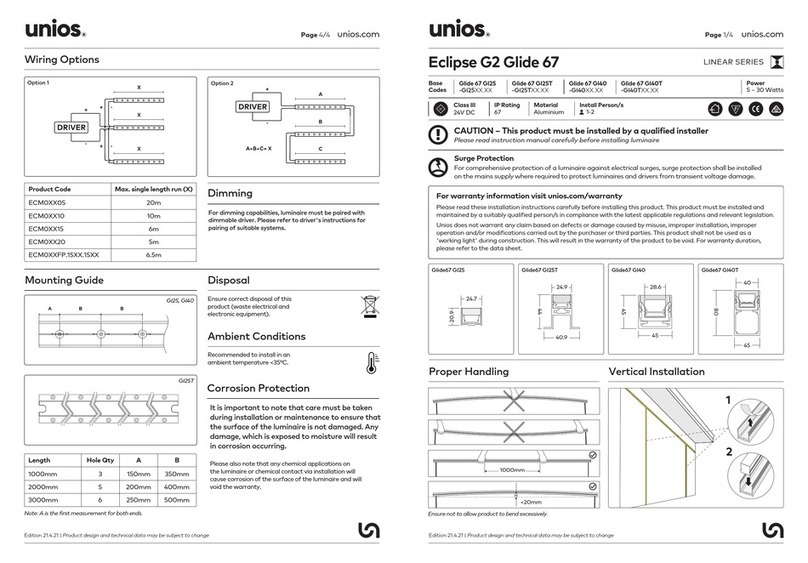

unios Linear Series User manual

Edition 10.9.20 | Product design and technical data may be subject to changeEdition 10.9.20 | Product design and technical data may be subject to change
Sagging/Hanging Cutting outside
designated area
Twisted Installed without
aluminium channel
+
-
Class III
24V DC
Power
10 Watts
unios.com
Page 1/4
Eclipse G2 Glide Mini
unios.com
Page 4/4
6mm Strip
EC60XXXX
Glide Mini GS10
-GS10XX.XX
Base
Codes
LINEAR SERIES
Material
Aluminium
IP Rating
20
For comprehensive protection of a luminaire against electrical surges, surge protection shall be installed
on the mains supply where required to protect luminaires and drivers from transient voltage damage.
CAUTION – This product must be installed by a qualified installer
Please read instruction manual carefully before installing luminaire
Surge Protection
For warranty information visit unios.com/warranty
Please read these installation instructions carefully before installing this product. This product must be installed and
maintained by a suitably qualified person/s in compliance with the latest applicable regulations and relevant legislation.
Unios does not warrant any claim based on defects or damage caused by misuse, improper installation, improper
operation and/or modifications carried out by the purchaser or third parties. This product shall not be used as a
'working light' during construction. This will result in the warranty of the product to be void. For warranty duration,
please refer to the data sheet.
IMPORTANT: Refer to ESD Protection Section
located on page 1 before mounting strip.
1.1
12
11.2
Install Person/s
1-2
Cutting Guide
Model: 6mm Strip
(EC60XXXX.FPXX)
Parts
2x Mounting Screws
(per metre)
2x End Caps
(per metre)
2x Mounting Clips
(per metre)
Glide Mini GS10
Avoid pressing LED
too hard and/or sliding
fingers across strip.
Strip Mounting
Recommended cleaning products:
Wax and grease remover, methylated
spirits, isopropyl alcohol or
surface cleaners.
1 2 3
Aluminium Channel
Eclipse G2
Corrosion Protection
It is important to note that care must be taken
during installation or maintenance to ensure that
the surface of the luminaire is not damaged. Any
damage, which is exposed to moisture will result
in corrosion occurring.
Please also note that any chemical applications on
the luminaire or chemical contact via installation will
cause corrosion of the surface of the luminaire and will
void the warranty.
Disposal
Ensure correct disposal of this
product (waste electrical and
electronic equipment).
ESD Protection
When Handling this product, care must be taken so that the LED strip is not
damaged. Damage due to inappropriate handling is not covered by warranty.
The following precautions must be taken:
• Ensure device is switched off and disconnected from power supply.
• During assembly/disassembly, care must be taken during handling of LED strip.
• Always ensure to discharge yourself of all charge by touching a grounded bare metal
surface or approved anti-static mat before working on device.
CAUTION
Contains parts and
assemblies susceptible to
damage by electrostatic
discharge (ESD)
Ambient Conditions
Recommended to install in an
ambient temperature <35°C.
+
-
20mm

Edition 10.9.20 | Product design and technical data may be subject to change
3
1
Page 2/4 unios.com Page 3/4
Glide Mini GS10 Surface Mounted Profile
4
5
2
Soldering Striplight
Product Code Max. single length run (X)
EC60XX10 5m
Wiring Options
B
C
A
A+B+C= X
Option 2
X
X
X
Option 1
Dimming
For dimming capabilities, luminaire must be paired with
dimmable driver. Please refer to driver's instructions for
pairing of suitable systems.
Recommended heat shrink:
IP20: 3M™ Heat Shrink Thin-Wall Tubing
1
+
-
2
4
3
