SMART-AVI SDX-XT-2P User manual

Dual Head DVI-D, USB 2.0 and
Audio KVM CAT5/6 Extender
EXTEND DIGITAL VIDEO
DUAL HEAD DVI-D 1920X1200,
USB 2.0, USB KEYBOARD/
MOUSE AND AUDIO
UP TO 400 FT OVER TWO
CAT5/6 UNCOMPRESSED
Quick Start Guide
VIDEO
Format DVI-D (HDMI-ready with adapter)
Video Resolution
High resolution 1920x1200;
24-bit color depth;
Less than 1 ms of latency
Video Bandwidth Single-link 340 MHz (10.2 Gbps)
Input Interface (TX) (2) DVI-I 29-pin
Output Interface (RX) (2) DVI-I 29-pin
Max Output Distance Up to 1920x1200 @ 60Hz
Equalization Automatic
Input TMDS Signal 1.2 Volts [peak-to-peak]
Input DDC Signal 5 Volts [peak-to-peak, TTL]
Data Rate 1.65 Gbps per color
AUDIO
Format Stereo
Input Interface 3.5 mm Jack Socket (female)
Output Interface 3.5 mm Jack Socket (female)
USB
Input Interface (TX) (1) USB Type B
Output Interface (RX) (2) USB 1.1 Type A for KM Devices;
(2) USB 2.0 Type A Transparent
Keyboard and mouse Keyboard and mouse emulation
SYSTEM
Interface RJ-45
Cable Requirements CAT5/5e/6
Maximum Length 400 ft
OTHER
Power 100-240 VAC/ 5VDC @ 3A/15W
Dimensions 11.9” W x 1.7” H x 2.9” D
Weight 1.75 lb (per unit)
Approvals UL, CE, ROHS Compliant
Operating Temp. +32 to +104°F (0 to +40°C)
Storage Temp. -4 to 140°F (-20 to +60°C)
Humidity Up to 95% (No Condensation)
Compliance EMC FCC (Class A), CE (Class A), ICES-003
Envr. Compliance RoHS2 (CE)
Support Warranty 1-year
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and tness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com

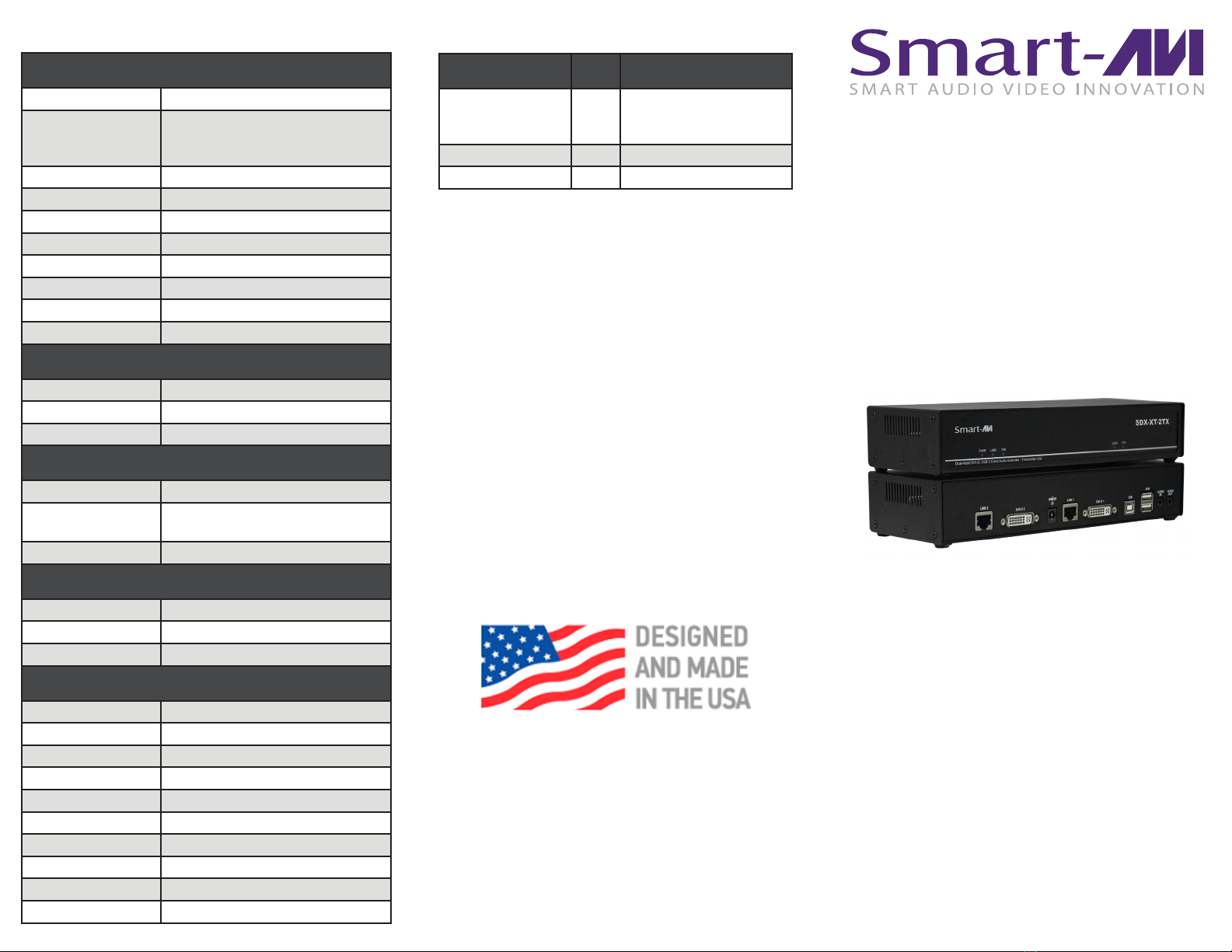

TECHNICAL SPECIFICATION
SDX-XT-2P
WHAT’S IN THE BOX
PART NO. Q-TY DESCRIPTION
SDX-XT-2P-S 1
Dual Head DVI-D,
USB 2.0, Audio,
CAT5/5e/6 Extender.
PS5VD3A-WLLMNT 1 PS5VD3A Power Supply
Quick Start Guide 1

ABOUT SDX-XT
The SDX-XT-2P is a Dual Head DVI-D (1920x1200), USB
2.0, USB keyboard-mouse and stereo audio extender,
sending signals up to 400ft (120m) away over two
conventional and inexpensive CAT5/5e/6 cables. This new
technology is superior to older DVI extenders that require a
special CAT6 shielded cable to go a short distance.
The SDX-XT-2P is the rst extender on the market to feature
1920 x 1200, USB 2.0 and full KVM extension on one
cohesive system and is optimized for Full HD monitors with
crystal-clear picture; excellent for detail driven work.
The SDX-XT-2P extends keyboard-mouse signals for remote
workow management and offers uninterrupted emulation
from the user’s transmitter unit. This uninterrupted
emulation prevents accidental disconnection or
deactivation issues during mission critical operations. The
SDX-XT-2P‘s unparalleled KVM extension technology makes
it the perfect solution for extending servers in applications
ranging from data processing to interactive conferencing.
FEATURES
• Extends dual DVI-D up to 400 feet from the source
• HDCP Support
• Supports up to 1920 x 1200 digital video resolution
@ 60 Hz
• Automatic DDC Learning
• USB Keyboard and Mouse extension
• Uncompressed Video
• External power adapter for transmitter and
receiver unit
• Supports Stereo Sound
• Compatible with Windows, Mac and
Linux Operating Systems
• Transparent USB 2.0 extension
1. Turn off connected devices
2. Connect cables between signal source device and TX unit’s input ports
3. Connect cables between the RX unit’s output ports and end-point device
4. Connect TX and RX via CAT5e/6 cable
5. Connect power supply to either TX and RX units
6. Turn on TX and RX units
7. Return power to connected devices
