SMART Board Board E70 User manual

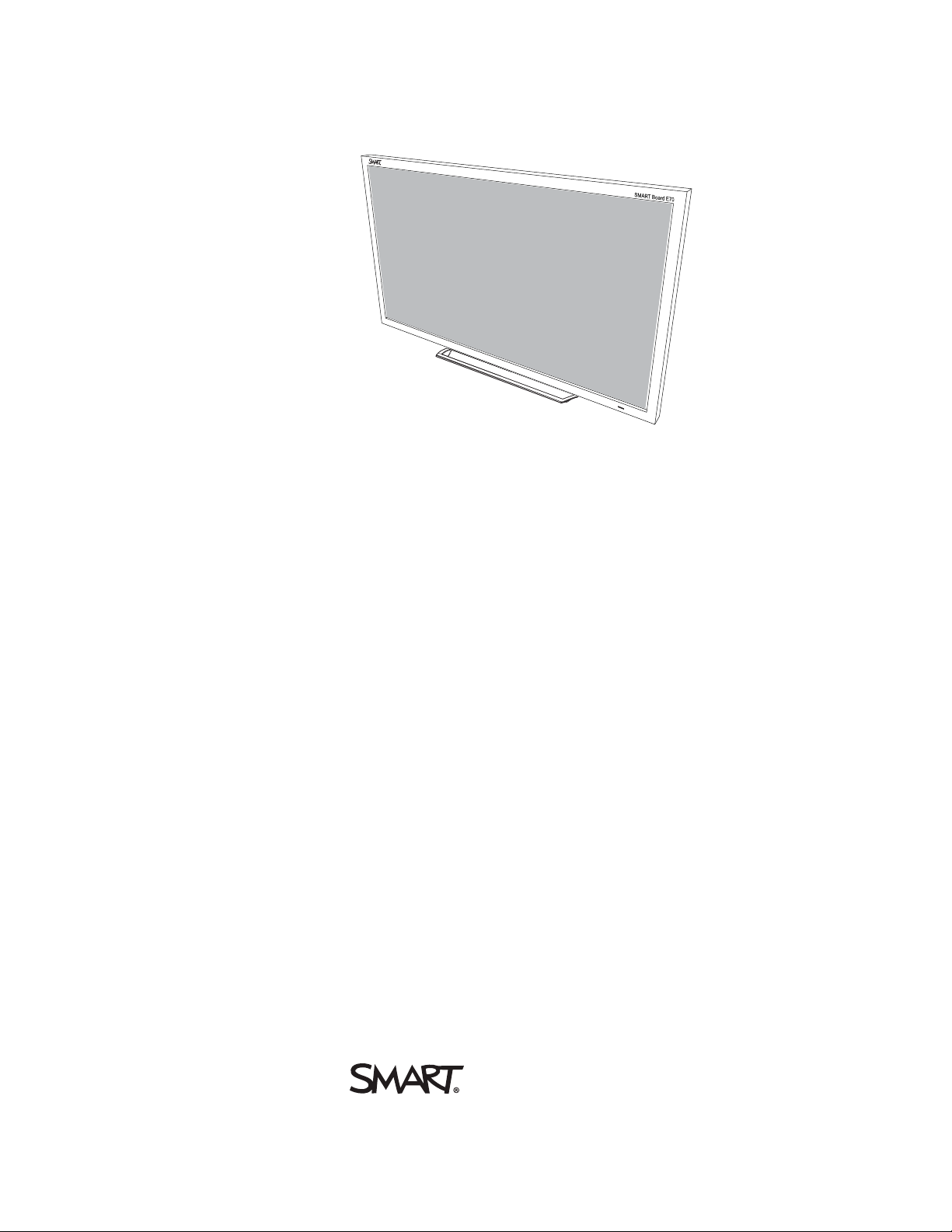

SMARTBoard® E70
Interactive flat panel
User’s guide

Product registration
If you register your SMART product, we’ll notify you of new features and software upgrades.
Register online at smarttech.com/registration.
Keep the following information available in case you need to contact SMARTSupport.
Serial number:
Date of purchase:
smarttech.com/kb/170534
FCC warning
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the manufacturer’s instructions, may cause harmful interference to radio communications. Operation of
this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
Trademark notice
SMARTBoard, SMARTNotebook, smarttech, the SMART logo and all SMART taglines are trademarks or registered trademarks of SMARTTechnologiesULC in the U.S.
and/or other countries. Windows is either a registered trademark or a trademark of Microsoft Corporation in the U.S. and/or other countries. All other third-party product and
company names may be trademarks of their respective owners.
Copyright notice
© 2013SMARTTechnologiesULC. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated
into any language in any form by any means without the prior written consent of SMARTTechnologiesULC. Information in this manual is subject to change without notice
and does not represent a commitment on the part of SMART.
This product and/or use thereof covered by one or more of the following U.S. patents.
www.smarttech.com/patents
08/2013

i smarttech.com/kb/170534
Important information
WARNING
lFailure to follow the installation instructions shipped with your SMART product could result in
personal injury and product damage which may not be covered by your warranty.
lDo not open or disassemble the SMART product. You risk electrical shock from the high
voltage inside the casing. Opening the casing also voids your warranty.
lDo not stand (or allow children to stand) on a chair to touch the surface of your SMART
product. Rather, mount the product at the appropriate height.
lTo reduce the risk of fire or electric shock, do not expose your SMART product to rain or
moisture.
lIf your SMART product requires replacement parts, make sure the service technician uses
replacement parts specified by SMARTTechnologies or parts with the same characteristics
as the original.
lEnsure that any cables extending across the floor to your SMART product are properly
bundled and marked to avoid a trip hazard.
lUseonly extension cords and outlets into which this product’s polarized plug can be fully
inserted.
lUse the power cable provided with this product. If a power cable is not supplied with this
product, please contact your supplier. Use only power cables that match the AC voltage of the
power outlet and that comply with your country’s safety standards.
lIf the glass is broken, do not touch the liquid crystal. To prevent injury, handle glass fragments
with care when disposing of them.
lUse only VESA®-approved mounting hardware.
lDo not insert objects inside the cabinet ventilation holes, because they could touch dangerous
voltage points and cause electric shock, fire or product damage which may not be covered by
your warranty.
lDo not place any heavy objects on the power cable. Damage to the cable could cause shock,
fire or product damage which may not be covered by your warranty.

I M P O R T A N T I N F O R M A T I O N
ii smarttech.com/kb/170534
lDisconnect all power cables for your interactive flat panel from the wall outlet and seek
assistance from qualified service personnel when any of the following occurs:
oThe power cable or plug is damaged
oLiquid is spilled into the interactive flat panel
oObjects fall into the interactive flat panel
oThe interactive flat panel is dropped
oStructural damage such as cracking occurs
oThe interactive flat panel behaves unexpectedly when you follow operating instructions

iii smarttech.com/kb/170534
Contents
Important information i
Chapter 1: About your interactive flat panel 1
Feature highlights 1
Included accessories 2
Chapter 2: Installing your interactive flat panel 3
Choosing a mounting location 4
Choosing a mounting height 4
Cable management 4
Connecting your interactive flat panel 5
Configuring your computer’s screen resolution 6
Chapter 3: Using your interactive flat panel 9
Using the remote control 9
Menu control panel 12
On-screen display menu 13
Multi Media mode 14
Chapter 4: Troubleshooting your interactive flat panel 17
Locating the serial number 17
Resolving common touch control and resolution issues with Windows and Mac operating
systems 18
Resolving image issues 21
Configuring and calibrating your SMART Board E70 interactive flat panel with Windows 22
Configuring your touch and display settings for the SMART Board E70 22
Calibrating your SMARTBoard E70 interactive flat panel with Mac OS X 28
Calibrating your SMART Board E70 28
SMARTE70 multiple displays setup Mac 29
Appendix A: Hardware environmental compliance 31
Waste Electrical and Electronic Equipment and Battery regulations (WEEE and Battery
Directives) 31
Batteries 31
More information 31
Index 33

Chapter 1
1 smarttech.com/kb/170534
Chapter 1: About your interactive flat panel
Feature highlights 1
Included accessories 2
Pen and pen tray 2
Remote control 2
Included cables 2
This chapter describes the features of your SMARTBoard® E70 interactive flat panel and provides
information about product parts and accessories.
Feature highlights
Designed specifically for classrooms, the
SMARTBoard E70 interactive flat panel combines a
premium touch experience with the power of
SMARTNotebook™ collaborative learning software
on a 70" display.
The high-definition, shadow-free 70" (177.8 cm) LED
display features low friction coated glass that enables
fingers to glide smoothly over the surface, facilitating a
natural touch experience. The interactive flat panel
also virtually eliminates glare and provides an optimal
view from any angle in the classroom, delivering an
unparalleled viewing and writing experience to offer the best value for classrooms. The multitouch
interactive flat panel features freestyle multi-user interaction anywhere on the display with
Windows®7 or Windows8 operating systems, enabling students to collaborate without limitations.

C H A P T E R 1
About your interactive flat panel
2 smarttech.com/kb/170534
Included accessories

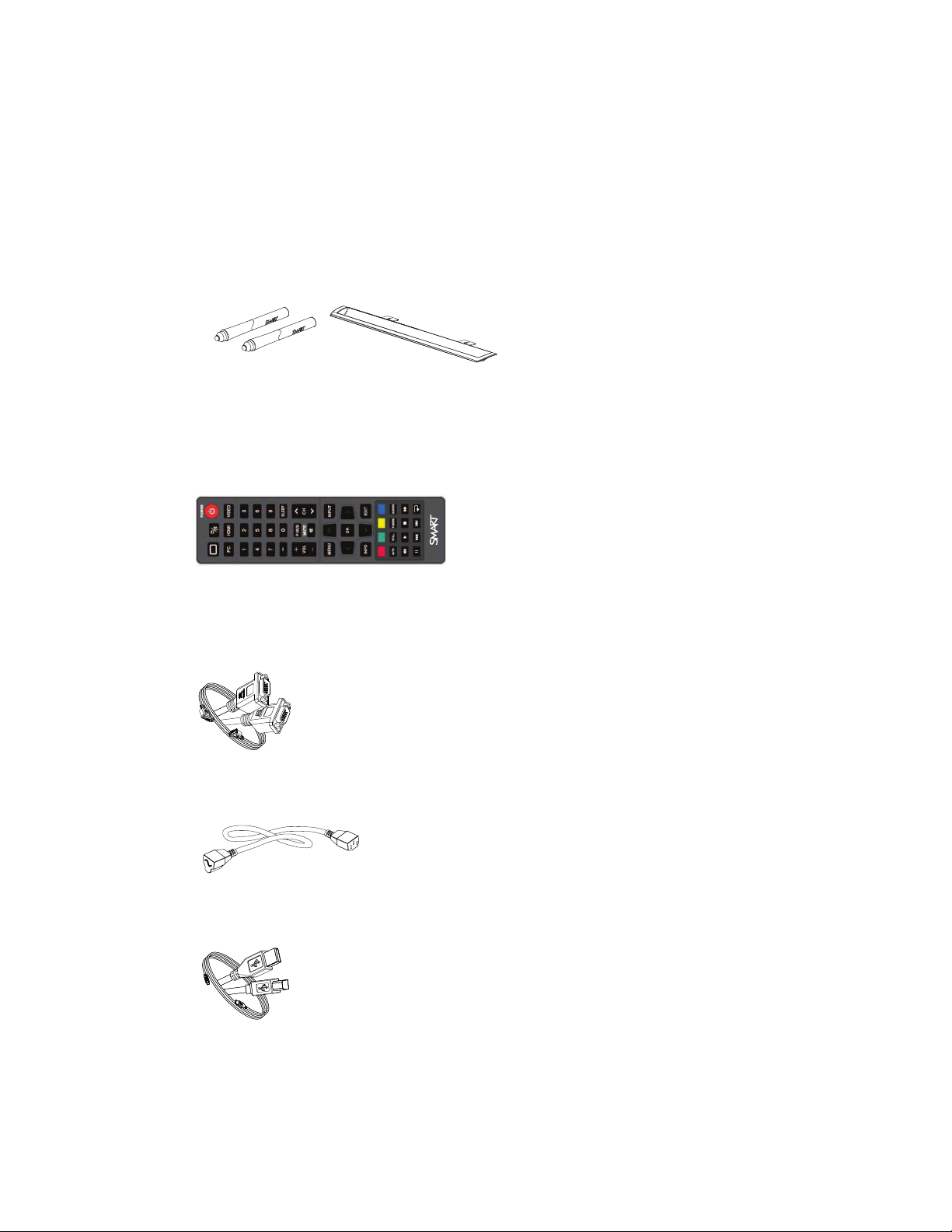

The following accessories are included with your interactive flat panel.
Pen and pen tray
Two pens are included with your interactive flat panel.
Remote control
The remote control enables you to access the on-screen menus and to change the display and input
settings.
Included cables
VGA - RGB video input
Power cable - NA, UK and EU
USB cable - touch interface

Chapter 2
3 smarttech.com/kb/170534
Chapter 2: Installing your interactive flat
panel
Choosing a mounting location 4
Choosing a mounting height 4
Cable management 4
Connecting your interactive flat panel 5
Configuring your computer’s screen resolution 6
Recommended computer screen resolution 6
Windows 7 and Windows 8 operating systems 7
Mac OS operating system software 7
WARNING
The weight of the interactive flat panel is 169.8 lb. (77 kg), refer to your local building code to ensure
the wall and the mount being used can support this installation. Use appropriating hardware in
accordance to building code and always use 3 or more people to lift and install E70 interactive flat
panel.
This chapter provides additional considerations and details for installing your interactive flat panel.

C H A P T E R 2
Installing your interactive flat panel
4 smarttech.com/kb/170534
Choosing a mounting location
Consider the following when you select a location for the interactive flat panel:
lThe wall must be strong enough to support the interactive flat panel and the mounting equipment.
The interactive flat panel weighs 169.8 lb. (77 kg).
lSelect a wall with a flat, regular surface and sufficient clearance to accommodate your
interactive flat panel. For best presentation alignment, mount your interactive flat panel in a
location that’s central to your audience’s viewing direction.
lChoose a location for your interactive flat panel that’s far from bright light sources, such as
windows and strong overhead lighting. Bright light sources can cause distracting shadows on
your interactive flat panel and can cause glare.
For mobile or adjustable installation options, contact your authorized SMART reseller
(smarttech.com/where).

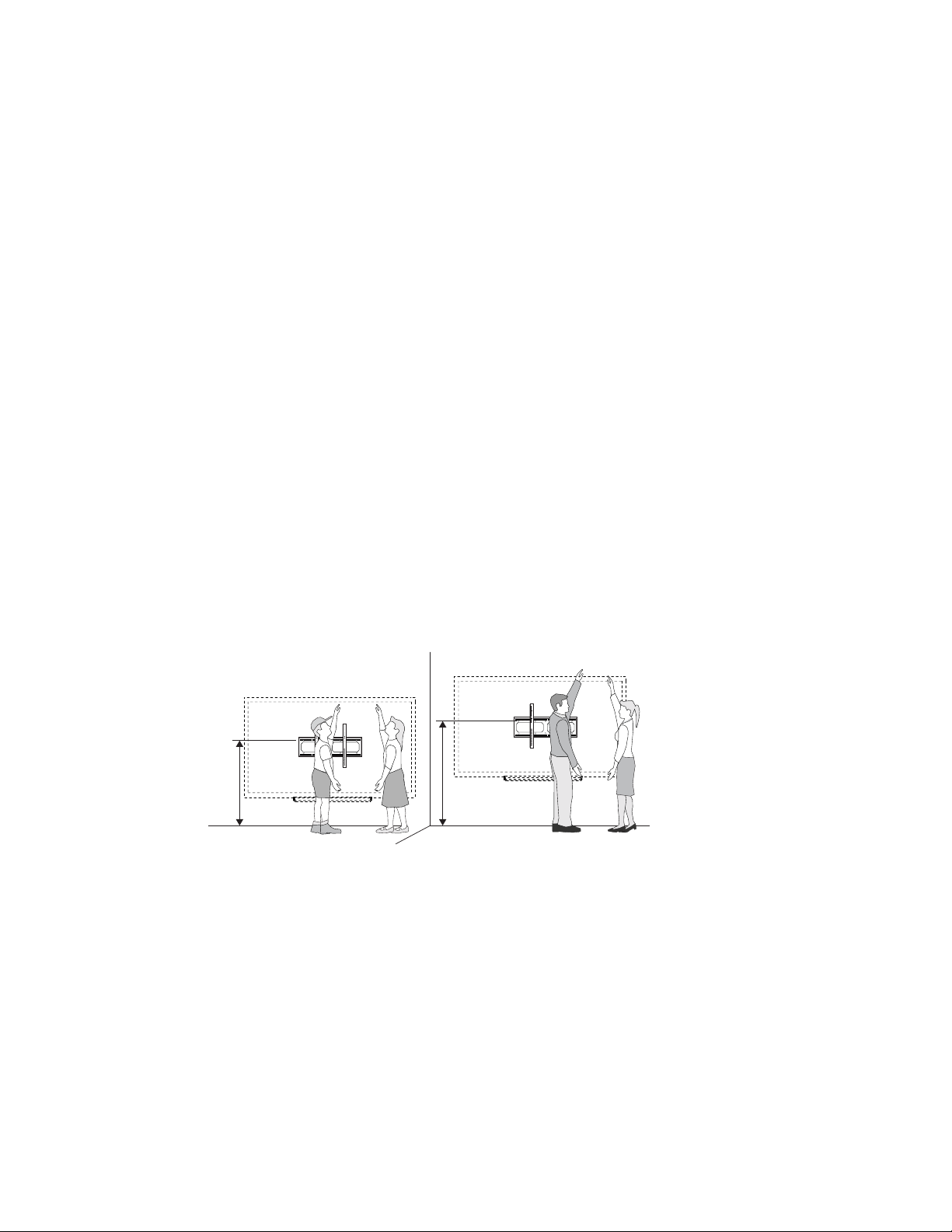

Choosing a mounting height
Mount the interactive flat panel according to audience and/or user(s) height. The flat panel height is
based on the midpoint between the reach of the students and the teacher.
Cable management
When connecting cables from the interactive flat panel to a computer and other peripheral devices,
ensure the cables aren’t a trip hazard. The use of channels and raceways safely hides cables. For
accessories and options, contact your authorized SMART reseller.

C H A P T E R 2
Installing your interactive flat panel
5 smarttech.com/kb/170534
I M P O R T A N T
Do not connect the power cable to a power outlet until you have connected all the other cables to
the interactive flat panel.
Connecting your interactive flat panel
The connector panel is at the bottom of your interactive flat panel.
N O T E
The power, PC-RGB (VGA) and USB cable are included with your interactive flat panel.
No. Connector Details
1 AC power AC power pass-through
2 USB B receptacle Computer to interactive flat panel touch interface
3 Video in Component video receptacle

C H A P T E R 2
Installing your interactive flat panel
6 smarttech.com/kb/170534
No. Connector Details
4Service port RS-232 connector
WARNING
This is a servicing port for the product and
must only be used by a qualified trained
technician, this port is NOT for customer
usage.
5 USBA Media port; contents accessible using the control
panel menu or the remote control (see Multi media
mode)
6 Video in Composite video receptacle
7 Video in PC-RGB (VGA)

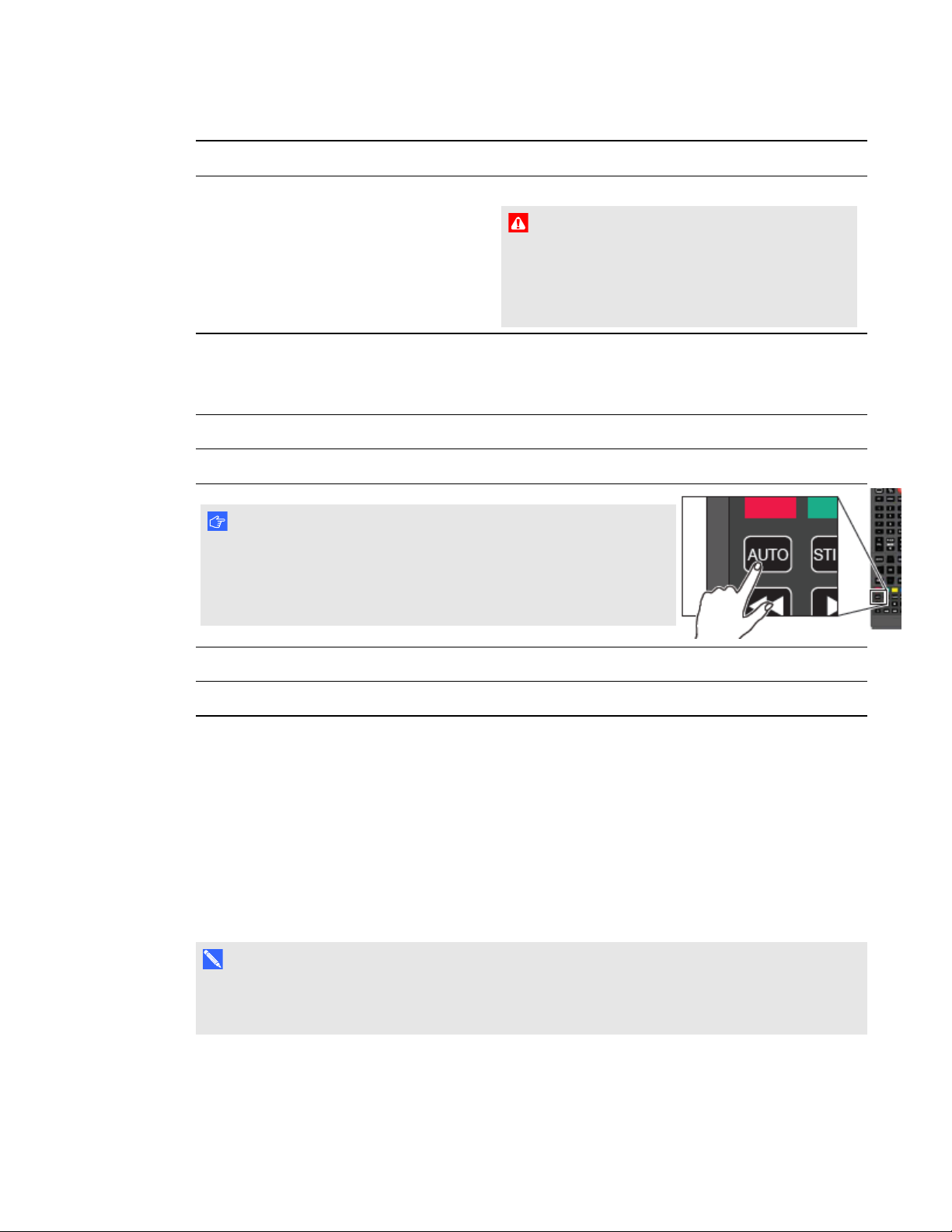

I M P O R T A N T
If you see flicking or the display is not sized correctly pressing the
Auto button will help with the adjustment process. Ensure that you
check and change E70 display to recommended resolution for best
performance.
8 Audio in Stereo 3.5 mm connector (from computer)
9 Video in HDMI™
Configuring your computer’s screen resolution
When you connect a computer to the interactive flat panel, you may have to adjust the computer’s
screen resolution to achieve the best image quality and touch performance.
Recommended computer screen resolution
SMARTrecommends the following computer screen resolutions:
N O T E
1920 × 1080 and 1280 × 720 are the recommended screen resolutions for best performance and
most accurate touch.
1920x1080 *1280x768
1600x1200 1280x720 *

C H A P T E R 2
Installing your interactive flat panel
7 smarttech.com/kb/170534
1280x1024 1024x768
1360x768 800x600
1280x960 640x480
Windows 7 and Windows 8 operating systems
To configure your computer’s screen resolution
N O T E
This procedure varies depending on your version of Windows operating system and your system
preferences.
1. Right click on an empty space on the desktop screen and select Screen Resolution from the
menu.
2. Click Display and select the SMARTE70.
3. Beside Resolution, use the drop-down menu to select a screen resolution. Refer to Configuring
your computer’s screen resolution on the previous page.
4. Click OK.
The computer applies the new screen resolution. See Configuring and calibrating your SMART
Board E70 interactive flat panel with Windows for setup and extended display settings.
Mac OS operating system software
To configure your Mac computer’s screen resolution
1. Click the Apple ( ) menu.
2. Click System Preferences >Displays.
The Display window appears.
3. Select a screen resolution from the list. Refer to Configuring your computer’s screen resolution
on the previous page.
The computer applies the new screen resolution. See Calibrating your SMARTBoard E70
interactive flat panel with Mac OS X for setup and extended display settings.

Chapter 3
9 smarttech.com/kb/170534
Chapter 3: Using your interactive flat panel
Using the remote control 9
Menu control panel 12
On-screen display menu 13
Picture settings 13
Audio settings 13
Setup settings 13
Time settings 14
Multi Media mode 14
Compatible file formats 14
Video 14
Audio 15
Images 15
This chapter describes the basic operation and setup of your interactive flat panel.

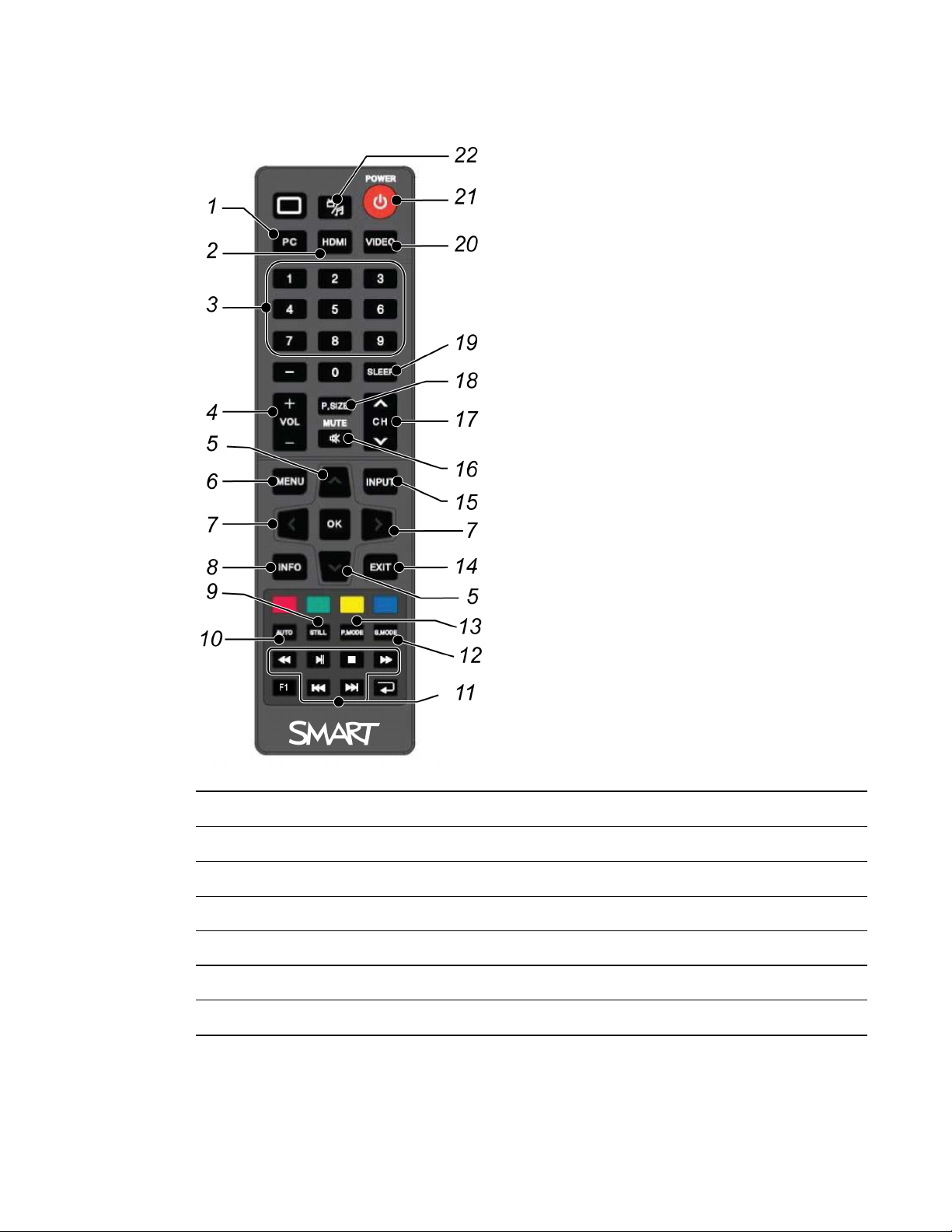

Using the remote control
The infrared remote control enables you to turn on and turn off your interactive flat panel, to change
the input source, to change the volume and more. You can also use the remote control to open the
on-screen display menu and then change the interactive flat panel’s settings.

C H A P T E R 3
Using your interactive flat panel
10 smarttech.com/kb/170534
No. Button Details
1 PC Selects the VGA input
2 HDMI Select the HDMI input
3 [Number buttons] Press buttons on the number pad to change channels
4 VOL +/- Increase or decrease the audio output level
5 [Up and down buttons] Select a menu option in the on-screen display menu
6 MENU Display the on-screen display menu

C H A P T E R 3
Using your interactive flat panel
11 smarttech.com/kb/170534
No. Button Details
7 [Left and right buttons] lSelect an option in the on-screen display menu
lUse the right button to increase a value
lUse the left button to decrease a value
8 INFO Display the current video source
9 STILL Turn on or off the still picture mode
10 AUTO Automatically adjusts the VGA video input
I M P O R T A N T
This will automatically adjust the image to the settings
display adapter is sending, in most cases this will help or
solve touch issues, manually adjust E70 display settings
if needed.
11 [Media buttons] Use these while in Multi Media mode
12 S.MODE Switch between stereo and mono sound
13 P.MODE Switch between color modes
14 EXIT Close the on-screen display menu
15 INPUT Switch video inputs
16 MUTE Mute audio inputs for your interactive flat panel
17 CH +/- Change channels
18 P.SIZE Select the video aspect ratio
19 SLEEP Set the sleep timer
20 VIDEO Select the RCA input
21 Power Turn on or turns off the interactive flat panel
22 Multi Media button Display the Multi Media mode

C H A P T E R 3
Using your interactive flat panel
12 smarttech.com/kb/170534
Menu control panel
The menu control panel enables you to access the on-screen display menu to adjust settings.
No. Button Details
1 Power Turn on or turn off the interactive flat panel
2 UP Move the highlighted area up to select items in the on-
screen display menu
3 DOWN Move the highlighted area down to select items in the on-
screen display menu
4 VOL + Move the highlighted area left to select items in the on-
screen display menu, increase the audio output level and
increase settings
5 VOL- Move the highlighted area right to select items in the on-
screen display menu, decrease the audio output level and
decrease settings
6 MENU Display the on-screen display menu
7 INPUT Toggle between video inputs for your interactive flat panel

C H A P T E R 3
Using your interactive flat panel
13 smarttech.com/kb/170534
On-screen display menu
You can access the on-screen display (OSD) menu by pressing MENU on the menu control panel on
the right side of the interactive flat panel or on the remote control. To exit the OSD menu, press
MENU on the menu control panel on the right side of the interactive flat panel or EXITon the remote
control.
Picture settings
Menu item Function
Picture Mode Sets the picture mode to Custom, Standard, Mild or Vivid
Brightness Adjusts the overall brightness of the image and background
Contrast Adjusts the brightness of the image in relation to the background
Tint Adjusts the tint of the screen
Color Adjusts the color depth of the screen
Color Temp Sets the color temperature to Normal, Warm or Cold
Audio settings
Menu item Function
Surround Turns on or off the surround sound
Sound Mode Sets the audio mode to Music, Standard, User, News or Movie
Auto Volume Turns on or off the automatic volume adjustment
Setup settings
Menu item Function
Menu Language Selects the language used by the OSD menu
Menu Trans. Adjusts the transparency of the OSD menu
Screen Mode Sets the image size to 16:9, 4:3, Zoom1 or Zoom2
Reset Resets all Setup options
Software Update N O T E
Software update should be performed only by a system administrator. Please
contact your authorized SMARTreseller if you require further assistance.

C H A P T E R 3
Using your interactive flat panel
14 smarttech.com/kb/170534
Time settings
Menu item Function
Time mode Sets the time mode to automatic or manual
Time Sets the time manually
Sleep Time Sets the sleep timer
On Timer Turns on the On Time function
On Time Sets when the interactive flat panel turns on
Volume Sets the volume when the interactive flat panel turns on
Off Timer Turns on the Off Time function
Off Time Sets when the interactive flat panel turns off
Multi Media mode
You can play video files, view images and listen to music stored on the USB drive. Use the remote
control to pause, fast-forward and rewind videos.
Compatible file formats
The interactive flat panel can play the following file types.
Video
Category Code
MPEG1 MPEG1
MPEG2 MPEG2
