Important information
Warning
lFailure to follow the installation instructions included with the display could result in injury and
product damage which may not be covered by the warranty.
lDo not open or disassemble the display. You risk electrical shock from the high voltage inside the
casing. Opening the casing also voids the warranty.
lDo not stand (or allow children to stand) on a chair to touch the surface of the display. Rather,
mount the product at the appropriate height.
lTo reduce the risk of fire or electric shock, do not expose the display to rain or moisture.
lIf the display requires replacement parts, make sure the service technician uses replacement
parts specified by SMARTTechnologies or parts with the same characteristics as the original.
lEnsure that any cables that cross the floor to the display are properly bundled and marked to
avoid a trip hazard.
lDo not insert objects inside the cabinet ventilation holes, because they could touch dangerous
voltage points and cause electric shock, fire or product damage which may not be covered by
the warranty.
lDo not place heavy objects on the power cable. Damage to the cable could cause shock, fire, or
product damage which may not be covered by the warranty.
lUseonly extension cords and outlets that can fully accommodate the display’s polarized plug.
lUse the power cable provided with the display. If a power cable is not supplied, contact your
supplier. Use only power cables that match the AC voltage of the power outlet and that comply
with your country’s safety standards.
lIf the glass is broken, do not touch the liquid crystal. To prevent injury, handle glass fragments
with care when disposing of them.
lDo not move or mount the display by connecting rope or wire to its handles. The display is heavy,
and failure of the rope, wire, or handle could lead to injury.
lUse only VESA-approved mounts.

Contents
smarttech.com/kb/171414 4
lDisconnect the display’s power cable from the wall outlet and seek assistance from qualified
service personnel if any of the following occur:

oThe power cable or plug is damaged

oLiquid is spilled into the display

oObjects fall into the display

oThe display is dropped

oStructural damage, such as cracking, occurs

oThe display behaves unexpectedly when you follow operating instructions
Caution
lTurn off the display before cleaning its screen. Otherwise, you may scramble the desktop icons or
inadvertently activate applications when you wipe the screen.
lAvoid setting up and using the display in an area with excessive levels of dust, humidity, and
smoke.
lMake sure an electrical socket is near the display and remains easily accessible during use.
lIn Europe, the display should be used only with European TN and TT power distribution systems.
It is not suitable for older, IT-type power distribution systems found in some European countries.
“This system (IT-type) is widely used isolated from earth, in some installations in France, with
impedance to earth, at 230/400V, and in Norway, with voltage limiter, neutral not distributed, at
230V line-to-line.”
Contact qualified personnel if you’re uncertain of the type of power system available where
you’re installing the display.
lThe accessory slot’s maximum available power is 60 W. The slot is not a limited power source. To
reduce the risk of fire, make sure that accessories connecting to the slot satisfy the fire enclosure
requirements of IEC60950-1 and IEC 62368-1.
lYou must connect the USB cable that came with the display to a computer that has a USB
compliant interface and that bears the USB logo. In addition, the USB source computer must be
compliant with IEC 60950-1 and/or IEC 62368-1. It must be certified by UL or CSA or another NRTL
/ SCC certified body to CSA/UL 60950-1 or CSA/UL 62368-1 and it must have the CE marking. This
is for operating safety and to avoid damage to the display.
lWait five minutes before removing accessories from the display’s OPS slot to allow the accessory
to cool.

Contents
smarttech.com/kb/171414 5
Important
lThe following table shows the typical operating power for the display:
Models Regulatory
Models
Typical power
6000S (V3)
SBID-6X65S-V3, SBID-6X65S-V3-PW, SBID-
6X65S-V3-P,
IDS665-3 100V to 240V AC, 50 Hz to 60 Hz,
105 W
SBID-6X75S-V3, SBID-6X75S-V3-PW, SBID-
6X75S-V3-P,
IDS665-3 100V to 240V AC, 50 Hz to 60 Hz,
134 W
SBID-6X86S-V3, SBID-6X86S-V3-PW, SBID-
6X86S-V3-P,
IDS665-3 100V to 240V AC, 50 Hz to 60 Hz,
161 W
6000S (C) and SBID-6000S
SBID-6X65S-C, SBID-6X65S-CPW
SBID-6X65S, SBID-6X65S-PW, SBID-6X65-P
IDS665-1 100V to 240V AC, 50 Hz to 60 Hz,
92W
SBID-6X75S-C, SBID-6X75S-CPW
SBID-6X75S, SBID-6X75S-PW, SBID-6075-P
IDS675-1 100V to 240V AC, 50 Hz to 60 Hz,
141W
SBID-6X86S-C, SBID-6X86S-CPW
SBID-6X85S, SBID-6X85S-PW, SBID-6X86-P
IDS686-1 100V to 240V AC, 50 Hz to 60 Hz,
172W
lFor additional requirements and other information, refer to the display’s specifications (see
More
information on page19).

smarttech.com/kb/171414 6
Contents
Important information 3
Chapter 1 Welcome 8
About this guide 9
About the display 9
Identifying your specific model 16
Accessories 18
More information 19
Chapter 2 Installing the display 20
Moving the display to the installation site 20
Installing the display on a wall 22
Installing the display on a stand 27
Connecting to a network 28
Connecting power and turning on the display for the first time 29
About energy saving modes 30
Chapter 3 Connecting computers and other devices 31
Installing SMART software 32
Connecting room computers and guest laptops 34
Connecting a SMART OPS PC module 37
Connecting other devices 37
Connector diagrams 41
Chapter 4 Maintaining the display 46
Turning off, turning on, and resetting the display 46
Cleaning and maintaining hardware 47
Updating system software 51
Chapter 5 Troubleshooting 52
The display isn’t turning on 52
The display is turning on when it shouldn’t 53
The screen is blank or there’s a problem with the image on the screen 53
There’s no sound or there’s a problem with the sound 55
Touch isn’t working as expected 56
The pens and erasers aren’t working as expected 56
iQ apps aren’t working as expected 57
SMART software on connected computers isn’t working as expected 58
The SMART OPS PC module isn’t working as expected 58

Contents
smarttech.com/kb/171414 7
Contacting your reseller for additional support 58
Appendix A Adjusting settings 60
Network settings 60
Personalization 61
Application settings 62
System settings 65
SMART Mirror 73
Appendix B Enrolling the display in SMARTRemote Management 76
Appendix C Managing the SMART Board 6000S (V3) display using RS-232 77
Configuring the computer’s serial interface settings 78
Commands and responses 79
Power state commands 80
Input commands 82
Brightness commands 82
Freeze commands 82
Screen shade commands 83
Volume commands 83
Mute commands 83
Firmware version commands 83
Serial number commands 84
Part number commands 84
Model number commands 84
Resolving issues with managing the display using RS-232 84
Appendix D Managing SMARTBoard 6000S (C)or 6000S series displays using RS-232 85
Connecting multiple displays 86
Configuring the computer’s serial interface settings 87
Commands and responses 87
Power state commands 90
Input commands 91
Brightness commands 92
Freeze commands 92
Screen shade commands 93
Volume commands 93
Mute commands 93
Firmware version commands 93
Serial number commands 94
Part number commands 94
Resolving issues with managing the display using RS-232 94
Certification and compliance 95

smarttech.com/kb/171414 8
Chapter 1 Welcome
About this guide 9
About the display 9
Touch 10
Writing, drawing and erasing 10
Support for additional pens and tools 11
iQ experience 11
Display 11
Audio 12
Network connectivity 12
Room computers and guest laptops 12
Accessory slot 13
Convenience panel 13
Proximity sensor 13
Ambient light sensor 14
Remote control and IR sensor 14
Temperature and humidity sensors 15
Microphone array 15
NFC sign in 15
Mounting hardware 15
Accessory mounting points 16
Identifying your specific model 16
Accessories 18
Pen accessory kit 18
Tool Explorer-enabled objects and manipulatives 18

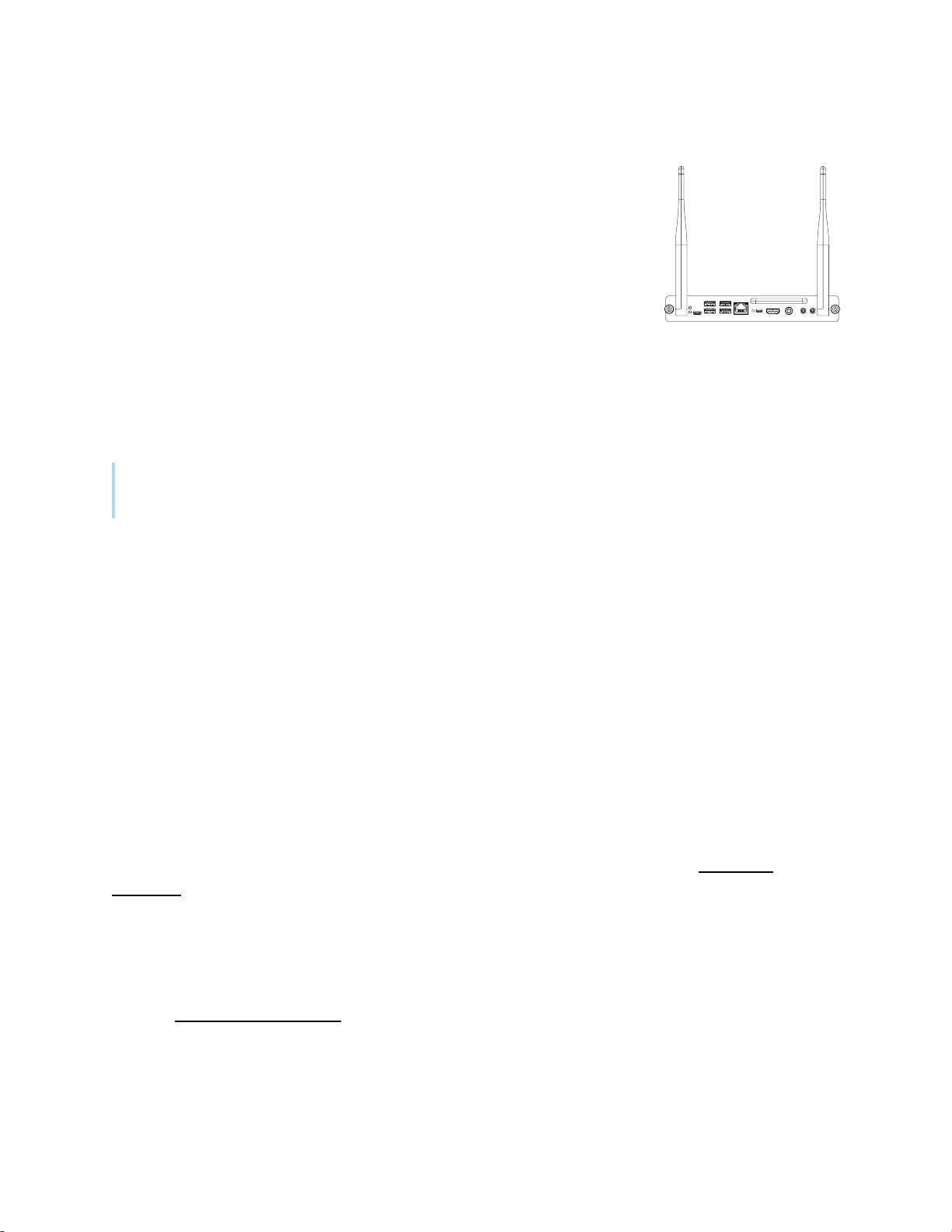

SMART OPS PC module 19
Stands 19
USB extenders 19
More information 19
This chapter introduces the SMARTBoard® 6000S and 6000S Pro series interactive displays.

Chapter 1 Welcome
smarttech.com/kb/171414 9
About this guide
This guide explains how to install and maintain a SMARTBoard 6000S or 6000S Pro series interactive
display. It includes the following information:
lHow to install the display
lHow to connect power and devices
lHow to turn on the display for the first time and configure the iQ experience
lHow to maintain the display for years of use
lHow to troubleshoot issues with the display
This guide also includes information about the display’s settings and remote management support.
This guide is intended for those who install and maintain displays in their organizations. Additional
documentation and resources are available for users of the display (see More information on page19).
About the display
The SMART Board 6000S or 6000S Pro series interactive display with iQ is the hub of your classroom or
meeting room.
Note
The following features are available on the SMART Board 6000S (V3) models. SMART Board 6000S
and 6000S (C) models don’t include a microphone array, and the sensors are located in the top-left
corner of the display’s frame.

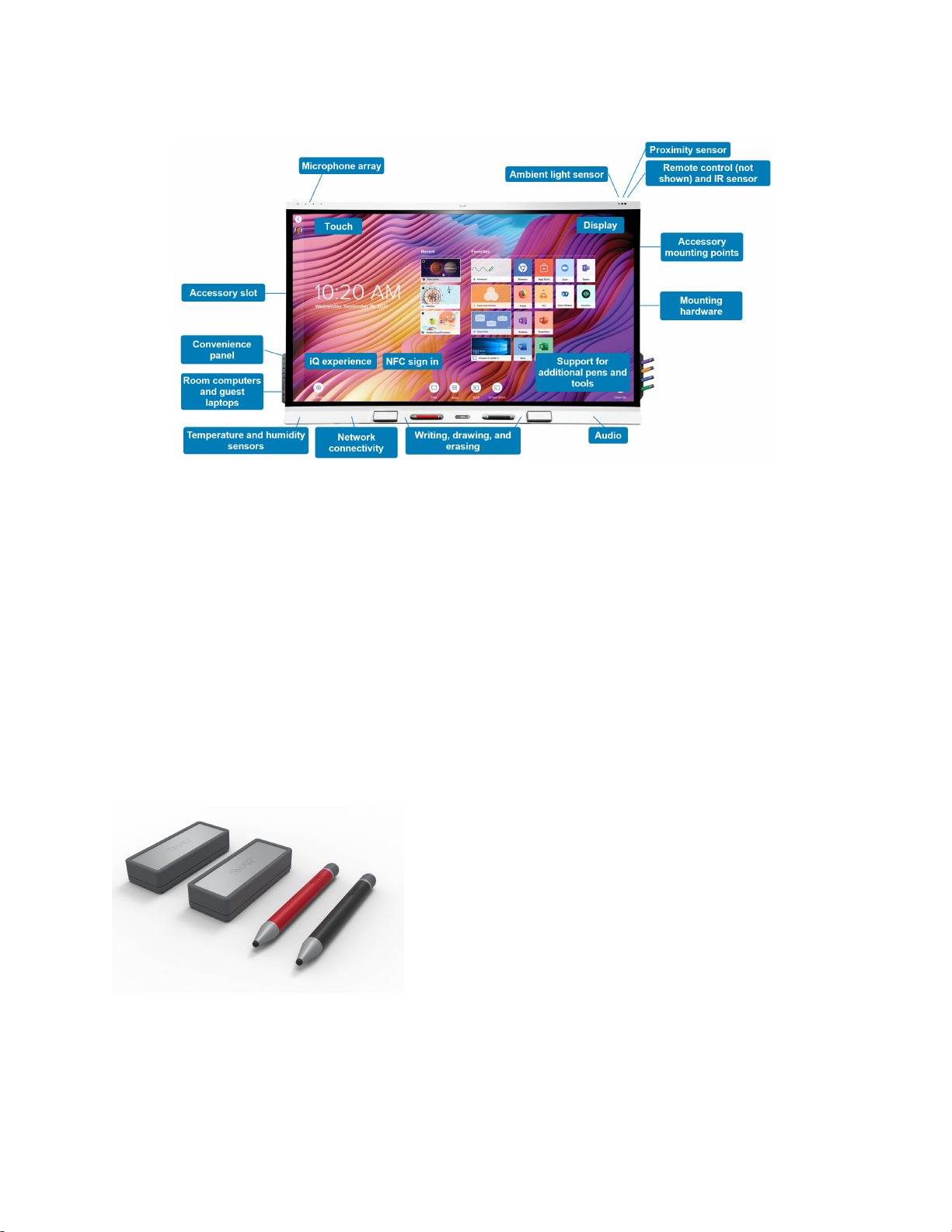

The display includes an extensive set of features and components:

Chapter 1 Welcome
smarttech.com/kb/171414 10
Touch
You can do everything on the display that you can do at your computer—open and close applications,
meet with others, create new documents or edit existing ones, visit websites, play and manipulate videos,
and so on—by touching the display’s surface.
You can use an array of gestures within applications, including panning, scaling, rotating and zooming in
and out.
The display’s advanced HyPr Touch™ (HybridPrecisionTouch) with InGlass™ touch technology provides
a natural, intuitive writing and touch experience with high accuracy and low latency. In addition, its
Silktouch ultra-smooth finish allows you to use the display for hours without finger burn.
Writing, drawing and erasing
The display comes with a black pen and a red pen that you
can use to write or draw on the screen.
The display also includes two erasers, which you can use to
erase digital ink.
With Object Awareness, the display responds automatically
to the tool or object you’re using, whether it’s a pen, finger,
eraser, or palm. The display’s Pen ID and Simultaneous Tool
Differentiation technologies allow multiple people to write
independently and simultaneously, using different colored ink.

Chapter 1 Welcome
smarttech.com/kb/171414 11
Support for additional pens and tools
The SMART Board 6000S features the Tool Explorer™ platform, which enables you to use other SMART-
authorized pens and tools in addition to those supplied with the display. The Tool Explorer platform lets
teachers and students manipulate real-world objects to interact intuitively with on-screen objects and
digital content, increasing engagement and knowledge retention.
For more information about using Tool Explorer-enabled objects on the display, see the SMART Board
6000S and 6000S Pro series interactive displays user guide (smarttech.com/kb/171415).
For more information about available tool kits, see smarttech.com/kb/171796.
iQ experience
If enabled, the display’s iQ experience provides one-touch access to collaborative tools, such as a
whiteboard, wireless screen sharing, and a web browser. There’s no need for wires, cables, or manual
software and firmware updates.
Note
Some features, such as Browser and Screen Share, require a properly configured network connection.
Press the Home button on the display (pictured) or the remote control to
open the Home screen. From the Home screen, you can open the iQ
apps, switch inputs, and adjust settings.
Display
The 4K ultra-high-definition LED display provides optimal image clarity and wide viewing angles.
The size of the display varies by model:
Models Size (diagonal)
SBID-6265S-V3, SBID-6265S-V3-PW, SBID-6265S-V3-P, SBID-6065S-V3, SBID-6065S-V3-PW,
SBID-6065S-V3-P, SBID-6465-V3-P
SBID-6265S-C, SBID-6265S-CPW, SBID-6065S-C, SBID-6065S-CPW
SBID-6265S, SBID-6265S-PW, SBID-6065S, SBID-6065S-PW, SBID-6065S-P
65"

Chapter 1 Welcome
smarttech.com/kb/171414 12
Models Size (diagonal)
SBID-6275S-V3, SBID-6275S-V3-PW, SBID-6275S-V3-P, SBID-6075S-V3, SBID-6075S-V3-PW,
SBID-6075S-V3-P, SBID-6475-V3-P
SBID-6275S-C, SBID-6275S-CPW, SBID-6075S-C, SBID-6075S-CPW
SBID-6275S, SBID-6275S-PW, SBID-6075S, SBID-6075S-PW, SBID-6075S-P
75"
SBID-6286S-V3, SBID-6286S-V3-PW, SBID-6286S-V3-P, SBID-6086S-V3, SBID-6086S-V3-PW,
SBID-6086S-V3-P, SBID-6486-V3-P
SBID-6286S-C, SBID-6286S-CPW, SBID-6086S-C, SBID-6086S-CPW
SBID-6286S, SBID-6286S-PW, SBID-6086S, SBID-6086S-PW, SBID-6086S-P
86"
Audio
The display includes two 20 W integrated speakers, which are designed to provide sound at the front of a
room.
Tip
You might want to connect an external audio system if you’re providing sound in a larger space (see
Connecting an external audio system on page39).
Network connectivity
The display requires a network connection for downloading software and firmware updates, and a
number of the iQ apps require a network connection as well.
You can connect to a network using Wi-Fi or an Ethernet cable:
lThe Wi-Fi module supports both 2.4 and 5 GHz bands.
lThe two RJ45 jacks allow you to connect the display and an external device, such as a computer, to
a Gigabit Ethernet network.
For more information, see Connecting to a network on page28.
Room computers and guest laptops
You can connect room computers and guest laptops to the display and view and interact with their
inputs.
The display comes with SMART software that you can install on connected computers to take full
advantage of the display’s features while using the connected computers.
For more information, see Connecting room computers and guest laptops on page34.

Chapter 1 Welcome
smarttech.com/kb/171414 13
Accessory slot
You can install an OPS-compatible device, such as a SMART OPS PC module, in the accessory slot.
SMARTOPS PC modules provide a complete Windows® 10 Pro installation.
For more information on SMART OPS PC modules, see SMART OPS PC module on page19.
Caution.
lThe accessory slot’s maximum available power is 60 W. The slot is not a limited power source. To
reduce the risk of fire, make sure that accessories connecting to the slot satisfy the fire enclosure
requirements of IEC 62368-1.
lDo not install or remove the OPS PC or other devices from the accessory slot while the display is
turned on. Ensure the power switch on the back of the display beside the AC power inlet is in the
OFF (O) position.
Note
Unlike previous SMART Board interactive displays, the SMART Board 6000S and 6000S Pro series
interactive displays don’t require an iQ appliance in the accessory slot. The iQ experience is built into
these interactive displays (see iQ experience on page11). For this reason, SMART doesn’t support
installing iQ appliances in these displays’ accessory slots. However, the AM50 appliance allows the
use of an Intel Compute Card on the 6000S and SMART Board 6000S (C) models.
Convenience panel
The convenience panel provides buttons for turning the display on and
off, controlling the volume, freezing and unfreezing the screen, and
showing and hiding a screen shade. It also includes connectors for USB
peripherals and a computer or other input source (available connectors
vary by model, see Connecting room computers and guest laptops on
page34).
Proximity sensor
On SMART Board 6000S (V3) models, the proximity sensor is located
in the top-right corner of the display’s frame. On the 6000S and
6000S (C) models, the sensor is in the top-left corner.
The proximity sensor can detect people up to approximately 16' (5 m)
away when the display is in an energy saving mode mode.

Chapter 1 Welcome
smarttech.com/kb/171414 14
When the proximity sensor detects people in the room, the display turns on, depending on how it’s
configured.
If the room is empty for a specified period, the display returns to an energy saving mode.
Notes
lFor more information on energy saving modes, see
About energy saving modes on page30.
lThe proximity sensor on the SMART Board 6000S (V3) models responds when the display is in the
networked standby and the standby power states. On the 6000S and 6000S (C)models, the
proximity sensor responds only when the display is in the networked standby power state.
lThe sensor can detect people through glass. Consider this when finding a location for the display
(see Installing the display on a wall on page22). Don’t position the display so that the sensor is
facing a window.
Ambient light sensor
On SMART Board 6000S (V3) models, the ambient light sensor is
located in the top-right corner of the display’s frame. On the 6000S
and 6000 (C) models, the sensor is in the top-left corner.
The ambient light sensor detects the room’s brightness and adjusts
the brightness of the screen accordingly.
You can enable, disable, and adjust this feature (see Appendix A Adjusting settings on page60).
Remote control and IR sensor
You can use the remote control to turn the display on and off, adjust
display settings, and so on.
On SMART Board 6000S (V3) models, the IR sensor is located in the
top-right corner of the display’s frame. On the 6000S and 6000S (C)
models, the sensor is in the top-left corner.

Chapter 1 Welcome
smarttech.com/kb/171414 15
Temperature and humidity sensors
The display features integrated temperature and humidity sensors that can provide
real-time measurement and recording of the display’s environmental conditions. This
data is easily accessible using the temperature and humidity app in the display’s App
library.
Note
Temperature and humidity sensors are available only when iQ is enabled.
Microphone array
This feature is available only on the SMART Board 6000S (V3) and SMART Board 6000S (V3)
Pro models.
Note
The SMART Board 6400S (V3) Pro models do not include a microphone array.
You can use the display’s built-in microphone array while using a conferencing app on the display. The
microphone array provides improved sound detection. You can also use the display’s built-in
microphone array in place of a connected computer’s microphone.
NFC sign in
The display allows you to sign in to your SMART Account using NFC (near field communication): just tap
your SMART ID card on the screen and enter a PIN. This feature helps you save time signing in to your
account without typing your username and password.
Note
NFC sign in is available only on SMART Board 6000S series displays with iQ. Only SMART ID cards are
supported.
Mounting hardware
The display comes with a WM-SBID-200 wall mount, which you can use to mount the display on a wall
(see Installing the display on a wall on page22).
You can also mount the display on a wall or mobile stand (see Accessories on page18).

Chapter 1 Welcome
smarttech.com/kb/171414 16
Accessory mounting points
The display features M4 mounting points located at the top-left and top-right for SMART approved
accessories.
Identifying your specific model
SMART offers a variety of models of the SMARTBoard 6000S and 6000S Pro series interactive display:
Model/SKUs Frame style Screen size
(approximate)
iQ embedded
computing
Microphone array
6000S (V3) 
SBID-6265S-V3 White 65" Yes Yes
SBID-6275S-V3 White 75" Yes Yes
SBID-6286S-V3 White 86" Yes Yes
SBID-6065S-V3 White 65" No Yes
SBID-6075S-V3 White 75" No Yes
SBID-6086S-V3 White 86" No Yes
6000 (V3) Pro 
SBID-6265S-V3-PW White 65" Yes Yes
SBID-6275S-V3-PW White 75" Yes Yes
SBID-6286S-V3-PW White 86" Yes Yes
SBID-6065S-V3-PW White 65" No Yes
SBID-6075S-V3-PW White 75" No Yes
SBID-6086S-V3-PW White 86" No Yes
SBID-6265S-V3-P Black 65" Yes Yes
SBID-6275S-V3-P Black 75" Yes Yes
SBID-6286S-V3-P Black 86" Yes Yes
SBID-6065S-V3-P Black 65" No Yes
SBID-6075S-V3-P Black 75" No Yes
SBID-6086S-V3-P Black 86" No Yes
SBID-6465S-V3-P Black 65" No No
SBID-6475S-V3-P Black 75" No No
SBID-6486S-V3-P Black 86" No No

Chapter 1 Welcome
smarttech.com/kb/171414 17
Model/SKUs Frame style Screen size
(approximate)
iQ embedded
computing
Microphone array
6000S (C) 
SBID-6265S-C White 65" Yes No
SBID-6275S-C White 75" Yes No
SBID-6286S-C White 86" Yes No
SBID-6065S-C White 65" No No
SBID-6075S-C White 75" No No
SBID-6086S-C White 86" No No
6000S (C) Pro 
SBID-6265S-CPW White 65" Yes No
SBID-6275S-CPW White 75" Yes No
SBID-6286S-CPW White 86" Yes No
SBID-6065S-CPW White 65" No No
SBID-6075S-CPW White 75" No No
SBID-6086S-CPW White 86" No No
6000S 
SBID-6265S White 65" Yes No
SBID-6275S White 75" Yes No
SBID-6286S White 86" Yes No
SBID-6065S White 65" No No
SBID-6075S White 75" No No
SBID-6086S White 86" No No
6000S Pro 
SBID-6265S-PW White 65" Yes No
SBID-6275S-PW White 75" Yes No
SBID-6286S-PW White 86" Yes No
SBID-6065S-PW White 65" No No
SBID-6075S-PW White 75" No No
SBID-6086S-PW White 86" No No
SBID-6065S-P Black 65" No No

Chapter 1 Welcome
smarttech.com/kb/171414 18
Model/SKUs Frame style Screen size
(approximate)
iQ embedded
computing
Microphone array
SBID-6075S-P Black 75" No No
SBID-6086S-P Black 86" No No
Refer to the specifications for detailed technical information for these models, including product
dimensions and weights (see More information on the next page).
Accessories
Accessories for the display include:
lPen accessory kit
lTool Explorer-enabled objects and manipulatives
lSMART OPS PC module
lStands
lUSB extenders
Note
For more information about these and other accessories, see smarttech.com/accessories.
Pen accessory kit
The pen accessory kit includes blue, green, purple, and orange pens and a holder that you can mount on
the side of the display.
Tool Explorer-enabled objects and manipulatives
The display’s Tool Explorer platform enables you to use a range of different pens, objects, and
manipulatives that are automatically recognized the moment they contact the display’s screen.
Note
Support for the different pens, objects, and manipulatives varies depending on the model of display.
See the SMART Board 6000S and 6000S Pro user guide (smarttech.com/kb/171415)

Chapter 1 Welcome
smarttech.com/kb/171414 19
SMART OPS PC module
SMART Open Pluggable Specification (OPS) PC modules provide a hassle-
free Windows Pro installation based on Intel®Core™ processors and are
designed specifically to work with a SMART display. All OPS PC modules are
WHQL certified and fully licensed with Windows Pro. Install the OPS PC
module in adisplay’s accessory slot to provide a complete 4K UHD Windows
installation at your fingertips, without the need for an external PC or
additional cables.
Install familiar Windows applications, such as SMARTNotebook®, SMARTTeamWorks™, and
SMARTMeetingPro® software, and access the internet directly through your display’s network
connection. Upgrades and service for the OPS PC module are easy to perform without removing the
display from its mounting.
Note
Refer to an application’s specifications for information about its computer requirements.
Stands
If you want to move the display from place to place, you can install it on a SMART mobile stand. If you
are installing the display on a wall that cannot support the display’s full weight, you can install the display
on a SMART floor stand.
USB extenders
As noted in the display’s specifications, there is a maximum length for USB cable connections between
the display and computer.
When using USB 2.0, the cable should be no longer than 16'(5m).
When using USB 3.0, the cable should be no longer than 9'(3m).
If you need a longer USB connection, use a USB extender. For more information, see USB cable
extenders.
More information
SMART provides a variety of other documents for this display in the Support section of the SMART
website (smarttech.com/support). Scan the QR code on the cover of this guide to view links to
SMARTBoard 6000S and 6000S Pro series interactive display documents and other support resources.

smarttech.com/kb/171414 20
Chapter 2 Installing the display
Moving the display to the installation site 20
Using transportation aides 21
Accommodating doorways, hallways, and elevators 21
Dealing with cracked, chipped, or shattered glass 22
Saving the original packaging 22
Installing the display on a wall 22
Choosing a location 23
Choosing a height 25
Assessing the wall 25
Selecting mounting hardware 25
Selecting a wall mount 25
Mounting the display 26
Mounting multiple displays 26
Installing the display on a stand 27
Using SMART mobile stands 27
Using a third-party stand 27
Connecting to a network 28
Connecting power and turning on the display for the first time 29
About energy saving modes 30
SMART recommends that only trained installers install the display.
This chapter is for installers. Installers should read this information along with the installation instructions
included with the display before they begin the installation.
Warning
Improper installation of the display can result in injury and product damage.
Moving the display to the installation site
After your organization receives the display, you need to move it to the place where you plan to install it.
On occasion, you might also need to move the display to another location after initially installingit.
