Smeg G30 User manual

22
Contents
INSTRUCTIONS FOR THE USER: these contain user advice,
description of the commands and the correct procedures for
cleaning and maintenance of the appliance.
INSTRUCTIONS FOR THE INSTALLER: these instructions are
intended for the qualified technician who must perform the installa-
tion, put it into operation and test the appliance.
1. INSTRUCTIONS FOR USE ........................................................23
2. INSTRUCTIONS FOR DISPOSAL – OUR ENVIRONMENTAL
CARE ..........................................................................................24
3. SAFETY INSTRUCTIONS ..........................................................25
4. KNOW YOUR APPLIANCE ........................................................26
5. BEFORE INSTALLATION...........................................................26
6. USING THE HOB........................................................................27
7. CLEANING AND MAINTENANCE..............................................29
8. INSTALLING THE APPLIANCE..................................................30
9. GAS CONNECTION ...................................................................36
10. ADAPTATION TO DIFFERENT TYPES OF GAS ......................38
11. FINAL OPERATIONS FOR GAS APPLIANCES ........................40

23
Precautions for use
1. INSTRUCTIONS FOR USE
THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE. IT MUST BE KEPT
IN ITS ENTIRETY AND IN AN ACCESSIBLE PLACE FOR THE WHOLE
WORKING LIFE OF THE HOB.
WE URGE YOU TO READ THIS MANUAL AND ALL THE INFORMATION IT
CONTAINS CAREFULLY BEFORE USING THE APPLIANCE.
INSTALLATION MUST BE CARRIED OUT BY QUALIFIED PERSONNEL IN
ACCORDANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS
INTENDED FOR DOMESTIC USES AND CONFORMS TO THE EEC
DIRECTIVES CURRENTLY IN FORCE. THE APPLIANCE HAS BEEN BUILT TO
CARRY OUT THE FOLLOWING FUNCTIONS: COOKING AND HEATING-UP OF
FOOD; ALL OTHER USES ARE CONSIDERED IMPROPER.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER
USE.
DO NOT USE THIS APPLIANCE FOR HEATING ROOMS.
DO NOT DISCARD PACKING IN THE HOME ENVIRONMENT. SEPARATE THE
VARIOUS WASTE MATERIALS AND TAKE THEM TO THE NEAREST SPECIAL
GARBAGE COLLECTION CENTRE.
WHEN DISPOSING OF THE APPLIANCE IT MUST BE TAKEN TO A SPECIAL
GARBAGE COLLECTION CENTRE.
DO NOT OBSTRUCT VENTILATION OPENINGS AND HEAT DISPERSAL SLITS.
THE IDENTIFICATION PLATE WITH THE TECHNICAL DATA, SERIAL NUMBER
AND MARK IS IN A VISIBLE POSITION UNDER THE CASING.
THE PLATE MUST NOT BE REMOVED.

24
Instructions for disposal
2. INSTRUCTIONS FOR DISPOSAL – OUR
ENVIRONMENTAL CARE
Our product's packing is made of non-polluting materials, therefore
compatible with the environment and recyclable. Please help by disposing
of the packing correctly. Find the addresses of collection, recycling and
disposal centres from your retailer or from the competent local
organisations.
Do not throw the packing or any part of it away. They can constitute a
suffocation hazard for children, especially the plastic bags.
Your old appliance also needs to be disposed of correctly.
Important: hand over your appliance to the local agency authorised for
the collection of household appliances no longer in use. Correct disposal
means intelligent recycling of valuable materials.
It is also necessary to cut the electric power cord and remove it along with
the plug.

25

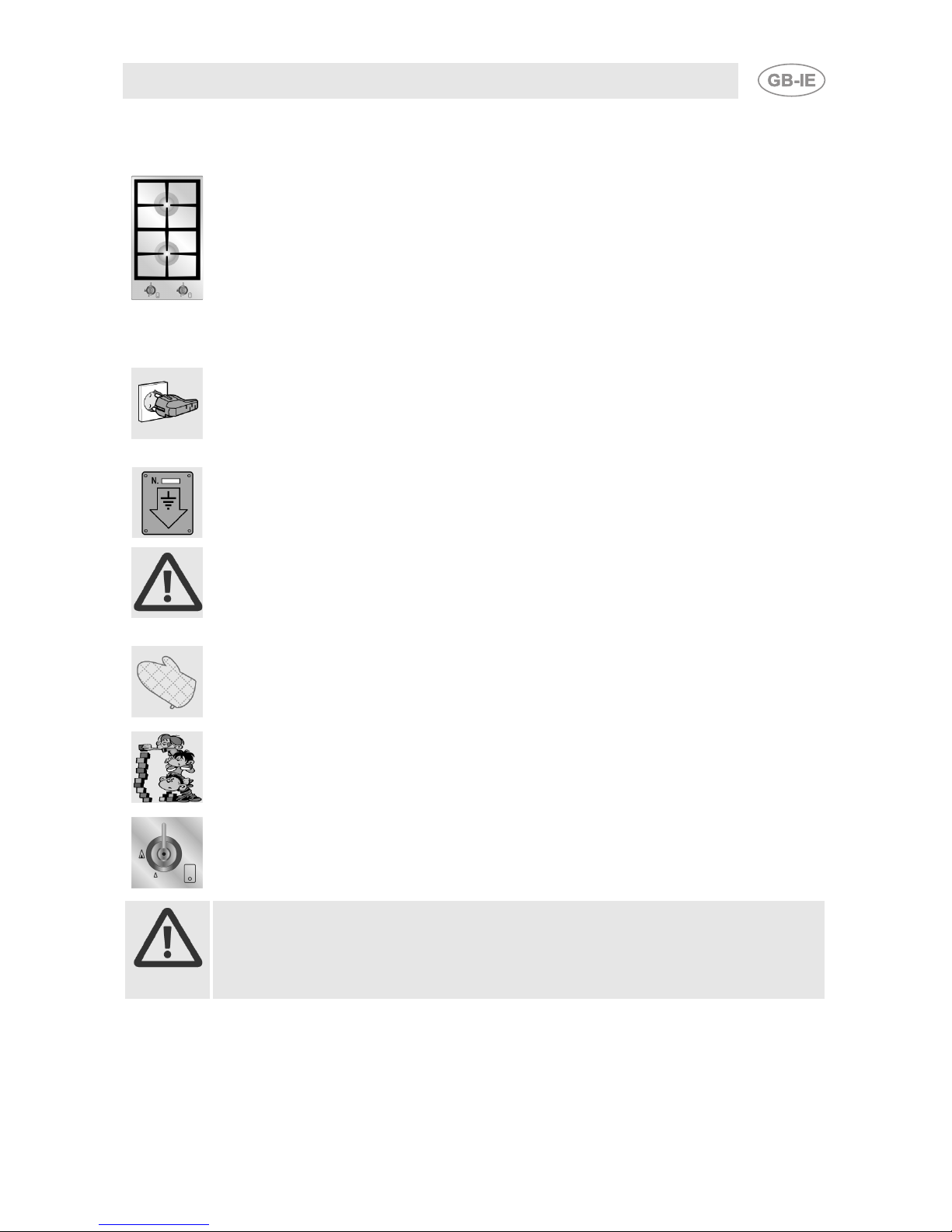

Safety instructions
3. SAFETY INSTRUCTIONS
REFER TO THE INSTALLATION INSTRUCTIONS FOR THE SAFETY
REGULATIONS FOR ELECTRIC OR GAS APPLIANCES AND VENTILATION
FUNCTIONS.
IN YOUR INTERESTS AND FOR YOUR SAFETY IT HAS BEEN ESTABLISHED
BY LAW THAT THE INSTALLATION AND SERVICING OF ALL ELECTRICAL
APPLIANCES IS TO BE CARRIED OUT BY QUALIFIED PERSONNEL IN
ACCORDANCE WITH THE REGULATIONS IN FORCE.
OUR REGULAR INSTALLERS GUARANTEE A SATISFACTORY JOB.
GAS OR ELECTRIC APPLIANCES MUST ALWAYS BE DISCONNECTED BY
SUITABLY SKILLED PEOPLE.
THE PLUG TO BE CONNECTED TO THE POWER CORD AND ITS SOCKET
MUST BE OF THE SAME TYPE AND CONFORM TO THE REGULATIONS IN
FORCE.
THE SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE IS BUILT IN.
NEVER UNPLUG BY PULLING ON THE CABLE.
IT IS OBLIGATORY FOR ALL ELECTRICAL SYSTEMS TO BE GROUNDED
ACCORDING TO THE METHODS REQUIRED BY SAFETY RULES.
IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF INSPECTION TEST,
FOLLOWING THE INSTRUCTIONS BELOW. SHOULD THE APPLIANCE NOT
FUNCTION, DISCONNECT IT FROM THE ELECTRICITY SUPPLY AND CALL
THE NEAREST TECHNICAL ASSISTANCE CENTRE.
NEVER ATTEMPT TO REPAIR THE APPLIANCE.
THE APPLIANCE BECOMES VERY HOT DURING USE. SUITABLE HEAT-PROOF
GLOVES SHOULD BE WORN FOR ALL OPERATIONS.
THE APPLIANCE IS DESIGNED FOR USE BY ADULTS. KEEP CHILDREN AT A
SAFE DISTANCE AND NEVER ALLOW THEM TO PLAY WITH IT.
ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE 0 (OFF) POSITION
WHEN YOU FINISH USING THE APPLIANCE.
The manufacturer declines all responsibility for damage to persons or
things caused by the non-observance of the above prescriptions or
deriving from tampering with any part of the appliance or by the use of
non-original spares.

26
Instructions for the user

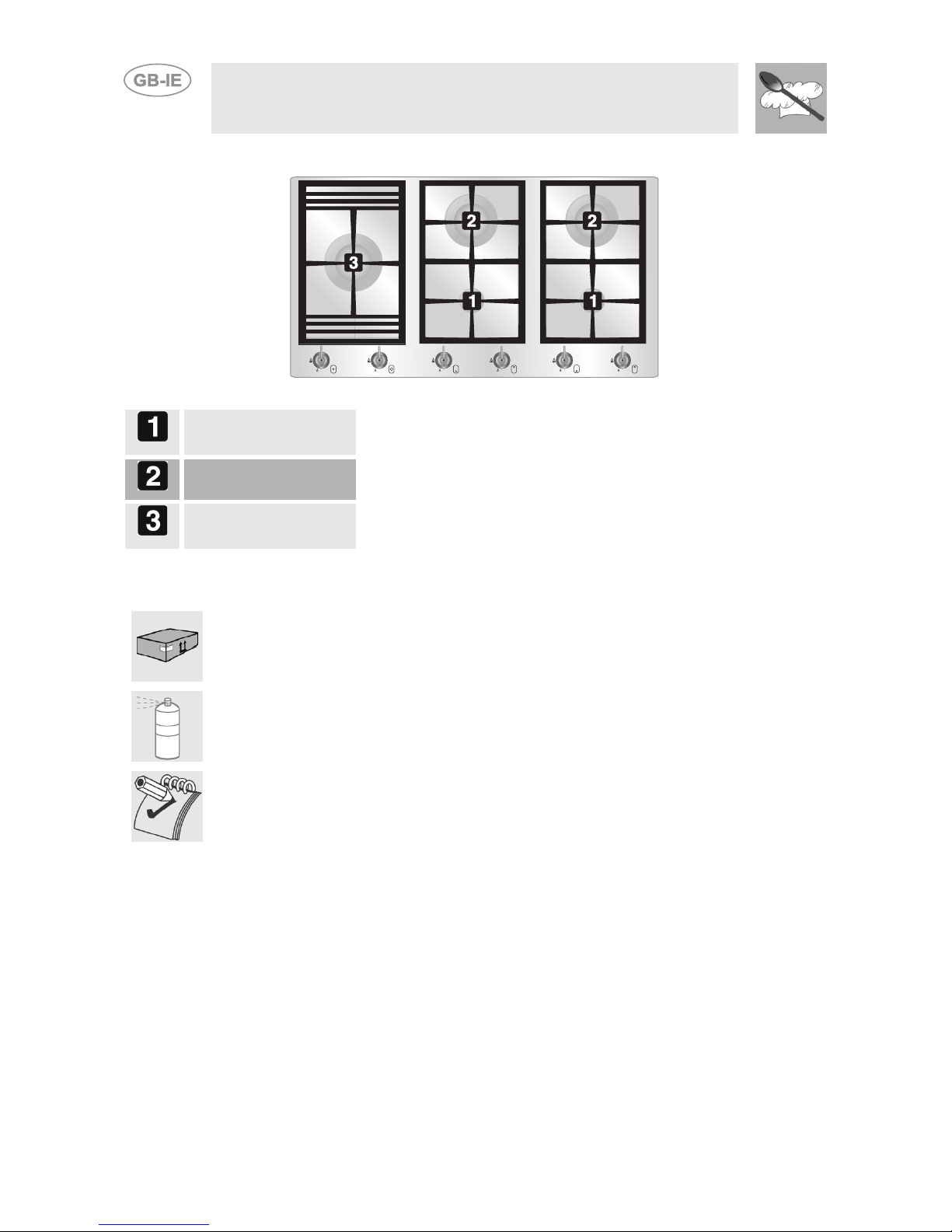

4. KNOW YOUR APPLIANCE
5. BEFORE INSTALLATION
Auxiliary Burner
(AUX)
Rapid Burner (R)
Ultra-rapid Burner
(URP)
Do not discard packing in the home environment. Separate the various
waste materials and take them to the nearest special garbage collection
centre.
In order to remove all manufacturing residues, it is recommended to clean
the appliance. For further information on cleaning see point "7.
CLEANING AND MAINTENANCE".
Before using the electric plates or the barbecue (if included) for the first
time, pre-heat them to the maximum temperature long enough to burn off
any manufacturing oily residues which could give the food a bad taste.

27
Instructions for the user

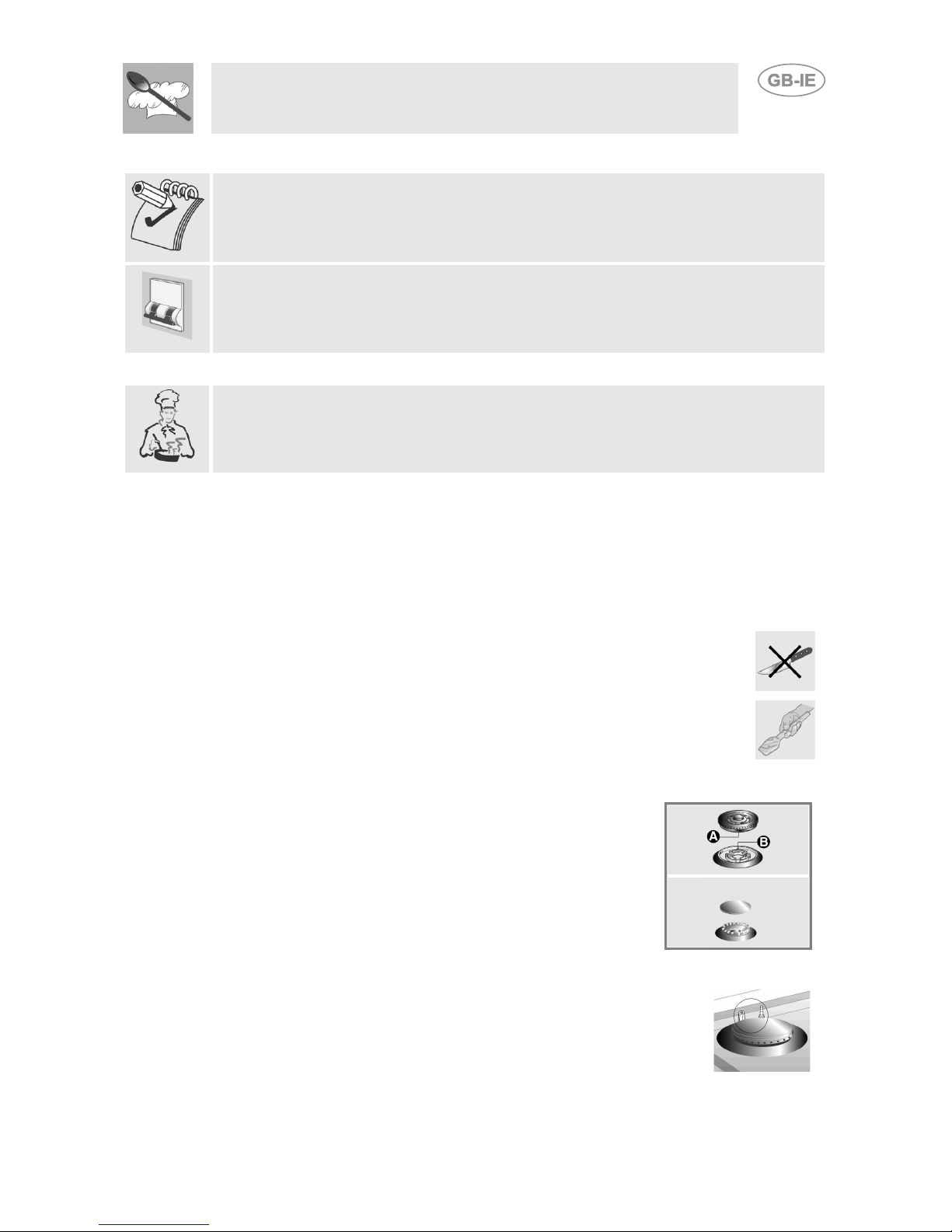

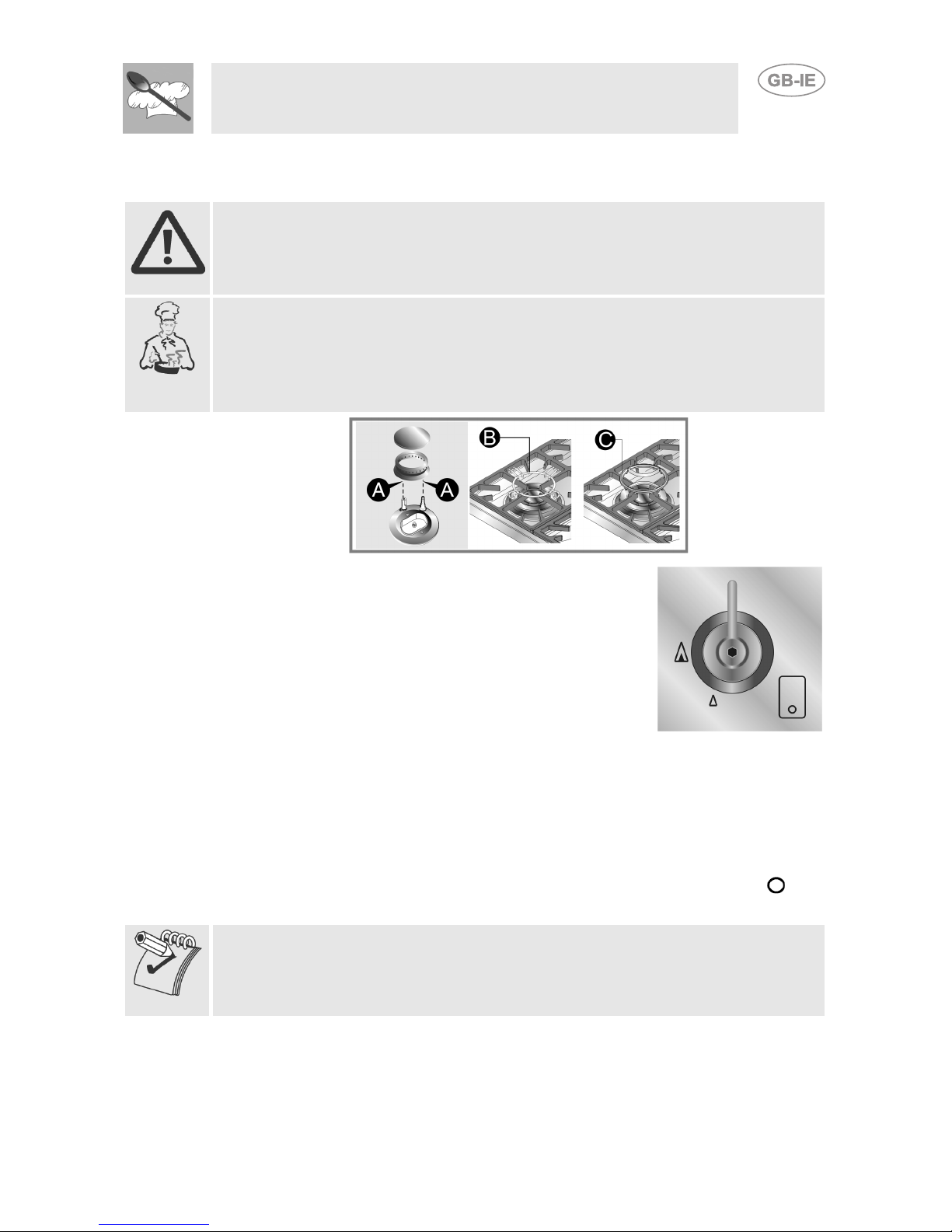

6. USING THE HOB
6.1 Gas hob
Before lighting the hob burners, check that the flame-spreader crowns are
correctly in place with their respective burner caps, making sure that the
holes A in the flame-spreaders are aligned with the plugs and
thermocouples.
The grid B is for use with woks. To prevent damage to the cooker hob, it
comes complete with a raised pan stand C. This must be placed under
pans with a diameter bigger than those indicated in the table in point "6.3
Pan diameters". The pan stand C must never be used on the ultra-
rapid burner.
The burner controlled by each knob is shown next to
the knob. The appliance is equipped with an
electrical ignition device. Simply press the knob and
turn it anti-clockwise to the maximum flame symbol,
until the burner lights. If it does not light in the first 15
seconds, position the knob on 0 and wait at least 60
seconds before trying to light it again.
On valved models, once the burner is lit, keep the knob pressed for a few
seconds to give the thermocouple time to heat up. The burner may go out
when the knob is released: in this case, the thermocouple has not heated
up sufficiently. Wait a few moments and repeat the operation keeping the
knob pressed for a longer time. This is not necessary on burners that are
not equipped with thermocouple. Once the burner is lit, the flame can be
adjusted as needed. Always check that the control knobs are in the (off)
position when you finish using the hob.
If the burners should go out accidentally, after about 20 seconds a safety
device will be tripped, cutting off the gas supply, even if the gas tap is
open. In this case, turn the knob to the OFF position and wait at least 60
seconds before trying to light the burner again.

28
Instructions for the user
6.2 Practical tips for using the burners
For better burner efficiency and to minimise gas consumption, use pans
with a flat, smooth base and a lid that have a suitable size for the burner,
thus avoiding that the flames reach the sides of the pan (see point "6.3
Pan diameters"). Once the contents come to the boil, turn down the flame
far enough to prevent the liquid from boiling over.
To prevent burns or damage to the hob during cooking, all pans or griddle
plates must be placed inside the perimeter of the hob.
Take the greatest care when using fats or oils since they may catch fire if
overheated.
6.3 Pan diameters
BURNERS
1 Auxiliary
2 Rapid
3 Ultra-rapid
MIN. AND MAX. Ø (IN CM)
12 - 16
18 - 26
20 - 31
The following are the diameters of the pans that can be used with the
raised pan stand:
BURNERS
1 Auxiliary
2 Rapid
MIN. AND MAX. Ø (IN CM)
16 - 24
26 - 28
If you have the Tepanyaki plate (optional extra) never use it on the ultra-
rapid burner for any reason.
Warning:
At the end of cooking using pans with aluminium bases you may find white
residues on the cast iron pan stands. These residues are usually caused
by the pan base rubbing against the pan stand and are difficult to remove
with normal cleaning. Using abrasive or excessively aggressive products
to clean the pan stand could damage its enamel surface.

29
Instructions for the user
7. CLEANING AND MAINTENANCE
NEVER USE A JET OF STEAM FOR CLEANING THE APPLIANCE.
Before performing any operations requiring access to powered
parts, switch off the power supply to the appliance.
7.1 Cleaning stainless steel
To keep stainless steel in good condition it should be cleaned regularly
after use. Let it cool first.
7.1.1 Ordinary daily cleaning
To clean and preserve the stainless steel surfaces, use only specific
products that do not contain abrasives or chlorine-based acids.
How to use: pour the product onto a damp cloth and wipe the surface,
rinse thoroughly and dry with a soft cloth or deerskin.
7.1.2 Food stains or residues
Do not use metallic sponges or sharp scrapers: they will
damage the surface. Use ordinary non-abrasive products for
cleaning steel, with the aid of wooden or plastic utensils if
necessary. Rinse thoroughly and dry with a soft cloth or
deerskin.
7.2 Cleaning the gas components
For easier cleaning the pan stands, burner caps,
flame spreader crowns and burners can all be
removed; wash them with warm water and a non-
abrasive detergent making sure to remove any
encrustation and wait until they are perfectly dry.
Replace the burner caps on their corresponding
crowns, making sure that the slots A are centred
with the burner pins B.
For correct operation the igniters and thermocouples must
always be perfectly clean. Check them frequently and clean
them with a damp cloth if necessary. Remove any dry
residues with a wooden toothpick or a needle.

30
Instructions for the installer

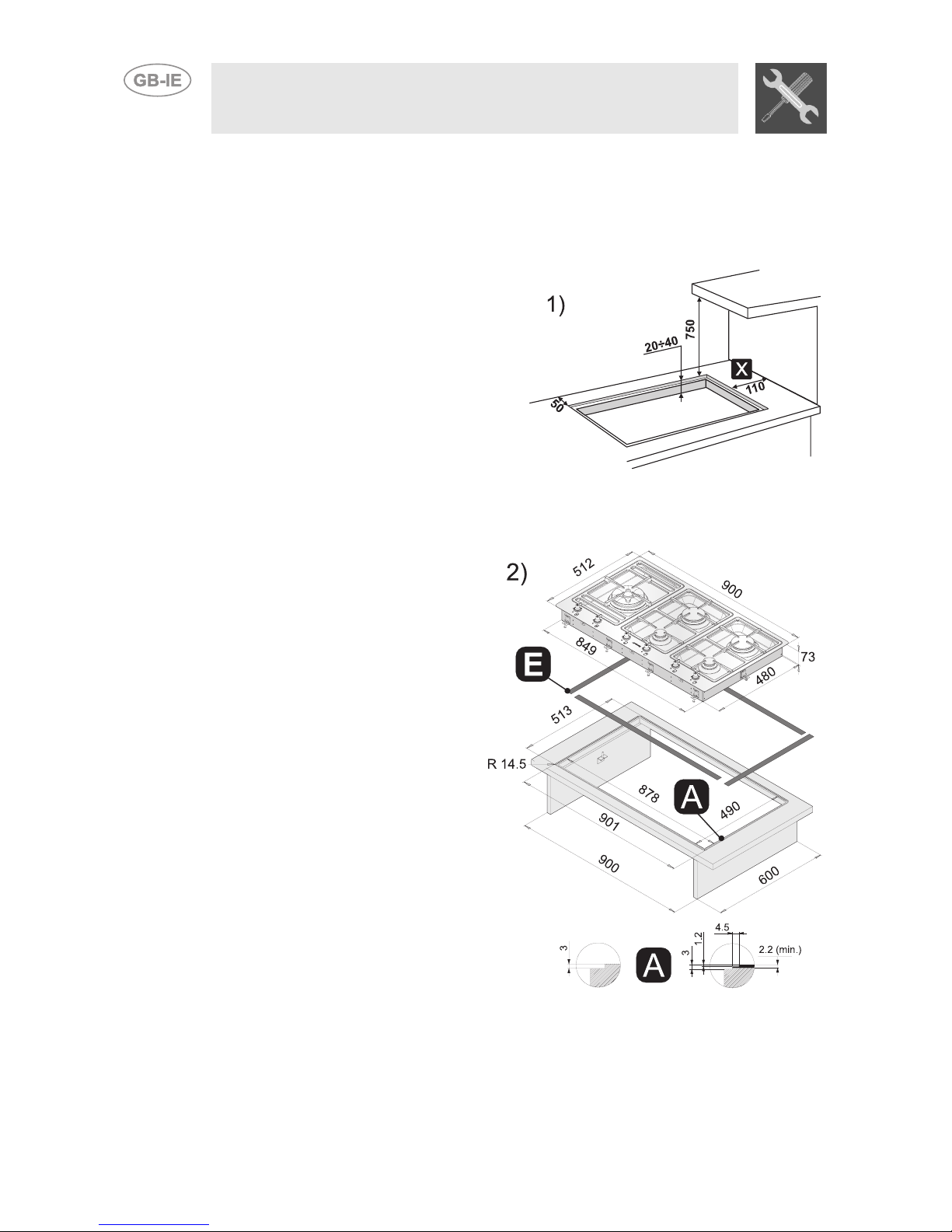

8. INSTALLING THE APPLIANCE
8.1 Positioning in the counter top
This is a class 3 appliance.
The following operation requires building and/or carpentry work, therefore
it must be carried out by a skilled technician.
Installation can be carried out on various materials such as masonry,
metal, solid wood or plastic laminated wood as long as they are heat
resistant (T 90°C).

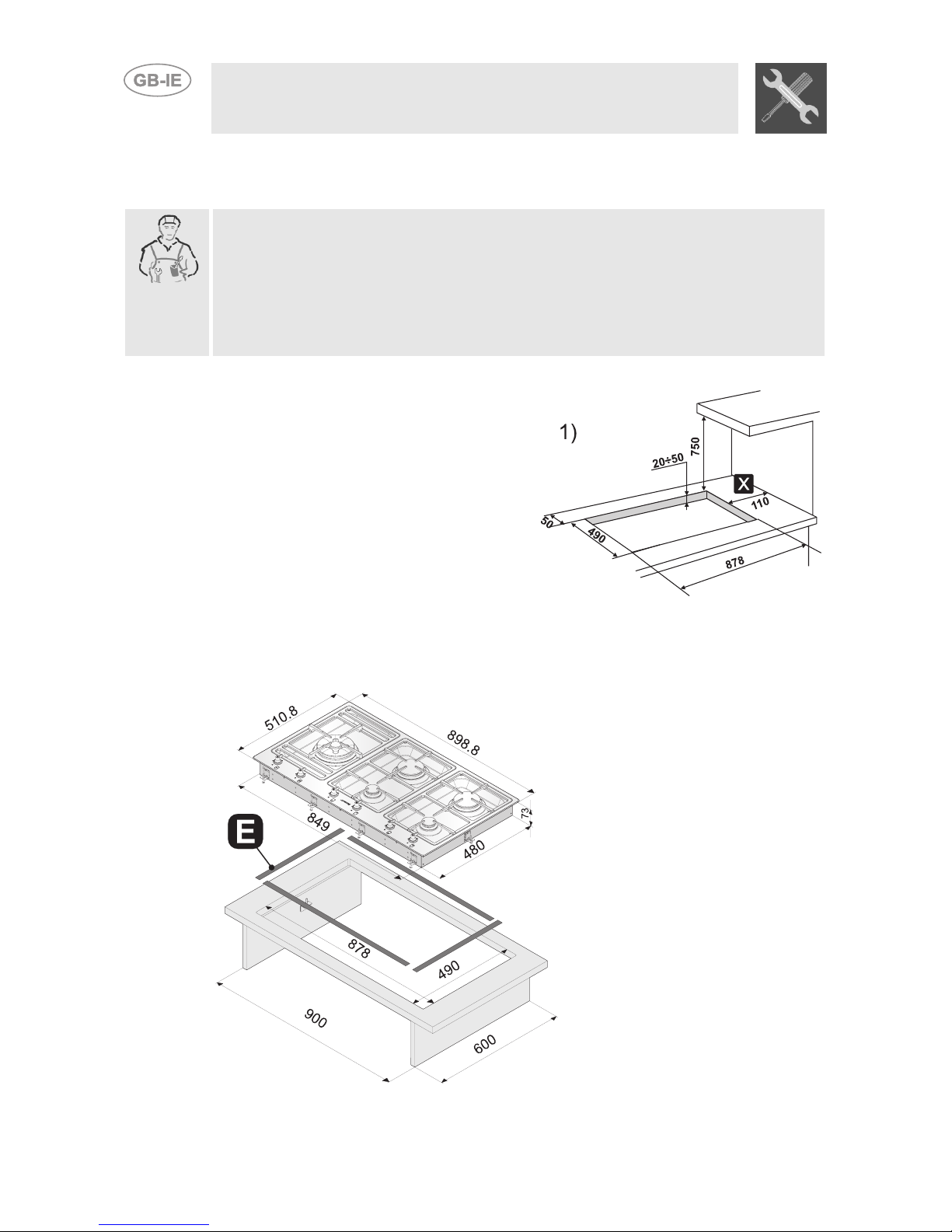

8.1.1 Fixing to the supporting structure
Create an opening in the counter top
with the dimensions shown in the
figure, keeping a minimum distance of
50 mm from the rear edge. This
appliance can be mounted against
walls higher than the work surface on
condition that a distance of "X" be
kept between the appliance and the
wall as shown in the figure so as to
avoid damage from overheating.
Make sure that there is a minimum of 750 mm (Fig1) between the hob and
any shelf that may be installed directly above it.
Carefully position the supplied
insulating seal (E) on the outer
perimeter of the hole made in
the counter top, trying to make
it stick on the entire surface by
applying light pressure on it
with your hands. Once the hob
is fixed in position remove
excess material using a cutter.

31
Instructions for the installer

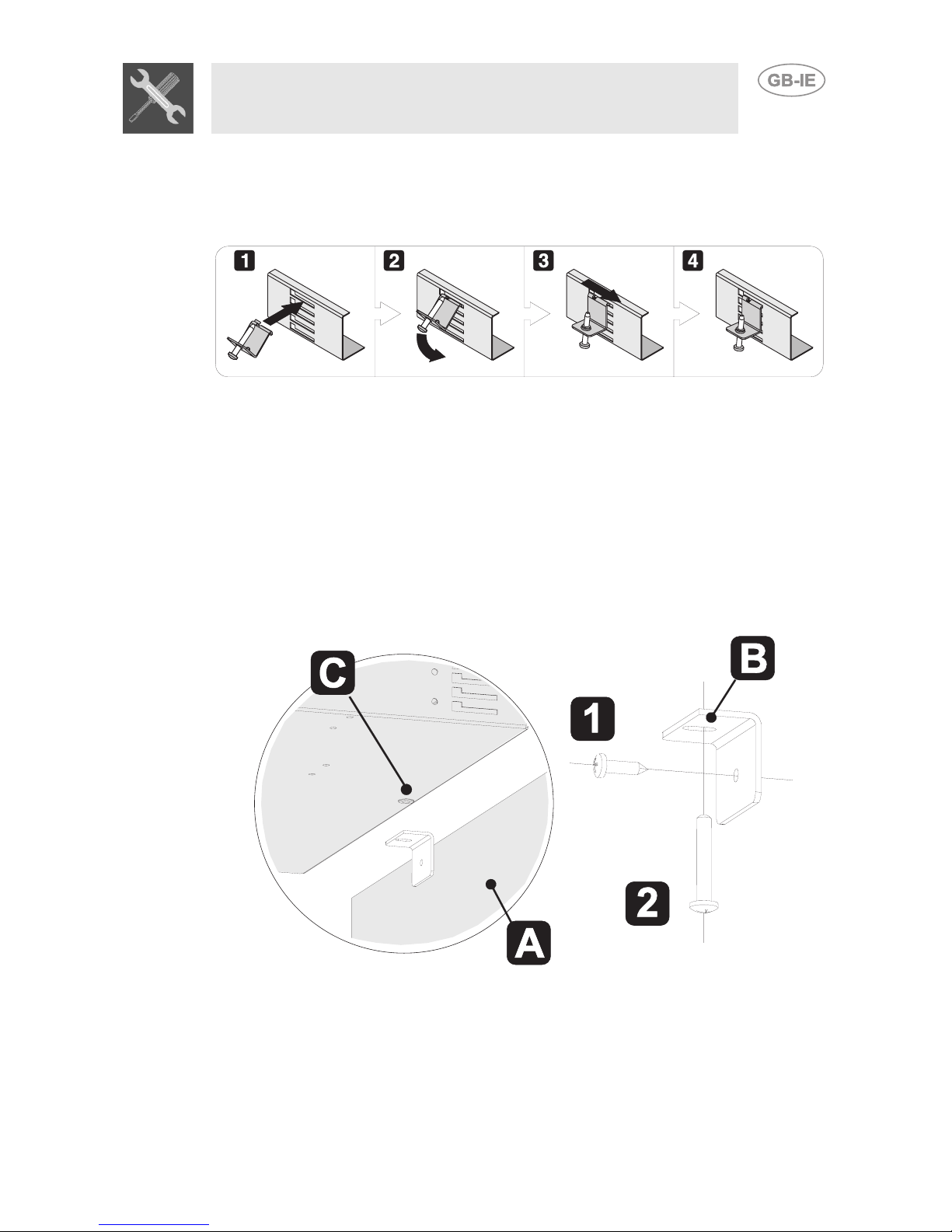

To fix the hob solidly to the counter top use the 10 supplied brackets,
tightening their screws to lock the product firmly in position. The following
figures show how to attach these brackets to the lower casing of the
product.
This appliance can also be installed in a 90 cm base. To fit the brackets
the hob must be inserted into the opening made in the counter top, with
the edge resting on the actual top. To bracket the hob laterally, just fix the
two “L” brackets to the sides of the unit (A) using the supplied screws (1)
making sure to align the slot (B) on the bracket with the rivet (C) on the
bottom of the product. Stabilise the fixing of the hob by tightening the
screw (2) in the rivet (C).
Complete the bracketing of the front and rear part of the hob as described
in the previous point.
