Smeg SNL34AX1 User manual

Contents
23
1INSTRUCTIONS FOR SAFE AND PROPER USE ____________________ 24
2POSITIONING OF THE HOB ____________________________________ 26
3ELECTRICAL CONNECTION ____________________________________ 28
4GAS CONNECTION ___________________________________________ 29
5ADAPTATION TO DIFFERENT TYPES OF GAS _____________________ 31
6FINAL OPERATIONS __________________________________________ 35
7USING THE HOB______________________________________________ 38
8CLEANING AND MAINTENANCE_________________________________ 41
THESE INSTRUCTIONS ARE VALID ONLY FOR END USER COUNTRIES
WHOSE IDENTIFICATION SYMBOLS APPEAR ON THE COVER OF THIS
MANUAL.
INSTRUCTIONS FOR THE INSTALLER: these are for the qualified
technician who must carry out a suitable check of the gas system,
install the appliance, set it functioning and carry out an inspection test.
INSTRUCTIONS FOR THE USER: these contain user advice,
description of the commands and the correct procedures for cleaning
and maintenance of the appliance.

Introduction
24
1INSTRUCTIONS FOR SAFE AND PROPER USE
THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND
THEREFORE MUST BE KEPT IN ITS ENTIRETY AND IN AN
ACCESSIBLE PLACE FOR THE WHOLE WORKING LIFE OF THE
COOKING HOB. WE ADVISE READING THIS MANUAL AND ALL THE
INSTRUCTIONS THEREIN BEFORE USING THE COOKING HOB.
ALSO KEEP THE SERIES OF NOZZLES SUPPLIED. INSTALLATION
MUST BE CARRIED OUT BY QUALIFIED PERSONNEL IN
ACCORDANCE WITH THE REGULATIONS IN FORCE. THIS
APPLIANCE IS INTENDED FOR DOMESTIC USES AND CONFORMS
TO CURRENT REGULATIONS IN FORCE. THE APPLIANCE HAS
BEEN BUILT TO CARRY OUT THE FOLLOWING FUNCTIONS:
COOKING AND HEATING-UP OF FOOD. ALL OTHER USES ARE
CONSIDERED IMPROPER. THE MANUFACTURER DECLINES ALL
RESPONSIBILITY FOR IMPROPER USE.
DO NOT LEAVE THE PACKING IN THE HOME ENVIRONMENT.
SEPARATE THE VARIOUS WASTE MATERIALS AND TAKE THEM TO
THE NEAREST SPECIAL GARBAGE COLLECTION CENTRE.
IT IS OBLIGATORY FOR THE ELECTRICAL SYSTEM TO BE
GROUNDED ACCORDING TO THE METHODS REQUIRED BY
SAFETY RULES.
THE PLUG TO BE CONNECTED TO THE POWER CABLE AND THE
SOCKET MUST BE THE SAME TYPE AND MUST CONFORM TO
CURRENT REGULATIONS.
NEVER UNPLUG BY PULLING ON THE CABLE.
IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF
INSPECTION TEST OF THE COOKING HOB, FOLLOWING THE
INSTRUCTIONS BELOW. SHOULD THE APPLIANCE NOT FUNCTION,
DISCONNECT IT FROM THE SUPPLY AND CALL THE NEAREST
TECHNICAL ASSISTANCE CENTRE.
NEVER ATTEMPT TO REPAIR THE APPLIANCE.
ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE
POSITION "ZERO" (OFF) WHEN YOU FINISH USING THE HOB.

Introduction
25
THE IDENTIFICATION PLATE, WITH TECHNICAL DATA, SERIAL
NUMBER AND MARKING IS CLEARLY VISIBLE UNDER THE CASING.
THE PLATE ON THE CASING MUST NOT BE REMOVED.
BEFORE CONNECTING THE DEVICE, MAKE SURE THAT IT HAS
BEEN REGULATED FOR THE TYPE OF GAS THAT WILL FEED IT,
CHECKING THE LABEL UNDER THE HOB.
DO NOT PUT PANS WITHOUT PERFECTLY SMOOTH AND FLAT
BOTTOMS ON THE COOKING HOB GRIDS.
DO NOT USE PANS OR GRIDDLE PLATES THAT EXTEND BEYOND
THE EXTERNAL PERIMETER OF THE HOB.
THE HOB IS TO BE USED BY ADULTS ONLY. DO NOT LET
UNSUPERVISED CHILDREN PLAY WITH THE HOB.
THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN
DIRECTIVE 2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC
EQUIPMENT (WEEE).
THIS GUIDELINE IS THE FRAME OF A EUROPEAN-WIDE VALIDITY
OF RETURN AND RECYCLING ON WASTE ELECTRICAL AND
ELECTRONIC EQUIPMENT.
The manufacturer declines all responsibility for damage to persons or
things caused by non-observance of the above prescriptions or by
interference with any part of the appliance or by the use of non-original
spares.

Instructions for the installer
26
2POSITIONING OF THE HOB
The following operation requires building and/or carpentry work so
must be carried out by a competent tradesman.
Installation can be carried out on various materials such as masonry,
metal, solid wood or plastic laminated wood as long as they are heat
resistant (T 90°C).
2.1 Attachment to support structure
Create an opening with the dimensions shown in the figure in the top
surface of the counter, keeping a minimum distance of 50 mm from the
rear border.
This appliance is classified as “type Y” in relation to fire hazards and
can therefore be mounted against walls higher than the work surface
on condition that a certain distance “X” be kept between the appliance
and the wall as shown in the figure so as to avoid damage from
overheating.
Make sure there is a minimum of 750 mm between the hot plate flames
and any shelf that may be installed directly above them.
Accurately position the gasket provided all around the outer edge of the
hole in the top surface as shown in the figures below, pressing it down
so as to make it adhere properly. For measurements, refer to the figure
depending on the hob model to be installed, bearing in mind that in
both models the front and rear sides must skim the hole. Secure the
hob to the counter with brackets Aor B(supplied). Carefully trim any
excess from border Cof the gasket. The distances in the following
drawing refer to the hole on the inner side of the gasket.

Instructions for the installer
27

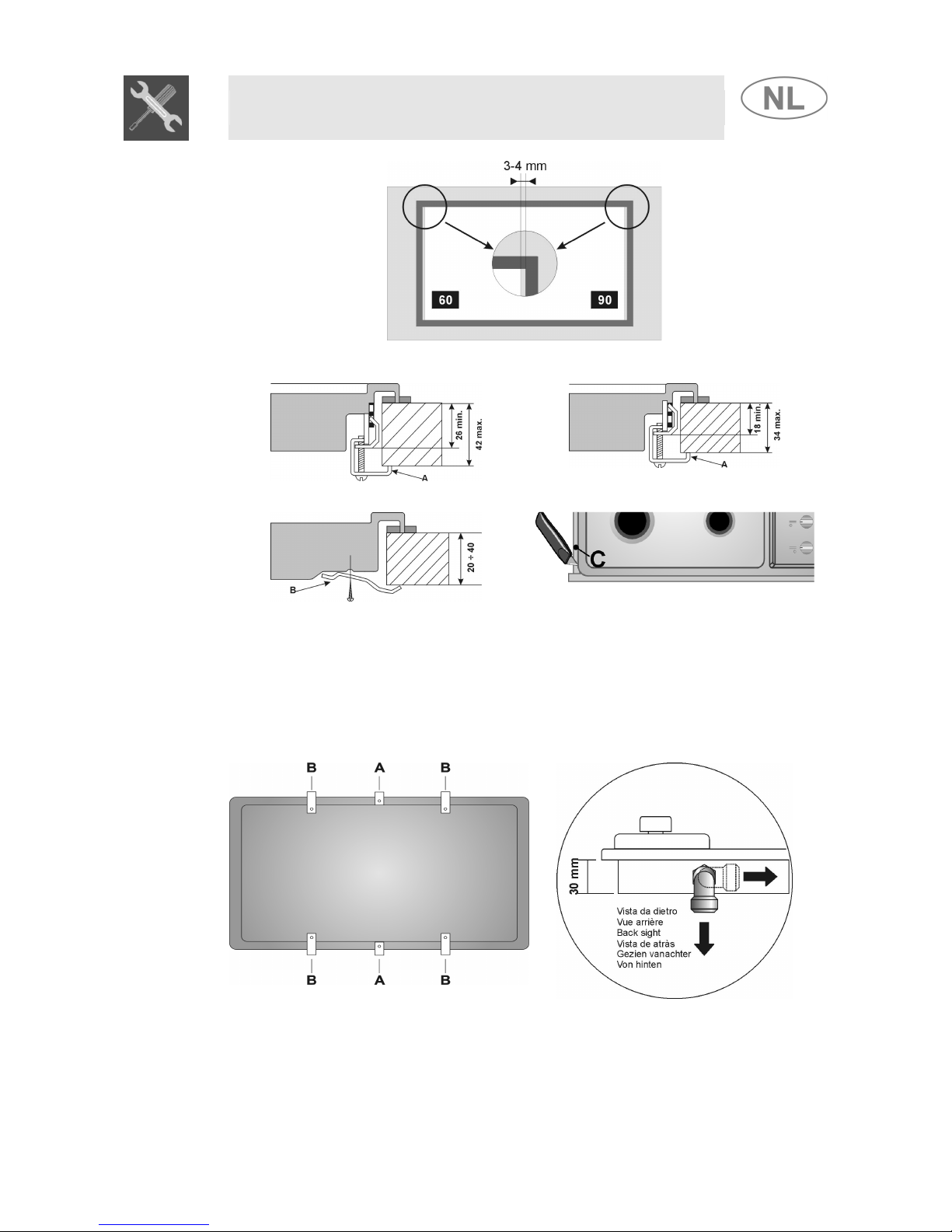

Bracket ‘A’ in the 1st slot
Bracket ‘A’ in the 2nd slot
Bracket ‘B’
2.2 Fixing 90 cm hobs on 60 cm base unit
If a 90 cm hob is to be bracketed to a 60 cm base unit, 2 central
brackets “A” have to be used in addition to the side brackets “B” as
shown in the drawing below. The gas connection also has to be turned
through 90° in relation to the original position(see paragraph 4 GAS
CONNECTION).

Instructions for the installer
28

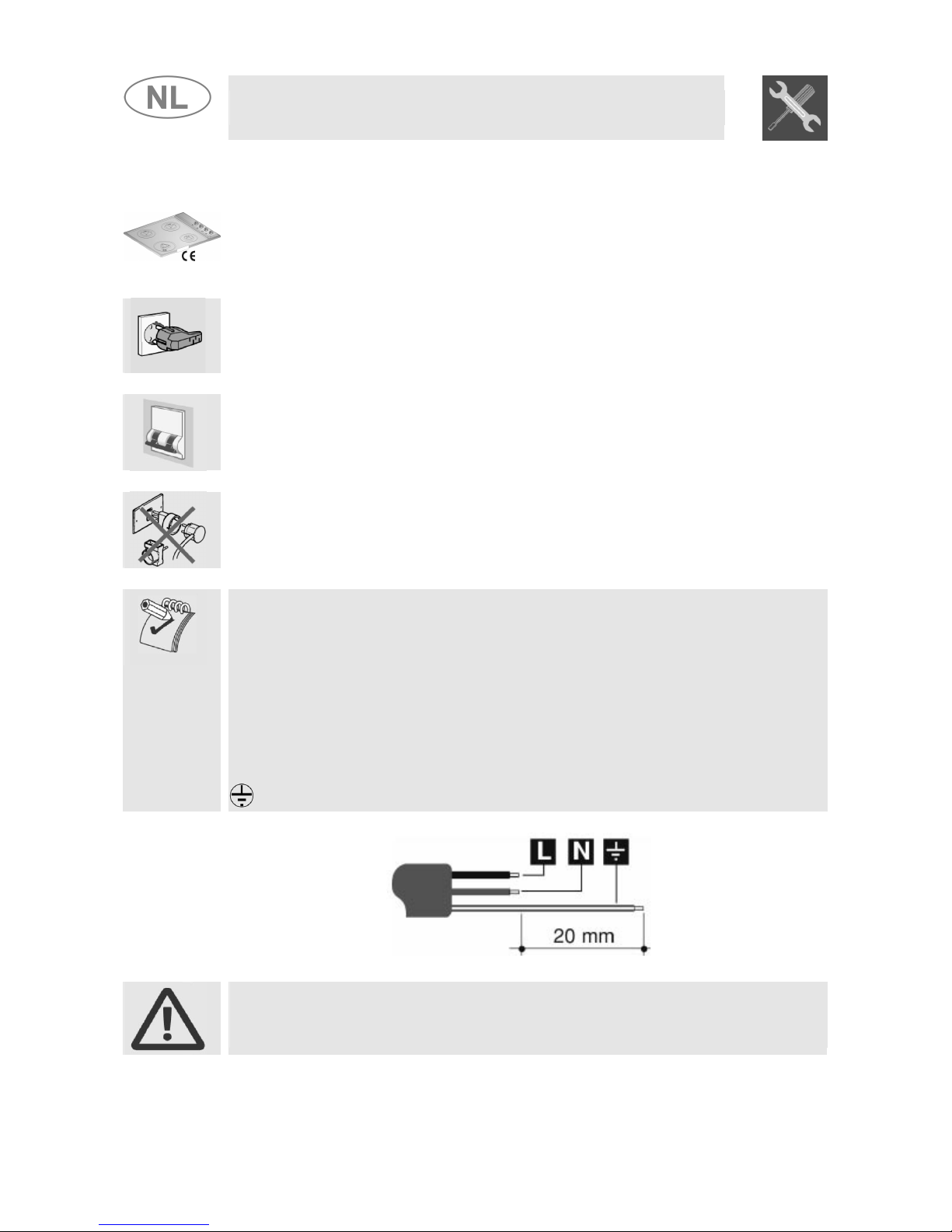

3ELECTRICAL CONNECTION
Make sure that the voltage and capacity of the power line conform to
the data shown on the plate located under the casing. Do not remove
this plate for any reason.
The plug on the end of the supply cable and the wall socket must be
the same type and conform to the current electrical system regulations.
Check that the power line is adequately grounded.
On the power line, install an omnipolar cut-off device with contact cut-
off distance greater than or equal to 3 mm, located in an easily
accessible position near the unit.
Do not use reducers, adapters or shunts.
If the power cable is replaced, the wire section on the new cable must
not be less than 1 mm 2 (3 x 1 cable), keeping in mind that the end to
be connected to the hob must have the ground wire (yellow-green)
longer by at least 20 mm. Use only H05V2V2-F cable or similar which
has a maximum temperature of 90°C. Any replacement needed should
be carried out by a specialised technician who should make the mains
connections according to the following diagram.
L= brown
N= blue
= yellow-green
The manufacturer will not be liable for any damage to persons or
property caused by non-observance of the above instructions or
deriving from the tampering of even a single part of the hob.

Instructions for the installer
29
4GAS CONNECTION
Connection to the gas mains may be made with a rigid copper pipe or
with a flexible pipe and conforming to the provisions defined by
standard regulations in force.
To facilitate connection, fitting Aon the rear of the appliance may be
adjusted laterally. For this purpose, loosen hexagon nut B, turn fitting A
to the desired position, and retighten hexagon nut B(tightness is
ensured by a biconical brass ring). Use a soapy solution to check for
proper tightness. Never use a free flame. The hob has been inspected
for G25 (2L3B/P) natural gas at a pressure of 25 mbar. For use with
other types of gases, see Section “ ADAPTATION TO DIFFERENT
TYPES OF GAS”. The gas intake fitting is ½” gas external threaded
(ISO 228-1).
Connection with rigid copper pipe: the
connection to the gas mains must not
provoke stress of any kind on the hob.
Connection may be made by using biconical
adapter Dwith insertion of gasket C
(supplied).
Connection with flexible pipe: use only
flexible pipes conforming to standard
regulations in force, inserting gasket C
(supplied) between fitting Aand flexible pipe
E.
The flexible pipe has to be installed so that pipe length does not
exceed 1.5 meters of maximum extension. Make sure that the pipes do
not touch any moving parts or become damaged.

Instructions for the installer
30
4.1 Connection to LPG
Use a pressure regulator and make the connection to the tank
according to the provisions of standards regulations in force. Make sure
that feed pressure conforms to the levels shown in the table in
paragraph “5.3 Regulation for LPG”.
4.2 Ventilation of rooms
The hob may be installed only in rooms with permanent ventilation, as
required by standards regulations in force. The room in which the hob
is installed must have sufficient air flow to satisfy the requirements of
normal gas combustion and of necessary air exchange in the room.
The air intakes, protected by screens, must be appropriately sized
(regulations in force) and placed so as not to be blocked in any way.
The room where the oven is installed should be suitably ventilated to
avoid overheating or excess humidity produced by cooking, and in the
case of lengthy use a window should be opened or the speed of any
ventilators should be increased.
4.3 Discharge of combustion products
Discharge of combustion products must be guaranteed by means of
hoods connected to a natural draught flue with certain efficiency, or by
means of forced aspiration.
An efficient aspiration system requires careful planning by a specialist
capable of installing it, respecting the positions and distances
prescribed by standards. After installation, the installer must issue a
certificate of conformity.

Instructions for the installer
31
5ADAPTATION TO DIFFERENT TYPES OF GAS
Before performing any cleaning or maintenance work, disconnect the
appliance from the electrical socket.
The hob has been inspected for G25 (2L3B/P) natural gas at a
pressure of 25 mbar. For functioning with other types of gas the
nozzles must be replaced and the primary air adjusted.
To replace the nozzles and regulate the burners, you have to remove
the top as described in the following paragraph.

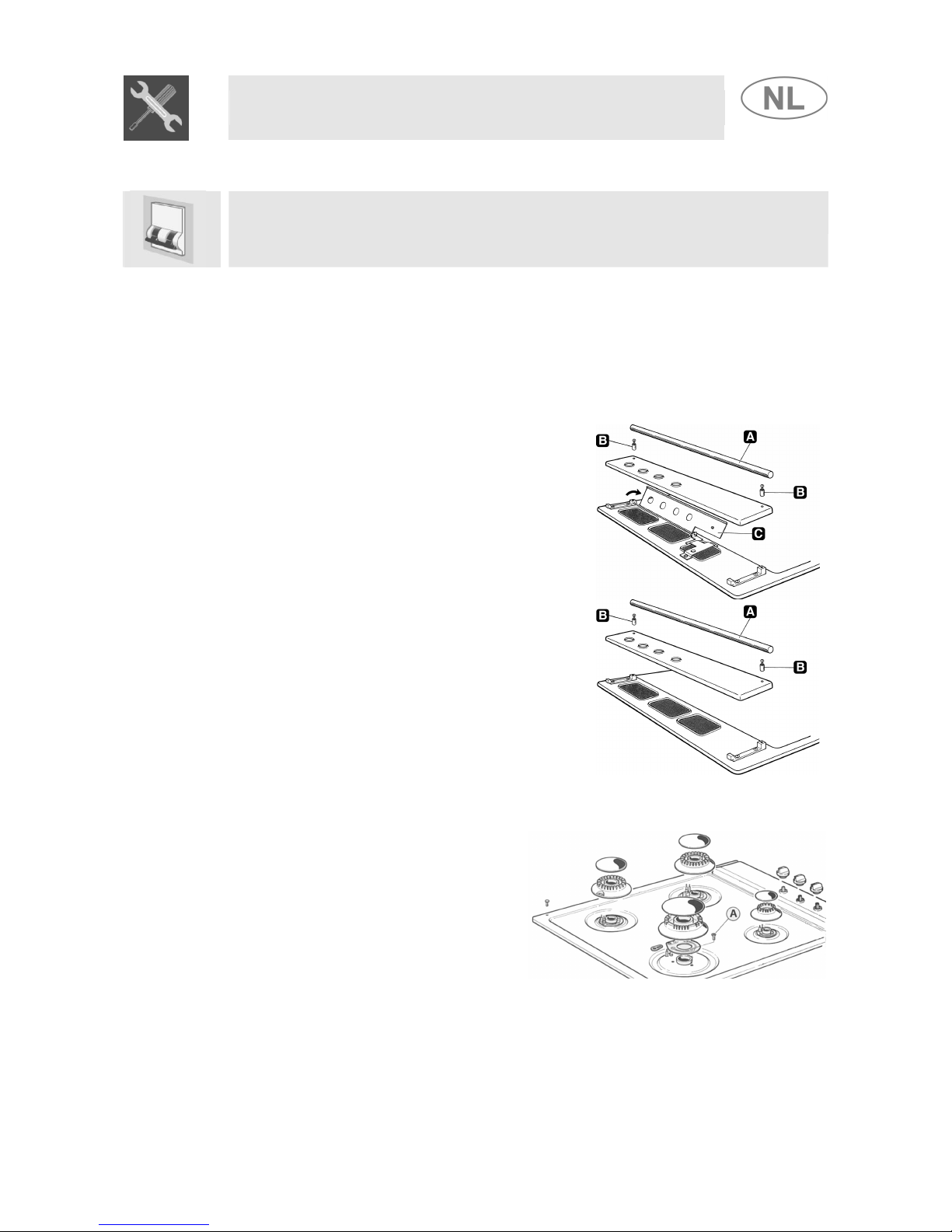

5.1 Removing the separable control panel (models with
separable control panel)
1. Remove the knobs and the knob
guard tube “A” by pulling them up;
2. Use a crosshead screwdriver to
remove the screws and the two
cylindrical supports “B”;
3. Raise the left-hand side of the
control panel slightly and shift it to
the right to remove it completely;
4. In models with electric hotplate, the
body of the pilot light has to be
removed to free the control panel;
5. Raise the ignition crosspiece “C”
and rest it on the other side.
5.2 Removing the hob (models with integrated control
panel)
1. Remove the knobs, the
griddles, the burner caps, the
flame caps and the two rear
plugs;
2. Remove the screws “A” which
fix the burner supports;
3. Raise the hob, sliding it off the
ignition plugs and/or the
thermocouples and the gas
tap rods;
4. Lift the ignition crosspiece and
rest it on the other side.

Instructions for the installer
32

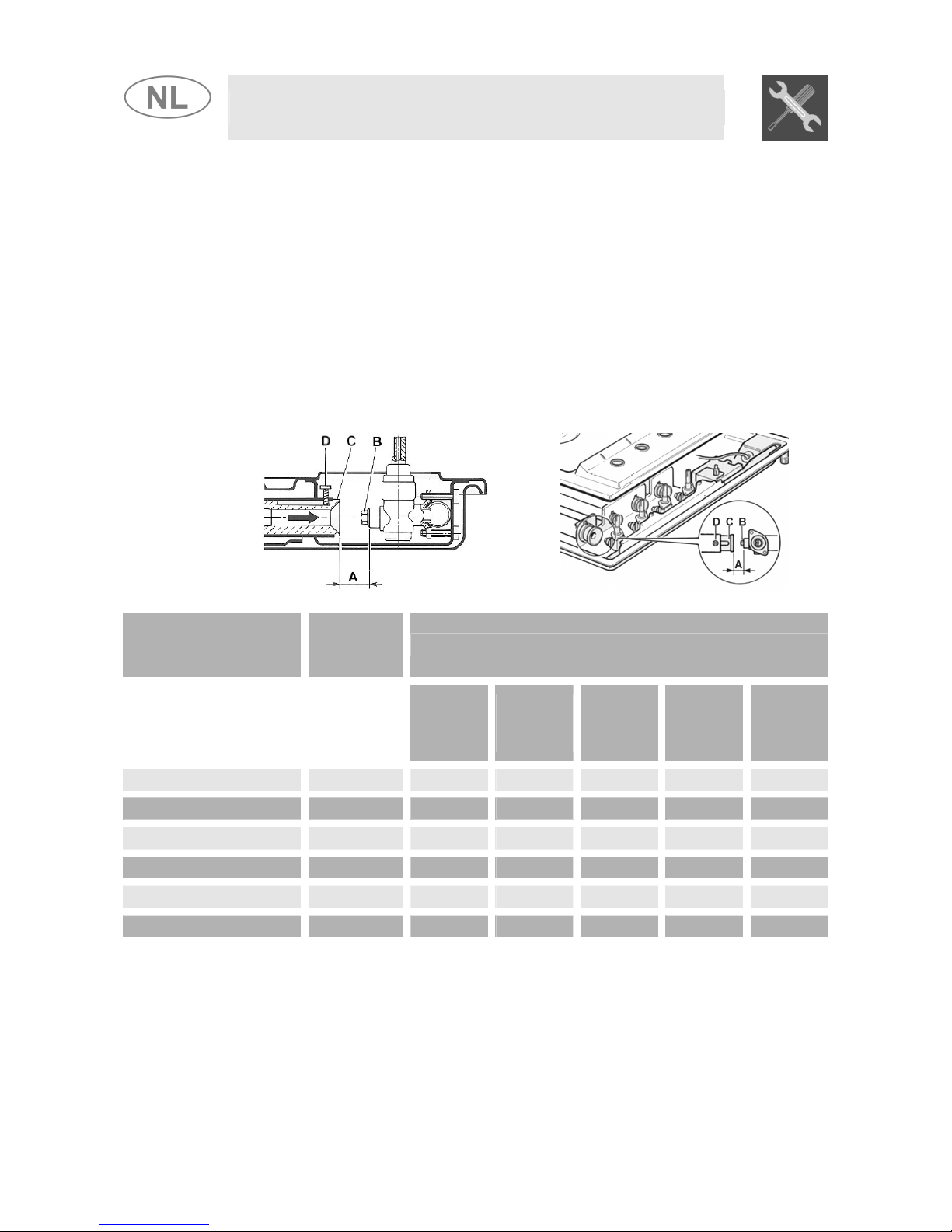

5.3 Regulation for LPG
Check that the connection has been made as described in the “Gas
connection” section.
Undo the screw “D” and push the air regulator “C” fully down. Use a
spanner to remove the nozzles “B” and fit those of suitable type
following the instructions given in the tables for bottled gas G30/G31 –
28/37 mbar. The nozzle must not be tightened to a torque of over 3

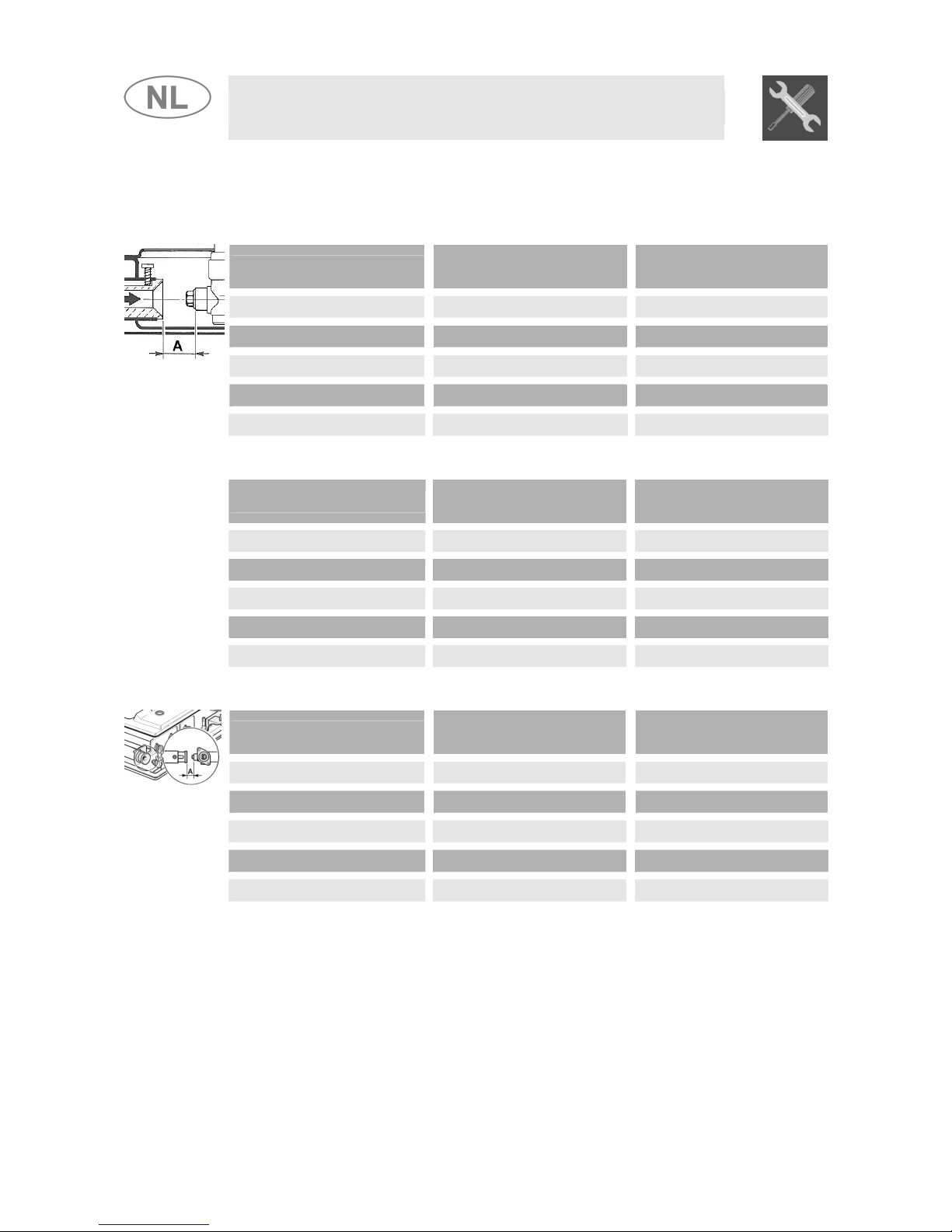

Nm. Regulate the air flow by moving the Venturi pipe “C”, until the gap
“A” is as shown in the table in point “5.5 Regulation of primary air” and
fix it with the screw “D”. After making the adjustments, restore the
seals with sealing wax or an equivalent material.
Burner
Rated
heating
capacity
LPG – G30/G31 28/37 mbar
Nozzle
Diameter
1/100
mm
By-pass
1/100
mm
Reduced
flowrate
(W)
Flowrate
g/h G30
Flowrate
g/h G31
Auxiliary 1.05 48 30 360 76 75
Semi-rapid 1.7 62 30 360 124 121
Rapid 2.55 76 40 650 185 182
Rapid large 3.1 85 45 800 225 222
Fish pan 2.9 82 50 950 211 207
Ultra rapid 4.0 95 65 1600 291 286
