Smeg SA62MFX5 User manual

Contents
3
1. INSTRUCTIONS FOR PROPER USE _____________________________________________________ 4
2. SAFETY INSTRUCTION _______________________________________________________________ 5
3. KNOW YOUR COOKER _______________________________________________________________ 6
4. BEFORE FIRST USE__________________________________________________________________ 6
5. ELECTRONIC PROGRAMMER__________________________________________________________ 7

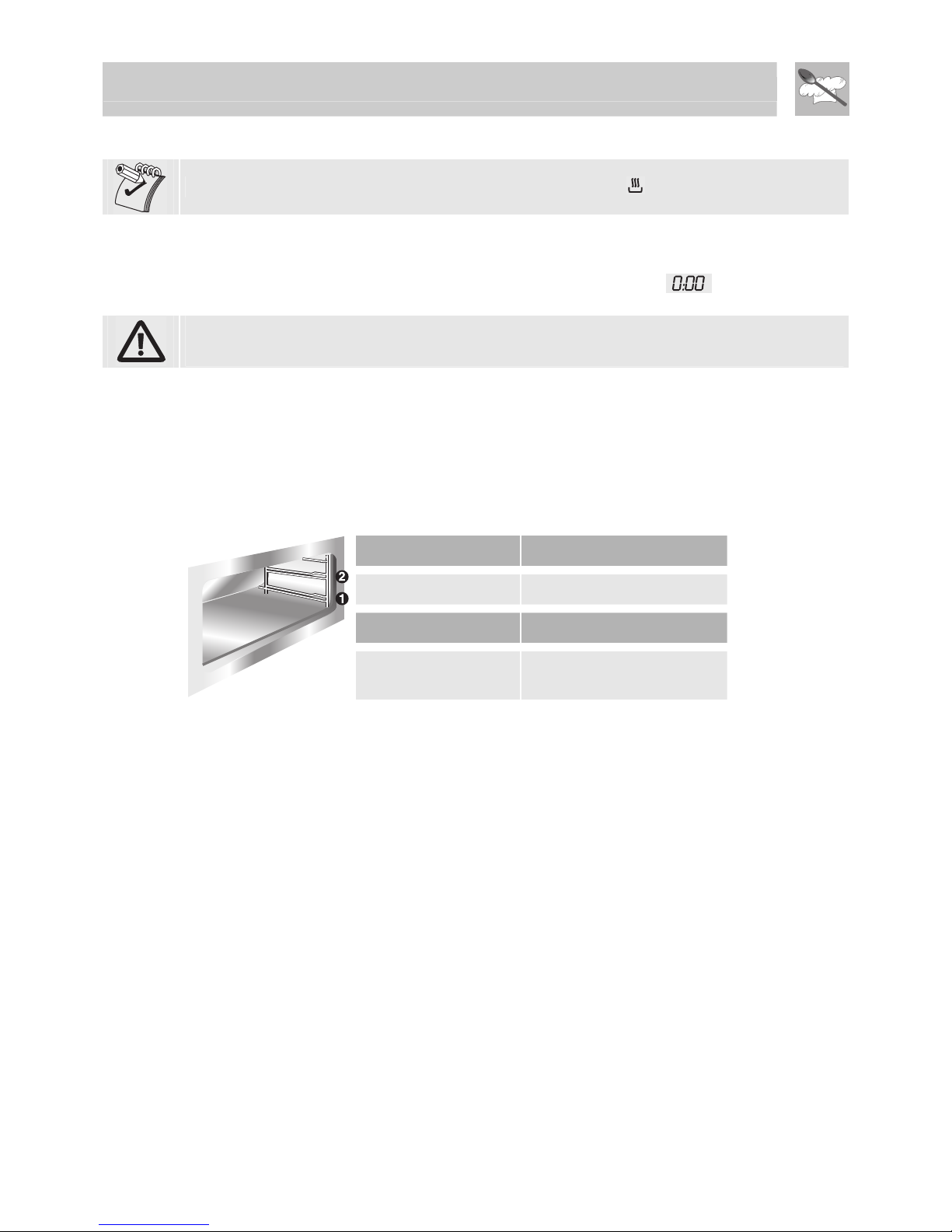

6. OVENS CAVITIES ____________________________________________________________________ 9
7. AVAILABLE ACCESSORIES____________________________________________________________ 9

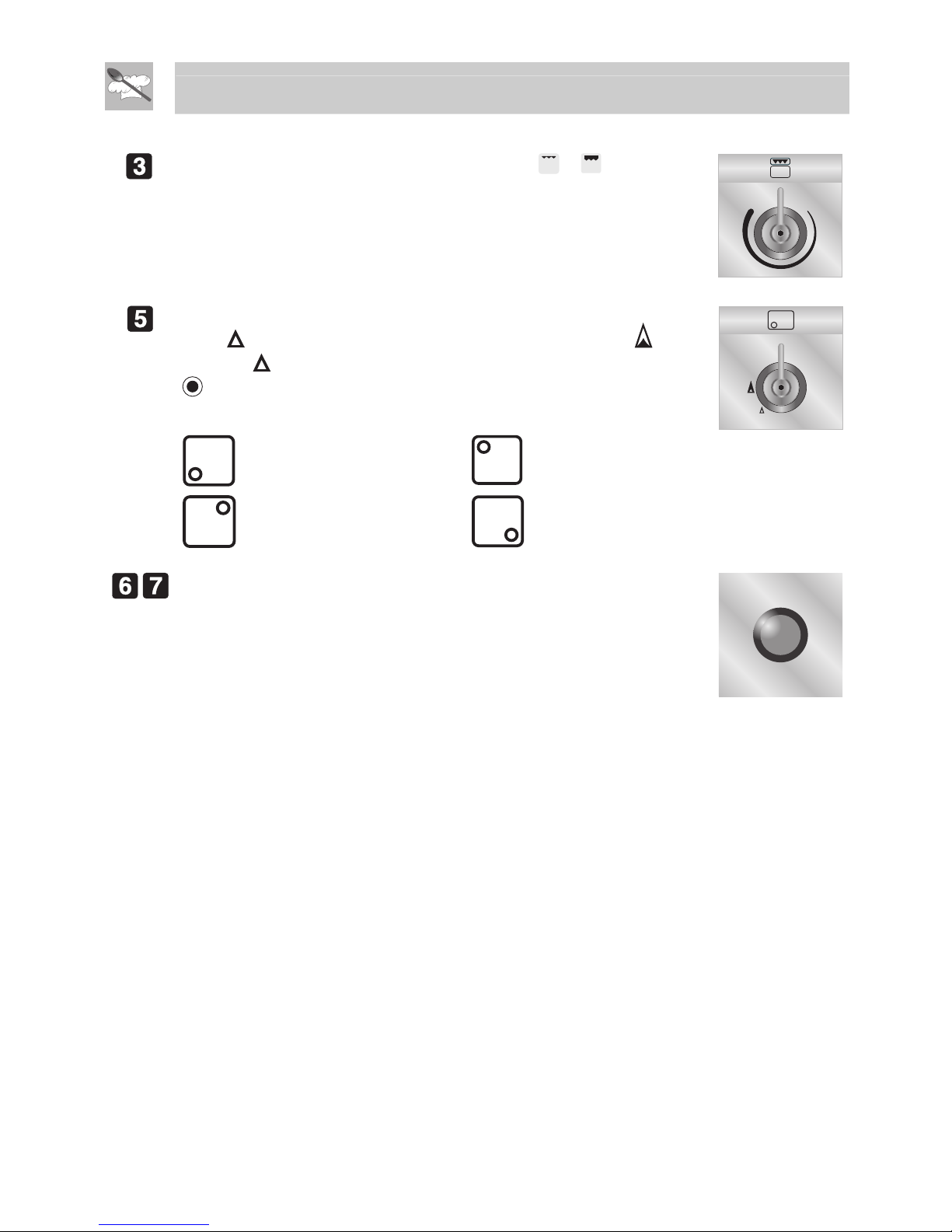

8. DESCRIPTION OF CONTROL ON THE FRONT CONTROL PANEL____________________________ 10

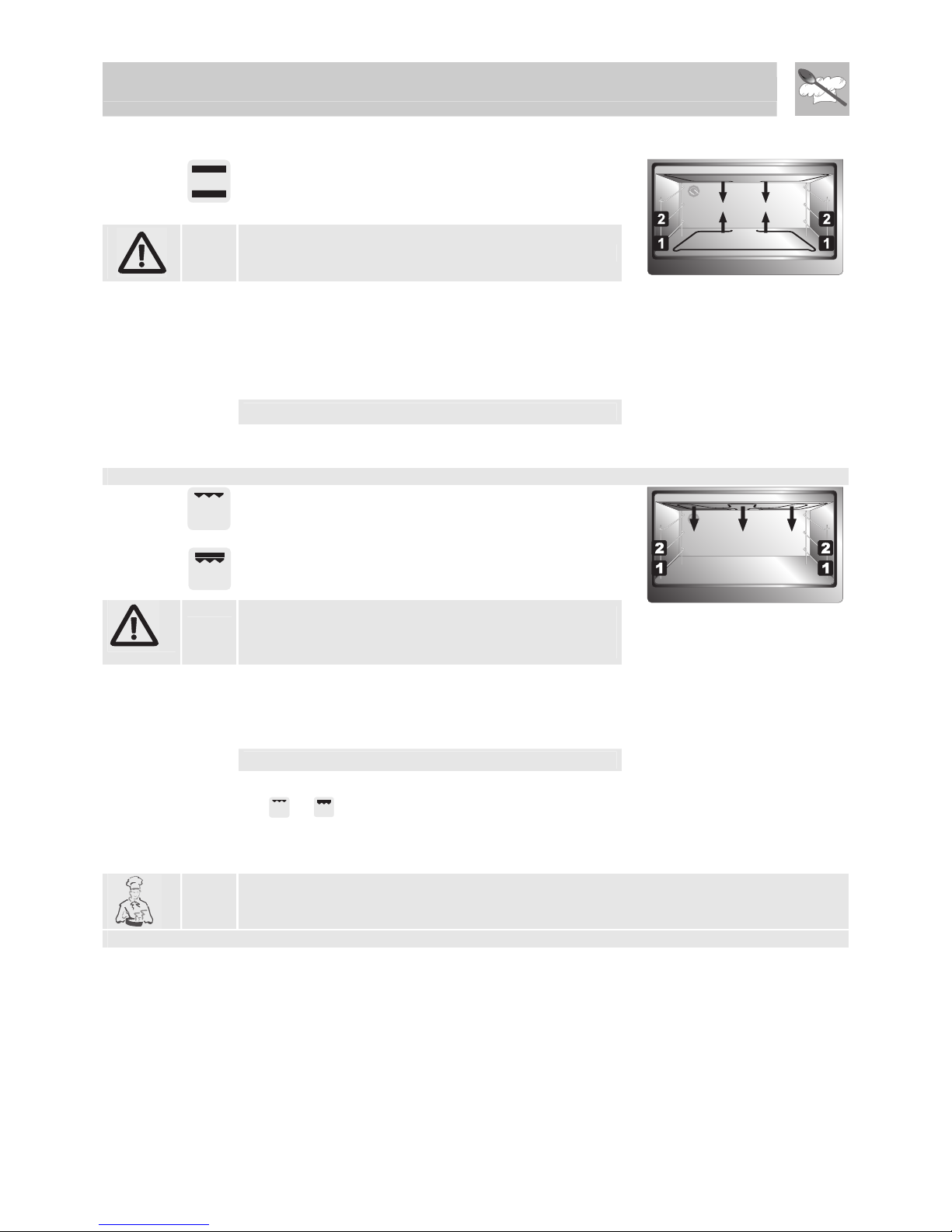

9. COOKING FUNCTION________________________________________________________________ 12
10. USE OF THE OVEN _________________________________________________________________ 14
11. USE OF THE HOB___________________________________________________________________ 15

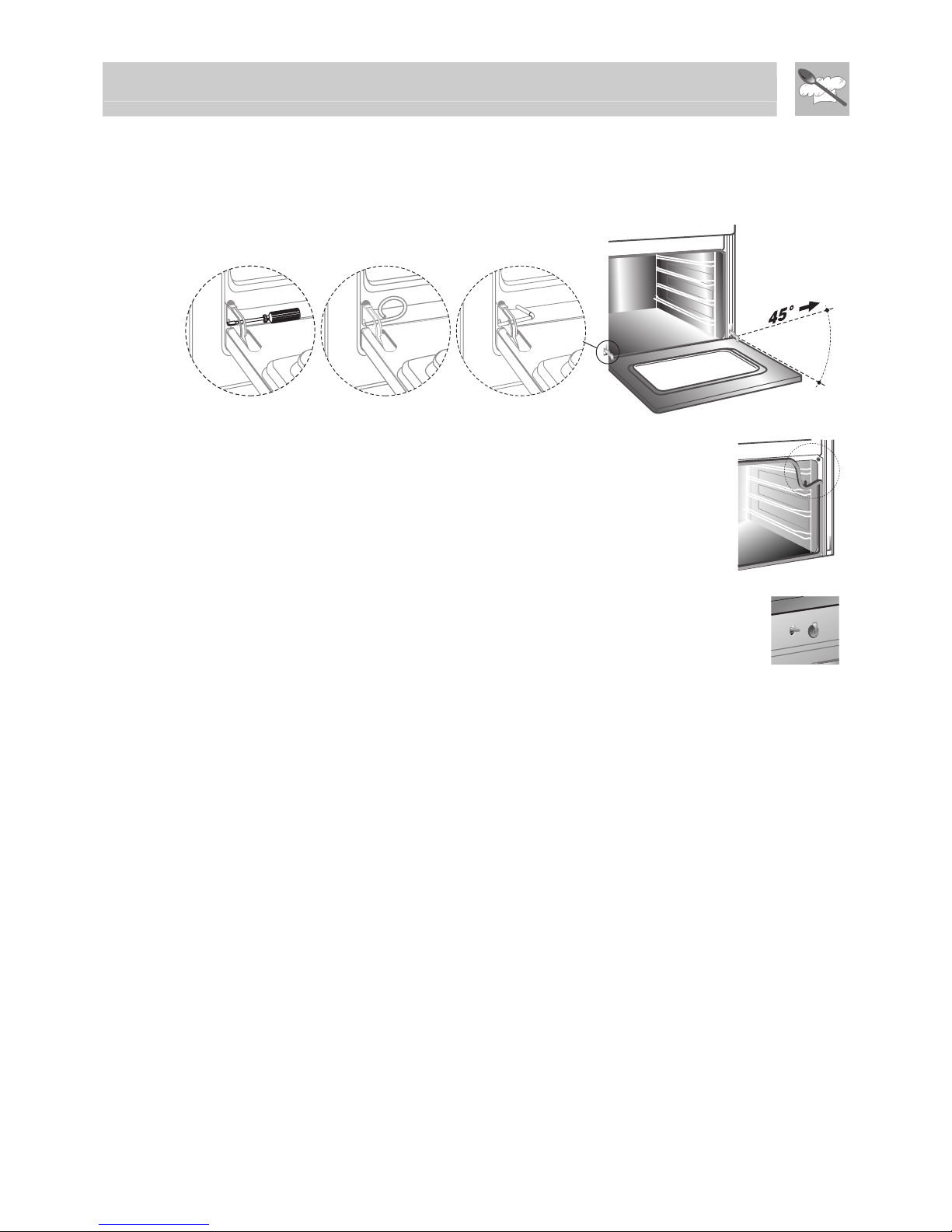

12. CLEANING AND MAINTENANCE _______________________________________________________ 16
13. SOMETHING WRONG? ______________________________________________________________ 19

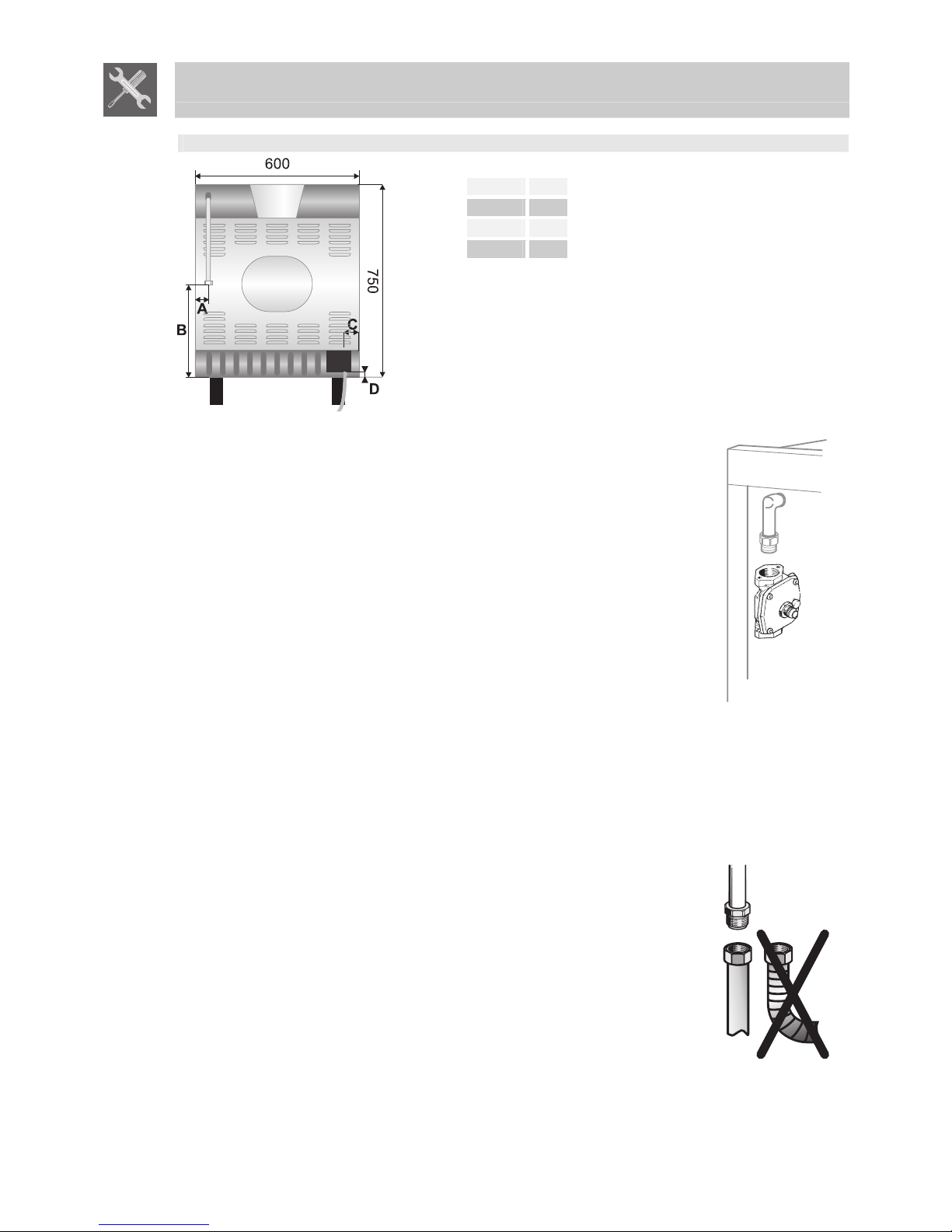

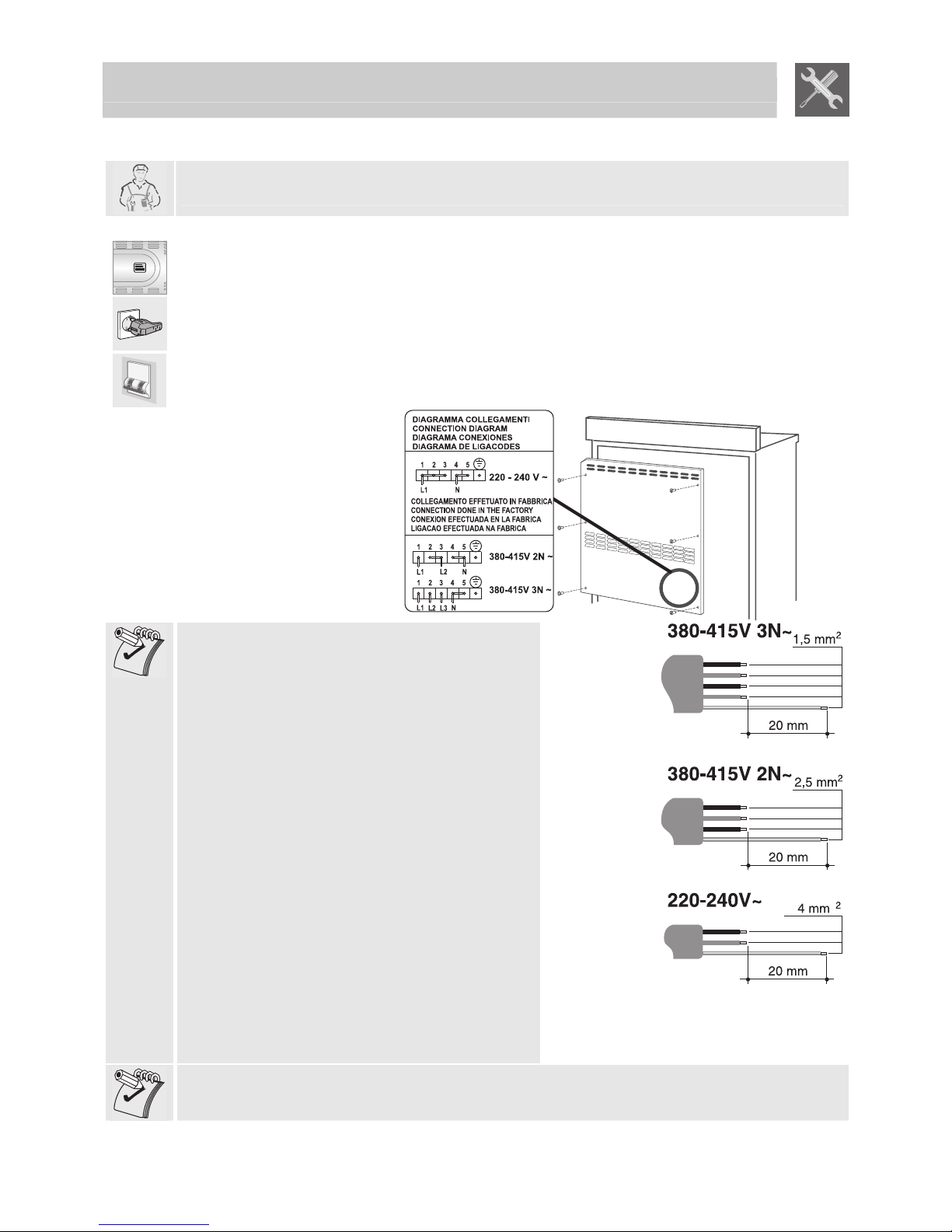

14. INSTALLATION _____________________________________________________________________ 20
15. ADAPTATION TO DIFFERENT TYPES OF GAS ___________________________________________ 24
16. FINAL OPERATIONS ________________________________________________________________ 26
Thank you for choosing our product.
We advise you to read this manual carefully. It contains all necessary instructions for maintaining
unaltered the appearance and functional qualities of the cooker.
INSTRUCTIONS FOR THE USER: these contain user advice, description of the commands and the
correct procedures for cleaning and maintenance of the appliance.
INSTRUCTIONS FOR THE INSTALLER: these are intended for the qualified technician who must
install the appliance, set it functioning and carry out an inspection test.

Instructions for proper use
4
1. INSTRUCTIONS FOR PROPER USE
ELECTRICAL CONNECTION: PLEASE REFER TO INSTALLATION INSTRUCTION FOR THE GAS
& ELECTRICAL SAFETY REGULATIONS AND THE VENTILATION REQUIREMENTS.
IN YOUR OWN INTEREST, AND THAT OF SAFETY, IT IS THE LAW THAT ALL GAS APPLIANCES
BE INSTALLED AND SERVICE BY COMPETENT PERSONS, WHO WILL COMPLY WITH THE
RELEVANT STANDARDS AND REGULATIONS.
CORGI REGISTERED INSTALLERS UNDERTAKE TO WORK TO SATISFCTIORY STANDARDS.
DISCONNECTION OF GAS AND ELECTRIC APPLIANCES SHOULD ALWAYS BE CARRIED AOUT
BY COMPETENT PERSON.
THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND THEREFORE MUST BE KEPT
IN ITS ENTIRETY AND IN AN ACCESSIBLE PLACE FOR THE WHOLE WORKING LIFE OF THE
APPLIANCE. WE ADVISE CAREFUL READING OF THIS MANUAL AND ALL THE INSTRUCTIONS
THEREIN BEFORE USING THE APPLIANCE. INSTALLATION MUST BE CARRIED OUT BY
QUALIFIED PERSONNEL IN ACCORDANCE WITH THE REGULATIONS IN FORCE. THIS
APPLIANCE IS INTENDED FOR DOMESTIC USES AND CONFORMS TO CURRENT
REGULATIONS IN FORCE. THE APPLIANCE HAS BEEN BUILT TO CARRY OUT THE
FOLLOWING FUNCTIONS: COOKING AND HEATING-UP OF FOOD. ALL OTHER USES ARE
CONSIDERED IMPROPER.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER USE.
NEVER USE THIS APPLIANCE FOR HEATING ROOMS.
DO NOT LEAVE THE PACKING IN THE HOME ENVIRONMENT. SEPARATE THE VARIOUS
WASTE MATERIALS AND TAKE THEM TO THE NEAREST SPECIAL GARBAGE COLLECTION
CENTRE.
DO NOT OBSTRUCT VENTILATION OPENINGS AND HEAT DISPERSAL SLITS.
DO NOT PUT PANS WITHOUT PERFECTLY SMOOTH AND FLAT BOTTOMS ON THE HOB
GRIDS.
THE I.D. PLATE WITH TECHNICAL DATA, REGISTRATION NUMBER AND BRAND NAME IS
VISIBLY POSITIONED ON THE REAR PROTECTIVE COVER OF THE APPLIANCE. A COPY OF
THE PLATE IS INCLUDED WITH THE HANDBOOK AND YOU ARE ADVISED TO FIX IT IN THE
APPROPRIATE SPACE ON THE INSIDE COVER PAGE.
THE PLATE MUST NEVER BE REMOVED.
TO PREVENT ANY STEAM IN THE OVEN CREATING PROBLEMS, OPEN THE
DOOR IN TWO STAGES: HALF OPEN (5 CM APPROX.) FOR 4-5 SECONDS AND
THEN FULLY OPEN. TO ACCESS FOOD, ALWAYS LEAVE THE DOOR OPEN AS
SHORT A TIME AS POSSIBLE TO PREVENT THE TEMPERATURE IN THE OVEN
FROM FALLING AND RUINING THE FOOD.
REPLACED APPLIANCES MUST BE TAKEN TO A SPECIAL GARBAGE COLLECTION CENTRE.
The manufacturer declines all responsibility for damage to persons or things caused by non-
observance of the above prescriptions or by interference with any part of the appliance or by the use
of non-original spares.

Safety instruction
5
2. SAFETY INSTRUCTION
INSTRUCTIONS FOR THE INSTALLER: THESE ARE INTENDED FOR THE QUALIFIED
TECHNICIAN WHO MUST INSTALL THE APPLIANCE, SET IT FUNCTIONING AND CARRY OUT
AN INSPECTION TEST.
DO NOT ATTEMP TO MOVE THE APPLIANCE BY PULLING ON THE DOOR OF HANDLES. OPEN
THE DOOR AND GRASP THE FRAMES OF THE OVEN TAKING CARE THAT THE DOOR DOES
NOT SHUT ON YOUR FINGERS.
IT IS OBLIGATORY FOR THE ELECTRICAL SYSTEM TO BE EARTHED ACCORDING TO THE
METHODS REQUIRED BY SAFETY RULES.
WHEN LINKING UP TO MAINS BY PLUG AND SOCKET, MAKE SURE THAT BOTH ARE
COMPATIBLE AND CONNECT BY MEANS OF A POWER CABLE COMPLYING WITH
APPLICABLE REGULATIONS.
THE SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE HAS BEEN BUILT IN.
NEVER UNPLUG BY PULLING ON THE CABLE.
ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE “ZERO” (OFF) POSITION WHEN
YOU FINISH USING THE OVEN.
NEVER PUT INFLAMMABLE OBJECTS IN THE OVEN: THEY COULD BE ACCIDENTALLY
LIGHTED AND CAUSE FIRES.
PARTS OF THE APPLIANCE MAY BE HOT DURING OR IMMEDIATELY AFTER USE. CARE
SHOULD BE TAKEN TO AVOID TOUCHING HEATING ELEMENTS INSIDE THE OVEN. ALLOW
SUFFICIENT TIME FOR THE APPLIANCE TO COOL AFTER SWITCHING OFF.
THE APPLIANCE IS DESIGNED FOR USE BY ADULTS. DO NOT ALLOW CHILDREN TO GO
NEAR OR PLAY WITH IT.
THE APPLIANCE BECOMES VERY HOT DURING USE. SUITABLE HEAT-PROOF GLOVES
SHOULD BE WORN FOR ALL OPERATIONS.
DURING COOKING, DO NOT COVER THE BOTTOM OF THE OVEN WITH ALUMINIUM, TIN FOIL
OR GREASEPROOF PAPER AND DO NOT PLACE PANS OR OVEN TRAYS ON IT AS THIS MAY
DAMAGE THE ENAMEL COATING.
DO NOT USE CONTAINERS OR BROILERS THAT EXTEND BEYOND THE OUTER PERIMETER
OF THE HOB.
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION.
THIS APPLIANCE IS DESIGNED FOR COOKING FOOD AND IT SHALL NOT BE USED AS A
SPACE HEATER.
IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF INSPECTION TEST OF THE
APPLIANCE, FOLLOWING THE INSTRUCTIONS. SHOULD THE APPLIANCE NOT FUNCTION,
DISCONNECT IT FROM THE SUPPLY AND CALL THE NEAREST TECHNICAL ASSISTANCE
CENTRE.
IF THE APPLIANCE IS TO BE POSITIONED ON A PLATFORM IT MUST BE INSTALLED IN SUCH
A WAY AS TO PREVENT IT FROM SLIPPING OFF THE FORMER.
DO NOT APPLY DECORATIVE PANELS TO THE LOWER PART OF THE COOKER AS THEY MAY
PREVENT CORRECT AIR CIRCULATION AND CAUSE OVERHEATING.
NEVER ATTEMPT TO REPAIR THE APPLIANCE. ALL REPAIRS MUST BE CARRIED OUT BY AN
AUTHORISED ENGINEER OR AT AN AUTHORISED SERVICE CENTRE.
BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL THE LABELS AND PROTECTIVE
FILMS APPLIED INSIDE OR OUTSIDE MUST BE REMOVED.

Instructions for the user
6
3. KNOW YOUR COOKER
FRONT CONTROL PANEL
OVEN CAVITY
OVEN FAN
OVEN LIGHT
OVEN DOOR
DOOR HANDLE
OVEN GUIDE FOR SHELF
AND PAN
COOLING SYSTEM
The cooker is equipped with a cooling fan, which starts up either when the small oven is switched on
or a few minutes after the large oven is switched on, depending on the oven in use.
Fan cause a steady outflow of air from rear top skirtboard of the appliance which may continue for a
brief period of time even after the oven has been turned off.
4. BEFORE FIRST USE
Do not leave the packing in the home environment. Separate the various waste materials and take
them to the nearest special garbage collection centre.
Before using the oven for the first time, pre-heat it to maximum temperature long enough to burn any
manufacturing oily residues which could give the food a bad taste.
HOW TO PROCEED
Remove all the accessories from the inside of the oven.
Remove all the removable label and any protective foils from the outside and the inside of the oven.
Before using the oven make sure that the symbol appears on the display. See paragraph “5.
ELECTRONIC PROGRAMMER”.
Set the function knobs on the symbol and the thermostat knob to 250°C. For the small oven
simply turn the thermostat knob on the symbol .

Instructions for the user
7

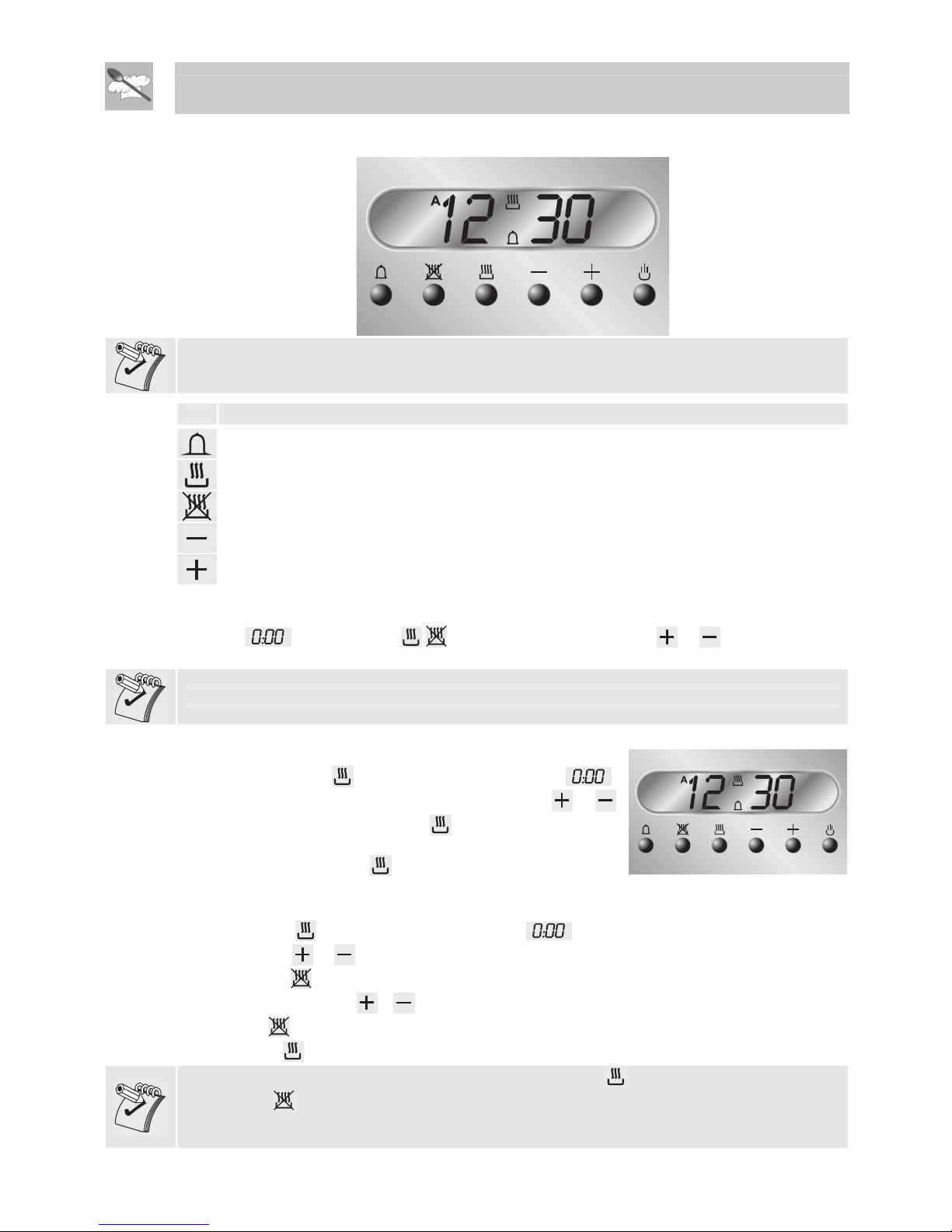

5. ELECTRONIC PROGRAMMER
The programmer user instructions are valid only for the large oven.
LIST OF FUNCTIONS
MINUTE-COUNTER KEY
COOKING TIME KEY
END-OF-COOKING KEY
DECREASE TIME KEY
INCREASE TIME KEY
5.1 Clock adjustment
When using the oven for the first time, or after a power failure, the display flashes regularly and
indicates . Press the keys and at the same time the keys or : each single press
changes the time by 1 minute either up or down.
Before setting the programmer activate the desired function and temperature.
5.2 Semiautomatic cooking
Use this setting for automatic oven switch-off at the end of cooking
time. By pressing key
, the display lights up, showing ;
keep the key pressed and at the same time, press keys or
to set the cooking time. Release key to start the programmed
cooking time count. The display will now show the right time
together with symbols A and .
5.3 Automatic cooking
Use this setting to automatically start and stop the oven.
By pressing key , the display lights up showing ; keep the key pressed and at the same
time, press keys or to set the cooking time.
By pressing key the sum of the right time + cooking time will appear; keep the key pressed and at
the same time, press keys o to regulate the end of cooking time.
Release key to start the programmed count and the display will show the right time together with
symbols A and .
After set-up, to see the cooking time remaining, press the key ; to see the end of cooking time
press the key .
Set-up with incoherent values is logically prevented (e.g. the contrast between a cooking time and a
longer period will not be accepted by the programmer).
