Smeg KC90AO User manual

Libretto di Istruzioni
Instructions Manual
Manuel d’Instructions
Bedienungsanleitung
Gebruiksaanwijzing
Manual de instrucciones
Manual de Instruções
ɋɮɥɩɝɩɟɬɭɝɩ ɪɩ ɸɥɬɪɦɮɛɭɛɱɣɣ
Bruksanvisning
KC90AO – KC90AX – KC90PO – KC90PX

2
2
INDICE
CONSIGLI E SUGGERIMENTI.............................................................................................................................................. 4
CARATTERISTICHE.............................................................................................................................................................. 5
INSTALLAZIONE ................................................................................................................................................................... 6
USO........................................................................................................................................................................................ 9
MANUTENZIONE ................................................................................................................................................................ 10
INDEX
RECOMMENDATIONS AND SUGGESTIONS ................................................................................................................... 11
CHARACTERISTICS ........................................................................................................................................................... 12
INSTALLATION.................................................................................................................................................................... 13
USE...................................................................................................................................................................................... 16
MAINTENANCE................................................................................................................................................................... 17
SOMMAIRE
CONSEILS ET SUGGESTIONS.......................................................................................................................................... 18
CARACTERISTIQUES......................................................................................................................................................... 19
INSTALLATION.................................................................................................................................................................... 20
UTILISATION ....................................................................................................................................................................... 23
ENTRETIEN......................................................................................................................................................................... 24
INHALTSVERZEICHNIS
EMPFEHLUNGEN UND HINWEISE ................................................................................................................................... 25
CHARAKTERISTIKEN......................................................................................................................................................... 26
MONTAGE ........................................................................................................................................................................... 27
BEDIENUNG........................................................................................................................................................................ 30
WARTUNG........................................................................................................................................................................... 31
INHOUDSOPGAVE
ADVIEZEN EN SUGGESTIES............................................................................................................................................. 32
EIGENSCHAPPEN .............................................................................................................................................................. 33
INSTALLATIE....................................................................................................................................................................... 34
GEBRUIK ............................................................................................................................................................................. 37
ONDERHOUD...................................................................................................................................................................... 38
ÍNDICE
CONSEJOS Y SUGERENCIAS........................................................................................................................................... 39
CARACTERÍSTICAS ........................................................................................................................................................... 40
INSTALACIÓN ..................................................................................................................................................................... 41
USO...................................................................................................................................................................................... 44
MANTENIMIENTO............................................................................................................................................................... 45
IT
EN
FR
DE
NL
ES

3
3
ÍNDICE
CONSELHOS E SUGESTÕES............................................................................................................................................ 46
CARACTERÍSTICAS ........................................................................................................................................................... 47
INSTALAÇÃO....................................................................................................................................................................... 48
UTILIZAÇÃO ........................................................................................................................................................................ 51
MANUTENÇÃO.................................................................................................................................................................... 52
ɎɅȻɂȻɍɀɆɗ
ɋɈȼȿɌɕ ɂ ɊȿɄɈɆȿɇȾȺɐɂɂ .......................................................................................................................................... 53
ɏȺɊȺɄɌȿɊɂɋɌɂɄɂ............................................................................................................................................................ 54
ɍɋɌȺɇɈȼɄȺ........................................................................................................................................................................ 55
ɗɄɋɉɅɍȺɌȺɐɂə................................................................................................................................................................ 58
ɍɏɈȾ.................................................................................................................................................................................... 59
INNEHÅLL
REKOMMENDATIONER OCH TIPS................................................................................................................................... 60
EGENSKAPER..................................................................................................................................................................... 61
INSTALLATION.................................................................................................................................................................... 62
ANVÄNDING........................................................................................................................................................................ 65
UNDERHÅLL........................................................................................................................................................................ 66
PT
RU
SE

EN 1
11
RECOMMENDATIONS AND SUGGESTIONS
The Instructions for Use apply to several versions of this appliance. Accordingly, you may
find descriptions of individual features that do not apply to your specific appliance.
INSTALLATION
• The manufacturer will not be held liable for any damages resulting from incorrect or
improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm
(some models can be installed at a lower height, please refer to the paragraphs on
working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the
inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate
earthing.
Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm.
The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers,
fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning
appliances), a sufficient degree of aeration must be guaranteed in the room in order to
prevent the backflow of exhaust gas. The kitchen must have an opening communicating
directly with the open air in order to guarantee the entry of clean air. When the cooker
hood is used in conjunction with appliances supplied with energy other than electric, the
negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn
back into the room by the cooker hood.
• In the event of damage to the power cable, it must be replaced by the manufacturer or by
the technical service department, in order to prevent any risks.
USE
• The extractor hood has been designed exclusively for domestic use to eliminate kitchen
smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it
does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into
flames.
• Do not flambè under the range hood; risk of fire
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• “ CAUTION: Accessible parts may become hot when used with cooking appliances.”.
MAINTENANCE
• Switch off or unplug the appliance from the mains supply before carrying out any
maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• Clean the hood using a damp cloth and a neutral liquid detergent.
The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the product.
650 mm min.

EN 1
12

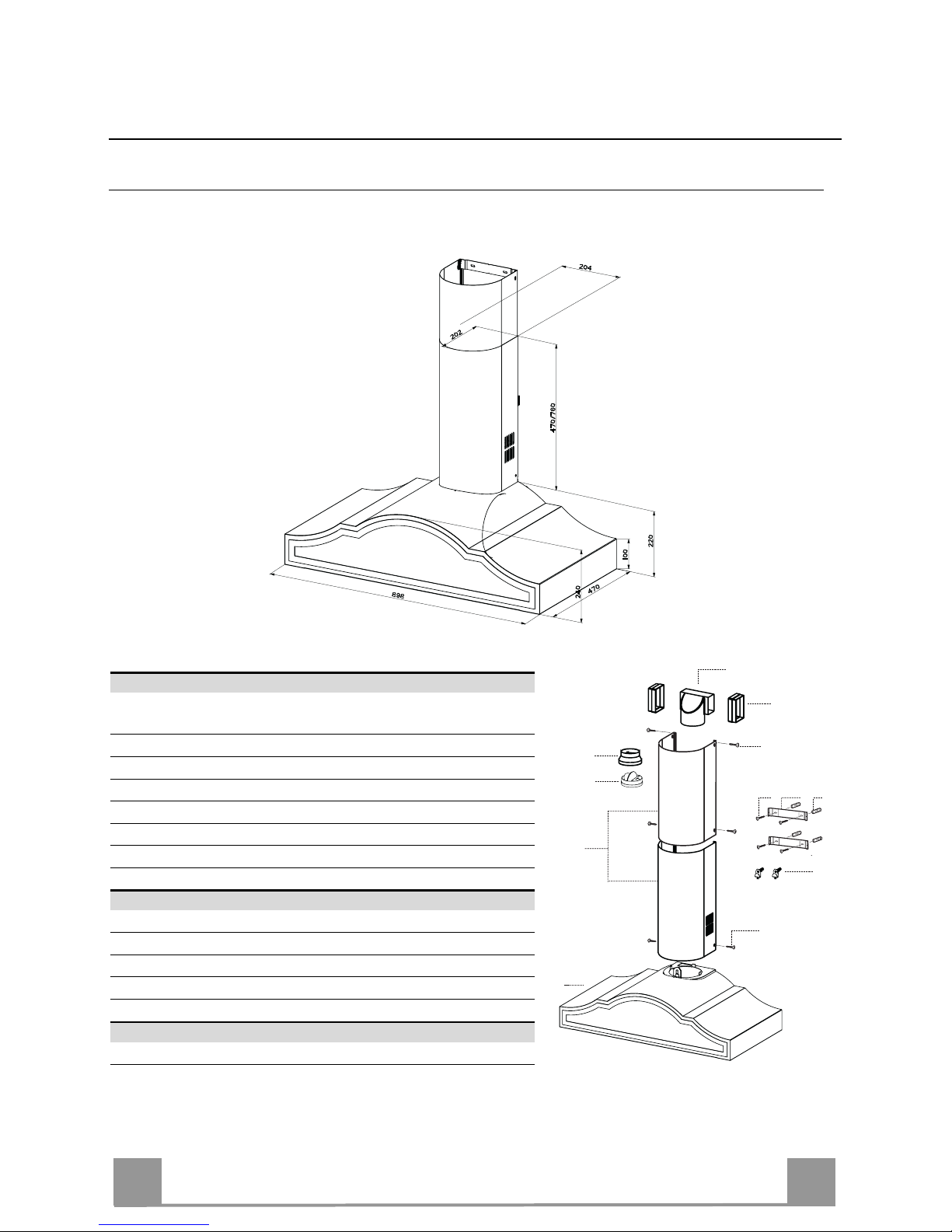

CHARACTERISTICS
Dimensions
Components
Ref. Q.ty Product Components
11 Hood Body, complete with: Controls, Light, Blower,
Filters
21 Telescopic Chimney comprising:
2.1 1 Upper Section
2.2 1 Lower Section
91 Reducer Flange ø 150-120 mm
10 1 Adapting ring ø 120-125 mm
14.1 2 Air Outlet Connection Extension
15 1 Air Outlet Connection
Ref. Q.ty Installation Components
7.2.1 2 Upper Chimney Section Fixing Brackets
11 6 Wall Plugs
11a 2 Wall Plugs SB 12/10
12a 6 Screws 4.2 x 44,4
12c 6 Screws 2.9 x 9.5
Q.ty Documentation
1 Instruction Manual
1
15
14.1
12c
12c
9
7.2.1
12a 11
10
11a
2
2.1
2.2

EN 1
13
INSTALLATION

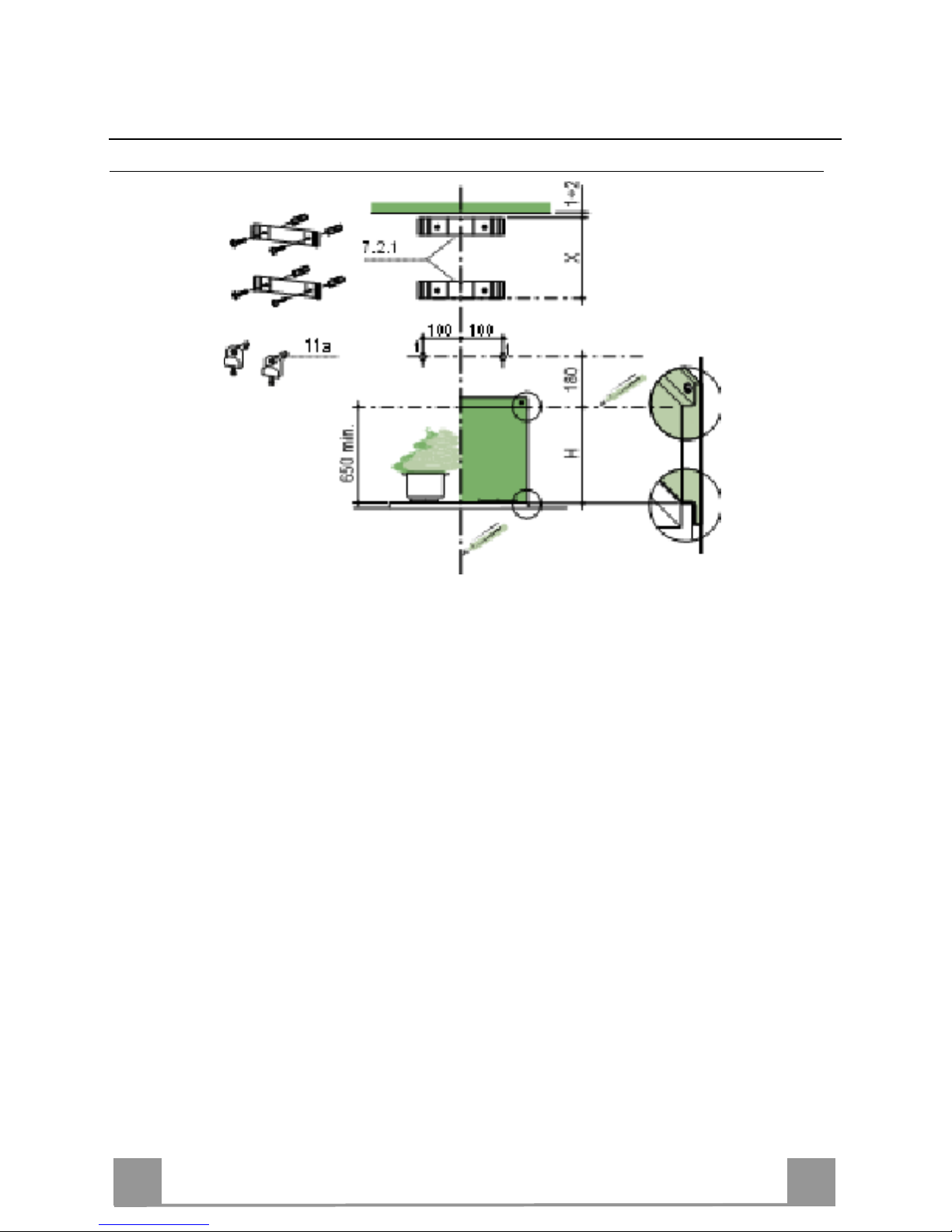

Wall drilling and bracket fixing
Wall marking:
• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the
centre of the area in which the hood will be installed.
• Draw a horizontal line at 650 mm above the hob for installation without the back panel, or at
height H (H = height of the visible part of the panel) for installation with the back panel.
• Mark a point (1) on the horizontal line, 100 mm to the right of the vertical reference line.
• Repeat this operation on the other side, checking that the two marks are levelled.
• Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit
aligning the centre (notch) with the vertical reference line.
• Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the
upper chimney section supplied), aligning the centre (notch) with the vertical line.
• Mark the wall at the centres of the holes in the bracket.

EN 1
14
Mounting the hood body
• Adjust the two screws Vr, on brackets 11a, to a minimum.
• Hook the hood canopy onto the two brackets 11a.
• Remove the metal grease filters by turning the handles pro-
vided.
• From inside the hood canopy, adjust the screws Vr to set the
Hood Canopy level.
Vr
Connections
DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to the
chimney using either a flexible or rigid pipe ø 150 or 120 mm,
the choice of which is left to the installer.
• To install a ø 120 mm air exhaust connection, insert the re-
ducer flange 9on the hood body outlet.
• Fix the pipe in position using sufficient pipe clamps (not sup-
plied).
• Remove possible charcoal filters.
ø 120ø 150
9
RECIRCULATION VERSION AIR OUTLET
• Push fit Connection 15 and Reducer Flange 9onto the hood
body outlet.
• Insert the connection extension pieces laterally 14.1 in connec-
tion 15.
• Make sure that the outlet of the extension pieces 14.1 is hori-
zontally and vertically aligned with the chimney outlets. If this
is not the case, adjust the position by either reversing the con-
nection extension pieces 14.1 and then reassemble as described
previously.
• Ensure that the activated charcoal filters have been inserted.
15
14.1
9

EN 1
15

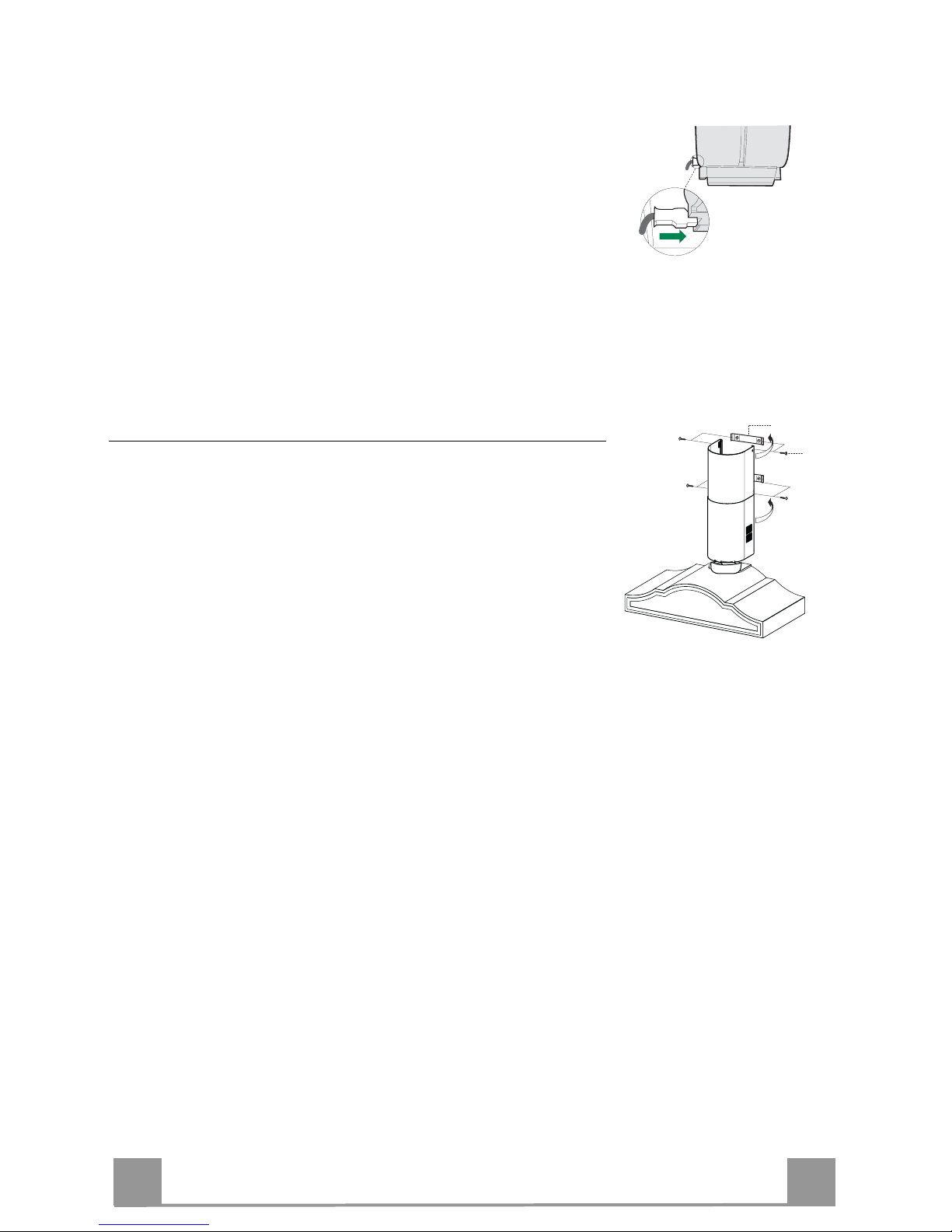

ELECTRICAL CONNECTION
• Connect the hood to the mains through a two-pole switch hav-
ing a contact gap of at least 3 mm.
• Remove the grease filters (see paragraph Maintenance) being
sure that the connector of the feeding cable is correctly inserted
in the socket placed on the side of the fan.
Chimney assembly
Upper exhaust Chimney
• Slightly widen the two sides of the upper chimney and hook
them behind the brackets 7.2.1, making sure that they are well
seated.
• Secure the sides to the brackets using the 4 screws 12c (2,9 x
9,5) supplied.
Lower exhaust Chimney
• Slightly widen the two sides of the chimney and hook them
between the upper chimney and the wall, making sure that they
are well seated.
• Fix the lower part laterally to the hood body using the 2 screws
12c (2,9 x 9,5) supplied.
7.2.1
12c

EN 1
16
USE

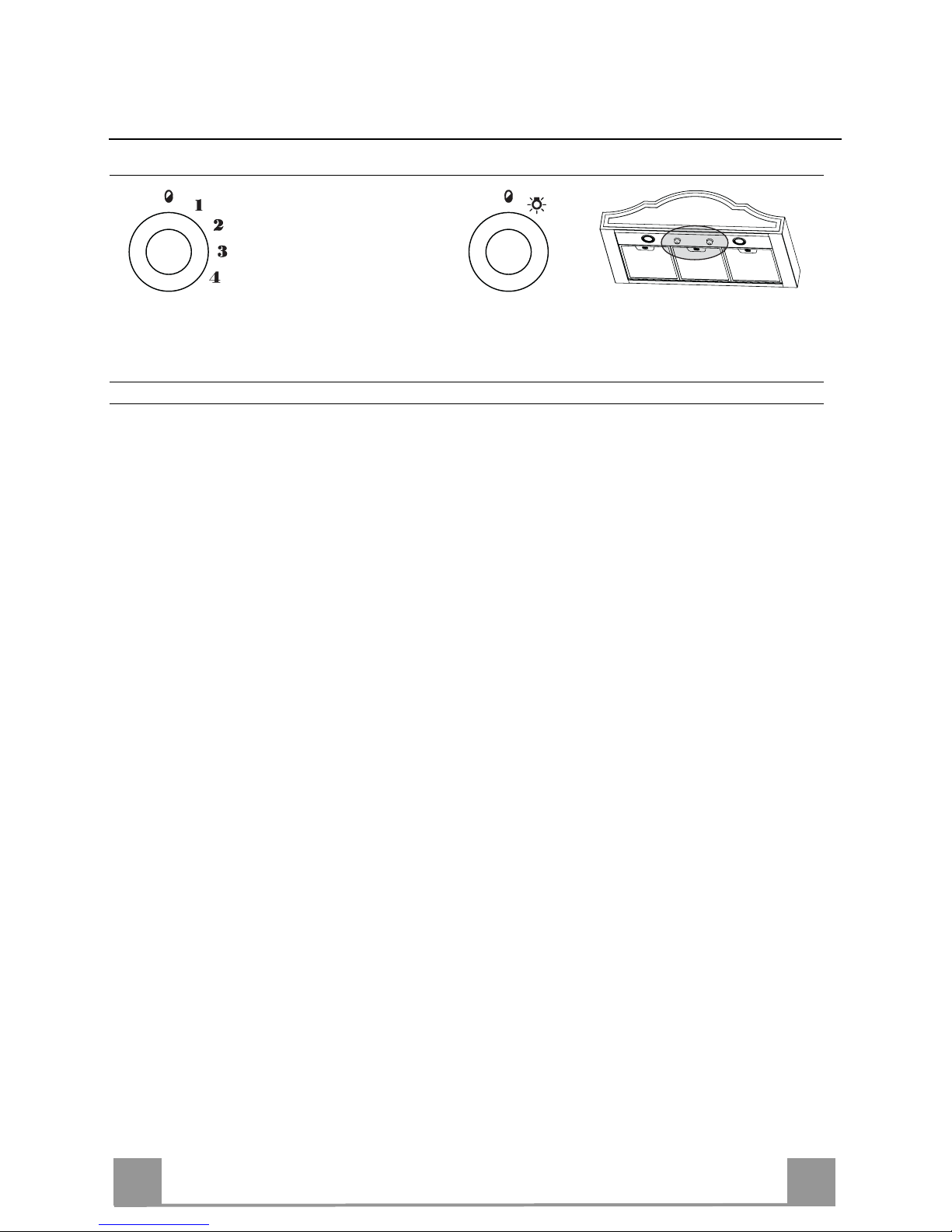

Control panel
ML
LLighting Turns the lighting unit on/off.
MMotor Switches the extractor motor on/off at the selected speed
.

EN 1
17
MAINTENANCE
Grease filters
CLEANING METAL SELF- SUPPORTING GREASE FILTERS
• The filters must be cleaned every 2 months of operation, or
more frequently for particularly heavy usage, and can be
washed in a dishwasher.
• Remove the filters one at a time by pushing them towards the
back of the group and pulling down at the same time.
• Wash the filters, taking care not to bend them. Allow them to
dry before refitting.
• When refitting the filters, make sure that the handle is visible
on the outside.
Activated charcoal filter (Recirculation version)
These filters are not washable and cannot be regenerated, and
must be replaced approximately every 4 months of operation, or
more frequently with heavy usage.
REPLACING THE ACTIVATED CHARCOAL FILTER
• Remove the metal grease filters
• Remove the saturated activated charcoal filter as shown (A).
• Fit the new filters (B).
• Replace the metal grease filters.
A
B
Lighting
LIGHT REPLACEMENT
20 W halogen light.
• Remove the snap-on lamp cover by levering it from under the
metal ring, supporting it with one hand.
• Remove the halogen lamp from the lamp holder by pulling
gently.
• Replace the lamp with a new one of the same type, making
sure that you insert the two pins properly into the housings on
the lamp holder.
• Replace the snap-on lamp cover.
