Smith & Nephew RENASYS GO Series User manual

Home Healthcare
User Manual
REF 66801496
200ml
100ml
50ml
300ml
RENASYS™ GO
Negative Pressure Wound
Therapy
*smith&nephew
*smith&nephew
RENASYS™ GO
Negative Pressure Wound
Therapy

Healthcare provider's name:
Healthcare provider's telephone number:
Healthcare provider's mobile number:

Home Healthcare
User Manual
REF 66801496
EN
Table of Contents
1. Introduction page 4
2. When the device should
or should not be used 7
Indications for use 7
Contraindications 7
Warnings 8
Precautions 9
3. RENASYS GO
system features 12
Device overview 12
Canisters 13
Proper use/orientation 14
Power 15
4. RENASYS GO device
operation 16
How do I know if the
device is working? 17
Battery operation 18
*smith&nephew
RENASYS™ GO
Negative Pressure Wound
Therapy
5. System setup 19
Device setup 19
Connecting your dressing 20
Attaching a new canister 21
Reconnecting your
dressing 22
6. Alarms and troubleshooting 23
7. Accessories 40
Cary strap 40
Shoulder and extension
straps 40
Carry bag 41
8. Cleaning, maintenance
and expected life of device 42
9. Technical specifications 42
10. Caution statements 43
11. Contact information 44
24 hour clinical hotlines 44
Customer Care contacts 506

4
EN
1. Introduction
This RENASYS™ GO Home Healthcare User Manual will provide you with
important information regarding the Smith & Nephew
RENASYS GO Negative Pressure Wound Therapy (NPWT) System.
This system is prescribed to you by a trained and licensed healthcare
provider. This Home Healthcare User Manual will help you operate and
monitor your device.
The RENASYS GO device should only be used with compatible
Smith & Nephew RENASYS products.
*smith&nephew
RENASYS™GO
NegativePressure Wound
Therapy

5
EN
What is RENASYS™ GO Negative Pressure Wound
Therapy (NPWT)?
RENASYS GO is a therapy system that is applied to your wound and may
promote wound healing by removing fluid, including wound exudates and
infectious materials. This form of treatment is being widely used in both
hospitals and the home.
How does it work?
RENASYS NPWT systems consist of a device, a canister and a wound
dressing kit.
The dressing is applied to the wound bed and covered with a clear film.
Once sealed, it is attached to the device through tubing and a canister.
The device then draws fluid from the wound into the canister while the
clear film helps to prevent bacteria from entering the dressing. Use of this
system may also improve blood flow to help the wound heal.
The RENASYS GO device is electrical and can be plugged into an electrical
outlet or can operate on its internal battery.
How many hours a day do you need to use the
therapy?
To receive the full benefit of the therapy, we recommend that the device be
powered on at all times or as prescribed by your healthcare provider.
How long will it take to improve your wound?
The length of time that the therapy takes to improve a wound is different
for every patient. It will depend on your general condition, the size and
type of wound that you have and your prescribed treatment. In many
cases, an improvement in the wound can be seen with the first dressing
change, but in some cases, it may take several weeks. The therapy may
be used to close the wound completely or may be stopped before this
and replaced with a different type of dressing. If your wound shows no
improvement, the therapy may be stopped. Your healthcare provider
will discuss when and why use of this device will be stopped based on
assessment of your wound.

6
EN
Will it be painful?
The first time therapy is turned on, you may feel a slight pulling sensation,
but it should not be painful.
If you experience any pain, speak to your healthcare provider. They may
recommend changing the settings on your device or prescribe pain relief
medication.
How often will the dressings be changed?
The dressings will usually be changed 2–3 times a week, in some cases it
may be more often. This will depend on your wound’s size, type, position
and drainage amount. Your healthcare provider will determine how often
your dressings needs to be changed.
All dressing changes must be performed by a trained healthcare provider.
Will the dressing changes hurt?
Some people may experience slight discomfort during dressing changes,
specifically during the cleaning of the wound. If you feel any discomfort, tell
your healthcare provider. They may change your device’s pressure setting
or prescribe pain relief medication to help ease the discomfort.
Can you move around while on the therapy?
Usually, patients using the therapy can move around, but this will depend
on the position of the wound and recommendations provided by your
healthcare provider. If you are able to move around, the device can be
unplugged and operate on its internal battery for up to 20 hours.

7
EN
2. When this device should or should not be used
When this device can be used (Indications for use)
RENASYS™ GO is indicated for patients who would benefit from a suction
device (Negative Pressure Wound Therapy), as it may promote wound healing
by removing fluid, including wound exudates and infectious materials.
Examples of appropriate wound types include:
• Chronic
• Acute
• Traumatic
• Sub-Acute and dehisced wounds
• Ulcers (such as pressure or diabetic)
• Partial-thickness burns
• Flaps and grafts
When the device should not be used
(Contraindications)
RENASYS GO should not be used if you have:
• Untreated osteomyelitis
• Exposed arteries, veins, organs or nerves
• Necrotic tissue with eschar present
• Malignancy in wound (with exception of palliative care to enhance
quality of life)
• Non-enteric and unexplored fistulas
• Anastomotic sites

8
EN
Warnings
1. This product should only be used as prescribed by your healthcare
provider. Do not use it on anyone other than the prescribed patient.
2. Monitor your dressing and device during operation. If there is
increased bleeding, a change in fluid color or pain, contact your
healthcare provider.
3. If you see blood within the canister, power off the device and contact
your healthcare provider immediately.
4. The canister is sealed shut and contains a solidifier packet that will gel
the wound fluid. The device and canister should be kept out of reach
of children and pets.
5. If you are unable to turn off the alarms, consult the Alarms and
Troubleshooting section of this Home Healthcare User Manual.
6. If the dressing feels or appears to be loose, consult the system
setup section of this Home Healthcare Use Manual or contact your
healthcare provider.
7. If your wound looks more red than usual, has a foul smell or the skin
around your wound looks red or irritated, contact your healthcare provider.

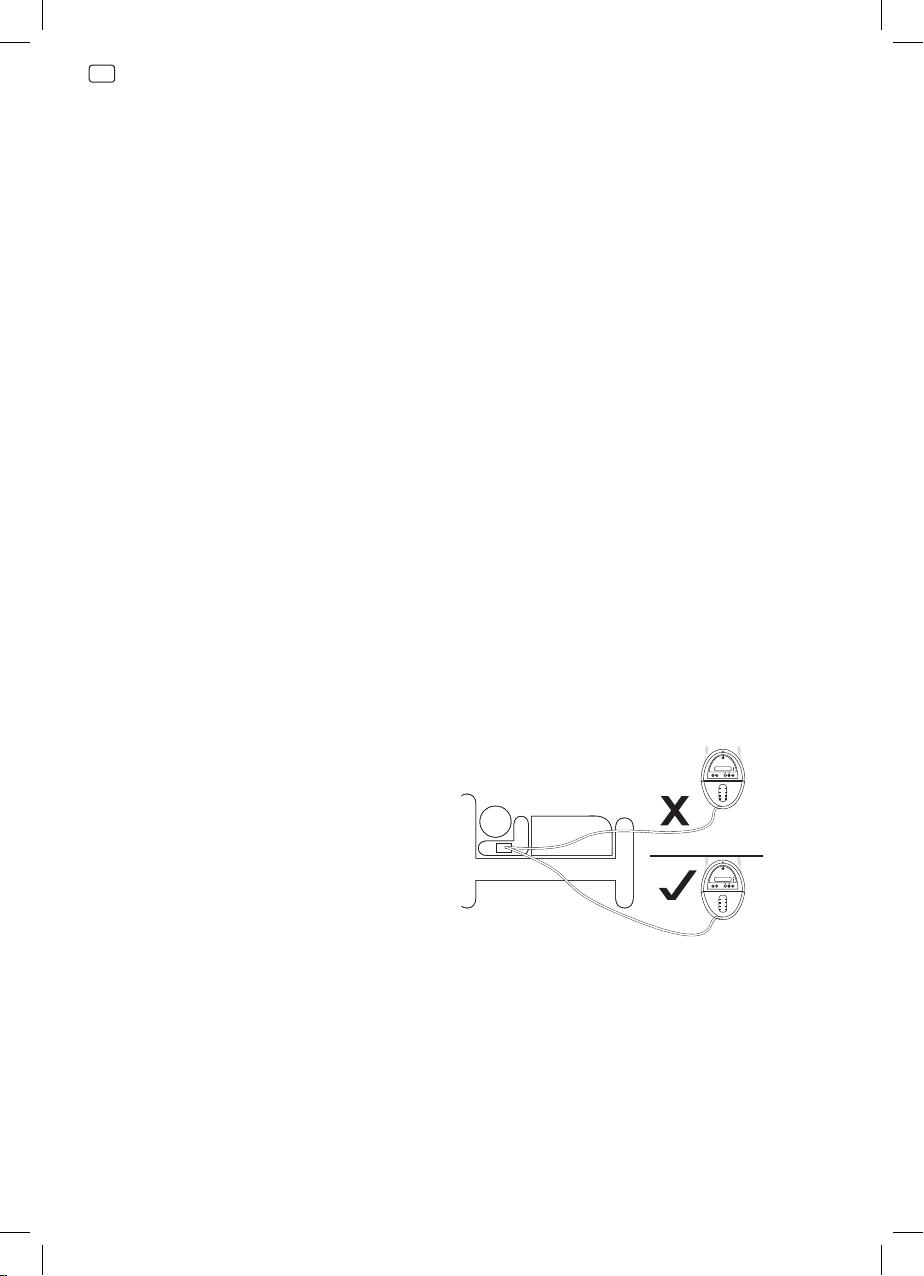

8. Place device at or below the
level of the wound to ensure
the prescribed level of therapy
is delivered.
9. Do not use the device near an oxygen tank or
oxygen gernerator due to danger of explosion.
10. Do not try to remove or change the dressing yourself. Your healthcare
provider must do this for you.
200ml
100ml
50ml
300ml
RENASYS™GO
NegativePressureWound
Therapy
*smith&nephew
200ml
100ml
50ml
300ml
RENASYS™GO
NegativePressureWound
Therapy
*smith&nephew
Level
of the
wound

9
EN
Precautions

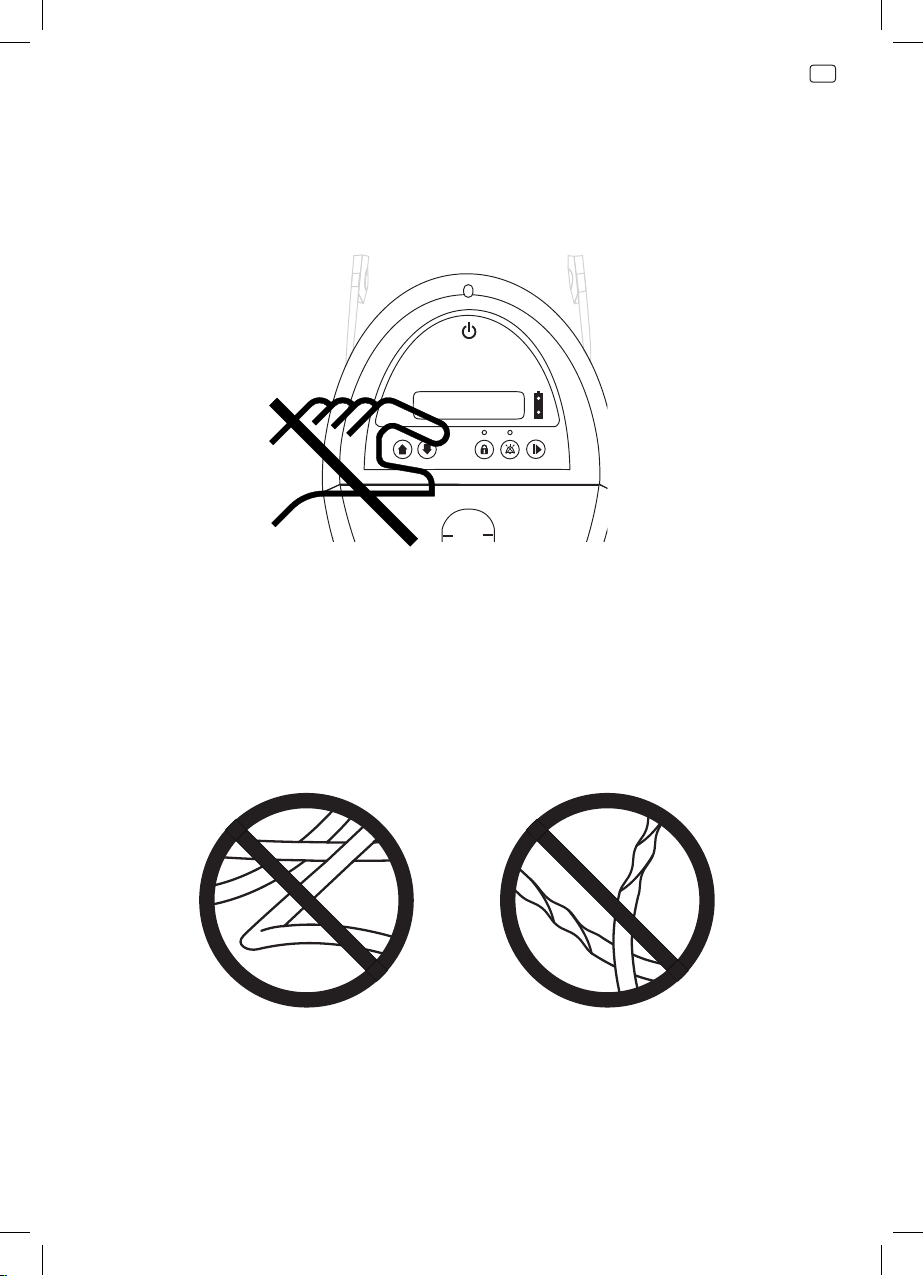

1. Do not change any of the settings on the device. The settings are
prescribed by your healthcare provider.
2. If your device has been in very hot or cold temperatures, let it return
to room temperature before powering it on to avoid damage to the
device.
3. To provide proper delivery of your prescribed therapy, the tubing that
connects the dressing to the canister should not be twisted, tangled
or kinked.
200ml
100ml
50ml
300ml
RENASYS™ GO
Negative Pressure Wound
Therapy
*smith&nephew

10
EN

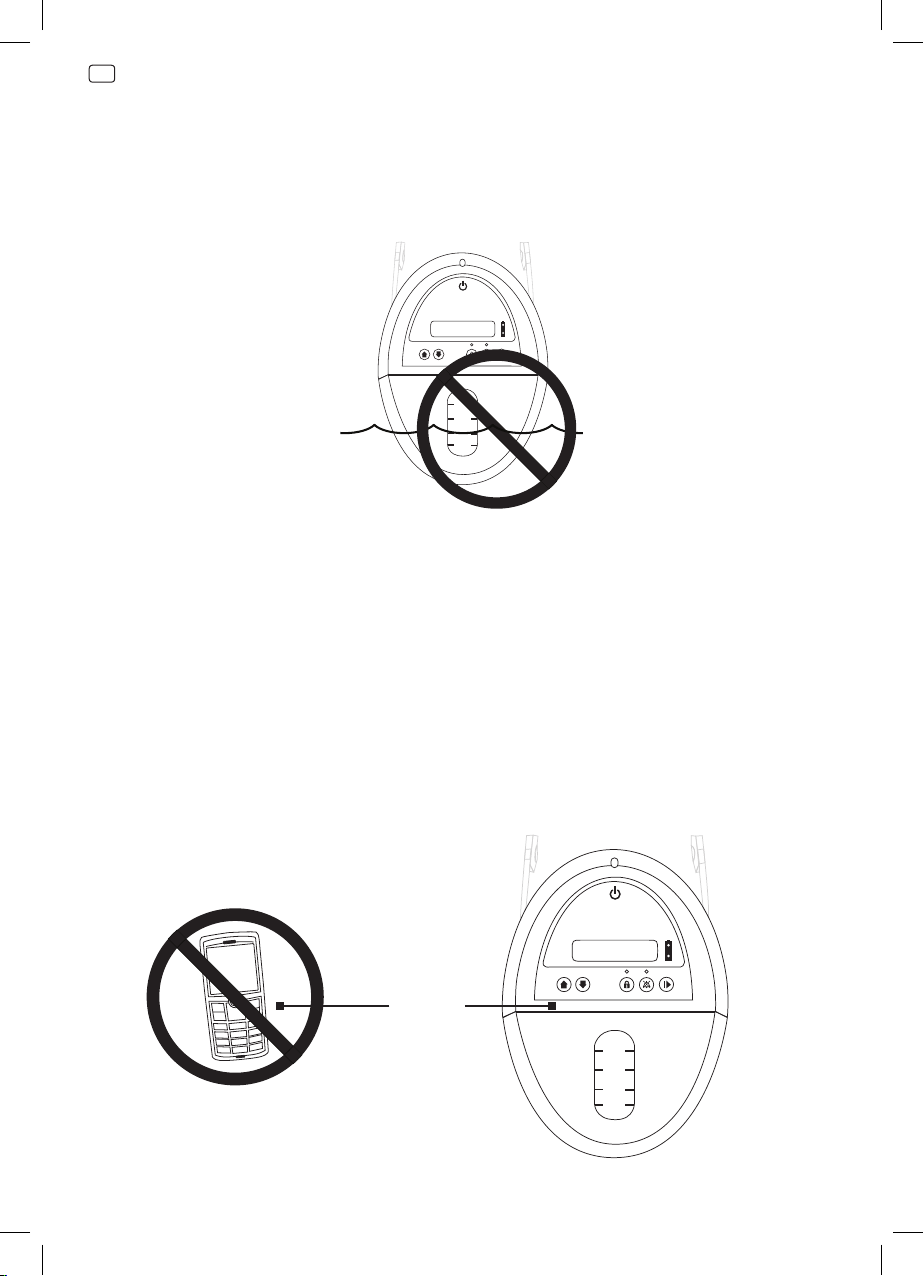

4. When showering or bathing, power off your device, then disconnect
the tubing and cap the ends of the quick click connectors with the
attached end caps. The device is electronic and cannot be exposed
to water. If water or other liquids get into the device, turn it off and
contact your healthcare provider.
5. The cords and tubing could cause strangulation. Keep away from your
head and neck and be aware of tubing placement around children and
animals.
6. This device has been tested for use in hospital and home settings
regarding interference with other devices. Your cell phone and other
electronics that transmit signals may affect this device if placed in
close proximity. Keep your cell phone and other electronics that
transmit signals at least 2 feet away from the device at all times.
200ml
100ml
50ml
300ml
RENASYS™ GO
Negative Pressure Wound
Therapy
*smith&nephew
200ml
100ml
50ml
300ml
RENASYS™ GO
Negative Pressure Wound
Therapy
*smith&nephew
2 Feet

11
EN
7. Do not use the power suppy or power cord if they are damaged, wires
are frayed or exposed; you must run the device on it's internal battery
power. Contact your heathcare provider for a replacement power
supply and cord.
8. The RENASYS™ GO device is only to be used with Smith & Nephew
authorized components. Use of any other products have not been
proven safe and effective with the RENASYS GO device.

12
EN
3. RENASYS™ GO system features
Device overview
Status/Alarm indicator
Power button
Display Battery status
indicator
Start/pause
therapy
Audio pause
Inlet
port Keypad lock
Up and Down
selectors
O-ring
Note: When the device is powered on, the Status/Alarm indicator will
illuminate green to indicate therapy is being provided. If an alarm occurs, the
Status/Alarm indicator will illuminate yellow.

13
EN
200ml
100ml
50ml
300ml
!
Canister
clips
Viewing
window
White quick click
connector
End caps
T-connector
200ml
100ml
50ml
300ml
!
Canisters – 300ml and 750ml
(300ml canister is shown)
Canister
tube
Orange quick
click connector
Note: There are two types of dressing and canister connectors: One with
white quick click connectors and one with orange quick click connectors.
Both types are shown here.
Note: Do not place tubing or end caps over the T-connector on the canister
tubing with white quick click connectors.

14
EN
✓✓
X
X
*smith&nephew
RENASYS™GO
NegativePressure Wound
Therapy
*smith&nephew
RENASYS™GO
NegativePressure Wound
Therapy
*smith&nephew
RENASYS™GO
NegativePressure Wound
Therapy
*smith&nephew
RENASYS™GO
NegativePressure Wound
Therapy
✓✓
X
X
*smith&nephew
RENASYS™GO
NegativePressure Wound
Therapy
*smith&nephew
RENASYS™GO
NegativePressure Wound
Therapy
*smith&nephew
RENASYS™GO
NegativePressure Wound
Therapy
*smith&nephew
RENASYS™GO
NegativePressure Wound
Therapy
Proper use/correct orientation
Incorrect orientation

15
EN
*smith&nephew
RENASYS™GO
Negative Pressure Wound
Therapy
Power jack
Power
Power cord inlet
DC cord
Power supply

16
EN
4.RENASYS™ GO device operation
Your healthcare provider will set the device pressure setting based on your
prescribed therapy. You will be instructed on how often to run the device
and when to notify your healthcare provider.
Your healthcare provider will setup the device based on the
RENASYS GO Negative Pressure Wound Therapy Instructions for Use.
There is a lock on the device that will be set by your healthcare provider to
avoid changes to your prescribed therapy. All buttons will be locked except
the Power and Audio Pause buttons. Do not change the therapy settings
prescribed by your healthcare provider.
Power ON the RENASYS GO device by pressing and holding the Power
button for 2 seconds. Powering ON the device will start therapy.
Power OFF the RENASYS GO device by pressing and holding the Power
button for 2 seconds. Powering OFF the device will stop therapy.
dapyeK dekcoL
m001►***gHm

17
EN
How do I know if the RENASYS™ GO device is working?
While RENASYS GO is Powered on:
1. The Status/Alarm indicator will illuminate green.
2. The display will read either CONTINUOUS or INTERMITTENT on the top
line of the display based on prescribed therapy. The second line on the
display will indicate the therapy setting.
• In CONTINUOUS mode, the device will deliver therapy constantly.
• In INTERMITTENT mode, the device will provide therapy for 5 minutes
and then pause therapy for 2 minutes. This will repeat as long as your
device is set to INTERMITTENT mode.
Note: Even if fluid is not actively moving though the tubing, negative
pressure is still being delivered.
unitnoC suo
m001►***gHm

18
EN
Dressing compressed and
firm to the touch Dressing decompressed and soft to the touch
It is important to monitor the activity of the device while you are using the
therapy.
IMPORTANT: Items to monitor include:
• The dressing.
It should have a raisin-like appearance and be firm to the touch.
If your dressing is not compressed, press down around the
edges of your dressing. If your dressing begins to draw down and
compress, you have resealed your dressing. If the dressing remains
decompressed, contact your healthcare provider.
• The amount of fluid in the canister.
If the canister is 2/3 full of fluid or greater, it needs to be replaced.
• The device display and indicator lights on the front of the device.
For an explanation of any device display messages, indicator lights or
audio signals, refer to the Alarms and Troubleshooting section of this
Home Healthcare User Manual.
Battery operation
The RENASYS™ GO device runs when plugged into an electrical outlet,
or can be run using its internal battery for up to 20 hours. If the bottom
battery status indicator light illuminates yellow, plug the device into an
electrical outlet to avoid the device turning off during therapy. The device
will operate while the battery charges.

19
EN
5.System setup
There are times when you will need to disconnect from your device, such
as when you shower or wash, or when your canister needs to be replaced.
Your device is electrical and cannot come into contact with water. To
avoid exposure, power off the device and disconnect the dressing tubing
from the canister tubing before showering or washing. You will need to
reconnect your dressing tubing to the canister tubing and power on the
device as soon as you finish showering or washing.
The clear film placed on top of the wound and the dressing tubing are
water resistant. You can shower or wash with dressings in place, as long
as you do not soak them.
The following sections walk you through the steps to setting up
various components of the system:
Device setup
Power the device on. If the device is set to the CONTINUOUS mode, you
should have constant therapy delivered.
If the device is set to INTERMITTENT therapy, your therapy will cycle on for
5 minutes and off for 2 minutes.
Note: Your device will be set to Home Healthcare Use mode by your
healthcare provider, and the therapy settings cannot be changed. The
device may be Powered off to temporarily stop therapy (e.g. patient
shower, dressing change, etc). When re-started, the device will operate
using the settings set up by the healthcare provider.

20
EN

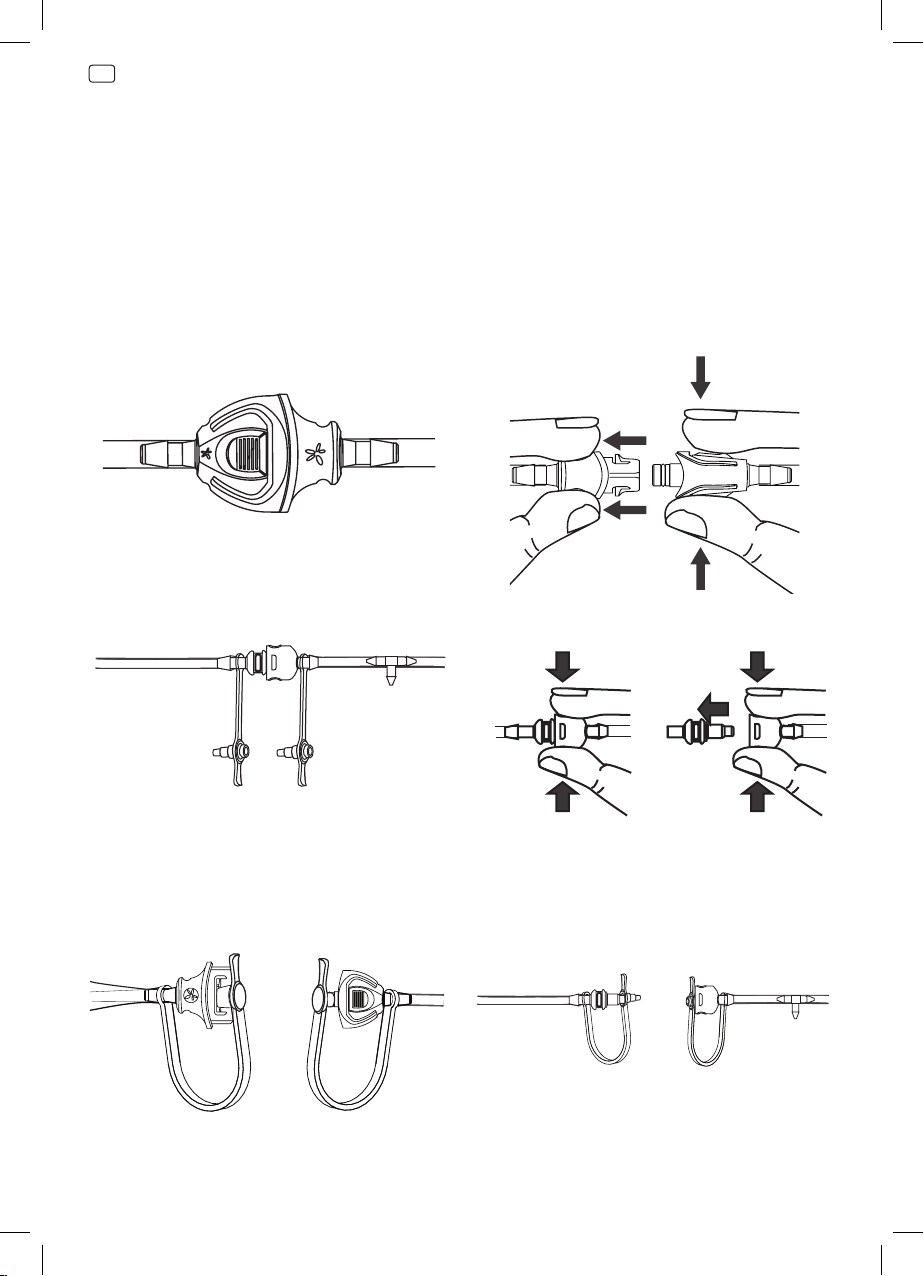

Disconnecting your dressing
1. Hold the quick click connectors above the wound to allow gravity to
help ensure exudate does not leak from the tubing.
2. Power off the device.
3. Disconnect the canister tubing from the dressing tubing by applying
pressure to the connectors as shown:
4. Close the tethered caps on both of the quick click connector to seal
the tubing.
RENASYS Soft Port
orange quick click connector
White connector
