Socket CHS Series 7 User manual

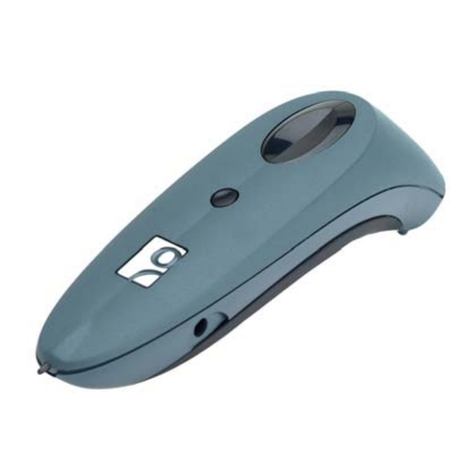

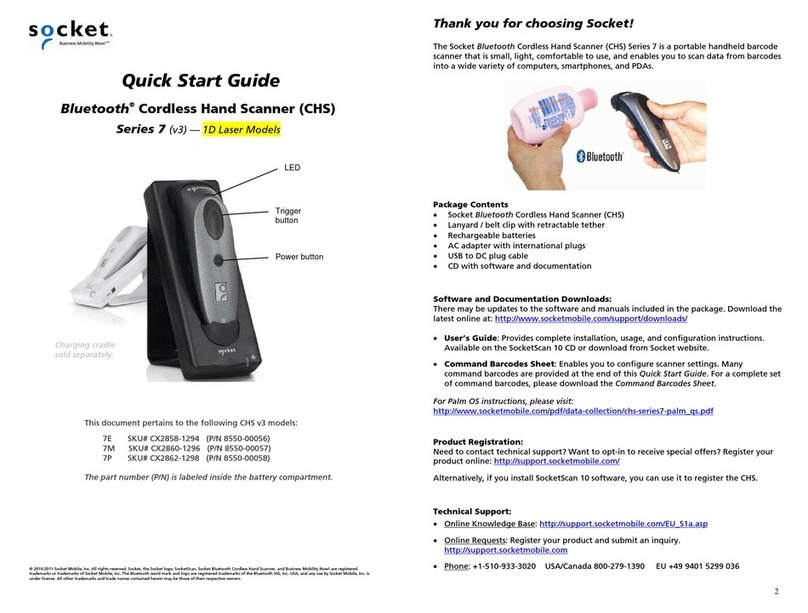

Cordless Hand Scanner Series 7
with Bluetooth®Wireless Technology
Featuring a Bluetooth enabled bar code scanner for wirelessly
adding bar code scanning to Bluetooth enabled mobile
computers running:
•Windows Mobile 2003, 2003SE or 5.0 for Pocket PC/
Pocket PC Phone Edition
•Windows Mobile 6 Classic/Professional
•Windows CE.NET for the Intermec CK30
•Palm OS 5.2 or later
•Windows XP or XP Tablet Edition
User’s Guide

5/2008 Document # 6410-00233 O
COPYRIGHT NOTICE
Copyright © 2008 Socket Mobile, Inc. All rights reserved.
Socket, the Socket logo, Battery Friendly, Cordless Hand Scanner
with Bluetooth Wireless Technology, SocketCare, SocketScan,
Mobility Friendly, Connect!Agent, and Error Proof Protocol are
trademarks or registered trademarks of Socket Mobile, Inc.
Bluetooth and the Bluetooth logos are registered trademarks
owned by Bluetooth SIG, Inc., U.S.A. and licensed to Socket
Mobile, Inc. All other brand and product names are trademarks
of their respective holders.
The Cordless Hand Scanner includes technology licensed under
United States Patent Numbers 5,902,991 and D526,320 S.
Reproduction of the contents of this manual without the
permission of Socket Mobile is expressly prohibited. Please be
aware that the products described in this manual may change
without notice.
Feel free to contact Socket Mobile at:
Socket Mobile, Inc.
39700 Eureka Drive
Newark, CA 94560-4808
USA
Other than the above, Socket Mobile can assume no
responsibility for anything resulting from the application of
information contained in this manual.
Please refrain from any applications of the Socket Mobile
Cordless Hand Scanner that are not described in this manual.
Please refrain from disassembling the Cordless Hand Scanner.
Disassembly of this device will void the product warranty.
You can track new product releases, software updates and
technical bulletins by visiting the Socket Mobile website at:
www.socketmobile.com.

TABLE OF CONTENTS
COPYRIGHT NOTICE 2
1 | INTRODUCTION 5
Scanner Versions 5
About the Software 5
About Combining Scanning with Bluetooth 6
System Requirements 7
Package Contents 8
Product Registration 8
Additional Documentation 8
Hardware Features 9
2 | HARDWARE PREPARATION 11
Installing Batteries and Attaching the Tether 11
Charging the Scanner 12
3 | SETUP FOR WINDOWS MOBILE 13
STEP 1: Uninstall Other Scanning Software 14
STEP 2: Install the Software 15
STEP 3: Start SocketScan 18
STEP 4: Configure Scanner Settings 18
STEP 5: Turn on the CHS 19
STEP 6: Connect Device to CHS 20
STEP 7: Start Your Application 22
STEP 8: Scan Data into Your Application 22
Disconnecting 23
Symbology Selector 24
Scanner Settings 25
Scan Demo 27
Connect!Agent Utility 28
4 | SETUP FOR THE INTERMEC CK30 30
STEP 1: Install the Software 31
STEP 2: Turn on the CHS 32
STEP 3: Start SocketScan 33
STEP 4: Connect CK30 to CHS 33
STEP 5: Open Your Application 35
STEP 6: Scan Data into Your Application 35
Disconnecting 36
Symbology Selector 37
Prefixes/Suffixes 38
Power Settings 39
3

5 | SETUP FOR PALM 40
STEP 1: Uninstall Other Scanning Software 41
STEP 2: Install the Software 41
STEP 3: Turn on the CHS 43
STEP 4: Start SocketScan 43
STEP 5: Connect CHS to PDA with Bluetooth 44
STEP 6: Open Your Application 46
STEP 7: Scan Data into Your Application 47
Scanner Settings 49
Symbology Selector 52
Scan Test 53
6 | SETUP FOR WINDOWS XP 54
STEP 1: Uninstall Other Scanning Software 55
STEP 2: Install the Software 55
STEP 3: Turn on the CHS 57
STEP 4: Start Bluetooth on Your Computer 57
STEP 5: Configure Bluetooth Settings 58
STEP 6: Configure Scanner Settings 65
STEP 7: Connect Computer to CHS 67
STEP 8: Open Your Application 68
STEP 9: Scan Data into Your Application 68
Disconnecting 69
Scanner Settings 70
Advanced Bluetooth Settings 72
Remote Trigger Button 75
Symbology Selector 76
Version Information 77
Dual Device Support 77
APPENDICES
A SPECIFICATIONS 78
B SAFETY AND USAGE TIPS 81
C BAR CODE LABEL SPECIFICATIONS 84
D ENABLING OR DISABLING SYMBOLOGIES 86
E DECODE ZONE 88
F TROUBLESHOOTING 91
G TECHNICAL SUPPORT 95
LIMITED WARRANTY 96
REGULATORY COMPLIANCE 100
4

1 | INTRODUCTION
If you need to collect bar coded data but don't want to be tied to
your mobile or desktop computer, the Cordless Hand Scanner
(CHS) Series 7 with Bluetooth wireless technology is just what
you're looking for. This innovative device combines the power of
laser bar code scanning with the convenience of Bluetooth
wireless technology in a single compact, lightweight device that is
ergonomically designed to fit comfortably in the palm of your
hand.
Bar code scanning is the most efficient way to collect data from a
mobile computer. If the data to be entered is bar coded, using a
laser scanner is 50 times faster and 10,000 times more accurate
than manual data entry.
Bluetooth wireless technology
transforms how devices connect
with each other, offering you new
possibilities for using your mobile
computer with other devices.
With the Cordless Hand Scanner
(CHS), you can scan bar codes
while connected to the PDA in
your pocket or to your laptop,
tablet or desktop computer
located up to 300 feet away — all
without the hassle of cables or the
awkwardness of a protruding
antenna.
SCANNER VERSIONS
The CHS Series 7 includes three versions of the scanner.
•The entry-level CHS 7E uses linear CMOS imaging technology.
•The mid-level CHS 7M has a Class 1 laser scanner.
•The performance level CHS 7P features a Class 2 laser scanner
and a ruggedized construction.
ABOUT THE SOFTWARE
SocketScan™enters scanned data directly into any
open Windows or Palm OS program as if the data
were manually typed, so you can use the CHS with
your favorite application. Included is a utility that
CHAPTER 1: INTRODUCTION 5

enables you to configure Prefix/Suffixes, sounds, and
other special settings for the CHS.
Connect!Agent™for Windows Mobile simplifies Bluetooth by
automatically setting up and managing the wireless connection.
Connect!Agent runs in the background, requiring no user
interaction.
ABOUT COMBINING SCANNING WITH BLUETOOTH
The Cordless Hand Scanner represents an optimal combination of
proven laser bar code scanning and state-of-the-art Bluetooth
connectivity. Because of the problems inherent in the
intermittent storage of scanned data in on-board memory if the
Bluetooth connection is lost, the CHS is designed to operate only
when connected to the host, with the powerful Class 1 radio
providing the maximum possible connection range.
The user is advised of the connection status with a single beep
when the CHS connects to the host and a double beep when the
connection is closed or lost. As with any wireless device,
connectivity range can be affected by a variety of environmental
variables.
6

SYSTEM REQUIREMENTS
Windows Mobile devices should satisfy these requirements:
•Any of these Windows Mobile versions:
−Windows Mobile 2003, 2003SE or 5.0 for Pocket PC/
Pocket PC Phone
−Windows Mobile 6 Classic/Professional
•Bluetooth wireless technology
•Any of the following Bluetooth stacks:*
−Broadcom 1.5 or later for Windows Mobile 2003/2003SE
−Broadcom 1.7 or later for Windows Mobile 5.0/6
−Microsoft Bluetooth stack for Windows Mobile
•Software installation requires a host PC with either the
Windows Mobile Device Center for Windows Vista or
ActiveSync 4.0 or greater. Both are available free from the
Microsoft website.
The CHS Series 7 is also compatible with the Intermec CK30
mobile computer, which runs Windows CE.NET.
Palm OS devices should satisfy these minimum requirements:
•Palm OS 5.2 or later
•Bluetooth wireless technology
•Software installation requires Palm Desktop Software on a
host computer.
Windows XP computers should satisfy these minimum
requirements:
•Windows Mobile XP or XP Tablet Edition
•Bluetooth wireless technology
For information about using the CHS with Symbian smartphones,
please visit: www.socketmobile.com/products/bar-code-scanning-
data-collection/series7/
For software updates, please visit:
www.socketmobile.com/support/downloads/data-collection/series7/
CHAPTER 1: INTRODUCTION 7

PACKAGE CONTENTS
The Cordless Hand Scanner package includes these items:
•Cordless Hand Scanner with Bluetooth Wireless Technology
•AC charging adapter with international plugs
•2 NiMH rechargeable AAA batteries
•Lanyard with retractable tether
•Software Installation CD
•Booklets with copyright, warranty, and regulatory compliance
information
PRODUCT REGISTRATION
Socket Mobile highly recommends that customers register their
products. Registered users receive the following benefits:
•Access to technical support
•Special offers for future products and upgrades
•The latest new product information.
Register online at: www.socketmobile.com/support/support/new
SOCKETCARE™SERVICE PROGRAM
The SocketCare service program is available for the Cordless
Hand Scanner. For more information, please visit:
www.socketmobile.com/support/socketcare/
ADDITIONAL DOCUMENTATION
Socket Mobile has also published Quick Start Guides and an
Advanced Programming Guide for the CHS, available online at:
www.socketmobile.com/support/downloads/data-
collection/series7/?page=Detail
8

HARDWARE FEATURES
Rechargeable Batteries and AC Adapter
Charge the internal batteries by using the included AC adapter.
The adapter rating is 5V, 2A, positive pole center. A fully charged
battery should provide roughly 8 hours of normal operation.
WARNING: Charge ONLY NiMH batteries in the CHS. Damage may
result if other battery types are charged. Do not store the CHS
for more than 30 days with the batteries installed.
The red Battery Status LED will not function properly if standard
AAA non-rechargeable batteries are being used.
Besides the included AC adapter, you can also recharge the CHS
by using any of the following:
•Socket Mobile Power Pack (available in Americas and Asia
Pacific). www.socketmobile.com/products/accessories/mobile-
power-pack/
•AC and DC adapters of most recent Pocket PCs from Socket
Mobile, Casio, Fujitsu, HP, and Toshiba are also compatible.
Touch Screen Stylus
The CHS features a stylus tip in the tail of the
CHS that you can use Pocket PC and other
device touch screens. The stylus can be
removed with small pliers if desired. Visit the
Socket Mobile website to purchase
replacement styli.
WARNING: Do not use the stylus if
damaged. A damaged stylus may scratch
the display screen of your computer.
The stylus does not work with XP Tablet computers using Active
Matrix displays.
CHAPTER 1: INTRODUCTION 9

Status Indicator LED
LED LED Activity Meaning
1 blink per second Bluetooth radio is on, but not
connected.
Bluetooth
Status
(Blue)
1 blink per 5 seconds Bluetooth radio is on, connection
established.
Good Read
(Green)
Green Data successfully scanned and
transmitted to host device.
1 blink per second Less than 20% of battery life
remaining.
Solid red Batteries are charging.
Battery
Status
(Red)
Off when connected
to charger Batteries are fully charged.
Status Indicator Beeps
The scanner beeps to signal the Bluetooth connection status. You
can also have the scanner beep to indicate scanned data reaching
the host device.
LED Beep Pattern Meaning
1 beep Connection to host device has begun.
Bluetooth
Status
(Blue)
2 beeps Connection to host device has ended.
Good Read
(Green)
1 beep Data was successfully scanned and
transmitted to host device.
10

2 | HARDWARE PREPARATION
INSTALLING BATTERIES AND ATTACHING THE TETHER
1. Use a coin or screwdriver to unlock and remove the battery
cover. Turn the lock underneath the scanner to a horizontal
position. Remove the casing.
2. Install the batteries in opposite directions, as indicated by the
positive symbols.
WARNING: Do not install the batteries incorrectly.
Damage may result.
3. If desired, attach the tether. Wrap the string loop around the
inside part of the lock.
4. Replace the battery cover and lock it into place.
5. If desired, attach the tether to a lanyard or belt.
CHAPTER 2: SETUP FOR WINDOWS MOBILE 11

CHARGING THE SCANNER

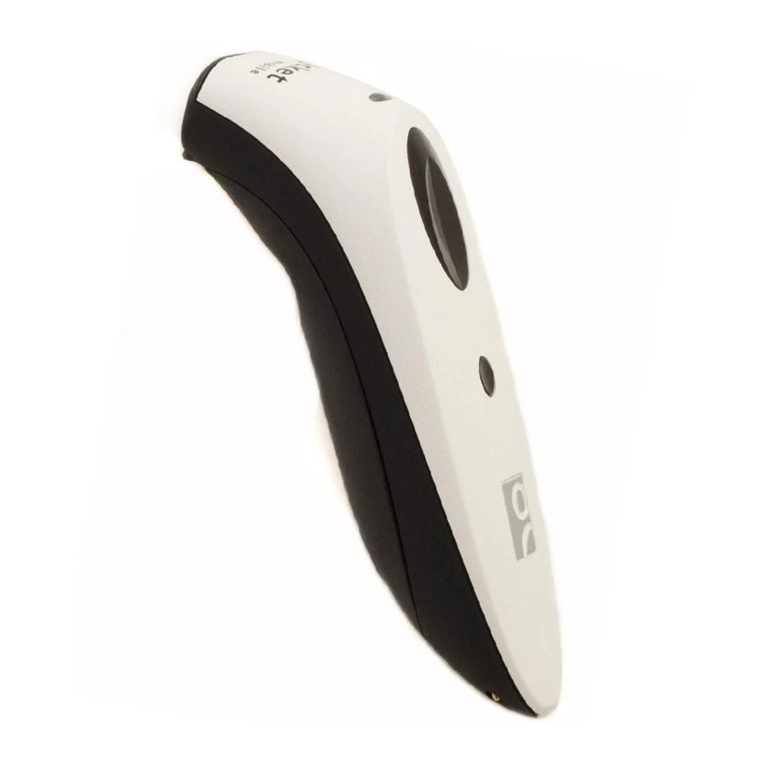

Use the included AC adapter to charge the Cordless Hand
Scanner. The scanner’s NiMH batteries must be charged for at
least 4 hours before the first use. The Battery Status LED will emit
a solid red light while charging, and turn off when the batteries
are fully charged.
WARNING: Do not attempt to charge alkaline
batteries — this may cause alkaline batteries to
leak and damage the CHS.
The red Battery Status LED will not function
properly if standard AAA alkaline batteries are
being used.
12

3 | SETUP FOR WINDOWS MOBILE
This chapter explains how to install and use
the Cordless Hand Scanner (CHS) with the
SoMo 650 or other Bluetooth enabled Pocket
PC or mobile computer running Windows
Mobile.
Before you begin the instructions in this
chapter, make sure you have installed the
batteries (and tether, if desired), and charged
the scanner, as described in Chapter 2,
“Hardware Preparation.”
Setup Summary
STEP 1: Uninstall other scanning software.
STEP 2: Install the software.*
STEP 3: Start SocketScan.
STEP 4: Configure scanner settings.
STEP 5: Turn on the CHS.
STEP 6: Connect CHS to host device.
STEP 7: Start your application.
STEP 8: Scan bar codes.
Application Features
Symbology Selector
Scanner Settings
Scan Demo
Connect!Agent Utility
*Note: Software installation is not required for the Socket
Mobile SoMo 650 handheld computer. However, you may want
to update the software if a more recent version of SocketScan or
Connect!Agent is available.
CHAPTER 2: SETUP FOR WINDOWS MOBILE 13

STEP 1: UNINSTALL OTHER SCANNING SOFTWARE
Delete any bar code scanning software already installed on your
device. You can either uninstall the software directly from your
device, or indirectly with ActiveSync.
Note: The SocketScan software pre-installed on the SoMo 650
cannot be uninstalled but can be upgraded.
OPTION 1: Uninstall Directly from the Pocket PC
1. Make sure the bar code scanning software is closed, and
remove the CF RFID Reader Card from your Pocket PC.
2. Tap Start | Settings. Tap on the System tab or Control
Panel.
3. Tap on the Remove Programs icon.
4. Select the bar code scanning software, then tap Remove.
5. Tap Yes to confirm removal of the program.
OPTION 2: Uninstall via ActiveSync
1. Make sure the bar code scanning software is closed, and
remove the CF RFID Reader Card from your device.
2. Use ActiveSync and a serial/Ethernet/USB cable or cradle to
make an active connection between your device and a host PC.
3. On the host PC, open Microsoft ActiveSync.
4. Click Tools | Add/Remove Programs.
5. Select the bar code scanning software and click Remove.
6. In the confirmation screen, click OK.
7. The next dialog will ask if you want to remove the software
from your host PC as well.
•Click NO to keep a copy of the software on the host PC
that can later be re-installed onto a device.
•Click YES to remove the software from the host PC.
14

STEP 2: INSTALL THE SOFTWARE
Follow these instructions to install SocketScan into your Pocket PC.
1. Use a serial/USB cable or cradle to make an active connection
between your device and a host PC.
•If your host computer is running Windows Vista, use the
Windows Mobile Device Center. Download it free from:
www.microsoft.com/downloads/details.aspx?FamilyID=46f7
2df1-e46a-4a5f-a791-
09f07aaa1914&displaylang=en&Hash=0OvFLzmy4cXd%2fY
RiOT1Wd3tzTLNiASgLexqEDqmCD7j2Q26HZIU4sY6B1HXpO
cHbxXvqr9XoQ0nUCa%2bvvUd2Eg%3d%3d
•If your host computer is running Windows 2000/XP,
ActiveSync 4.0 or greater is required. Download it free
from: www.socketmobile.com/activesync.
2. Insert the installation CD into your host PC.
3. Use My Computer or Windows Explorer to access your CD-
ROM drive. In the CD, click on SETUP.EXE.
4. The SocketScan Setup Center will appear in your web browser.
Read the first page and click Installation in the left margin.
CHAPTER 2: SETUP FOR WINDOWS MOBILE 15

5. In the SocketScan Installation page, in the Windows CE
section, click Install In the first paragraph.
6. Your web browser will present a series of dialogs.
Internet Explorer:
•In the File Download –Security Warning dialog, click Run.
•In the second warning dialog, click Run.
•Internet Explorer will download the file.
Firefox:
•In the file opening dialog, click Save File.
•Firefox will download the file.
•In the Downloads list, next to SocketScanCE.exe, click Open.
•In the warning dialog, click OK to continue.
7. The InstallShield Wizard for SocketScan Software will
automatically launch. Follow the wizard to install the software.
16

8. If your device warns that the software comes from an
unknown publisher, tap Yes to continue installation.
9. After installing the software, a dialog on your Pocket PC will
direct you to soft reset. Tap ok.
10.Remove your device from the cable/cradle and perform a soft
reset by pressing the reset button. If you skip this step, some
icons may not appear correctly.
11.Install Connect!Agent by returning to the SocketScan Setup
Center. In the Installation page, scroll down to Connect!Agent
– Mobile Devices section and click on the Connect!Agent
software link there.
CHAPTER 2: SETUP FOR WINDOWS MOBILE 17

STEP 3: START SOCKETSCAN
1. Tap Start | Programs | SocketScan.
2. When SocketScan is running a SocketScan icon will appear at
the bottom of the Today screen.
Icon Meaning
SocketScan does not detect a bar code scanner
SocketScan is connected to the CHS
STEP 4: CONFIGURE SCANNER SETTINGS
1. Tap the SocketScan icon at the bottom of the Today screen.
In the pop-up menu, tap Settings.
2. The Scanner Settings utility will appear. Tap on the CS tab at
the bottom of the screen.
3. Check the box Enable Cordless Scanner support. IMPORTANT!!!
18

4. Tap on the CS HW tab. Enter the following settings:
•Trigger: Select whether you would like the CHS to scan
only when a Bluetooth connection to the device is
detected. If you require the CHS to detect a Bluetooth
connection before each scan, scanning will be a few
milliseconds slower.
•Good Read Indicator: Select how you would like the CHS
to indicate that it has successfully read data.
•Battery Level: No progress bar should appear since you
are not connected to the CHS.
•Disable Auto Power Off mode: The CHS automatically
shuts off if there is no Bluetooth connection for 20
minutes. Check to disable.
5. After entering settings, tap ok to save the changes.
STEP 5: TURN ON THE CHS
Press the small power button for 3 seconds,
until you see the LED turn blue.
The LED should blink blue once every second to
show that the Bluetooth radio is on but not
connected. If the LED begins blinking red, the
battery needs to be recharged.
CHAPTER 2: SETUP FOR WINDOWS MOBILE 19

STEP 6: CONNECT DEVICE TO CHS
SocketScan supports a generic Bluetooth COM port and may be
able to connect to Bluetooth stacks on mobile computers other
than those listed.
1. Tap on the SocketScan icon at the bottom of the screen. In
the menu, tap Connect CS.
Your mobile device cannot connect to the CHS if another
device is set as the default Bluetooth serial device.
If Connect CS does not appear, tap Settings in the menu, tap
on the CS tab, and enable cordless scanner support.
2. Connect!Agent will automatically turn on the Bluetooth radio
and begin to search for and connect to the CHS.
-If this is your first time connecting to a CHS or CRS
(Cordless Ring Scanner) from this device, Connect!Agent
will begin searching for any CHS or CRS in range.
-If you have previously connected to a CHS or CRS,
Connect!Agent will automatically begin searching for your
favorite (default) device.
20
