Thank you for choosing Socket Mobile!
Let’s get started!

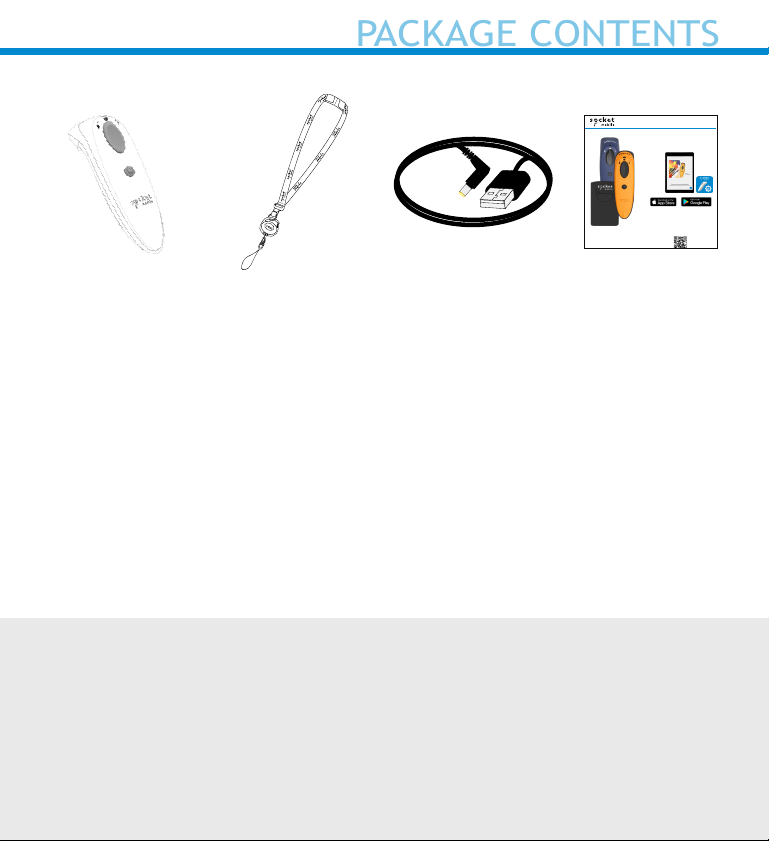

Lanyard
PACKAGE CONTENTS
Charging Cable
GET STARTED WITH
YOUR BARCODE SCANNER
More at: socketmobile.com/companion
Set up your scanner with
Socket Mobile Companion App
Download for Free!
Insert Card

PRODUCT INFORMATION
5
Made with antimicrobial additives for protection against harmful microbes.
Socket Mobile’s barcodes scanners can be wiped clean with a cloth dampened with isopropyl
alcohol or water. Or, the barcode scanners can be wiped clean with a Sani-Cloth.
Warning: DO NOT IMMERSE IN WATER (scanner’s mechanics could be damaged)
DO NOT USE BLEACH FOR CLEANING (scanner’s material property may be affected)
*Also used to display the on-screen keyboard in Basic Mode (iOS only).

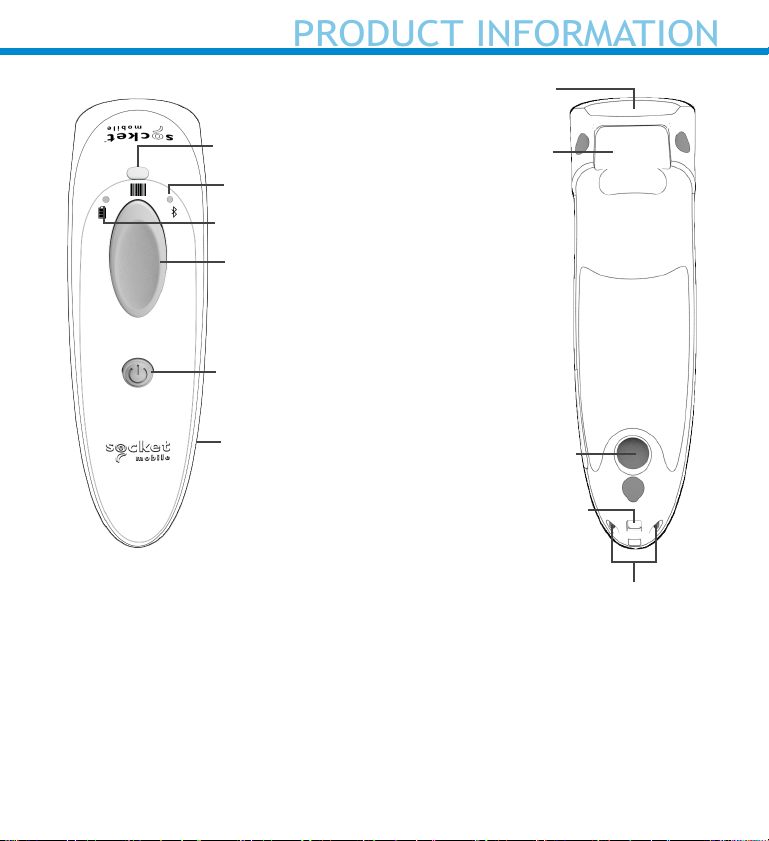

Scanner head
Product label
Lanyard Eyelet
Scan Indicator Light
Scan button
Power button*
Battery Light (Green/Yellow/Red)
Bluetooth Light (Blue)
Charging pins
Power Connector Stand Attachment

How to Attach the Lanyard (optional)
1. Detach the string loop of the tether from the lanyard.
2. Feed the string loop through the eyelet.
3. Pull tight so the string loop is secure.
4. Reattach the string loop to the tether from the lanyard.
ATTACH LANYARD
6

The scanner must be fully charged before rst use. Please allow 8 hours
uninterrupted charging for the initial battery charge.The scanner will
stop charging once the battery is full (no overcharging occurs).
Lift the rubber ap to access the power connector.
• Yellow/Amber Light = Charging
• Green Light = Fully charged
Important:
Charging from a computer USB port is not recommended.
HOW TO CHARGE THE BATTERY
Rubber Flap
To open
“Beep Beep”
7

Available separately
OPTIONAL CHARGING ACCESSORIES
8
For all optional accessories visit our Socket Store.
Available separately
For all optional accessories visit our Socket Store.
Charging Cradle Charging Stand
AC Power Supply
International Adapters
available
Charging Dock

Powering On:
Press and hold down the small
power button until the Battery
light turns on and the scanner
beeps twice (low-high).
Powering Off/ Disconnecting:
Press and hold down the small
power button until the scanner
beeps twice (high-low) and lights
turn off.
The scanner will power off au-
tomatically if device is not con-
nected within 5 minutes. Scanner
connected to a device will power
off within 2 hours if idle/inactive.
POWERING ON/OFF
Power button
9

D740/D760
2D/1D Barcode
Aim at the center.
D760 only
Passport
Aim at the center.
Scanning Barcodes
1. Hold the scanner a few inches from the barcode.
2. Aim, press and hold the scan button.
By default, the scanner will beep, vibrate, and the scan indicator will
ash green to conrm a successful scan. The D760 default is setup to
scan 2-line passports.
Caution: Do not stare directly into the scanner light beam.
SCANNING BARCODES
Scan button
10

Connect your scanner using one of the following Bluetooth connection
modes:
Bluetooth Connection Proles
Bluetooth Mode Description
Basic Mode (HID)
(Default)*
Human Interface
Device Prole
• NO software installation required
• Connects to most devices
• Good for barcodes containing small amounts of
data
• Scanner interacts with host device like a keyboard
Application Mode
(SPP)
Serial Port Prole
For Android or Windows
• Software installation is required
• More efcient and reliable data communications
for barcodes containing lots of data
• If you have an application that supports Socket
Mobile Scanners this is the mode recommended
Application Mode
(MFi-SPP)
Apple Specic
Serial Prole
For iOS Devices
• Must use with an App developed to work with
iOS devices
• Software installation is required
• If you have an iOS application that supports
Socket Mobile Scanners this is the mode you want
to use
*By default, the scanner is set to Basic Mode (HID).
BLUETOOTH CONNECTION MODES
11

Operating System Connection Options
Operating
Systems
(OS)
Devices
Bluetooth
HID
Support
Bluetooth
SPP
Support
Bluetooth
Apple
Serial
Specic
(MFi Mode)
Android Android 4.0.3 &
later Yes Yes N/A
Apple iOS iPod, iPhone, &
iPad Yes N/A Yes
Windows PC Windows 7, 8, 10 Yes Yes N/A
Mac OS
Mac OS X 10.4 to
10.X
Mac Books, Mac
Mini, &iMac
Yes No N/A
Note: To switch from one mode to the other you must remove the
pairing information from both devices - host computer and the scanner.
(see unpairing procedure on page 22)
12
BLUETOOTH CONNECTION MODES

To assist in scanner setup & conguration
Download the Companion App for free!
Socket Mobile’s Companion App will help you
congure and check the status of your
Socket Mobile barcode scanners.
• Easy to follow instructions for pairing scanners
in Application Mode
• Verify scanner status
• Check warranty and register scanners
Learn more about Application Mode.
Scan this QR code with your mobile
device to download our new app!
Scan this QR code with your mobile
device to download our new app!
13
COMPANION APP

BASIC MODE
Connect Device in Basic Mode
In this mode the scanner functions and communicates similar to a
keyboard. Therefore, the scanner will work with Notes, and any other
application that supports an active cursor.
1. Power on the scanner. Make sure the scanner is
discoverable (unpaired).
2. Go to Settings | Bluetooth.
3. Make sure the device has Bluetooth “On” and scan for devices.
4. In the list of found devices, tap D740 or D760 [xxxxxx] to Pair.
5. The scanner will connect to the host device.
6. The scanner will beep once after it has connected.
*If you have trouble connecting or pairing with host device, turn host
device’s Bluetooh off/on, and/or perform factory reset on the scanner
(see page 50).
Now you are ready to scan barcodes!
14

APPLICATION MODE
Connect Apple iOS device in Application Mode
Please check with your scanner application vendor or visit
www.socketmobile.com/appstore to conrm your scanner-enabled
application supports the scanner.
If you are using the scanner with an Apple iOS device and a
scanner-enabled Application that does not provide instructions how to
connect your scanner, please use the following steps.
1. Power on the scanner. Make sure the scanner is discoverable
(unpaired).
2. To change the prole to Application Mode scan this barcode. The
scanner will beep 3 times.
Use with iPad, iPod touch, and iPhones.
(Scanning this barcode changes the connection mode)
3. Go to Settings | Bluetooth.
4. Make sure the device has Bluetooth “On” and scan for devices.
15

APPLICATION MODE
5. In the list of found devices, tap D740 or D760 [xxxxxx] to Pair.
6. The scanner will connect to the host device.
7. The scanner will beep once after it has connected.
Now you are ready to scan barcodes!
16

APPLICATION MODE
Application Mode (SPP) for Windows (option 1) or Android
(Auto Connect - No conguration required for Application pairing)
1. Power on the scanner. Make sure the scanner is discoverable
(unpaired). The Blue light should be blinking fast.
2. Scan the barcode to change the prole to Application Mode (SPP).
3. Turn on Bluetooth on the Android device. Go to Settings > Bluetooth.
A Bluetooth Devices search will begin.
4. Tap Socket D760[xxxxxx] in the list of other devices found. After a
few seconds the status will change to “Connected” and the LED will
stop blinking and turn solid blue.
Note: The characters in brackets are the last 6 characters of the
Bluetooth Address.
5. Launch your scanner-enabled Application. The scanner will beep once
indicating that it is connected to the appropriate application.
Now you are ready to scan barcodes!
17

APPLICATION MODE
Application Mode (SPP) for Android for D740 Rev. B and below
(Auto Connect - No conguration required for Application pairing)
1. Power on the scanner. Make sure the scanner is discoverable
(unpaired). The Blue light should be blinking fast.
2. Scan the barcode to change the prole to Application Mode (SPP).
3. Turn on Bluetooth on the Android device. Go to Settings > Bluetooth.
A Bluetooth Devices search will begin.
4. Tap Socket D760[xxxxxx] in the list of other devices found. After a
few seconds the status will change to “Connected” and the LED will
stop blinking and turn solid blue.
Note: The characters in brackets are the last 6 characters of the
Bluetooth Address.
5. Launch your scanner-enabled Application. The scanner will beep once
indicating that it is connected to the appropriate application.
Now you are ready to scan barcodes!
18

APPLICATION MODE
Connect Windows (option 2) PC in Application Mode
Note: Make sure you have administrative privileges.
1. Download the latest SocketScan 10 software from Socket Mobile’s
support web page.
2. Follow the on-screen instructions to install the software.
3. In SocketScan 10 Settings, select an incoming Bluetooth serial COM
port.
Note: If there is none, please click Ports to create at least one new
incoming COM port in Bluetooth settings.
4. Power on the scanner. Make sure the scanner is available to be con-
nected to Bluetooth (unpaired).
5. Launch SocketScan 10 and click on the SocketScan 10 icon in the task
tray. In the pop-up menu, click Socket EZ Pair.
6. Scan the barcode that appears on the screen.
7. open the Bluetooth settings, add and pair the scanner manually. (If
prompted for a passkey, enter 0000)
8. Open SocketScan. From EZ pair, you will have the pre-paired Blue-
tooth option. The scanner is available to be clicked to pair.
Now you are ready to scan barcodes.
19

AUTO MODE (CHARGING DOCK OR STAND)
If you have purchased the Socket Mobile Charging Dock or Stand,
the D740/D760 can both charge and scan stationary in Auto Mode.
1. Scan command barcode to place your scanner in Auto Mode.
Note: Turn off host device’s Bluetooth before scanning command barcode.
2. Once the scanner is in Auto Mode, it will switch to automatic
scanning when it detects power coming from the charging pins of the
Charging Dock or Stand. Place a barcode in the scanners eld of view and
the scanner will automatically scan it.
*Supported 2D Scanners: 7Qi, 7Xi, D740, D750, D760 and S740
Auto Mode (In the Charging Dock or Stand)
20
