socomec COUNTIS M43 User manual

2.2 Accuracy 精度
Voltage 电压 0.5%
Current 电流 0.5%
Frequency 频率 0.2%
Power factor
功率 因素 1%
Active power
有功 功率 1%
Reactive power
无功功率 1%
Apparent power 视在功率 1%
Active energy 有功电量 Class0.5S IEC62053-22
Reactive energy
无功电量 2% of range maximum
2.3 Environment 环境
Operating temperature 工 作温度 -25℃ to +55℃
Storage and transportation temperature 存储 温度 -40℃ to +70℃
Reference temperature 额 定工作 温度 23℃±2℃
Relative humidity 湿度 0 to 95%
Altitude 使用海 拔 2000m
Mechanical environment 机械 环境 等级 M1
Electromagnetic environment 电磁环 境等 级 E2
Degree of pollution 污染等 级 2
2.4 Mechanics 机械参 数
Din rail dimensions 尺寸 72x94.5x65 (WxHxD) DIN 43880
Mounting 安装 DIN rail 35mm导轨 安装
Material 材质 self-extinguishing UL94V-0自熄性 材 料
Terminal capacity current paths (Flexible): 1-2.5mm2
电流 端口 接入 线缆 规格(推荐使用柔性): 1-2.5mm2
Terminal capacity COM and Pulse (Flexible): 0.5-2.5mm2
通讯及脉冲端口接入线缆规格(推荐 使用 柔性): 0.5-2.5mm2
Max tightening torque 最大扭力: 0.4Nm
3. Display 显 示
Initialization Display 初始化显示
When it is powered on, the meter will initialize and do self-checking.
正确接线后，接通电源，该仪表为初始化显示并做自检.
Full screen 全屏显示
It will last for 3 seconds.持续3秒
产品 概述
This document provides operating, maintenance and installation instructions of
COUNTIS M43. The unit measures and display the characteristics of 1P2W,3P3W,
3P4W’s application. It provides voltage, current, power, frequency, power factor
and energy etc. It is a 1A or 5A current transformer operated and can be configured
to work with a wide range of CTs. COUNTIS M43 provides two pulse outputs and 1
remote communication port.
此手册为用户提供了COUNTIS M43的操作,维护和安装说明。导轨式多功能仪
表COUNTIS M43测 量并 显示 单、 三相电 网中 的各 种电 力参 数。COUNTIS M43可测量电压，
电流 ，功 率， 频率 ，功 率因素,有 功电 量,无功 电量,正 向电 量,反向电 量等 。
COUNTIS M43采 用CT式接入。COUNTIS M43配备2路无源脉冲输出,另带1路RS485通
讯接 口,可实 现远 程通 讯。
技术规格参数
技术规格
Voltage AC(Un) 额定电压 3x230/400VAC
Voltage Range 工作电压范围 80%~120% of Un
Primary Current 一次侧电流 1-9999A
Second Current 二次侧电流 1A or 5A
Power Consumption 功耗 ＜2W/10VA
Frequency 频率 50/60Hz
AC voltage withstand 交流耐压 4KV/1分钟
Impulse Voltage Withstand 脉冲耐压 6KV-1.2uS
Over current withstand 短时过流 30Imax for 0.01s
Pulse Output 2 脉冲2 3200imp/kWh (non-configurable 不可调）
Pulse Output 1 脉冲1 1000/100/10/1 total kWh/kVarh
(configurable可调)
Display 显示 LCD with white backlit LCD 带背光
Max.Reading 最大读数 9999999.9 kWh
2.1General Specifications
Software version 软件版本号，
以实 际显 示版 本号 为准
Self-test passes 表自测通过
Setting by button 按键设置
To getintoSet-up Mode, the user needs to press the “Enter “ button
for 3 second.Below parameters can be set via the buttons.
通过长按此按键3秒进入设置模式，可设置以下参数：
Modbus ID 表地址: 001~247
Baud rate.波特率;2.4k,4.8k,9.6k,
19 ,2 k, 38 . 4 k
Pulse Constant 脉冲常数
Option 可选: dFt (2.5Wh/Varh)/0.01/0.1/1/
10/100/1000
It shows 1 pulse=10kWh/kVarh
左图 举例1 pulse=10kWh/kVarh
4. Button Function 按键 功能
SelectsV and A display screen. 查看 电压 、电 流
In Set-up Mode, it is the “Left” or “Back” button
设置模式下为“向左”或者“返回”按键
SelectsHz andPF display screen. 查看频率、功率因素
In Set-up Mode, it is the “Up” button
设置模式 下为 “向 上” （增 加数 值） 按键
Selectspower display screen. 查看功率
In Set-up Mode, it is the “Down” button
设置模式 下为 “向 下” （减 少数 值） 按键
Selectsenergy display screen. 查 看电 量
In Set-up Mode, it is the “Enter” or "Right" button.
设置模式 下为"进 入” 或" 向右”(移 动光 标)按键
THREE PHASE DIN RAIL ENERGY METER CT C ONNECT
COUNTIS M43 三相多功能导轨式电能表
Quickstart 548622
Change Password 修改密 码
Parity 校验位
Default 默 认: None
可选 ：None, Even, Odd
Pulse Output 1 脉冲类 型
Option 可选:kWh (默 认)/ KVarh
Pulse duration 脉 冲宽 度
Option: 200 / 100 (默认) / 60ms
Clear Max demand of active power
最大有功需量
Clear the resettable energy kWh / kVarh
可清零有功电量/无功电量
Stop bits 停 止位
可选 ：1 / 2
PT Ratio PT 变比
Option 可设置范围: 0001-9999
COUNTIS M43:ref.48C03021
F PF
CT 2 secondary current CT2
Option 可选:5A / 1A
CT Ratio CT 变比
Option 可设置范围: 0001-9999A
PT 2 secondary PT
Option 可选:100-500V
Demand Integration Time 需量时 间
Default (默 认): 15 minutes
Option 可选: off(0) / 5 / 8/10 / 15 / 20/30 /
60
Backlit lasting time set-up 背光 时间
Default 默 认: 60 min
Option 可选: 0(off)/ 5/ 10/ 30/ 60/120
Supply System 电网类型
Option 可选: 3P4（W) /3P3(W) /1P2(W)

Caution 注 意安 全
Qualified personnel 授权操作人员
Proper handling 正确处理

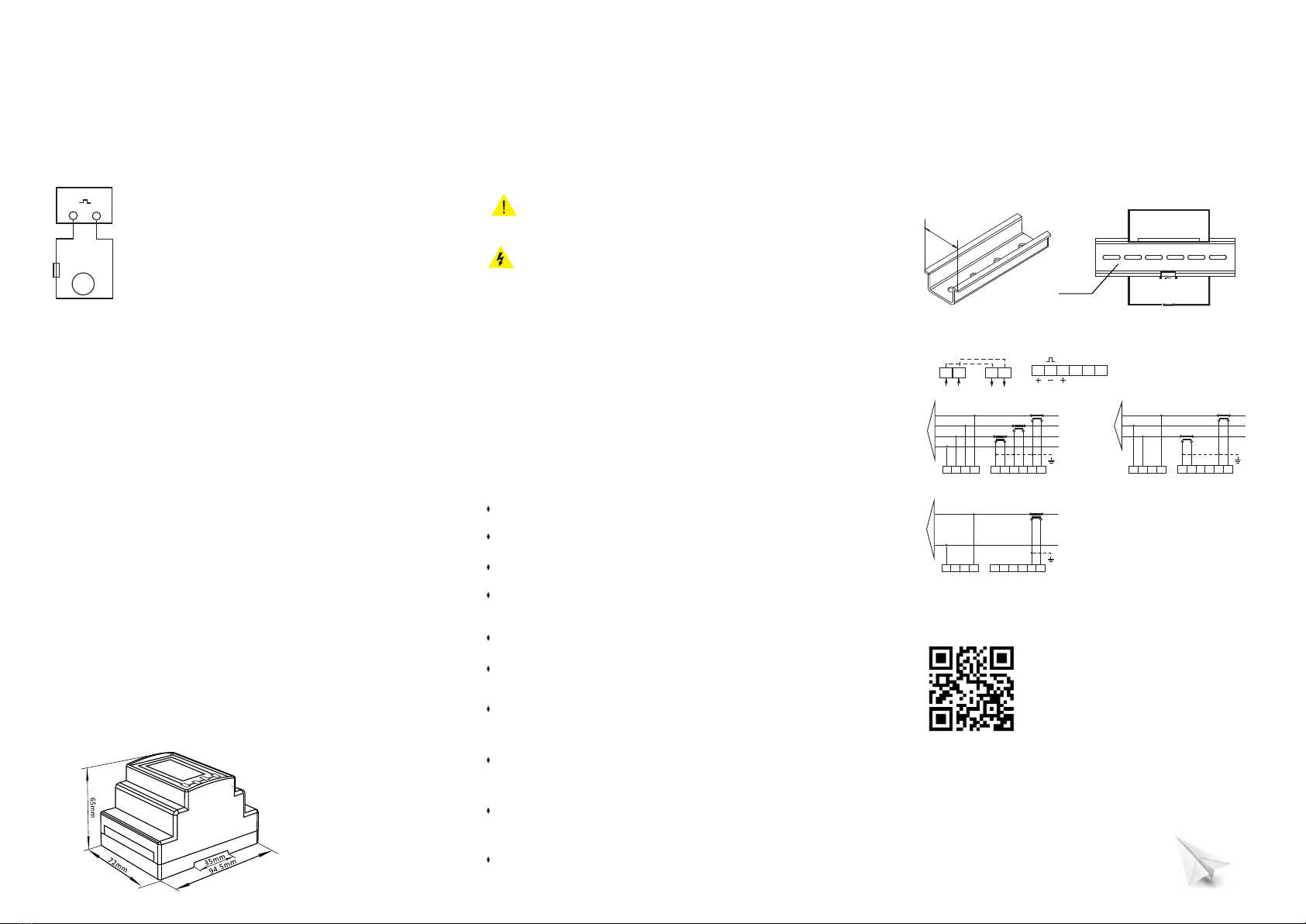

7.2 Installation 安装
ى5mm
7.3 Wiring diagram 接线 图
Warning 警告
6. Dimensions 尺寸
The meter provides a RS485 port for remote communication. Modbus RTU is the
protocol applied. For Modbus RTU, the following RS485 communication parameters
can be configured from the Set-up menu.
配备1路RS485 通讯口，可通过Modbus RTU 实现远程通讯。通讯数可COUNTIS M43
通过Modbus 通讯设置。
Baud rate 波特: 2400, 4800, 9600,19200,38400
Parity 验: NONE/EVEN/ODD
Stop bits 止: 1 or 2
Modbus Address 地址: 1 to 247
5.4 RS485 output for Modbus RTU RS485 Modbus 通讯
5.3 Pulse Output2 脉冲2
Pulse output 2 is non-configurable. It is fixed up with Import kWh. The constant is
3200imp/kWh.
The Pulse width: 90ms
脉冲2是不可设置胡，固定为正向有功电量。脉冲常数为3200imp/kWh。
脉宽为90ms。
This manual does not contain all of the safety measures for operation of the
equipment(module,device),because special operating conditions, and local
code requirements or reg ulations may necessitate further measures.
However, it does contain informa tion which must be read for your personal
safety and to avoid material damages. This information is highl ighted by a
warni ng trian gle and is repre sente d as follows , depending on the degree of
potential danger.
This means that failure to observe the instruction can result in death,
serious injury or considerable material damage.
不遵 守指 令可 能会 导致 死亡， 严重 伤害 或相 当大 的材物 损坏 。
This mean s hazard of elec tric shock and failure to take the
necessary safety precautions will result in death,serious injury or
considerable material damage.
电击 的危 险及 未能 采取 必要的 安全 预防 措施,可 能导 致死亡 、严 重伤 害或 相
当大 的材 物损 坏。
Operation of the equipment (module, device) described in this manual may
only be performed by qualified personnel. Qualified personnel in this manual
means per son who are authorized to commission, start up, ground and label
devices, systems and circuits according to safety
and Regulatory standards.
本手册所描述的设备（模块、设备）的操作运行只能由合格人员
进行 操作 。本 手册 中的 合格人 员指 经授 权人 员,具有 专业的 教育 背景,技 术经 验,熟
知重 要行 为准 则和 条例,有 能力判 断自 己的 职责 并能 够清楚 的提 前认 识到 可能发 生
的危 险。
The equipment (device, module) may only be used for the application
specified in the catalogue and the user manual, and only be connected with
devices and components recommended and approved by SOCOMEC.
M43只能应用于该用户手册及产品彩页规定的应用环境中，且是由COUNTIS
SOCOMEC 推荐和认可的设备中使用。
Use only insulating tools.
必须使用绝缘工具。
Do not connect while circuit is live (hot).
在带 电时 不要接 线安装 。
Place the meter only in dry surroundings.
将仪 表放 置在干 燥环境 中。
Do not mount the meter in an explosive area or expose the meter to dust,
mildew and insects.
不要将仪表安装在易燃易爆区或者将仪表暴露在多尘，多霉，多虫环境中。
Make sure the used wires are suitable for the maximum current of this meter.
确保 使用 的电线 适合该 仪表的 最大 电流负 载。
Make sure the AC wires are connected correctly before activating the
current/voltage to the meter.
在上电使用前，确认电压、电流接线正确。
Do not touch the meter connecting clamps directly with your bare
hands, with metal, blank wire or other material as you may get an electrical
shock.
不要直接用裸露的手去操作安装，触碰金属，电线或其他材料，避免触电。
Make sure the protection cover is placed after installation.
Installation, maintenance and reparation should only be done by qualified
personnel.
确保安装后安装保护罩。安装、维修只能由合格人员操作完成。
Never break the seals and open the front cover as this might influence the
functionality of the meter, and will avoid any warranty.
不要破坏铅封和拆开电表。如果擅自破坏铅封和拆开电表，该表将不再享受质
保服 务。
Do not drop, or allow physical impact to the meter as there are high precision
components inside that may break.
搬运、安装过程中谨慎细心，谨防跌落，抛掷，以免表内部器件因物理撞击受
损。
Before proceeding with the implementing, mounting, commissioning, configuration,
cleaning, decommissioning, dismounting, wiring or maintenance operations, the
product and the installation must be powered off. However, specific instructions for
a product may allow live intervention under certain conditions, means, qualifications
and authorizations.
The product is not to be repaired by the user.
在进行实施、安装、调试、配置、清洗、拆卸、布线或维护操作之前，产品安
装必须断电。对某种产品的特定说明可能允许在某些条件、手段、资格和授权下
进行 现场 干预 。
本产品不允许用户擅自拆卸维修。
5.2 Pulse Output 1脉冲1
Pulse output 1 is configurable. The pulse output 1 can be set to generate pulses to
represent kWh / kVArh.
脉冲1是可设置的。脉冲输出模式可按需设置成有功/无功电量。
The pulse constant 1 pulse per :
0.01=10 Wh/Varh
0.1=100Wh/Varh
1=1kWh/kVarh
10=10kWh/kVarh
100=100kWh/kVarh
1000=1000kWh/kVarh
Pulse width: 200 / 100/ 60ms ( default)
脉冲宽度可设置 200/100/60ms (默认)。
ATTENTION:Pule output must be fed as shown in the
wiring diagram below.Scrupulousil respect polarities
and the connection mode. Opto-coupler with
potential-free SPST-NO Contact.
注意：脉冲输出为无源输出，接线按左图所示，需严格
遵循 图示 正负 极连 接。
Contact range （电压范围）:5~27VDC
Max. current Input (最大电流 输入 ）:27mA DC
+-
Uimp
R
O U T P U T
CORPORATE HQ CONTACT:
SOCOMEC SAS, 1-4 RUE DE WESTHOUSE, 67235 BENFELD, FRANCE
This document is not a contract. SOCOMEC reserves the right to modify features
without priornotice in view of continued improvement.
DIN Rail
本手 册不 包含 所有 设备(模 块,设备)操作 的安 全措 施。 因为 特殊的 操作 条件 和
地方法规要求或法规可能需要进一步的措施。然而，为了您的安全及避免设备人
为损 坏,请认 真阅 读相 关信 息。
7. Installation 安装
7.1 Safety instruction 安全提示
Information for your own safety 为了您的安 全， 请认 真阅 读以下信息
5. Communication 通讯
5.1 Pulse Output 脉冲 输出
The meter is equipped with 2 pulse outputs, which are fully isolated from
the inside circuit. That generates pulses in proportion to the measured
energy. The pulse outputs are polarity dependent , passive transistor
output requiring an external voltage source for correct operation. For
this external voltage source, the voltage shall be 5-27V DC, and the
maximum input current shall be 27mA DC.
配备2路 无源 脉冲 输出 （内 部电路 已做 隔离 ）。 产生 与测量 值成 比例COUNTIS M 43
的脉 冲信 号。 无源 脉冲 输出需 要外 部直 流电 源， 电压值 应为5 -2 7 V D C，相应 最大 输
入直 流电 流应 为27 m A D C .
9 10 11 12 13 14
5 6
AUXILIARY
SUPPLY
L N
7 8
POWER
OUTPUT
L N
1 2 RS485
B AGND
1 2 3 4
L1
L2
L3
N
1 2 3 4
L1
L2
L3
15 16 17 18 19 20
1 2 3 4
L1
N
P2 P1
S2 S1
P2 P1
S2 S1
P2 P1
S2 S1
P1P2
S1S2
P2 P1
S1S 2
P1P2
S1
S2
3 PHASE 4 WIRE
3 PHASE 3 WIRE
1 PHASE 2 WIRE
15 16 17 18 19 20
15 16 17 18 19 20
MEASURED VOLTAGE CURRENT INPUTS MEASURED VOLTAGE
MEASURED VOLTAGE
CURRENT INPUTS
CURRENT INPUTS
Please scan the left QR code for detailed MODBUS
Protocol.
扫一扫左边二维码，获取MO DB US通 讯协 议。
