SolarEdge Energy Bank User manual

Installation Guide
Single Phase Energy Hub
Inverter
with Prism Technology
For Australia
Version 1.1

Disclaimers
Important Notice
Copyright © SolarEdge Inc. All rights reserved.
No part of this document may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical, photographic,
magnetic or otherwise, without the prior written permission of SolarEdge Inc.
The material furnished in this document is believed to be accurate and reliable.
However, SolarEdge assumes no responsibility for the use of this material. SolarEdge
reserves the right to make changes to the material at any time and without notice. You
may refer to the SolarEdge web site (www.solaredge.com) for the most updated version.
All company and brand products and service names are trademarks or registered
trademarks of their respective holders.
Patent marking notice: see http://www.solaredge.com/patent
The general terms and conditions of delivery of SolarEdge shall apply.
The content of these documents is continually reviewed and amended, where
necessary. However, discrepancies cannot be excluded. No guarantee is made for the
completeness of these documents.
The images contained in this document are for illustrative purposes only and may vary
depending on product models.
Disclaimers 1
Single Phase Energy Hub Inverter MAN-01-00812-1.1

Emission Compliance
This equipment has been tested and found to comply with the limits applied by the
local regulations.
These limits are designed to provide reasonable protection against harmful interference.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, you are encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance may void the user’s authority to operate the equipment.
Single Phase Energy Hub Inverter MAN-01-00812-1.1
2 Emission Compliance

Revision History
Version 1.1 (August 2021)
Added support of SolarEdge Energy Bank and LG RESUPrime batteries.
Version 1.0 (January 2021)
First release of this guide
Revision History 3
Single Phase Energy Hub Inverter MAN-01-00812-1.1

Contents
Disclaimers 1
Important Notice 1
Emission Compliance 2
Revision History 3
HANDLING AND SAFETY INSTRUCTIONS 6
Safety Symbols Information 6
IMPORTANTSAFETYINSTRUCTIONS 7
Chapter 1: Overview 10
StorEdge Solution Components 10
Installation Equipment List 12
Inverter Transport and Storage 13
Chapter 2: Installing the Power Optimisers 14
Safety 14
Installation Guidelines 16
Step 1: Mounting the Power Optimisers 18
Step 2: Connecting a PV module to a Power Optimiser 18
Step 3: Connecting Power Optimizers in Strings 19
Step 4: Verifying Proper Power Optimiser Connection 20
Chapter 3: Installing the Inverter 21
Inverter Package Contents 21
Identifying the Inverter 21
Inverter Interfaces 21
Mounting the Inverter 25
Selecting a Residual Current Device (RCD) 28
Chapter 4: Installing the Battery (Optional) 30
Chapter 5: Connecting the Inverter 31
Installing Conduits 31
Connecting the Inverter to ACGrid 32
Connecting the DC Strings to the Inverter 32
Connecting the Battery (Optional) 34
Connecting the Backup Interface (Optional) 36
Connecting an External CTto the Energy Meter (Optional) 36
Installing the 9V Battery 37
Connecting Multiple Inverters through RS485 38
Chapter 6: Activating, Commissioning and Configuring the System 40
Step 1: Activating the Installation 40
Step 2: Commissioning and Configuring the Installation 41
Step 3: Verifying Proper Activation and Commissioning 43
Single Phase Energy Hub Inverter MAN-01-00812-1.1
4 Revision History

Configuring Communication with Other Devices 43
Running a Battery Self-test 44
Enabling StorEdge Applications 45
Reporting and Monitoring Installation Data 46
Chapter 7: Setting Up Communication with the Monitoring Platform 49
Communication Options 49
Communication Connectors 50
Removing the Inverter Cover 51
Removing the Connection Unit Cover (if applicable) 51
Creating an Ethernet (LAN) Connection 52
Verifying the Connection 54
Appendix A: Errors and Troubleshooting 55
Identifying Errors 55
Energy Hub Inverter Troubleshooting 56
Troubleshooting Communication 57
Power Optimiser Troubleshooting 58
Appendix B: SafeDC™ 61
Single Phase Energy Hub Inverter - Technical Specifications 62
Support Contact Information 66
Revision History 5
Single Phase Energy Hub Inverter MAN-01-00812-1.1

HANDLING AND SAFETY INSTRUCTIONS
Safety Symbols Information
The following safety symbols are used in this document. Familiarize yourself with the
symbols and their meaning before installing or operating the system.
WARNING!
Denotes a hazard. It calls attention to a procedure that, if not correctly
performed or adhered to, could result in injury or loss of life. Do not proceed
beyond a warning note until the indicated conditions are fully understood and
met.
CAUTION!
Denotes a hazard. It calls attention to a procedure that, if not correctly
performed or adhered to, could result in damage or destruction of the
product. Do not proceed beyond a caution sign until the indicated conditions
are fully understood and met.
NOTE
Denotes additional information about the current subject.
IMPORTANTSAFETYFEATURE
Denotes information about safety issues.
Disposal requirements under the Waste Electrical and Electronic Equipment (WEEE)
regulations:
NOTE
Discard this product according to local regulations or send it back to SolarEdge.
Single Phase Energy Hub Inverter MAN-01-00812-1.1
6 HANDLING AND SAFETY INSTRUCTIONS

IMPORTANTSAFETYINSTRUCTIONS
SAVETHESEINSTRUCTIONS
Warning!
To reduce the risk of injury, read all instructions in this document.
WARNING!
The inverter cover must be opened only after switching the inverter ON/OFF/P
switch located at the bottom of the inverter to OFF. This disables the DC voltage
inside the inverter. Wait five minutes before opening the cover. Otherwise, there
is a risk of electric shock from energy stored in the capacitors.
WARNING!
Before operating the inverter, ensure that the inverter AC power cable and wall
outlet are grounded properly. This product must be connected to a grounded,
metal, permanent wiring system, or an equipment-grounding conductor must
be run with the circuit conductors and connected to the equipment grounding
terminal or lead on the product.
WARNING!
Opening the inverter and repairing or testing under power must be performed
only by qualified service personnel familiar with this inverter.
WARNING!
Do not touch the PV panels or any rail system connected when the inverter
switch is ON, unless grounded.
WARNING!
SafeDC complies with IEC60947-3 when installing the system with a worst case
SafeDC voltage (under fault conditions) < 120V.
The worst case voltage is defined as: Voc,max+ (String Length-1)*1V, where:
Voc,max = Maximum Voc (at lowest temperature) of the PV modules in the
string (for a string with multiple modules, use the max value)
String Length = number of power optimisers in the string
CAUTION!
This unit must be operated according to the technical specification datasheet
provided with the unit.
CAUTION!
HEAVY OBJECT. To avoid muscle strain or back injury, use proper lifting
techniques, and if required - a lifting aid.
IMPORTANTSAFETYINSTRUCTIONS 7
Single Phase Energy Hub Inverter MAN-01-00812-1.1

NOTE
The Connection Unit is NEMAtype 3R rated . Unused glands should be sealed
with appropriate seals.
NOTE
Use PV modules rated according to IEC 61730 class A.
NOTE
The symbol appears at grounding points on the SolarEdge equipment. This
symbol is also used in this manual.
NOTE
SolarEdge inverters can be installed in sites with an alternative power source
such as a generator. SolarEdge requires installing a physical or electronic
interlock, which will signal to the inverter when the grid has been
disconnected. Interlock procurement, installation, maintenance and support
are the responsibility of the installer. Damage to the inverter due to incorrect
interlock installation or use of an interlock that is incompatible with the
SolarEdge system will render the SolarEdge warranty invalid.
For more information on connecting an alternative power source
to SolarEdge inverter, refer to
https://www.solaredge.com/sites/default/files/se-inverter-
support-of-voltage-sources.pdf.
NOTE
The following warning symbols appear on the inverter warning label:
Risk of electric shock
Risk of electric shock from energy stored in the capacitor. Do
not remove cover until 5 minutes after disconnecting all
sources of supply.
Hot surface – To reduce the risk of burns, do not touch.
Caution, risk of danger
WARNING!
Before operating the system, ensure that the been grounded properly.
Single Phase Energy Hub Inverter MAN-01-00812-1.1
8 IMPORTANTSAFETYINSTRUCTIONS

WARNING!
When handling the storage system battery, adhere to all manufacturer safety
instructions.
WARNING!
Before connecting the battery to the inverter, make sure the battery is powered
off.

SolarEdge Energy Bank
1. Toggle off the battery ON/OFF/P switch.
2. Turn off the battery circuit breaker.




LG Chem Prime Battery
Turn off the circuit breaker.


CAUTION!
This unit must be operated under the specified operating conditions as
described in the technical specifications supplied with the unit.
NOTE
The batteries must be certified according to local regulations and supported by
the SolarEdge inverter firmware.
NOTE
For battery decommissioning and disposal, follow the manufacturer
requirements and instructions.
NOTE
For inverters with a nameplate up to and including 10kW:
Maximum short circuit peak current: 78.1A
Maximum short circuit current duration (until current stops): 113msec
Maximum 3-cycle short circuit current RMS value: 28.7A

IMPORTANTSAFETYINSTRUCTIONS 9
Single Phase Energy Hub Inverter MAN-01-00812-1.1

Chapter 1: Overview
The single phase Energy Hub inverter is SolarEdge's all-in-one solution that uses a
single phase DC optimized inverter to manage and monitor solar power generation,
energy storage, EV charging and smart energy devices. When installed with a battery
and the Backup Interface, homeowners are automatically provided with backup power
in the event of grid interruption to power home loads. In addition, solar energy can be
stored in a battery for Smart Energy Management applications such as export control,
offering demand response and peak shaving, and performing time of use shifting for
reduced electric bills.

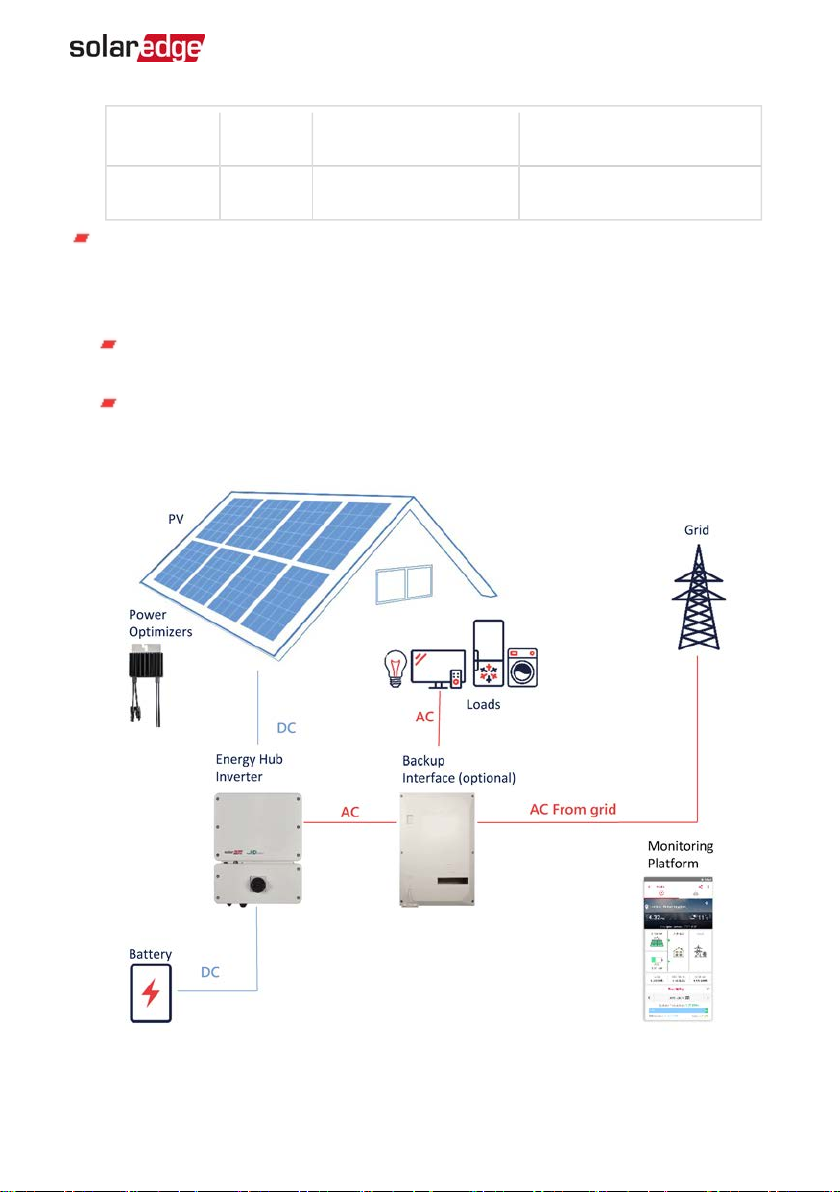

StorEdge Solution Components
Energy Hub inverter - manages battery and system energy, in addition to its
traditional functionality as a DC-optimized PV inverter.
The Connection Unit, located at the bottom of the inverter, allows simple
installation and connectivity to other system components and includes a DC Safety
Switch.
The Energy Meter is used by the inverter for export, import, and consumption
readings, and for Smart Energy Management applications, such as export
limitation, time-of-use profile programming and maximizing self-consumption.
One or multiple batteries (optional) - DC-coupled batteries designed to work with
the SolarEdge system. The batteries can be connected to the system optionally.
When installing a battery, connect the DC cables from the battery and from Power
Optimisers to an external combiner box, compliant with local regulation. Then,
connect the cables from the combiner box to the DCterminals inside the inverter's
Connection Unit.We recommend using the SolarEdge combiner box. For
installation and connection instructions see:
https://www.solaredge.com/sites/default/files/se-combiner-box-installation-
guide-aus.pdf
Supported Batteries
Manufacturer Model Technical Description Mark of Conformity
SolarEdge Energy
Bank
Residential ESS (lithium
ion battery)
UL 1973 / UL9540 / CE / RCM /
(IEC 62619)
Single Phase Energy Hub Inverter MAN-01-00812-1.1
10 Chapter 1: Overview

LG RESU10H
Prime
Residential ESS (lithium
ion battery)
UL 1973 / CE / RCM / TUV (IEC
62619)
LG RESU16H
Prime
Residential ESS (lithium
ion battery)
UL 1973 / CE / RCM / TUV (IEC
62619)
Backup Interface (optional) - controls disconnection of house loads from the grid
and integrates the following components to enable grid-tied solar backup and
Smart Energy Management. The Backup Interface must be installed to allow the
operation of the batteries and inverter during backup.
100A microgrid interconnection device - disconnects the house loads from the
grid in case of a power outage.
Generator hardware support - supports connection for up to 18kW/75A single
phase alternative power supply. Generator connection requires supporting
inverter firmware.
Figure 1: Energy Hub system components
Chapter 1: Overview 11
Single Phase Energy Hub Inverter MAN-01-00812-1.1

NOTE
Additional SolarEdge inverters can be connected over RS485. The inverters will
participate in export limitation, Smart Energy Management and backup
operation.
PV modules connected to power optimizers are not mandatory for charge/
discharge profile programming.
Installation Equipment List
Standard tools can be used during the installation of the SolarEdge system. The
following is a recommendation of the equipment needed for installation:
4 mm Allen torque screwdriver for the inverter enclosure screws
Allen torque screwdriver for M5/M6/M8 screw types
Standard torque flat-head screwdrivers set
Non-contact voltage detector
Cordless drill (with a torque clutch)or screwdriver and bits suitable for the surface
on which the inverter and optimisers will be installed. Use of an impact driver is not
allowed.
Mounting hardware (stainless bolts, nuts, and washers) for attaching:
the mounting brackets to the mounting surface
the power optimiser to the racking (not required for smart modules)
Tools:
MC4 crimper
Wire cutters
Wire strippers
Voltmeter
Mobile phone with latest SetApp version
For installing the communication options, you may also need the following:
For Ethernet:
CAT6 twisted pair Ethernet cable with RJ45 connector
If using a CAT6 cable spool: RJ45 plug and RJ45 crimper
Single Phase Energy Hub Inverter MAN-01-00812-1.1
12 Installation Equipment List

For RS485 / :
Four- or six-wire shielded twisted pair cable
Watchmaker precision screwdriver set
Inverter Transport and Storage
Transport the inverter in its original packaging, facing up and without exposing it to
unnecessary shocks. If the original package is no longer available, use a similar box that
can withstand the weight of the inverter (refer to the inverter weight in the specification
datasheet provided with the unit), has a handle system and can be closed fully.
Store the inverter in a dry place where ambient temperatures are -13°F to 140°F /
-25°C to +60°C.
Chapter 1: Overview 13
Single Phase Energy Hub Inverter MAN-01-00812-1.1

Chapter 2: Installing the Power Optimisers
Safety
WARNING!
When modifying an existing installation, turn OFF the inverter ON/OFF/P
switch and the AC circuit breaker on the main AC distribution panel.
CAUTION!
Power Optimisers are IP68/NEMA6P rated. Choose a mounting location where
Power Optimisers will not be submerged in water.
CAUTION!
The Power Optimiser must be operated according to the technical specifications
provided with the Power Optimiser.
CAUTION!
Cutting the Power Optimiser input or output cable connector is prohibited and
will void the warranty.
CAUTION!
All PV modules must be connected to a Power Optimiser.
CAUTION!
If you intend to mount the Power Optimisers directly to the module or module
frame, first consult the module manufacturer for guidance regarding the
mounting location and the impact, if any, on module warranty. Drilling holes in
the module frame should be done according to the module manufacturer
instructions.
Single Phase Energy Hub Inverter MAN-01-00812-1.1
14 Chapter 2: Installing the Power Optimisers



CAUTION!
Installing a SolarEdge system without ensuring compatibility of the module
connectors with the Power Optimiser connectors may be unsafe and could cause
functionality problems such as ground faults, resulting in inverter shut down. To
ensure mechanical and electrical compatibility of the Power Optimiser
connectors with the PV module connectors to which they are connected:
Use identical connectors from the same manufacturer and of the same type
on the Power Optimisers, modules and the inverter DCinput; or
Verify that the connectors are compatible in the following way:
The module connector manufacturer should explicitly verify compatibility
with the Power Optimiser connectors and the Inverter DC input
connectors.
A third-party test report by one of the listed external labs (TUV, VDE,
Bureau Veritas UL, CSA, InterTek) should be obtained, verifying the
compatibility of the connectors.

For more information, refer to
https://www.solaredge.com/sites/default/files/optimizer-input-
connector-compatibility.pdf

IMPORTANTSAFETYFEATURE
Modules with SolarEdge power optimisers are safe. They carry only a low safety
voltage before the inverter is turned ON. As long as the power optimisers are
not connected to the inverter or the inverter is turned OFF, each Power
Optimiser will output a safe Voltage of 1V.

Chapter 2: Installing the Power Optimisers 15
Single Phase Energy Hub Inverter MAN-01-00812-1.1

Installation Guidelines
For the minimum and maximum number of Power Optimisers in a string (string
length), see the Power Optimiser datasheets. Refer to the Designer for string length
verification. The Designer is available on the SolarEdge website at:
https://www.solaredge.com/products/installer-tools/designer#/.
Do not use extension cables between a module and a Power Optimiser, between
two modules connected to the same Power Optimiser, or between two Power
Optimisers other than in the following cases:
Between a Power Optimiser and a module:
Extension cables of up to 1.8 m are allowed for all Power Optimisers (0.9 m for
DC+, and 0.9 m for DC -).
P-Series Power Optimisers with the 4-type suffix in their part number (Pxxx-
4xxxxxx) and the Mxxxx-Series - extension cables of up to 16 m can be installed
per Power Optimiser (8 m for DC+, and 8 m for DC-).
Between two Power Optimisers or between a Power Optimiser and the inverter:
Extension cables can be installed between Power Optimisers only from row to
row, around obstacles or pathways within a row and from the end of the string
to the inverter. The total length of the extension cables may not exceed the
following values:
Single Phase Inverters Three Phase Inverters
All - 300 m SE17K and below - 300 m
SE17.5K and above - 700 m
For connecting homerun DCcables from Power Optimisers to the inverter, use
cables with the following cross-sections:
For MC4 connectors: 2.5-10 mm²
For DCterminal blocks inside the inverter or Connection Unit (if applicable): 2.5-
16 mm²
Frame-mounted Power Optimisers are mounted directly on the module frame,
regardless of racking system (rail-less or with rails). For installation of frame-
mounted Power Optimisers, refer to
http://www.solaredge.com/sites/default/files/installing_frame_mounted_power_
optimizers.pdf.
The Power Optimiser can be placed in any orientation.
Single Phase Energy Hub Inverter MAN-01-00812-1.1
16 Installation Guidelines

If connecting more modules than Power Optimiser inputs in parallel, use a branch
cable. Some commercial Power Optimiser models have a dual input.
Position the Power Optimiser close enough to its module so that their cables can be
connected.
Make sure to use Power Optimisers that have the required output and input
conductor length.
Completely shaded modules may cause their Power Optimisers to temporarily shut
down. This will not affect the performance of the other Power Optimisers in the
string, as long as the minimum number of unshaded Power Optimisers connected in
a string of modules is met. If under typical conditions fewer than the minimum
Power Optimisers are connected to unshaded modules, add more Power Optimisers
to the string.
To allow for heat dissipation, maintain clearance as specified below.
Figure 2: Power Optimisers clearance
When installing PV modules in a confined space such as Building-integrated
photovoltaic (BIPV) modules, ventilation measures may be required to ensure that
the Power Optimisers are not exceeding the maximum temperatures stated in their
specifications.
Chapter 2: Installing the Power Optimisers 17
Single Phase Energy Hub Inverter MAN-01-00812-1.1

Step 1: Mounting the Power Optimisers
For each of the Power Optimisers(1):
1. Determine the Power Optimiser mounting location and use the Power
Optimiser mounting brackets to attach the Power Optimiser to the
support structure . It is recommended to mount the Power Optimiser
in a location protected from direct sunlight. For frame-mounted
Power Optimisers follow the instructions supplied with the optimisers,
or refer to https://www.solaredge.com/sites/default/files/installing_frame_
mounted_power_optimizers.pdf.
2. If required, mark the mounting hole locations and drill holes.
CAUTION!
Drilling vibrations may damage the Power Optimiser and will void the
warranty. Use a torque wrench or an electric drill with adjustable clutch that
meets the mounting torque requirements. Do not use impact drivers for
mounting the Power Optimiser.
Do not drill through the Power Optimiser or through the mounting holes.
3. Attach each Power Optimiser to the rack using M6 or M8 stainless steel bolts, nuts
and washers or other mounting hardware. Apply torque of 9-10 N*m.
4. Verify that each Power Optimiser is securely attached to the module support
structure.
5. Record Power Optimiser serial numbers and locations, as described in Reporting and
Monitoring Installation Data on page 46.
Step 2: Connecting a PV module to a Power Optimiser
NOTE
Improper wiring may cause electrical faults in a PV system. To avoid electrical
faults, verify proper locking of connectors and avoid cable tension and
friction. Proper planning, materials and installation reduce the risk of electric
arcs, short-circuits and ground faults in the PV system.
NOTE
Images are for illustration purposes only. Refer to the label on the product to
identify the plus and minus input and output connectors.
For each of the Power Optimisers:
(1)Not applicable to smart modules.
Single Phase Energy Hub Inverter MAN-01-00812-1.1
18 Step 1: Mounting the Power Optimisers

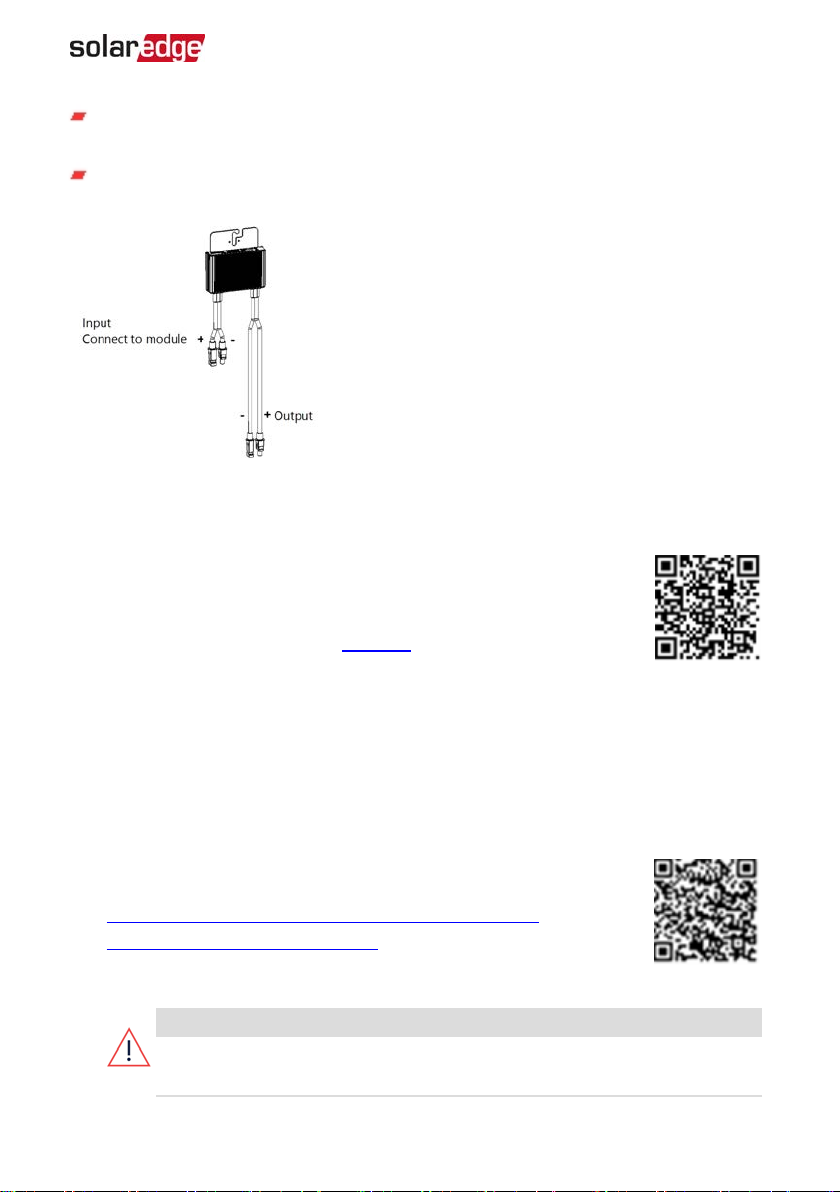

Connect the Plus (+) output connector of the module to the Plus (+) input
connector of the Power Optimiser.
Connect the Minus (-) output connector of the module to the Minus (-) input
connector of the Power Optimiser.
Figure 3: S-Series (left) and P-Series (right) Power Optimiser connectors
Step 3: Connecting Power Optimizers in Strings
You can construct parallel strings of unequal length, that is, the number
of power optimizers in each string does not have to be the same. The
minimum and maximum string lengths are specified in the power
optimiser datasheets. Refer to the Designer for string length verification.
1. Connect the Minus (-) output connector of the string’s first power optimiser to the
Plus (+) output connector of the string’s second power optimizer. When connecting
S-Series Power Optimisers, be sure to connect the short Minus (-) output connector
of one Power Optimiser to the long Plus (+) output connector of the next Power
Optimiser.
2. To minimize electromagnetic interference (EMI), make sure to minimize the distance
between the positive and negative DC cables.
For detailed instructions, see:
https://www.solaredge.com/sites/default/files/se-emi-
performance-application-note.pdf.
3. Connect the rest of the power optimisers in the string in the same manner.
WARNING!
If using a dual-input power optimiser and some inputs are not used, seal the
unused input connectors with the supplied pair of seals.
Chapter 2: Installing the Power Optimisers 19
Single Phase Energy Hub Inverter MAN-01-00812-1.1
