SolarEdge StorEdge SE5K-RWS User manual

Installation Guide
StorEdge Three Phase
Inverter
For Europe and APAC
Version 1.3

Disclaimers
Important Notice
Copyright © SolarEdge Inc. All rights reserved.
No part of this document may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical, photographic,
magnetic or otherwise, without the prior written permission of SolarEdge Inc.
The material furnished in this document is believed to be accurate and reliable.
However, SolarEdge assumes no responsibility for the use of this material. SolarEdge
reserves the right to make changes to the material at any time and without notice. You
may refer to the SolarEdge web site (www.solaredge.com) for the most updated version.
All company and brand products and service names are trademarks or registered
trademarks of their respective holders.
Patent marking notice: see http://www.solaredge.com/patent
The general terms and conditions of delivery of SolarEdge shall apply.
The content of these documents is continually reviewed and amended, where
necessary. However, discrepancies cannot be excluded. No guarantee is made for the
completeness of these documents.
The images contained in this document are for illustrative purposes only and may vary
depending on product models.
Disclaimers 1
StorEdge Three Phase Inverter MAN-01-00648-1.3

Emission Compliance
This equipment has been tested and found to comply with the limits applied by the
local regulations.
These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, you are encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance may void the user’s authority to operate the equipment.
StorEdge Three Phase Inverter MAN-01-00648-1.3
2 Emission Compliance

Contents
Disclaimers 1
Important Notice 1
Emission Compliance 2
Contents 3
Revision History 5
HANDLING AND SAFETY INSTRUCTIONS 6
Safety Symbols Information 6
IMPORTANTSAFETYINSTRUCTIONS 6
Chapter 1: Overview 10
The StorEdge Solution Components 10
Installation Equipment List 11
Inverter Transport and Storage 12
Chapter 2: Installing the Power Optimizers 13
Safety 13
Installation Guidelines 15
Step 1: Mounting the Power Optimizers 18
Step 2: Connecting a PV module to a Power Optimizer 18
Step 3: Connecting Power Optimizers in Strings 19
Step 4: Verifying Proper Power Optimizer Connection 20
Chapter 3: Installing the Inverter 21
Inverter Package Contents 21
Identifying the Inverter 21
Inverter Interfaces 22
Mounting the Inverter 26
Selecting a Residual Current Device (RCD) 28
Chapter 4: Installing the Battery 30
Chapter 5: Connecting the Inverter 31
Opening the Inverter Cover 31
Connecting the ACGrid 32
Connecting the Strings to the Inverter 33
Connecting the Energy Meter 34
Connecting the Battery 36
Closing the Inverter Cover 39
Chapter 6: Activating, Commissioning and Configuring the System 41
Step 1: Activating the Installation 41
Step 2: Commissioning and Configuring the Installation 42
Step 3: Verifying Proper Activation and Commissioning 44
Disclaimers 3
StorEdge Three Phase Inverter MAN-01-00648-1.3

Configuring Communication with the Energy Meter 44
Configuring Communication with the Battery 45
Running a Battery Self-test 45
Configuring StorEdge Applications 46
Chapter 7: Setting Up Communication with the Monitoring Platform 47
Communication Options 47
Creating an Ethernet (LAN) Connection 48
Creating RS485 Bus Connection 52
RS485 Bus Configuration 55
Verifying the Connection 55
Reporting and Monitoring Installation Data 56
Appendix A: Errors and Troubleshooting 59
Identifying Errors 59
Troubleshooting Communication 60
StorEdge Three Phase Inverter Troubleshooting 61
Power Optimizer Troubleshooting 62
Appendix B: Mechanical Specifications 64
Appendix C: SafeDC™ 65
StorEdge Three Phase Inverter - Technical Specifications 66
Support Contact Information 69
StorEdge Three Phase Inverter MAN-01-00648-1.3
4 Contents

Revision History
Version 1.3 (November 2020)
Updated Installation Guidelines on page 15.
Added a requirement to minimize the distance between the positive and negative
DC optimizer cables in Step 3: Connecting Power Optimizers in Strings on page 19.
Added the requirement for a special bracket, when installing close to the shoreline
in Mounting the Inverter on page 26 .
For inverter clearance, added a link to Application Note - Clearance Guidelines in
Mounting the Inverter on page 26 .
Added Opening the Inverter Cover on page 31.
Added Closing the Inverter Cover on page 39.
Updated Activating, Commissioning and Configuring.
Added Creating an Ethernet (LAN) Connection on page 48.
Added Creating RS485 Bus Connection on page 52.
Added the option for using a CAT6 for communication connections.
Updated the communication board TCPdetails in Creating an Ethernet (LAN)
Connection on page 48.
Revision History 5
StorEdge Three Phase Inverter MAN-01-00648-1.3

HANDLING AND SAFETY INSTRUCTIONS
During installation, testing and inspection, adherence to all the handling and safety
instructions is mandatory. Failure to do so may result in injury or loss of life and
damage to the equipment.
Safety Symbols Information
The following safety symbols are used in this document. Familiarize yourself with the
symbols and their meaning before installing or operating the system.
WARNING!
Denotes a hazard. It calls attention to a procedure that, if not correctly
performed or adhered to, could result in injury or loss of life. Do not proceed
beyond a warning note until the indicated conditions are fully understood and
met.
CAUTION!
Denotes a hazard. It calls attention to a procedure that, if not correctly
performed or adhered to, could result in damage or destruction of the
product. Do not proceed beyond a caution sign until the indicated conditions
are fully understood and met.
NOTE
Denotes additional information about the current subject.
IMPORTANTSAFETYFEATURE
Denotes information about safety issues.
Disposal requirements under the Waste Electrical and Electronic Equipment (WEEE)
regulations:
NOTE
Discard this product according to local regulations or send it back to SolarEdge.
IMPORTANTSAFETYINSTRUCTIONS
SAVETHESEINSTRUCTIONS
WARNING!
The inverter cover must be opened only after shutting off the inverter
P/ON/OFF switch located at the bottom on the inverter .This disables the DC
voltage inside the inverter. Wait five minutes before opening the cover.
Otherwise, there is a risk of electric shock from energy stored in the capacitors.
StorEdge Three Phase Inverter MAN-01-00648-1.3
6 HANDLING AND SAFETY INSTRUCTIONS


WARNING!
Before operating the inverter, ensure that the inverter AC power cable and wall
outlet are grounded properly. This product must be connected to a grounded,
metal, permanent wiring system, or an equipment-grounding conductor must
be run with the circuit conductors and connected to the equipment grounding
terminal or lead on the product.
WARNING!
Opening the inverter and repairing or testing under power must be performed
only by qualified service personnel familiar with this inverter.
WARNING!
Do not touch the PV panels or any rail system connected when the inverter
switch is ON, unless grounded.
WARNING!
SafeDC complies with IEC60947-3 when installing the system with a worst case
SafeDC voltage (under fault conditions) < 120V.
The worst case voltage is defined as: Voc,max+ (String Length-1)*1V, where:
Voc,max = Maximum Voc (at lowest temperature) of the PV modules in the
string (for a string with multiple modules, use the max value)
String Length = number of power optimizers in the string
CAUTION!
This unit must be operated according to the technical specification datasheet
provided with the unit.
CAUTION!
HEAVY OBJECT. To avoid muscle strain or back injury, use proper lifting
techniques, and if required - a lifting aid.
NOTE
The inverter is IP65 rated . Unused conduit openings and glands should be
sealed with appropriate seals.
NOTE
Use PV modules rated according to IEC 61730 class A.
HANDLING AND SAFETY INSTRUCTIONS 7
StorEdge Three Phase Inverter MAN-01-00648-1.3

NOTE
The symbol appears at grounding points on the SolarEdge equipment. This
symbol is also used in this manual.
NOTE
A SolarEdge inverters can be installed in sites with an alternative power source
such as a generator. SolarEdge requires installing a physical or electronic
interlock, which will signal to the inverter when the grid has been
disconnected. Interlock procurement, installation, maintenance and support
are the responsibility of the installer. Damage to the inverter due to incorrect
interlock installation or use of an interlock that is incompatible with the
SolarEdge system will render the SolarEdge warranty invalid.
For more information on connecting an alternative power source
to SolarEdge inverter, refer to
https://www.solaredge.com/sites/default/files/se-inverter-
support-of-voltage-sources.pdf.
NOTE

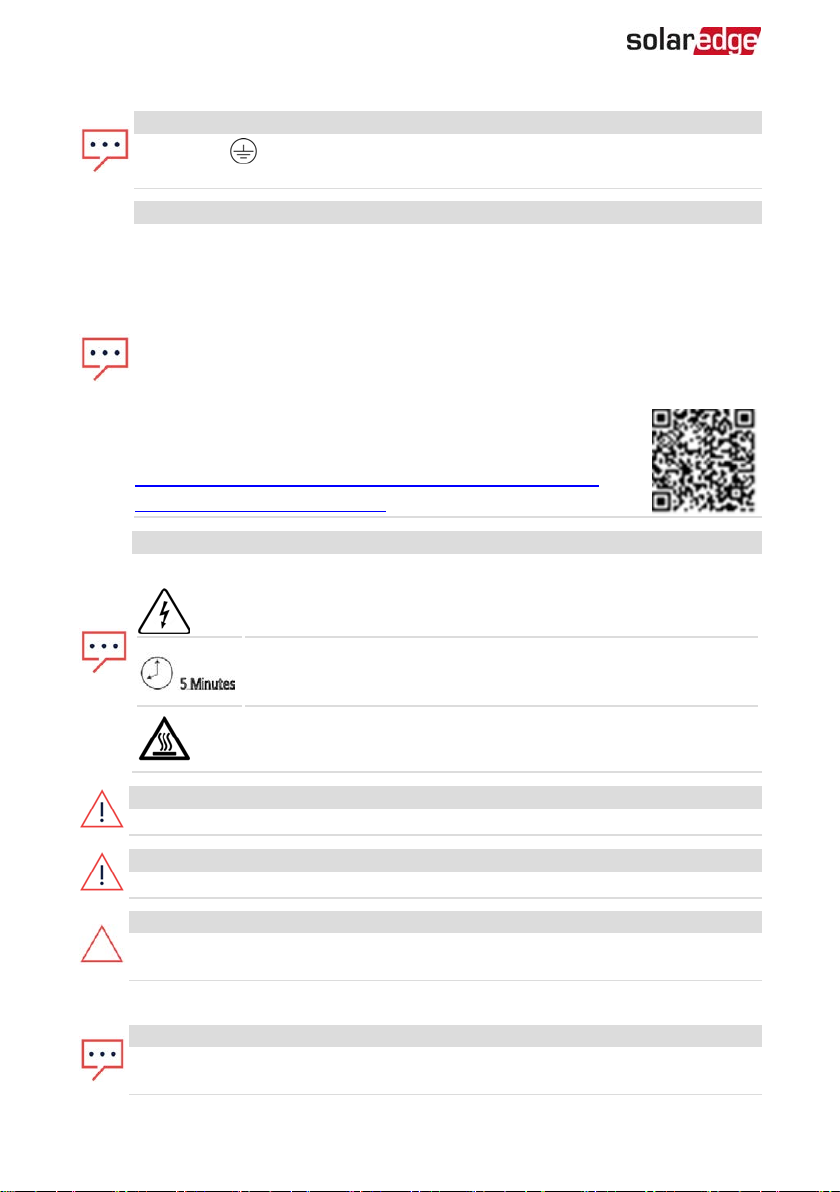

The following warning symbols appear on the inverter warning label:
Risk of electric shock
Risk of electric shock from energy stored in the capacitor. Do not
remove cover until 5 minutes after disconnecting all sources of
supply.
Hot surface – To reduce the risk of burns, do not touch.
WARNING!
Before operating the system, make sure all components are properly grounded.
WARNING!
When handling the battery, adhere to all manufacturer safety instructions.
CAUTION!
This unit must be operated under the specified operating conditions as
described in the technical specifications supplied with the unit.

NOTE
The battery used with the inverter must conform to all local certification
requirements.
StorEdge Three Phase Inverter MAN-01-00648-1.3
8 IMPORTANTSAFETYINSTRUCTIONS

NOTE
For battery decommissioning and disposal, follow the manufacturer
requirements and instructions.
HANDLING AND SAFETY INSTRUCTIONS 9
StorEdge Three Phase Inverter MAN-01-00648-1.3

Chapter 1: Overview
SolarEdge’s StorEdge™ solution for Smart Energy Management, enables connecting a
battery to the inverter.
Power is stored in the battery and can be used for various applications such as
maximized self-consumption and time of use profile programming. For backup power,
an inverter specifically designed for backup applications is required; this inverter is not
in the scope of this document.
The StorEdge Solution Components
StorEdge Inverter is connected to a battery and supplies control and monitoring
signals to the battery for operation, in addition to its traditional functionality as a
DC-optimized PV inverter.
Energy Meter - The meter is used by the inverter for export/ consumption readings,
and for Smart Energy Management applications, such as: export limitation, and
maximizing self-consumption.
Battery - A 48V battery designed to work with the StorEdge system. Make sure to
use SolarEdge-approved batteries only.
Figure 1: StorEdge system components
StorEdge Three Phase Inverter MAN-01-00648-1.3
10 Chapter 1: Overview

NOTE
Additional SolarEdge inverters (without batteries) can be connected with
RS485. The inverters will participate in export limitation and Smart Energy
Management.
PV modules connected to power optimizers are not mandatory for charge/
discharge profile programming.
Installation Equipment List
Standard tools can be used during the installation of the SolarEdge system. The
following is a recommendation of the equipment needed for installation:
Allen screwdriver for 5mm screw type for the inverter cover and inverter side screws
Allen screwdriver for M5/M6/M8 screw types
Safety gloves
Standard flat-head screwdrivers set
Non-contact voltage detector
Cordless drill (with a torque clutch)or screwdriver and bits suitable for the surface
on which the inverter and optimizers will be installed. Use of an impact driver is not
allowed
Appropriate mounting hardware (for example: stainless bolts, nuts, and washers) for
attaching:
the mounting bracket to the mounting surface
the power optimizer to the racking (not required for smart modules)
Wire cutters
Wire strippers
Voltmeter
For installing the communication options, make sure you have the following:
For Ethernet:
CAT5/6 twisted pair straight Ethernet cable with RJ45 connector
If using a CAT5/6 cable spool: RJ45 connector and RJ45 crimper
For RS485:
Four- or six-wire shielded twisted pair cable.
Watchmaker precision screwdriver set
Chapter 1: Overview 11
StorEdge Three Phase Inverter MAN-01-00648-1.3

For CAN
Six-wire shielded twisted pair cable with RJ45 connector
CAT5/6 twisted pair straight Ethernet cable with RJ45 connector
For connecting the battery to the inverter, use copper cables with the following
parameters:
Maximum length: 5m
Cross-section area: 35 or 50 mm2
Crimping tools
Shrinking tools
Inverter Transport and Storage
Transport the inverter in its original packaging, facing up and without exposing it to
unnecessary shocks. If the original package is no longer available, use a similar box that
can withstand the weight of the inverter (refer to the inverter weight in the specification
datasheet provided with the unit), has a handle system and can be closed fully.
Store the inverter in a dry place where ambient temperatures are -25°C to +65°C /
-13°F to 149°F.
StorEdge Three Phase Inverter MAN-01-00648-1.3
12 Inverter Transport and Storage

Chapter 2: Installing the Power Optimizers
Safety
The following notes and warnings apply when installing the power optimizers. Some of
the following may not be applicable to smart modules:
WARNING!
When modifying an existing installation, turn OFF the inverter ON/OFF/P
switch and the AC circuit breaker on the main AC distribution panel.
CAUTION!
Power optimizers are IP68/NEMA6P rated. Choose a mounting location where
optimizers will not be submerged in water.
CAUTION!
The power optimizer must be operated according to the technical specifications
provided with the power optimizer.
CAUTION!
Cutting the power optimizer input or output cable connector is prohibited and
will void the warranty.
CAUTION!
All PV modules must be connected to a power optimizer.
CAUTION!
If you intend to mount the optimizers directly to the module or module frame,
first consult the module manufacturer for guidance regarding the mounting
location and the impact, if any, on module warranty. Drilling holes in the
module frame should be done according to the module manufacturer
instructions.
Chapter 2: Installing the Power Optimizers 13
StorEdge Three Phase Inverter MAN-01-00648-1.3



CAUTION!
Installing a SolarEdge system without ensuring compatibility of the module
connectors with the optimizer connectors may be unsafe and could cause
functionality problems such as ground faults, resulting in inverter shut down. To
ensure mechanical and electrical compatibility of the power optimizer
connectors with the PV module connectors to which they are connected:
Use identical connectors from the same manufacturer and of the same type
on the poweroptimizers, modules and the inverter DCinput; or
Verify that the connectors are compatible in the following way:
The module connector manufacturer should explicitly verify compatibility
with the SolarEdge optimizerconnectors and the Inverter DC input
connectors.
A third-party test report by one of the listed external labs (TUV, VDE,
Bureau Veritas UL, CSA, InterTek) should be obtained, verifying the
compatibility of the connectors.
For more information, refer to
https://www.solaredge.com/sites/default/files/optimizer-input-
connector-compatibility.pdf

IMPORTANTSAFETYFEATURE
Modules with SolarEdge power optimizers are safe. They carry only a low safety
voltage before the inverter is turned ON. As long as the power optimizers are
not connected to the inverter or the inverter is turned OFF, each power
optimizer will output a safe voltage of 1V.

StorEdge Three Phase Inverter MAN-01-00648-1.3
14 Safety

Installation Guidelines
For the minimum and maximum number of power optimizers in a string (string
length), see the power optimizer datasheets. Refer to the Designer for string length
verification. The Designer is available on the SolarEdge website at:
https://www.solaredge.com/products/installer-tools/designer#/.
Do not use extension cables between a module and a power optimizer, between two
modules connected to the same power optimizer, or between two power optimizers
other than in the following cases:
Between a power optimizer and a module:
Power optimizers with the 4-type suffix in their part number (Pxxx-4xxxxxx) -
extension cables of up to 16 m can be installed per power optimizer (8 m for DC+
and 8 m for DC-).
Power optimizers manufactured starting from working week 42, 2019, as
indicated in the serial number (Example:S/N SJ5019A-xxxxxxxx - working week
50, 2019) - extension cables of up to 16 m can be installed per power optimizer (8
m for DC+ and 8 m for DC-).
Between two power optimizers or between a power optimizer and the inverter:
Extension cables can be installed between power optimizers only from row to
row, around obstacles or pathways within a row and from the end of the string
to the inverter. The total length of the extension cables must not exceed the
following values:
Single Phase Inverters Three Phase Inverters
All - 300 m / 1000 ft SE17K and below - 300 m /1000 ft
SE20K and above - 700 m / 2300 ft
For connecting homerun DCcables from power optimizers to the inverter, use
cables with the following cross-sections:
For MC4 connectors - 8-14 AWG / 2.5-10 mm²
For DCterminal blocks inside the inverter or Connection Unit - 6-14 AWG / 2.5-
16 mm²
Chapter 2: Installing the Power Optimizers 15
StorEdge Three Phase Inverter MAN-01-00648-1.3

Frame-mounted power optimizers are mounted directly on the module
frame, regardless of racking system (rail-less or with rails). For
installation of frame-mounted power optimizers, refer to
http://www.solaredge.com/sites/default/files/installing_frame_
mounted_power_optimizers.pdf.
The power optimizer can be placed in any orientation.
If connecting more modules than power optimizer inputs in parallel, use a branch
cable. Some commercial power optimizer models have a dual input.
Position the power optimizer close enough to its module so that their cables can be
connected.
Make sure to use power optimizers that have the required output and input
conductor length.
Completely shaded modules may cause their power optimizers to temporarily shut
down. This will not affect the performance of the other power optimizers in the
string, as long as the minimum number of unshaded power optimizers connected in
a string of modules is met. If under typical conditions fewer than the minimum
power optimizers are connected to unshaded modules, add more power optimizers
to the string.

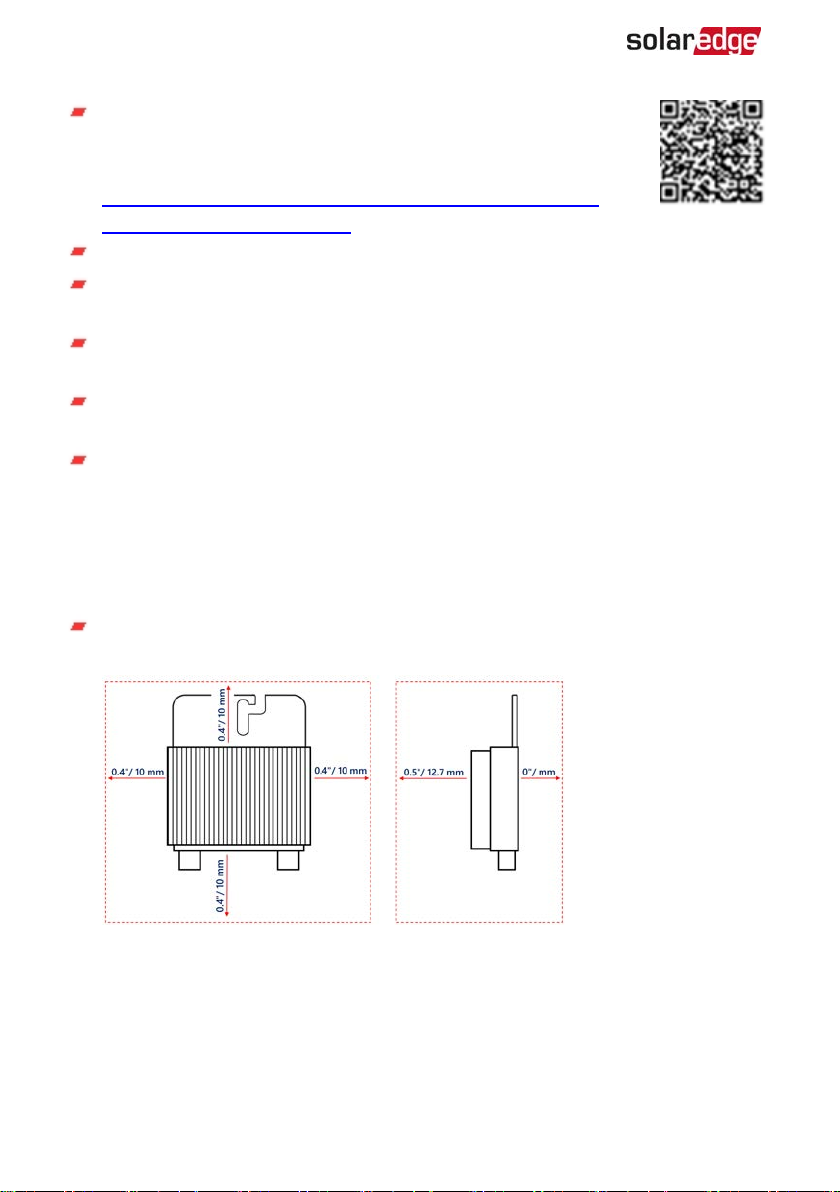

To allow for heat dissipation, maintain clearance as specified below.
All power optimizers, except for the P860 and M1600 power optimizers
StorEdge Three Phase Inverter MAN-01-00648-1.3
16 Installation Guidelines

P860 and M1600 power optimizers
Figure 2: Power optimizer clearance
When installing PV modules in a confined space such as Building-integrated
photovoltaic (BIPV) modules, ventilation measures may be required to ensure that
the power optimizers are not exceeding the maximum temperatures stated in their
specifications.
Chapter 2: Installing the Power Optimizers 17
StorEdge Three Phase Inverter MAN-01-00648-1.3

Step 1: Mounting the Power Optimizers
For each of the power optimizers(1):
1. Determine the power optimizer mounting location and use the power
optimizer mounting brackets to attach the power optimizer to the
support structure . It is recommended to mount the power optimizer
in a location protected from direct sunlight. For frame-mounted
power optimizers follow the instructions supplied with the optimizers,
or refer to https://www.solaredge.com/sites/default/files/installing_frame_
mounted_power_optimizers.pdf.
2. If required, mark the mounting hole locations and drill the hole.
CAUTION!
Drilling vibrations may damage the power optimizer and will void the
warranty. Use a torque wrench or an electric drill with adjustable clutch that
meets the mounting torque requirements. Do not use impact drivers for
mounting the power optimizer.
Do not drill through the power optimizer or through the mounting holes.
3. Attach each power optimizer to the rack using M6 (1/4'') stainless steel bolts, nuts
and washers or other mounting hardware. Apply torque of 9-10 N*m / 6.5-7 lb*ft.
4. Verify that each power optimizer is securely attached to the module support
structure.
5. Record power optimizer serial numbers and locations, as described in Reporting and
Monitoring Installation Data on page 56.
Step 2: Connecting a PV module to a Power Optimizer
NOTE
Improper wiring may cause electrical faults in a PV system. To avoid electrical
faults, verify proper locking of connectors and avoid cable tension and
friction. Proper planning, materials and installation reduce the risk of electric
arcs, short-circuits and ground faults in the PV system.
NOTE
Images are for illustration purposes only. Refer to the label on the product to
identify the plus and minus input and output connectors.
For each of the power optimizers:
(1)Not applicable to smart modules.
StorEdge Three Phase Inverter MAN-01-00648-1.3
18 Step 1: Mounting the Power Optimizers

Connect the Plus (+) output connector of the module to the Plus (+) input
connector of the power optimizer.
Connect the Minus (-) output connector of the module to the Minus (-) input
connector of the power optimizer.

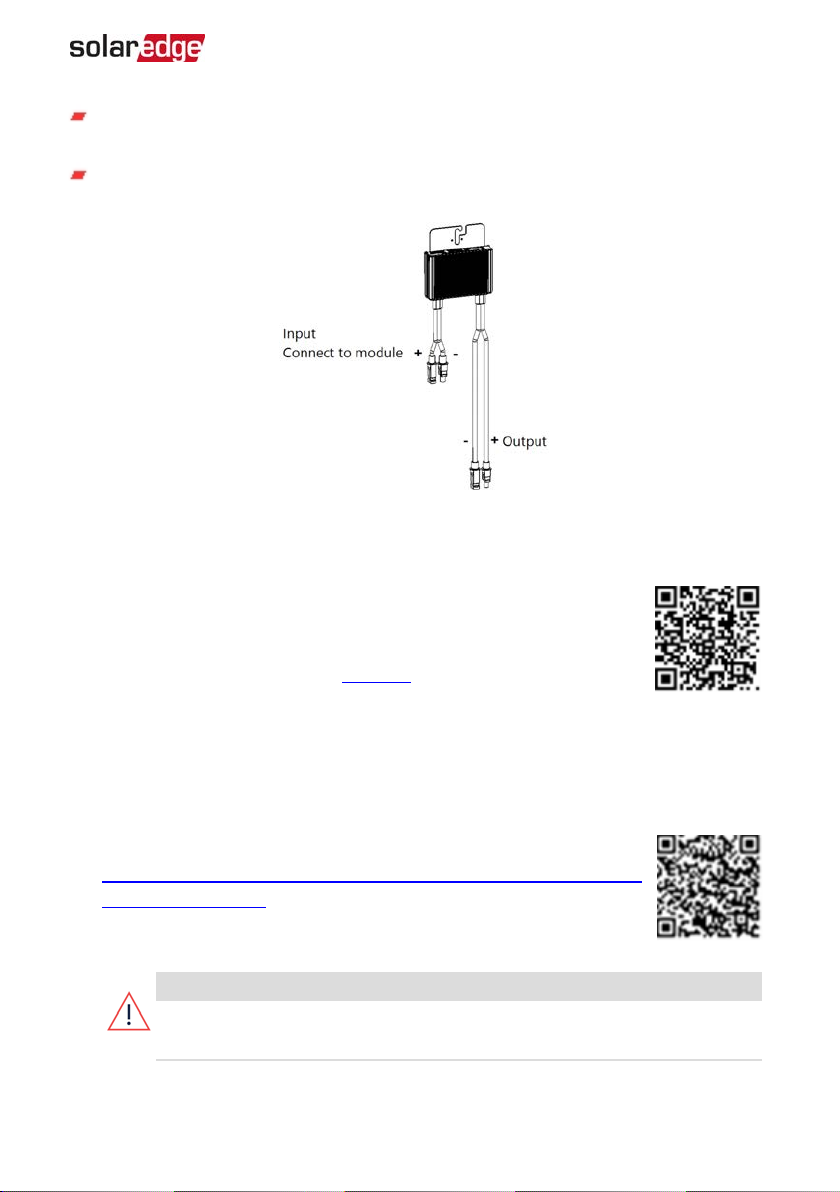

Figure 3: Power optimizer connectors
Step 3: Connecting Power Optimizers in Strings
You can construct parallel strings of unequal length, that is, the number
of power optimizers in each string does not have to be the same. The
minimum and maximum string lengths are specified in the power
optimizer datasheets. Refer to the Designer for string length verification.

1. Connect the Minus (-) output connector of the string’s first power optimizer to the
Plus (+) output connector of the string’s second power optimizer.
2. To minimize electromagnetic interference (EMI), make sure to minimize the distance
between the positive and negative DC cables.
For detailed instructions, see:
https://www.solaredge.com/sites/default/files/se-emi-performance-
application-note.pdf.
3. Connect the rest of the power optimizers in the string in the same
manner.
WARNING!
If using a dual-input power optimizer and some inputs are not used, seal the
unused input connectors with the supplied pair of seals.
4. If you intend to monitor the installation, using the monitoring platform, record the
Chapter 2: Installing the Power Optimizers 19
StorEdge Three Phase Inverter MAN-01-00648-1.3
