SolarEdge StorEdge Solution with Backup User manual

Installation Guide
StorEdge Solution with
Backup
For North America
Version 1.5

Disclaimers
Important Notice
Copyright © SolarEdge Inc. All rights reserved.
No part of this document may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical, photographic,
magnetic or otherwise, without the prior written permission of SolarEdge Inc.
The material furnished in this document is believed to be accurate and reliable.
However, SolarEdge assumes no responsibility for the use of this material. SolarEdge
reserves the right to make changes to the material at any time and without notice. You
may refer to the SolarEdge web site (https://www.solaredge.com/us/) for the most updated
version.
All company and brand products and service names are trademarks or registered
trademarks of their respective holders.
Patent marking notice: see https://www.solaredge.com/us/patent
The general terms and conditions of delivery of SolarEdge shall apply.
The content of these documents is continually reviewed and amended, where
necessary. However, discrepancies cannot be excluded. No guarantee is made for the
completeness of these documents.
The images contained in this document are for illustrative purposes only and may vary
depending on product models.

Disclaimers 1
StorEdge Solution with Backup MAN-01-00262-1.5

FCC Compliance
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, you are encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance may void the user’s authority to operate the equipment.
StorEdge Solution with Backup MAN-01-00262-1.5
2 FCC Compliance

Revision History
Version 1.5 (Feb. 2019)
Added Proposition 65 warning (for California).
Addition of appendix: External Rapid Shutdown on page 143
Power optimizer clearance - no clearance is required on the mounting bracket side
Addition of new appendix: Powering the LG Chem Battery Off and On on page 147.
Addition of reference to troubleshooting undetected devices application note
Torque for grounding using the equipment grounding bus-bar: 3.4 N*M/
30 lb-in
Update of product names
Addition of possibility to use compatible connectors from third-party
manufacturers
Recommendation to mount the power optimizer in a location protected from direct
sunlight
Updated warning about sealing unused power optimizer input connectors
Max distance between the battery and inverter is 70 ft / 20m
Removal of StorEdge Connection Unit Replacement
Addition of caution - installation in saline environment
Update regarding use of extension cables in power optimizer installation guidelines
Removal of recommendation to connect the battery and set DIP switch when the
battery is on the floor, for easier access
Addition of low battery SOE troubleshooting
Addition of important safety feature: restart behavior functionality
Addition of link to the Designer web page
Addition of battery charge/ discharge self-test and troubleshooting
Version 1.4 (Nov. 2018)
Changed the LG battery powering off sequence.
Revision History 3
StorEdge Solution with Backup MAN-01-00262-1.5

Version 1.3 (Oct. 2017)
In Power Optimizer Installation chapter:
Added warning about grounding the power optimizer metallic enclosure
Added: circuit conductors must be sized according to NEC 690.9 when
combining strings
Removed reference to racking models and their grounding methods
Removed mentioning of tracker
In inverter Installation chapter:
Added a caution about not altering the StorEdge Connection Unit
enclosure:SolarEdge does not permit opening or puncturing the StorEdge
Connection Unit in any location other than the pre-defined drill guide
locations, or otherwise altering the construction of the enclosure, as this may
compromise safety and will void the warranty.
Connection to/from the Connection Unit:
450V DCto BAT connector (DC- and DC+connections) corrected in the
connection diagram
Added a diagram of LG battery connection to inverter with 3 DIP switches
In Configuration Menu Options:
Power Control section:
Removed Phase Balance link and info
Added a note about compliance with UL 1741 Supplement A.
Added link to P(Q) diagram application note
Maintenance section:
Added links to application notes (Upgrading the inverter using SD card;
Isolation fault troubleshooting; Arc fault detection)
Removed Optimizer Conf
In System Configuration chapter:
The communication board firmware (CPU) version must be 3.xxxx and later on
all SolarEdge inverters at the same site
Screens changed when configuring LG battery
StorEdge Control instructions and menu updated
Connection Unit replacement - removed
StorEdge Solution with Backup MAN-01-00262-1.5
4 Revision History

Updated links
Technical specification - updated



Revision History 5
StorEdge Solution with Backup MAN-01-00262-1.5

Contents
Disclaimers 1
Important Notice 1
FCC Compliance 2
Revision History 3
HANDLING AND SAFETY INSTRUCTIONS 9
Safety Symbols Information 9
IMPORTANTINVERTER SAFETYINSTRUCTIONS 10
Chapter 1: Overview 15
The StorEdge Solution Components 15
Additional Reference 17
Installation Workflow 17
Installation Equipment List 19
Inverter Transport and Storage 19
Chapter 2: Installing the Power Optimizers 20
Safety 20
Package Contents 23
Installation Guidelines 23
Step 1: Mounting and Grounding the Power Optimizers 25
Step 2: Connecting a PV Module to a Power Optimizer 28
Step 3: Connecting Power Optimizers in Strings 29
Step 4: Verifying Proper Power Optimizer Connection 29
Chapter 3: Installing the Inverter 31
Inverter Package Contents 31
Identifying the Inverter 32
Inverter Interfaces 32
Mounting the Inverter 35
Chapter 4: Auto-transformer and Backed-up Loads Panel Installation (for
Backup) 40
Mounting the Auto-transformer 41
Installing the Backed-up Loads Panel 41
Chapter 5: Meter Installation 43
Chapter 6: Commissioning the Installation 45
Removing the Inverter Cover 45
Step 1: Activating the System 46
Step 2: Pairing Power Optimizers to the Inverter 50
Step 3: Verifying Proper Activation 52
Step 4: Reporting and Monitoring Installation Data 53
Chapter 7: StorEdge Inverter Connections 56
StorEdge Solution with Backup MAN-01-00262-1.5
6 

Installing the 9VBattery and Fuses 57
Connecting the Strings to the Inverter 58
Connecting to the Battery 59
DIPSwitch Setup 64
Connecting Communication to the Meter 66
Connecting to AC 67
Chapter 8: User Interface 71
LCD User Buttons 71
Inverter Configuration – Setup Mode 72
Configuration Menu Options 79
Status Screens - Operational Mode 86
Chapter 9: Setting Up Communication to the Monitoring Platform 96
Communication Options 98
Communication Connectors 99
Creating an Ethernet (LAN) Connection 101
Creating an RS485 Bus Connection 104
Verifying the Connection 108
Chapter 10: System Configuration 109
Upgrading the Inverter Firmware Version 109
Configuring the RS485 Bus for Battery and Meter Connection 111
Configuring StorEdge Applications 114
Verifying StorEdge Components Functionality 119
Appendix A: Troubleshooting 123
Communication Troubleshooting 123
Power Optimizer Troubleshooting 124
StorEdge Connection Unit LEDs 127
Additional StorEdge Troubleshooting 128
StorEdge Error Codes 132
Appendix B: Opening Conduit Drill Guides 136
Appendix C: Replacing and Adding System Components 138
Replacing an Inverter 138
9V Battery Replacement 139
Fuse Replacement 141
Battery Replacement 142
Appendix D: External Rapid Shutdown 143
Appendix E: Mechanical Specifications 145
Inverter Dimensions 145
Auto-transformer Dimensions 146
Appendix F: Powering the LG Chem Battery Off and On 147
7
StorEdge Solution with Backup MAN-01-00262-1.5

StorEdge Single Phase Inverter with Connection Unit for High Power Technical
Specifications 148
StorEdge Inverter 148
Auto-Transformer Technical Specifications 152
StorEdge Solution with Backup MAN-01-00262-1.5
8 

HANDLING AND SAFETY INSTRUCTIONS
During installation, testing and inspection, adherence to all the handling and safety
instructions is mandatory. Failure to do so may result in injury or loss of life and
damage to the equipment.
Safety Symbols Information
The following safety symbols are used in this document. Familiarize yourself with the
symbols and their meaning before installing or operating the system.
WARNING!
Denotes a hazard. It calls attention to a procedure that, if not correctly
performed or adhered to, could result in injury or loss of life. Do not proceed
beyond a warning note until the indicated conditions are fully understood and
met.
AVERTISSEMENT!
Dénote un risque: il attire l'attention sur une opération qui, si elle n'est pas faite
ou suivi correctement, pourrait causer des blessures ou un danger de mort. Ne
pas dépasser une telle note avant que les conditions requises soient
totallement comprises et accomplies.
CAUTION!
Denotes a hazard. It calls attention to a procedure that, if not correctly
performed or adhered to, could result in damage or destruction of the
product. Do not proceed beyond a caution sign until the indicated conditions
are fully understood and met.
ATTENTION!
Dénote un risque: il attire l'attention sur une opération qui, si elle n'est pas faite
ou suivi correctement, pourrait causer un dommage ou destruction de
l'équipement. Ne pas dépasser une telle note avant que les conditions requises
soient totallement comprises et accomplies.
NOTE
Denotes additional information about the current subject.
IMPORTANTSAFETYFEATURE
Denotes information about safety issues.
HANDLING AND SAFETY INSTRUCTIONS 9
StorEdge Solution with Backup MAN-01-00262-1.5

IMPORTANTINVERTER SAFETYINSTRUCTIONS
SAVETHESEINSTRUCTIONS
CONSIGNES DE SÉCURITÉ IMPORTANTES
CONSERVEZ CES INSTRUCTIONS

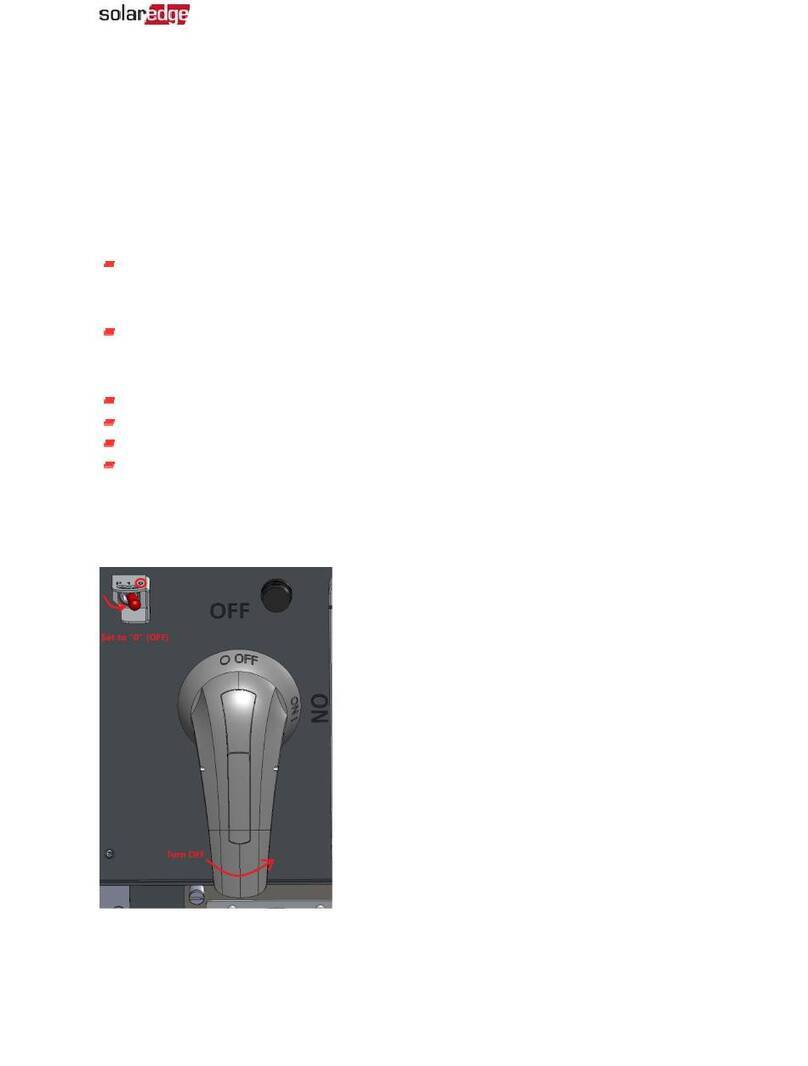

WARNING!
The inverter cover must be opened only after switching the inverter ON/OFF
switch located at the bottom of the inverter to OFF. This disables the DC voltage
inside the inverter. Wait five minutes before opening the cover. Otherwise, there
is a risk of electric shock from energy stored in the capacitors.
 AVERTISSEMENT!

Ne pas ouvrir le couvercle de l'onduleur avant d'avoir coupé l'interrupteur situé
en dessous de l'onduleur. Cela supprime les tensions CC et CA de l'onduleur.
Attendre cinq minutes avant d’ouvrir le couvercle. Sinon, il y a un risque de
choc électrique provenant de l'énergie stockée dans le condensateur.

WARNING!
Before operating the inverter, ensure that the inverter is grounded properly. This
product must be connected to a grounded, metal, permanent wiring system, or
an equipment-grounding conductor must be run with the circuit conductors
and connected to the equipment grounding terminal or lead on the product.
 AVERTISSEMENT!

Avant d'utiliser l'onduleur monophasé, assurez-vous que l'onduleur est
correctement mis à la terre. Ce produit doit être raccordé à un système de
câblage fixe, métallique, l'équipement-le conducteur de mise à la terre doit être
exécuté avec les conducteurs de circuit et raccordé à l'équipement borne de
mise à la terre ou de plomb sur le produit.
WARNING!
Opening the inverter and repairing or testing under power must be performed
only by qualified service personnel familiar with this inverter.
 AVERTISSEMENT!

L’unité ne doit être ouverte que par un technicien qualifié dans le cadre de
l'installation et de la maintenance.
StorEdge Solution with Backup MAN-01-00262-1.5
10 IMPORTANTINVERTER SAFETYINSTRUCTIONS

WARNING!
The Connection Unit meets all requirements for a code-compliant installation of
this system. The DC Disconnect Switch disconnects both the positive and
negative conductors.
 AVERTISSEMENT!

Le sectionneur externe (inclus) repond aux exigences de conformité pour
l’installation de ce système . Le coupeur CC ouvre les conducteurs positifs et
négatifs.
WARNING!
The inverter input and output circuits are isolated from the enclosure. This
system does not include an isolation transformer and should be installed with
an ungrounded PV array in accordance with the requirements of NEC Articles
690.35 and 690.43 National Electric Code, ANSI/NFPA 70, 2011 (and Canadian
Electrical Code, Part I, for installations in Canada).
Equipment grounding is the responsibility of the installer and must be
performed in accordance with all applicable Local and National Codes.
 AVERTISSEMENT!

Les circuits d’entrée et de sortie de l’onduleur sont isolés de l’enveloppe. Ce
système n’inclut pas d’isolation galvanique (transformateur) et devra être
installé sans mise à la terre du champ PV et en accord avec les articles 690.35 et
690.43 du National Electric Code (NEC), ANSI/NFPA 70, 2011 (et du Code
Electrique Canadien, Partie 1, pour les installations faites au Canada).
La mise à la terre des équipements est la responsabilité de l’installateur et doit
être faite en accord avec les toutes les règles locales et nationales applicables.
WARNING!
The inverter must be connected to a dedicated AC branch circuit with a
maximum Overcurrent Protection Device (OCPD) of 50A.
 AVERTISSEMENT!

Les onduleurs monophasé doivent être connectés à un branchement AC dédié
avec un disjoncteur de 50A.
WARNING!
SolarEdge products can expose you to chemicals including antimony trioxide,
which is known to the State of California to cause cancer. For more information,
go to www.P65Warnings.ca.gov .
AVERTISSEMENT!
Les produits SolarEdge peut vous exposer à des agents chimiques, y compris
trioxyde d'antimoine, identifiés par l'État de Californie comme pouvant causer le
cancer. Pour de plus amples informations, prière de consulter
www.P65Warnings.ca.gov.
IMPORTANTINVERTER SAFETYINSTRUCTIONS 11
StorEdge Solution with Backup MAN-01-00262-1.5

CAUTION!
This unit must be operated according to the technical specification datasheet
provided with the unit.
 ATTENTION!

Cette unité doit être utilisée selon les spécifications de fonctionnement, comme
décrit dans la dernière fiche technique des spécifications.
CAUTION!
HEAVY OBJECT. To avoid muscle strain or back injury, use proper lifting
techniques, and if required - a lifting aid.
ATTENTION!
Objet lourd. Pour éviter la fatigue musculaire ou des blessures au dos, utilisez
des techniques de levage appropriées et, si nécessaire - un auxiliaire de levage
lors du retrait.
NOTE
The StorEdge Connection Unit is NEMAtype 3R rated . Unused conduit
openings and glands should be sealed with appropriate seals.
NOTE
Use only copper conductors rated for a minimum of 75°C/ 167°F.
NOTE
This inverter is provided with an IMI (Isolation Monitor Interrupter) for ground
fault protection.
NOTE
The symbol appears at grounding points on the SolarEdge equipment. This
symbol is also used in this manual.
NOTE
A SolarEdge inverter may be installed in a site with a generator, however must
not operate at the same time as the generator.
Operating an inverter and a generator simultaneously will void the warranty.
SolarEdge requires installing a physical or electronic interlock, which will
prevent the generator and inverter from operating simultaneously. Interlock
procurement, installation, maintenance and support are the responsibility of
the installer. Damage to the inverter due to incorrect interlock installation or
use of an interlock that is incompatible with the SolarEdge system will render
the SolarEdge warranty invalid.
WARNING!
StorEdge Solution with Backup MAN-01-00262-1.5
12 IMPORTANTINVERTER SAFETYINSTRUCTIONS

Shutting off the AC breaker does not disable the DC voltage inside the inverter.
To obtain safe DC voltage, turn off the inverter ON/OFF switch and the StorEdge
Connection Unit ON/OFFswitch.
 AVERTISSEMENT!

En mode autonome, la fermeture du coupeur CA n’élimine pas la tension CC à
l’intérieur de l’onduleur. Afin d’obtenir une tension CC sécurisée, mettez
l’interrupteur du coupeur CC de l’onduleur et celui du coupeur CC de l’unité
StorEdge en position OFF.
WARNING!
Before operating the system, ensure that the inverter has been grounded
properly.
 AVERTISSEMENT!

Avant d'utiliser l'onduleur monophasé, assurez-vous que l'onduleur est
correctement mis à la terre.
WARNING!
When handling the battery, adhere to all manufacturer safety instructions.
 AVERTISSEMENT!

Durant la manipulation de la batterie, adhérez à toutes les instructions de
sécurité du fabricant.
WARNING!
The battery must be powered off before and during wiring.
To power off the battery:
1. Turn off the circuit breaker.
2. Turn off the disconnect/auxiliary power switch.
To power the battery back on:
1. Turn on the disconnect/auxiliary power switch.
2. Turn on the circuit breaker.
For details, see Powering the LG Chem Battery Off and On on page 147.
 AVERTISSEMENT!

La batterie doit être éteinte avant et durant le câblage:
Pour éteindre la batterie:
1. Fermez le disjoncteur.
2. Fermez l’interrupteur auxiliaire.
Pour rallumer la batterie:
1. Ouvrez l’interrupteur auxiliaire.
IMPORTANTINVERTER SAFETYINSTRUCTIONS 13
StorEdge Solution with Backup MAN-01-00262-1.5

2. Ouvrez le disjoncteur.
Pour plus de détails, consultez Powering the LG Chem Battery Off and On page
147.
CAUTION!
This unit must be operated under the specified operating conditions as
described in the technical specifications supplied with the unit.

Cette unité doit être opérée suivant les instructions trouvées dans le manuel
fourni avec le produit.
NOTE
The battery used must be NRTL certified.
NOTE
For battery decommissioning and disposal, follow the manufacturer
requirements and instructions.
NOTE
The StorEdge Connection Unit is NEMAtype 3R rated . Unused conduit
openings and glands should be sealed with appropriate seals.
IMPORTANT SAFETY FEATURE
During backup, if inverter output is overloaded or output current is higher than
battery max allowed output, the inverter will try to restart after 15 seconds (in
DACH: 90 secnds). If this reoccurs 3 times, an error message is displayed and the
inverter should be restarted by turning the ON/OFF switch OFFand then ON.
Refer to StorEdge Error Codes on page 132.
StorEdge Solution with Backup MAN-01-00262-1.5
14 IMPORTANTINVERTER SAFETYINSTRUCTIONS

Chapter 1: Overview
StorEdge™ is SolarEdge's all-in-one solution that uses a single phase DC optimized
inverter to manage and monitor both solar power generation and energy storage.
Homeowners are automatically provided with backup power in the event of grid
interruption to power pre-selected loads. Solar energy can be stored in a battery for
Smart Energy Management applications such as export control, offering demand
response and peak shaving, and performing time of use shifting for reduced electric
bills.
The StorEdge Solution Components
The StorEdge Inverter - The inverter manages battery and system energy, in
addition to its traditional functionality as a DC-optimized PV inverter.
The StorEdge Connection Unit, located at the bottom of the inverter, allows simple
installation and connectivity to other system components and includes a DC Safety
Switch.
The Energy Meter - The meter is used by the inverter for export, import, production
and consumption readings, and for Smart Energy Management applications, such
as: export limitation, time-of-use profile programming and maximizing self-
consumption.
The meter is required only in systems using Smart Energy Management applications
(it is not required for StorEdge systems used only for backup power).
The Auto-transformer - The auto-transformer handles the phase load balancing. It
is required only in systems providing backup power.
One or two batteries - DC coupled batteries designed to work with the SolarEdge
system.
Chapter 1: Overview 15
StorEdge Solution with Backup MAN-01-00262-1.5

Figure 1: StorEdge system components
The following table summarizes the SolarEdge products required for the StorEdge
applications:
Product Applications

Grid-tied Solar
Backup Power
Smart Energy
Management
Grid-tied Solar
Backup Power
Grid-tied Solar
Smart Energy
Management
StorEdge Single Phase
inverter ü ü ü
Auto-transformer ü ü X
SolarEdge Energy
Meter üOptional ü
Battery ü ü ü
StorEdge Solution with Backup MAN-01-00262-1.5
16 The StorEdge Solution Components

NOTE
Additional SolarEdge inverters (without batteries) can be connected with
RS485. The inverters will participate in export limitation and Smart Energy
Management.
Connecting multiple inverters with RS485 master-slave connection may
require an RS485 Expansion Kit (available from SolarEdge).
PV modules connected to power optimizers are not mandatory for charge/
discharge profile programming and for backup power.
Additional Reference
This document describes basic system connection and configuration -
PVsystem (power optimizer strings), one inverter, one battery, backed-
up loads panel and one meter.
For additional configuration options refer to the StorEdge Solution
Applications - Connection and Configuration Guide, available at
https://www.solaredge.com/sites/default/files/storedge_applications_connection_and_
configuration_guide_na.pdf.
Installation Workflow
When installing the StorEdge system, follow this workflow to ensure all the components
are connected and functioning correctly.
Step 1 - PVsystem installation - modules, power optimizers and inverter:
Power optimizers - as described in Installing the Power Optimizers on page 20.
Inverter - as described in Installing the Inverter on page 31.
Step 2 - SolarEdge Auto-transformer and ACload panel installation (required for
Backup Power only): Refer to Auto-transformer and Backed-up Loads Panel Installation
(for Backup) on page 40.
Step 3 - Energy Meter installation (required for Smart Energy Management only). Refer
to Meter Installation on page 43.
Step 4 - Connecting PVstrings (DC) to the inverter - Refer to Connecting the Strings to
the Inverter on page 58.
Step 5 - Connecting the battery to the inverter and mounting the battery. Refer to the
installation information in the manufacturer documentation, and to StorEdge Inverter
Connections on page 56.
Chapter 1: Overview 17
StorEdge Solution with Backup MAN-01-00262-1.5

Step 6 - Connecting all components to the inverter - connect the auto transformer and
loads (AC), PV strings (DC), and meter. Refer to StorEdge Inverter Connections on page
56. .
Step 7 - Commissioning the inverter - Activate the system and pair the power
optimizers. Refer to Commissioning the Installation on page 45.
Step 8 - Connecting to the monitoring platform. Refer to Setting Up Communication to
the Monitoring Platform on page 96.
Step 9 - System Configuration - Configuring the RS485 bus and StorEdge applications.
Refer to System Configuration on page 109.
The following flowchart appears throughout this Installation Guide to assist with the
installation steps:

For additional information, refer to
https://www.solaredge.com/sites/default/files/storedge_wiring_quick_guide_and_
on_site_checklist_na.pdf.
StorEdge Solution with Backup MAN-01-00262-1.5
18 Installation Workflow

Installation Equipment List
Standard tools can be used during the installation of the SolarEdge system. The
following is a recommendation of the equipment needed for installation:
Standard flat-head screwdrivers set
Non-contact voltage detector
Cordless drill (with a torque clutch)or screwdriver and bits suitable for the surface
on which the inverter and optimizers will be installed and for opening the StorEdge
Connection Unit drill guides. Use of an impact driver is not allowed.
Appropriate mounting hardware (for example: stainless bolts, nuts, and washers)
for attaching:
the mounting brackets to the mounting surface
the power optimizer to the racking (not required for smart modules)
Wire cutters
Wire strippers
Voltmeter
For installing the communication options, you may also need the following:
For Ethernet:
CAT5/6 twisted pair Ethernet cable with RJ45 connector.
If using a CAT5/6 cable spool: RJ45 plug and RJ45 crimper
For RS485:
Four- or six-wire shielded twisted pair cable.
Watchmaker precision screwdriver set
Inverter Transport and Storage
Transport the inverter in its original packaging, facing up and without exposing it to
unnecessary shocks. If the original package is no longer available, use a similar box that
can withstand the weight of the inverter (refer to the inverter weight in the specification
datasheet provided with the unit), has a handle system and can be closed fully.
Store the inverter in a dry place where ambient temperatures are -13°F to 140°F /
-25°C to +60°C.
Chapter 1: Overview 19
StorEdge Solution with Backup MAN-01-00262-1.5
