SolaX Power X3-Series User manual

Copy Declaration
The copyright of this manual belongs to Solax Power Network Technology(Zhe jiang) Co.,Ltd.
Any corporation or individual should not plagiarize, partially or fully copy(incuding software,ect.),
and no reproduction or distribution of it in any form or by any means. All rights reserved. Solax
Power Network Technology(Zhe jiang) Co.,Ltd. reserves the right of final interpretation.
X3-Series User Manual
X3-(30K/36K)-LV
X3 (50K 60K)-TL- /

Contents
Forward
Application Model
Intended Audience
Symbol Conventions
1 Safety Precautions
1 1 Personnel Safety.
1 2 The PV Inverter Protection.
1 3 Installation Safety.
1 4 Electrical Connections.
1 5 Operating and Commissioning.
1 6 Maintenance.
1 7 Additional Information.
2 Overview of the Inverter
2 1 Functional Models.
2 2 Network Application.
2 3 Outline and Dimensions.
2 4 Working Modes.
2 1 1 Function. .
2 1 2 Model Description. .
2 3 1 Outline. .
2 3 2 Dimensions. .
2 2 1 Grid tied PV Power Systems. . -
4 1 Checking the Outer Packing.
4 2 Moving the Inverter.
4 3 Identify the PV Inverter.
4 4 Installation Requirements.
4 3 1 Nameplate. .
4 3 2 Compliance and Safety Symbols. .
3 Storage
4 Installation
01
01
01
02
03
03
03
03
04
04
04
05
06
06
06
06
07
07
08
08
09
10
12
14
13
14
14
15
11
12
15
17
4 4 1 Determining the Installation Position. .
4 4 2 Installation Mode Requirements. .

5 Electrical Connections
5 1 Connecting Protection Ground PGND Cables. ( )
5 2 Connecting AC Output Cables.
5 3 Connecting the PV Strings.
5 4 Connecting Communication Cables.
5 1 1 Preparation. .
5 1 2 Wiring Procedures. .
5 4 1 Communication Mode Description. .
5 4 2 Connecting RS485 Communication Cables. .
5 4 3 Setting RS485 Communication Address. .
5 3 1 Preparation. .
5 2 1 Preparation. .
5 2 2 Procedure of Connecting AC Cables. .
6 System Operation
6 1 R the Inverter. un
6 2 Powering OFF the Inverter.
7 User Interface
8 Maintenance
10 Disposal of the Inverter
11 Technical Specifications
8 1 Routine Maintenance.
8 2 The Inverter Troubleshooting.
8 3 Removing the Inverter.
9 Quality Guarantee
9 1 Quality Terms.
9 2 Liability Waiver.
4 5 Support mounting the Inverter. -
4 6 Installation Self check. -
20
21
21
21
23
23
24
25
26
30
30
32
33
37
37
37
38
41
48
49
41
42
45
47
47
47
18
19
5 6 DRM.36
5 5 Power limit.
5 5 1 Wiring diagram. .
5 5 2 Settings via APP. .
34
34
34
5 7 Installation Verification.36

1
Forward
Dear User,
Thank you so much for your choosing X3-(30K/36K)-LV, X3-(50K/60K)-TL the latest generation,
of grid tied PV Strings inverter hereinafter referred to as the inverter) designed and developed- (
by our company.
This user manual introduces the inverter in terms of its installation electrical connections, ,
, , , .operation commissioning maintenance and troubleshooting Please read through the manual
carefully before installing and using the inverter and keep the manual well for future reference, .
Grid tied PV string inverter-
Application Model
This user manual is intended for photovoltaic (PV) inverter operating personnel and qualified
electrical technicians.
Intended Audience
This user manual is subject to change specific please in kind prevail without prior notice( ) .
.
Notes:
X3-(30K/36K)-LV
X3-(50K/60K)-TL

2
Indicates an imminently hazardous situation which if not correctly,
followed will result in serious injury or death, .
Indicates a potentially hazardous situation which if not correctly,
followed could result in serious injury or death, .
Indicates a potentially hazardous situation which if not correctly,
followed could result in moderate or minor injury, .
Indicates a potentially hazardous situation which if not correctly,
followed could result in equipment failure to run or property damage, , .
Calls attention to important information best practices and tips, :
supplement additional safety instructions for your better use of the
PV inverter to reduce the waste of your resource.
Refer to documentation (Remind operators to refer to the
documentation shipped with the inverter).
Symbol Conventions
Safety symbols used in this manual which highlight potential safety risks and important safety,
information are listed as follows, :
Symbol Description
WARNING
CAUTION
DANGER
NOTICE
NOTE
REFER

3
1 Safety Precautions
Before beginning your journey please read these safety precautions in User Manual carefully, .
a. The PV inverter must be installed electronically connected operated and maintained through, ,
specially trained technician;
b The qualified technician must be familiar with the safety regulations of electrical system. ,
working process of PV power generation system, and standards of local power grid;
c. The technician must read through this User Manual carefully and master it before any operation.
1 1 Personnel Safety.
a Do not tamper with any warning signs on the inverter enclosure because these signs contain.
important information about safe operation.
b Do not remove or damage the nameplate on the inverter’s enclosure because it contains.
important product information.
c Do not remove the anti dismantle label on the inverter’s enclosure because it is the basis for. -
product warranty.
1 2 The PV Inverter Protection.
a Ensure there is no electronical connections around ports of the PV inverter before installing. ;
. .b Adequate ventilation must be provided for inverter installation location Mount the inverter in
vertical direction, and ensure that no object is put on the heat sink affecting the cooling. (For
details, refer to Chapter 4 Installation)
1 3 Installation Safety.
As soon as receiving the PV inverter please check if it is damaged,
during its transportation If yes please contact your dealer immediately. , .
Please read the User Manual carefully before installing the PV inverter;
warranty or liability will be void from o if damage is causedur company
.by installation faults
NOTICE
NOTICE

4
a Input terminals of the PV inverter apply only to input terminals of PV String do not connect. ;
any other DC source to the input terminals.
b Before connecting PV modules ensure that is its voltage is within the safe range when. , ;
exposed to any sunlight, PV modules can generate high voltage.
c All electrical connections must meet the electrical standards of the country or region. .
. , ,d Cables used in electrical connections must be well fixed good insulation and with
appropriate specification.
1 4 Electrical Connections.
a Before getting the permission of electrical power sector in the country / region the grid-tied. ,
PV inverter cannot start generate power.
b Follow the procedures of commissioning described in the user manual when commissioning.
the PV inverter.
c Do not touch any other parts surface except the DC switch when the PV inverter is operating. ' ;
its partial parts will be extremely hot and can cause burns.
1 5 Operating and Commissioning.
1 6 Maintenance.
Before installing the inverter check all electrical ports to ensure no,
damage and no short circuit Otherwise personal casualty and or fire. /
will occur.
While the inverter operating high voltage can lead to an electrical,
shock hazard and even cause personal casualties Therefore, . ,
operate the PV inverter strictly according to the safety precautions in
the user manual.
Power OFF all electrical terminals before the inverter maintenance;
strictly comply with the safety precautions in this document when
operating the inverter.
DANGER
DANGER
DANGER

5
a For personal safety maintenance personnel must wear appropriate personal protective. ,
equipment (like insulation gloves and protective shoes) for the inverter maintenance.
b Place temporary warning signs or erect fences to prevent unauthorized access to the.
maintenance site.
c Follow the procedures of maintenance stipulated in the manual strictly. .
. ;d Check the relevant safety and performance of the inverter rectify any faults that may
compromise the inverter security performance before restarting the inverter.
1 7 Additional Information.
To avoid any other unforeseeable risk, contact your dealer immediately,
if there is any issue found during operation.
NOTICE
NOTICE
If an external RCD is required by local regulations, check which type
of RCD is required for relevant electric code. It recommends using a
type-A RCD. The recommended RCD values is 100mA or 300mA
unless a lower value is required by the specific local electric codes.

6
2 Overview of the Inverter
This chapter introduces the inverter and describes its functional model network application, ,
, , .appearance dimensions and working process etc
2 1 1 Function. .
This series is a three-phase grid-tied PV string inverter transformer less that converts the DC( )
power generated by PV strings into AC power and feeds the power into power grid.
2 1 2 Model Description. .
Figure 2 1 shows a model number of the inverter using X3-50K-TL as an example. , .
X3-50K-TL
Power class code
Figure 2 1 Model number descriptions.
2 1 Functional Models.
The inverter is transformerless Add an isolation transformer before.
grounding the positive negative terminal of PV modules like Thin/ (
Film module for operation) .
Do not connect PV modules in parallel to several PV inverters for
operation.
WARNING
WARNING

7

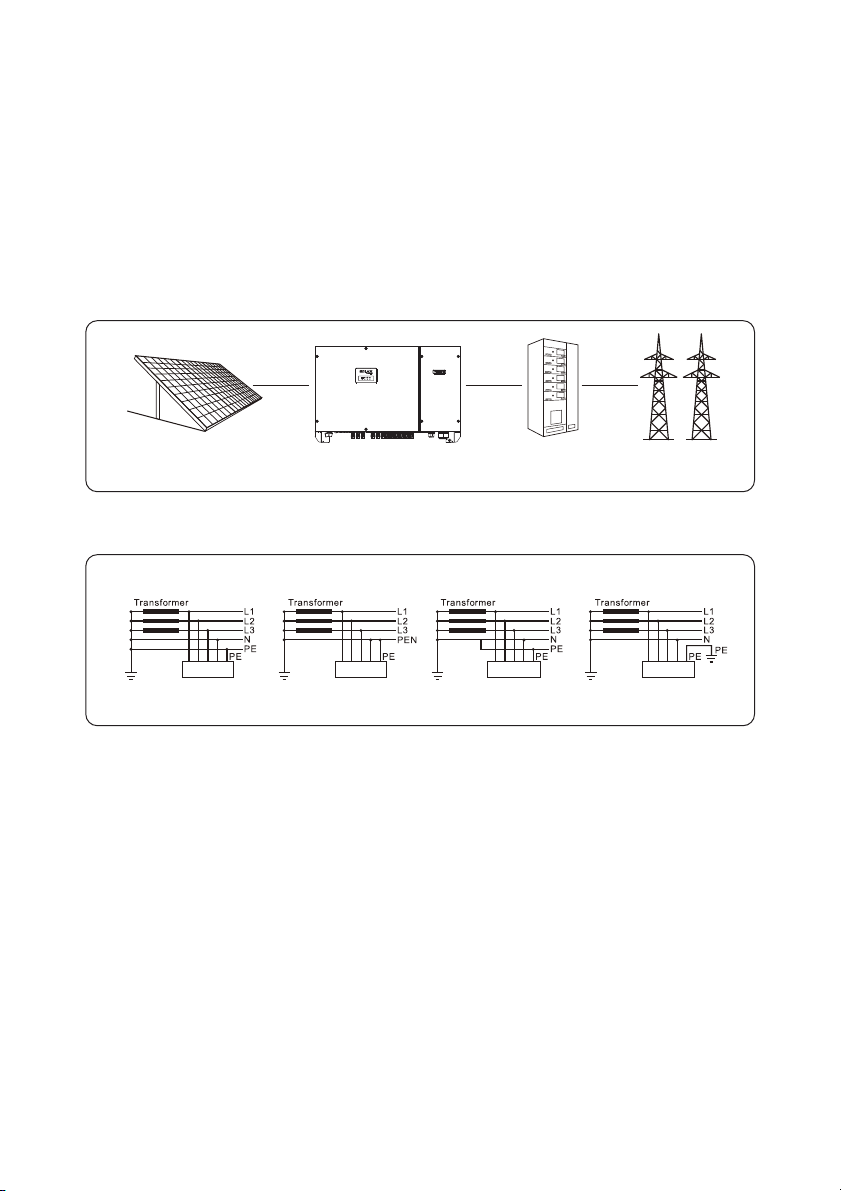

Figure 2 2 a low-voltage grid-tied PV power system.
PV strings inverter AC Distribution Unit low-voltage power grid
Figure 2 3 Power grids supported by these series inverters.
Inverter
TN S-TN C-TN C S- - TT
Inverter Inverter Inverter
2 2 1 Grid-tied PV Power Systems. .
This series applies to grid-tied PV power systems for industrial/commercial rooftops,
,fishing/farmers light complementary power generation systems and large ground-based power
stations Typically these series inverters are used in low-voltage grid-tied PV power system. , ,
. .as shown in Figures 2 2&2 3
2 2 Network Application.

8
1234
2 3 1 Outline. .
Figures 2 4 to 2 6 show the outline of the inverters as follows. . :
2 3 Outline and Dimensions.
Figure 2 4 The front view and amplification effect of LED indicator area.
1 PV Indicator.
2 Grid Indicator.
3 COM Indicator.
4 Warning Indicator.
Figure 2 5 The rear view of this series inverter.
Figure 2 6 The bottom view of this series inverter.
Reserved for installing rear panel
1. DC isolation breaker
2. Vent valve
3. PV Strings connector
4. Communication interface
5. RS485
6. AC output connector
7. FAN
30K/50K
36K/60K

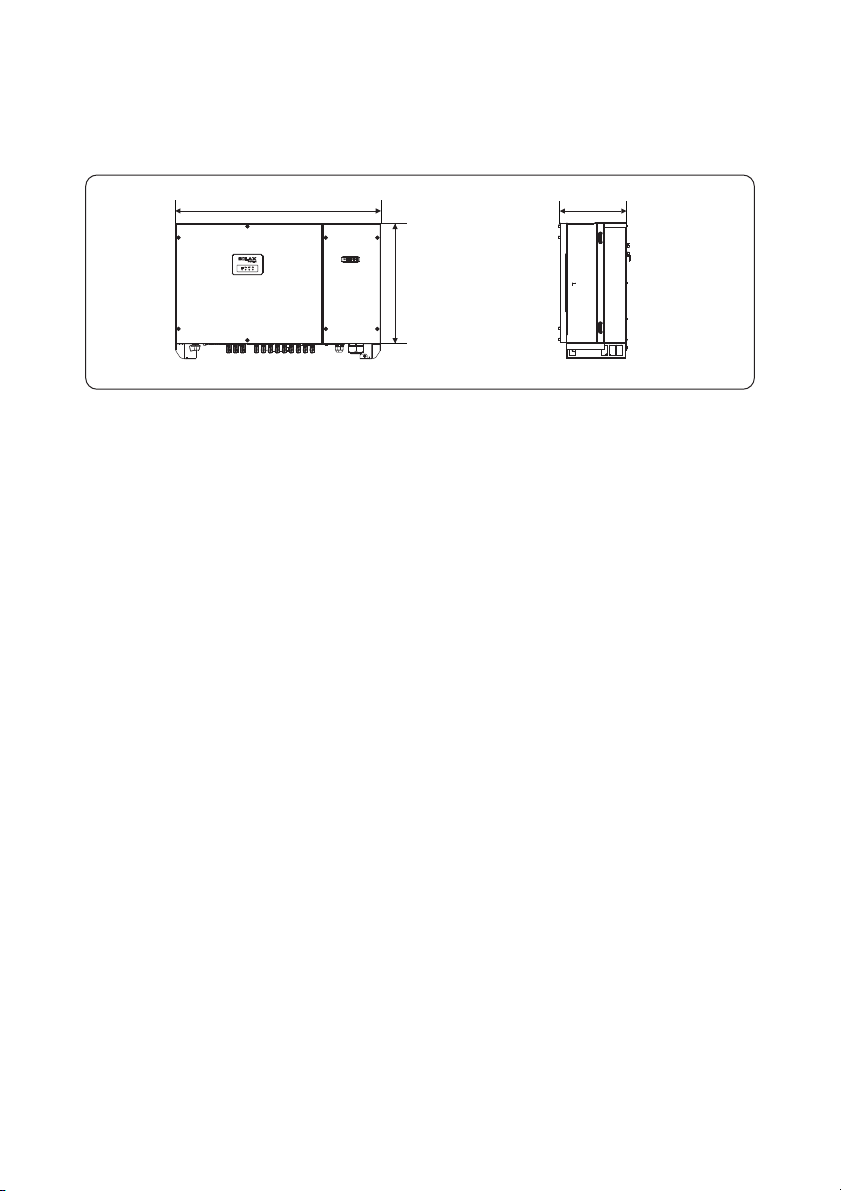

Figures 2 7 The dimensions of this series unit mm. ( : )
2 3 2 Dimensions. .
Figures 2 7 shows the dimensions of these series inverters as follows. :
855
500
275
9

Table 2 1 Working modes description.
2 4 Working Modes.
Three working modes of the inverter are shown as follows standby operating and shutdown: , , .
. .Table 2 1 shows the conditions for the inverter to switch between working modes
The PV inverter enters the standby mode when
the input voltage of PV Strings can enable auxiliary power supply to run> ,
but cannot meet the inverter operation requirements.
the input voltage of PV Strings can meet the inverter to start requirements> - ,
.but cannot meet its minimum power requirements
When the PV inverter is grid tied and generates electricity it- ,
tracks the maximum power point to maximize the PV String output> .
>converts DC power from PV strings into AC power and feeds the power
to the power grid.
The PV inverter will enter to the shutdown mode if detecting a fault or a
shutdown command.
Modes
Standby
Operating
Description
The PV inverter switches from standby or operating mode to shutdown
mode if detecting a fault or a shutdown command.
The inverter switches from shutdown mode to standby mode if receiving
a Startup command or detecting that a fault is rectified.
Shutdown
10

3 Storage
This chapter describes the storage requirements for the inverter.
The following storage instructions apply if the PV inverter will not be deployed immediately:
> .Do not unpack the inverter (put desiccant in the original box if the PV inverter is unpacked)
> ℃ ℃Store the PV inverter at a temperature range of -40 to +70 and with the relative humidity
of 0% to 100% (no condensing).
The PV inverter should be stored in a clean and dry place and be protected from dust and>
water vapor corrosion.
A maximum of layers of inverters can be stacked> .four
> , , , .Do not position the inverter at a front tilt excessive back tilt or side tilt or upside down
> .Conduct periodic inspection during storage Replace the packing materials immediately if any
rodent bites are found.
Ensure that qualified personnel inspect and test the inverter before use if it has been stored>
for a long time.
11

4 Installation
4 1 Checking the Outer Packing.
a When receiving the inverter check that the packing materials are intact. , .
. , , ,b After unpacking check that the deliverables are complete intact and consistent with your
order list.
c Examine the PV inverter and its fittings for damage such as scraps and cracks. .
Do not install the inverter on flammable building materials or in an
area that stores flammable or explosive materials.
Do not install the inverter in a place where personnel are likely to
come into contact with its enclosure and heat sinks to avoid electrical
shock/burn.
Figures 4 1 The deliverables: The inverter and its fittings.
CAUTION
DANGER
The inverter
Items Deliverables
Bolt group (including screw, nut)*3
(reserved for tighteningthe support and rear panel)
M6 screw
File package
Rear panel
A
B
C
D
E
DC terminal connector group 30K/50K(10*2)/36K/60K(12*2)
H
G
Insulated end sleeve terminals
Removal tool for DC connectors
F
G
H
If any damage mentioned above is found contact the dealer,
immediately.
NOTICE
12

horizontally Hold the handles on both sides of the inverter as shown in Figure 4 2. , . .
Figure 4 2 Moving the inverter.
The inverter is relatively heavy! To prevent device damage and personal
injury arrange two people to move the inverter and handle with care, .
>Do not place the PV inverter with its wiring terminals contacting the
floor because the power ports and signal ports at the bottom of the
device are not designed to support the weight of the inverter.
> ,When placing the inverter on the floor horizontally put foam or
paper under to protect its enclosure.
CAUTION
CAUTION
4 2 Moving the Inverter.
After checking the outer packing move the PV inverter to the designated installation position,
13

4 3 1 Nameplate. .
After moving the PV inverter from packing box identify it by reading its nameplate labeled on,
the side of the inverter The nameplate contains important product information the model. :
information communications technical specifications and compliance symbols, / , .
4 3 Identify the PV Inverter.
4 3 2 Compliance and Safety Symbols. .
Electrical shock!
There are residual voltages in the PV inverter It needs 10 minutes.
to finish discharge.
The PV inverter must not be touched when in operation Its.
enclosure and heat sinks are extremely hot.
Electrical shock! This part is charged Only qualified and / or trained.
electrical technicians are allowed to perform operations on the inverter.
If the inverter service life has expired dispose it in accordance with,
local rules for disposal of electrical equipment waste Do not dispose.
the PV inverter with household garbage.
Safety symbol Description
The PV inverter is compliant with TUV.
Type A ppro ved
Saf et y
Reg ul ar
Pro du cti on
Sur ve ill anc e
2000 000 000
ZER TIFI ZIE RT
10mins
14

b The inverter must be installed in a well ventilated environment to ensure good heat dissipation. .
c The inverter must be free from direct exposure to sunlight rain and snow to extend its service. , ,
life. It is recommended that the inverter be installed in a sheltered place. If no shelter is
available, build an awning, as shown in Figure 4.3.
Figure 4 3 Installation environment with awning unit mm. ( : )
the front view the lateral view
Awning
≥500
≥1000
According to installation position two kinds of physical installation are described below in,
detail Support-mounting & wall-mounting: .
Basic Requirements
a The inverter is protected to IP65 and can be installed indoors or outdoors. .
b The installation method and position must be appropriate for the weight and dimensions of.
the inverter.
c Do not install the inverter in a place where personnel are likely to come into contact with its.
enclosure and heat sinks because these parts are extremely hot during operation.
d Do not install the inverter in an area that stores flammable or explosive materials. .
a The ambient temperature must be below 50 which ensures the inverter’s optimal. ℃
operation and extends its service life.
Installation Environment Requirements
4 4 1 Determining the Installation Position. .
4 4 Installation Requirements.
15

Figure 4 4 Installation Space Requirements unit mm. ( : )
>600
>1000
>600
>400
>400
Carrier Requirements
Installation Space Requirements
a It is recommended that the inverter be installed at eye level to facilitate operation and.
maintenance.
b Reserve enough clearance around the inverter to ensure sufficient space for installation.
and heat dissipation, as shown in Figure 4.4.
a The carrier where the inverter is installed must be fire-proof Do not install the inverter on. .
flammable building materials.
b The wall must be solid enough to bear the weight of the inverter. .
c Do not install the inverter on a wall made of gypsum boards or similar materials with weak.
sound insulation to avoid noise disturbance in a residential area.
16

4 4 2 Installation Mode Requirements. .
Install the inverter upright or at a maximum back tilt of 15 degrees to facilitate heat dissipation.
, . . .Below are some correct / wrong installation modes as shown in Figures 4 7&4 8
Figures 4 7 The correct installation mode.
The correct installation mode
upright back tilt
Figure 4 8 The wrong installation modes.
The wrong installation will lead to failure of the inverter operation.
NOTICE
The wrong installation mode
Horizontally Upside down-
17
