Soleus Air WS3-06E-201 User manual

4010450
V200220
Air conditioner must be upright for 24 hours prior to operating.
This ensures that the compressor will function as intended.
Model
WS3-06E-201 6,000 BTU
WS3-08E-201 8,000 BTU
Electronic Saddle Air Conditioner
Operating Instructions

Thank you for choosing a Soleus Air Saddle Air Conditioner. This Owner’s Manual will provide
you with valuable information necessary for the proper care and maintenance of your new product.
Please take a few moments to thoroughly read the instructions and familiarize yourself with all the
operational aspects of your new Soleus Air Window Air Conditioner.
For your own records, please attach a copy of your sales receipt to this manual. Also, write the
store name/location, date purchased, and serial number below:
Store Name: ____________________________________________________
Location: _____________________________________________________
Date Purchased: _________________________________________________
Serial Number (located on back of unit): ______________________________
IMPORTANT INSTRUCTIONS
PURCHASE INFORMATION
Before installing and using your air conditioner, please read this owner’s manual carefully. Store this manual in a
safe place for future reference. Your safety and the safety of others is very important to us. Please pay attention to
all safety messages outlined in this owner’s manual.
WARNING: To reduce the risk of fire, electrical shock or injury when using your air conditioner, follow these basic
precautions:
• Plug into a grounded 3 prong outlet.
• Do not remove the ground prong.
• Do not use a plug adapter.
• Do not use an extension cord.
• Unplug the air conditioner before servicing.
• Use two or more people to move and install the air
conditioner.
This is a safety alert symbol.
This symbol alerts you to potential hazards that can harm you or others or even cause death.
All safety messages will directly follow the safety alert symbol and/or the words “DANGER”
or “WARNING.”
All Safety messages alert you of potential hazards, how to reduce the chance of injury, and what
can happen if instructions are not followed correctly.
Failure to immediately follow these in-
structions may cause serious injury or
even death.

This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord
and plug as required by US National Electric Code 440.65. This cord consists of a length of shielded flexi-
ble cord with no termination on the load side and a LCDI attachment plug on the line side.
The LCDI power cord and plug will remove the supply source via electrical disconnect (circuit trip) if the
nominal current leakage between the cord shield and either load conductor exceeds a predetermined value.
The cord will remain de-energized until the device has been manually reset. This is intended to reduce the
risk of a fire in the power cord or combustible materials nearby. The cord shields are not grounded and they
must be considered a shock hazard if exposed. The cord shield must not be connected to ground or to any
exposed metal.
The test and reset buttons on the LCDI Plug are used to check if the plug is functioning properly.
To test:
1. Plug power cord into wall outlet, the LED light will turn on.
2. Press TEST Button, circuit should trip, cutting power to the air conditioner. When this occurs, the LED
light will turn off.
3. Press RESET button to restore power to the unit. Once power is restored, the LED light will turn on
again.
If test button is pressed and unit can still be turned on, current leakage has been detected. Do not use the air
conditioner or attempt to reset the LCDI Plug. Contact Customer Service for troubleshooting recommenda-
tions.
WARNING:
1. DO NOT press the TEST button while the air conditioner is operating.
2. The TEST and RESET buttons should not be used as “ON” and “OFF” switches.
3. The cord and plug are not intended to offer protection to externally connected loads or supply circuits.
4. The cord and plug are intended for
indoor use only.
POWER CORD AND PLUG
RESET
TEST
LED LIGHT
Note: Your unit’s power cord may
differ from the one shown.

PACKAGE CONTENTS
Air Conditioner
(2) - Window Slider A
Short
(2) - Mounting Block
• Saddle Air Conditioner (1)
• Remote Control (1)
• AAA Battery (2)
• Window Slider A Short (2)
• Window Slider B Short (2)
• Window Slider A Long (1)
• Window Slider B Long (1)
• Mounting Block (2)
• Window Slider Support Bracket (2)
• Adjustable Support Knob (Long) (2)
• Adjustable Support Knob (Short) (2)
• Top Foam Sealer (1)
• Optional Window Security Bracket
- Security Bracket (1) , Type B Screw (1)
• Owner’s Manual (1)
Remote
Control
2 AAA
Batteries
Top Foam
Sealer
Owner’s Manual
(2) - Window Slider B
Short
(2) - Window Slider Support Bracket
(1) - Window Slider A
Long
(1) - Window Slider B
Long
(1) - Security Bracket
(1) - Type B Screw
(2) - Adjustable Support Knob (Long)
(2) - Adjustable Support Knob (Short)

SPECIFICATIONS
• Noise level is measured at a distance of 3.28 ft away from the front of the unit in cooling mode.
• Power consumption is measured when the fan runs at the highest speed setting.
• These specifications are for reference only. For actual data, please refer to the rating label on the back of the unit.
Model WS3-06E-201 WS3-08E-201
Power Supply (Ph/V/Hz) 1/115/60 1/115/60
Rated Cooling Capacity (BTU/h) 6,000 8,000
Cooling Power Input (Watts) 495 667
Rated Current Cooling (Amperage) 4.5 6.5
CEER 12.1 12.0
Noise Level (dB(A)) 38-49 (Indoor) / 51-63 (Outdoor) 38-49 (Indoor) / 51-63 (Outdoor)
Airflow CFM 170/230/270 165/223/264
Dehumidifying Capacity 30 Pints per day 34 Pints per day
Product Dimensions (W” x H” x D”) 18.7” x 15” x 28.9” 18.7” x 15” x 28.9”
Package Dimensions (W” x H” x D”) 20.4” x 17.3” x 30.8” 20.4” x 17.3” x 30.8”
Net/Gross Weight (lbs) 67.7/80 71.2/83
Refrigerant Type R-410A R-410A
Plug Type NEMA 5-15P NEMA 5-15P

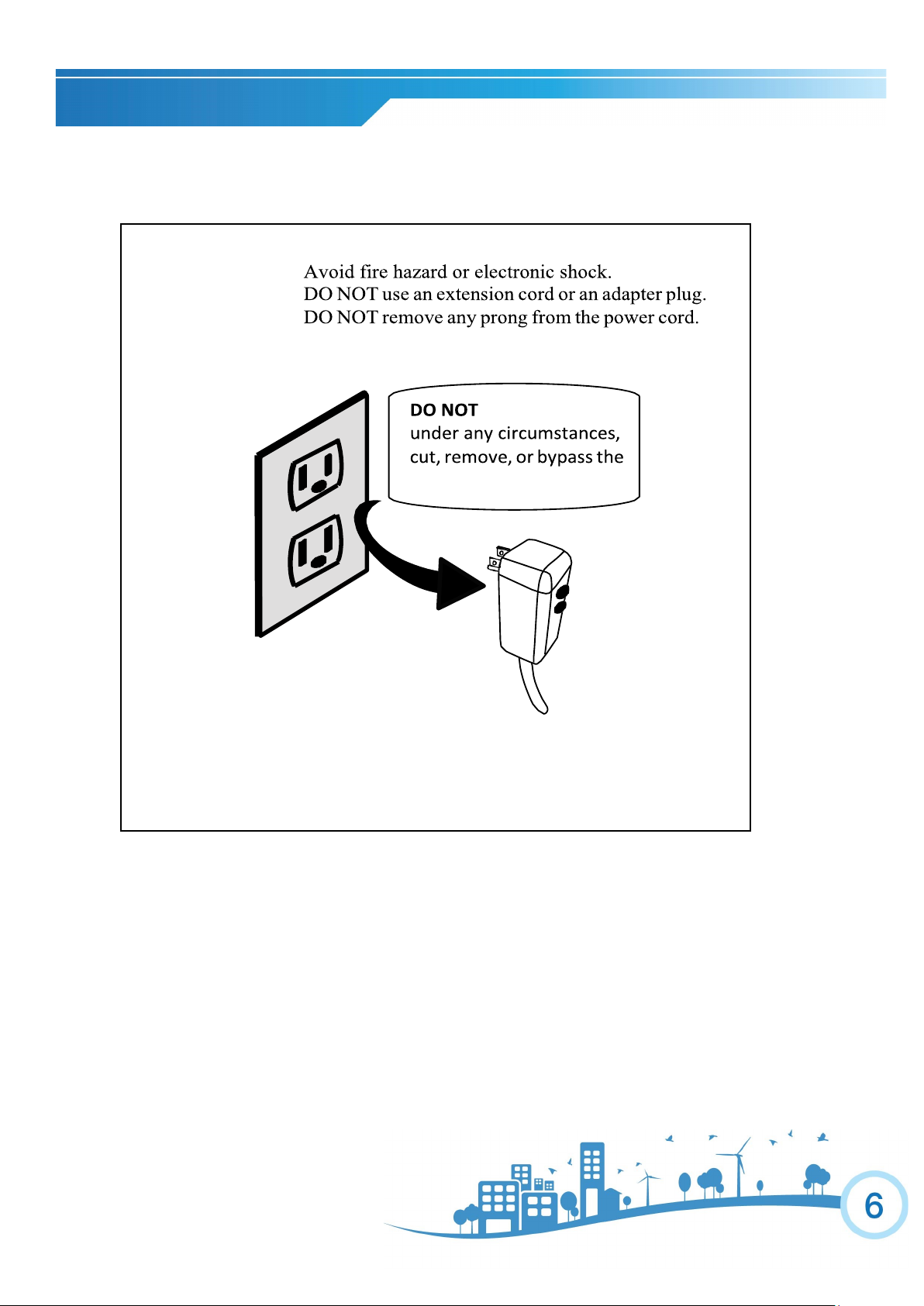

ELECTRICAL SAFETY
WARNING:
grounding prong!!
Power supply cord with 3-prong grounding
plug and current detection device
DISCLAIMER
ALL INFORMATION AND THE TECHNICAL SPECIFICATIONS PRESENTED IN THIS USER’S MANUAL ARE THE
PRESENATION OF THE MANUFACTURER. SOLEUS N.A. HAS NOT CONDUCTED AN INDEPENDENT TEST TO
VERIFY THE INFORMATION AND SPECIFICATIONS PRESENTED HEREWITHIN.

INSTALLATION
Window Preparation
Please read all instructions prior to installing your air conditioner. Two people are recommended to install this product. If a new
electrical outlet is required, have the outlet installed by a qualified electrician before installing the unit.
Before installing the unit, check the dimensions of your window to make sure the air conditioner will fit. This unit is made to fit
inside a standard double-hung window. Make sure the window is in good shape. If not, make repairs prior to installing the unit.
Storm Window Requirements
A storm window frame will not allow the air conditioner to tilt properly which will keep it from draining properly. To
adjust for this, attach a board or piece of wood to the sill. The board or wood piece should have a depth of at least 1 1/2”.
Make sure the board or piece of wood is approximately 1/2” higher than the storm window frame. This will allow the air
conditioner to tilt enough for proper drainage (See FIG. 2).
Prior to Installing the Air Conditioner
1. Check for anything that could block airflow. Check the area outside of the window for things such as shrubs, trees,
or awnings. Check the inside area to make sure curtains, drapes, or blinds will not prevent proper airflow.
2. Check the available electrical outlet. The power supply must be the same as shown on the unit serial nameplate
(located on the left side of the unit, near the front faceplate). Be sure the outlet is close enough for the power cord to
reach.
3. Carefully unpack the air conditioner. Remove all packing material and make sure the floor is protected when remov-
ing. Due to the large size of this air conditioner, two people should move the unit together.
When handling the unit, be careful to avoid cuts from the
sharp metal edges and aluminum fins on the front and rear
coils.
Model WS3-06E-201 WS3-08E-201
Unit Height 15” 15”
Unit Width 18.7” 18.7”
Min. Window Opening 16” 16”
Min. Window Width 24" 24"
Max Window Width 48" 48"
16" MIN
FIG .2
FIG. 1
16" MIN

1. Attach Mounting Blocks on Window Frame (See Fig.1)
1) Remove adhesive from mounting block and place mounting block on
window frame.
2) Press down firmly on the mounting block to secure in place.
3) Then, remove adhesive from the other mounting block and place
mounting block on window frame.
4) Press down firmly on the mounting block to secure in place.
5) The mounting block are now ready to support the Saddle Air Condi-
tioner.
2. Slide Saddle Air Conditioner Over Window Sill
1) Open window completely
2) Lift the Saddle Air Conditioner on either side of the unit and bring it up to the window..
3) Insert the unit into the window until the center of the Saddle Air Conditioner is over the window sill
4) Slowly lower the Saddle Air Conditioner over the window sill so that the unit straddles the wall
5) Paying close attention to your fingers, completely lower the Saddle Air Conditioner onto the window sill
6) Center Saddle Air Conditioner in the window so that there are equal gaps on either side of the unit
Optional adjustable supports can be used to secure the Saddle AC against the outside wall if needed.
Short and long support knobs are included to accommodate various installations. (See Fig.3)
3. Attach Window Slider Support Brackets (See Fig.4)
1) Remove adhesive from window slider support bracket.
2) Position support bracket (adhesive-side) against the left-side edge of the Saddle Air Conditioner at the
point where the window sash will be aligned with the support bracket when closed.
3) Press the support bracket firmly in place and hold for 5 seconds.
4) Repeat these steps on the right-side edge of the Saddle Air Conditioner.
INSTALLATION
Fig.1
Fig.3
Fig.4

INSTALLATION
4. Install Window Sliders
1) Connect the window sliders together. Short and long window sliders are included to accommodate
various window opening sizes.
2) Slide window sliders into both support brackets on either side of the Saddle Air Conditioner. (See Fig.6)
*Window sliders can be shortened by cutting with a handsaw so that it fits inside the opening.
5. Attach Top Foam Sealer
1) Measure the total width of the installation including the window sliders
2) Cut the top foam sealer to length
3) Remove adhesive from the top foam sealer
4) Attach the top foam sealer to the top of the Saddle Air Conditioner and
window sliders directly below the window sash
5) Close the window sash and seal.
6. Plug in Saddle Air Conditioner and Power ON
Fig.5 Fig.6
Fig.7
END OF SEASON
Remove the Air Conditioner from the Window (End of Season)
1. Turn the air conditioner off, and disconnect the power cord.
2. Remove the window sliders from either side of the air conditioner.
3. Using a drain pan, unplug the drain plug on the front bottom of the unit to drain any condensation water
in the base of unit.
4. Keeping a firm grip on air conditioner, lift up and remove the air conditioner from the window and
sill.
5. Store parts with the air conditioner in the box.
Single and Double Hung Windows

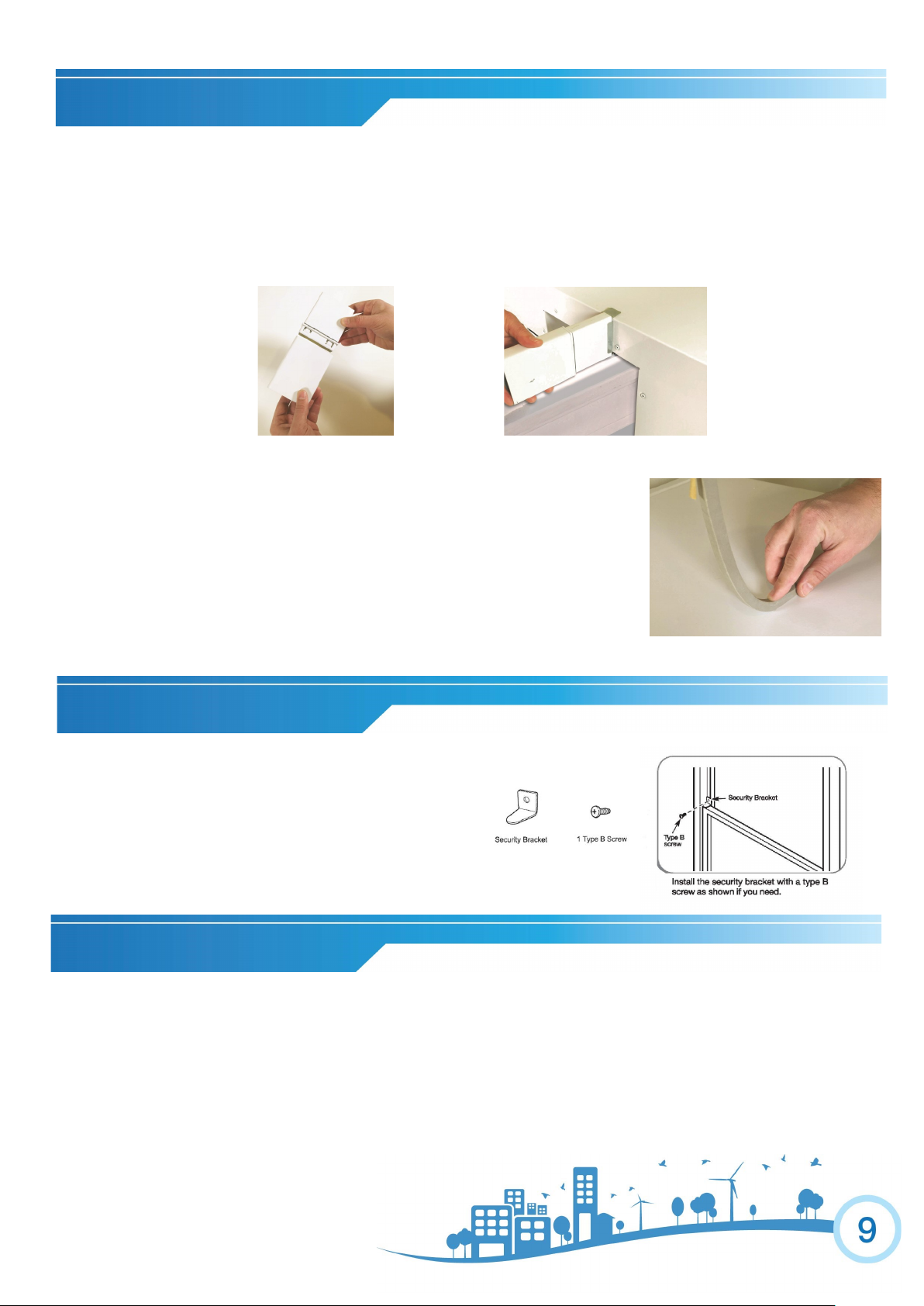

SECURITY BRACKET
Optional Security Bracket Installation
Your Window Kit also includes an optional security
bracket that can be installed to prevent the window
from being opened from the outside while a Window
Kit is installed.

.

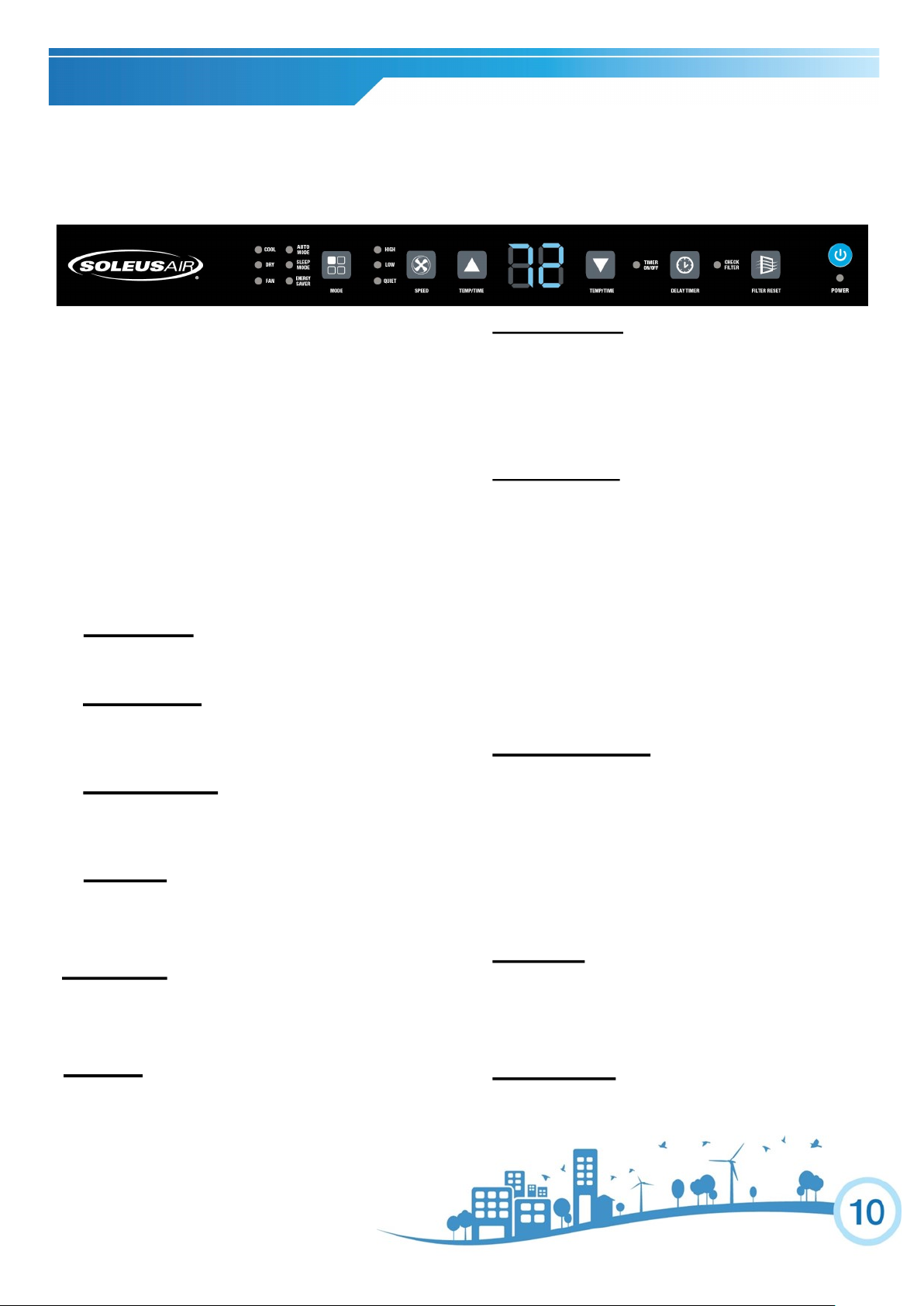

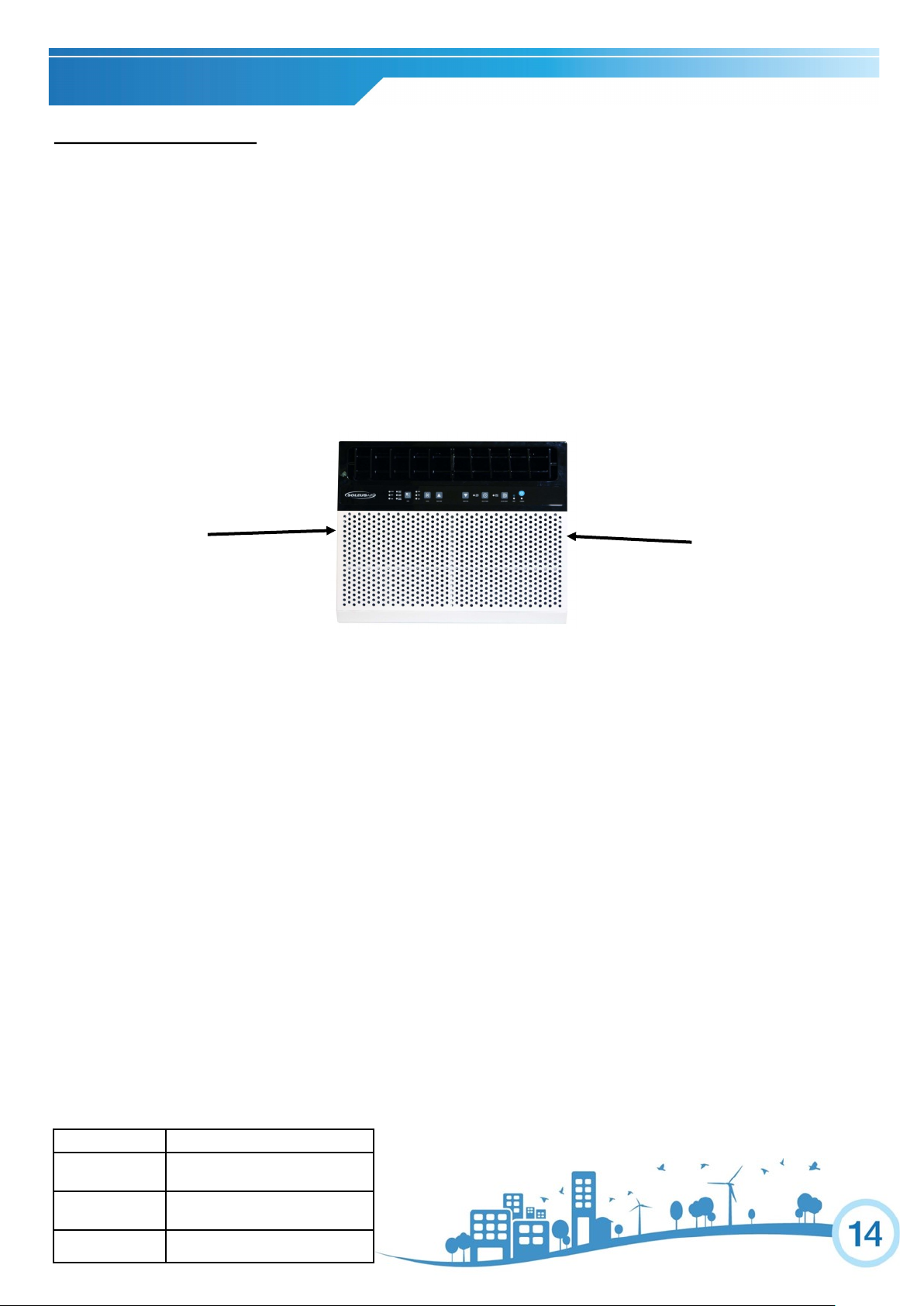

CONTROL PANEL
Electronic Control Panel & Remote Control
Note: This control panel display always shows the
room temperature in Fan Mode except when setting
the temperature and timer.
Normal Operating Sounds
• You may hear a pinging noise caused by water
hitting the condenser on rainy days, or when the
humidity is high. This design feature helps re-
move moisture and improve efficiency.
• You may hear the thermostat click when the
compressor cycles on and off.
• Water will collect in the base pan during rain
or days of high humidity. The water may over-
flow and drip from the outside part of the unit.
• The fan may run even when the compressor is
not on.
Power Button: Turn the air conditioner on and
off.
Digital Display: Will display set temperature when
the unit is in Cool, Dry, Auto, Sleep, Energy Saver
mode, and display current room temperature when
in Fan mode.
Temperature Set: Use these buttons on the control
panel or remote to increase or decrease the Set
Temperature.
Fan Speed: Use the fan speed button to
change the fan speed. Choose between high,
low, and quiet.
Mode Button: Press the MODE button to cycle
through the various modes: Cool, Dry, Fan, Auto,
Sleep, Energy Saver
Timer Set: Use these buttons on the control pan-
el and remote control to set the timer. Each press
of the ▲or▼ button will increase or decrease the
timer.
Auto-On Timer: When the air conditioner is off,
it can be set to automatically turn on in 1-24
hours at the previous set mode and fan settings.
To set the Auto-on Timer, press the TIMER but-
ton on the unit or remote control. Timer can be
set in 1 hour increment.
Auto-off Timer: When the air conditioner is on, it
can be set to automatically turn off in 1-24 hours.
To set the Auto-off Timer, press the TIMER button on
the unit or remote control. Timer can be set in 1 hour
increment.
Once timer is set, TIMER ON/OFF indicator on con-
trol panel will light up, the set temperature will also,
shown on digital display. To see the remaining time,
press TIMER button. To change the timer settings,
use the ▲or▼ on control panel or remote control.
During preview of timer setting, press TIMER button
once to display set time, press the button one more
time to cancel the settings.
Energy Saver Mode: Press the MODE button to
turn on Energy Saver Mode. In Energy Saver mode,
set the desired temperature and the unit will turn-off
once the room is cooled to that temperature. (The fan
will also be off.)
The unit will turn back on when the room
temperature rises above the set temperature.
The fan will cycle on and off automatically to save
energy.

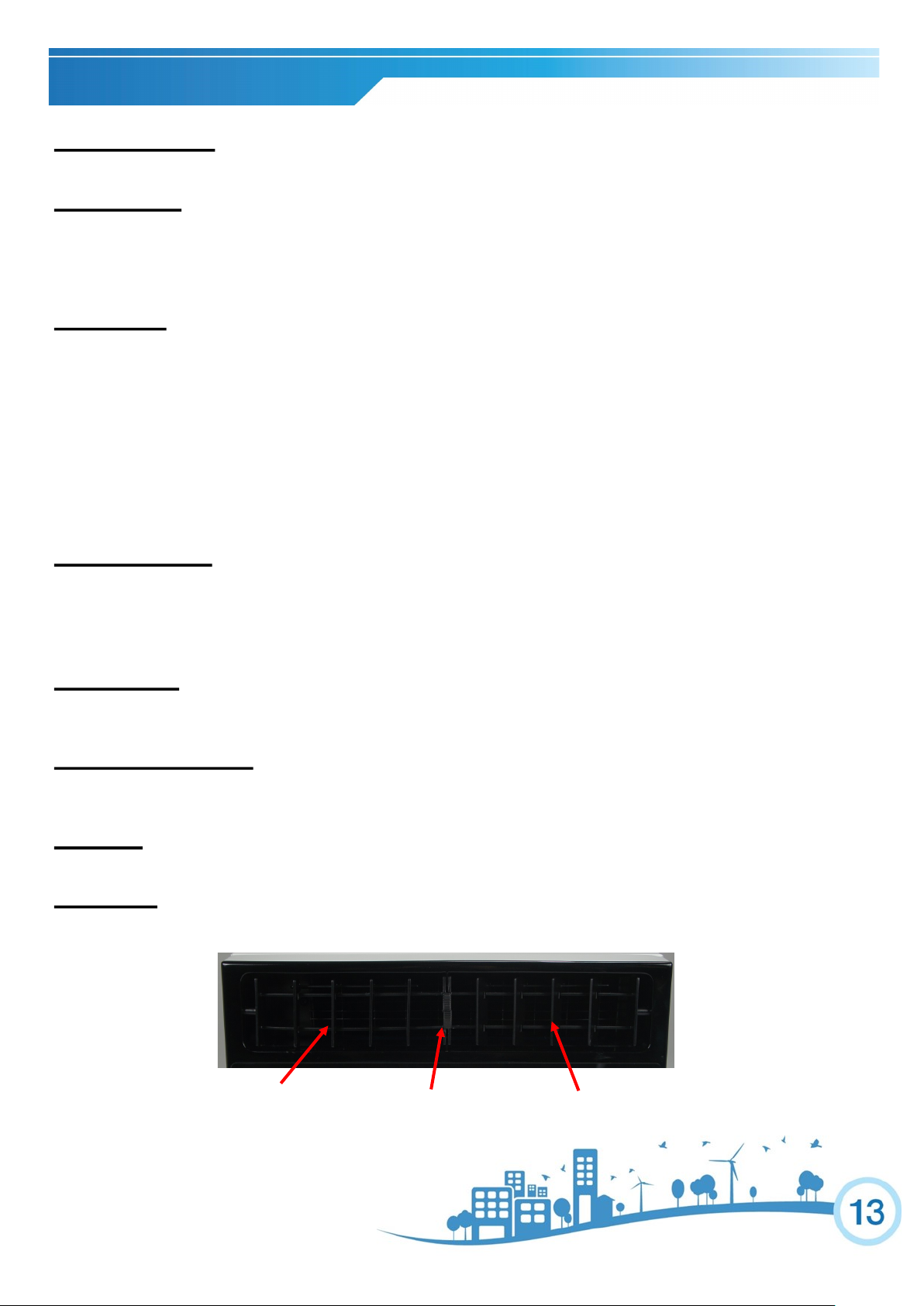

Filter Reset: Press the FILTER RESET button to
reset the filter light. The light will illuminate every
250 hours of operation as a reminder to clean the
filter.
Signal Receiver: Point the remote control to the
air conditioner when sending instruction to the
unit.
