SOLTEK SL-75DRV5 User manual

R
The Soul Of Computer Technology
Mainboard
SL-75DRV5 User Manual V2.0

Product Model : SL-75DRV5
Manual Revision : V2.0
Release Date : March 2002
• AMD Athlon ThunderbirdTM, DuronTM, and AthlonTM XP processors are trademarks of AMD
Corporation.
• V A, KT-333, and VT8233A are trademarks of V A Corporation.
T
his Users Guide & Technical Reference is to help system
manufacturers and end-users set up and install the mainboard.
Every effort has been made to ensure that the information in this
manual is accurate. Soltek Computer nc. is not responsible for printing or
clerical errors. nformation in this document is subject to change
without notice and does not represent a commitment on the part of
Soltek Computer nc.
No part of this manual may be reproduced, transmitted, translated
into any language in any form or by any means, electronic or
mechanical, including photocopying and recording, for any purpose
without the express written permission of Soltek Computer nc.
Companies and products mentioned in this manual are for identification
purpose only. Product names appearing in this manual may or may
not be registered trademarks or copyrights of their respective
companies.
Soltek Computer nc. provides this manual “As is “ without warranty
of any kind, either express or implied, including but not limited to the
implied warranties or conditions of merchantability or fitness for a
particular purpose. n no event shall Soltek Computer nc. be liable
for any loss or profits, loss of business, loss of use or data, interruption
of business, or for indirect, special, incidental, or consequential
damages of any kind, even if Soltek Computer nc. has been
advised of the possibility of such damages arising from any defect
or error in this manual or product.
Copyright © 2002 Soltek Computer Inc. All Rights Reserved.
NOTIC

SOLTEK AROUND THE WORLD
SOLT K COMPUT R INC.
Address : 7F, No. 306-3, Ta-Tung Rd, Sec.1, Hsi-Chih, Taipei-
Hsien, Taiwan, R.O.C.
Telephone : [phone]
Fax : [phone]
E-mail : [email protected]
Web site : http://www.soltek.com.tw
SOUL T CHNOLOGY UROP B.V.
Address : Hongkongstraat 55, 3047 BP Rotterdam. The Neth-
erlands
Telephone : [phone]
Fax : [phone]
E-mail : [email protected]
Web site : http://www.soltekcomputer.nl

75DRV5
CONTENT
Chapter 1 Introduction............................................................ 8
1-1 Mainboard Specification ............................................................ 9
1-1.1 Processor .......................................................................................... 9
1-1.2 Chipset .............................................................................................. 9
1-1.3 AWARD B OS V6.0 Supporting ......................................................... 9
1-1.4 Sound Controller ............................................................................... 9
1-1.5 Power Management .......................................................................... 9
1-1.6 Full Featured Accelerated Graphic Port (AGP) Controller .............. 10
1-1.7 Multi- /O Function ............................................................................ 10
1-1.8 Expansion Slots .............................................................................. 10
1-1.9 Advanced High Performance DDR DRAM Controller ..................... 10
1-1.10 Form Factor ................................................................................... 10
1-1.11 Hardware Monitoring ..................................................................... 11
1-2 Mainboard Layout .................................................................... 12
1-3 Chipset Diagram ...................................................................... 13
Chapter 2 Hardware Setup ................................................... 15
2-1 CPU nstallation ....................................................................... 16
2-2 Memory nstallation.................................................................. 17
2-3 AGP 4X (Accelerated Graphics Port) nstallation.................... 19

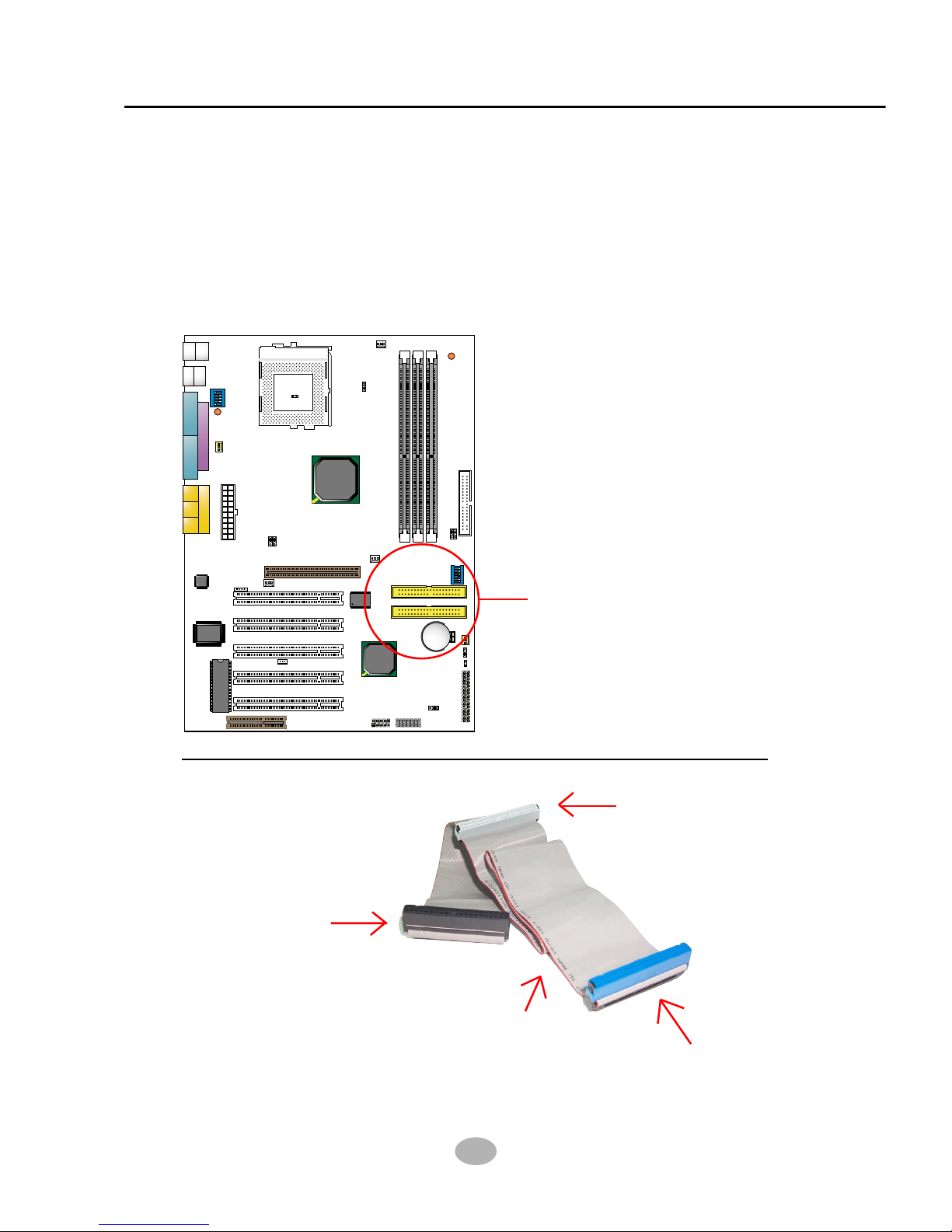

2-4 HDD/FDD nstallation .............................................................. 20
2-5 Switch Setting For CPU Frequency And Voltage ..................... 22
2-5.1 nformation On AMD Socket 462 Processor (Model 4, 5 Products) ........ 22
2-5.2 nformation On AMD Socket 462 Processor (Model 6, 7 Products) ........ 23
2-5.3 nformation On AMD Socket 462 Processor (Model 8 Products) ............ 24
2-5.4 Frequency Ratio Select (By SW1 D P1-D P5) ................................ 25
2-5.5 CPU External Frequency Setting (By SW2) .................................... 26

5
Content
2-6 Jumper Settings ....................................................................... 27
2-6.1 JP1/JP2 AGP 4X Voltage Select ..................................................... 28
2-6.2 JP3/JP4 Memory Module Voltage Select ........................................ 28
2-6.3 JP1 Power Lost Resume ................................................................. 29
2-6.4 JP24 Overheated CPU Shutdown ................................................... 29
2-6.5 JBAT1 For Clear CMOS Data ......................................................... 30
2-7 Connectors Configurations ...................................................... 31
2-7.1 On Board FAN Connector ............................................................... 31
2-7.2 WOL1 Wake On LAN ...................................................................... 32
2-7.3 CD-ROM Audio Connector (JCD_ N1) ............................................ 32
2-7.4 RT1/RT2 Thermal Sensor Connector (Option)................................ 33
2-7.5 Complex Header ............................................................................. 34
2-7.6 ATX Power Supply Connector ......................................................... 35
2-7.7 Chassis Panel Connectors .............................................................. 36
2-7.8 PS/2 Mouse And PS/2 Keyboard .................................................... 36
2-7.9 Smart Card Reader Connector (SCR1) .......................................... 37
2-7.10 Communication And Networking Riser Slot (CNR) ....................... 38
2-7.11 USB Ports and USB Headers (Header USB 3) ............................. 39
Chapter 3 Software Setup .................................................... 41
3-1 Open up the Support CD and choose Drivers and Utilities...... 42
3-2 Proceed to V A 4- n-1 Drivers nstallation ............................... 43
3-3 Proceed to AC’97 Audio Driver nstallation .............................. 45
3-4 Proceed to Hardware Monitor nstallation................................ 46
Chapter 4 BIOS Setup ........................................................... 49
4-1 What s B OS Setup ................................................................. 50
4-2 How To Run B OS Setup ......................................................... 50
4-3 What s CMOS ......................................................................... 50

75DRV5
6
4-4 What s POST .......................................................................... 50
4-5 B OS Upgrade ......................................................................... 51
4-5.1 Before Upgrading B OS .................................................................. 51
4-5.2 Upgrade Process ............................................................................ 51
4-6 B OS Setup --- CMOS Setup Utility ......................................... 55
4-6.1 CMOS Setup Utility ......................................................................... 55
4-6.2 Standard CMOS Setup ................................................................... 56
4-6.3 Advanced B OS Features ................................................................ 59
4-6.4 Advanced Chipset Features ............................................................ 63
4-6.5 ntegrated Peripherals ..................................................................... 69
4-6.6 Power Management Setup .............................................................. 75
4-6.7 PnP / PC Configuration .................................................................. 81
4-6.8 SmartDoc Anti-Burn Shield ............................................................. 84
4-6.9 Frequency/Voltage Control .............................................................. 87
4-6.10 Load Optimized Defaults ............................................................... 89
4-6.11 Set Supervisor / User Password ................................................... 89
4-6.12 Save & Exit Setup ......................................................................... 90
4-6.13 Exit Without Saving ....................................................................... 90
Appendices ............................................................................ 92
Appendix-1 dentify B OS Version & B OS Part Number .............. 93
Appendix-2 dentifying Mainboard model Number ........................ 94
Appendix-3 Technical Terms .......................................................... 95

7
Content
Mainboard
====Support CD
====User’s Manual
====Bundled Bonus Pack CD
====Bundled Bonus Pack Manual
====Temperature Sensor Cable (Optional)
====ATA66/100/133 DE Cable
====RS232 Cable
FDD Cable
USB Cable (Optional)
IT M LIST CH CKUP

75DRV5
8
This chapter contains the following topics :
1-1 Mainboard Specification
1-2 Mainboard Layout

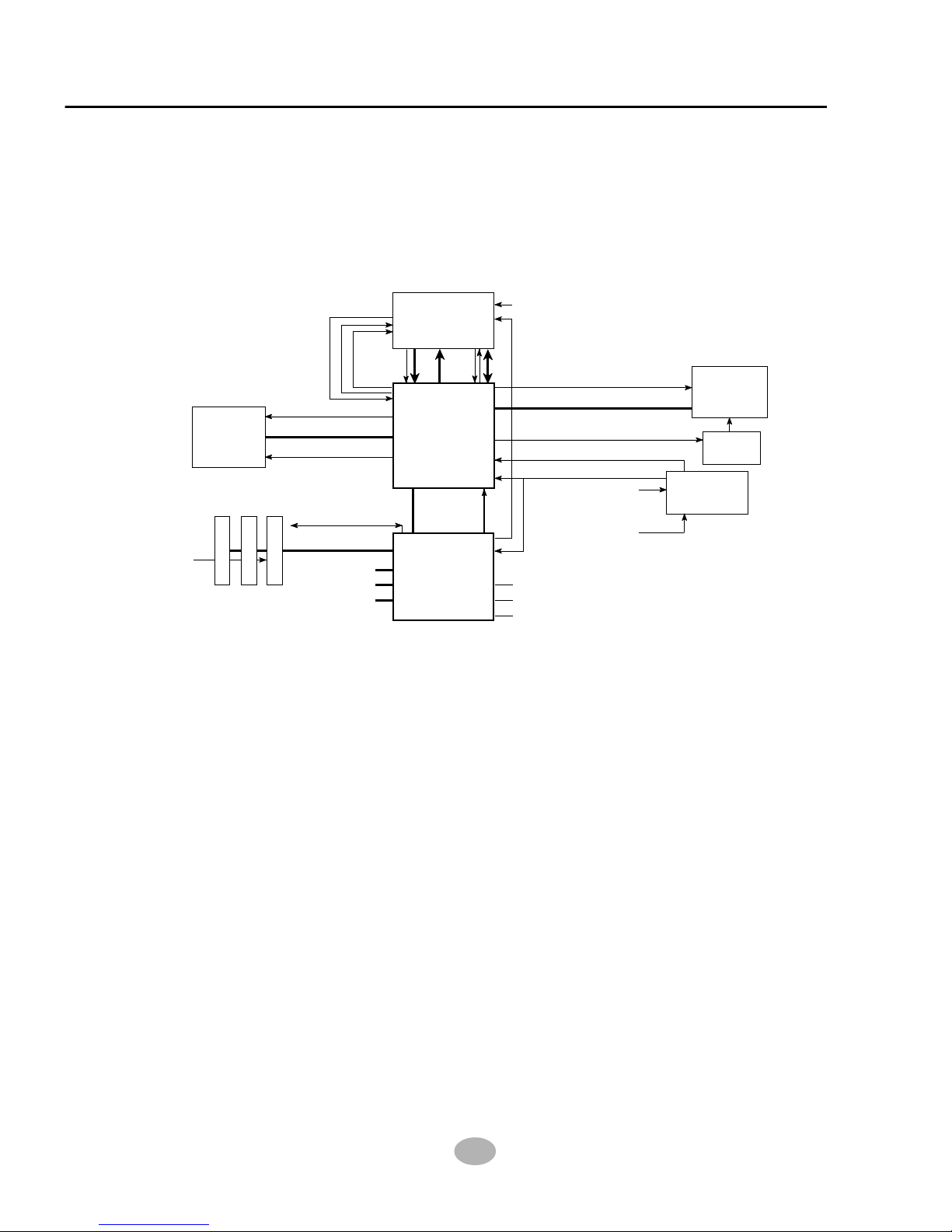

1-3 Chipset Diagram
• This chapter briefly introduces the characteristics of the mainboards. t includes
the information regarding the chipset, CPU types, built-in functions and layout.
Users will have more ideas about mainboards after reading this chapter.
Chapter 1 Introduction

Chapter 1 Introduction
9
1-1 Mainboard Specification
1-1.1 Processor
• Supporting AMD Athlon™ Thunderbird processor up to 1.5GHz or above.
• Supporting AMD Duron™ processor up to 1.2GHz or above.
• Supporting 200MHz & 266MHz FSB bus.
• Supporting Processor V D(voltage D) and F D(Frequency D) auto
detection.
• Supporting Atholon™ XP Processors.
1-1.2 Chipset
• V A KT333 DDR V-Link Host North Bridge.
• V A VT8233A V-Link Client South Bridge.
• TE 8705 LPC /O.
1-1.3 AWARD BIOS V6.0 Supporting
• Plug & Play V1.0.
• Flash Memory for easy upgrade.
• Year 2000 compliant.
• B OS writing protection.
• TrueBlue Anti-Burn shield.
1-1.4 Sound Controller
• SoundBlaster Pro Hardware and Direct Sound Ready AC97 Digital Audio
Controller with Codec onboard.
1-1.5 Power Management
• ACP 1.0 compliant (Advanced Configuration and Power nterface).
• APM V1.2 compliant (legacy power management).
• Supporting POS mode (Power On Suspend).
• System event monitoring with two event classes.
• Supporting Wake On LAN (WOL) & Wake On Ring.
• Supporting Real Time Clock (RTC) with date alarm, month alarm, and
century field.
• USB wake up from S3 function.

75DRV5
10
1-1.6 Full Featured Accelerated Graphic Port (AGP) Controller
• AGP v2.0 compliant.
• Supporting Side Band Addressing(SBA) mode (non-multiplexed address / data).
• Supporting 66MHz 1x, 2x, and 4x modes for AD and SBA signaling.
1-1.7 Multi-I/O Function
• Two UltraDMA-33/66/100/133 Master Mode PC E DE ports.
• Two UARTs for complete Serial Ports.
• One dedicated R connector:
--At third serial port dedicated to R function either through the two complete serial
ports or the third dedicated port nfrared- rDA (HPS R) and ASK( Amplitude Shift
Keyed) R.
• Multi-mode parallel connector supporting:
--Standard mode, ECP and EPP.
• Floppy Disk connector supporting:
--One FDD with drive swap function.
• Universal Serial Bus connector supporting:
-- USB v1.1 and ntel Universal HC v1.1 compatible.
-- 2 built-in USB connectors, in addition to one internal USB header which requires
a USB cable to support 2 more optional USB ports.
• PS/2 keyboard connector.
• PS/2 Mouse connector.
1-1.8 xpansion Slots
• Five PC bus Master slots.
• One CNR slot.
• One AGP 4x mode slot.
• Three 184-pin D MM slots.
1-1.9 Advanced High Performance DDR DRAM Controller
• Supporting memory size up to 3GB.
• Supporting 184-pin DDR SDRAM type only.
• Supporting PC1600, PC2100 and PC2700 DDR SDRAM.
1-1.10 Form Factor
• ATX form factor, 4- layer PCB.
• Mainboard size 22.5cm x 30.5cm.

Chapter 1 Introduction
11
1-1.11 Hardware Monitoring
• Programmable control, status to provide, monitoring and alarm for flexible
desktop management (software include).
• 5 positive voltage statuses monitoring.
• 2 temperatures statuses monitoring.
• 2 Fan-speeds statuses monitoring.

75DRV5
12
1-2 Mainboard Layout
Using non-compliant memory with higher bus clock (overclocking) may
severely compromise the integrity of system.
1 3 1 3
3 1 3 1
CNR1
SOCKET A
1 3
PCI 1
PCI 2
PCI 3
PCI 4
PCI 5
VIA
KT333
DIMM1 DIMM2 DIMM3
IDE1
IDE2
Li
Battery
FAN3
1 3
FAN4
1 3
FAN2
FAN1
1 3
RT1
FAN5
1 3
VIA
VT8233A
FDC1
USB USB1
PS/2 MOUSE PS/2 K/B
LPT1
COM1COM2
GAME/MIDI PORT
MIC LINE
OUT
LINE IN
SW1
ON DIP
1 2 3 4 5
FLASH BIOS
LPC I/O
Controller
AC'97
Codec
WOL1
1 3
AGP 4X
Clock
Generator
1 3
JBAT1
1 3
JP22
NJP1
SAPK RST PLED KEYLOCK SLED
HDD/LED IR PWR SMI
++
--
+-
1
JP1 JP2
SCR1USB 3
11
1 14
JCD_IN1
1 4
CN1
JP3 JP4
RT2
ZD1
SSF1
3
ON DIP
1 2 3 4 5 6
SW2
1 3
JP24

Chapter 1 Introduction
13
1-3 Chipset Diagram
• The KT333 and VT8233A chipset is a high performance, cost-effective
and energy efficient system controller for the implementation of AGP /
PC desktop personal computer system based on 64-bit Socket-A
(AMD Athlon) processors.
Diagram of Apollo KT333 System Block Using the VT8233A V-Link
South Bridge
DDR Vlink
Host North
552 BGA
VT8233A
Vlink
Client South
352 BGA
3D
Graphics
Controller
Athlon
Host CPU
SDR/VCM
& DDR
SDRAM
Clock
Buffer
Clock
Generator
SDR/DDR Memory Bus
AGP Bus
SYSCLK, SYSCLK#
INTR, NMI, SM#, STPCLK#,
IGNNE#, FERR#, A20M#,
PWROK, INIT#, RESET#
GCLK
PCLK
PCKRUN#
ATA33/66/100/133
4x USB
LPC
SMBus
Power Plan & Peripheral Control
GPIO and ACPI Events
PCI Bus
CKE#
MCLK
HCLK
PCLK
CPUSTP#
PCISTP#
SUSCLK,
SUSST1#
GCKRUN#
Address
Out
CFWDRST
CONNECT
PROCRDY
In
Data
KT333

1
75DRV5
MEMO
MEM
O

15
Chapter 2 Hardware Setup
2-1 CPU Installation
2-2 Memory Installation
2-3 AGP 4X (Accelerated Graphics Port) Installation
2-4 HDD/FDD Installation
2-5 Switch Setting For CPU Frequency And Voltage
2-6 Jumper Settings
2-7 Connectors Configuration
This chapter contains the following topics :
ATT NTION !!!
1. Please refer to your processor installation or other
documentation attached to your CPU for detailed in-
stalling instruction.
2. Installing a heat sink and cooling fan is necessary
for proper heat dissipation from your CPU. Incorrect
installation may result in overheating and damage
of your CPU.
3. Before changing the setting of CPU Vcore from BIOS
program, user SHOULD make sure of correct speci-
fication both of CPU CLOCK and RATIO. Incorrect
setting may cause damage to your CPU.
Chapter 2 Hardware Setup

16
75DRV5
• Make sure that +5V DCV and +3.3 DCV capabilities of your power
supply are suitable for the processor.
• Any attempt to operate the AMD Athlon or Duron processor without a
suitable coolin Fan will dama e processor and other component.
2-1 CPU Installation
SOCKT 462
SOCKT 462
AMD
Take notice of the red circles
as shown below. While inserting
the CPU into the socket, you
can find out there is a definite
pin orientation for CPU and
socket.
2
Pull out the lever from the
socket, and then raise the
lever up to a 90-degree angle.
1
AMD
SOCKT 462
Make sure that the CPU is
placed into the socket tightly.
Then lower down the lever to
complete the CPU installation.
3

17
Chapter 2 Hardware Setup
Installing DIMM
• Make sure you have the correct memory module type for your mainboard.
• nsert the module(s) as shown below, D MMs have 184-pins and one
notch that will be matched by the onboard D MM slot. Memory modules
are installed by inserting them straight into the slot until they “click” in the
right place. They only fit in one direction, so do not force them in by a
wrong direction.
184-Pin DIMM Notch Key Definitions(2.5V)
DRAM Key Position Voltage Key Position
2.5V
2-2 Memory Installation
Removing DIMM
• Press down the holding clips on both sides of a D MM slot and the module
will be released from it.
• Make sure to unplu your power supply before addin or removin
memory modules or other system components. Failure to do so may cause
severe dama e to both your mainboard and expansion cards.
• Be careful when insertin or removin DIMM. Forcin a DIMM in or
out of a slot improperly may dama e the memory module or the slot.
Some DIMMs which contain EDO or FTP DRAM are incompliant with
the mainboard. The M/B supports 2.5V true DDR SDRAM DIMMs only.

18
75DRV5
1 3 1 3
3 1 3 1
CNR1
SOCKET A
1 3
PCI 1
PCI 2
PCI 3
PCI 4
PCI 5
VIA
KT333
DIMM1 DIMM2 DIMM3
IDE1
IDE2
Li
Battery
FAN3
1 3
FAN4
1 3
FAN2
FAN1
1 3
RT1
FAN5
1 3
VIA
VT8233A
FDC1
USB USB1
PS/2 MOUSE PS/2 K/B
LPT1
COM1COM2
GAME/MIDI PORT
MIC LINE
OUT
LINE IN
SW1
ON DIP
1 2 3 4 5
FLASH BIOS
LPC I/O
Controller
AC'97
Codec
WOL1
1 3
AGP 4X
Clock
Generator
1 3
JBAT1
1 3
JP22
NJP1
SAPK RST PLED KEYLOCK SLED
HDD/LED IR PWR SMI
++
--
+-
1
JP1 JP2
SCR1USB 3
11
1 14
JCD_IN1
1 4
CN1
JP3 JP4
RT2
ZD1
SSF1
3
ON DIP
1 2 3 4 5 6
SW2
1 3
JP24
NOTICE:
When LED “ZD1” is on,
meanin that 2.5V is
operatin and flowin into
DIMM slots, please do not
add or remove memory
modules .

19
Chapter 2 Hardware Setup
2-3 AGP 4X (Accelerated Graphics Port) Installation
AGP Accelerator
AGP 4X/2X
• This AGP slot supports both 4X and 2X AGP cards. An AGP 4X card will
support a double transfer rate of an AGP 2X card.
When AGP 4X card is used on board, it runs with 1.5V voltage. n case of
overclocking, the AGP 4X voltage can be raised by 0.1 stepping by
adjusting JP1 and JP2, so as to support a higher transfer rate.

20
75DRV5
1 3 1 3
3 1 3 1
CNR1
SOCKET A
1 3
PCI 1
PCI 2
PCI 3
PCI 4
PCI 5
VIA
KT333
DIMM1 DIMM2 DIMM3
IDE1
IDE2
Li
Battery
FAN3
1 3
FAN4
1 3
FAN2
FAN1
1 3
RT1
FAN5
1 3
VIA
VT8233A
FDC1
USB USB1
PS/2 MOUSE PS/2 K/B
LPT1
COM1COM2
GAME/MIDI PORT
MIC LINE
OUT
LINE IN
SW1
ON DIP
1 2 3 4 5
FLASH BIOS
LPC I/O
Controller
AC'97
Codec
WOL1
1 3
AGP 4X
Clock
Generator
1 3
JBAT1
1 3
JP22
NJP1
SAPK RST PLED KEYLOCK SLED
HDD/LED IR PWR SMI
++
--
+-
1
JP1 JP2
SCR1USB 3
11
1 14
JCD_IN1
1 4
CN1
JP3 JP4
RT2
ZD1
SSF1
3
ON DIP
1 2 3 4 5 6
SW2
1 3
JP24
• To install HDD (Hard Disk Drive), you may connect the cable’s blue
connector to the mainboard’s primary ( DE1) or secondary ( DE2)
connector, and then connect the gray connector to your slave device and
the black connector to your master device. f you install two hard disks,
you must configure the second drive to Slave mode by setting its jumper
accordingly. Please refer to your hard disk documentation for the jumper
settings.
Hard Disk Drive Connector:
Orient the red line on the DE
ribbon cable to Pin1.
2-4 HDD/FDD Installation
Gray connector
Blue connector
ID Cable
Black connector
red line
