sonnenBatterie Evo
[e-mail]

Operation manual
Page 2of 37
IMPORTANT
Read this document carefully before operation.
Retain this document for reference purposes.
Publisher
sonnen Australia Pty Ltd
Tenancy 6, Lionsgate Business Park
180 Philip Highway |Elizabeth South SA 5112
Service number
[phone]
Email [e-mail]
Document
Document number
5000611
Version
000
Valid for
AU, NZ
Publication date
04/08/2022

Operation manual
Page 3of 37
Table of Contents
1Information about this document ....................................................................................5
1.1 Target group of this document..................................................................................................5
1.2 Designations in this document...............................................................................................5
1.3 Symbols in this document........................................................................................................6
2Safety......................................................................................................................................7
2.1 Intended Use................................................................................................................................ 7
2.2 Operating the storage system............................................................................................... 7
2.3 Important safety instructions.................................................................................................8
2.4 Voltage inside the storage system........................................................................................8
2.5 Handling the battery modules................................................................................................ 9
2.5.1 Information on the sonnenModule 4 battery modules: ........................................9
2.6 Conduct in case of a fire........................................................................................................ 10
3Product Description.......................................................................................................... 12
3.1 Technical data.............................................................................................................................12
3.2 Type plate ................................................................................................................................... 14

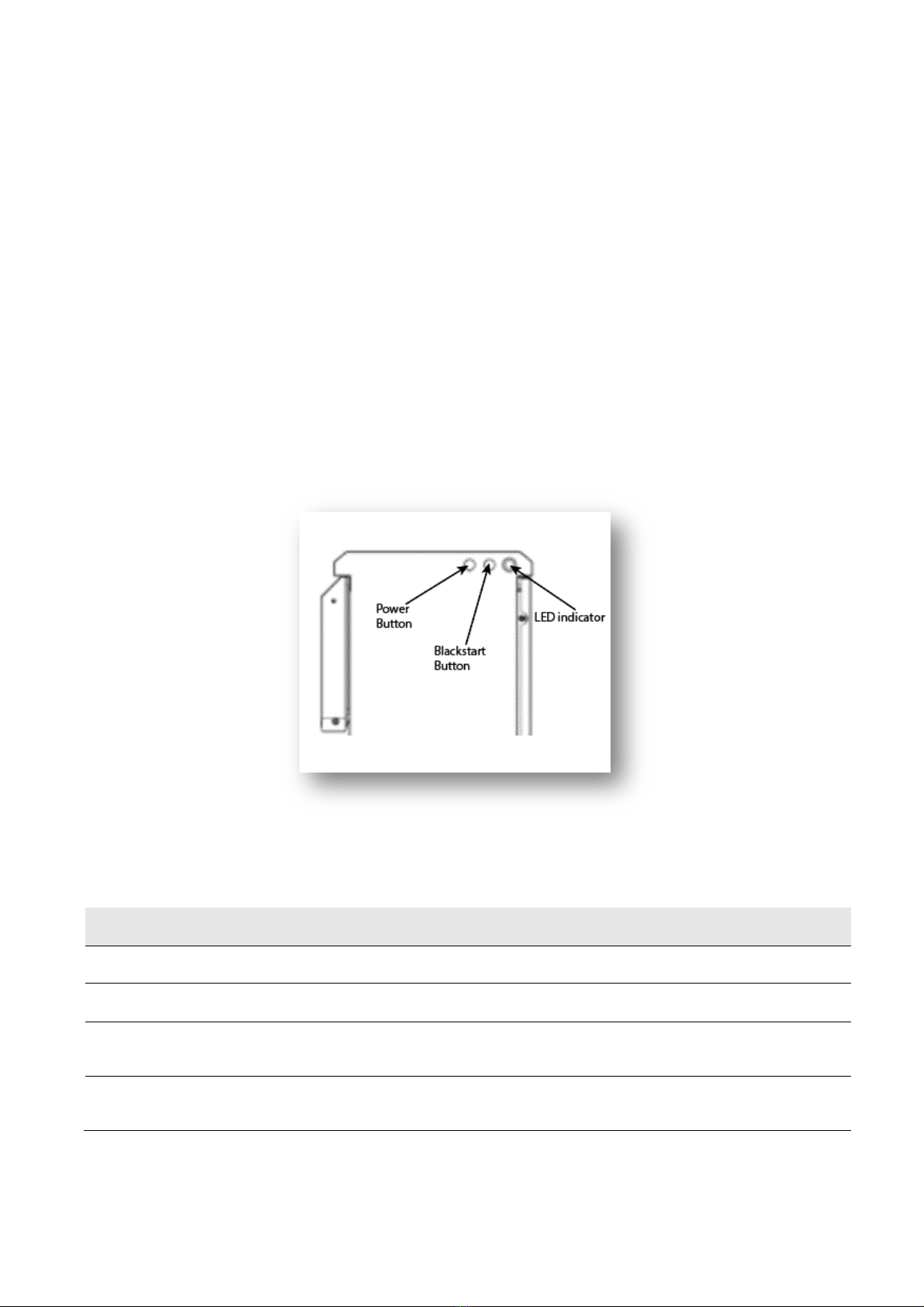

3.3 Overview of switch panel ...................................................................................................... 14
3.4 System components.................................................................................................................15
3.5 Symbols on the storage system............................................................................................16
3.6 Function of the LED indicator...............................................................................................17
4Function ...............................................................................................................................18
4.1 Basic principle ........................................................................................................................... 18
4.1.1 Self-consumption mode .................................................................................................... 18
4.1.2 Backup mode......................................................................................................................19
4.1.3 Time-of-Use mode ...........................................................................................................21
5Operating the storage system....................................................................................... 23
5.1 Switching the storage system on........................................................................................23
5.2 Switching the storage system off ...................................................................................... 24

Operation manual
Page 4of 37
6Customer portal ................................................................................................................ 25
6.1 Logging into the customer portal .......................................................................................25
6.2 Using the customer portal ....................................................................................................26
6.2.1 Dashboard..........................................................................................................................26
6.2.2 Live state.............................................................................................................................26
6.2.3 Performance .....................................................................................................................27
6.2.4 sonnenBatterie page...................................................................................................... 30
6.2.5 Help and Support..............................................................................................................31
6.2.6 Personalising sonnen account .....................................................................................32
7Maintenance.......................................................................................................................34
8Decommissioning.............................................................................................................. 35
9Troubleshooting ................................................................................................................ 35
10 Uninstallation & Disposal................................................................................................. 36
10.1 Uninstallation............................................................................................................................ 36
10.2 Disposal...................................................................................................................................... 36

Operation manual
Page 5of 37
1Information about this document
This document describes the operation of the sonnenBatterie Evo storage system.
Read this document in its entirety.
Keep this document in the vicinity of the storage system.
1.1 Target group of this document
This document is intended for customers who have purchased the storage system.
1.2 Designations in this document
The following designations are used in this document:
Complete designation
Designation in this document
sonnenBatterie Evo
Storage system

Operation manual
Page 6of 37
1.3 Symbols in this document
Extremely dangerous situation leading to certain death or
serious injury if the safety information is not observed.
Dangerous situation leading to potential injury if the safety
information is not observed.
Indicates actions that may cause material damage.
Important information not associated with any risks to people
or property.
Symbol
Meaning

Work step
1.2.3. …
Work steps in a defined order

Condition
- List
Table 1: Additional symbols
Dangerous situation leading to potential death or serious
injury if the safety information is not observed.

Operation manual
Page 7of 37
2Safety
2.1 Intended Use
The sonnenBatterie Evo is a battery storage system which can be used to store electrical
energy. Improper use of this system poses a risk of death or injury to the user or third
parties as well as damage to the product and other items of value. The following points
must therefore be observed in order to comply with the intended use of the product:
-The storage system must not be installed in a combination.
-The storage system must be fully installed in accordance with the installation
instructions.
-The storage system must be installed by a licensed electrician who has completed
the sonnen installer accreditation training. Country-specific regulations
concerning electrical installations must be observed at all times.
-The storage system must only be used at a suitable installation location.
-The transport and storage conditions must be observed.
The following uses are not permissible:
-Operation in flammable environments or areas at risk of explosion.
-Operation in locations at risk of flooding.
-Operation in an outdoor location whereby the supplied IP rating of the enclosure
has not remained intact.
-Operation of the battery modules outside of its storage system.
Failure to comply with the conditions of the warranty and the
information specified in this document invalidates any
warranty claims.
2.2 Operating the storage system
Incorrect operation can lead to injury to yourself or others and cause damage to
property:
-The storage system must only be operated as described in the product
documentation.

Operation manual
Page 8of 37
-This device can be used by individuals with impaired physical, sensory or mental
capabilities or individuals with limited knowledge and/or experience of working
with the device, as long as they are supervised or have been trained to safely use
the device and understand the resulting risks of doing so.
2.3 Important safety instructions
-Only use the storage system in its original state.
-Do not modify the storage system.
-Do not use a damaged storage system.
-Ensure all safety devices are in perfect working condition.
-Safety devices must never be overridden, blocked or tampered with.
-The interfaces of the storage system must be wired in accordance with the
product documentation.
-An appropriate and readily accessible disconnect device shall be incorporated in
the fixed wiring.
-All repairs on the storage system must be performed by authorised service
technicians only.
-The replacement of battery modules must be performed by authorised service
technicians only. When replacing batteries, replace with the same type and
number of batteries or battery modules.
2.4 Voltage inside the storage system
The storage system contains live electrical parts, which poses a risk of
electrical shock. The storage system inverter also contains capacitors which
carry voltage even after the storage system is switched off.
Do not open the storage system.

Operation manual
Page 9of 37
2.5 Handling the battery modules
2.5.1 Information on the sonnenModule 4 battery modules:
Figure 1: sonnenModule4 battery module
-The battery modules have a nominal voltage of 102.4 VDC and but operate in
series which raises the operating voltage above 120 VDC resulting in the
application of DVC C.
-The battery modules are utilising high-performance Lithium-Iron-Phosphate (LFP)
-The battery modules contain no metallic Lithium.
The battery modules installed in the storage system are protected by
multiple protective devices and can be operated safely. Despite their
careful design, the battery cells inside the battery modules may corrode or
experience thermal runaway in the event of mechanical damage, heat or a
fault.
This can have the following effects:
High heat generation on the surface of the battery cells.
-Electrolyte may escape.
-The escaping electrolyte may ignite and cause an explosive flame.
-The smoke from burning battery modules can irritate the skin, eyes
and throat.
Therefore, proceed as follows:
Do not open the battery modules.
Do not mechanically damage the battery modules (pierce, deform, strip
down, etc.)
Do not modify the battery modules.

Operation manual
Page 10 of 37
Do not allow the battery modules to come into contact with water
(except when extinguishing a fire in the storage system).
Do not heat the battery modules. Operate them only within the
permissible temperature range.
Keep the battery modules well away from sources of ignition.
Do not short-circuit the battery modules. Do not allow them to come
into contact with metal.
Do not continue to use the battery modules after a short circuit.
Do not deep-discharge the battery modules.
In the event that module contents are released:
Do not enter the room under any circumstance.
Avoid contact with the escaping electrolyte.
Contact the fire services.
2.6 Conduct in case of a fire
Fire may occur with electrical equipment despite its careful design. Likewise, a fire in the
vicinity of the equipment can cause the storage system to catch fire, releasing the
contents of the battery modules.
In the event of a fire in the vicinity of the product or in the storage system itself, proceed
as follows:
Only firefighters with appropriate protective equipment (safety gloves, safety
clothing, face guard, breathing protection) are permitted to enter the room
where the burning storage system is located.
There is a danger of electrocution when extinguishing fire while the storage system is
switched on. Therefore, before starting to extinguish the fire:
Switch off the storage system to electrically isolate it.
Switch off the main switch in the building.
If the storage system and/or main switch cannot be safely switched off:
Observe the minimum distances specified for the extinguishing agent used. The
storage system works with an output voltage of 230 V (AC) and is therefore
considered a low-voltage system.
-A storage system fire can be extinguished using conventional extinguishing
agents.

Operation manual
Page 11 of 37
-Water is recommended as an extinguishing agent in order to cool the battery
modules and therefore, prevent thermal runaway in battery modules which are
still intact.

Operation manual
Page 12 of 37
3Product Description
3.1 Technical data
sonnenBatterie Evo
System specifications (AC)
Nominal voltage
230 V
Nominal frequency
50 Hz
Nominal power rating (@ 40 ⁰C)
5000 W
Rated current
22 A
Rated active power
5000 W
Rated apparent power
6900 VA
Charge/ discharge power 5000 W
Power factor range
0.5 leading … 0.5 lagging
Short circuit current
454A @ 12.13ms
Mains connection Single-phase, L / N / PE
Mains topology
TN / TT
Grid integration
AC coupled
Inverter topology Transformerless
Active anti-islanding method
Integrated
Battery specifications (DC)
Nominal voltage 102.4 VDC
Battery input voltage
160 - 230 VDC
Operating voltage
204.8 VDC
No. of battery modules 2
Nominal capacity
11 kWh
Usable Capacity (@ 90% DoD)
10 kWh
Max charge/ discharge current (continuous)
40 A
Max charge/ discharge power
5000 W
Short circuit current
2880 A
Cell chemistry
Lithium Iron Phosphate (LiFePO4)
Over-current Protection
Fuse protection
General data
Dimensions in mm (W x H x D)
710mm x 1400mm x 427mm
Weight (approximate)
165 kg
Ambient temperature range
-5 ⁰C to 45 ⁰C
(max. power 5 ⁰C to 35 ⁰C)
Total harmonic distortion
<5%
Inverter efficiency
94.4% peak
On-grid pass-through
35 A
Applications
Time-of-use
Self-consumption
Backup
System cooling
Forced-air cooling
Communication
Ethernet
Warranty 10 years or 10,000 cycles

Operation manual
Page 13 of 37
Safety
Protection class
I / PE conductor
Overvoltage category
III
Degree of protection
IP 56
Rated short-withstand current (ICW)
1.5 kA
Ambient conditions
Environment
Outdoor
Storage temperature range
0 °C ... 40 °C
Transport temperature range
-15 °C ... 50 °C
Max. rel. humidity
90 %, non-condensing
Permissible installation altitude
2,000 m above sea level
Pollution degree
3
Backup specification
Nominal backup current (Continuous)
22 A
Nominal output voltage
230 V
Nominal power
5000 W
Nominal frequency
50 Hz
Max backup power (Max 30mins)
5300 VA
Max backup power (Max 60s)
7050 VA
Max backup power (Max 300ms)
7600 VA
Maximum compatible PV inverter
6kW
Certifications
Grid connections
AS/NZS 4777.2:2020
EMC / EMI protection
EN 61000-6-1, EN 61000-6-3, IEC 62040-2
Safety
IEC 62040-1, IEC 62477-1, IEC 62619, IEC
62109-1, IEC 62109-2
Additional ambient conditions:
-The installation location must not be at risk of flooding.
-Installation room should be ventilated.
-The currently applicable building codes must be observed.
-Even floor, suitable for heavy loads.
-Observe fire control standards.
-Free from corrosive and explosive gases (ammonia content max. 20 ppm).
-Free from dust (especially flour dust or sawdust).
-Free from vibrations.
-Free access to the installation location.
-If possible, no direct sunlight.

Operation manual
Page 14 of 37
3.2 Type plate
The type plate for the storage system is located on the outer surface of the system. The
type plate can be used to uniquely identify the storage system. The information on the
type plate is required for the safe use of the system and for service matters.
The following information is specified on the type plate:
-Item designation
-Item number
-Technical data of the storage system
-Initial installer password
3.3 Overview of switch panel
Figure 2: Overview of switch panel
No.
Designation
Function
1
Power Button
Switch for switching the storage system on and off.
2
Blackstart Button
Switch for switching the storage system on during backup mode.
3
LED indicator
LED light indicating the status of the storage system when it is
switched on.
4
Type plate
Technical data and other information for identifying the storage
system.
Table 2: Function of the switches

Operation manual
Page 15 of 37
3.4 System components
Figure 3: Overview system components
Item
Description
Function
1
Power Unit
Contains the inverter and the control unit
2
Battery Module
Stores energy
3 Base Contains the air filter
4
Legs
Provide elevation and compensation for uneven grounds
5
Power Button
System startup and shutdown
6 LED Indicator Indication of the state of operation
7
Blackstart Button
System startup in offgrid condition

Operation manual
Page 16 of 37
3.5 Symbols on the storage system

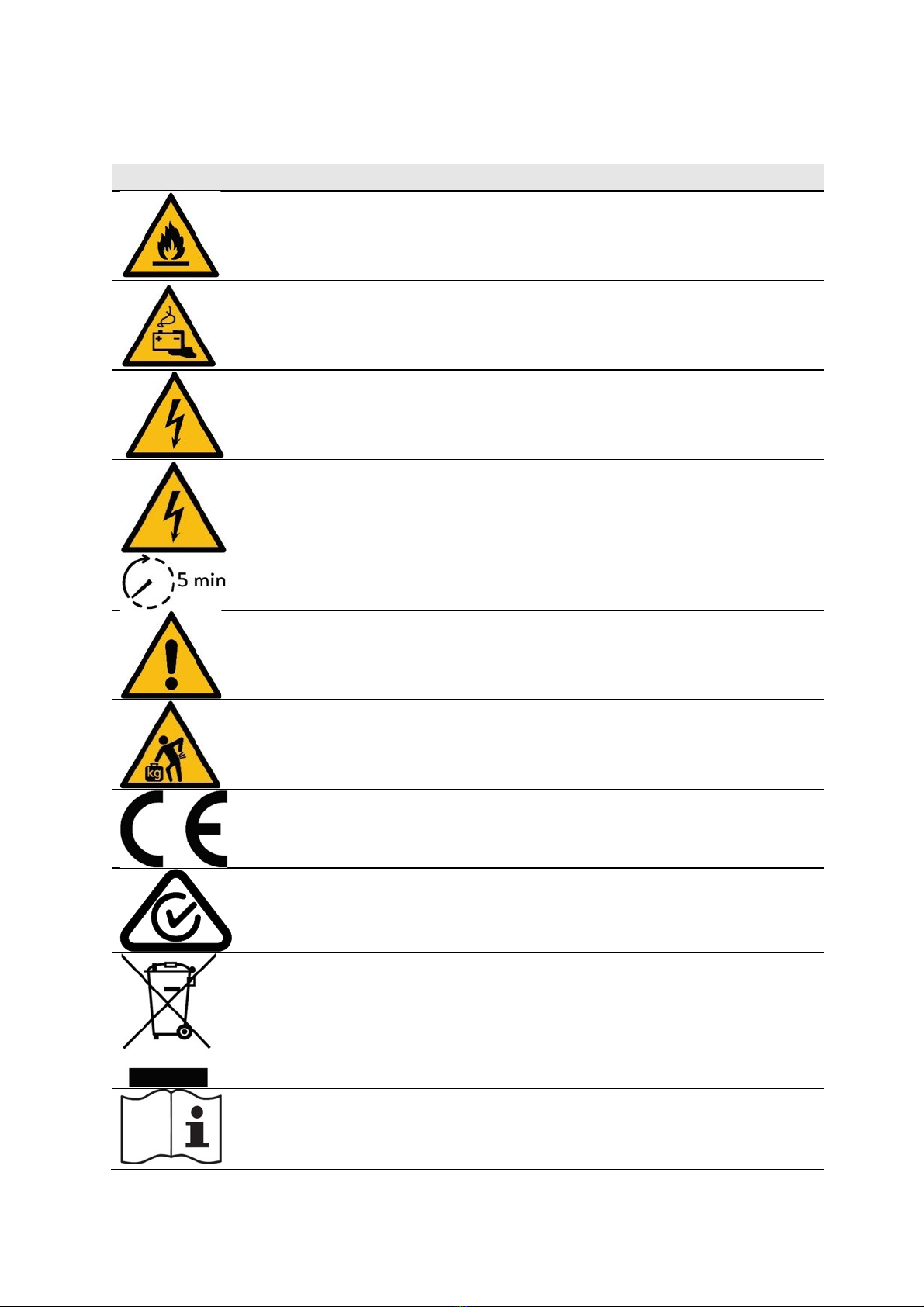

Symbol
Description
Warning: flammable materials.
Warning: hazards due to batteries.
Warning: electrical voltage.
Warning: electrical voltage. Wait five minutes after switching off
(capacitors de-energising time).
Warning: Equipment with multiple sources of supply (PV generator,
AC mains and battery).
Warning: product is heavy.
CE mark. The product meets the requirements of the applicable EU
directives.
RCM Mark for Australia and New Zealand.
WEEE mark. The product must not be disposed of in household
waste; dispose of it through environmentally friendly collection
centres.
Observe the documentation. The documentation contains safety
information.

Operation manual
Page 17 of 37
3.6 Function of the LED indicator
The LED indicator on the left side of the enclosure provides general information about
the status of the system.
LED Colour
Description
White pulsating Normal operation; System is charging/discharging
Green
No grid available; Backup supply active
Orange
No internet connection
Red Critical Error. Contact sonnen service team.
Table 3: Function of the LED indicator

Operation manual
Page 18 of 37
4Function
4.1 Basic operating principle

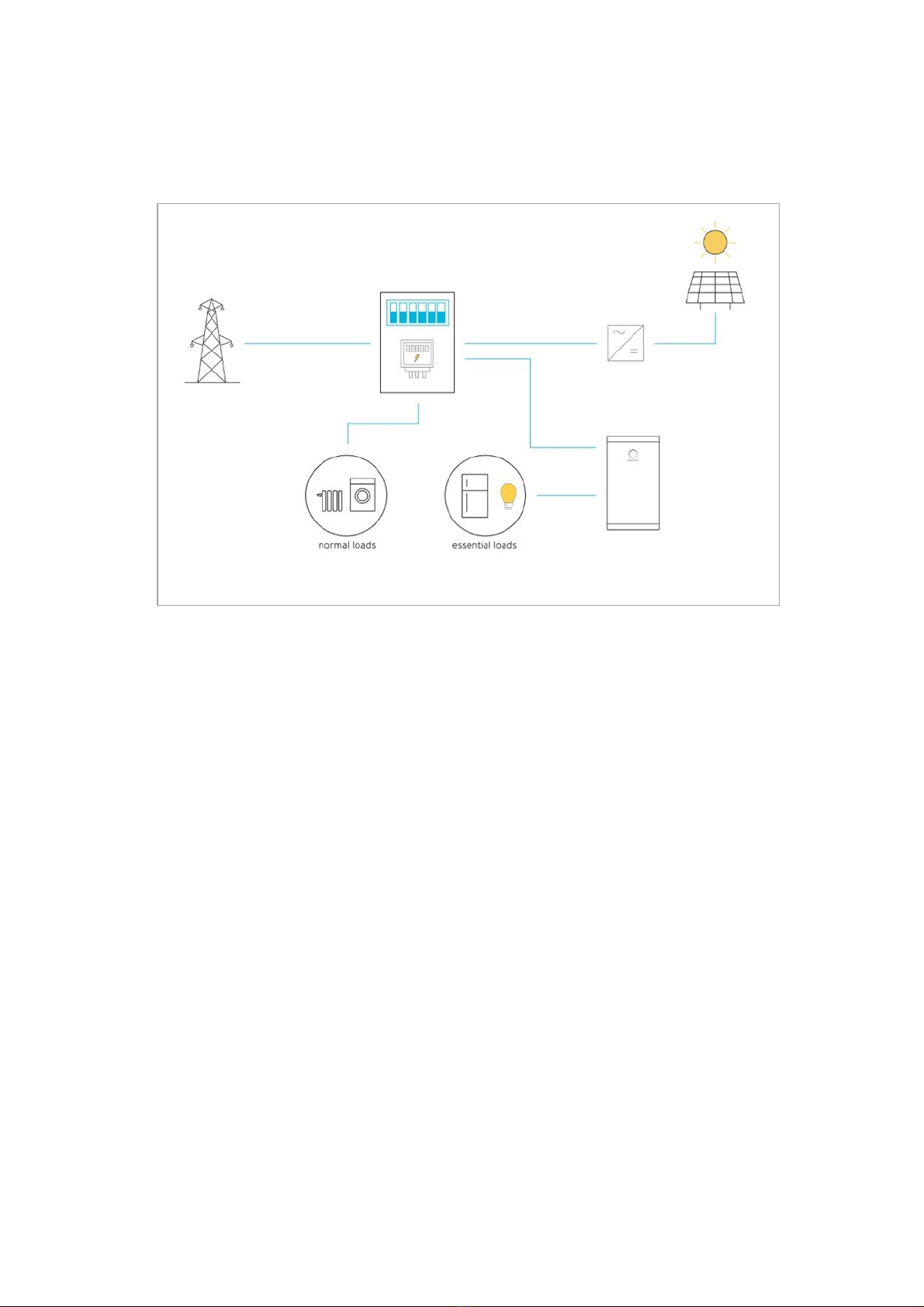

Figure 4: sonnenBatterie Evo Connection Concept
The sonnenBatterie Evo is an intelligent storage system that monitors and controls
energy production, consumption, and storage in the house. The storage system is
connected to the grid via the main distribution board.
The sonnenBatterie Evo can work with existing or newly installed PV systems. The PV
array does not connect to the storage system directly. The storage system uses a power
meter and current transforms to monitor PV power generation and energy consumption
in the building.
The sonnenBatterie Evo offers three modes of operation: Self-consumption, Backup, and
Time of Use.
4.1.1 Self-consumption mode
Self-consumption is the part of the generated PV power that has been either consumed
at home or stored in the battery. This is the default mode of operation.

Operation manual
Page 19 of 37
Generation > Consumption
If the generation of PV power is higher than the consumption such as at midday, there is
a surplus of electrical energy. In this case the surplus energy is used to charge the
battery of the storage system.
If the entire portion of the surplus cannot be charged into the battery, the remaining
surplus is fed into the public electricity grid.
Consumption > Generation
If the consumption is higher than the generation of PV power such as in the evening,
there is a deficit of electrical energy. In this case the battery of the storage system is
discharged to even out as much of the deficit as possible. If the entire deficit cannot be
compensated by discharging the battery, the remaining deficit is covered by the public
electricity grid.
The storage system also acts as a backup power supply, meaning that if the utility grid
goes out, your appliances will be powered by the batteries of the storage system
conditioned upon installer connection of back up function.
4.1.2 Backup mode
Figure 5: sonnenBatterie Evo Connection Concept

Operation manual
Page 20 of 37
sonnenBatterie Evo storage system automatically switches from grid to backup
operation and vice versa. In the event of a grid failure, the storage system automatically
detects the grid outage and will disconnect itself from the public electrical mains and will
create a micro-grid using the power from the batteries. Appliances connected to
essential loads circuit in the house will be supplied with electrical power. Appliances
connected to normal loads circuit in the house will not be supplied with electrical power.
During the backup operation, the micro-grid produces grid-quality voltage and
frequency so that any grid-connected PV inverter in the micro-grid will continue to
operate. Therefore, during backup operation, the essential loads circuit will be powered
by the energy stored in the battery modules and the PV energy generated from the PV
array. The generated PV power will also charge the battery modules, depending on
generation and consumption levels.
The PV array will first power the loads on the essential load circuit, with any excess
energy charging the batteries in the storage system. If there is insufficient PV to cover
the loads, the storage system will discharge its batteries to meet the demand. The
storage system can also turn the PV inverter off if the battery modules become fully
charged.
To prevent battery overcharging while in backup mode, the storage system will perform
a frequency shift by raising the frequency to a value outside the PV inverter’s operating
range. This shift in frequency will disconnect the PV inverter from the micro-grid while
the storage system will maintain the power supply to the loads. The storage system will
reduce the frequency to 50 Hz once the state of charge falls below a certain threshold
to allow for a charge event. The PV inverter will then automatically detect the frequency
adjustment and re-connect to the micro-grid.
Microgrid Re-Enabling
If the battery SOC drops to a minimum threshold during backup operation:
1. The micro-grid will be deactivated, and the system will go to ‘standby mode’. The
essential loads and the external PV inverter on the micro-grid will disconnect
consequently.
2. The system will remain in ‘standby mode’ until the system time reaches the
“Reenabling time one”, as previously set in the commissioning process. Then, it will
