Headset overview

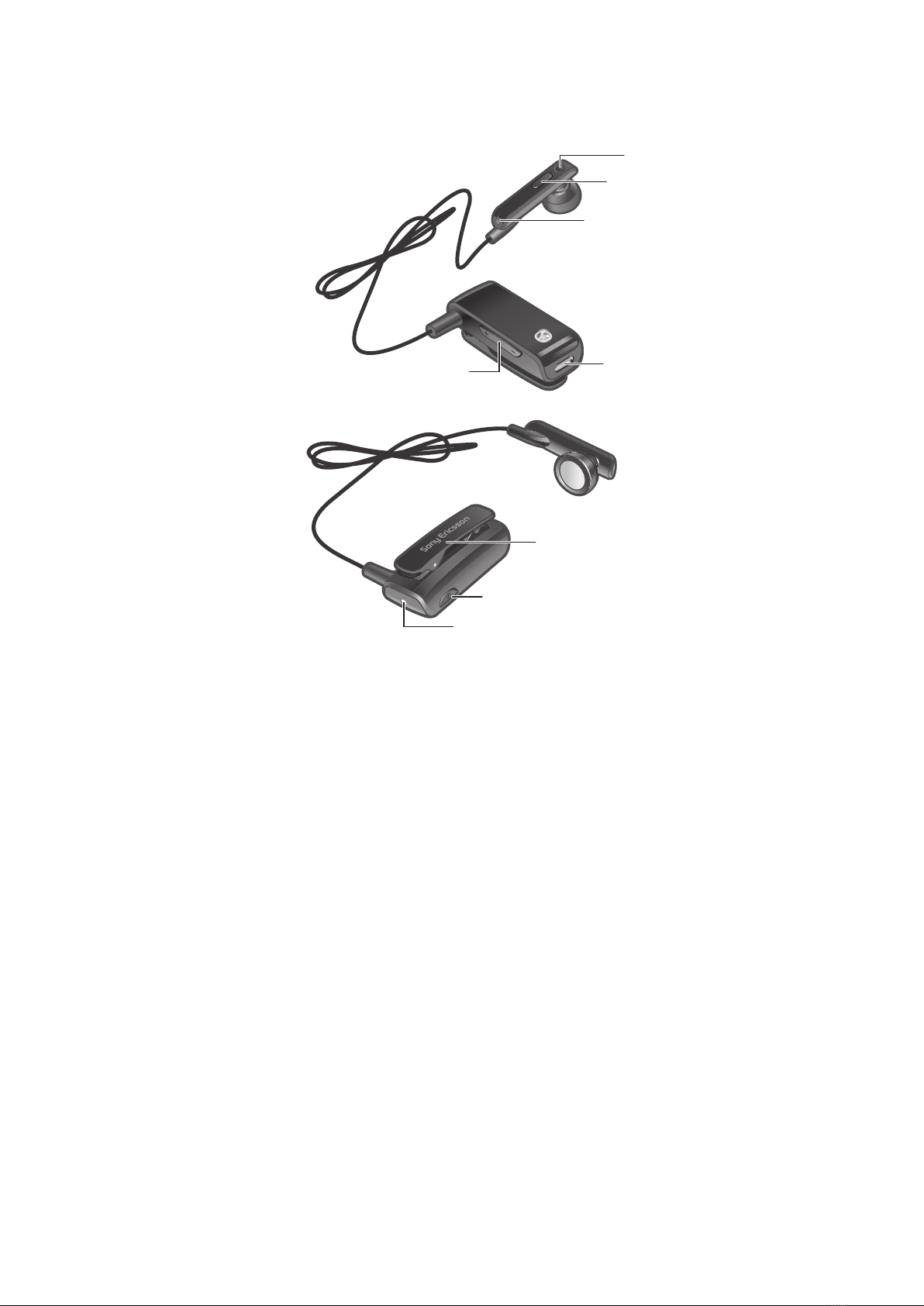

See illustration 1.
1 Microphone
2 Call handling key
3 Microphone
4 Volume keys
5 Charger connector
6 Clip
7 On/off key
8 Indicator light
5
This is an Internet version of this publication. © Print only for private use.

Introduction
The Bluetooth™ Noise Shield Handsfree VH700 can be connected to any device with
Bluetooth wireless technology that supports the headset or headset profile. This User guide
focuses on use with a Sony Ericsson mobile phone.
6
This is an Internet version of this publication. © Print only for private use.

Charging

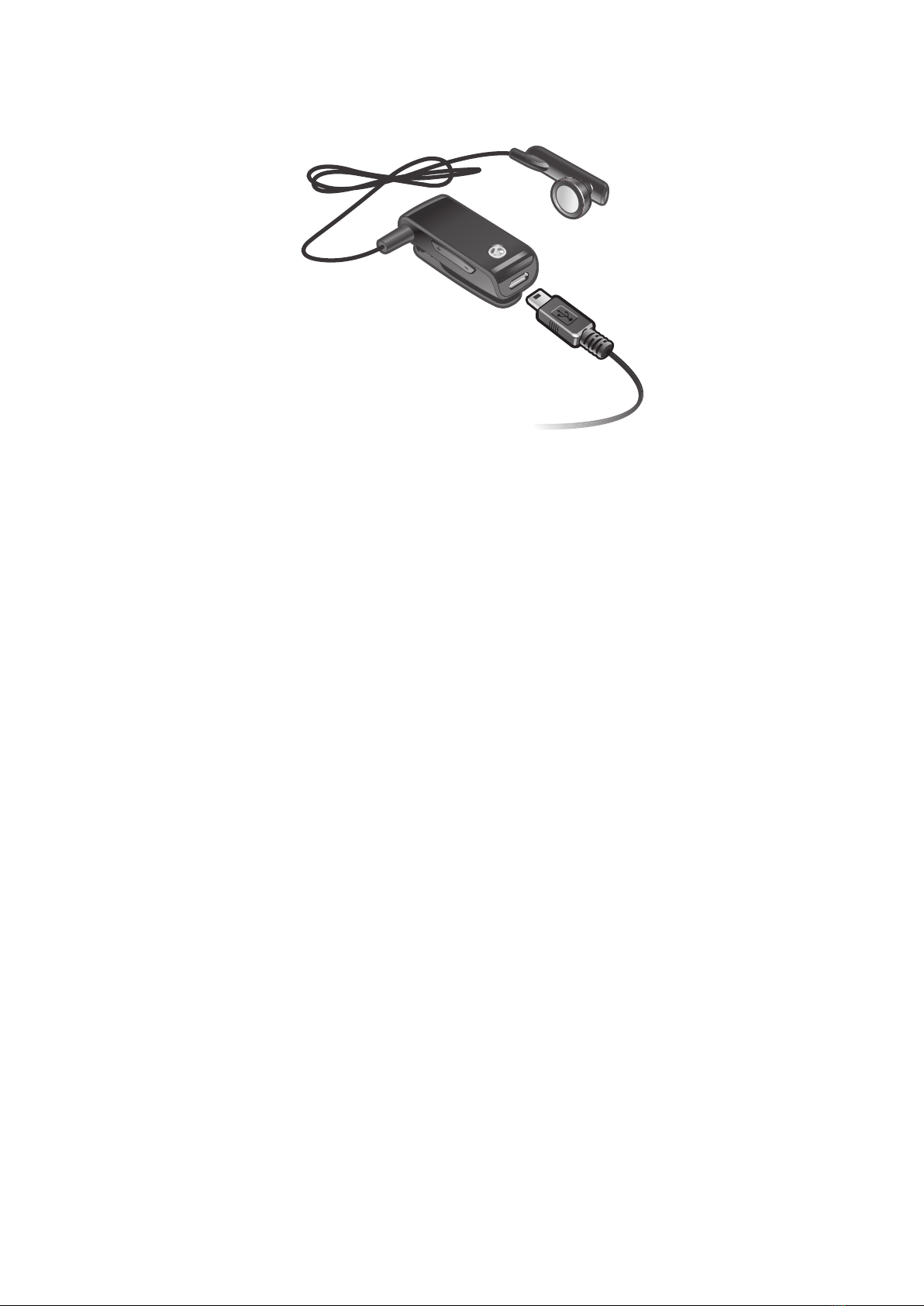

Before using the headset for the first time, you need to charge it with the supplied charger
for 8 hours. See illustration 2. The normal charging time is 2.5 hours. Use Sony Ericsson
chargers only.
7
This is an Internet version of this publication. © Print only for private use.

Turning on and off
To turn on the headset
•Press and hold down until the indicator light shows a steady green or red light. If
the light is red, the headset needs charging. After 3 seconds, the light turns off and
the headset is on.
To turn off the headset
•Press and hold down until the indicator light shows a green or red light. If the light
is red, the headset needs charging. After 3 seconds, the light turns off and the
headset is off.
8
This is an Internet version of this publication. © Print only for private use.

Pairing the headset
Pairing the headset with a phone
To use the headset with a phone, you need to pair the headset with the phone. After
successful pairing, the headset connects automatically to the phone as soon as the headset
is turned on and within range.
To pair the headset with a phone
1Make sure the headset is turned off.
2Turn on the Bluetooth function in the phone. For instructions, see the phone User
guide.
3Turn on Bluetooth visibility in the phone. This makes the phone visible to other
Bluetooth devices.
4Place the phone within 20 cm (8 inches) of the headset.
5Press and hold down on the headset for about 5 seconds until the indicator light
flashes green and red alternately.
6Auto pairing in your phone: When asked to add the VH700, follow the instructions
that appear.
7Normal pairing in your phone: Search for and add a new device.
8If a passcode is required, enter 0000.
Pairing the headset with another phone
To use the headset with another phone, you need to pair the headset with the phone. After
successful pairing, the headset connects automatically to the phone as soon as the headset
is turned on and within range.
To pair the headset with another phone
1Make sure the headset is turned off.
2Turn on the Bluetooth function in the other phone. For instructions, see the phone
User guide.
3Place the other phone within 20 cm (8 inches) of the headset.
4Press and hold down on the headset for about 5 seconds until the indicator light
flashes green and red alternately.
5In the other phone: Search for and add a new device.
6If a passcode is required, enter 0000.
9
This is an Internet version of this publication. © Print only for private use.

Multipoint
With this feature, you can use the headset with two different phones at the same time.
Before you use this feature, you need to enable it.
To enable the multipoint feature
1Make sure the headset is turned off.
2Press and hold down on the headset until the indicator light flashes green and red
alternately.
3Multipoint mode: Press and hold down the plus sign on the volume key. Two orange
flashes on the indicator light shows that multipoint has been enabled.
4Singlepoint mode: Press and hold down the minus sign on the volume key. One
orange flash on the indicator light shows that singlepoint has been enabled.
When the headset is in multipoint mode, you cannot answer a second call on the same phone.
10
This is an Internet version of this publication. © Print only for private use.

Calling
To make a call
•Dial the number using the phone keys. The call is automatically activated in the
headset.
To end a call
•Press the call handling key briefly.
To answer a call
•A beep indicates an incoming call. Press the call handling key briefly.
To reject a call
•Press and hold down the call handling key until you hear a short beep (after 2
seconds).
To re-dial a number
•Double-click the call handling key.
To answer a second call
•Press the call handling key. The ongoing call is put on hold.
To switch between two calls
•Press and hold down the call handling key until you hear a beep.
To mute the microphone during a call
•Press both volume keys simultaneously. A beep indicates that the microphone has
been muted. To turn on the microphone again, press both volume keys
simultaneously.
To change the ear speaker volume
•During a call, press a volume key.
Transferring sound
To transfer the sound from the headset to the phone
•See Transferring sound to and from a Bluetooth handsfree in the phone User guide.
To transfer the sound from the phone to the headset
•During a call on the phone, press the call handling key briefly.
11
This is an Internet version of this publication. © Print only for private use.

Battery
A battery that has been infrequently used, or a new one, could have reduced capacity. You
may need to recharge it a number of times. When the battery level is low, the indicator light
flashes red and you hear a low beep. If you do not charge the headset, it turns off after 10
minutes.
12
This is an Internet version of this publication. © Print only for private use.

Resetting the headset
Reset the headset if it behaves unexpectedly. Resetting the headset removes all information
about paired devices.
To reset the headset
•Press and hold down for 10 seconds.
To reset the headset to factory settings
•Simultaneously press and hold down and the call handling key during pairing
mode.
13
This is an Internet version of this publication. © Print only for private use.

Troubleshooting
Redial does not work
•Make sure the call list in the phone is not empty.
•Make sure the correct calling device is selected.
•Make sure your phone or other device supports the Bluetooth handsfree profile.
The headset is automatically turned off
•The battery level is too low. You hear a beep approximately 10 minutes before the headset
turns off. Charge the battery.
•The headset turns off if you do not pair it with the phone within 10 minutes.
Unexpected behaviour
•Reset the headset.
No connection to the phone
Make sure the headset is charged and within range of the phone. We recommend a
maximum distance of 10 metres (33 feet) with no solid objects in between. Check or reset
the Bluetooth settings in the phone. Pair the headset with the phone again.
14
This is an Internet version of this publication. © Print only for private use.

FCC Statement
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Any change or modification not expressly approved by Sony Ericsson may void the user's
authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
•Consult the dealer or an experienced radio/TV technician for help.
15
This is an Internet version of this publication. © Print only for private use.

Industry Canada Statement
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
16
This is an Internet version of this publication. © Print only for private use.

Declaration of Conformity for VH700
We, Sony Ericsson Mobile Communications AB of
Nya Vattentornet
SE-221 88 Lund, Sweden
declare under our sole responsibility that our product
Sony Ericsson type DDA-0002026
and in combination with our accessories, to which this declaration relates is in conformity
with the appropriate standards EN 300 328:V1.7.1, EN 301 489-7:V1.3.1, EN 301
489-17:V2.1.1 and EN 60 950-1:2006 following the provisions of, Radio Equipment and
Telecommunication Terminal Equipment directive 1999/5/EC.
Lund, January 2010
Jacob Sten,
Head of Product Business Unit Accessories
We fulfil the requirements of the R&TTE Directive (1999/5/EC).
Sony Ericsson VH700
Prior to use, please read the Important information leaflet separately provided.
This User guide is published by Sony Ericsson Mobile Communications AB or its local affiliated company, without any
warranty. Improvements and changes to this User guide necessitated by typographical errors, inaccuracies of current
information, or improvements to programs and/or equipment, may be made by Sony Ericsson Mobile Communications
AB at any time and without notice. Such changes will, however, be incorporated into new editions of this User guide.
All rights reserved.
©Sony Ericsson Mobile Communications AB, 2010
Publication number: 1239-2763.1
Bluetooth is a trademark or a registered trademark of Bluetooth SIG Inc. and any use of such mark by
Sony Ericsson is under license.
Interoperability and compatibility among Bluetooth™ devices varies. Device generally supports products utilizing
Bluetooth spec. 1.2 or higher, and Headset or Handsfree profile.
The Liquid Identity logo is a trademark or registered trademark of Sony Ericsson Mobile Communications AB.
Sony and "make.believe" are trademarks or registered trademarks of Sony Corporation.
Ericsson is a trademark or registered trademark of Telefonaktiebolaget LM Ericsson.
17
This is an Internet version of this publication. © Print only for private use.
