Sony SEL2860 User manual

This instruction manual explains how to use
lenses. Precautions common to all lenses such
as notes on use are found in the separate
“Precautions before using”. Be sure to read both
documents before using your lens.
This lens is designed for Sony α camera system
E-mount cameras. You cannot use it on A-mount
cameras.
The FE 28-60mm F4-5.6 is compatible with the
range of a 35mm format image sensor.
A camera equipped with a 35mm format image
sensor can also be set to shoot at APS-C size.
For details on how to set your camera, refer to its
instruction manual.
For further information on compatibility, visit the
web site of Sony in your area, or consult your dealer
of Sony or local authorized service facility of Sony.
For Customers in the U.S.A.
For question regarding your product or for the Sony
Service Center nearest you,
call 1-800-222-SONY (7669).
Supplier’s Declaration of Conformity
Trade Name : SONY
Model : SEL2860
Responsible Party : Sony Electronics Inc.
Address : 16535 Via Esprillo, San Diego, CA 92127
U.S.A.
Telephone Number : 858-942-2230
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
Notes on Use
• Do not leave the lens exposed to the sun or a bright
light source. Internal malfunction of the camera body
and lens, smoke, or a fire may result due to the effect
of light focusing. If circumstances necessitate leaving
the lens in sunlight, be sure to attach the lens caps.
• When shooting against the sun, keep the sun
completely out of the angle of view. Otherwise, solar
rays may be concentrated at a focal point inside
the camera, causing smoke or a fire. Keeping the
sun slightly out of the angle of view may also cause
smoke or a fire.
• When carrying a camera with the lens attached,
always firmly hold both the camera and the lens.
• Do not hold by the part of the lens that protrudes
when zooming.
• This lens is not water-proof, although designed with
dust-proofness and splash-proofness in mind. If using
in the rain etc., keep water drops away from the lens.
• If the lens alone is shaken or if a camera with the lens
attached is shaken while the camera is turned off,
an internal component of the lens may rattle. This,
however, does not indicate a malfunction.
In addition, while you carry around the lens, your
movement may cause the internal lens groups to
shake. This, however, does not affect the performance
of the lens groups.
Precautions on using a flash
• When using a flash, shoot at least 1 m (3.3 feet) away
from your subject.
• With certain combinations of lens and flash, the lens
may partially block the light of the flash, resulting
in a shadow at the bottom of the picture. In such a
case, adjust the focal length or the shooting distance
before shooting.
Vignetting
• When using the lens, the corners of the screen
become darker than the center. To reduce this
phenomena (called vignetting), close the aperture by
1 to 2 stops.
ȎIdentifying the Parts
1 Focusing ring
2 Zooming ring
3 Lens retraction index
4 Focal-length index
5 Lens contacts*
6 Focal-length scale
7 Mounting index
8 Lens mount rubber ring
* Do not touch the lens contacts.
ȏAttaching and Detaching the
Lens
• Before attaching/detaching the lens, hold the lens
by its mounting body. Do not hold it by any of its
operation controls, such as the zooming ring or the
focusing ring.
To attach the lens
(See illustration ȏ–ȩ.)
1Remove the rear lens cap and the camera
body cap.
2Align the white index on the lens barrel
with the white index on the camera
(mounting index), then insert the lens
into the camera mount and rotate it
clockwise until it locks.
• Do not press the lens release button on the
camera when mounting the lens.
• Do not mount the lens at an angle.
3Remove the front lens cap.
• You can attach/detach the front lens cap in two
ways, (1) and (2).
To detach the lens
1Attach the front lens cap.
2While holding down the lens release
button on the camera, rotate the lens
counterclockwise until it stops, then
detach the lens. (See illustration ȏ–Ȫ.)
ȐPreparing for Camera Shooting
Rotate the zooming ring until the focal-
length index comes within the focal-length
scale range (Ƀ) to extend the lens.
To retract the lens
(See illustration Ȑ–a.)
Rotate the zooming ring until the lens retraction
index reaches the focal-length index to retract the
lens.
Notes
• When the focal-length index is located outside of the
focal-length scale range Ƀ, images may not be shot
correctly.
• Depending on the camera in use, no warning appears
on the rear monitor/finder even though the image is
shot when the focal-length index is located outside of
the focal-length scale range.
In such a case, the consequences are as follows:
– The aperture value is fixed at F14.
– The lens is kept in manual focus mode, but focusing
with the focusing ring is disabled.
– In the Exif information of the image shot when the
focal-length index is located outside of the focal-
length scale range, “(Retract)” or “F0” is appended
at the end of the lens name.
ȑZooming
Rotate the zooming ring to extend the
lens to the desired focal length (zooming
position) within the focal-length scale range.
ȒFocusing
There are three ways to focus.
• Auto focus
The camera focuses automatically.
• DMF (Direct manual focus)
After the camera focuses in auto focus, you can
make a fine adjustment manually.
• Manual focus
You focus manually.
For details on mode settings, refer to the instruction
manual supplied with the camera.
Specifications
Product name
(Model name)
FE 28-60mm F4-5.6
(SEL2860)
Focal length (mm) 28-60
35mm equivalent
focal length*1(mm) 42-90
Lens groups-elements 7-8
Angle of view 1*275°-40°
Angle of view 2*254°-27°
Minimum focus*3(m (feet)) 0.3-0.45 (0.99-1.48)
Maximum magnification (X) 0.16
Minimum aperture f/22-f/32
Filter diameter (mm) 40.5
Dimensions (maximum
diameter × height)
(approx., mm (in.))
66.6 × 45
(2 5/8 × 1 13/16)
Mass (approx., g (oz)) 167 (5.9)
SteadyShot No
*1This is the equivalent focal length in 35mm format
when mounted on an Interchangeable Lens Digital
Camera equipped with an APS-C sized image sensor.
*2Angle of view 1 is the value for 35mm cameras, and
angle of view 2 is the value for Interchangeable Lens
Digital Cameras equipped with an APS-C sized image
sensor.
*3Minimum focus is the distance from the image
sensor to the subject.
• Depending on the lens mechanism, the focal length
may change with any change in shooting distance.
The focal lengths given above assume the lens is
focused at infinity.
Included items
(The number in parentheses indicates the number
of pieces.)
Lens (1), Front lens cap (1), Rear lens cap (1),
Set of printed documentation
Design and specifications are subject to change
without notice.
is a trademark of Sony Corporation.

lllll l lllll 111 11 111 11111 1 1111
4-698-500- 73
SONY@

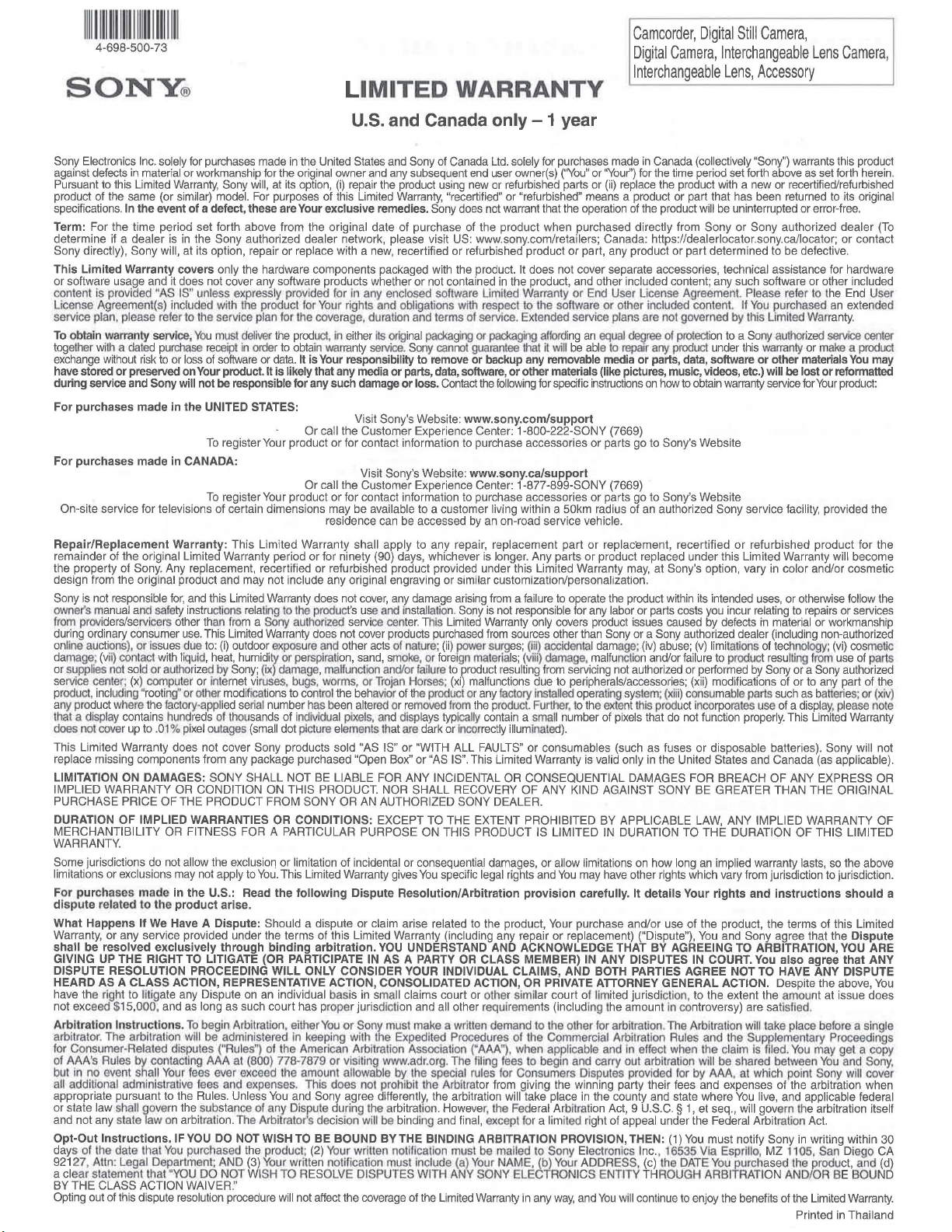

LIMITED WARRANTY
U.S. and Canada only - 1 year
Camcorder, Digital Still Camera,
Digital Camera, Interchangeable Lens Camera,
Interchangeable Lens, Accessory
Sony Electronics Inc. solely for purchases made in the United States and Sony of Canada Ltd. solely for purchases made in Canada (collectively "Sony") warrants this product
against defects in material or workmanship for the original owner and any subsequent end user owner(s) ("You" or ''Your") for the time period set forth above as set forth herein.
Pursuant to this Limited Warranty, Sony will, at its option, (i) repair the product using new or refurbished parts or (ii) replace the product with a new or recertified/refurbished
product of the same (or similar) model. For purposes of this Limited Warranty, "recertified" or "refurbished" means a product or part that has been returned to its original
specifications. In the event of a defect, these are Your exclusive remedies. Sony does not warrant that the operation of the product will be uninterrupted or error-free.
Term: For the time period set forth above from the original date of purchase of the product when purchased directly from Sony or Sony authorized dealer (To
determine if a dealer is in the Sony authorized dealer network, please visit US: www.sony.com/retailers; Canada: https://dealerlocator.sony.ca/locator; or contact
Sony directly), Sony will, at its option, repair or replace with a new, recertified or refurbished product or part, any product or part determined to be defective.
This Limited Warranty covers only the hardware components packaged with the product. It does not cover separate accessories, technical assistance for hardware
or software usage and it does not cover any software products whether or not contained in the product, and other included content; any such software or other included
content is provided "AS IS" unless expressly provided for in any enclosed software Limited Warranty or End User License Agreement. Please refer to the End User
License Agreement(s) included with the product for Your rights and obligations with respect lo the software or other included content. If You purchased an extended
service plan, please refer to the service plan for the coverage, duration and terms of service. Extended service plans are not governed by this Limited Warranty.
To obtain warranty service, You mu st deliver the produ ct, in either its original packaging or packaging affording an equal c!eQree of protection to a Sony authorized service center
together with a dated purchase receipt in order to obtain warranty servi ce. Sony cannot guarantee that it will be abl e to repai r any product under this warranty or make a product
exchange without risk to or loss of software or data. It isYour responsibility to remove or backup any removable media or parts, data, software or other materialsYou may
have stored or preserved on Your product. It is likely that any media or parts, data, software, or other materials (like pictures, music, videos, etc.) will be lost or reformatted
during service and Sony will not be responsible for any such damage or loss. Contact the following for specific instructions on how to obtain warranty service for Your product:
For purchases made in the UNITED STATES: Visit Sony's Website: www.sony.com/support
Or call the Customer Experience Center: 1-800-222-SONY (7669)
To registerYour product or for contact information to purchase accessories or parts go to Sony's Website
For purchases made in CANADA: Visit Sony's Website: www.sony.ca/support
Or call the Customer Experience Center: 1-877-899-SONY (7669)
To register Your product or for contact information to purchase accessories or parts go to Sony's Website
On-site service for televisions of certain dimensions may be available to a customer living within a 50km radius of an authorized Sony service facility, provided the
residence can be accessed by an on-road service vehicle.
Repair/Replacement Warranty: This Limited Warranty shall apply to any repair, replacement part or replacement, recertified or refurbished product for the
remainder of the original Limited Warranty period or for ninety (90) days, whichever is longer. Any parts or product replaced under this Limited Warranty will become
the property of Sony. Any replacement, recertified or refurbished product provided under this Limited Warranty may, at Sony's option, vary in color and/or cosmetic
design from the original product and may not include any original engraving or similar customization/personalization.
Sony is not responsible for, and this Limited Warranty does not cover, any damage arising from a failure to operate the product within its intended uses, or otherwise follow the
owner's manual and safety instruciions relating to the product's us e and Installation. Sony is not responsible for any labor or parts costs you incur relating to repairs or services
from provlders/servlcers other than from a Sony aulhorized service cen ter. This Limited Warranty only covers product issues caused by defects in material or workmanship
during ordinary consumer use. This Limited Warranty does not cover products purchased from sources other than Sony or a Sony authorized dealer (including non-authorized
online auctions), or issues due to: (i) outdoor exposure and other acts of nature; (ii) powersurges; (Iii) accidental damage; (iv) abuse; (v) limitations of technology; (vi) cosmetic
damage; (vii) contact with liquid, heat, humidity orperspiration, sand, smok e, orforeign materia ls; (v ii i) damage, malfunction and/or failure to product resulHng from use of parts
or supplies not sold or authorized by Sony; (ix) damage, malfunction and/or!allure to product resulting from servicing not authorized or performed by Sony or a Sony authorized
service center; (x) computer or Internet viruses, bugs, worms, or Trojan Horses; (xi) malfunctions due to peripherals/accessories; (xii) modifications of or to any part of the
product, including "rooting" or other modifications to control the behavior of the product or any factory installed operallng system;(xiii) consumable parts such as batteries: or (xiv)
any product where the factory-appl ied se rial number has been altered or removed from the produc t. Further,to the extent this product incorporates use of a display, please note
that a display contains hundreds of U1ousands of individual pixels, and displays typically contain a small number of pixels that do not function properly. This Limited Warranty
does not cover up to .01 %pixel outages (small dot picture el ements !hat are dark or incorrectly illumlnated).
This Limited Warranty does not cover Sony products sold "AS IS" or "WITH ALL FAULTS" or consumables (such as fuses or disposable batteries). Sony will not
replace missing components from any package purchased "Open Box" or "AS IS". This Limited Warranty is valid only in the United States and Canada (as applicable).
LIMITATION ON DAMAGES: SONY SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR
IMPLIED WARRANTY OR CONDITION ON THIS PRODUCT. NOR SHALL RECOVERY OF ANY KIND AGAINST SONY BE GREATER THAN THE ORIGINAL
PURCHASE PRICE OF THE PRODUCT FROM SONY OR AN AUTHORIZED SONY DEALER.
DURATION OF IMPLIED WARRANTIES OR CONDITIONS: EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF
MERCHANTIBILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS LIMITED
WARRANTY.
Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above
limitations or exclusions may not apply to You. This Limited Warranty gives You specific legal rights and You may have other rights which vary from jurisdiction to jurisdiction.
For purchases made in the U.S.: Read the following Dispute Resolution/Arbitration provision carefully. It details Your rights and instructions should a
dispute related to the product arise.
What Happens If We Have A Dispute: Should a dispute or claim arise related to the product, Your purchase and/or use of the product, the terms of this Limited
Warranty, or any service provided under the terms of this Limited Warranty (including any repair or replacement) ("Dispute"), You and Sony agree that the Dispute
shall be resolved exclusively through binding arbitration. YOU UNDERSTAND AND ACKNOWLEDGE THAT BY AGREEING TO ARBITRATION, YOU ARE
GIVING UP THE RIGHT TO LITIGATE (OR PARTICIPATE IN AS A PARTY OR CLASS MEMBER) IN ANY DISPUTES IN COURT. You also agree that ANY
DISPUTE RESOLUTION PROCEEDING WILL ONLY CONSIDER YOUR INDIVIDUAL CLAIMS, AND BOTH PARTIES AGREE NOT TO HAVE ANY DISPUTE
HEARD AS A CLASS ACTION, REPRESENTATIVE ACTION, CONSOLIDATED ACTION, OR PRIVATE ATTORNEY GENERAL ACTION. Despite the above, You
have the right to llllgate any Dispute on an individual basis in small claims court or other similar court of limited jurisdiction, to the extent the amount at issue does
not exceed $15,000, and as long as such court has proper jurisdiction and all other requirements (including the amount in controversy) are satisfied.
Arbitration Instructions. To begin Arbitration, either You or Sony must make a written demand lo the otherfor arbitration.The Arbitration will lake place before a single
arbitrator. The arbilralion WIii be administered In keeping with the Expedited Procedures of the Commercial Arbitration Rules and the Supplementary Proceedings
for Consumer-Related disputes ("Rules") of the American Arbitrallon Association (''AAA"), when applicable and tn effect w~en the claim is filed. You may get a copy
of AAA's Rules by contacting AAA at [phone] or visiting www.adr.org. The filing fees to begin and carry out arbitration will be shared between You and Sony,
but in no even! shall Your fees ever exceed th e amount allowable by th e special rules for Consumers Disputes provided for by AAA. at which point Sony wlll cover
all additional administrative lees and expenses. This does not prohibit the Arbitrator from giving the winning party their fees and expenses of the arbitration when
appropriate pursuant to the Rules. Unless You and Sony agree differently, the arbitration will take place in the county and state where You live, and applicable federal
or state law shall govern the substance of any Diseute during the arbitration. However, the Federal Arbitration Act, 9 U.S.C. § 1, et seq., will govern the arbitration itself
and not any slate law on arbi!ralion.1l1e Arbitrators decision will be binding and final, except for a limited right of appeal under the Federal Arbitration Act.
Opt-Out Instructions. IF YOU DO NOT WISH TO BE BOUND BY THE BINDING ARBITRATION PROVISION,THEN: (1) You must notify Sony in writing within 30
days of the date that You purchased the product; (2) Your wrillen notification must be malled to Sony Electronics Inc.. 16535 Via Esprillo, MZ 1105, San Diego CA
92127, Attn: Legal Department; AND (3) Your written notification must include {a) Your NAME, (b) Your ADDRESS, (c) lhe DATE You purchased the product, and (d)
a clear statement that " YOU DO NOT WISH TO RESOLVE DISPUTES WITH ANY SONY ELECTRONICS ENTITY THROUGH ARBITRATION AND/OR BE BOUND
BY THE CLASS ACTION WAIVER."
Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and You will continue to enjoy the benefits of the Limited Warranty.
Printed in Thailand

SONY@
GARANTIE LIMITEE
E.-U. et Canada uniquement - 1 an
Sony 8ectronics Inc . exdusivement pour les achats effectues aux Etats-Unis et Sony du Canada Ltee . exclusivement pour les achats effectues au Canada (oollectlvement " Sony »l garantit
ce procfuit contra les defauts de materlaux ou de fabrication pour le proprieta i re d' orig1ne et tous les proprietaires utmsateurs finaux suivants (" Vous » ou « Vos ,. ) pendant la periods definie cl·
dessus et comma i ndique dans les presentes . Conlormement a cette Garantie ITmltee, Sony, a son gre, (Q reparera le produil en utillsant des pieces neuves ou remises en etat ou (ii) remplacera
le prodult par un procfuit neul ou recertilie/rem is en atat du meme mocfele (ou simITaire) . Aux fins de la p~senle Garantie llmilfie , les termes « recertifie » ou "remis en etat " designent un procfult
ou une piece qui a retrouve ses specifications d' origine . En cas de defaut , ce sont Vos recours excluslfs. Sony ne garantit pas le fonclionnement ininterrompu ou sans erreur du produit.
Modalite : Pendant la periods deflnie ci•dessus a compter de la date d' ac}lat du produit directemenl chez Sony ou un vendeur autorise Sony (pour determiner si un vendeur fail
parlie du raseau de vendeurs aulorisas de Sony , veuillez visiter, pour !es E.-U.: www . sony . com/retailers : pour le Canada : httpsJ/dealerlocator.sony.ca/locator; ou contactez Sony
dlrectement), Sony, a son gre , reparera ou remplacera par un produil ou une piece recerlifie(e) ou remis(e) en etat lout produit ou piece defaillant(e).
Cette garantie limitee couvre un l quement les composants materials ernballes avec le procfu i t. Elle ne couvre pas les accesso i res separes, !'assistance technique pour l'utllisatjon du
materiel ou du foglciel et elle ne couvre pas les procfu i ts logiciels conlenus ou non dans le procfuit, et tout autre contenu lnci1.1t ; tout logiclel ou autre contenu inclut est fourni " EN L.:ETAT ,1
saur indication contraire conformement a la Garanlie limltee du logiciel joint ou a la Licence d' utilisation de l'utillsateur fi nal. Veulllez vous reporter a la Licence d' utilisation de l'utilisateur
final inciuse avec le produit pour connaitre vos droits et obligations en ce qui concerne le t~ l ciel ou tout au1re contenu incll.lt . Si vous avez achete un plan de services etendu , veu lll ez vous
reporter au plan de services pour connailre l' etendue de la couverture , la duree et l es conditions d' utilisalion . Les plans de serv i ces etendus ne sont pas regis par cette Garantie limMe .
Pour obtenlr un serviei? de garantie, vous devez llvrer le produit, dans son emballage d' orlgine ou un emballage offrant un nl veau de protection equ i valent ,a un centre de service
autorlse Sony accompagne du re~u d'achat date afin d'acceder au serv i ce de garantie . Sony n' est pas en mesure de garantlr la reparation d' un produit au titre de ladite garantie
ou l'echange d' un produil sans risque d' atterer le logiciel ou de perdre des donnees . II releve de votre responsabillte de retlrer ou sauvegarder tout media ou toute piece
amovlble, toutes donnees, tout loglclel ou autre materiel stocke ou conserve sur votre prodult. II est probable qua tout media ou toute piece, toutes donnees tout
loglclel ou autre materiel (comma des images, de la musique, des videos, etc.) soil perdu ou reformate pendant le service et Sony ne pourra etre tenu pour responsable
dud it dommage ou de ladite perte. Contactez les services suivants pour des instructions speclflques sur la la~on d'obtenir un service de garantie pour votre produit :
Pour les achats effectues aux ETATS-UNIS :
Visitez le site Web Sony : www.sony.com/support
Ou appelez le centre d'experience client : 1-800-222-SONY (7669)
Pour enregistrer votre produit ou obtenir des coordonnees pour acheter des accessoires ou des pieces, rendez-vous sur le site Web Sony
Pour les achats effectues au CANADA :
Visitez le site Web Sony : www.sony.ca/support
Ou appelez le centre d'experience client: 1-877-899-SONY (7669)
Pour enregistrer votre produit ou obtenir des coordonnees pour acheter des accessoires ou des pieces, rendez-vous sur le site Web Sony
Un service sur place pour !es televiseurs de certaines dimensions est dlsponible pour les clients vivant dans un rayon de 50 km d'un local de service Sony autorise, a condition
que le lieu de residence soit accessible a un vehicule de service .
Garantie de reparatlon/remplacement : Cetta Garantie llmltee s' applique a toute reparation , piece de rechange ou tout produil de remplacement , recertllle ou remls en etat
pendant la perlocfe restante de la Garantie llm l tee d' or f glne ou pour une periode de quatre-vingt-dix (90) jours , la plus longue date etant celle retenue. Toute piece ou tout prodult
remplace(e) au titre de ladite Garantle llm i tee sera la proprlete de Sony . Tout procfuit de remplacement ,recertilie ou remis en etat fourni au titre de ladite Garantie llmitee peut , au
gre de Sony , etre de couleur eVou d'aspecl different par rapport au produit d' origine et peut ne pas inclure de gravure d' orlglne ou une personnallsation similaire.
Sony n'est pas responsable de , et ladite Garantie limitee ne couvre pas, tout dommage survenu suite a une utilisation du procfuit ne respectant pas ses utilisations prlMJes, ou aulrement le
non- respect du manuel du proprititaire et des consignes de securite se rapportant a !'utilisation et a !'installation du produit. Sony ne pourra etre tenue responsable des frais lies a la main-
d' oeuvre ou al' achat de pieces payes suile a une reparation ou des services offerts par un centre autre que ceux d0ment autorises par Sony. Ladite Garantie limitee couvre uniquement les
dommages causes au procfuit par des defauts de materiaux ou de fabrication pendant son ulillsation normale par le cfient. Ladite GaranUe li mitee ne couvre pas les produits achetes aupres
de sources autres que Sony ou un vendeur autorlse Sony (y compris les ventes aux encheres en ligne non autoriseas} , ou les dommages causes par : (Q une exposition exlerieure et d'autres
actes de la nature ; (IQ les surtensions; (ill} un dommage accldentel ; (iv) un abus ; (v) les llmites de la technok>gie ; (vi} un dommage oosmetlque ; (vii) le contact avec un llqu l de , la chaleur, l'humidite
ou la sueur , le sable , la fumee ou des materiaux etrangers : (vii i) les dommages , defalllances eVou tout fonctionnement Incorrect du procfu lt suite a une reparation effectuee avec des pieces
ou fournitures n'etant pas vendues ou au t orisees par Sony ; fl)() les dommages , delaillances eVou tout fonctionnement Incorrect du procfult suite a des services non offerts ou autorises par
Sony ou un centre autre que ceux d0menl autorise par Sony; (x} les virus l nformatlques ou circulant sur lnterne~ les bogues , !es vers ou Jes chevaux de Troia ; (x i) les dysfonclionnements d1.1s
a des peripheriques/accesso i res · (xii) les modifications apportees a une pi ece du produit ,l ncluant l'enracinement ou toute a1.1tre modification visant a controler le comporlemenl du procfu it ou
tout systeme d'exploitation instaile a l'us i ne ; (xlfi) tes oonsommables comme les batter i es; ou (xiv) tout prod1.1 it dont le numero de serie appligue a l'usine a ate altere ou retire du produit. En
outre, dans la mesure ou !edit procfuit requlert l' utilisation d' un ecran , veulllez noter qu ' un ecran contient des oentaines de milliers de pixels 1nd 1 viduels , et les ecrans contlennent generalement
un petit nombre de pixels qui ne fonctionnent pas correctement. Ladite Garantie limitee ne couvre pas l es delauts de pixels a hauteur de 0,01 % (petits elements d 'i mage sous forme de
points sombres ou ma! eclaires).
Ladite Garanlle limitee ne couvre pas les prodults Sony vendus « EN L.:ETAT " OlJ « AVEC D~FAUTS » ou les consommables (comme les fusibles ou l~s plies jetables). Sony ne remplacera
pas las composants manquants d ur1 emballage achete comme « Bo1te ouverte » ou « EN L:ETAT "· Ladite Garantie limltee est valide uniquement aux Etals-Unis et au Canada (salon le cas) .
LIMITAJIONS DES DOMMAGES-INTERETS : SONY NE PEUT PAS ETRE TENU RESPONSABLE DES DOMMAGES ACCESSOIRES OU CONSECUTIFS RESULTA"!T DE
L'.INEXECUTION D'UNE GARANTIE EXPRESSE OU IMPLICITE OU D'UNE CONDITION SUR CE PRODUIT. TOUT RECOUVREMENT DE SONY NE POURRA PAS EXCEDER
LE PRIX D'ACHAT D'ORIGINE DU PRODUIT VEN DU PAR SONY OU UN VEN DEUR SONY AUTORISE.
DUREE DES GARANTIES OU DES CONDITIONS IMPLl~ITES : SAUF DANS LA MESURE OU CELA EST INTEl;WIJ PAR LA, LOI EN VIGUEUR, TOUTE GA~ANTIE
IMPLIC ITE DE VALEUR MARCHAN DE OU D' ADAPTATION A UN USAGE PARTICULIER SUR CE PRODUIT EST LIMITEE A LA DUREE DE LADITE GARANTIE LIMITEE .
Certaines juridictions n'autorisent pas !'exclusion ou la limitation des dommages accessoires ou consecutifs, ou autorisent les limitations de duree d'une garantie implicite, ainsi
les limitations ou exclusions ci-dessus peuvent ne pas s'appliquer a vous . Ladite Garan ! ie limitee vos octroie des droits specifiques reconnus par la loi et vous pouvez beneficler
d'autres droits qui varient d'une juridiction a une autre.
Pour les achats effectues aux Etats-Unis : Lisez attentivement la clause de resolution/d'arbitrage des litiges sulvante. Vos droits et les etapes asuivre en cas de
litige lie au produit y sont detailles.
Que se passe-t-il en cas de litige : En cas de litige ou de reclamation lie(e) au produit, a votre achat et/ou a !'utilisation du produit, aux clauses de ladite Garantie limitee, ou a un
service fourni conformement aux conditions de fadite Garantie limitee (incluant une reparation ou un remplacement) (« Litige »), vous et Sony acceptez que le lltige soit resolu
exclusivement atravers un arbitrage executoire. VOUS COMPRENEZ ET RECONNAISSEZ QU'EN ACC!=PTANT.L'ARBITRAGE VOUS AVEZ LE DROIT D'INTENTER UNE
ACTION EN JUSTICE POUR (OU DE PARTICIPER l;N TANT QUE PARTIE .OU MEMBRE DU, RECOURS A) LA RESOLUTION DES LITIGES DEVANT UN TRIBUNAL. Vous
acceptez egalement que TOUTE PROCEDURE DE REG LEM ENT DES DIFFERENOS CONSIDERERA UNIOUEMENT VOS REVENDICATION$ lijDIVIDUELLES, ET LES DEUX
PARTIES ACCEPTENT QU'UN LITIGE NE SOIT PAS ENTENDU COMME UN RECOURS COLLECTIF OU UN RECOURS DU PROCUREUR GENERAL. Malgre les I ndications ci-
dessus , vous avez le droit d'inlenter une action en just i ce de man i ere lndivlduelle devant la Cour des petites creances ou une Cour similalre a la competence limltee , dans la mesure oil
le montant en question n'excede pas 15 000 $, et aussi longtemps que la di te Cour soil competente et que toutes les autres ex i gences (lncluant le montant en litige) so l ent satisfa i tes.
Consignes d'arbitrage. Pour commencer !'arbitrage, vous ou Sony devez faire une demande d' arbitrage tictite a l'autre partie . L'.arbitrage aura lieu devant un seul arbitre .
L'.arbitrage sera gere en suivant les Procedures accelerees des Regles d' arbitrage commercial et les Procedures additionnelles (les « Regles ") de l'associatlon americaine
d'arbitrage (« MA ») pour les differends de consommateur, sl elles sont applicables et en vi gueur au moment ou la reclamation est traltee . Vous po1.1vez demander une cop ie
des Regles de l'AAA en contactant l'AAA au [phone] ou en visitant le site Web www . adr . org . Les droits de depot pour commencer et mener !'arbitrage seront partages
entre vous et Sony, mais vos frais ne devront en aucun cas exceder le monlant permis par les re~les speciliques de l'MA pour les Differends de consommateur , apres quoi Sony
couvrira tous les frais administratifs et depenses add l tionnels. Ce paragraphe n'interdit pas aI arbitre de reslituer a la parlle ayant obtenu gain de cause las frais et depenses
qu'elle a engagees daris !'arbitrage lorsque les Regles le permettent. Saul si Sony et vous en conveniez autrement, l'arbitrage aura 1181.1 dans le pays et l' Etat ou vous vivez ,
et la loi federale 9u d'Etat applicable regira le fond du differend pendant !'arbitrage . Cependant, la Loi sur !'arbitrage federal 9 U.S.C. § 1, et seq., regira !' arbitrage et non une
quelconque loi d'Etat sur l'arbitrage. La decision de l'arbitre sera obligatoire et definitive, sauf dans le cadre d' un droit d' appel l imite conformement a la Loi sur !'arbitrage .
Conslgnes d'exclusion. SI VOUS NE SOUHAITEZ PAS ETRE CONTRAINT PAR LA CLAUSE D'ARBITRAGE OBLIGATOIRE , ALORS : (1) Vous devez en i nlorrner Sony par
ecrit dans les 30 jours a compter de la date d' achat du produit ; (2) Votre notiflcatlon ecrite doit lltre envoyee par courrler a Sony Electronics Inc ., 16535 Via Esprlllo , MZ 1105 ,
San Diego CA 92127 ,a !'attention de : Service jurldlque ; ET (3) \,'.olre notification ecr i te , dolt ln clure (a) votre NOM (b,) votre ADRESSE , (c) la QATE d' acha t du procfult , et (d) une
c;!eclaratlon claire stlpulant que « VOUS NE SQUHAITEZ PAS RESOUDRE; LES DIFFERENDS AVEC UNE ENTITE SONY ELECTRONICS A TRAVERS L'.ARBITRAGE ET/OU
ETRE CONTRAINT PAR LA RENONCIATION A INITIER OU PARTICIPER A UN RECOURS COLLECTIF ».
Decider de ne pas adherer a cette procedure de resolution des differends n'alfectera en aucun cas la couverture de la Garantie limitee et vous continuerez a benelicier des
avantages de la garantie limitee.
C-2662-819-2
