SON~
3-095-523-52(1)
Wireless Stereo
Headset
Operating Instructions --=--_---JmlI
Manual de instrucciones ID
o Bluetooth"
DR-BT50
©2007 Sony Corporation

2
us

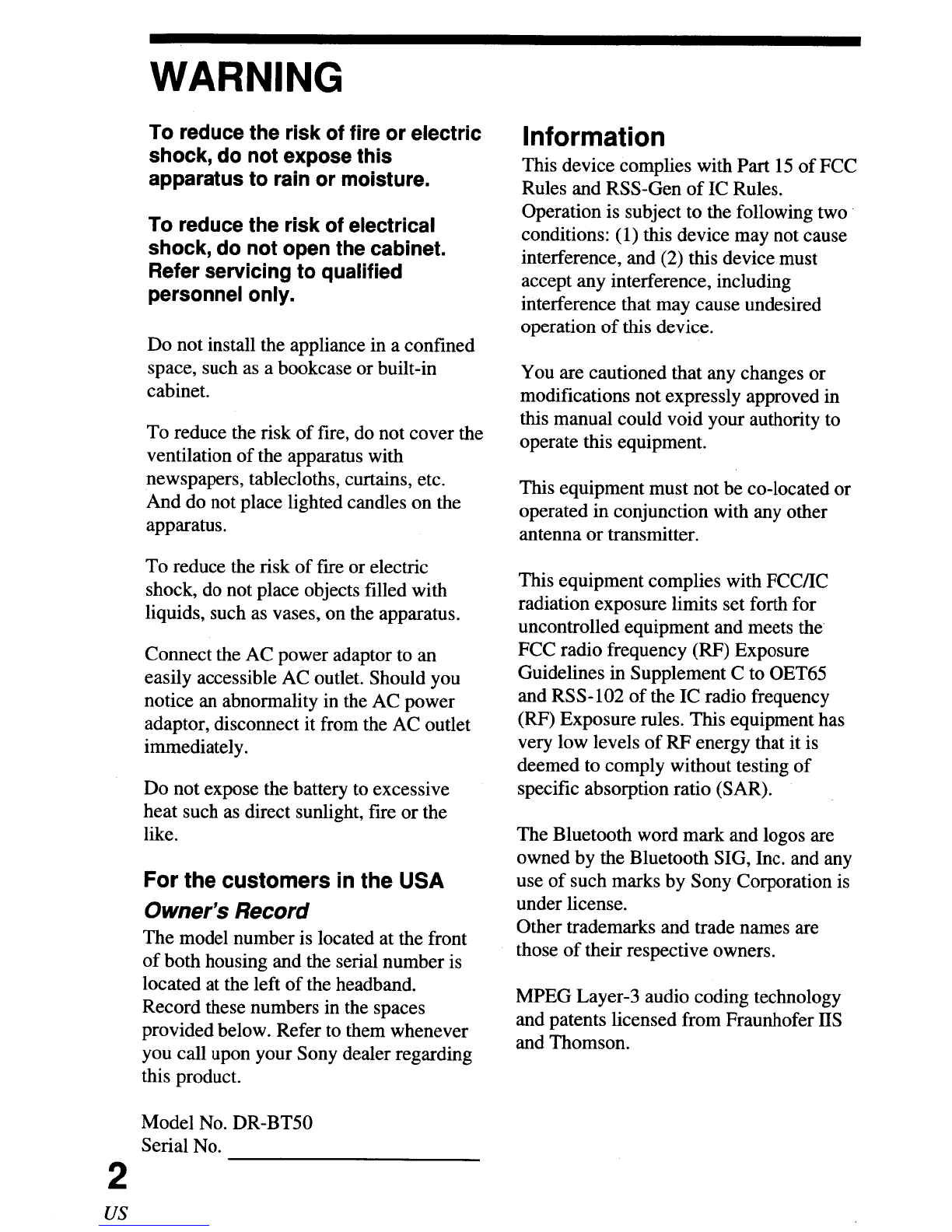

WARNING
To reduce the risk of fire or electric
shock, do not expose this
apparatus to rain or moisture.
To reduce the risk of electrical
shock, do not open the cabinet.
Refer servicing to qualified
personnel only.
Do not install the appliance in aconfined
space, such as abookcase or built-in
cabinet.
To reduce the risk
of fire, do not cover the
ventilation of the apparatus with
newspapers, tablecloths, curtains, etc.
And do not place lighted candles on the
apparatus.
To reduce the risk
of fire or electric
shock, do not place objects filled with
liquids, such as vases, on the apparatus.
Connect the AC power adaptor to an
easily accessible AC outlet. Should you
notice an abnormality in the AC power
adaptor, disconnect it from the AC outlet
immediately.
Do not expose the battery
to excessive
heat such
as direct sunlight, fire or the
like.
For the customers in the USA
Owner's Record
The model number is located at the front
of both housing and the serial number is
located at the left of the headband.
Record these numbers in the spaces
provided below. Refer to them whenever
you call upon your Sony dealer regarding
this product.
Model No. DR-BT50
Serial No. _
Information
This device complies with Part 15 of FCC
Rules and RSS-Gen
of IC Rules.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference, including
interference that may cause undesired
operation
of this device.
You are cautioned that any changes or
modifications not expressly approved in
this manual could void your authority to
operate this equipment.
This equipment must not be co-located or
operated in conjunction with any other
antenna or transmitter.
This equipment complies with FCCIIC
radiation exposure limits set forth for
uncontrolled equipment and meets the
FCC radio frequency (RF) Exposure
Guidelines in Supplement Cto OET65
and RSS-I02 of the IC radio frequency
(RF) Exposure rules. This equipment has
very low levels
of RF energy that it is
deemed to comply without testing
of
specific absorption ratio (SAR).
The Bluetooth word mark and logos are
owned by the Bluetooth SIG, Inc. and any
use
of such marks by Sony Corporation is
under license.
Other trademarks and trade names are
those
of their respective owners.
MPEG Layer-3 audio coding technology
and patents licensed from Fraunhofer ITS
and Thomson.

For the customers in the USA
RECYCLING LITHIUM-ION
BATTERIES
Lithium-Ion batteries
are recyclable.
You can help preserve
our environment by
returning your used
rechargeable batteries
to the collection and recycling location
nearest you.
For more information regarding
recycling of rechargeable batteries, call
toll free 1-800-822-8837, or visit
http://www.rbrc.org/
Caution: Do not handle damaged or
leaking Lithium-Ion batteries.
Informations
Cet appareil est confonne ala section 15 de
la reglementation FCC ainsi
qu'a la RSS-
Gen de la reglementation IC. Son utilisation
est autorisee seulement aux conditions
suivantes :
(I) il ne doit pas produire de
brouillage et (2) l'utilisateur du dispositif
doit etre pret aaccepter tout brouillage
radioeIectrique
re~u, meme si ce brouillage
est susceptible de compromettre
Ie-
fonctionnement du dispositif.
Vous devez savoir que tout changement ou
toute modification non expressement
approuve dans ce mode d'emploi risque
d'annuler votre pouvoir d'utiliser eet
appareil.
Cet emetteur est confonne aux limitations
concernant I'exposition aux radiations
etablies par Ia FCCIIC definies dans
un
environnement non eontrole ainsi qu'aux
directives relatives al'exposition aux
frequences radio (RF) FCC du supplement C
du bulletin OET65 et au reglement RSS- 102
relatif aI'exposition aux radiofrequences
(RF)
Ie. Cet equipement presente des
niveaux d'energie RF tres bas considenSs
comme confonnes et ne necessite pas de test
du debit d'absorption specifique (SAR).
Table Of Contents
'Welcome! 4
3steps to Bluetooth
function 5
Location and Function of
Parts 6
Charging the unit 7
Pairing ~
Wh ·
.. ?9
at IS palTIng. . ..
Procedures of pairing 9
Wearing the headset 11 ~
Indications of
Bluetooth function 12
Listening to music 13
Controlling the audio
device -AVRCP 14
Calling 16
Controlling the Bluetooth
mobile phone -
HFP,
HSP 18
Calling while playing
back music 1
~
Disposing of the unit 20
Precautions
21
What is Bluetooth wireless
technology? 23
Troubleshooting 24
Initializing the unit 26
Specifications 27
3
us

Welcome!
Thank you for purchasing this Sony Wireless Stereo Headset. This unit uses
Bluetooth™ wireless technology.
•Enjoy music wirelessly with aBluetooth music player.
*1
•40 mm driver units reproduce superb sound quality.
•Luxury ear pads for comfortable fitting.
•Hands-free conversation can be enjoyed on your Bluetooth mobile phone
without taking it out
of your bag. *2
•For convenience, you can remotely operate the basic functions of a
Bluetooth music player (Play, Stop, etc.).
*3
•Useful rechargeable function.
•Convenient foldable type for easy carrying.
For details on Bluetooth wireless technology, see page 23.
Talking on the phone Listening to music
*' The connected Bluetooth device is required to support A2DP (Advanced Audio
Distribution Profile).
*2 The connected Bluetooth device is required to support HFP (Hands-free Profile) or
HSP (Headset Profile).
*3 The connected Bluetooth device is required to support AVRCP (Audio Video Remote
4Control Profile).
US

~ Page 9
Wireless Stereo
Headset
Pairing
Bluetooth i=
mobile phone, i8
etc,
Pairing .'
First, register ("pair") aBluetooth device (mobile phone, etc.) and this
unit with each other. Once pairing is established, there is no need for
. . .
palTIng agam.
Listeni
g
Connection
Bluetooth connection
When the unit is turned on, the
unit starts making the Bluetooth
connection to the recognized
mobile phone automatically.
Connection
Bluetooth connection
Operate the Bluetooth device to
make the Bluetooth connection.
~ ~ ~Page13
~ Page 16
~ Page 17 -19 5
us
Talking on the phone
You can make and receive acall
by operating this unit.
~
'\
~ Page 13 -15
Listening to music
You can listen to music played
on the Bluetooth device.
Playback, stop, or pause
is
possible from this unit.

GETTING STARTED
Location and Function of Parts
----15
-----16
II] POWER button
[2J Multi function button
Controls various call functions.
~ Indicator (blue)
Indicates the communication
status
of the unit.
@] Indicator (red)
Indicates the power status of
the unit.
~ Microphone
[ID DC IN 3 V jack
[I] RESET button
Push this button when the unit
does not operate properly.
Pairing infonnation is not
deleted by this operation.
[ID VOL (volume) -button
[ID VOL (volume) +* button
rill Jog switch
Controls various functions when
listening to music.
[1] LJ +/- buttons
Jump to previous/succeeding
groups when listening to music.
~ Slider
MI (RIGHT) (right) indication
!HI Right «( RIGHT) unit
1m Ear pad
~ Left ( (LEFT) unit
1111 (LEFT) (left) indication
[]]J Headband
6*This button has atactile dot.
us

Charging the unit
The unit contains arechargeable Lithium-Ion battery, which should be
charged before using for the
fITst time.
1Connect the supplied
AC power adaptor to the
DC
IN 3 V jack on the
unit.
2Make sure that indicator
(red) lights up while
charging.
Wireless Stereo
Headset
To DC
IN
3 V jack
To an AC
outlet
AC power
adaptor
(supplied)
Charging is completed in about
3hours* and the indicator (red)
goes
off automatically.
*Time required for empty battery to
recharge.
When the AC power adaptor is
connected to an AC outlet,
charging starts.
Tip
If the AC power adaptor is connected
to an AC outlet while the unit is
turned on, the unit will be turned off
automatically.
Caution
If this unit detects aproblem while
charging, the indicator (red) may
tum off, although charging is not
complete.
Check for the following causes:
-Ambient temperature exceeds the
range
of 0°C - 40°C (32 OF -
104 OF).
-There is aproblem with the
battery.
In this case, charge again within the
above-mentioned temperature range.
If the problem persists, consult your
nearest Sony dealer.
Continued 7
us

Checking the remaining
battery
When pressing the POWER button
while the unit is turned on, the
indicator (red) flashes. You can
check the remaining battery by the
number of times the indicator (red)
flashes.
Notes
• If the battery is not used for along time,
battery may be quickly depleted,
however, after afew recharges, battery
life will improve.
•
If the life of the built-in rechargeable
battery drops to halfthe normal length,
the battery should be replaced. Consult
your nearest Sony dealer for
replacement
of the rechargeable battery.
• Avoid exposure to temperature
extremes, direct sunlight, moisture,
sand, dust
or mechanical shock. Never
leave in acar parked in the sun.
•Use only the supplied AC power
adaptor. Do not use any other AC
power adaptor.
Indicator (red)
3times
2times
1time
Status
Full
Mid
Low (needs to
charge)
Usage hours*
Status
Communication
time (including
music playback
time) (up to)
Standby time
(up to)
Approx.
usage hours
17 hours
200 hours
Note
You cannot check the remaining battery
immediately after the unit is turned on, or
while pairing.
When the battery is almost empty
The indicator (red) flashes slowly
automatically.
When the battery becomes empty, a
beep sounds and the unit will
tum
off automatically.
8
us
*Time stated above may vary, depending
on ambient temperature or conditions
of
use.

Pairing
.11!~llilljllll_H;':;"~:
Bluetooth devices need to be
"paired" with each other beforehand.
Once Bluetooth devices are paired,
there is no need for pairing again,
except in the following cases:
•Pairing information is deleted
after repair, etc.
•This unit is paired with 9
or more
devices.
This unit can be paired with up to
8devices;
if anew device is
paired after 8devices have been
paired, the device whose latest
connection time is the oldest
among the 8paired devices is
replaced by the new one.
•When recognition
of the unit by
the device to be connected is
deleted.
•This unit is initialized.
All pairing information is deleted.
1Place the Bluetooth
device within 1 m (3 ft)
of this unit.
2Press and hold the
POWER button for
7seconds or more to
standby for pairing
while the unit is turned
off.
Notes
•After about 3seconds, power is
turned on and the indicator (blue)
and indicator (red) flash together
twice. Keep the button pressed
without releasing until both
indicators start flashing together,
then release the button. This unit
enters into pairing mode.
• If pairing is not established within
about 5minutes, pairing mode will
be cancelled and this unit will
tum
off. In this case, start over from
step
1.
Continued 9
us

10
us
3Perform pairing
procedure on the
Bluetooth device to
detect this unit.
The list of detected devices
appears on the display
of the
Bluetooth device. This unit is
displayed
as "DR-BT50."
If "DR-BT50" is not displayed,
repeat from step 1.
4Select "DR-BT50" on
the display of the
Bluetooth device.
SIf Passcode* input is
required on the display
of aBluetooth device,
input "0000."
Pairing is complete when the
indicator (blue) flashes slowly.
The message standing for
"Pairing complete" appears on
the display
of some Bluetooth
devices.
*Passcode may be called "Passkey,"
"PIN code," "PIN number,"
or
"Password."
6Start the Bluetooth
connection from the
Bluetooth device.
This unit memorizes the device
as the last connected device.
Some Bluetooth devices may
connect with the unit
automatically when pairing is
complete.
When pairing with a
Bluetooth device that
cannot display alist of
detected devices or that
has no display
You may pair the device by setting
both this unit and the Bluetooth
device to pairing mode. For details,
refer to the operating instructions
supplied with the Bluetooth device.
Tips
•To pair with other Bluetooth devices,
repeat steps 1to 5for each device.
•To delete all pairing information, see
"Initializing the unit" (page 26).

Wearing the headset
Tip
There is atactile dot on the (LEFT)
indication to show the left unit.
The headset has (LEFT) and
( RIGHT) indications; wear it
accordingly on your left and right
ears.
Slider
Pulling down and folding
the headset
!
( RIGHT)
(LEFT 0 )
Tip
Pull down the sliders on both ends when
folding to make it more compact.
11
us

12
us
Indications of Bluetooth function
~ :Indicator (blue)
[B] :Indicator (red)
Status Flashing patterns
bO Searching
em
8-tJ-e-.-e-8-.-e-···
~
·c
.-
[B]
e-.-.-.-e-.-e-e-···
~
~
bO
Connectable
em
8- -e- -e- -e- -e- - •...
~
[B]
.-
-
....
u
(1)
QConnecting
[m
.- -e--e- -0- -.- - •...
~
0
U
[B]
.- -.--.- -.- -e- - •...
"'0 HFP/HSP or A2DP
[m
e- - - - - - - - -e- - - - - ...
(1)
(standby for receiving audio signal) [B]
....
-
u
(1)
QHFP/HSP and A2DP
[m
Q
.-e- - - - - - -e-e- - - ...
0
U
(standby for receiving audio signal) [B]
-
Listening
[m
•• -------- •• ---- ...
u
[B]
-
.-
~
~
:;E
Listening during standby [m
••• -- - - - - - ••• - - - ...
for telephone call
[B]
-
Incoming call ~
•••••••••
[B]
-
(1) Talking
~
•• --- - ---- •• - - - - ... Q
0
..c
[B]
~
-
Calling while
~
••• • ••
i1 ~ _______ . ,'~, • ___ •••
playing back music
[B]
-

OPERATING THE UNIT
Listening to music
(RIGHT)
POWER button
LJ -button -H-"""-
LJ +button ~~L...l
Jog switch
VOL +button -'-'
VOL -button ---
Jog switch
operation
Check the following before
operating the unit.
-The Bluetooth device is turned
on.
-Pairing
of this unit and the
Bluetooth device is complete.
-The Bluetooth device supports the
transmitting music function
(profile: A2DP*).
1Press and hold the
POWER button for
about 3seconds while
the unit is turned off.
The indicator (blue) and
indicator (red) flash together
twice and the unit is turned on.
Notes
• Do not press and hold the POWER
button for more than 7seconds,
otherwise pairing mode is entered.
•After the unit is turned on, the unit
attempts to connect to the last
connected Bluetooth device
automatically with
HFP or HSP. To
make or receive acall while
listening to music, make ready the
last connected Bluetooth device for
HFP or HSP connection before
turning on the headset.
2Make the Bluetooth
connection (A2DP) from
aBluetooth device to
this unit.
Refer to the operating
instructions supplied with the
Bluetooth device on how to
operate it.
3Start playback on the
Bluetooth device.
Tip
Bluetooth connection of A2DP
(Advanced Audio Distribution Profile)
can also be operated with the
jog switch
from this unit to the Bluetooth device
except when making acall on this unit.
Note
When you play music by connecting the
unit to aBluetooth device using
HSP
(Headset Profile), sound quality will not
be high.
For better sound, change the
Bluetooth connection to
A2DP by
operating the Bluetooth device.
* For detail on profiles, see page 23.
Continued 13
us

14
us
To adjust the volume
Press the VOL + or -button while
listening to the music.
Tips
•Depending on the connected device, it
may be necessary to adjust the volume
on the connected device as well.
•Volume level for calling and listening
to music can be set independently.
To stop use
1Terminate the Bluetooth
connection by operating
the Bluetooth device.
2Press and hold the
POWER button for
about 3seconds.
The indicator (blue) and
indicator (red)
light up together,
and the unit turns off.
Tip
When you finish playing music, the
Bluetooth connection may terminate
automatically, depending on the
Bluetooth device.
If the Bluetooth audio device
connected with this unit supports
AVRCP (Audio Video Remote
Control Profile), you can control by
using the unit buttons.
Refer to the operating instructions
supplied with the Bluetooth device
on how to operate it.
Note
Operation of the Bluetooth connecting
device by this unit will vary depending on
its specification.
Status: In stop or pause mode
Short Press Long Press
~.
<D ®
FF/REW ®@
L:J+/-
®®
<D Starts playback*I
,@ Stop
®Skip to next/previous
@Fast-forward/Fast-rewind*2
®Jump to the succeeding/previous
groups
*2
®Continuously jump to the
succeeding/previous groups
*2

Status: In play mode
Short Press
Long Press
~.
(j) ®-
FF / REW
®@
_.
L:J+/- ®@
CD Pause*!
®Stop
®Skip to next/previous
@Fast-forward/Fast-rewind*2
@Jump to the succeeding/previous
groups
*2
@Continuously jump to the
succeeding/previous groups
*2
*1You may need to press the button
twice depending on the Bluetooth
device.
*2 Some Bluetooth devices may not
operate.
Note
You cannot adjust the volume of the
Bluetooth device by the unit volume
buttons.
15
us

Calling
[8J To make aconnection
by operating Bluetooth
mobile phone
1Make the Bluetooth
connection (HFP or
HSP*) from the
Bluetooth mobile phone
to this unit.
Refer to the manual supplied
with your Bluetooth mobile
phone for operation details.
The list
of recognized devices
appears on the display of the
Bluetooth mobile phone. This
unit is displayed as "DR-BT50."
When you use the Bluetooth
mobile phone features both HFP
(Hands-free Profile) and HSP
(Headset Profile), set to HFP.
Note
When connecting to aBluetooth
mobile phone which is different from
the last connected one, make the
connection following the above
procedure.
*For details on profiles, see page 23.
(RIGHT) When this unit does not
connect to aBluetooth
mobile phone automatically
You can make aconnection by
operating Bluetooth mobile phone
or by operating this unit to connect
the last connected Bluetooth device.
Tip
This unit will stop trying to connect
to the Bluetooth mobile phone after 1
minute. In such acase, press the multi
function button to try to connect
ag3.1n.
1Press and hold the
POWER button for
about 3seconds while
the unit is turned off.
The indicator (blue) and
indicator (red) flash together
twice, the unit turns on and then
this unit tries to connect to the
last Bluetooth mobile phone that
was used.
Note
Do not press and hold the POWER
button for more than 7seconds,
otherwise pairing mode is entered.
Multi function
button ~~v
POWER button ...... -~-'
VOL +button
VOL -button
__ J
Check the following before
operating the unit.
-The Bluetooth function is active
on the mobile phone.
-Pairing
of this unit and the
Bluetooth mobile phone is
complete.
16
us

~ To make a connection
with the last connected
Bluetooth device by
operating this unit
1 Press the multi function
button.
The indicator (blue) and
indicator (red) start flashing at
the same time, and the unit
performs the connection
operation for about 5seconds.
Note
When listening to music with this unit, a
Bluetooth connection cannot be made
with the multi function button.
To call
1 Use the buttons on your
mobile phone when
making a call.
If no dial tone is heard on this unit,
press and hold the multi function
button for about 2seconds.
Tip
You can call in the following way,
depending on the Bluetooth mobile
phone. Refer to the manual supplied with
your mobile phone on operating details.
-When not communicating, you can call
using the voice-dial function by
pressing the multi function button. •
-You can call the last dialed number by
pressing the multi function button for
about 2seconds.
To receive a call
When an incoming call arrives, a
ring tone will be heard from the
unit.
1 Press the multi function
button on the unit.
The ring tone differs in the
following ways, depending on
your mobile phone.
-ring tone set on the unit
-ring tone set on the mobile
phone
-ring tone set on the mobile
phone only for Bluetooth
connection
Note
If you received acall by pressing the
button on the Bluetooth mobile phone,
some Bluetooth mobile phones may have
handset use priority. In this case, set to
talk with the unit by pressing and holding
the multi function button for about 2
seconds, or by operating the Bluetooth
mobile phone. For details, refer to the
manual supplied with your Bluetooth
mobile phone.
To adjust the volume
Press the VOL +or - button.
Tips
•You cannot adjust the volume when not
communicating.
•Volume level for calling and listening
to music can be set independently.
To terminate a call
You can end acall by pressing the
multi function button on the unit.
To stop use
1 Terminate Bluetooth
connection by the
Bluetooth mobile
phone.
2 Press and hold the
POWER button for
about 3 seconds to turn
off the power.
The indicator (blue) and
indicator (red) light up together,
and the unit turns off.
Continued 17
us

18
us
The operation of the buttons on this
unit varies depending on your
mobile phone.
HFP (Hands-free Profile)
or HSP
(Headset Profile) is used for
Bluetooth mobile phone. Refer to
the operating instructions supplied
with your Bluetooth mobile phone
on supported Bluetooth profiles or
how to operate.
HFP {Hands-free Profile}
Status Multi function button
Short Press Long Press
Standby Start Voice Last number
Dial redial
Voice Dial Cancel Voice -
active Dial
Outgoing call End outgoing -
call
Incoming call Answer Reject
During call End call
Change active
device
HSP {Headset Profile}
Status Multi function button
Short Press Long Press
Standby -Dial*l
Outgoing call End outgoing End
outgoing
call*l call
or change
active device to
headset*2
Incoming call Answer -
During call End call*3 Change active
device
to
headset
*I Some functions may not be supported
depending on the Bluetooth mobile
phone.
*2 This may vary, depending on the
Bluetooth mobile phone.
*3 Some functions may not be supported
when calling using the Bluetooth
mobile phone.

Calling while playing back music
The Bluetooth connection using HFP or HSP as well as A2DP is necessary
to make acall while playing back music.
For example, to make acall using aBluetooth mobile phone while listening
to music on aBluetooth compatible music player, this unit needs to be
connected to the mobile phone using HFP or HSP.
Make a Bluetooth connection between this unit and the
device in use following the procedures outlined below.
1 Make a Bluetooth connection between this unit and
the mobile phone in use with HFP or HSP following
the procedures outlined in "Calling" (see page 16).
2 Operate the Bluetooth device (music player or mobile
phone) used for playing the music to make a
Bluetooth connection to this unit using A2DP.
To make a call while
playing back music
1 Press the multi function
button while playing
back music (page 18), or
operate your Bluetooth
mobile phone to make a
telephone
call.
If no dial tone is heard on this
unit, press and hold the multi
function button for about 2
seconds.
To receive a call while
playing back music
When an incoming call arrives, the
music pauses and the ring tone is
heard from this unit.
1 Press the multi function
button and talk.
After finishing the call, press the
multi function button. This unit
is switched back to music
playback.
(~
When no ring tone is heard
even if an incoming call
arrives
1 Stop music playback.
2 When ringing, press the
multi function button
and talk.
19
us

ADDITIONAL INFORMATION
Disposing of the unit
This unit has aLithium-Ion rechargeable battery inside the right unit.
For environmental conservation, be sure to remove the built-in rechargeable
batteries from the unit before disposing, and dispose
of the batteries
appropriately.
20
us
1Detach the right
housing from the right
unit.
CD Remove the ear pad from the
right unit.
®Remove the 3screws.
®Remove the right housing.
(RIGHT)
Right housing
2Remove the jog switch
from the right housing.
CD Remove the screw located at
the side
of the rechargeable
battery.
®Lift up the circuit board on
which the
jog switch is
installed together with the
jog switch cover.
3Disconnect the
rechargeable battery
from this unit.
CD Remove the screw.
®Remove and turn over the
circuit board on which the
rechargeable battery is
installed.
®Pull out the connector on the
circuit board.
4Slide out and remove
the rechargeable
battery.
Rechargeable
battery
