Sony BKSR-2025 User manual

MPEG HD ENCODER BOARD
BKSR-2025
MPEG HD DECODER BOARD
BKSR-2035
INSTALLATION MANUAL
1st Edition

BKSR-2025/2035
!WARNING
This manual is intended for qualified service personnel only.
To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so. Refer all servicing to
qualified service personnel.
!WARNUNG
Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.
Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die
Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei
Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben
Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung
dazu besitzen.
!AVERTISSEMENT
Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin
de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les
réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.
Pour toute réparation faire appel à une personne compétente uniquement.

1 (E)
BKSR-2025/2035
Table of Contents
Manual Structure
Purpose of this manual ........................................................................................ 3 (E)
Related manuals................................................................................................... 3 (E)
Contents ............................................................................................................... 3 (E)
1. Installation
1-1. Installing Optional Boards .................................................................... 1-1 (E)
1-2. Board Installation .................................................................................. 1-2 (E)
1-2-1. BKSR-2025 .......................................................................... 1-2 (E)
1-2-2. BKSR-2035 .......................................................................... 1-3 (E)
1-3. Functions of Connectors ....................................................................... 1-4 (E)
1-3-1. BKSR-2025 .......................................................................... 1-4 (E)
1-3-2. BKSR-2035 .......................................................................... 1-4 (E)
1-4. Matching Connectors and Cables.......................................................... 1-5 (E)
2. Service Overview
2-1. Note During Service Work.................................................................... 2-1 (E)
2-2. Description of Internal Switches and Indicator ..................................... 2-1 (E)
2-2-1. ENC-74/VPR-78 Board (BKSR-2025) ................................2-1 (E)
2-2-2. DEC-131 Board (BKSR-2035) ............................................ 2-3 (E)

3 (E)
BKSR-2025/2035
Manual Structure
Purpose of this manual
This manual is the installation manual of the BKSR-2025 MPEG HD Encoder Board
and the BKSR-2035 MPEG HD Decoder Board.
This manual is intended for use by trained system and service engineers, and
describes the information regarding installation.
Related manuals
Besides this Installation Manual, the following manuals are available for the BKSR-
2025/2035.
.VSR-2000/2000A/
BKSR-2020/2021/2025/2030/2031/2035/2070/2090
Service Manual (Available on request)
This manual describes the information that premise the service based on board
replacement (version up, diagnostics, parts replacement, electrical alignment, and
circuit descriptions, parts list, block diagrams, etc.).
If this manual is required, please contact your local Sony Sales Office/Service
Center.
Contents
The following is a summary of all the section for understanding the contents of this
manual.
Section 1 Installation
Explains the how to install the BKSR-2025/2035 to the VSR-2000A, and the
connector and cable information for peripheral equipment connections, etc.
Section 2 Service Overview
Explains the function and factory setting of the switches and LED on the board of
the BKSR-2025/2035.

1-1 (E)
BKSR-2025/2035
Section 1
Installation
1-1. Installing Optional Boards
BKSR-2025/2035
Regarding the HD system, this system supports only the 1080/59.94i format. In this case, use the VSR-
2000A in the NTSC mode. (The VSR-2000A does not support the HD signal in the PAL mode.)
n
Before attaching the boards, check the following. For details of the upgrading procedure, contact your
local Sony Sales Office/Service Center.
.The BKSR-2025/2035 can be used only in the VSR-2000A. It cannot be used in the VSR-2000.
.The version number of the BZSR-2000 Trial version supplied with the VSR-2000A must be 4.00 or
higher. (The BZSR-2000 Trial version is required for changing the configuration of the optional
boards.)
1. When the encoder boards (BKSR-2020/2021/2025) are going to be installed, install the encoder
boards starting from slot No. 1 in order.
.A maximum of three units of the BKSR-2020/2021 can be installed.
.A maximum of one BKSR-2025 can be installed.
2. After installing the encoder boards (BKSR-2020/2021/2025), install the decoder boards (BKSR-
2030/2031/2035) starting from the top slot.
3. Inclusive of the encoder boards (BKSR-2020/2021) and the decoder boards ( BKSR-2030/2031/2035) ,
a maximum of five boards can be installed. (Slot No.6 cannot be used.)
n
If you have installed the BKSR-2025 already, a maximum of four boards can be installed. (The
BKSR-2025 occupies space of two slots.)
Be sure to attach the blank panel to all of the slots that are not used with the blank panels supplied.
(The cooling function of the fan decreases, and the unit could be not operated normally.)

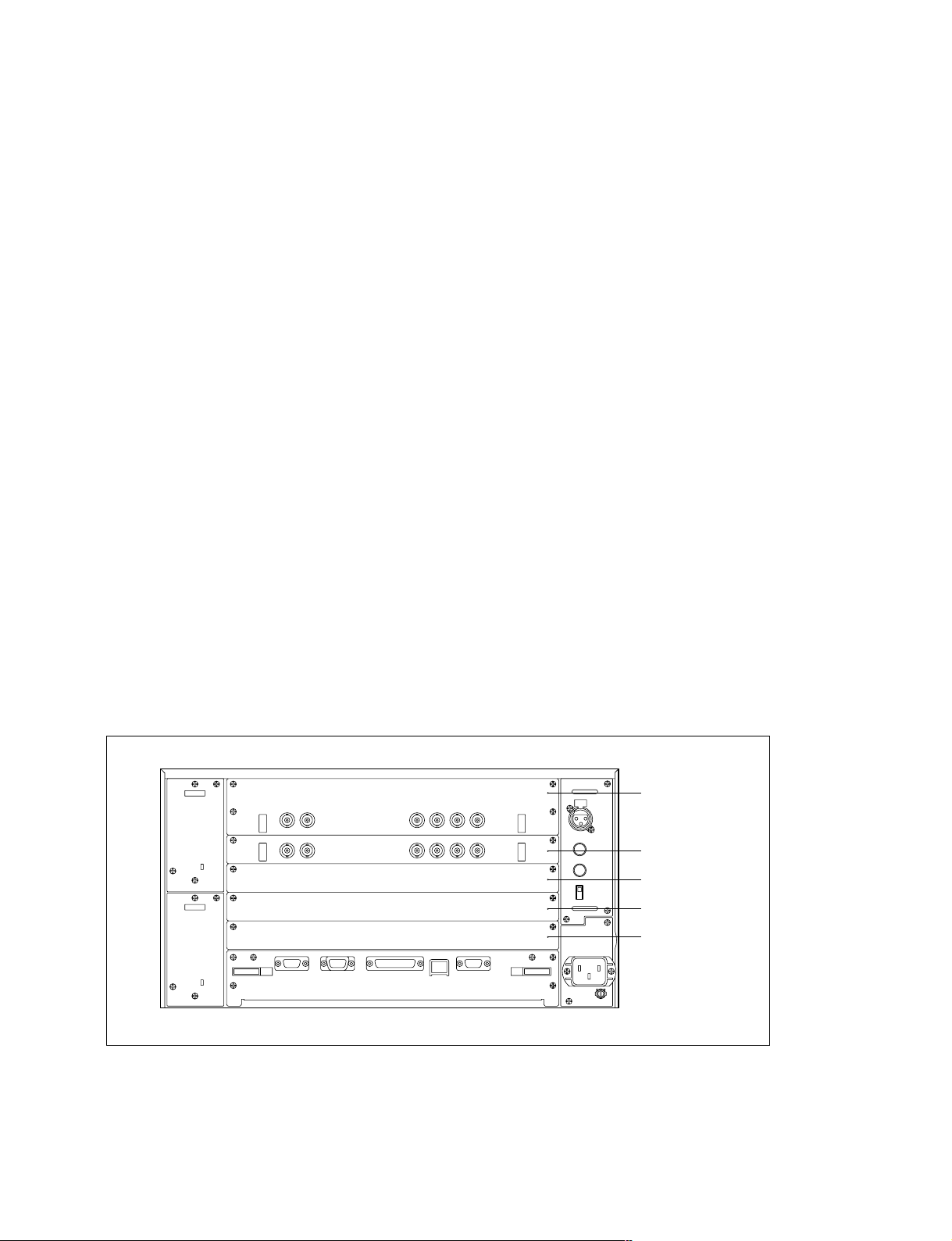

The VSR-2000A is designed to memorize the configuration of the optional boards when the power is
turned on for the first time after shipment.
To change the configuration of the optional boards, change the setting using the supplied BZSR-2000
Trial version that is packed with the VSR-2000A.
(For details, refer to the Operation Manual supplied with the CD-ROM of the BZSR-2000 Trial version.)
BKSR-2025
BKSR-2035
Blank panel
Blank panel
Blank panel

1-2 (E) BKSR-2025/2035
BVTT
3 x6
Slot label
BKSR-2025
1-2. Board Installation
1-2-1. BKSR-2025
General Information
.The BKSR-2025 can be inserted into slots No.2 to No.5 of
VSR-2000A.
n
To attach multiple boards, attach them from the No.1
slot in order.
.Stick the slot label supplied with the BKSR-2025 onto the
connector panel after the board installation to prevent the
incorrect insertion when the board replacing.
.Do not open the slot to keep the air-cooled effect of VSR-
2000A. Be sure to attach the blank panel to vacant slot.
.It is not necessary to adjust after board installation/re-
placement.
Procedures
1. Turn off the power switch of the VSR-2000A.
2. Remove the four screws, and remove the two blank pan-
els of any slot.
n
Keep the removed blank panel.
VSR-2000A (Rear side)
Slot No.1
3. Insert the BKSR-2025 to the slot. Push the handle of the
board in the direction of installing, and insert it in the
mother board completely.
4. Secure the BKSR-2025 with the four screws securing
the blank panel.
5. Stick the slot label supplied with the BKSR-2025 onto
the connector panel.
The label’s number is the same as the slot number which
the board has inserted.
n
To remove the BKSR-2025, hold the handle of the board
and pull it in the direction of removing and remove the
board to the front.
VSR-2000A
BVTT
3 x6
Blank panels
BKSR-2025
Installing
Removing
Handles

1-3 (E)
BKSR-2025/2035

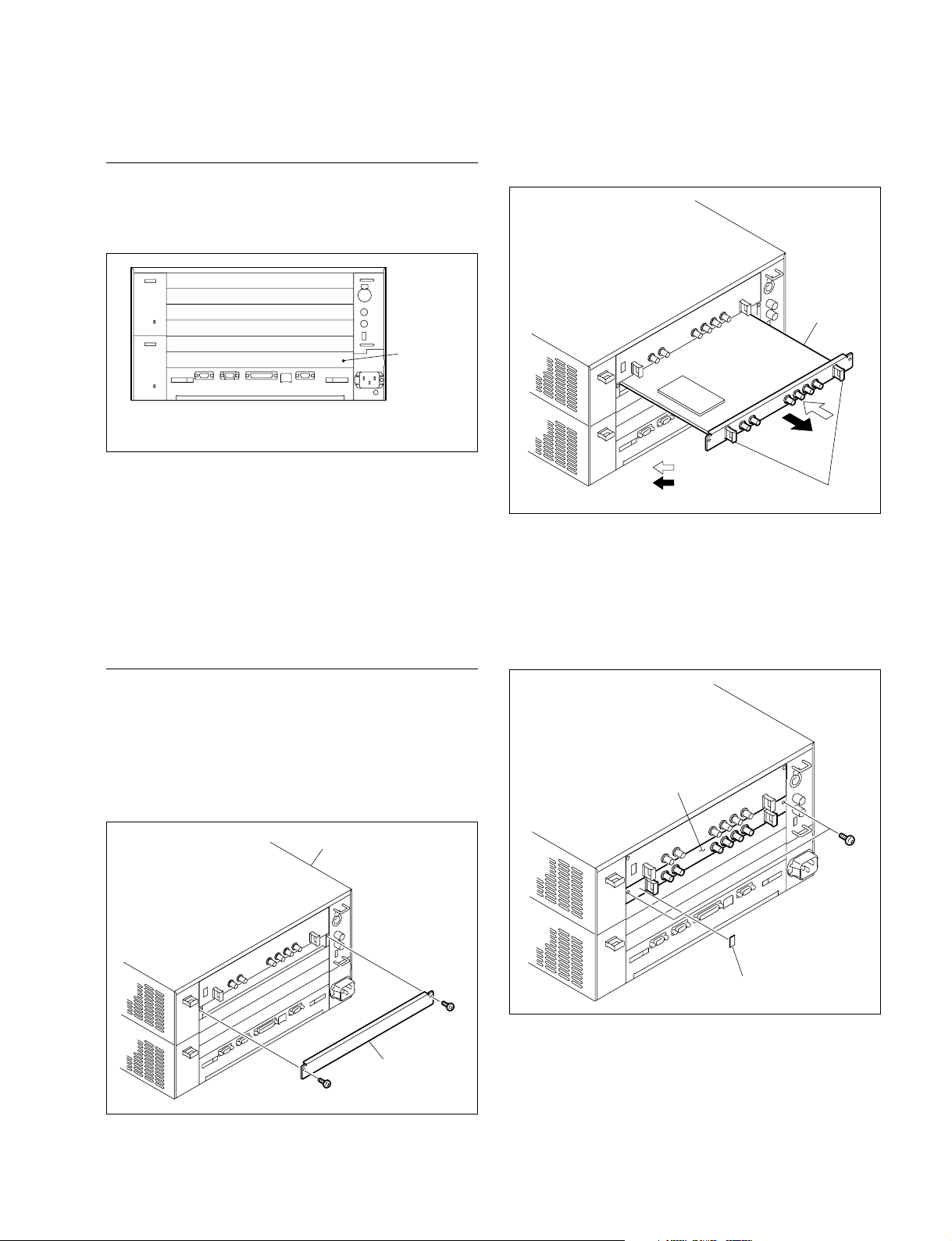

1-2-2. BKSR-2035
General Information
.The BKSR-2035 can be inserted into any slot exept slot
No.6 of VSR-2000A is mounted to.
.Stick the slot label supplied with the BKSR-2035 onto
the connector panel after the board installation to prevent
the incorrect insertion when the board replacing.
.Do not open the slot to keep the air-cooled effect of
VSR-2000A. Be sure to attach the blank panel to vacant
slot.
.It is not necessary to adjust after board installation/
replacement.
Procedures
1. Turn off the power switch of the VSR-2000A.
2. Remove the two screws, and remove the blank panel
of any slot.
n
Keep the removed blank panel.
VSR-2000A
BVTT
3 x6
BVTT3 x6
Blank panel
3. Insert the BKSR-2035 to the slot. Push the handle of
the board in the direction of installing, and insert it in
the mother board completely.
4. Secure the BKSR-2035 with the two screws securing
the blank panel.
5. Stick the slot label supplied with the BKSR-2035 onto
the connector panel.
The label’s number is the same as the slot number
which the board has inserted.
n
To remove the BKSR-2035, hold the handle of the board
and pull it in the direction of removing and remove the
board to the front.
VSR-2000A (Rear side)
Slot No.6
BKSR-2035
Installing
Removing Handles
Slot label
BKSR-2035
BVTT
3 x 6

1-4 (E) BKSR-2025/2035
1-3. Functions of Connectors
1-3-1. BKSR-2025
1HD SDI INPUT (HD serial digital interface input) connectors : BNC type
To input an HDD serial digital interface (HD SDI) signal.
2INPUT MONITOR : BNC type
This is an output connector to permit you to monitor the HD-SDI signal being supplied. As this connec-
tor does not conform to the standards for proper system lines, limit the output to usages for monitoring.
The output is not obtained when the VSR-2000A is off.
3AUDIO INPUT AES/EBU (digital audio input) connectors : BNC type
To input digital audio signals of AES/EBU format. Connect channels 1/2, 3/4, 5/6, or 7/8.
1-3-2. BKSR-2035
1HD SDI OUTPUT (HD serial digital interface output) connectors : BNC type
These connectors output an HD serial digital interface (HD-SDI) signal. Connectors 1 and 2 output the
same signal.
2AUDIO OUTPUT AES/EBU (digital audio output) connectors : BNC type
These connectors output digital audio signals of the AES/EBU format. Channels 1/2, 3/4, 5/6, and 7/8
are output from the corresponding connectors.
HD ENCODER
AUDIO INPUT AES/EBU
3/41/2 5/6 7/8
INPUT MONITOR
HD SDI INPUT
BKSR-2025
12 3
HD DECODER
AUDIO OUTPUT AES/EBU
3/41/2 5/6 7/8
BKSR-2035
HD SDI OUTPUT
12
12

1-5 (E)
BKSR-2025/2035
1-4. Matching Connectors and Cables
When connecting cables to various connectors on the connector panel at the time of installing or servicing,
connect the following connectors/cable or their equivalent.
BKSR-2025 Matching Connector/Cable
Panel Indication Connector Connector/Cable Sony Part No.
AUDIO INPUT AES/EBU BNC 75 Z, female BNC 75 Z, male 1-569-370-12
(1/2, 3/4, 5/6, 7/8) 5C-2V coaxial cable*1–––––––
HD SDI INPUT BNC 75 Z, female BNC 75 Z, male 1-569-370-12
INPUT MONITOR 5C-FB coaxial cable*2–––––––
*1 : 5C-2V coaxial cable (Max. 200 m) of Fujikura America Inc./Fujikura Europe Ltd. (FEL) or the equivalent
*2 : 5C-FB coaxial cable (Max. 200 m) of Fujikura America Inc./Fujikura Europe Ltd. (FEL) or the equivalent
BKSR-2035 Matching Connector/Cable
Panel Indication Connector Connector/Cable Sony Part No.
AUDIO OUTPUT AES/EBU BNC 75 Z, female BNC 75 Z, male 1-569-370-12
(1/2, 3/4, 5/6, 7/8) 5C-2V coaxial cable*1–––––––
HD SDI OUTPUT (1, 2) BNC 75 Z, female BNC 75 Z, male 1-569-370-12
5C-FB coaxial cable*2–––––––
*1 : 5C-2V coaxial cable (Max. 200 m) of Fujikura America Inc./Fujikura Europe Ltd. (FEL) or the equivalent
*2 : 5C-FB coaxial cable (Max. 200 m) of Fujikura America Inc./Fujikura Europe Ltd. (FEL) or the equivalent

2-1 (E)
BKSR-2025/2035
2-1. Note During Service Work
If static noise is applied to a part of the BKSR-2025, noise may be recorded. Do not touch the connectors
and the panel while recording is in progress. If they have to touched by unavoidable reason, implement
the preventive measure against static electricity so as not to generate static electricity.
2-2. Description of Internal Switches and Indicator

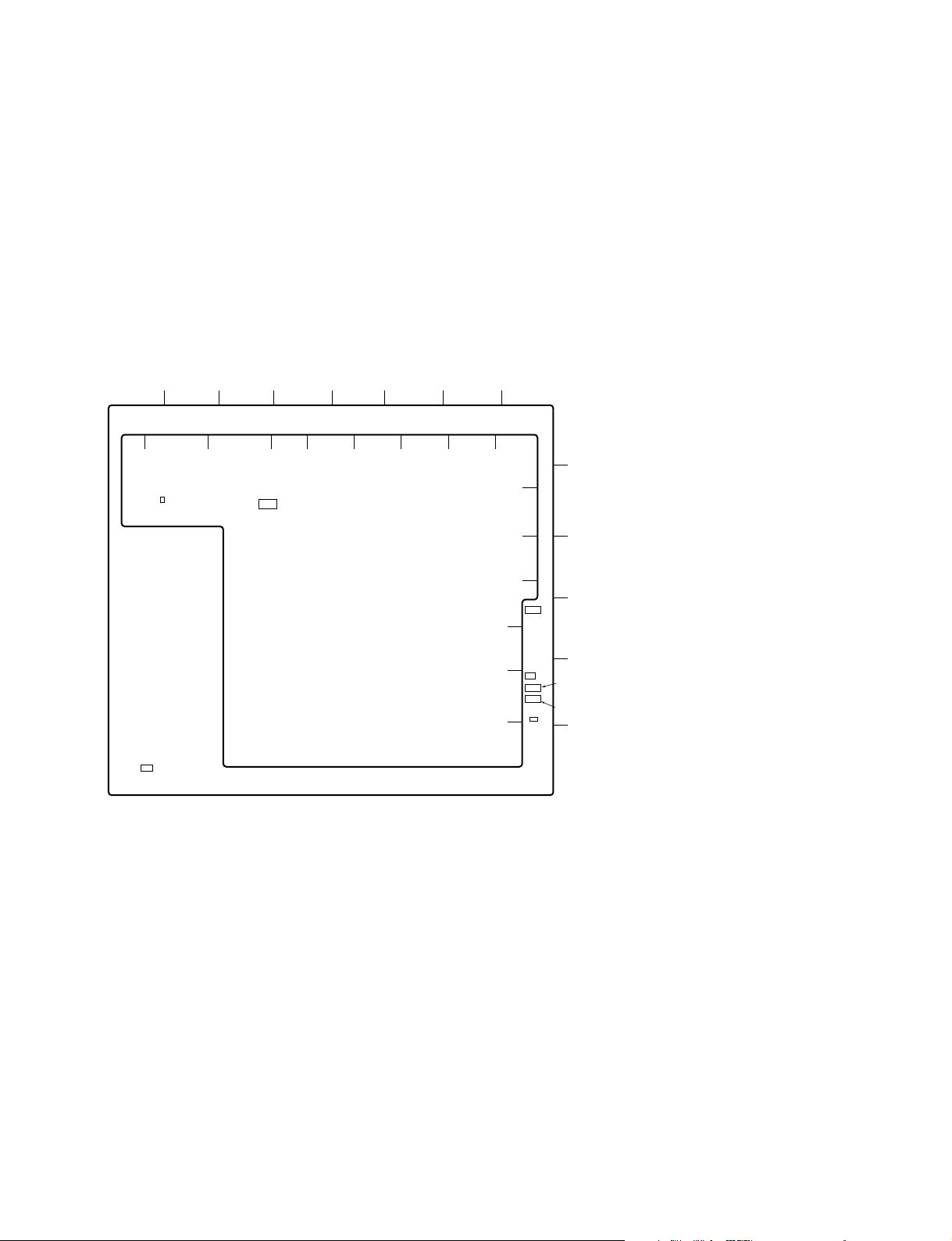

2-2-1. ENC-74/VPR-78 Board (BKSR-2025)
Section 2
Service Overview
A side (Component side)
A
7654
32 1
BCDEF
12345678
JH G FE D CBA
S1401
D1413
S201
S103
S101
S102
S108
S105
VPR-78
ENC-74

2-2 (E) BKSR-2025/2035
Switches
n
Do not change the setting of the switches described as “Factory use only”.
Ref. No. Address Name Description Factory Setting
S101 (E-1)/ Mode select 1 switch Factory use only
ENC-74
S102 (E-1)/ Mode select 2 switch Factory use only
ENC-74
S103 (E-1)/ Mode select 3 switch Factory use only
ENC-74
S105 (F-8)/ Reset switch Initializes ENC-74 board _
ENC-74
S108 (E-1)/ Communication mode Set the RS-232C communication
ENC-74 select switch mode
S201 (D-1)/ Mode select 4 switch Factory use only
ENC-74
S1401 (G-6)/ Mode select 5 switch Factory use only
VPR-78
LED
Ref. No. Address Color Name Description Normal State
D1413 (H-6)/ Green +5 V indicator Indicates that +5 V Turns on
VPR-78 is supplied to the VPR-78
board.
1234
ON
5678
1234
ON
5678
1234
ON
1234
ON
5678
1234
ON
5678
EXT INT

2-3 (E)
BKSR-2025/2035
2-2-2. DEC-131 Board (BKSR-2035)
Switches
n
Do not change the setting of the switches described as “Factory use only”.
Ref. No. Address Name Description Factory Setting
S302 (C-8) Mode select 1 switch Factory use only
S1300 (K-6) Mode select 2 switch Factory use only
S1301 (K-4) Reset switch Initializes DEC-131 board _
S1302 (K-7) Mode select 3 switch Factory use only
AB C D E F GH J K
1234567891011
D604D300
D800
D1301
S302
S1300S1302 S1301
A side (Component side)
1234
ON
1234
ON
1234
ON

2-4 (E) BKSR-2025/2035
LEDs
Ref. No. Address Color Name Description Normal State
D300 (F-8) Green PLD1 indicator Indicates that initialization Flashing
of PLD is completed normally.
D604 (F-1) Green PLD2 indicator Indicates that initialization Flashing
of PLD is completed normally.
D800 (G-4) Green PLD3 indicator Indicates that initialization Flashing
of PLD is completed normally.
D1301 (K-5) Green CPU RUN indicator Indicates that CPU runs normally. Turns on

The material contained in this manual consists of
information that is the property of Sony Corporation and
is intended solely for use by the purchasers of the
equipment described in this manual.
Sony Corporation expressly prohibits the duplication of
any portion of this manual or the use thereof for any
purpose other than the operation or maintenance of the
equipment described in this manual without the express
written permission of Sony Corporation.
Le matériel contenu dans ce manuel consiste en
informations qui sont la propriété de Sony Corporation et
sont destinées exclusivement à l’usage des acquéreurs
de l’équipement décrit dans ce manuel.
Sony Corporation interdit formellement la copie de
quelque partie que ce soit de ce manuel ou son emploi
pour tout autre but que des opérations ou entretiens de
l’équipement à moins d’une permission écrite de Sony
Corporation.
Das in dieser Anleitung enthaltene Material besteht aus
Informationen, die Eigentum der Sony Corporation sind,
und ausschließlich zum Gebrauch durch den Käufer der
in dieser Anleitung beschriebenen Ausrüstung bestimmt
sind.
Die Sony Corporation untersagt ausdrücklich die
Vervielfältigung jeglicher Teile dieser Anleitung oder den
Gebrauch derselben für irgendeinen anderen Zweck als
die Bedienung oder Wartung der in dieser Anleitung
beschriebenen Ausrüstung ohne ausdrückliche
schriftliche Erlaubnis der Sony Corporation.
BKSR-2025/2035

Printed in Japan
Sony Corporation 2002. 8 16
B&P Company ©2002
BKSR-2025 (SY)
BKSR-2035 (SY) J, E
3-620-206-01
