Sony VPL-VW6 User manual

SONY;
3-218-492-12 (1)
Video Projector
Operating Instructions
BRAVIA
S>~O
Silicon X-tal Reflective Display
HLJml™
HIGH·DEFINITION MULTIMEDIA INTERFACE
VPL-VW60
©2007 Sony Corporation

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

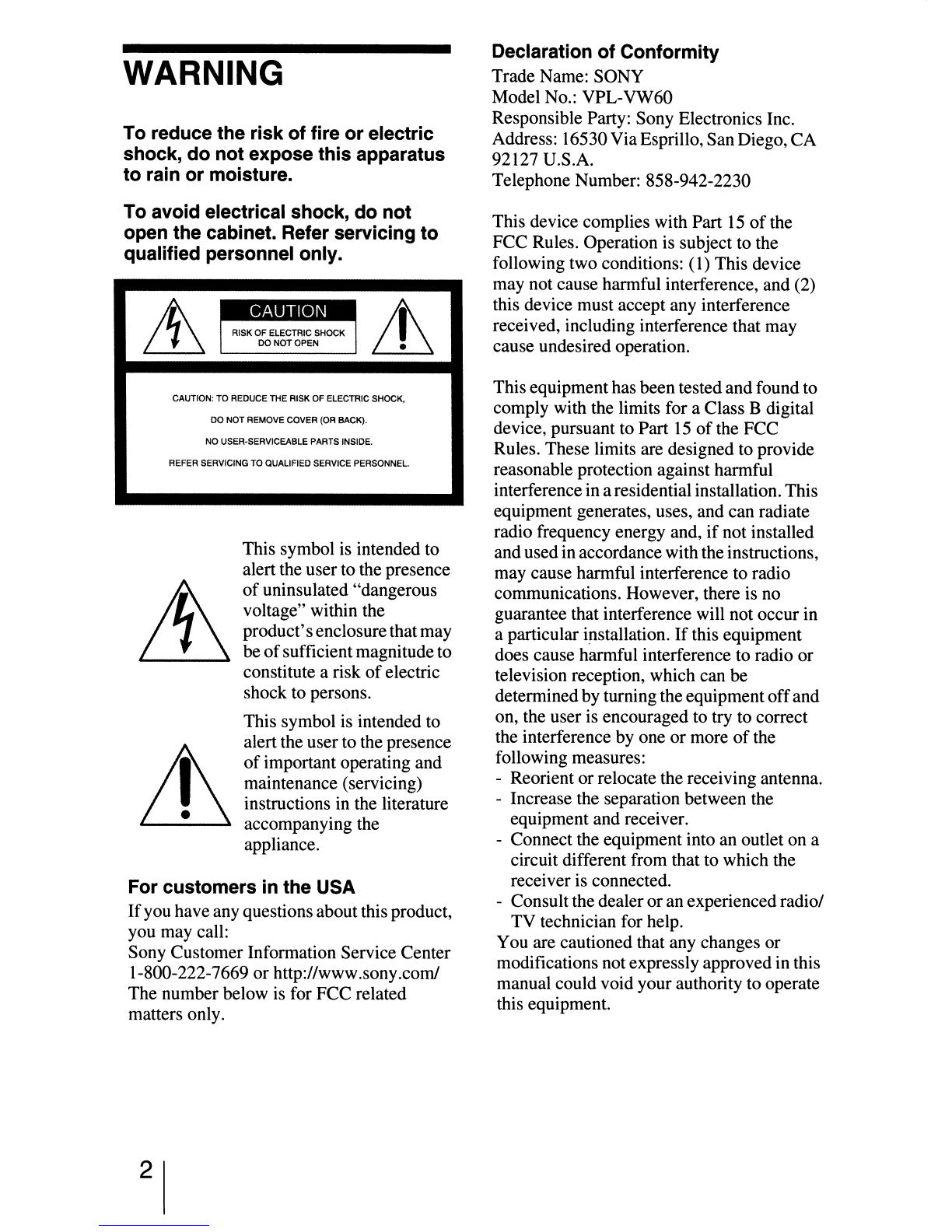

WARNING
To reduce the risk of fire or electric
shock,
do not expose this apparatus
to rain or moisture.
To avoid electrical shock, do not
open the cabinet. Refer servicing to
qualified personnel only.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER·SERVICEABLE PARTS INSIDE.
This symbol is intended to
alert the user to the presence
of uninsulated "dangerous
voltage" within the
product'senclosurethatmay
be
of sufficientmagnitude to
constitute arisk
of electric
shock to persons.
This symbol is intended to
alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the
appliance.
For customers in the USA
If you have any questionsaboutthis product,
you may call:
Sony Customer Information Service Center
1-800-222-7669 or http://www.sony.com!
The number below is for FCC related
matters only.
2
Declaration of Conformity
Trade Name: SONY
Model No.: VPL-VW60
Responsible Party: Sony Electronics Inc.
Address: 16530 ViaEsprillo, San Diego, CA
92127 U.S.A.
Telephone Number: 858-942-2230
This device complies with Part
15 of the
FCC Rules. Operation is subject to the
following two conditions:
(I) This device
may not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.
Thisequipment has been tested and found to
comply with the limits for aClass Bdigital
device, pursuant to Part
15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in aresidential installation. This
equipment generates, uses, and can radiate
radio frequency energy and,
if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in
aparticular installation.
If this equipment
does cause harmful interference to radio or
television reception, which can be
determined by turning theequipment offand
on, the user is encouraged to try to correct
the interference by one
or more of the
following measures:
-Reorient
or relocate the receiving antenna.
-Increase the separation between the
equipment and receiver.
-Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
-Consultthe dealer
or an experienced radio/
TV technician for help.
You are cautioned that any changes
or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.

Disposal of Used Lamp
This projector's lamp contains mercury and
shouldbe disposed
of properly. Consultyour
local authorities regarding safe disposal.
The material contained in this lamp are
similar to those
of afluorescent lamp, so you
should dispose
of it in the same way.
For customers in the United States
Lamp in this product contains mercury.
Disposal
of these materials may beregulated
due to environmental considerations. For
disposal or recycling information, please
contact your local authorities or the
Electronic Industries Alliance
(www.eiae.org).
For customers in Europe
The manufacturer of this product is Sony
Corporation, 1-7-1 Konan Minato-ku
Tokyo, 108-0075 Japan. The Authorized
Representative for EMC and product safety
is Sony Deutschland GmbH, Hedelfinger
Strasse 61, 70327 Stuttgart, Germany. For
any service orguarantee matters please refer
to the addresses given in separate service
or
guarantee documents.
Trademark Information
"BRAVIA" and BRAVIA are trademarks of
Sony Corporation.
HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or
registered trademarks
of HDMI Licensing
LLC.
"Blu-ray Disc" is atrademark.
3

For customers in Canada
This Class Bdigital apparatus complies with
Canadian ICES-003.
Voor de klanten in Nederland
Gooi de batterij niet weg maar
lever deze in als klein chemisch
afval (KCA).
The socket-outlet should be installed near
the equipment and be easily accessible.
CAUTION
RISK
OF EXPLOSION IF BATTERY IS
REPLACED BY AN INCORRECT
TYPE.
DISPOSED OF USED BATTERIES
ACCORDING TO THE LOCAL RULES.
4
Disposal of Old Electrical &
Electronic Equipment (Applicable
in the European Union and other
European countries with separate
collection systems)
This symbol on the product or on its
packaging indicates that this product
shall not be treated as household waste.
Instead it shall be handed over to the
applicable collection point for the
recycling
of electrical and electronic
equipment. By ensuring this product is
disposed
of correctly, you will help
prevent potential negative consequences
for the environment and human health,
which could otherwise be caused by
inappropriate waste handling
of this
product. The recycling
of materials will
help to conserve natural resources. For
more detailed information about
recycling
of this product, please contact
your local Civic Office, your household
waste disposal service or the shop where
you purchased the product.
For customers in Taiwan only
JI.¥fu~~@]~)(
{i~Jt]1e-EllII

Table of Contents
Precautions 7
FrontJRight Side 8
RearlBottom 9
Remote Control
10
Unpacking 11
Step 1: Installing the Projector 12
Before Setting Up the
Projector
12
Positioning the Projector and a
screen 14
Step 2: Connecting the Projector 17
Connecting to aVCR 17
Connecting to aComputer 20
Step
3: Adjusting the Picture
Position
21
Step 4: Selecting the Menu
Language
25
Projecting the Picture on the
Screen
27
Turning Offthe Power 28
Selecting the Wide Screen Mode 29
Selecting the Picture Viewing
Mode
31
Adjusting the Picture Quality 32
Selecting to directly adjust the
desired menu item 32
Selecting desired adjust menu
items in the order
33
Adjusting the Picture Using Real
Color Processing 34
Using the Supplied Software to
Adjust the Picture Quality
(ImageDirector3)
35
Operation through the Menus 36
Picture Menu 40
Advanced Picture Menu 43
Screen Menu 44
Setup Menu 46
Function Menu 48
Installation Menu 50
Information Menu 52
About the Preset Memory No 52
5

About the HDMI Control 53
Troubleshooting 54
Warning Indicators 56
Message Lists 57
Replacing the Lamp and the Air Filter
and cleaning the Ventilation holes
(intake) 58
Cleaning the Air Filter
61
Specifications 62
Preset Signals 64
Input Signals and Adjustable!
Setting Items
67
Ceiling Installation 69
When Using the PSS-
HI 0
Projector Suspension Support .... 69
Making Fine Adjustments to the
Horizontal Picture Position 73
Index 76
6

Precautions
On safety
•Check that the operating voltage of your
unit is identical with the voltage
of your
local power supply.
•Should any liquid or solid object fall into
the cabinet, unplug the unit and have it
checked by qualified personnel before
operating it further.
•Unplug the unit from the wall outlet
if it is
not to be used for several days.
•To disconnect the cord, pull it out by the
plug. Never pull the cord itself.
•The wall outlet should be near the unit and
easily accessible.
•The unit is not disconnected to the AC
power source (mains) as long as it is
connected to the wall outlet, even
if the
unit itself has been turned off.
•Do not look into the lens while the lamp is
on.
•Do not place your hand orobjects near the
ventilation holes. The air coming out is
hot.
On preventing internal heat build-
up
After you turn off the power with the 1/(9
(ON/STANDBY) switch, do not disconnect
the unit from the wall outlet while the
cooling fan is still running.
Caution
The projector is equipped with ventilation
holes (intake) and ventilation holes
(exhaust). Do not block or place anything
near these holes,
or internal heat build-up
may occur, causing picture degradation or
damage to the projector.
On repacking
Save the original shipping carton and
packing material; they will come in handy
if
you ever have to ship your unit. For
maximum protection, repack your unit as it
was originally packed at the factory.
7

Front/Right Side
You can use the buttons on the control panel with the same names as those on the remote
control to operate the projector.
ON/STANDBY
LAMP/COVER
II <.!>
LENS button
(& page 22)
t/./~/~(arrow)/@) (enter)
button (cY" page 36)
MENU button (& page 36)
INPUT button (& page 27)
1/6 (ON/STANDBY) switch (& page 22)
ON/STANDBY
indicator
(& page 21)
~
LAMP/COVER
indicator
(& page 56)
1m
While the ON/STANDBY indicator
lights in orange, the power saving
mode is on. (& page 46)
Ventilation holes
(exhaust) (& page 13)
Remote control detector (& page 21)
'--------- Ventilation holes (exhaust) (& page 13)
rv AC IN socket
HDMI1 connector (& page 18)
HDMI 2connector (& page 18)
INPUT Aconnector (& page 20)
SVIDEO INPUTconnector (mini DIN 4-pin)NIDEO INPUT
connector (phono type) (& page 19)
YPs/Cs PRICR (phono type) (& page 17)
TRIGGER jack (mini jack)
Outputs a12 Vsignal when the power is on
REMOTE connector
Connects to acomputer, etc. for remote control
(& page 35)
8

Rear/Bottom
__ ~.,.- Ventilation holes (intake)
(& page 13)
~::...-_-+ Remote control detector
(& page 21)
'- J.- Ventilation holes (intake)
(& page 13)
r-7....-:::::--::::;:::===+---------- Ventilation holes (intake)
(& page 13)
~-~~:___:lo.-~---h,t---------- Ventilation holes (intake)
(& page 13)
_----------------- Ventilation holes (intake)
(& page 13)
.......",,,,.e::.=--....:::::=e::::.. __ ---------- Lamp cover (& page 58)
,_--..::::::.""'11::"".,..._---- Adjusters (<!J1' page 24)
-=~-+-~-- Filter holder (<!J1' page 59)
U~i:---!ff\\\--- Ventilation holes (intake)
(<!J1' page 13)
'--_~ ~ Projector suspension
support attaching hole
(& page 69)
9

Remote Control
Infrared transmitter
LIGHT button
Illuminates the buttons on
the remote control.
INPUT button
((jJ" page 27)
COLOR SPACE button
(CY' page 32)
GAMMA CORRECTION
button
((jJ" page 32)
t/ ../ .. /~ (arrow)/
EB buttons
(CY' page 36)
MENU button
((jJ" page 36)
WIDE MODE button
((jJ" page 29)
PICTURE MODE
buttons
(CY' page 31)
SHARPNESS
+/- button
((jJ" page 41)
10
--
UHT
INPUT I
10
I
COLOR
C_Q.rOR I
BLACIC I
SPACE
TEMP
LEVEL
1
c&~~~~
A~~CEDI
LENS 1
+
~
+
0)
+
'--
+
MIiNU )}
REAL COLORfROCESSING
:6~~
R~P
ADJPIC
--PICTURE MODE--
BEfEMAJ
~
+++
SHARPNESS
BRlGHIHESS CONTRAST
---
SONY
'4it '!J3;i']jM
..
~
------:
~
I/CJ (ON/STANDBY)
switch
(CY' page 22)
COLOR TEMP button
((jJ" page 32)
BLACK LEVEL button
((jJ" page 32)
LENS button
((jJ" page 22)
ADVANCED IRIS button
((jJ" page 32)
RESET button
((jJ" page 36)
RCP (Real Color
Processing) button
((jJ" page 34)
ADJ PIC button
((jJ" page 33)
CONTRAST
+/- button
((jJ" page 41)
BRIGHTNESS
+/- button
((jJ" page 41)

Check the carton to make sure it contains the following items:
Unpacking
•Lens cap (1)
When you have purchased the projector,
the lens cap is put onto the lens.
Remove this lens cap when you use the
projector.
•Operating Instructions (this manual)
•Remote control
(I) and
Size AA (R6) batteries (2)
This section describes how to install the projector and screen, how to connect the
equipment from which you want to project the picture, etc.
• AC power cord (I)
•ImageDirector3 CD-ROM (1)
Inserting the batteries into the remote control
Push and slide to open.
Insert the
batteries. side first as shown in the illustration.
Inserting them forcibly or with the polarities reversed may
cause ashort circuit and may generate heat.
+
11

Step 1: Installing the Projector
The projector displays pictures output from
aVCR or other device.
The lens shift allows you to have broader
options for placing the projector and
viewing pictures easily.
Unsuitable installation
Do notplacetheprojectorinthefollowing
situations, which may cause malfunction
or damage to the projector.
Installing the projector in such alocation
may cause amalfunction
of the unit due to
moisture condensation or rise in
temperature.
Near aheat or smoke sensor
Malfunction of the sensor may occur.
Poorly ventilated location
i<0
"-.Y
Very dusty and extremely smoky
locations
Leave space of more than 30 em (11
7
'8 inches)
around the unit.
Hot and humid
Install in a
location away from walls
Allow at least 30 cm (11 7/8 inches)
between the projector and walls.
30cm
(11
7/8inches) I
30cm I
.. ..1
(11
7/8inches)
I
30 cm I
.. "I
"""""""""'".........;"J (11
7/8inches)!I
30cm
(11
7/8inches)
Locations subject to direct cool or
warm air from an air-conditioner
12

Blocking the ventilation holes.
---~
\15° or more
t
Avoid using the projector tilted at an angle
of more than 15 degrees.
Do not install the projector anywhere other
than on alevel surface
or on the ceiling.
Failing to set this mode when using the
projector
at high altitudes may result in
uneven color uniformity and reducing the
reliability
of the effects of the lamp.
When installing the unit at altitudes
When using the projector at an altitude of 1,500
mor higher, set "Cooling Setting"
in the Setup
;II menu to "High" (@" page 46). Failing to
set this mode when using the projector at high
altitudes could have adverse effects, such
as
reducing the reliability of certain components.
15° or more
'"---"""-- Ventilationholes
(exhaust)
Ventilation holes
(intake)
Tip
For details on the location of the ventilation
holes (intake
or exhaust), see "Location of
Controls" on pages 8to 9.
Tilting front/rear and left/right
""
;;J
Improper use
Donot do any of the following while using
the projector.
15° or more;
!
t
--
.-< -'-- - - - -- - -
13

"..'. J/'~:--T~ ;- .. -~':~. _;/,~;'·;;;t~~0':Y-"f~' N. :-,<;:;':-~q!;r::,;;:,{:-,_~-;;("""'~. '~"':"\.; ~;-+:<CT-$
POs'n'9nl~a,t.h~eFOle~IQ"r)I"'cI a~o.k~ll:
<";;.':' Z;g~~~ ,~~-,;t~.<".h.f 4<c>.~c~")%;ji":.fi:4"W~~·~ ""~wt...'%i;@;,£'ie.;';:' ,~
The installation distance between the projector and ascreen varies depending on the size
of the screen.
1Determine the installation position of the projector and screen.
You can obtain agood quality picture if you position the projector with the center of
the lens within the areas indicated in the gray areas in the illustration. Use the values
a, band cin the table on page 15 as aguide.
Ceiling installation
Center of projector's
lens
a
Floor installation
a: Minimum projection distance between the screen and the center of the projector's
lens
b: Maximum projection distance between the screen and the center of the projector's
lens
c: Vertical distance between the center of the screen and the center of the projector's
lens when using the maximum upper vertical lens shift feature.
For installation of the projector on aceiling, see "Ceiling Installation." (GY page 69)
For details on the lens shift feature, see "Step 3: Adjusting the Picture Position."
(GY page 21)
14

When using the 16:9 aspect ratio screen Unit: mm (inches)
Screen
40 60 80
100 120 150 180
200 250
300
size
(inches)
(mm) 1016 1524 2032 2540 3048 3810
4572
5080 6350 7620
a
12l!
l84~ 247! 3102 3732 4677 5622 6252 7827 9402
(minimum)
(47 /4)
(72 /8) (97 /8)
022 '/4)
(47)
(184'/4)
(221 3/
8)(246 '/4) (308 '/4) (370 '/4)
b
210~
3181
4257 5333 6409 8023 9637 107Q 13403
1609~
(maximum)
(82 /8)
025 '/4)
067
5/8)(210) (252 3/8)(315 7
/8)
(379 '12) (421 /8)
(527 5/8)(633 /8)
c324 485 647 809
971 1213
145~
161~
202~
242~
02
7/8)
09'/8)
(25 '12)
(31 7/8)(38 1/4)(47 7
/8) (57 /8) (63 /4) (79 /8)
(95 /8)
To calculate the installation measurements (SS: Screen Size)
a(minimum) =31.5
(1 1/ 4) xSS -48.2 (1
15
116)
b(maximum) =53.8 (2 1/
8)xSS -46.9
(1 7/
8)
c=8.0876 (11/
32
)xSS
When using the 4:3 aspect ratio screen (projecting a4:3 picture)
Unit: mm (inches)
Screen 40 60 80 100 120 150 180 200 250 300
size
(inches)
(mm)
1016
1524
2032 2540 3048 3810 4572
5080
6350 7620
a149t 226? 3036 3807 4578 5734 6891 7662 9590 11517
(minimum) (58 /8) (89 /4) (119 5 /8) (50) (180 1/4)(225 3/4) (271
3/8)
(301
3/4) (377
5/
8)(453
'12)
b2587 3904 5220 6537 7854 9829 11805 13122 16414 19706
(maximum)
001
7/8)
053
3/4)(205 5/8)(257 3/8)(309 '/4) (387) (464
7/
8)(516 5/8)(646 '/4) (775 7/8)
c396 594 792 990 1188 1485 1782 1980 2474 2969
(15 5/8)(23
112)
(31
1
/4) (39) (46 7/8)(58
112)
(70 '/4) (78) (97 '12) (17)
To calculate the installation measurements (SS: Screen Size)
a(minimum) =38.551
(1 9116) xSS -48.2 (1
15
116)
b(maximum) =65.842 (2 5/
8)xSS -46.9
(1 7/
8)
c=9.8979 (13/
32
)xSS
15
()
o
:::J
:::J
(1)
(')
-
c)"
:::J
en
Po>
:::J
a.
'1J
CD
'U
Po>
ii3
-
o'
:::J
en

2Position the projector so that the lens is parallel to the screen.
Top view
Screen
3Project an image on the screen and adjust the picture so that it fits the
screen.
(@' page 21)
To project an image, connect video equipment to the projector. (@' page 17)
1m
When using ascreen with an uneven surface, stripes pattern may rarely appear on the screen
depending on the distance between the screen and the projector
or the zooming magnifications. This
is not amalfunction
of the projector.
16

Step 2: Connecting the Projector
When making connections, be sure to do the following:
• Tum off all equipment before making any connections.
•Use the proper cables for each connection.
•Insert the cable plugs properly; poorconnection at the plugs may cause amalfunction or
poor picture quality. When pulling out acable, be sure to pull it out from the plug, not
the cable itself.
•Refer to the operating instructions
of the connected equipment.
To connect to aDVD player/recorder, Blu-ray Disc player or digital tuner
equipped with component video connectors
DVD player/recorder, HDD
recorder, Blu-ray Disc
player, digital tuner, etc.,
with component video
connectors
Speakers
II
00
I: : :I ~
AV amplifier
80
• ..-n:::::: O.lI:··~·
Cs. A
~
CCs
P-
I,
h
JJ
~
IPUT S VIDEO VIDEO Y PelCa PRICiI TRIGGER
Vt::r=fPR/CR
Right side of the projector
Component video cable (not supplied)
~ :Video signal flow
17

To connect to aDVD player/recorder or Blu-ray Disc player
equipped with HDMI output
You canenjoy betterpicture quality by connecting aDVD player/recorderorBlu-ray Disc
player equipped with HDMI output to the HDMI input
of the projector. Moreover, if you
have an HDMI control compatible equipment, you can operate the projector
synchronizing with the HDMIcontrol compatible equipment. Fordetails, see the Function
II menu (@' page 48) and "About the HDMI Control" (@' page 53).
Right side of the projector
t
INPUT A I~
DVD player/recorder or
Blu-ray Disc player, etc.,
with the HDMI output
oI mmmm'-- ----'.m .. .1
t to HOMI output
~ :Video signal flow
HDMI cable (not supplied)
When using an optional HDMI cable, be sure
to use
acable that has acquired the
HDMllogo.
1m
•When connecting equipment to the HDMI input of the projector, be sure to use
equipment that have acquired the HDMI logo.
•When connecting an HDMI cable to the projector, make sure the ~ mark on the upper
part
of the HDMI input of the projector and the ~ mark on the connector of the cable is
set at the same position.
• If the picture from equipment connected to the projector with an HDMI cable is not
clear, check the settings
of the connected equipment.
HOM!Control is an HOM!standard mutual control function which uses the HOMICEC (Consumer
Electronics Control) specification.
This projector supports PC display input
of HOM! standards. It also supports HOCP.
18

()
o
::J
::J
<D
U
o·
::J
en
Q)
::J
a.
"'0
...,
<D
"0
Q)
@
-
o·
::J
en
AV amplifier
.. f ':1
-r"
to Svideo or t t
video output
~
•
•
•
• •••
Video equipment
Speakers
Palea P1lICR TRIGGER
Right side of the projector
IPUT
SVIDEO
VIDEO
y
tt
~
·
·
·
....
To connect to aVCR equipped with the Svideo connector or
video connector
You can connect aDVD player/recorder, hard disk video recorder, VCR or laser disk
player, which is not equipped with component video connectors. See also the instruction
manual
of each equipment.
Svideo or video cable (not supplied)
~ :Video signal flow
Tip
If you do not know to which connector you should connect the cable, SVIDEO INPUT (S video
input connector) or VIDEO INPUT (video input connector), connect it to SVIDEO to enjoy better
picture quality.
If the equipment to be connected has no Svideo connector, connect the cable to the video output.
19

Right side of the projector
INPUT A INPUT
Computer
t t to monitor ompm t t
0
.... _····· nr-ln r;r::~ 0 .. _ .. ··
.~ .,igi
~:I __
.; I
I I
I I
I ~ I
,_ - - - .... J '"
HO-Osub15 pin cable (not supplied) or HOMI cable (not supplied)
~ :Video signal flow When using an optional HOMI cable, be sure to use
acable that has acquired the HOMIlogo.
Tip
Set "Input-A Signal Sel." in the
Setup'" menu to "Auto" or "Computer." If the input signal does
not appear properly, set it to "Computer."
(CY' page 47, 57)
mmDI
•When connecting an HDMI cable, make sure the'" mark on the upperpart of the HDMI
input
of the projector and the ... mark on the connector of the cable is set at the same
position.
• If you set your computer, such as anotebook type, to output the signal to both
computer's display and this equipment, the picture
of the equipment may not appear
properly. Set your computer to output the signal to only the external monitor.
For details, refer to the computer's operating instructions supplied with your computer.
For settings
of the computer, consult with the manufacturer of the computer.
• If the picture from equipment connected to the projector with an HDMI cable is not
clear, check the settings
of the connected equipment.
20
