Sony Dream machine icf-cd823l User manual

ICF-CD823L

AEP Model

UK Model

SERVICE MANUAL

FM/MW/LW CD CLOCK RADIO

SPECIFICATIONS

Model Name Using Similar Mechanism CFD-930L

Optical Device Name KSM-213CDM

Optical Pick-UP Name KSS-213C

CD player section

System: Compact disc digital audio system

Laser diode properties: Material: GaAlAs

Wavelength: 780 nm

Emission duration: Continuous

Laser output: Less than 44.6 µW

(This output is the value measured at a

distance of about 200 mm from the objective

lens surface on the optical pick-up block with

7 mm aperture.)

Frequency response: 20-20,000 Hz +1

–1.5 dB

Wow and flutter: Below measurable limit

Radio section

Frequency range:

Band Channel step

FM 87.5-108 MHz 0.05 MHz

MW 531-1,602 kHz 9 kHz

LW153-279 kHz 9 kHz

General

Time display:

North and South America and Australia:

12-hour system

Other countries: 24-hour system

Speaker:

77 mm (3 1⁄8inches) dia., 4 Ω

Output:

i(headphones) jack (ø 3.5 mm stereo minijack)

(except North American model)

Power outputs:

1.2 W + 1.2 W

(at 10% harmonic distortion)

Power requirements:

220-230 V AC, 50 Hz

Dimensions:

Approx. 250 ×153 ×207 mm (w/h/d)

(Approx. 9 7⁄8×6 1⁄8×8 1⁄4inches) incl.

projecting parts and controls

Mass:

Approx. 1,700 g (3 lb. 12 oz.)

Design and specifications are subject to change

without notice.

Ver 1.1 2001. 04

Sony Corporation

Personal Audio Company

ShinagawaTec Service Manual Production Group

9-927-932-12

2001D1600-1

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

— 2 —

TABLE OF CONTENTS

1. GENERAL ········································································ 4

2. DISASSEMBLY

2-1. CABINET, LOWER ······················································ 5

2-2. MAIN BOARD ····························································· 6

2-3. PANEL (FRONT) SUB ASSY ······································ 6

2-4. OPTICAL PICK-UP BOLCK (KSM-213CDM) ·········· 7

2-5. TRANSFORMER BOARD ··········································· 7

3. TEST MODE ······························································· 8

4. ELECTRICAL ADJUSTMENTS ························ 10

5. DIAGRAMS

5-1. BLOCK DIAGRAM ··················································· 11

5-2. CIRCUIT BOARDS LOCATION ······························· 13

5-3. SCHEMATIC DIAGRAM

–MAIN SECTION (1/2) – ·········································· 14

5-4. SCHEMATIC DIAGRAM

–MAIN SECTION (2/2) – ·········································· 17

5-5. PRINTED WIRING BOARD

–MAIN SECTION – ·················································· 20

5-6. PRINTED WIRING BOARD

–PANEL SECTION – ················································· 23

5-7. IC PIN FUNCTION DESCRIPTION ························· 25

5-8. IC BLOCK DIAGRAMS ············································ 26

6. EXPLODED VIEWS

6-1. LOWER CABINET SECTION ··································· 29

6-2. UPPER CABINET SECTION ···································· 30

6-3. OPTICAL PICK-UP SECTION

(KSM-213CDM) ························································· 31

7. ELECTRICAL PARTS LIST ································· 32

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARK !OR DOTTED

LINE WITH MARK !ON THE SCHEMATIC DIAGRAMS

AND IN THE PARTS LIST ARE CRITICAL TO SAFE

OPERATION. REPLACE THESE COMPONENTS WITH

SONY PARTS WHOSE PART NUMBERS APPEAR AS

SHOWN IN THIS MANUAL OR IN SUPPLEMENTS

PUBLISHED BY SONY.

Note on chip component replacement

•Never reuse a disconnected chip component.

•Notice that the minus side of a tantalum capacitor may be dam-

aged by heat.

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

—3 —

The laser diode in the optical pick-up block may suffer electrostatic

break-down because of the potential difference generated by the

charged electrostatic load, etc. on clothing and the human body.

During repair, pay attention to electrostatic break-down and also

use the procedure in the printed matter which is included in the

repair parts.

The flexible board is easily damaged and should be handled with

care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused on

the disc reflective surface by the objective lens in the optical pick-

up block. Therefore, when checking the laser diode emission,

observe from more than 30 cm away from the objective lens.

NOTES ON HANDLING THE OPTICAL PICK-UP

BLOCK OR BASE UNIT

CAUTION

Use of controls or adjustments or performance of procedures

other than those specified herein may result in hazardous

radiation exposure.

This Compact Disc player is classified as a CLASS 1

LASER product.

The CLASS 1 LASER PRODUCT label is located on the

bottom exterior.

CHUCK PLATE JIG ON REPAIRING

On repairing CD section, playing a disc without the CD lid, use

Chuck Plate Jig.

•Code number of Chuck Plate Jig: X-4918-255-1

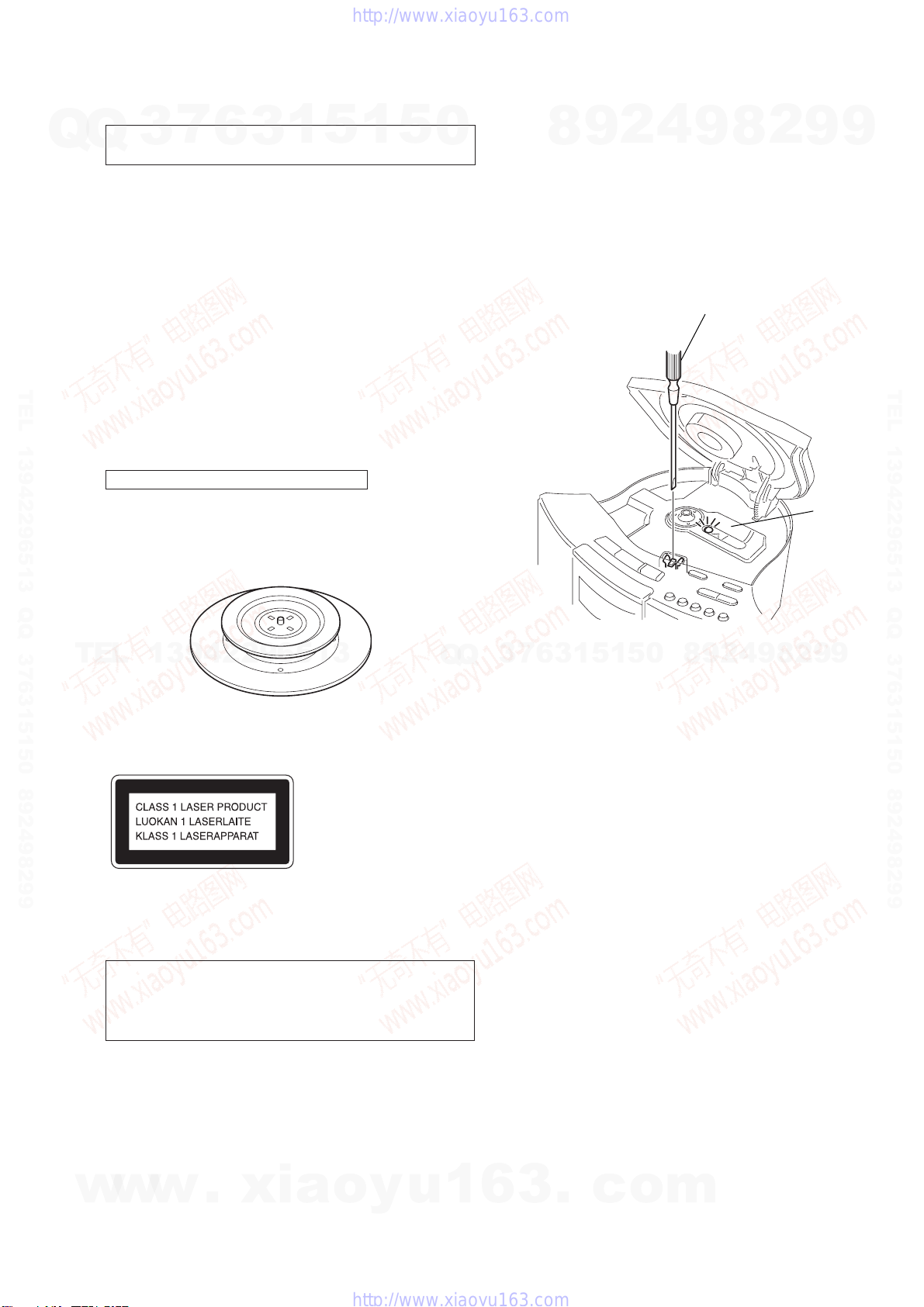

LASER DIODE AND FOCUS SEARCH

OPERATION CHECK

1. Open the CD lid.

2. Turn on S501 as following figure.

3. Confirm that the laser diode emission while observing the

objecting lens. When there is no emission, Auto Power Control

circuit or Optical Pick-up is broken.

Objective lens moves up and down once for the focus search.

Insert a precision

screwdriver and

push S501.

laser diode

emission

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

—4 —

SECTION 1

GENERAL

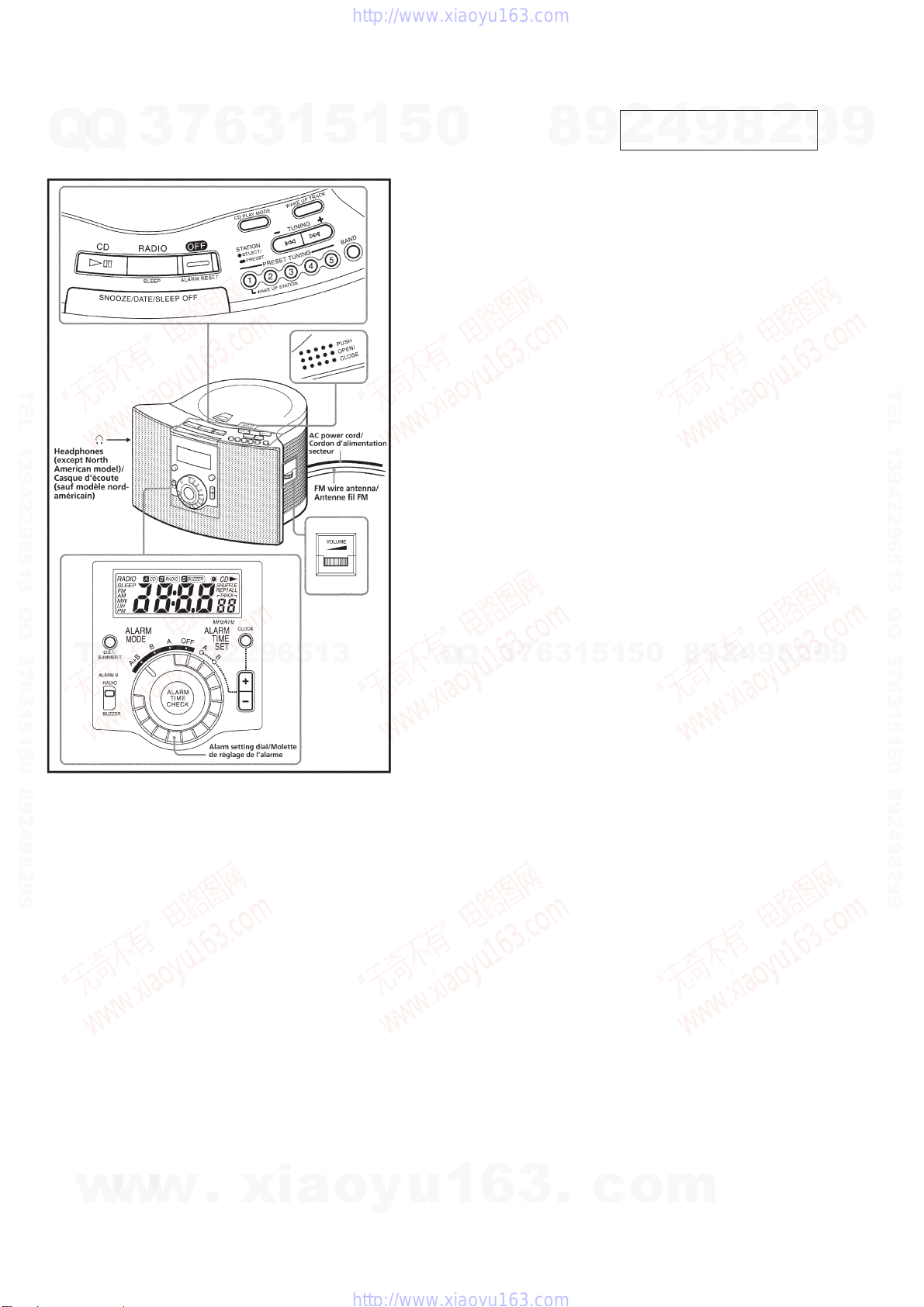

Setting the Clock

and Date

1Set the alarm setting dial to ALARM

MODE OFF.

2Plug in the clock radio.

The display will flash “AM 12:00”or “0:00”.

3Press CLOCK for a few seconds.

You will hear a beep and the year will start to

flash in the display.

4Press CLOCK + or –until the correct

year appears in the display.

5Press CLOCK once.

6Repeat steps 4and 5to set the month,

day, hour, and minute.

After setting the minute, press CLOCK to start

the counting of the seconds, and you will

hear two short beeps.

•To display the year and date, press SNOOZE/

DATE/SLEEP OFF once for the date, and within

2 seconds press it again for the year. The

display shows the date or year for a few

seconds and then changes back to the current

time.

•To set the current time rapidly, hold down

CLOCK + or –.

•The clock system varies depending on the

model you own.

12-hour system: “AM 12:00”= midnight

24-hour system: “0:00”= midnight

•In step 6, when you press CLOCK after the

minute setting to activate the clock, the seconds

start counting from zero.

•When the alarm setting dial is set to ALARM

TIME SET A or B, the clock cannot be set.

To change the display to the

daylight saving time (summer time)

indication

Press D.S.T./SUMMER T.

“s”is displayed and the time indication

changes to summer time.

To deactivate the summer time function, press

D.S.T./SUMMER T. again.

This section is extracted from

instruction manual.

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

—5 —

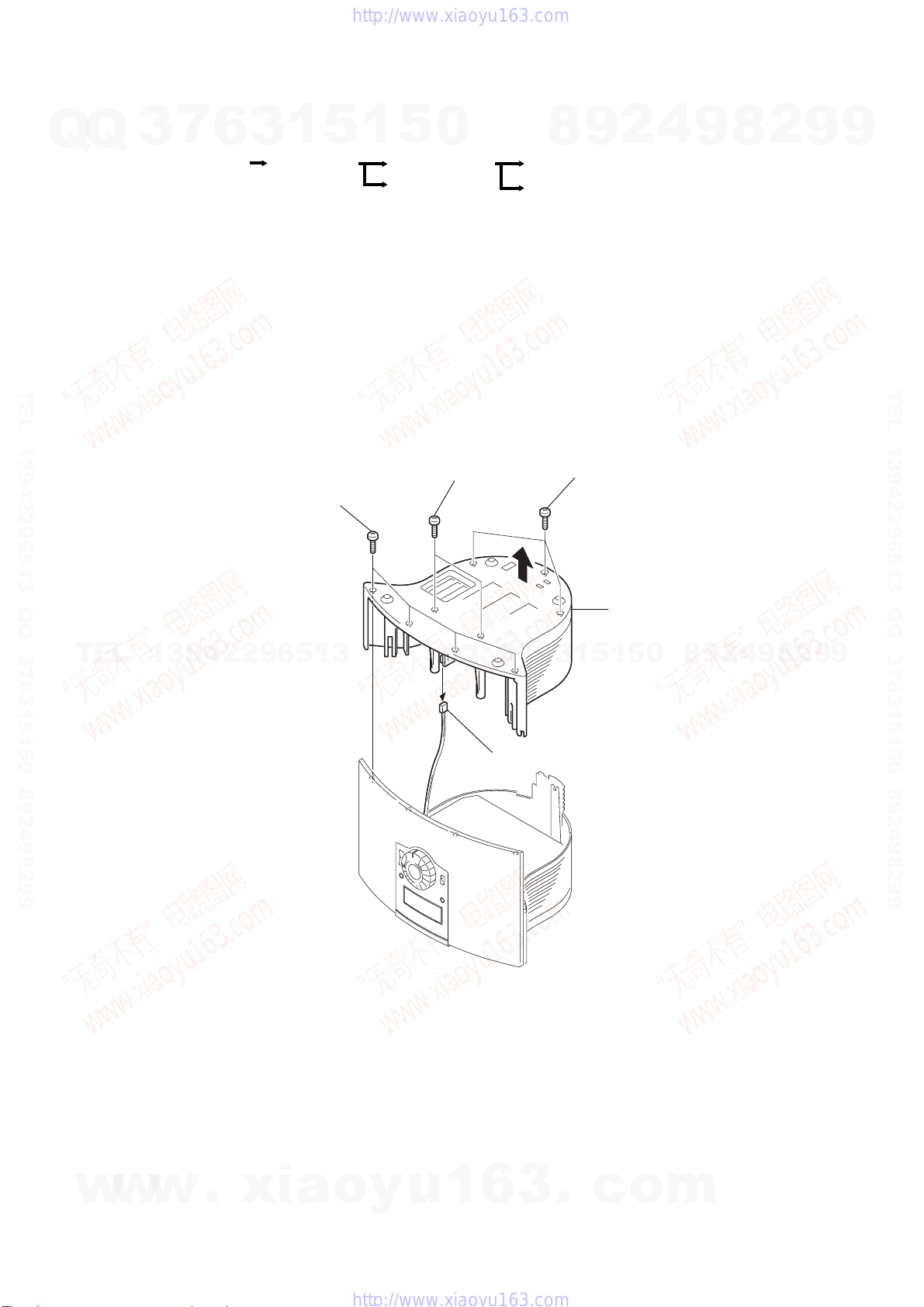

2-1. CABINET, LOWER

Note: Follow the disassembly procedure in the numerical order given.

SECTION 2

DISASSEMBLY

Optical pick-up block (KSM-213CDM)

Transformer board

Main board

Cabinet, lower

Set

Panel (front) sub assy

2Two screws

(+P 3 × 14) 3Three screws

(+P 3 × 14)

5Cabinet, lowe

r

4Connector

1Four screws

(+BVTP 3 × 10)

•The equipment can be removed using the following procedure.

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

—6 —

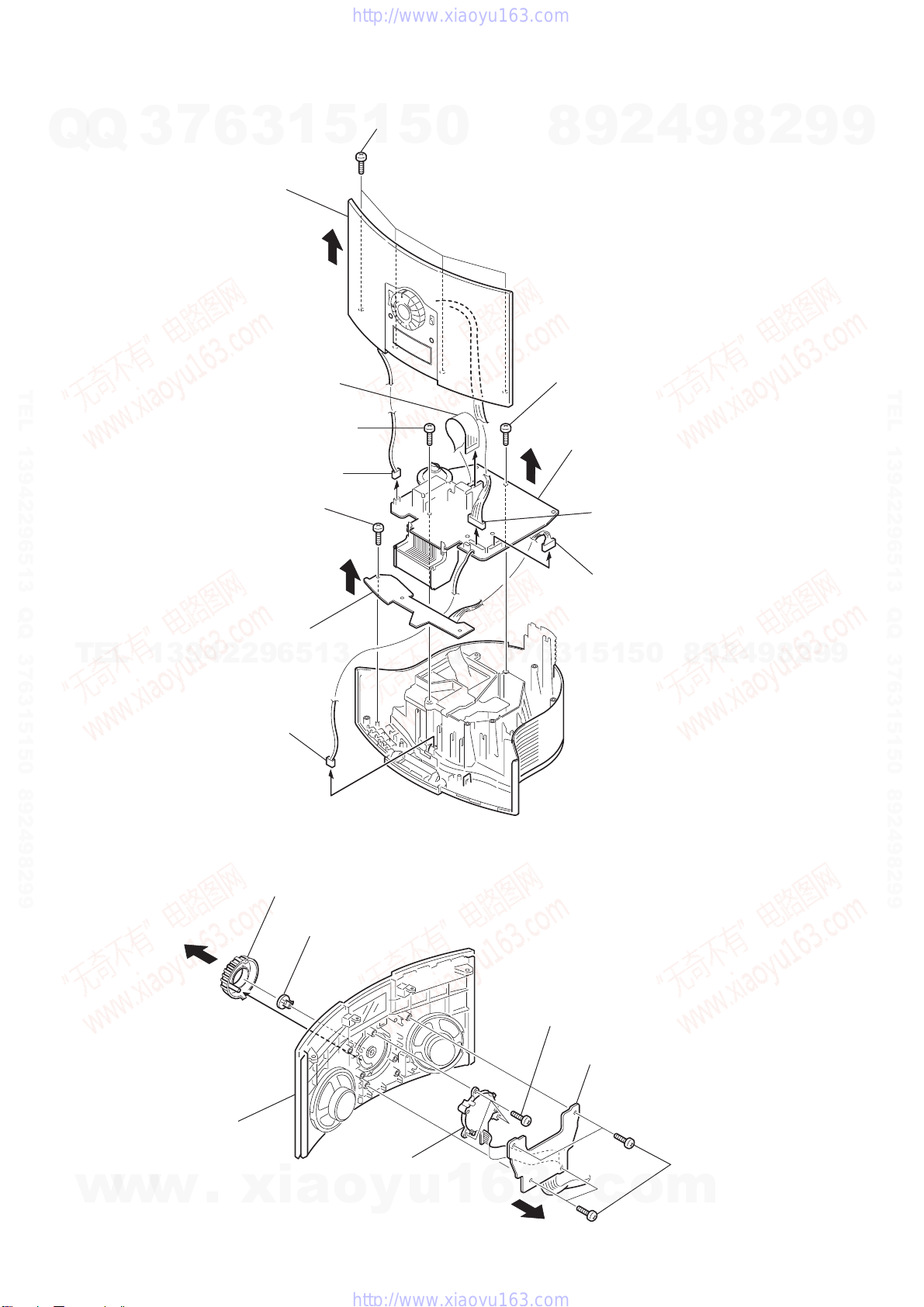

2-2. MAIN BOARD

2-3. PANEL (FRONT) SUB ASSY

1Four screws

(+P 3 × 10)

4Panel (front) assy

0Flat cable

2Connector

8Screw

(+P 3 × 10)

5Screw

(+P 3 × 10)

7Key (upper) board

qa Connector

9Screw

(+P 3 × 10)

qs Main board

3Connecto

r

6Connecto

r

5Knob (alarm) (A)

3Three screws

(+BTP 2.6 × 6)

2Key (front) board

4Dial (alarm) assy

7Panel (front)

sub assy

1Four screws

(+BTP 2.6 × 6

)

6Button (alarm) (A)

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

—7 —

2-5. TRANSFORMER BOARD

2Cover (unit)

4Two screws

(2.6 × 10)

3Two screw

s

(2.6 × 10)

5Optical pick-up

block (KSM-213 CDM)

1Screw

(+P 3 × 10)

2-4. OPTICAL PICK-UP BLOCK (KSM-213CDM)

3Two screws

(+BTP 3 × 10)

4Heat sink

5Transformer board

1Screw (+BTP 3 × 10)

Power board

power cord

2Stopper, cord

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

— 8 —

SECTION 3

TEST MODE

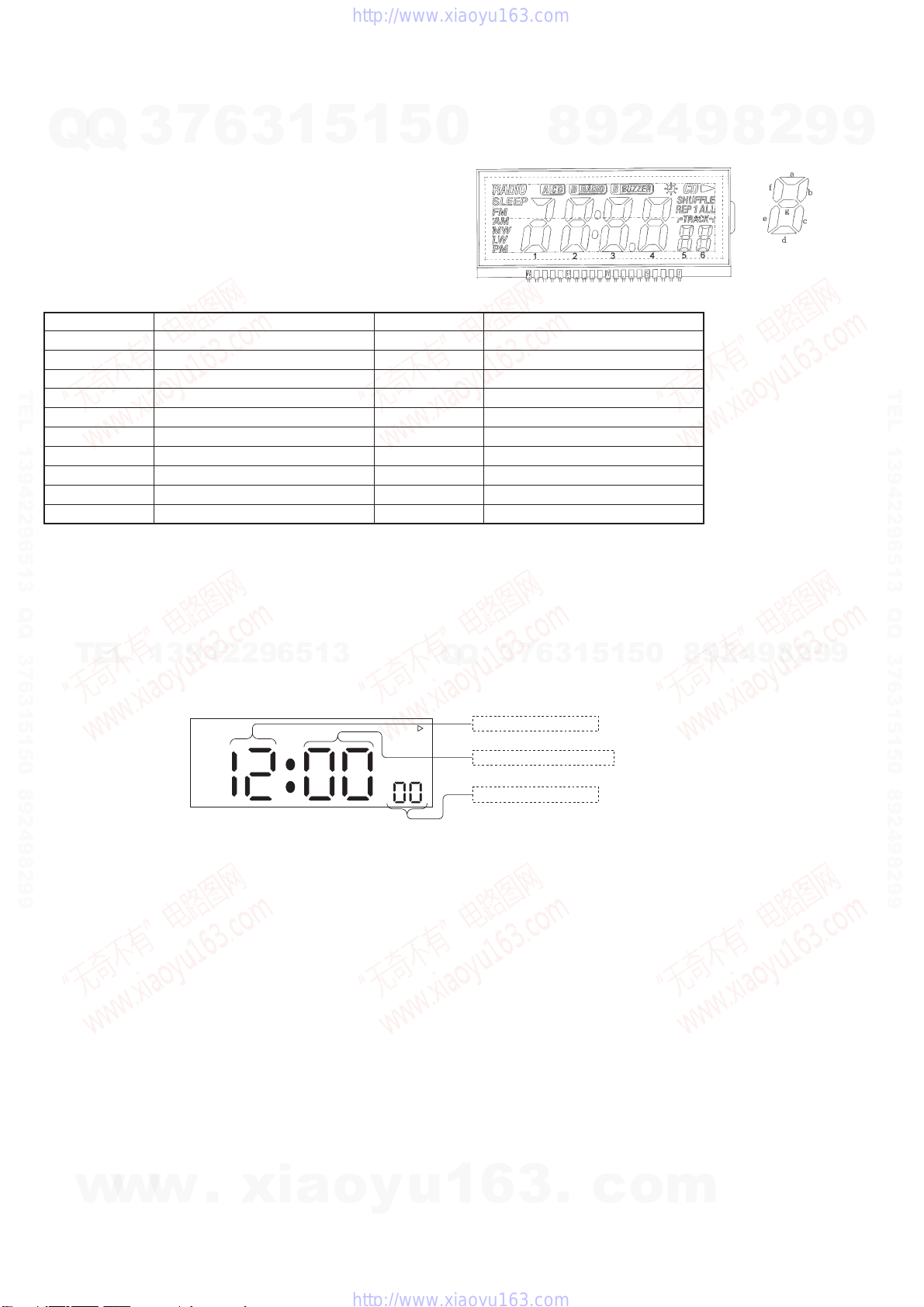

3-1 LCD Test Mode

• The LCD test mode is initiated by turning off the main power once then back on or by resetting the machine while TP415 (LCD TEST, pin-

60 terminal) is connected to GND.

• The LCD test mode operations are listed in the following table.

• When the machine enters the LCD test mode, all LCDs turn on.

• Pressing any key turns off the corresponding segment of the LCD.

KEY

1

2

3

4

5

BAND

SNOOZE

D.S.T

CLOCK +

CLOCK

SEGMENT

1a, 1b, 1c, 1d, 1e, 1g

2a, 2b, 2c, 2d, 2e, 2f, 2g,

3a, 3b, 3c, 3d, 3e, 3f, 3g,

4a, 4b, 4c, 4d, 4e, 4f, 4g,

5a, 5b, 5c, 5d, 5e, 5f, 5g,

FM, MW, LW

SLEEP

s

6a, 6b, 6c, 6d, 6e, 6f, 6g,

:, .

KEY

CLOCK

OFF

CD

RADIO

WAKE UP TRACK

CD PLAY MODE

TUEN +

TUEN –

SEGMENT

AM, PM,

A CD

CD H

RADIO

TRACK

REP, 1, ALL, SHUFFLE, CD

B RADIO

B BUZZER

• Pressing the [ALARM TIME CHECK] button at end of the LCD test mode shows the version number of the software on the LCD.

• The alarm-dial position detection can be checked and displayed if the alarm-dial is operated while the version number is being displayed

on LCD.

• State of the [ALARM-B: RADIO/BUZZER] slide switch position can be detected and displayed on the alarm picture.

3-2 CD Test Mode

3-2-1 CD TEST-1 (AUTO)

• The CD TEST-1 (AUTO) mode is initiated by turning off the main power once then back on or by resetting the machine while TP414 (CD

TEST, pin-59 terminal) is connected to GND.

• When the machine enters CD TEST-1 (AUTO) mode, it repeats the focus search until the focus becomes OK.

• After the focus becomes OK and the focus is automatically adjusted, rough servo is locked in and the adjustment value is displayed.

F-E BALANCE ADJUSTMENT

TRACKING GAIN ADJUSTMENT

FOCUS BIAS ADJUSTMENT

AM

CD

SRUFFLE

TRACK

•The sled can be moved to the innermost track by pressing the minus (-) button. The sled can be moved to the outermost track by pressing

the plus (+) button.

•When the BAND button is pressed, the machine enters the CLVA (servo ON) and the mute is turned OFF if data is read successfully.

When the following button is pressed, the corresponding operations are performed.

a) 1 Setting the 1 track jump

b) 2 Setting the 10 track jump

c) 3 Setting the 100 track jump

Afterwards the desired track jump can be set by pressing the plus (+) or minus (-) button.

d) 4 TRACKING GAIN-UP

e) BAND’s rough servo

•P5 Restarts CD TEST-1 (AUTO) mode from the focus automatic adjustment

•When the CD button is pressed then, the track jumps to the second session and the machine exits the CD TEST-1 (AUTO) mode.

•When the OFF button is pressed, the CD playback is stopped. If the CD button is pressed again, the machine repeats operations from the

focus search.

3-2-2 CD TEST-2 (MANUAL)

•The CD TEST-2 (MANUAL) mode is initiated by turning off the main power once then back on or by resetting the machine while TP413

(A MUT, pin-58 terminal) is connected to GND.

•When the machine enters CD TEST-2 (MANUAL) mode, it repeats the focus search until the focus becomes OK.

•After the focus becomes OK, the machine enters the rough servo.

•The sled can be moved to the innermost track by pressing the minus (-) button. The sled can be moved to the outermost track by pressing

the plus (+) button.

•When the BAND button is pressed, the machine enters the CLVA (servo ON) and the mute is turned OFF if data is read successfully. When

the BAND button is pressed again, the machine enters the rough servo.

•When the CD button is pressed then, the track jumps to the second session and the machine exits the CD TEST-2 (MANUAL) mode.

•When the OFF button is pressed, the CD playback is stopped. If the CD button is pressed again, the machine repeats operations from the

focus search.

Correspondence between the keys and segments of LCD are as follows.

(LCD segment)

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

—9 —

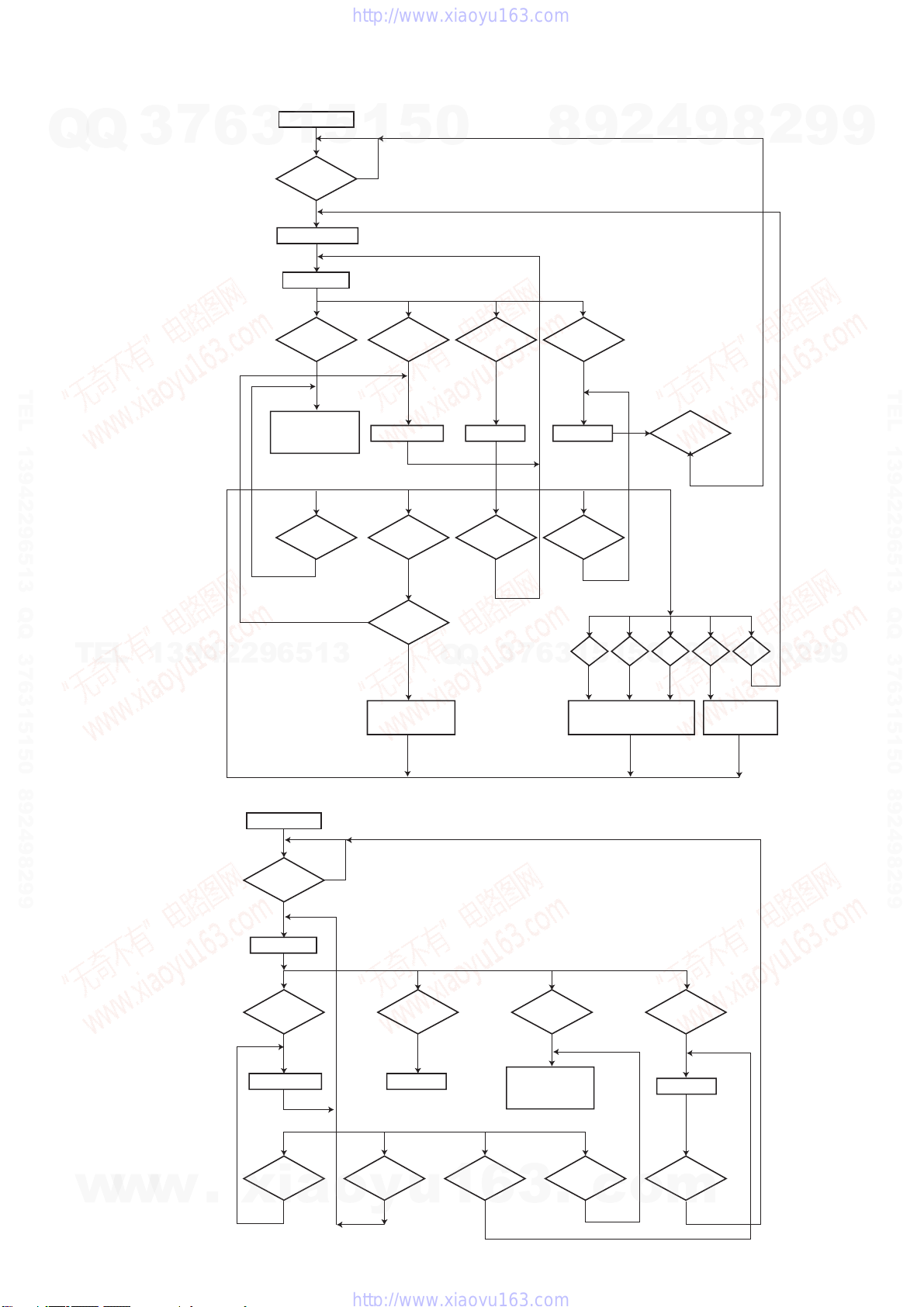

CD TEST-1

FOCUS

OK

Auto adjustment

Rough servo

CD button +button BAND

button

OFF

button

CD

button

CD STOP

Servo ON

Sled maement

TEST MODE END

The second music

played back.

CD button +button BAND

button

OFF

button

123 45

jump has

been set?

Execntes the

setting of jump.

Sets the respective

setup valnes.

TRACKING

GAIN UP

Y

YYY

Y

YYYY

Y

YYYY

N

CD TEST-2

FOCUS

OK

Rough servo

+button

BAND

button

BAND

button

OFF

button

OFF

button

CD

button

CD

button

CD

button

CD STOP

Servo ON

Sled maement TEST MODE END

The second music

played back.

Y

N

YY

YYYYY

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

—10 —

SECTION 4

ELECTRICAL ADJUSTMENTS

FM VCO Adjustment

Procedure:

FM RF signal

generator

Carrier frequency: 98 MHz

Modulation: no modulation

Output level: 0.1 V (100 dB)

0.01 µF

FM lead wire antenna terminal

Connection:

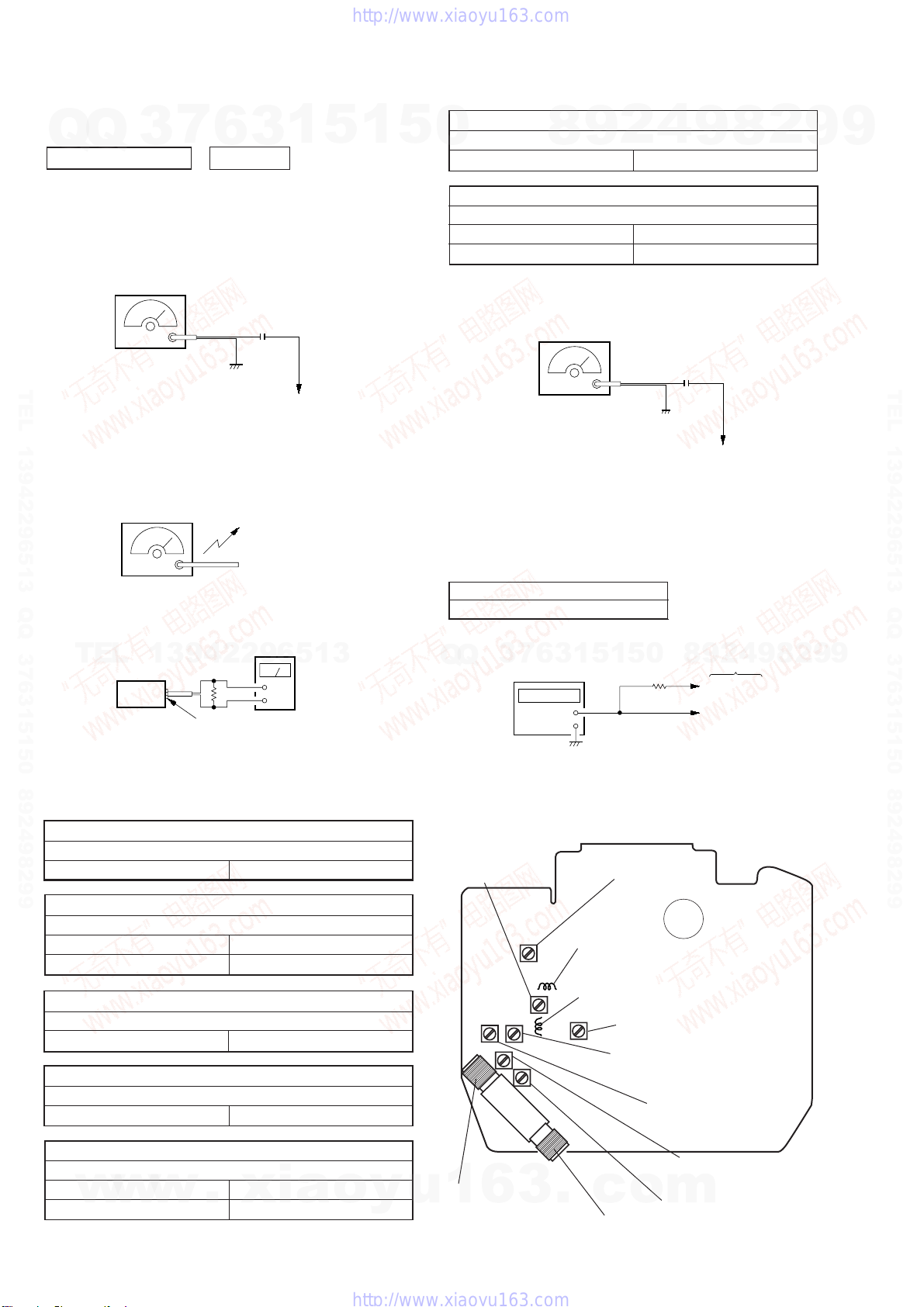

Adjustment Location:

AM IF ADJUSTMENT

Adjust for a maximum reading on level meter

T1 450 kHz

MW FREQUENCY COVERAGE ADJUSTMENT

Adjust for a maximum reading on level meter

L4 530 kHz

MW TRACKING ADJUSTMENT

Adjust for a maximum reading on level meter

L3-1 600 kHz

CT2 1,400 kHz

•Repeat the procedures in each adjustment several times, and the

frequency coverage and tracking adjustments should be finally

done by the trimmer capacitors.

FM FREQUENCY COVERAGE ADJUSTMENT

Adjust for a maximum reading on level meter

L2 87.5 MHz

FM TRACKING ADJUSTMENT

Adjust for a maximum reading on level meter

L1 87.5 MHz

CT1 108.0 MHz

PRECAUTION

•Adjustment should be performed in the order given.

[FM]

Setting:

Function switch : RADIO

BAND switch : FM

[AM]

Setting:

Function switch : RADIO

BAND switch : MW/LW signal

AM RF signal

generator

30% amplitude modulation by

400 Hz signal.

Output level: as low as possible

Put the lead-wire

antenna close to

the set.

FM RF signal

generator

75 kHz frequency deviation

by 1 kHz signal.

Output level: as low as possible

0.01 µF

FM lead wire antenna terminal

level mete

r

set

J301 (phones)

32 Ω

+

–

TUNER SECTION 0 dB=1 µV

Frequency counter

75,500 –76,500 Hz

IC1 Pin 4

+

–

frequency counter 33 k Ω

MAIN Boar

d

IC1 Pin 7

RV1

FM VCO Adjustment

T1

AM IF Adjustment

CT2

MW Traking Adjustment

L2

FM Frequency

Coverage Adjustment

L4

MW Frequency

Coverage Adjustment

L1

FM Tracking Adjustment

CT1

FM Traking

Adjustment

L3-2

LW Traking Adjustment

L3-1

MW Traking Adjustment

CT3

LW Traking Adjustment

CT4

LW Frequency

Coverage Adjustment

[MAIN BOARD] (Component Side)

LW FREQUENCY COVERAGE ADJUSTMENT

Adjust for a maximum reading on level meter

CT4 153 kHz

LW TRACKING ADJUSTMENT

Adjust for a maximum reading on level meter

L3-2 162 kHz

CT3 243 kHz

1. Connect the frequency counter to 4and 7pins of IC1 as shown

the figure right.

2. Tune the set to 98 MHz.

3. Adjust RV1 for 76 kHz reading on frequency counter.

Specification Value:

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

ICF-CD823L

SECTION 5

DIAGRAM

Note on Printed Wiring Board:

•X: parts extracted from the component side.

•b: Pattern from the side which enables seeing.

•a: Through hole.

Note on Schematic Diagrams:

• All capacitors are in µF unless otherwise noted. pF: µµF

50 WV or less are not indicated except for electrolytics

and tantalums.

• All resistors are in Ωand 1/4W or less unless otherwise

specified.

•¢: internal component.

•2: nonflammable resistor.

•C: panel designation.

•H: adjustment for repair.

•U: B+ Line.

• Voltages and waveforms are dc with respect to ground

under no-signal (detuned) conditions.

no mark : FM

( ) : MW/LW

< > : CD

• Voltages are taken with a VOM (Input impedance 10 MΩ).

Voltage variations may be noted due to normal produc-

tion tolerances.

• Signal path.

F: FM

f: MW/LW

J: CD

— 11 — — 12 — — 13 —

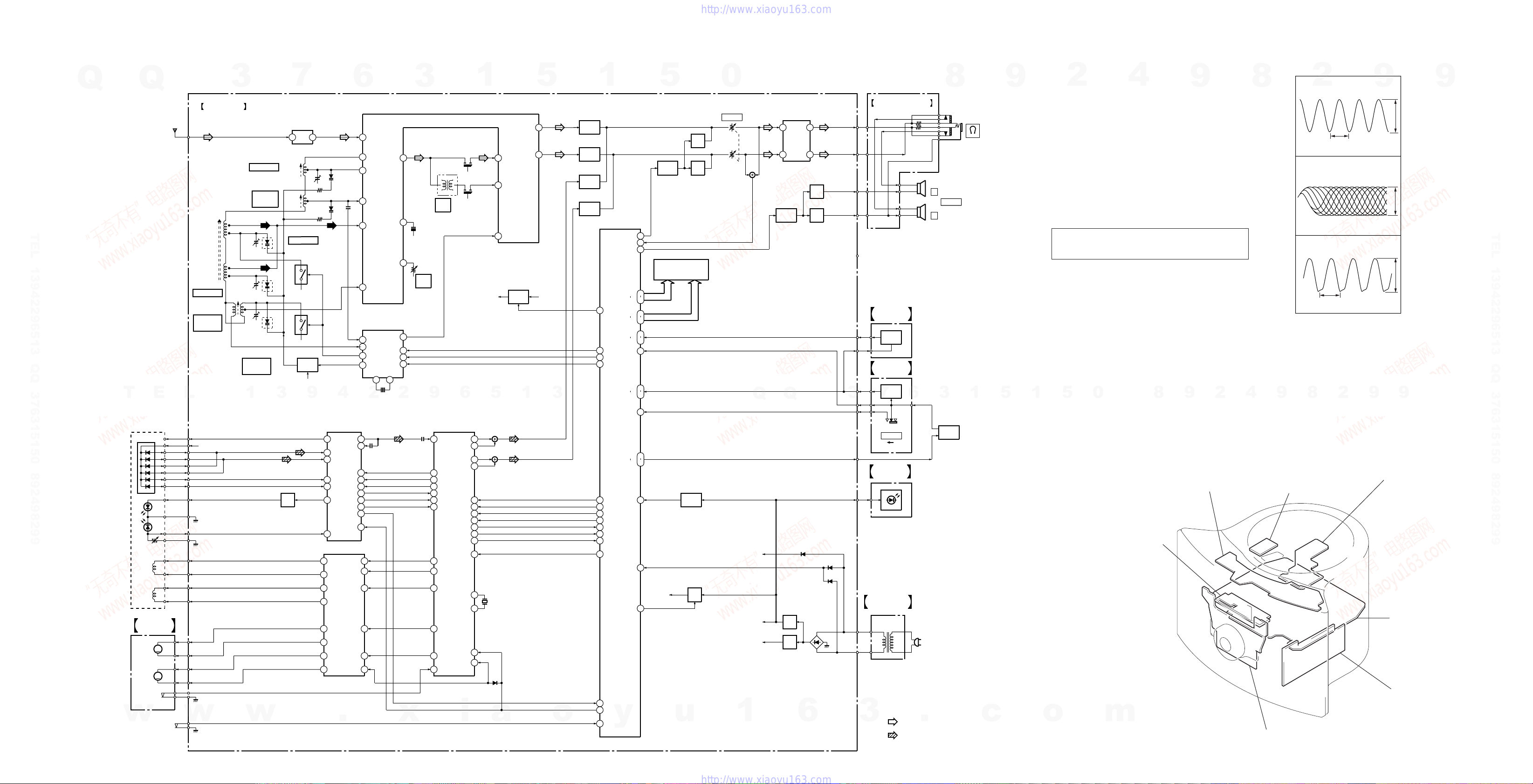

5-1. BLOCK DIAGRAM

5-2. CIRCUIT BOARD LOCATION

• Waveforms

0.2 V/DIV, 500 ns/DIV

1.0 V/DIV, 20

m

s/DIV

2.0 V/DIV, 40 ns/DIV

1

IC401 ud (XT1)

2

IC501 ed (RF0)

(PLAY MODE)

3

IC551 ua (XTA0)

3.4 Vp-p

31 ms

0.9 – 1.3 Vp-p

5.6 Vp-p

59 ns

KEY (UPPER) board HEADPHONE board

MOTOR (6P) board

MAIN board

TRANSFORMER boar

d

BACK LIGHT board

KEY (FRONT) board

Note: The components identified by mark 0or dotted line

with mark 0are critical for safety.

Replace only with part number specified.

: FM

: CD

•Signal Path

SYSTEM CONTROL

IC401

OPTICAL PICK-UP

BLOCK

(KSS-213C)

A

B

C

D

E

F

LD

VC

+5V

GND

PD

VR

LD

DRIVE

FOCUS

COIL

TRACKING

COIL

Q501

RF AMP

IC501

VC

51

PD1

38

PD2

39

E

42

F

41

LD

36

PD

37

MOTOR/COIL DRIVE

IC591

F+

26

F-

27

T+

17

T-

18

SL+

2

SL-

1

M

SLED

MOTOR

SP+

12

SP-

11

M

SPINDLE

MOTOR

F+

F-

T+

T-

25

19

3

24 FEM

7

SLO

16

TAO

13

FEO

6

DIGITAL SIGNAL PROC.

D/A CONV.

IC551

DIGITAL SERVO

RF

35

32

RFI

33

RFO

DATA

20

CLK

23XRST

DATO

12

CLKO

14

67

L OUT1

74

L OUT2

7

DATA

9CLK

8XLAT

4SQCK

57SCOR

5SQSO

71

XTAI

72

XTAO

17

XLDON MUTE

X501

16.9344MHz

C DATA

77

C CLOCK

75

C LATCH

76

C SQCK

56

C SQSO

54

C SENS

52

6

SENS

C MUTE

55

13

14

FM IF

AM IF

FM/AM

FRONT- END

15 BAND

C SCOR

49

(F IN)

SL IN

T IN

F IN

MAIN BOARD

ANT1

18

20

22

19

24

FM RF IN

FM RF OUT

FM OSC

AM RF

AM OSC

BPF1

B.P.F 3

1

IC1

CF3

10.7MHz

T1

AM IFT

MUTE

Q101

MUTE

CONT

Q302

S501

DOOR SW

22

21

XLT XLTO

13

27

FOK FOK

18

24

COUT CIN

11

25SENS1 SEIN

10

26SENS2

76

A OUT2

65

A OUT1

SPOA(LIMIT)

15

62

SMUTE

R CLK

62

R LAT

63

RADIO ON

60

C SENS2

50

C RST

57

21 REG

D5

(1/3)

L3-1

(MW)

L3-2

(LW)

L3

MW/LW FERRITE-ROD

ANTENNA

L1

C T1,L1

FM RF

CT1 D2

D3

L2

FM OSC

CT2

L4

MW/LW

OSC

RESET

IC402

IC51

PLL

FM IN

12

AM IN

11

PD

15

8

P1

5DATA

4

CLK

3

LAT

21

X INX OUT

L.P.F

Q51,52

P2

10

75kHz

X51

PLL +B

16

MIX OUT

CF2

450kHz

26

DISCRI

27

VCO

CF1

RV1

6

L OUT

5

R OUT

BUFFER

Q102

BUFFER

Q202

BUFFER

Q103

BUFFER

Q203

MUTE

Q201

RV301

VOLUME

BOARD

MOTOR(6P)

15 MDP

21

SP IN

7

MUTE

79

XRST

53

BUZZER

58

A MUTE

64

POWER ON

DOOR IN

47

LIMIT

SW

11

12

5

3

IC351

POWOR AMP

MUTE

Q353

MUTE

CONT

Q351,352

MUTE

Q354

J301

SP101

L

SP201

R

SPEAKER

HEADPHONE BOARD

+B SW

Q5 +5VTU +B

R DATA

61

SEG0

SEG15

11

26

LIQUID CRYSTAL

DISPLAY PANEL

LCD401

COM0

COM3

7

10

KS0

KS2

35

37

FUNCTION

KEY

S701-713

BOARD

KEY(UPPER)

FUNCTION

KEY

S715-718

ALARM B

S720

RADIO BUZZER

BOARD

KEY(FRONT)

DIAL

(ALARM)

S719,721-723

D402-404

BOARD

BACK LIGHT

38

KRO0

64

KR04

KR0

KR3

41

44

67

RESET

KRO1

KR03

32

34

D904-907

AC

IN

T901

POWER

TRANSFOMER

BOARD

TRANSFORMER

REG

Q902

REG

Q901

REG

Q301

PLL +B

CD +B

+5V

M +5V

IC402

D901,902

D903

D910

51AC IN

59

CD ON

16

L3-2,CT3

LW TRACKING

L2

FM

FREQUENCY

COVERAGE

MW

FREQUENCY

COVERAGE

AM

IF

FM

VCO

(FM ANTENNA)

M571

M572

S570

D5

(2/3)

D5

(3/3)

CT3

CT4

VREF

Q1 Q1

MW/LW

SWITCHING

Q2

MW/LW

SWITCHING

Q2

FM TRACKING

L3-1,CT2

MW TRACKING

L4

LW

FREQUENCY

COVERAGE

CT4

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

ICF-CD823L

—14 — — 15 — — 16 —

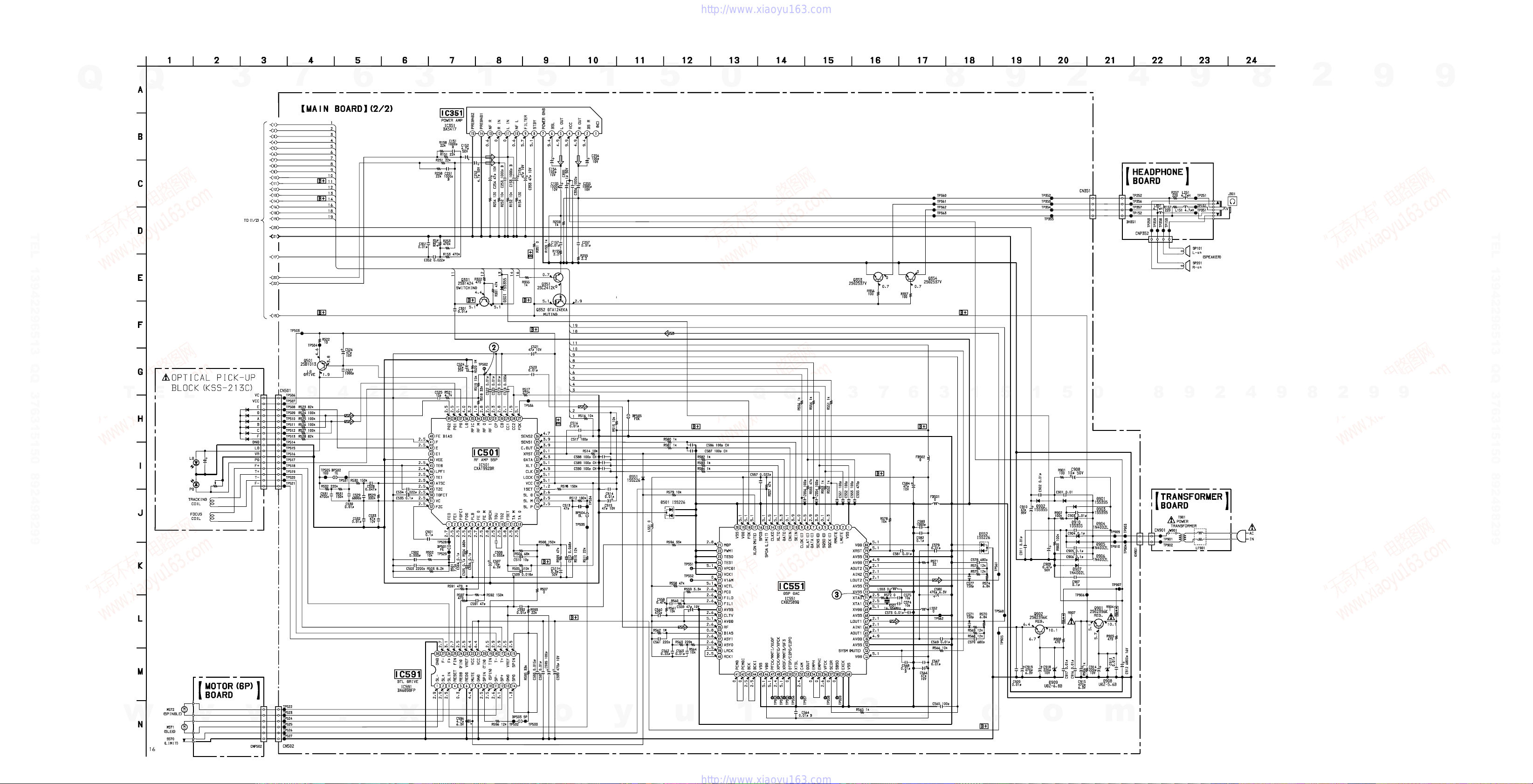

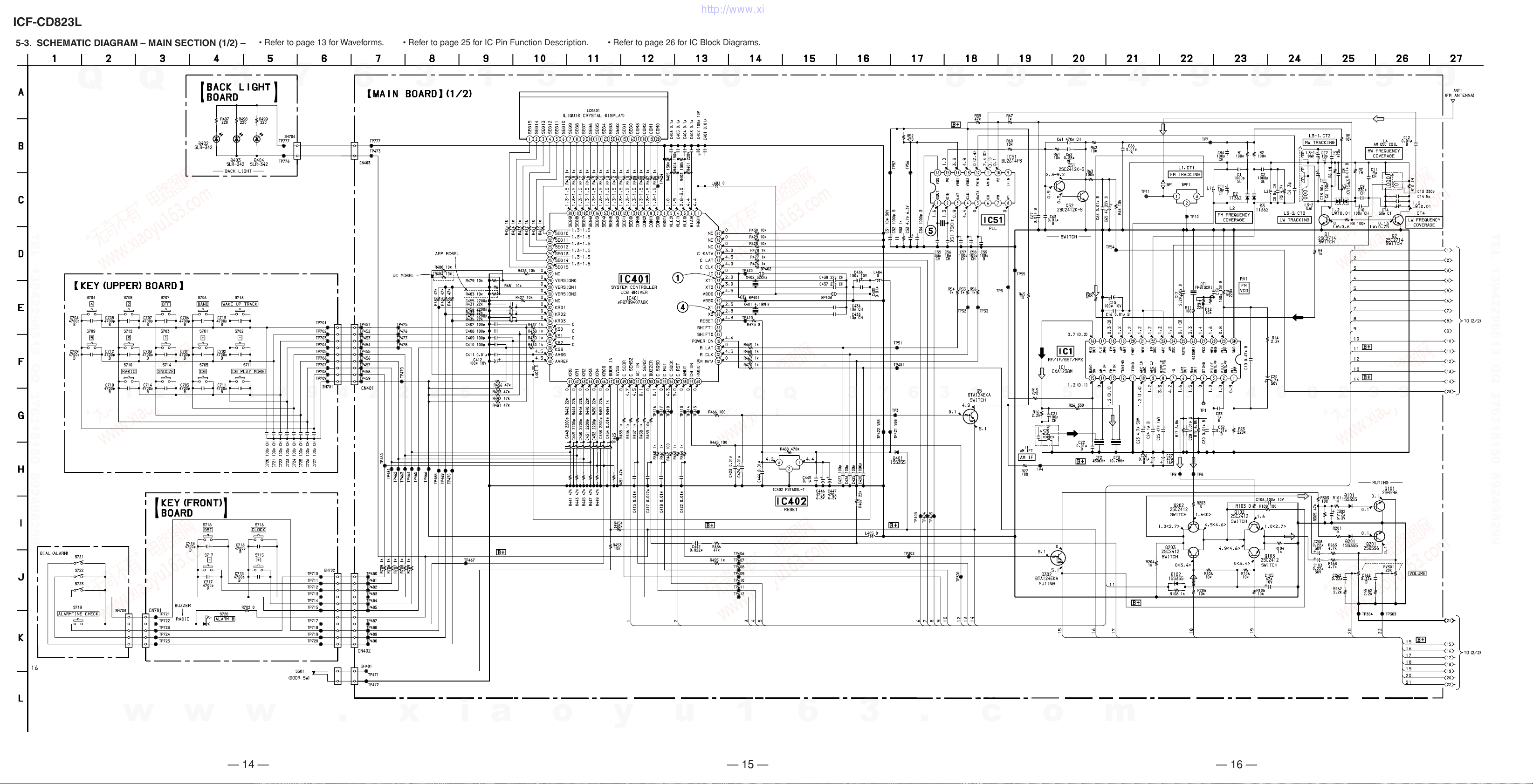

5-3. SCHEMATIC DIAGRAM –MAIN SECTION (1/2) –•Refer to page 13 for Waveforms. •Refer to page 25 for IC Pin Function Description. •Refer to page 26 for IC Block Diagrams.

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

ICF-CD823L

—17 — — 18 — — 19 —

5-4. SCHEMATIC DIAGRAM –MIAN SECTION (2/2) –•Refer to page 13 for Waveforms. •Refer to page 26 for IC Block Diagrams.

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

ICF-CD823L

—20 — — 21 — — 22 —

5-5. PRINTED WIRING

BOARD

–MAIN SECTION –

Ref. No. Location

D2 B-10

D3 B-10

D5 B-11

D101 G-11

D102 F-12

D201 F-11

D301 D-3

D401 D-4

D501 D-2

D551 D-3

D552 D-13

D901 F-8

D902 F-8

D903 F-8

D904 G-8

D905 F-8

D906 F-8

D907 G-8

D908 D-10

D909 E-10

D910 F-8

IC1 C-10

IC51 A-4

IC351 F-10

IC401 D-5

IC402 E-8

IC501 E-2

IC551 D-2

IC591 E-3

Q1 B-11

Q2 B-11

Q5 C-4

Q51 A-10

Q52 A-10

Q101 G-11

Q102 F-11

Q103 F-12

Q201 F-11

Q202 G-11

Q203 G-12

Q301 D-3

Q302 G-11

Q351 F-9

Q352 F-9

Q353 G-9

Q354 G-9

Q501 F-12

Q901 D-10

Q902 E-10

•Semiconductor

Location

•Refer to page 13 for

Circuit Board Location.

-1

-2

MAIN BOARD (SIDE B)

MAIN BOARD (SIDE A)

1-678-388-

11

(11)

1-678-388-

11

(11)

TO

KEY (FRONT)

BOARD C11

R10

B

TO

BACK LIGHT

BOARD

C

TO

KEY (UPPER)

BOARD

A

TO

MOTOR (6P)

BOARD

F

TO

TRANSFORMER

BOARD

TO

HEADPHONE

BOARD

TO

OPTICAL PICK-UP

BLOCK (KSS-213C)

D

E

L3

L4

CT2

CT3

CT4

D5

C62

X51

C51

CN401

CN402

CN403

S501

(DOOR SW)

RV1

CF1

C17

C18

C20

L2

L1

C65

C15

BPF1

CF3

CF2

T1

16

15

30

C25

C23

C566

C584

C580

C511

C515

C521

C524

C526

C559

C599

X501

CN502

Q501

C105C106

C103

C203

CN501

C595

RV301

VOLUME

Q902

Q901

C914

C915

C918

C919

C355 C353 C252

C254

C154

C155

C255

C156C256

C152

R904

R907

IC351

CN351

KH901

C908

C909C910

D905 D906

D907 D904

C447C446

IC402

C912

C436

X402

C402

20

1

8061

60

41

40 21

X401

1

20

LCD401

(LIQUID CRYSTAL DISPLAY)

1

13

14

26

27

39 40 52

14

15 28

120

40

60

61

41

21

80

116

16

12

A

B

C

D

E

F

G

345678910111213

AEP

MODEL

UK

MODEL

1

115

18

916

C14

C 6

R 9

C13

R 8

Q 2

C 5

R 6

Q 1

ANT1

(FM ANTENNA)

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

ICF-CD823L

— 23 — — 24 —

5-6. PRINTED WIRING BOARD – PANEL SECTION – • Refer to page 13 for Circuit Board Location.

HEADPHONE BOARD

MOTOR (6P) BOARD

BACK LIGHT BOARD

TRANSFORMER BOARD

KEY (FRONT) BOARD

KEY (UPPER) BOARD

1-678-392-

11

(11)

1-678-391-

11

(11)

1-678-393- 11

(11)

1-678-390-

11

(11)

1-678-389-

11

(11)

TO

MAIN BOARD

D

TO

MAIN BOARD

C

12

A

B

C

D

E

F

G

345678910

TO

MAIN BOARD

A

TO

MAIN

BOARD

B

TO

MAIN

BOARD

E

TO

MAIN

BOARD F

TO

DIAL (ALARM)

CLOCK

S716

CLOCK

S707

OFF

S703

1

S708

2

S712

3

S711

CD PLAY

MODE

S713

WAKE UP

TRACK

SNOOZE/DATA

SLEEP OFF

S704

4

S709

5

S706

BAND

S710

RADIO S705

CD

S720

ALARM B

S718

D.S.T

S715

S701

S702

S717

BUZZER

RADIO

CN701

BH702

111

BH701

19

TUNING

D404 D403 D402

L251

L151

L351

BH351 CNP352

SP101

(L ch)

SP201

(R ch)

SPEAKER

S714

J301

AC

IN

LF901

CN901

T901

POWER TRANSFORMER

BH704

BACK LIGHT

16

M572

SPINDLE MOTOR

M571

SLED MOTOR

S570

(LIMIT)

R702

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

—25 — — 26 —

5-7. IC PIN FUNCTION DESCRIPTION

•MAIN BOARD IC401 µPD789407AGK-A21-9EU (SYSTEM CONTROL/LCD DRIVER)

Pin No.

1

2

3–5

6

7–10

11–26

27

28–30

31

32–34

35–38

39

40

41–45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78–80

I/O

−

O

−

O

−

Ι

−

Ι

Ο

−

I

−

I

O

I

O

I

−

Ο

Ι

−

Ο

−

Description

System power supply

LCD bias output

LCD drive power supply

Ground

LCD drive common signal

LCD drive segment signal

Not used

Initialization input

Not used

Key return signal

Key strobe signal

Analog power supply

A/D converter reference voltage

Key return signal

CD lid open/close detection

Analog ground

Sub code sync input

CD SENS2 input

Power failure detection

CD SENS1 input

Buzzer input

Sub code Q 80-bit serial output

CD mute

CK for reading sub code Q 80-bit

CD reset output

Audio muting output

CD ON output

Radio ON output

Radio data output

Radio CLK output

Radio LAT output

Power ON output

Serial clock output 0

Serial clock output 1

Serial reset input

Main system clock output

Main system clock input (4.19 MHz)

Ground

System power supply

Sub system clock output

Sub system clock input (32 kHz)

Normally, not used. (Used for writing)

CD CLK output

CD LAT output

CD data output

Not used.

Pin Name

VDD1

BIAS

VLC0–2

VSS1

COM0–3

COM3–15

NC

VERSION0–2

NC

KR01–3

KS0–3

AVDD

AVREF

KR0–4

KR00

DOOR IN

AVSS

C SCOR

C SENS2

AC IN

C SENS1

BUZZER

C SQSO

C MUT

C SQCK

C RST

AMUT

DC ON

RADIO ON

R DATA

R CLK

R LAT

POWER ON

SHIFT0

SHIFT1

RESET

X2

X1

VSS0

VDD0

XT2

XT1

IC

C CLK

C LAT

C DATA

NC

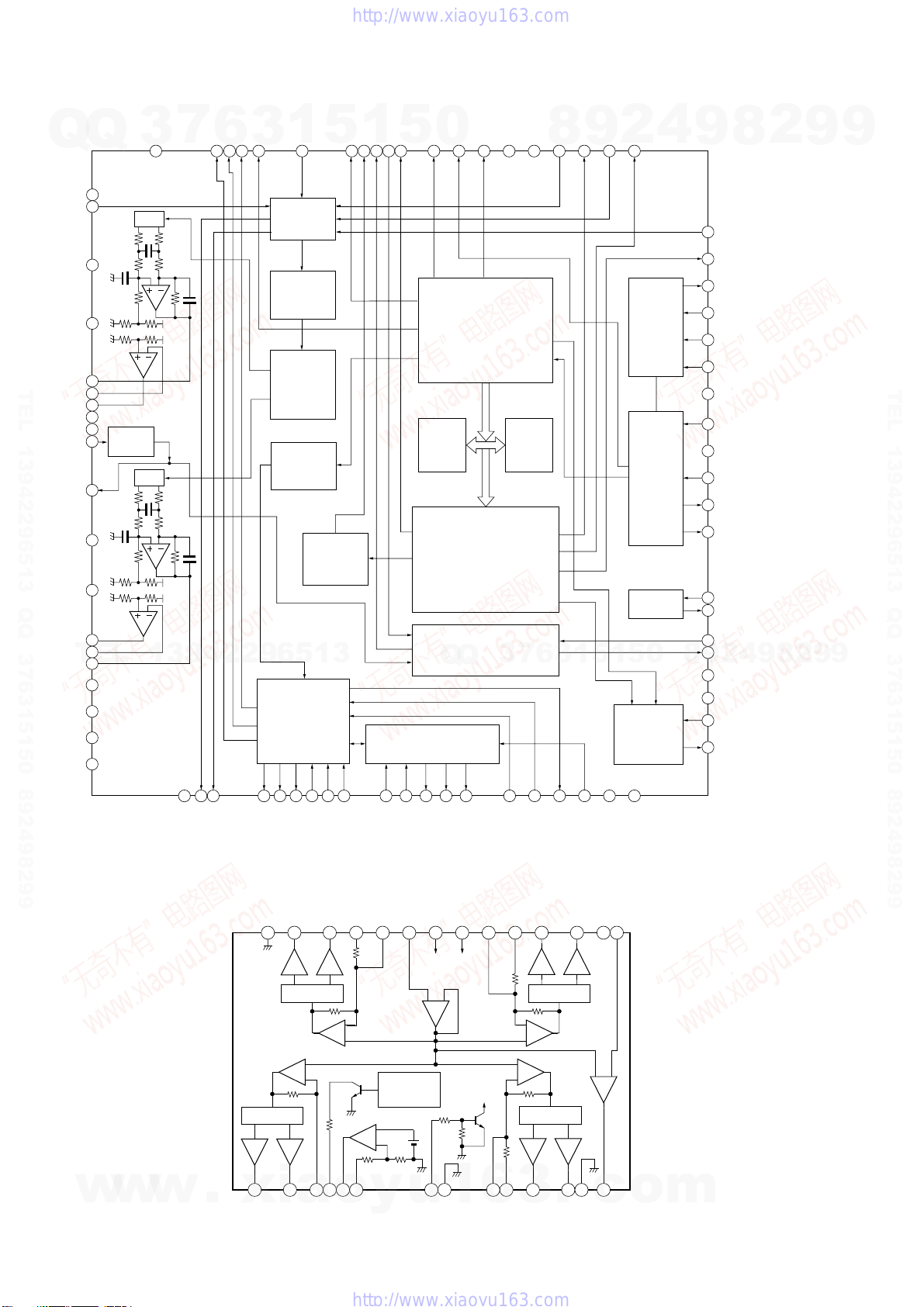

5-8. IC BLOCK DIAGRAMS

IC1 CXA1238M-T6

IC51 BU2614FS-E2

30 29

4 5 6 7 8 9 10 11 12 13 14 15321

28 27 26 25 24 23 22 21 20 19 18 17 16

REG

FM FRONT-END

AM FRONT-END

VCO MPX REG.

1/2

COUNTER

1/2

COUNTER

PD1

PD2

MUTING

DECODER AMP

MONO/ST

SELECT

RIPPLE

FILTER

AUTOBLEND

BAND PASS

MUTE

TUNING

INDICATOR

FM IF/

DISCRI

AM

IF/DET

GND

PLL LPF2

MPX REG

VCO

FM

DISCRI

MUTE

AM OSC

AFC

FM OSC

REG

FM RF

AM RF IN

FM RF IN

BAND SELECT

AM IF IN

FM IF IN

TUNE IND

GND

VCC

L CH OUT

R CH OUT

ST IND/

VCO CHECK

PILOT DET LPF2

PLL LPF1

AGC AFC2

AGC AFC1

RIPPLE

FILTER

FM GND

FM/AM

FE OUT

16 15 14 13 12 11

1235678

4

10 9

PHASE DET MAIN CTL

PRESCALER

COUNT

IF

I/O CTL REDISTER OUT PUT CTL

VSS

PDI

VDD1

VDD2

FM IN

AM IN

P2

IF-IN

P1

P0

CD

DA

CK

CE

X IN

X OUT

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

— 27 —

IC501 CXA1992BR

CHARGE

UP

FSET

TRACKING

PHASE COMPENSATION

FOCUS

PHASE COMPENSATION

40

FE BIAS

41

F

42

E

43

EI

44

VEE

45

TEO

46

LPF1

47

TEI

48

ATSC

49

TZC

50

TDFCT

51

VC

52

FZC

26 SENS2

25 SENS1

24 C OUT

23 XRST

22 DATA

21 XLT

20 CLK

19 LOCK

VCC

17 ISET

16 SL O

SL M

SL P

39

PD2

PD1

38 37

PD0

36

LD

35

RFTC

34

RF M

33

RF O

32

RF I

31

CP

30

CB

29

CC1

28

CC2

27

FOK

1

FEO

FEI

FDFCT

FGD

FLB

FE O

7

FE M

8

SRCH

9

TGU

10

TG2

11

FSET

12

TA M

13

TA O

TM2

TM6

TM4

TM7

TM5

TM3

VEEVEE

TG2

VCC

FS1

FS2

FS4

TG1

TM1

DFCT

VEE

VCC

ISET

VCC

FZC COMP

VCC

VEE

TZC COMP

ATSC

WINDOW

COMP

E-F BALANCE

WINDOW COMP

TOG1

BAL1

BAL2

BAL3

BAL4

IFB1

IFB2

IFB3

IFB4

IFB5

IFB6

TOG2

TOG3

TOG4

E IV AMP

F IV AMP

PD2 IV

AMP

PD1 IV

AMP

VCC

APC

VCC

VEE

TGFL

VEE

LASER POWER CONTROL

FE AMP

RF SUMMING AMP

FO BIAS

WINDOW

COMP

FOK

TRK GAIN

WINDOW COMP

VCC

DFCT

VCC

VEE

MIRR

VEE

IIL

TTL

IIL

TTL

CC1

DFCT1

MIRR

LDON

LPCL

LPC

TGFL

FOH

FOL

TGH

TGL

BALH

BALL

ATSC

TZC

FZC

IIL DATA REGISTER

INPUT SHIFT REGISTER

SENS SELECTOR

OUTPUT DECODER

DFCTO IFB1–6

BAL1–4

TOG1–4

FS1–4 TG1–2 TM1–7 PS1–4

4 5 632

14

15

18

LEVEL 9

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

—28 —

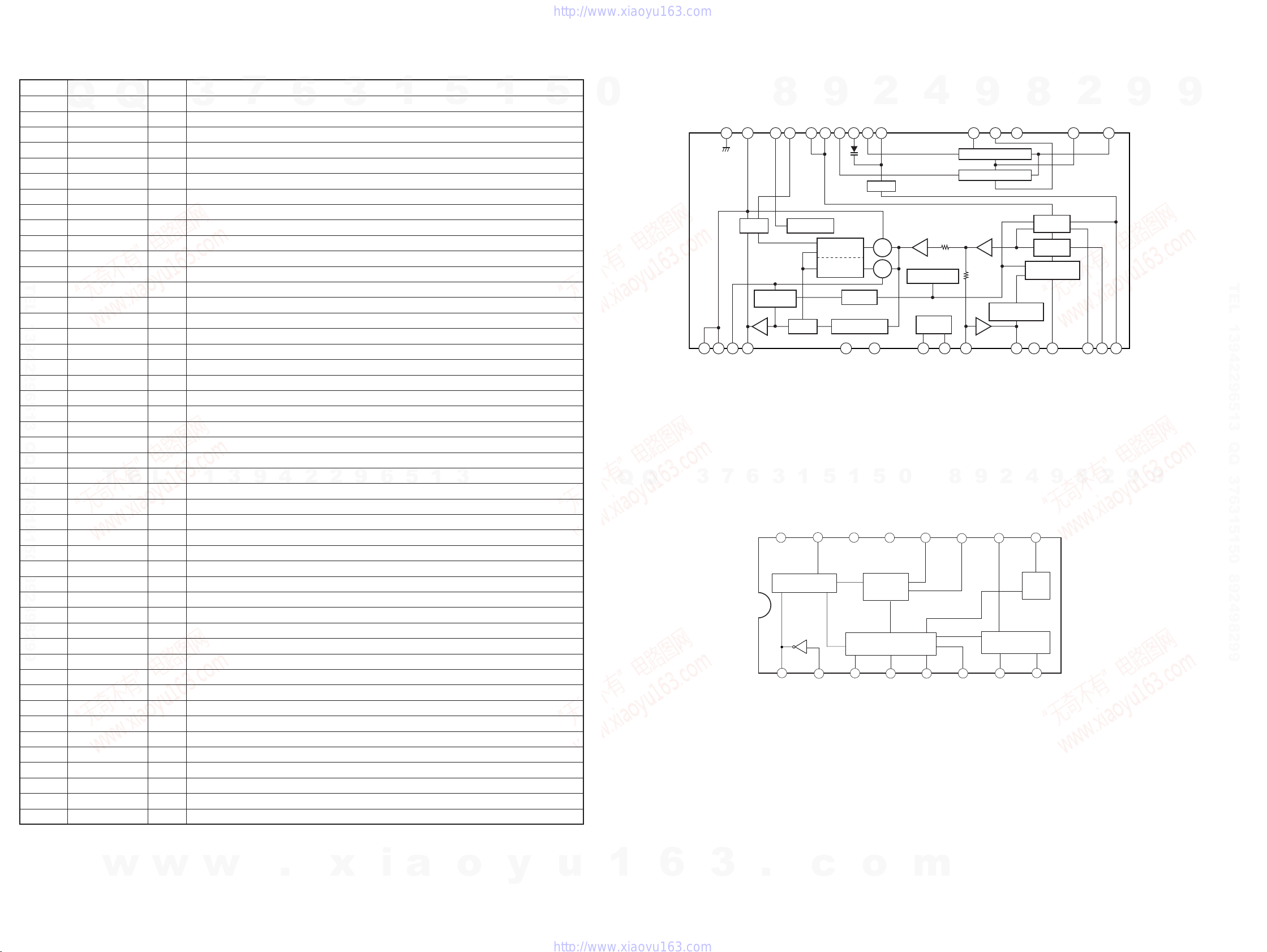

IC551 CXD2589Q

IC591 BA6898FP-E2

CLOCK

GENERATOR

OSC

PWM

ASYMMETRY

CORRECTOR

DIGITAL

PLL

SERVO

AUTO

SEQUENCER

EFM

DEMODULATOR

SUB CODE

PROCESSOR

TIMING

LOGIC

CPU

INTERLACE

ERROR

CORRECTOR 16K

RAM

D/A

INTERFACE

DIGITAL

OUT

DIGITAL

CLV

SERIAL-IN

INTERFACE

OVER SAMPLING

DIGITAL FILTER

3rd-ORDER

NOISE SHAPER

PWM

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

24

123 45678 9 1011121314 15 16 17 18 19 20

23

22

21

VSS

LMUTE

RMUTE

SQCK

SQSO

SENS

DATA

XLAT

CLOK

SEIN

CNIN

DATO

XLTO

CLKO

SPOA

SPOB

XLON

FOK

VDD

VSS

MDP

PWMI

TES0

TES1

VPCO1

VCKI

VCTL

V16M

PCO

FILO

FILI

AVSS

CLTV

AVDD

RF

BIAS

ASYI

ASYO

LRCK

LRCKI

PCMD

PCMDI

BCK

BCKI

VSS

VDD

XUGF

XPCK

GFS

C2PO

XTSL

C4M

DOUT

EMPH

ENPHI

WFCK

SCOR

SBSO

EXCK

VSS

VDD

SYSM

AVSS

AVDD

AOUT1

AIN1

LOUT1

AVSS

XVDD

XTAI

XTAO

XVSS

AVSS

LOUT2

AIN2

AOUT2

AVDD

AVSS

XRST

VDD

+

–

LEVEL SHIFT

28 27 26 25 24 22 21 20 19 18 17 16

+

–

LEVEL SHIFT

+

–

VCC VCC

+

–

LEVEL SHIFT

+

–

LEVEL SHIFT

1 2 3 4 5 6 7 8 9 10 11 12 13 14

REGULATOR

BIAS, T. S. D

MONITOR

+

–

DRIVER

MUTE

+

–

1523

NC

GND

OUT4-B

OUT4-A

IN4

IN4,

VREF IN

VCC

IN3,

IN3

OUT3-A

OUT3-B

NC

OPIN-B

OPOUT

GND

OUT2-B

OUT2-A

IN2

IN2,

GND

MUTE

REGOUT

REG-B

RESET

IN1

OUT1-B

OUT1-A

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

SECTION 6

EXPLODED VIEWS

NOTE:

• -XX, -X mean standardized parts, so they may

have some differences from the original one.

• Items marked “*” are not stocked since they

are seldom required for routine service. Some

delay should be anticipated when ordering these

items.

• The mechanical parts with no reference number

in the exploded views are not supplied.

• Accessories and packing materials are given in

the last of this parts list.

• Abbreviation

CND : Canadian model.

AUS : Australian model.

— 29 —

The components identified by mark 0or

dotted line with mark 0are critical for safety.

Replace only with part number specified.

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

1 3-045-074-01 WINDOW (CD)

2 3-045-079-01 SPRING (CD)

3 3-045-066-01 LID,CD

4 3-045-069-01 BUTTON (SNOOZE)

5 3-045-064-21 CABINET, LOWER

6 3-368-852-01 FOOT

*7 1-678-392-11 TRANSFORMER BOARD

08 1-555-795-00 CORD, POWER (AEP)

08 1-696-572-11 CORD, POWER (UK)

11 3-029-900-11 PLATE (KSM-213CDM), CHUCKING

12 1-452-732-11 MAGNET

S501 1-692-960-11 SWITCH, PUSH (1 KEY) (DOOR SW)

#2 7-685-547-19 SCREW +BTP3X10 TYPE2 N-S

#3 7-685-547-19 SCREW +B3X10 TYPE2 NON-SLIT

#4 7-685-149-11 SCREW +P3X14 TYPE2 NON-SLIT

#3

#2

#4

#2

5

6

7

8

12

11

not

supplied

not

supplied

S501

1

2

3

4

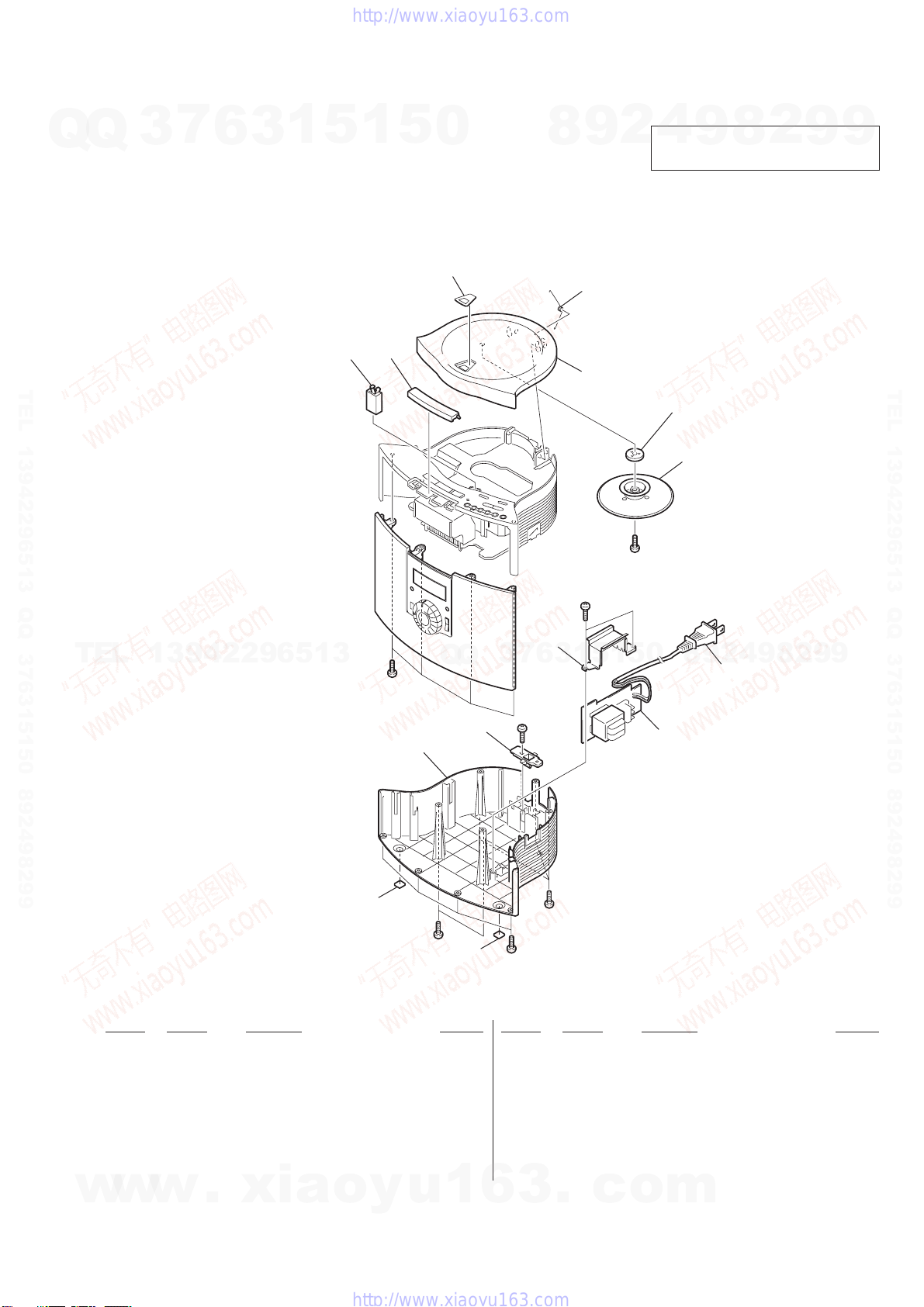

6-1. LOWER CABINET SECTION

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

— 30 —

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

51 3-045-076-01 KNOB(ALARM) (A)

52 3-045-077-01 BUTTON (ALARM) (A)

53 X-3378-844-1 PANEL (FRONT) SUB ASSY

54 3-713-786-51 SCREW +P 2X3

55 X-3379-080-1 CABINET (UPPER) SUB ASSY

56 3-045-071-01 KNOB(ALARM) (B)

57 A-3638-886-A DIAL(ALARM) ASSY

58 7-671-155-01 STEEL BALL 3.0

*59 A-3683-208-A MAIN BOARD,COMPLETE (AEP)

*59 A-3683-209-A MAIN BOARD,COMPLETE (UK)

60 3-382-175-31 KNOB(V)

*61 1-678-391-11 BACK LIGHT BOARD

*62 1-678-389-11 KEY(FRONT) BOARD

*63 1-678-390-11 KEY(UPPER) BOARD

64 3-910-116-01 COVER, CD

65 3-910-095-31 RUBBER, VIBRATION PROOF

66 3-921-725-01 SCREW (2.6X10), +PWH

67 3-931-379-01 RUBBER, VIBRATION PROOF

68 1-777-955-11 WIRE(FLAT TYPE) (16 CORE)

69 3-048-293-01 COVER (UNIT)

70 3-351-377-11 DAMPER

71 3-045-072-01 HOLDER (LCD)

*72 1-639-678-12 MOTOR (6P) BOARD

*73 1-678-393-11 HEADPHONE BOARD

74 X-3378-845-1 NET ASSY

SP101 1-504-460-11 SPEAKER (7.7cm) (L-CH)

SP201 1-504-460-11 SPEAKER (7.7cm) (R-CH)

LCD401 1-804-008-11 DISPLAY PANEL LIQUID CRYSTAL

#1 7-685-133-19 SCREW +BTP2.6X6 TYPE2 N-S

#3 7-685-547-19 SCREW +B3X10 TYPE2 NON-SLIT

55

70

69

64

65

67

72

59

68

66

60

#3

71

61

51

52

56

58

62

73

63

#1

54

57

66

LCD401

SP201

SP101

not

supplied

#3

#1

74 53

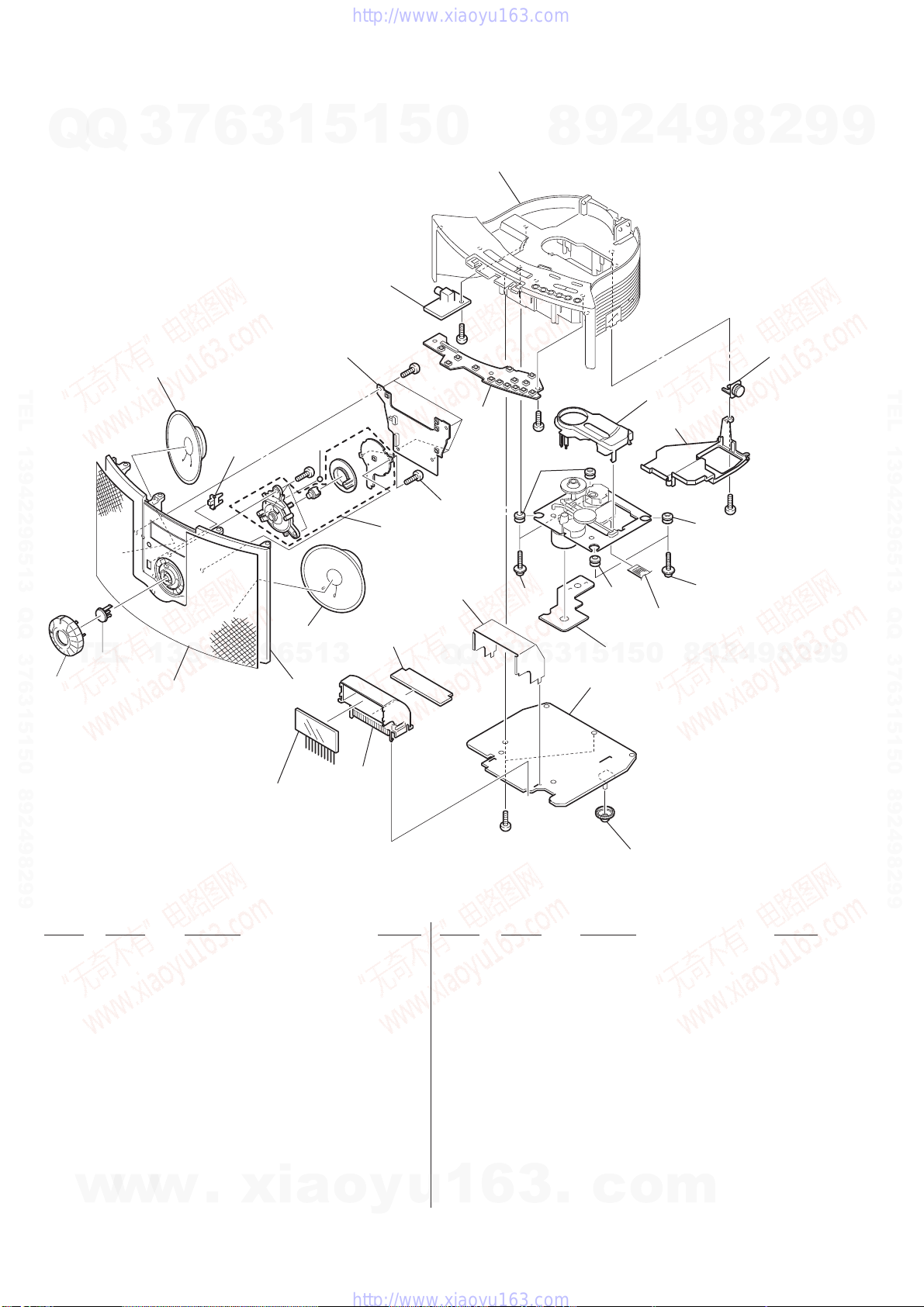

6-2. UPPER CABINET SECTION

Ver 1.1 2001. 04

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

Sony Dream Machine ICF-CD823L User manual

Popular Radio manuals by other brands
