SERVICE MANUAL
MULTI CHANNEL AV RECEIVER
SPECIFICATIONS
STR-DA5200ES
Ver. 1.0 2006.09
– Continued on next page –
9-887-400-01
2006I05-1
© 2006.09
Sony Corporation
Home Audio Division
Published by SonyTechno Create Corporation
US Model
Canadian Model
AEP Model
UK Model
This receiver incorporates Dolby* Digital and Pro Logic Surround and the DTS** Digital Surround System.
*Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic”, “Surround EX”, and the double-D symbol are trademarks of Dolby Laboratories.
** Manufactured under license from Digital Theater Systems, Inc. U.S. Pat.
No’s. 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535 and other U.S. and world-wide patents issued and pending.
“DTS”, “DTS-ES”, “Neo:6”, and “DTS 96/24” are trademarks of Digital Theater Systems, Inc.
Copyright 1996, 2003 Digital Theater Systems, Inc. All Rights Reserved.
AUDIO POWER
SPECIFICATIONS
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:
With 8 ohm loads, both channels driven, from
20 −20,000 Hz; rated 120 watts per channel
minimum RMS power, with no more than
0.09% total harmonic distortion from 250
milliwatts to rated output.
Amplifier section
(US and Canadian models)
POWER OUTPUT
Rated Power Output at Stereo Mode
1) 2)
(8 ohms 20 Hz −20 kHz,
THD 0.09%):
120 W + 120 W
Reference Power Output at Stereo Mode
(4 ohms 20 Hz −20 kHz,
THD 0.15%):
120 W + 120 W
Reference Power Output
(8 ohms 1 kHz, THD 0.7%)
FRONT
2)
:
130 W + 130 W
CENTER
2)
: 130 W
SURROUND
2)
:
130 W + 130 W
SURROUND BACK
2)
:
130 W + 130 W
Reference Power Output
(4 ohms 1 kHz, THD 0.7%)
FRONT
2)
:
130 W + 130 W
CENTER
2)
: 130 W
SURROUND
2)
:
130 W + 130 W
SURROUND BACK
2)
:
130 W + 130 W
1)
Depending on the sound field settings and the
source, there may be no sound output.
2)
Measured under the following conditions:
Power requirements: 120 V AC, 60 Hz
(US and Canadian models)
Amplifier section
POWER OUTPUT
Rated Power Output at Stereo Mode1) 2)
(8 ohms 1 kHz, THD
0.7%):
125 W + 125 W
Reference Power Output at Stereo Mode2)
(4 ohms 1 kHz, THD
0.7%):
125 W + 125 W
Reference Power Output
(8 ohms 20 Hz −20 kHz,
THD 0.09%)
FRONT2):
120 W + 120 W
CENTER2):
120 W
SURROUND2):
120 W + 120 W
SURROUND BACK2):
120 W + 120 W
Reference Power Output
(4 ohms 20 Hz −20 kHz,
THD 0.15%)
FRONT2):
120 W + 120 W
CENTER2):
120 W
SURROUND2):
120 W + 120 W
SURROUND BACK2):
120 W + 120 W
Reference Power Output at Stereo Mode
(8 ohms 1 kHz, THD
10%):
150 W + 150 W
(AEP and UK models)
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

2
STR-DA5200ES
Reference Power Output at Stereo Mode
(4 ohms 1 kHz, THD
10%):
150 W + 150 W
Reference Power Output
(8 ohms 1 kHz, THD 10%)
FRONT
2)
:
150 W + 150 W
CENTER
2)
:
150 W
SURROUND
2)
:
150 W + 150 W
SURROUND BACK
2)
:
150 W + 150 W
Reference Power Output
(4 ohms 1 kHz, THD 10%)
FRONT
2)
:
150 W + 150 W
CENTER
2)
:
150 W
SURROUND
2)
:
150 W + 150 W
SURROUND BACK
2)
:
150 W + 150 W
1)
Depending on the sound field settings and the
source, there may be no sound output.
2)
Measured under the following conditions:
Power requirements: 230 V AC, 50/60 Hz
(in countries/area in Europe
other than the UK)
240 V AC, 50/60 Hz
(in the UK and general area)
AM tuner section (AEP and UK models)
Tuning range 531 −1,602 kHz (With 9-
kHz tuning scale)
Antenna (aerial) Loop antenna (aerial)
Usable sensitivity 50 dB µ/m (at 999 kHz)
S/N 54 dB (at 50 mV/m)
Harmonic distortion 0.5% (50 mV/m, 400 Hz)
Selectivity 35 dB
Frequency response
Inputs (Analog)
Inputs (Digital)
Outputs
EQUALIZER
FM tuner section
Tuning range 87.5 −108.0 MHz
Antenna (aerial) FM wire antenna (aerial)
Antenna (aerial) terminals
75 ohms, unbalanced
Sensitivity
Mono: 18.3 dBf, 2.2 µV/75 ohms
Stereo: 38.3 dBf, 22.5 µV/75 ohms
Usable sensitivity 11.2 dBf, 1 µV/75 ohms
S/N
Mono: 76 dB
Stereo: 70 dB
Harmonic distortion at 1 kHz
Mono: 0.3%
Stereo: 0.5%
Separation 45 dB at 1 kHz
Frequency response 30 Hz −15 kHz, +0.5/−2 dB
Selectivity60dB at 400 kHz
A
(US and Canadian models)
M tuner section
Tuning range 530 −1,710 kHz3) (With
10-kHz tuning scale)
531 −1,710 kHz3) (With 9-
kHz tuning scale)
Antenna (aerial) Loop antenna (aerial)
Usable sensitivity 50 dB µ/m (at 1,000 kHz or
999 kHz)
S/N 54 dB (at 50 mV/m)
Harmonic distortion 0.5% (50 mV/m, 400 Hz)
Selectivity
At 9 kHz: 35 dB
At 10 kHz: 40 dB
3)
You can change the AM tuning scale to either 9
kHz or 10 kHz. After tuning in any AM station,
turn off the receiver. While holding down
TUNING MODE, press POWER on the receiver.
All preset stations will be erased when you change
the tuning scale. To reset the scale to 10 kHz (or 9
kHz), repeat the procedure.
USB section
Bit rate
ATRAC: 48 −352 kbps (ATRAC3
plus), 66/105/132 kbps
(ATRAC3)
MP3 (MPEG 1 Audio Layer-3):
8 −320kbps, VBR
WMA: 48 −192 kbps, VBR
Sampling frequencies
ATRAC: 44.1 kHz
MP3 (MPEG 1 Audio Layer-3):
32/44.1/48 kHz
WMA: 44.1 kHz
PHONO RIAA equalization curve
±0.5 dB
MULTI CHANNEL
INPUT, SA-CD/CD,
TAPE/CD-R,
MD/DAT, DVD,
VIDEO 1/2/3
10 Hz −100 kHz
±3 dB
PHONO Sensitivity: 2.5mV
Impedance: 50kohms
S/N: 90dB (A, 20 kHz
LPF)
MULTI CHANNEL
INPUT, SA-CD/CD,
TAPE/CD-R, MD/DAT,
DVD, TV/SAT,
VIDEO1/2/3
Sensitivity: 150mV
Impedance: 50kohms
S/N: 100dB (A, 20 kHz
LPF)
DVD, TAPE/CD-R,
SA-CD/CD (Coaxial) Impedance: 75ohms S/N: 96dB (A, 20 kHz
LPF)
VIDEO 1/2/3, TV/SAT,
MD/DAT (Optical) S/N: 96 dB (A, 20 kHz LPF)
TAPE/CD-R, MD/DAT
(REC OUT),
VIDEO1/2 (AUDIO OUT)
Voltage:150mV
Impedance: 1kohms
FRONT L/R, CENTER,
SURROUND L/R,
SURROUND BACK L/R,
SUB WOOFER
Voltage: 2V
Impedance: 1kohms
Gain levels ±10 dB, 1 dB step
Video section
Inputs/Outputs
Video: 1 Vp-p, 75 ohms
S video: Y: 1 Vp-p, 75 ohms
C: 0.286 Vp-p, 75 ohms
COMPONENT VIDEO:
Y: 1 Vp-p, 75 ohms
PB/CB: 0.7 Vp-p, 75 ohms
PR/CR: 0.7 Vp-p, 75 ohms
80 MHz HD Pass Through
General (US and Canadian models)
Power requirements 120 V AC, 60 Hz
Power consumption 480 W/580 VA (US/
Canada)
Power consumption (during standby mode)
1 W
AC outlets 2 switched, 100 W/0.8 A
MA
X
Dimensions 430 ×175 ×430 mm
(width/height/depth)
including projecting parts
and controls
Mass (Approx.) 15.5 kg (34 lb 3 oz)
Supplied accessories
Operating Instructions
Quick Setup Guide (1)
Optimizer microphone ECM-AC1 (1)
FM wire antenna (aerial) (1)
AM loop antenna (aerial) (1)
AC power cord (mains lead) (1)
Remote commander RM-AAL005 (1)
(US and Canadian models)
Remote commander RM-AAU009 (1)
R6 (size-AA) batteries (4)
Design and specifications are subject to
change without notice.
General (AEP and UK models)
Power requirements 230 V AC, 50/60 Hz
(in countries/area in
Europe other than UK)
240 V AC, 50/60 Hz
(in UK and general area)
Power consumption 480 W
Power consumption (during standby mode)
1 W
AC outlets 1 switched, 100 W MA
X
(Models for countries/
areas in Europe other than
the UK.)
Dimensions 430 ×175 ×430 mm
(width/height/depth)
including projecting parts
and controls
Mass (Approx.) 15.5 kg
Remote commander RM-AAL006 (1)
(AEP and UK models)
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

3
STR-DA5200ES
Notes on chip component replacement
•Never reuse a disconnected chip component.
•Notice that the minus side of a tantalum capacitor may be
damaged by heat.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0SUR
LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES
PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE
FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS
QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT
DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS
PUBLIÉS PAR SONY.
SAFETY CHECK-OUT
After correcting the original service problem, perform the following
safety check before releasing the set to the customer:
Check the antenna terminals,metal trim, “metallized” knobs, screws,
and all other exposed metal parts forAC leakage.
Check leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes.).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’instructions to use these
instruments.
2. A battery-operatedAC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operatedACvoltmeter.The “limit” indication
is 0.75V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples
of a passiveVOM that is suitable. Nearly all battery operated
digital multimeters that have a 2VAC range are suitable. (See
Fig. A)
Fig. A. Using an AC voltmeter to check AC leakage.
1.5 k Ω 0.15 µ FAC
voltmete
r
(0.75 V)
To Exposed Metal
Parts on Set
Earth Ground
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

4
STR-DA5200ES
TABLE OF CONTENTS
1. SERVICING NOTES .............................................. 5
2. GENERAL .................................................................. 11
3. DISASSEMBLY
3-1. Disassembly Flow .......................................................... 19
3-2. Case ................................................................................ 20
3-3. Front Panel Assy............................................................. 20
3-4. S-VIDEO/CIS Board ...................................................... 21
3-5. Tuner............................................................................... 21
3-6. E-VOLUME Board ........................................................ 22
3-7. VIDEO Board................................................................. 22
3-8. ZONE3/SP TERMINAL Board...................................... 23
3-9. AUDIO Board................................................................. 23
3-10. DC-DC-HDMI Board/Power Transformer (T01)........... 24
3-11. MAIN Board................................................................... 24
4. TEST MODE............................................................. 25
5. ELECTRICAL ADJUSTMENTS ........................ 28
6. DIAGRAMS
6-1. Block Diagram – CONTROL Section – ......................... 29
6-2. Block Diagram – DSP Section – .................................... 30
6-3. Block Diagram
– HDMI RECEIVER/TRANSCEIVER Section – ......... 31
6-4. Block Diagram – VIDEO PROCESS Section – ............. 32
6-5. Block Diagram – USB, XM RECEIVER Section –....... 33
6-6. Block Diagram – ANALOG AUDIO Section – ............. 34
6-7. Block Diagram – POWER AMP Section – .................... 35
6-8. Block Diagram – VIDEO Section – ............................... 36
6-9. Block Diagram – DISPLAY Section – ........................... 37
6-10. Block Diagram – POWER SUPPLY Section – .............. 38
6-11. Printed Wiring Board
– DIGITAL Board (Component Side) – ......................... 40
6-12. Printed Wiring Board
– DIGITAL Board (Conductor Side) –........................... 41
6-13. Schematic Diagram – DIGITAL Board (1/5) – .............. 42
6-14. Schematic Diagram – DIGITAL Board (2/5) – .............. 43
6-15. Schematic Diagram – DIGITAL Board (3/5) – .............. 44
6-16. Schematic Diagram – DIGITAL Board (4/5) – .............. 45
6-17. Schematic Diagram – DIGITAL Board (5/5) – .............. 46
6-18. Schematic Diagram – HDMI Board (1/9) – ................... 47
6-19. Schematic Diagram – HDMI Board (2/9) – ................... 48
6-20. Schematic Diagram – HDMI Board (3/9) – ................... 49
6-21. Schematic Diagram – HDMI Board (4/9) – ................... 50
6-22. Schematic Diagram – HDMI Board (5/9) – ................... 51
6-23. Schematic Diagram – HDMI Board (6/9) – ................... 52
6-24. Schematic Diagram
– HDMI Board (7/9) (US and Canadian models) –........ 53
6-25. Schematic Diagram – HDMI Board (8/9) – ................... 54
6-26. Schematic Diagram – HDMI Board (9/9) – ................... 55
6-27. Printed Wiring Board – HDMI Board (Side A) – ........... 56
6-28. Printed Wiring Board – HDMI Board (Side B) –........... 57
6-29. Printed Wiring Board – DSP Board – ............................ 58
6-30. Schematic Diagram – DSP Board – ............................... 59
6-31. Printed Wiring Board – USB Board – ............................ 60
6-32. Schematic Diagram – USB Board (1/3) – ...................... 61
6-33. Schematic Diagram – USB Board (2/3) – ...................... 62
6-34. Schematic Diagram – USB Board (3/3) – ...................... 63
6-35. Printed Wiring Board – CIS Board –.............................. 64
6-36. Schematic Diagram – CIS Board – ................................ 65
6-37. Printed Wiring Board
– AUDIO Board (Component Side) – ............................ 66
6-38. Printed Wiring Board
– AUDIO Board (Conductor Side) – .............................. 67
6-39. Schematic Diagram – AUDIO Board (1/2) – ................. 68
6-40. Schematic Diagram – AUDIO Board (2/2) – ................. 69
6-41. Printed Wiring Boards – E-VOLUME Section – ........... 70
6-42. Schematic Diagram – E-VOLUME Section –................. 71
6-43. Printed Wiring Board – A CLASS AMP Board – .......... 72
6-44. Schematic Diagram – A CLASS AMP Board – ............. 73
6-45. Printed Wiring Board – POWER AMP Board – ............ 74
6-46. Schematic Diagram – POWER AMP Board – ............... 75
6-47. Printed Wiring Board – BIAS Board –........................... 76
6-48. Schematic Diagram – BIAS Board – ............................. 77
6-49. Schematic Diagram – MAIN Board (1/2) – ................... 78
6-50. Schematic Diagram – MAIN Board (2/2) – ................... 79
6-51. Printed Wiring Board – MAIN Board – ......................... 80
6-52. Printed Wiring Board – VIDEO Board –........................ 81
6-53. Schematic Diagram – VIDEO Board (1/2) –.................. 82
6-54. Schematic Diagram – VIDEO Board (2/2) –.................. 83
6-55. Printed Wiring Board – S-VIDEO Board – .................... 84
6-56. Schematic Diagram – S-VIDEO Board –....................... 85
6-57. Printed Wiring Boards
– SP TERMINAL/VIDEO 3 Boards – ........................... 86
6-58. Schematic Diagram
– SP TERMINAL/VIDEO 3 Boards – ........................... 87
6-59. Printed Wiring Board – DISPLAY Board – ................... 88
6-60. Schematic Diagram – DISPLAY Board – ...................... 89
6-61. Printed Wiring Boards – KEY Section – ........................ 90
6-62. Schematic Diagram – KEY Section – ............................ 91
6-63. Printed Wiring Boards – DC Section – .......................... 92
6-64. Printed Wiring Boards – AC Section –........................... 93
6-65. Schematic Diagram – POWER SUPPLY Section – ....... 94
7. EXPLODED VIEWS
7-1. Case Section ................................................................... 147
7-2. DISPLAY Board Block .................................................. 148
7-3. Front Panel Block ........................................................... 149
7-4. VIDEO Board Block ...................................................... 150
7-5. AUDIO Board Block ...................................................... 151
7-6. MAIN Board Block ........................................................152
7-7. Heat Sink Block.............................................................. 153
8. ELECTRICAL PARTS LIST............................... 154
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

5
STR-DA5200ES
COLOR VARIATION
Destination COLOR
BLACK SILVER
US, Canadian z
AEP, UK zz
SECTION 1
SERVICING NOTES
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
•Unleaded solder melts at a temperature about 40 °C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 °C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!
•Strong viscosity
Unleaded solder is more viscou-s (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
•Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
NOTE THE IC3601 ON THE HDMI BOARD AND
IC084 ON THE USB BOARD REPLACING
Replacement of IC3601 on the HDMI board and IC084 on the USB
board used in this set requires a special tool.
•MODEL IDENTIFICATION
Model PART No.
US and Canadian models 2-668-097-7[]
AEP model 2-668-097-8[]
UK model 2-668-097-9[]
PART No.
– Back Panel –
NOTE OF REPLACING THE IC3509 AND IC3513 ON
THE HDMI BOARD
When IC3509 and IC3513 on the HDMI board are damaged,
exchange the new HDMI board for the HDMI board which IC
damaged. When throwing away the HDMI board, be sure to throw
away after destroying IC3509 and IC3513 physically with the
hammer etc.
UPDATE OF SOFTWARE OF THE SYSTEM CONTROLLER (IC2054)/HDMI CONTROLLER (IC3610)/
USB CONTROLLER (IC006)
Perform operation of the following when the update of software of the system controller (IC2054)/HDMI controller (IC3610)/USB controller
(IC006) is necessary.
Connect:
Procedure:
1. Turn off the main power and setting the jig referring to Fig. 1 (Note: Do this setting before connecting jig with the set).
2. Remove the KNOB (VOL) ASSY and connect CN713 (M-VOLA3 board) and PC by using the jig.
3. Turn on the main power and perform the operation according to the application.
4. After “Please Reset” is displayed, reset switch on the jig is pushed and update is completed.
5. Turn off the main power and remove the jig.
6. Turn on the main power.
JIG
(Part No. : J-2501-300-A)
for PC CN713
M-VOLA3 board
SW2 SW1
(RESET)
SW1: up, SW2: down
When system controller (IC2054) is updated
Fig.1 Setting for jig
SW2SW1
(RESET)
SW1: up, SW2: up
When HDMI controller (IC3610) is updated
SW2SW1
SW1: down, SW2: up
When USB controller (IC006) is updated
(RESET)
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

6
STR-DA5200ES
DIGITAL/HDMI BOARDS SERVICE POSITION
Note: Follow the disassembly procedure in the numerical order given.
Note: In checking the DIGITAL board, remove the HDMI board.
8 DIGITAL board
7 HDMI board
2 nine screws
(BVTP3
× 8)
3 four screws
(B3
× 6)
4 two screws
(BVTP3
× 8)
6 screw
(BVTP3
× 8)
1 screw
(BVTP3
× 8)
5 Raise and remove upwards after pulling to the front.
HDMI board
DIGITAL board
insulated shee
t
insulated sheet
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

7
STR-DA5200ES
AMP BLOCK SERVICE POSITON
In checking the AMP block, prepare jig (extension cable J-2501-290-A: 500 mm 9 core/J-2501-291-A: 500 mm 12 core).
DISPLAY BOARD SERVICE POSITON
A CLASS AMP board
Connect jig (extension cable
J-2501-291-A) to the E-VOLUME board
(CNS1201) and A CLASS AMP board
(CNS1501).
E-VOLUME board
Connect jig (extension cable J-2501-290-A)
to the E-VOLUME board (CNS1202) and A CLASS AMP board (CNS1502).
DISPLAY board
POWER SW board
front panel block
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

8
STR-DA5200ES
VIDEO BOARD SERVICE POSITON
In checking the VIDEO board, prepare jig (extension cable J-2501-231-A: 300 mm 15 core).
AUDIO BOARD SERVICE POSITON
In checking the AUDIO board, remove the VIDEO board and S-VIDEO board.
Connect jig (extension cable J-2501-231-A)
to the VIDEO board (CN6802) and S-VIDEO board (CNS6903).
VIDEO board
S-VIDEO board
insulated shee
t
AUDIO board
insulated sheet
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

9
STR-DA5200ES
MAIN/E-VOLUME BOARDS SERVICE POSITON
In checking the MAIN/E-VOLUME board, prepare jig (extension cable J-2501-290-A: 500 mm 9 core/J-2501-291-A: 500 mm 12 core).
Note: Be sure to ground the MAIN board with a clip when checking it.
– MAIN board –
– E-VOLUME board –
In checking the board, make two
capacitors discharge for electric
shock prevention. (R: 800
Ω /2W)
clip
chassis
Extension cable (Part No.: J-2501-291-A)
to the E-VOLUME board (CNS1201) and
A CLASS AMP board (CNS1501).
MAIN board
C1402
C1402
C1401
C1401
CAUTION
A CLASS AMP board
Extension cable (Part No.: J-2501-290-A)
to the E-VOLUME board (CNS1202) and
A CLASS AMP board (CNS1502).
E-VOLUME board
insulated sheet
JWH1210, JWH1208
(Even if it attaches a clip in JWH1208
and attaches it in JWH1210, it is satisfactory.)
MAIN board
E-VOLUME board
insulated sheet
clip
Extension cable (Part No.: J-2501-291-A)
to the E-VOLUME board (CNS1201) and
A CLASS AMP board (CNS1501).
JWH1210, JWH1208
(Even if it attaches a clip in JWH1208
and attaches it in JWH1210,
it is satisfactory.)
A CLASS AMP board
Extension cable (Part No.: J-2501-290-A)
to the E-VOLUME board (CNS1202) and
A CLASS AMP board (CNS1502).
chassis
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

10
STR-DA5200ES
HARNESS SETTING
front panel block
POWER SW board
Please band together so that a ribbon cable
does not approach a primary side
of POWER SW board.
Please band the cable from aVIDEO 3 board
together in this position.
Please band together so that the ribbon cable
from a DIGITAL board cannot touch a heat sink.
DIGITAL
board
heat sink heat sink
Please band together by purse lock
so that a cable cannot touch a heat sink.
Please band together so that a primary side
cable cannot touch a power transformer.
power
transformer
Please band together so that a cable cannot touch
a power transformer and a heat sink.
Please band together so that the ribbon cable (5pin) to AC board
and the ribbon cable (4 pin) from SP TERMNAL board
do not approach the primary side parts of AC board.
SP TERMNAL board
AC board
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

11
STR-DA5200ES
SECTION 2
GENERAL This section is extracted from
instruction manual.
Description and location of parts (US and Canadian models)
To remove the cover
Press PUSH.
When you remove the cover, keep it out of
reach from children.
Getting Started
Front panel
Name Function
APOWER Press to turn the
receiver on or off
BAUTO CALMIC
jack Connects to the supplied optimizer
microphone for the
Digital Cinema Auto
Calibration function.
CTONE MODE Adjusts FRONT BASS
and FRONT TREBLE.
Press TONE MODE
repeatedly to select
BASS or TREBLE,
then turn TONE to
adjust the level.
TONE
DRemote sensor Receives signals from
remote commander.
EMEMORY/
ENTER Press to operate a tuner (FM/AM/XM Radio).
TUNING MODE
TUNING
FCATEGORY
MODE Used when listening to XM Radio.
CATEGORY +/–
GDisplay
window The current status of theselected component
or a list of selectable
items appears here.
H2CH Press to select sound
field.
A.F.D.
MOVIE
MUSIC
IPOWER Press SELECT
repeatedly to select
zone 2 or zone 3, then
press POWER to
output signals to the
selected zone.
SELECT
JMULTI CH IN Presstoselecttheaudio
input signal from the
component connected
to the MULTI
CHANNEL INPUT
jack.
Name Function
KHDMI Press to select input
source from the
component connected
to the HDMI IN jack.
LPHONES jack Connects to
headphones.
MSPEAKERS
(OFF/A/B/A+B) Switch to OFF, A, B, A+B of the front
speakers.
NVIDEO 3 IN/
PORTABLE AV
IN jacks
Connect to a portable
audio/videocomponent
such as a camcorder or
video game.
OUSB (AUDIO)
jack Connects to a portable audio product with a
USB jack.
PMULTI
CHANNEL
DECODING
lamp
Lights up when multi-
channel audio signals
are decoded.
QINPUT
SELECTOR Turn to select the input source to play back.
RMASTER
VOLUME Turn to adjust the volume level of all
speakers at the same
time.
Name Function
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

12
STR-DA5200ES
Rear panel
AAUDIO INPUT/OUTPUT section
AUDIO IN/
OUT jacks Connect to a tape deck, MD deck or
DAT player, etc.
MULTI
CHANNEL
INPUT jacks
Connect to a Super
Audio CD player or
DVD player with an
analog audio jack for
7.1 channel or 5.1
channel sound.
PRE OUT jacks Connect to an
external power
amplifier.
BDIGITAL INPUT/OUTPUT section
OPTICAL IN/
OUT jacks Connects to a DVD player, Super Audio
CD player, etc. The
COAXIAL jack
provides a better
quality sound.
COAXIAL IN
jacks
HDMI IN/OUT
jacks Connects to a DVD player, or a satellite
tuner. An image and
the sound are output
to TV or a projector.
CANTENNA section
FMANTENNA
jack Connects to the FM wire antenna (aerial)
supplied with this
receiver.
AM
ANTENNA
jack
Connects to the AM
loop antenna (aerial)
supplied with this
receiver.
XM
ANTENNA
jack
Connects to the XM
Connect-and-Play
antenna (aerial) (not
supplied).
DCOMPONENT VIDEO INPUT/
OUTPUT section
COMPONENT
VIDEO (Y, P
B
/
C
B
, P
R
/C
R
)
INPUT/
OUTPUT
jacks*
Connect to a DVD
player, TV, or a
satellite tuner.
ERS-232C jack
Used for
maintenance and
service.
*Youcan watch the selected input image when you
connect the MONITOR OUT jack to a TV.
You can operate this receiver using a GUI
(Graphical User Interface).
FControl jack for Sony equipment
and other external components
CTRL S IN/
OUT jacks Connects to Sony TV, DVD player or
VCR with
CONTROL S jack.
TRIGGER
OUT jacks Connectstointerlock on/off of the power
supply of other 12V
TRIGGER
compliant
components, or the
amplifier/receiver of
zone 2 or zone 3.
IR REMOTE
IN/OUT jacks Connects an IR repeater.
GVIDEO/AUDIO INPUT/OUTPUT
section
AUDIO IN/
OUT jacks Connects to a VCR or a DVD player etc.
VIDEO IN/
OUT jacks*
S VIDEO IN/
OUT jacks*
AUDIO IN/
OUT jack
VIDEO IN/
OUT jacks
Connects to the
component in zone 2
or zone 3.
VIDEO IN jack Connects to the
component when
you want to watch in
PIP (Picture in
Picture) window.
HSPEAKERS section
Connectstospeakers.
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

13
STR-DA5200ES

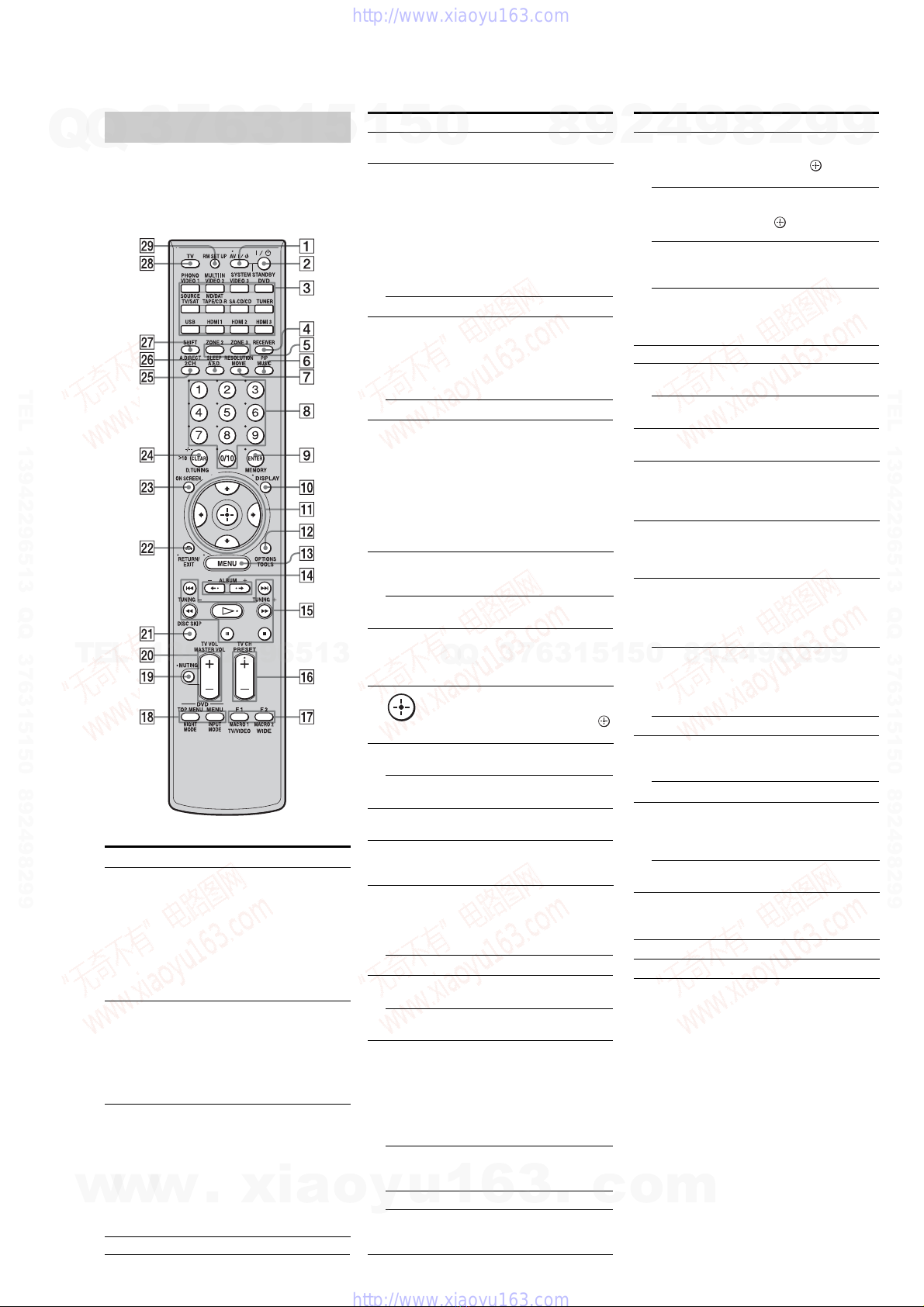

You can use the supplied remote RM-AAL005 tooperate
the receiver and to control the Sony audio/video
components that the remote is assigned to operate.
RM-AAL005
Remote commander
Name Function
AAV ?/1(on/
standby) Press to turn on or off the audio/video
components that the remote is assigned to
operate.
If you press the ?/1(B) at the same time,
it will turn off the receiver and other Sony
components (SYSTEM STANDBY).
Note
The function of the AV ?/1switchchanges
automatically each time youpress the input
button (C).
B?/1(on/
standby) Press to turn the receiver on or off.
If ZONE 2 or ZONE 3 is selected, only the
main receiver is turned on oroff with this
button. To turn off all components
including an amplifier in zone 2 or zone 3,
press ?/1and AV ?/1(A) at the same
same time (SYSTEM STANDBY).
CInput
buttons Press one of the buttons to select the
component you want to use.
Press a pink-labeled button after pressing
SHIFT (wj).Whenyoupress any of the
input buttons, the receiver turns on.
The buttons are factory assigned to control
Sony components. You can program the
remote to to control non-Sony components
following the steps in “Programming the
remote”.
DRECEIVER Press to enable the receiver operation.
EZONE 2
ZONE 3 Press to enable the zone 2/zone 3
operation.
FPIP Press SHIFT (wj), then press PIP toswitch
the image of the PIP(Picture inPicture)
window.
The image will be changed as follows.
EXT VIDEO tZONE 2 VIDEO t
OFF. You canalso change the size of the
PIP window by pressing V/v.
Note
TheHDMIvideo signals are not output
while the PIP window is displayed.
MUSIC Press to select sound field.
G
RESOLUTION Press SHIFT (wj) then press
RESOLUTION repeatedly to change the
resolution of signals output from the
HDMI OUT or COMPONENT
VIDEO MONITOR OUT jack.
MOVIE Press to select sound field.
HNumeric
buttons Press to −preset/tune to preset stations.
−select track numbers of the CD player,
DVD player or MD deck. Press 0/10 to
select track number 10.
−select channel numbers of the VCR or
satellite tuner.
−After pressing TV (wk), press the
numeric buttons to select the TV
channels.
IENTER Press to enter the value after selecting a
channel, disc or track using thenumeric
buttons.
MEMORY Press to store a station during tuner
operation.
JDISPLAY Press to select information displayed on the
display window, TV screen of the VCR,
satellite tuner, CD player, DVD player, or
MD deck.
K
V/v/B/b
After pressing MENU (qd) or TOPMENU
(qk), press V/v, Bor bto select the
settings. Then press
selection. to enter the
Name Function
LOPTIONS Pressto displayandselectitemsfrom option
menus for receiver and DVD player.
TOOLS Pressto displayandselectitemsfrom option
menusfor DVD player, etc.
MMENU Press to display the menu of the
receiver of a DVD player, TV, etc.
NCATEGORY
+/– Press to select the category for XM Radio.
ALBUM +/– Press to replay the previous sceneorfast
forwardthecurrentscene of the VCR or
DVD player.
Om/M
x
X
H
b)
./>
Press to operate the DVD player, CD
player, MD deck or tape deck, etc.
CATEGORY
MODE Press to select the category mode for XM
Radio.
TUNING +/– Press to selest station.
PPRESET
+
b)
/– Press to register FM/AM/XM Radio stationsorto select preset stations.
TV CH +/ – Press TV (wk) and then press TV CH+/−
to operate the TV, satellite tuner, VCR, etc.
QF1/F2 Press TV (wk) and then press F1 or F2 to
select a component to operate.
•HDD recorder
F1: HDD
F2: DVD
•DVD/VHS combo player
F1: DVD
F2: VHS
TV/VIDEO Press TV/VIDEO and TV (wk) atthe same
time to select the input signal (TV input or
video input).
WIDE Press to select the wide picture mode.
MACRO1,
MACRO2 Press RECEIVER (4) and then press MACRO 1 or MACRO 2 to set up the
macro function.
Name Function
b)
The tactile dot is attached to these buttons (H, PRESET+).
Use as a mark of operation.
Notes
•Some functions explained in this section may not work
depending on the model.
•The above explanation is intended to serve as an example only.
Therefore, depending on the component, the above operation
may not be possible or may operate differently than described.
RTOP MENU Press to display the menu or on-screen
guide of the DVD player on the TV screen.
Then use V/v/B/band to perform
menu operations.
MENU Press to display the menus of the DVD
player on the TV screen. Then use
V/v/B/band
operations.
NIGHT
MODE Press RECEIVER (4) and then press NIGHT MODE to activate the NIGHT
MODE function.
INPUT
MODE Press RECEIVER (4) and then press INPUT MODE to select the input mode
when the same components are connected
to both digital and analog jacks.
SMUTING Press to silence the sound.
TMASTER
VOL +
b)
/– Press to adjust the volume level of all speakers at the same time.
TV VOL +/– Press TV (wk) and then press TV VOL +/−
to adjust the volume level of the TV.
UDISC SKIP Press to skip a disc when using a multi-disc
changer.
VRETURN/
EXIT O
Press to return to the previous menuorexit
themenuwhile themenu or on-screen guide
of the VCR, DVD player, or satellite tuner
is displayed on the TV screen.
WON SCREEN Press to turn the GUI display mode on or
off. Press MENU (qd) to display the menu
when “GUI ON” appears on the display.
XCLEAR Press to
−clear a mistake when you press the
incorrect numeric button.
−return to continuous playback, etc. of
the satellite tuner or DVD player.
>10 Press to select
−track numbers over 10 of the VCR,
satellite tuner, CD player or MD deck.
−channel numbers of the Digital CATV
terminal.
D.TUNING Press to enter direct tuning mode.
YA.DIRE CT Press SHIFT (wj) then press A.DIRECT
to switch the audio of the selected input to
analog signal without any adjustment.
2CH Press to select sound filed.
ZSLEEP Press SHIFT (wj) then press SLEEP to
activate the Sleep Timerfunctionandthe
duration which the receiver turns off
automatically.
A.F.D Press to select sound filed.
wj SHIFT Press to light up the button. It changes the
remote button function to activate the
buttons with pink printing.
wk TV Press to enable the TV operation.
wl RM SET UP Press to set up the remote.
to perform a menu
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

14
STR-DA5200ES
RM-AAU009
This remote is only for zone 2/zone 3
operations. You cannot control the main
receiver directly with this remote.
Operating the main receiver from
zone 2
Name Function
A?/1(on/
standby) Pressto turn a receiver in zone 2 or zone 3 on or off.
BCommand
mode
buttons
Press to select the command
mode of the remote.
CInput
buttons Press one of the buttons to select the component you want
to use. When you press any of
the input buttons, the receiver
turns on. The buttons are
factory assigned to control Sony
componentsasfollows.
DMUTING Press to mute the sound.
EMASTER
VOL +/– Press to adjust the volume level for multi zone output.
FRM SET UP Press to change the category of
the buttons.
GRM SET UP
indicator Lights up when data is being sent or when the remote button
assignment is being preset.
*The setting cannot be changed.
Button Assigned Sony
component
VIDEO 1 VCR (VTR mode 3)
VIDEO 2 VCR (VTR mode 1)
VIDEO 3 VCR (VTR mode 2)
DVDDVD player
TV/SAT TV tuner
TAPE/
CD-R Tape deck B
MD/DAT MD deck
SA-CD/CD Super Audio CD/CD
player
TUNER* Built-in tuner
SOURCE The current input
selected for the main
receiver
Operating the components
connected to the main receiver
from zone 2 or zone 3
*The function of these buttons switches
automatically each time you press the input
buttons C. The above explanation is intended to
serve as an example only. Therefore, depending
on the component, the above operation may not
be possible or may operate differently than
described.
Name Function
HOperation
buttons*The following table describes the function of the buttons.
ICH/
PRESET/
D.SKIP
+/–*
Press repeatedly to select a
preset station or channel. When
using a multi-disc changer,
press to skip a disc.
Button(s) Function
NStarts play.(Startsplay
on the front side of the
cassette.)
nStarts play on the
reverse side of the
cassette.
XPauses play or
recording, and starts
recording when the
component is in
recording standby.
xStops play.
./>Skips tracks.
m/MGo backward/forward.
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

15
STR-DA5200ES
Description and location of parts (AEP and UK models)
To remove the cover
Press PUSH.
When you remove the cover, keep it out of
reach from children.
Getting Started
Front panel
Name Function
APOWER Press to turn the
receiver on or off.
BAUTO CALMIC
jack Connects to the supplied optimizer
microphone for the
Digital Cinema Auto
Calibration function.
CTONE MODE Adjusts FRONT BASS
and FRONT TREBLE.
Press TONE MODE
repeatedly to select
BASS or TREBLE,
then turn TONE to
adjust the level.
TONE
DRemote sensor Receives signals from
remote commander.
EMEMORY/
ENTER Press to operate a tuner (FM/AM).
TUNING MODE
TUNING
FDIMMER Press to adjust
brightness of the
display.
GDISPLAY Press to select
information displayed
on the display.
HSUR BACK
DECODING Press to activate SB Decoding.
IDisplay
window The current status of theselectedcomponent
or a list of selectable
items appears here.
J2CH Press to select sound
field.
A.F.D.
MOVIE
MUSIC
KPOWER Press SELECT
repeatedly to select
zone 2 or zone 3, then
press POWER to
output signals to the
selected zone.
SELECT
Name Function
LMULTI CH IN Press toselecttheaudio
input signal from the
component connected
to the MULTI
CHANNEL INPUT
jack.
MHDMI Press to select input
source from the
component connected
to the HDMI IN jack.
NPHONES jack Connects to
headphones.
OSPEAKERS
(OFF/A/B/A+B) Switch to OFF, A, B, A+B of the front
speakers.
PVIDEO 3 IN/
PORTABLE AV
IN jacks
Connect to a portable
audio/videocomponent
such as a camcorder or
video game.
QUSB (AUDIO)
jack Connects to a portable audio product with a
USB jack.
RMULTI
CHANNEL
DECODING
lamp
Lights up when multi-
channel audio signals
are decoded.
SINPUT
SELECTOR Turn to select the input source to play back.
TMASTER
VOLUME Turn to adjust the volume level of all
speakers at the same
time.
Name Function
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

16
STR-DA5200ES
Rear panel
AAUDIO INPUT/OUTPUT section
AUDIO IN/
OUT jacks Connect to a tape deck, MD deck or
DAT player, etc.
MULTI
CHANNEL
INPUT jacks
Connect to a Super
Audio CD player or
DVD player with an
analog audio jack for
7.1 channel or 5.1
channel sound.
PRE OUT jacks Connect to an
external power
amplifier.
BDIGITAL INPUT/OUTPUT section
OPTICAL IN/
OUT jacks Connects to a DVD player, Super Audio
CD player, etc. The
COAXIAL jack
provides a better
quality sound.
COAXIAL IN
jacks
HDMI IN/OUT
jacks Connects to a DVD player, or a satellite
tuner. An image and
the sound are output
to TV or a projector.
CANTENNA section
FMANTENNA
jack Connects to the FM wire antenna (aerial)
supplied with this
receiver.
AM
ANTENNA
jack
Connects to the AM
loop antenna (aerial)
supplied with this
receiver.
DCOMPONENT VIDEO INPUT/
OUTPUT section
COMPONENT
VIDEO (Y, PB/
CB, PR/CR)
INPUT/
OUTPUT
jacks*
Connect to a DVD
player, TV, or a
satellite tuner.
ERS-232C jack
Used for
maintenance and
service.
*Youcan watch the selected input image when you
connect the MONITOR OUT jack to a TV.
You can operate this receiver using a GUI
(Graphical User Interface).
FControl jack for Sony equipment
and other external components
CTRL S IN/
OUT jacks Connects to Sony TV, DVD player or
VCR with
CONTROL S jack.
TRIGGER
OUT jacks Connectstointerlock on/off of the power
supply of other 12V
TRIGGER
compliant
components, or the
amplifier/receiver of
zone 2 or zone 3.
IR REMOTE
IN/OUT jacks Connects an IR repeater.
GVIDEO/AUDIO INPUT/OUTPUT
section
AUDIO IN/
OUT jacks Connects to a VCR or a DVD player etc.
VIDEO IN/
OUT jacks*
S VIDEO IN/
OUT jacks*
AUDIO IN/
OUT jack
VIDEO IN/
OUT jacks
Connects to the
component in zone 2
or zone 3.
VIDEO IN jack Connects to the
component when
you want to watch in
PIP (Picture in
Picture) window.
HSPEAKERS section
Connectstospeakers.
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

17
STR-DA5200ES
Name Function Name Function
You can use the supplied remote RM-AAL006 to operate
the receiver and to control the Sony audio/video
components that the remote is assigned to operate.
RM-AAL006
Remote commander
Name Function
AAV ?/1(on/
standby) Press to turn on or off the audio/video
components that the remote is assigned to
operate.
If you press the ?/1(B) at the same time,
it will turn off the receiver and other Sony
components (SYSTEM STANDBY).
Note
The function of the AV ?/1
switch changes automatically each time
you press the input button (C).
B?/1(on/
standby) Press to turn the receiver on or off.
If ZONE 2 or ZONE 3 is selected, only
the main receiveris turned on or off with
this button. To turn off all components
including an amplifier in zone 2 or zone
amplifier in zone 2 or zone 3, press ?/1
and AV ?/1(A) at the same time
(SYSTEM STANDBY).
CInput
buttons Press one of the buttons to select the component you want to use. Press a
pink-labeled button after pressing SHIFT
(wj).Whenyoupress any of the input
buttons, the receiver turns on. The buttons
are factory assigned to control Sony
components. You can program the remote
to control non-Sony components
following the steps in “Programming the
“Programming the remote”.
DRECEIVER Press to enable the receiver operation.
EZONE 2
ZONE 3 Press to enable the zone 2/zone 3 operation.
FPIP Press SHIFT (wj), then press PIP to
switchthe image of the PIP (Picture in
Picture)window.
The image will be changed as follows.
EXT VIDEO tZONE 2 VIDEO t
OFF. You can also change the size of the
PIP window by pressing V/v.
Note
TheHDMIvideo signals are not output
while the PIP window is displayed.
MUSIC Press to select sound field.
G
RESOLUTION Press SHIFT (wj) then press
RESOLUTION repeatedly to change the
resolution of signals output from the
HDMI OUT or COMPONENT VIDEO
MONITOR OUT jack.
MOVIE Press to select sound field.
HNumeric
buttons Press to −preset/tune to preset stations.
−select track numbers of the CD player,
DVD player or MD deck. Press 0/10 to
select track number 10.
−select channel numbers of the VCR or
satellite tuner.
−After pressing TV (wk), press the
numeric buttons to select the TV
channels.
IENTER Press to enter the value after selecting a
channel, disc or track using the numeric
buttons.
MEMORY Press to store a station during tuner
operation.
JDISPLAY Press to select information displayed on
the display window, TV screen of the
VCR, satellite tuner, CD player, DVD
player, or MD deck.
K
V/v/B/b
After pressing MENU (qd) or TOP
MENU (qk), press V/v, B
or bto select the settings. Then press
to enter the selection.
LOPTIONS Presstodisplayand select items from
option menus for receiver and DVD player.
TOOLS Presstodisplayand select items from the
optionmenus for DVD player, etc.
MMENU Press to display the menu of the receiver
of a DVD player, TV, etc.
NALBUM +/– Press to replay the previous scene or fast
forwardthecurrentscene of the VCR or
DVD player.
Om/M
a)
x
a)
X
a)
H
b)
./>
a)
Press to operate the DVD player, CD
player, MD deck or
tape deck, etc.
TUNING +/– Press to selest station.
PPRESET
+
b)
/– Press to register FM/AM Radio stations or to select preset stations.
TV CH +/– Press TV (wk) and then press TV CH+/−
to operate the TV, satellite tuner, VCR, etc.
QF1/F2 Press TV (wk) and then press F1 or F2 to
select a component to operate.
•HDD recorder
F1: HDD
F2: DVD
•DVD/VHS combo player
F1: DVD
F2: VHS
TV/VIDEO Press TV/VIDEO and TV (wk) at the same
at the same time to select the input signal
(TV input or video input).
WIDE Press to select the wide picture mode.
MACRO1,
MACRO2 Press RECEIVER (4) and then press MACRO 1 or MACRO 2 to set up the
macro function.
a)
See the table on page111 for information on the buttons that you
can use to control each component.
b)
The tactile dot is attached to these buttons (H, PRESET+).
Use as a mark of operation.
Notes
•Some functions explained in this section may not work
on the model.
•The above explanation is intended to serve as an example only.
Therefore, depending on the component, the above operation
may not be possible or may operate differently than described.
RTOP MENU Press to display the menu or on-screen
guide of the DVD player on the TV screen.
Then use V/v/B/band to perform
menu operations.
MENU Press to display the menus of the DVD
player on the TV screen. Then use
V/v/B/band to perform a menu
operations.
NIGHT
MODE Press RECEIVER (4) and then press NIGHT MODE to activate the NIGHT
MODE function.
INPUT
MODE Press RECEIVER (4) and then press INPUT MODE to select the input mode
when the same components are connected
to both digital and analog jacks.
SMUTING Press to silence the sound.
TMASTER
VOL +
b)
/– Press to adjust the volume level of all speakers at the same time.
TV VOL +/– Press TV (wk) and then press TV VOL +/−
to adjust the volume level of the TV.
UDISC SKIP Press to skip a disc when using a
multi-disc changer.
VRETURN/
EXIT O
Press to return to the previous menuorexit
themenu while the menu or on-screen
guide of the VCR, DVD player, or satellite
tuner is displayed on the TV screen.
WON SCREEN Press to turn the GUI display mode on or
off. Press MENU (qd) to display the
menu when “GUI ON” appears on the
display.
XCLEAR Press to
−clear a mistake when you press the
incorrect numeric button.
−return to continuous playback, etc. of
the satellite tuner or DVD player.
>10 Press to select
−track numbers over 10 of the VCR,
satellite tuner, CD player or MD deck.
−channel numbers of the Digital CATV
terminal.
D.TUNING Press to enter direct tuning mode.
YA.DIRECT Press SHIFT (wj) then press A.DIRECT
to switch the audio of the selected input
to analog signal without any adjustment.
2CH Press to select sound filed.
ZSLEEP Press SHIFT (wj) then press SLEEP to
activate the Sleep Timer function and the
duration which the receiver turns off
automatically.
A.F.D Press to select sound filed.
wj SHIFT Press to light up the button. It changes the
changes the remote button function to
activate the buttons with pink printing.
wk TV Press to enable the TV operation.
wl RM SET UP Press to set up the remote.
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

18
STR-DA5200ES
RM-AAU009
This remote is only for zone 2/zone 3
operations. You cannot control the main
receiver directly with this remote.
Operating the main receiver from
zone 2
Name Function
A?/1(on/
standby) Pressto turn a receiver in zone 2 or zone 3 on or off.
BCommand
mode
buttons
Press to select the command
mode of the remote.
CInput
buttons Press one of the buttons to select the component you want
to use. When you press any of
the input buttons, the receiver
turns on. The buttons are
factory assigned to control Sony
componentsasfollows.
DMUTING Press to mute the sound.
EMASTER
VOL +/– Press to adjust the volume level for multi zone output.
FRM SET UP Press to change the category of
the buttons.
GRM SET UP
indicator Lights up when data is being sent or when the remote button
assignment is being preset.
*The setting cannot be changed.
Button Assigned Sony
component
VIDEO 1 VCR (VTR mode 3)
VIDEO 2 VCR (VTR mode 1)
VIDEO 3 VCR (VTR mode 2)
DVDDVD player
TV/SAT TV tuner
TAPE/
CD-R Tape deck B
MD/DAT MD deck
SA-CD/CD Super Audio CD/CD
player
TUNER* Built-in tuner
SOURCE The current input
selected for the main
receiver
Operating the components
connected to the main receiver
from zone 2 or zone 3
*The function of these buttons switches
automatically each time you press the input
buttons C. The above explanation is intended to
serve as an example only. Therefore, depending
on the component, the above operation may not
be possible or may operate differently than
described.
Name Function
HOperation
buttons*The following table describes the function of the buttons.
ICH/
PRESET/
D.SKIP
+/–*
Press repeatedly to select a
preset station or channel. When
using a multi-disc changer,
press to skip a disc.
Button(s) Function
NStarts play.(Startsplay
on the front side of the
cassette.)
nStarts play on the
reverse side of the
cassette.
XPauses play or
recording, and starts
recording when the
component is in
recording standby.
xStops play.
./>Skips tracks.
m/MGo backward/forward.
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

STR-DA5200ES
19
•This set can be disassembled in the order shown below.
3-1. DISASSEMBLY FLOW
Note 1: The process described in can be performed in any order.
Note 2: Without completing the process described in , the next process can not be performed.
SECTION 3
DISASSEMBLY
3-2. CASE
(Page 20)
3-4. S-VIDEO/CIS
BOARD
(Page 21)
3-3. FRONT PANEL
ASSY
(Page 20)
3-7. VIDEO BOARD
(Page 22) 3-5. TUNER
(Page 21)
3-10. DC-DC-HDMI BOARD/
POWER TRANSFORMER
(T01)
(Page 24)
3-6. E-VOLUME
BOARD
(Page 22)
SET
3-9. AUDIO BOARD
(Page 23)
3-11. MAIN BOARD
(Page 24)
3-8. ZONE3/
SP TERMINAL
BOARD
(Page 23)
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

STR-DA5200ES
20
3-3. FRONT PANEL ASSY
Note: Follow the disassembly procedure in the numerical order given.
3-2. CASE
3 flat head screw
4 case
1 two screws (4 × 8)
2 two flat head screws
1 two screws (4 × 8)
1 connector
(CNP53)
9 two screws
(BVTP3
× 8)
8 five screws
(BVTP3
× 8)
0 front panel assy
6 connector
(CN2014)
7 connector
(CN2030)
5 connector
(CN2016)
4 connector
(CN2015)
3 connector
(CNP6902)
2 connector
(CN606)
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
