SERVICE MANUAL
USB ACTIVE SPEAKER SYSTEM
US Model
AEP Model
UK Model
E Model
SPECIFICATIONS
SS-US501/SW-US501/UZ-US501
Ver 1.0 2004.01
9-877-530-01 Sony Corporation
2004A05-1 Aiwa Original Products
C2004.01 Published by Sony Engineering Corporation
For the U.S.A. model
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:
With 4 ohms loads subwoofer driven, from
20 - 200 Hz; rated 20 watts minimum RMS
power, with no more than 0.8% total
harmonic distortion from 250 milliwatts to
rated output.
SW-US501 (Subwoofer)
Max. output
Subwoofer: 30 W (4 ohms)
Front: 14 W + 14 W (8 ohms)
Dual center*: 14 W (4 ohms + 4 ohms)
Surround*: 14 W + 14 W (8 ohms)
*Depending on the sound field settings and the
source, there may be no sound output.
Speaker system Bass reflex type
Speaker unit 130 mm (5
1
/ 8 in.) dia.
cone type
Dimensions (approx.)
160 ×300 ×300 mm
(6
3
/ 8 ×11
7
/ 8 ×11
7
/ 8 in.)
(w/h/d, not including the
projecting parts)
Mass (approx.) 5.8 kg (12 lb 13 oz)
SS-US501 (Front/Center speakers)
Speaker system Front: Closed box type
Center: Uni directional type
Speaker unit Front: 58 mm (2
3
/ 8 in.) dia.
cone type
Center: 48 mm (1
15
/ 16 in.) dia.
cone type
Rated impedanceFront: 8 ohms
Center: 4 ohms + 4 ohms
Dimensions (approx.)
85 ×200 ×125 mm
(3
3
/ 8 ×7
7
/ 8 ×5 in.)
(w/h/d, not including the
projecting parts)
Mass (approx.) 650g (1 lb 7 oz) ×2
Length of cable 3 m (9 ft.)
SS-US501 (Surround speakers)
Speaker system Closed box type
Speaker unit 58 mm (2
3
/ 8 in.) dia. cone type
Rated impedance 8 ohms
Dimensions (approx.)
85 ×106 ×125 mm
(3
3
/ 8 ×4
1
/ 4 ×5 in.)
(w/h/d, not including the
projecting parts)
Mass (approx.) 350g (13 oz) ×2
Length of cable 8 m (24 ft.)
General
Power requirements
U.S.A. model: 120 V AC, 60 Hz
Other model: 220-240 V AC,
50/60 Hz
Power consumption
U.S.A. model: 75 W
1.2 W
(at the Power Saving Mode)
Other model: 75 W
0.3 W
(at the Power Saving Mode)
Operating temperature 5ßC to 35ßC
Operating humidity 5 % to 90 %
Supplied accessories
Design and specifications are subject to change
without notice.
USB cable 1.8 m
(5.9 ft.) (1)
Remote commander
(remote) RM-Z7S101 (1)
CD-ROM WinDVD (1)
Operating Instructions
(this book) (1)
•UZ-US501 consists of the following models respectively.
UZ-US501
Subwoofer SW-US501
Front/Center Speakers SS-US501
Surround Speakers
This system incorporates Dolby* Digital and Pro Logic Surround and
the DTS** Digital Surround System.
* Manufactured under license from Dolby Laboratories.
Dolby , Pro Logic , and the double-D symbol are trademarks of
Dolby Laboratories.
**Manufactured under license from Digital Theater Systems, Inc. DTS and
DTS Digital Surround are registered trademarks of Digital Theater Systems, Inc.
SS-US501
(SURROUND) SS-US501 (FRONT/CENTER) SW-US501
(SUBWOOFER) SS-US501
(FRONT/CENTER) SS-US501 (SURROUND)

2
SS-US501/SW-US501/UZ-US501
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED
LINE WITH MARK 0ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
Notes on chip component replacement
•Never reuse a disconnected chip component.
•Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
•Unleaded solder melts at a temperature about 40 ˚C higher than
ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 ˚C.
Caution: The printed pattern (copper foil) may peel away if the
heated tip is applied for too long, so be careful!
•Strong viscosity
Unleaded solder is more viscou-s (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges oc-
cur such as on IC pins, etc.
•Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
SAFETY CHECK-OUT
After correcting the original service problem, perform the follow-
ing safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs,
screws, and all other exposed metal parts for AC leakage.
Check leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes.).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’instructions to use these
instruments.
2. A battery-operatedAC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The “limit” indica-
tion is 0.75 V, so analog meters must have an accurate low-
voltage scale. The Simpson 250 and Sanwa SH-63Trd are ex-
amples of a passive VOM that is suitable. Nearly all battery
operated digital multimeters that have a 2VAC range are suit-
able. (See Fig. A)

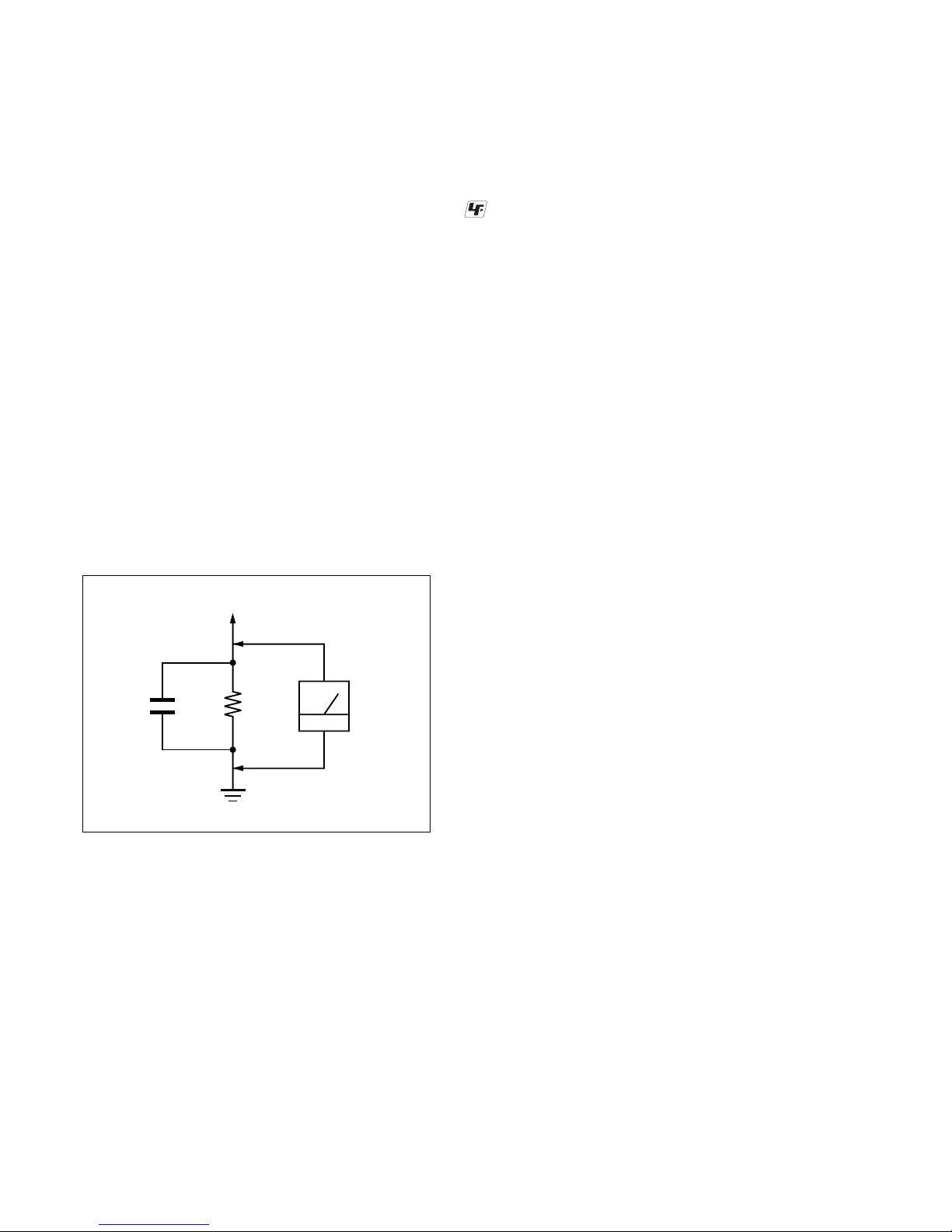

Fig. A. Using an AC voltmeter to check AC leakage.
1.5 k Ω 0.15 µ FAC
voltmete
r
(0.75 V)
To Exposed Metal
Parts on Set
Earth Ground

3
SS-US501/SW-US501/UZ-US501
TABLE OF CONTENTS
1. SERVICING NOTE ................................................. 3
2. GENERAL .................................................................. 4

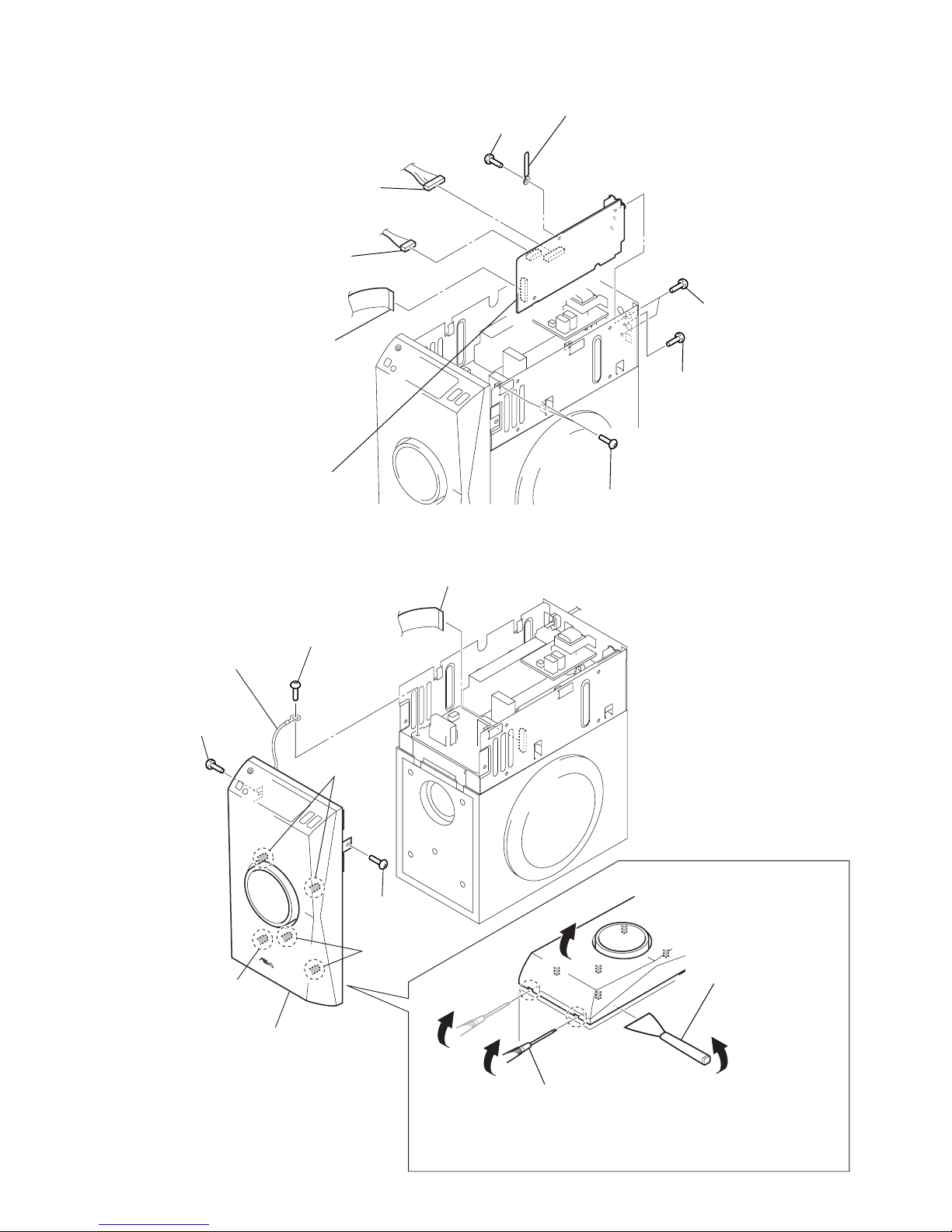

3. DISASSEMBLY
3-1. Disassembly Flow ........................................................... 6
3-2. Top Chassis ..................................................................... 6
3-3. DIGITAL Board .............................................................. 7
3-4. Front Cabinet Section ..................................................... 7
4. TEST MODE............................................................. 8
5. DIAGRAMS

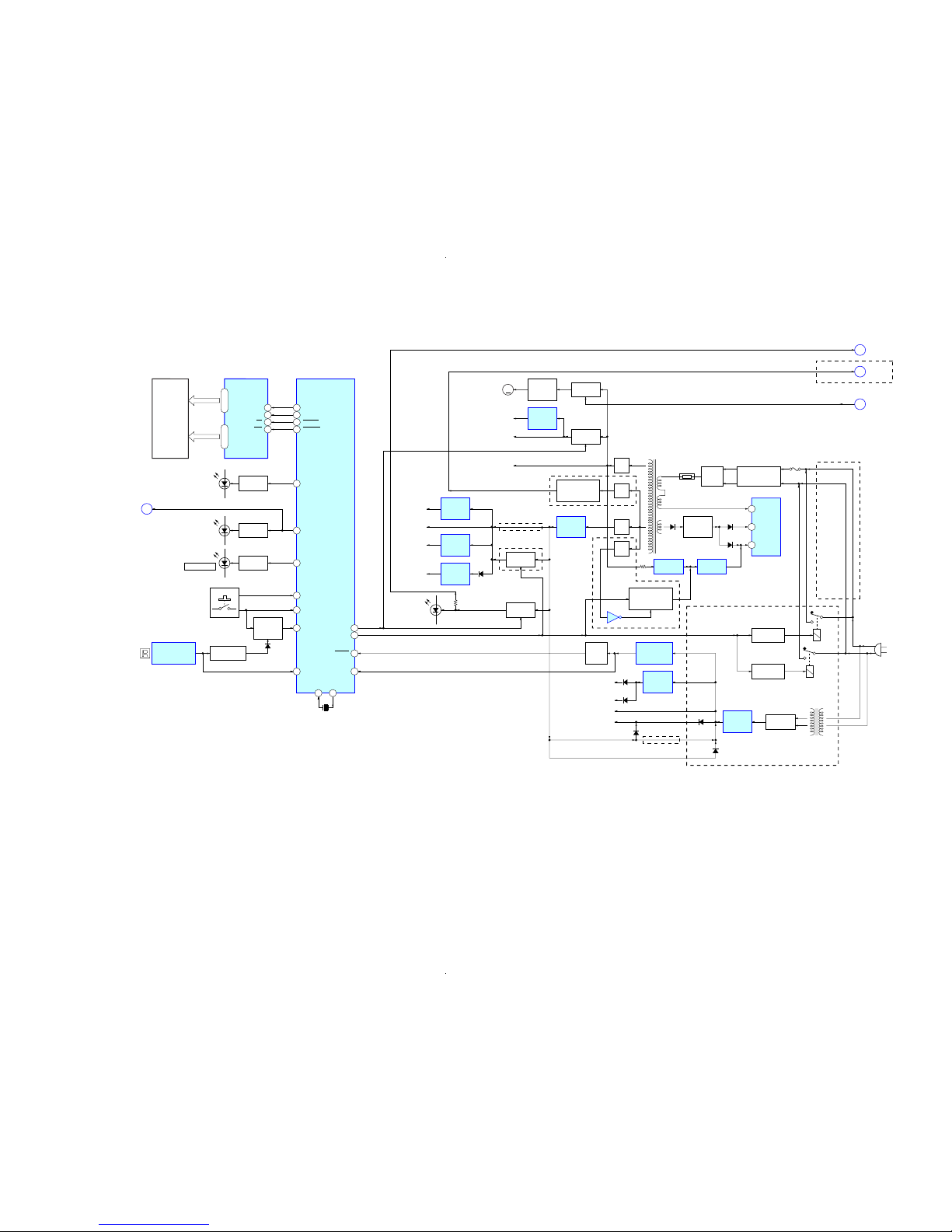

5-1. Block Diagram – MAIN Section – ................................ 9
5-2. Block Diagram
– DISPLAY/POWER SUPPLY Section – ...................... 10
5-3. Note for Printed Wiring Boards and
Schematic Diagrams ....................................................... 11

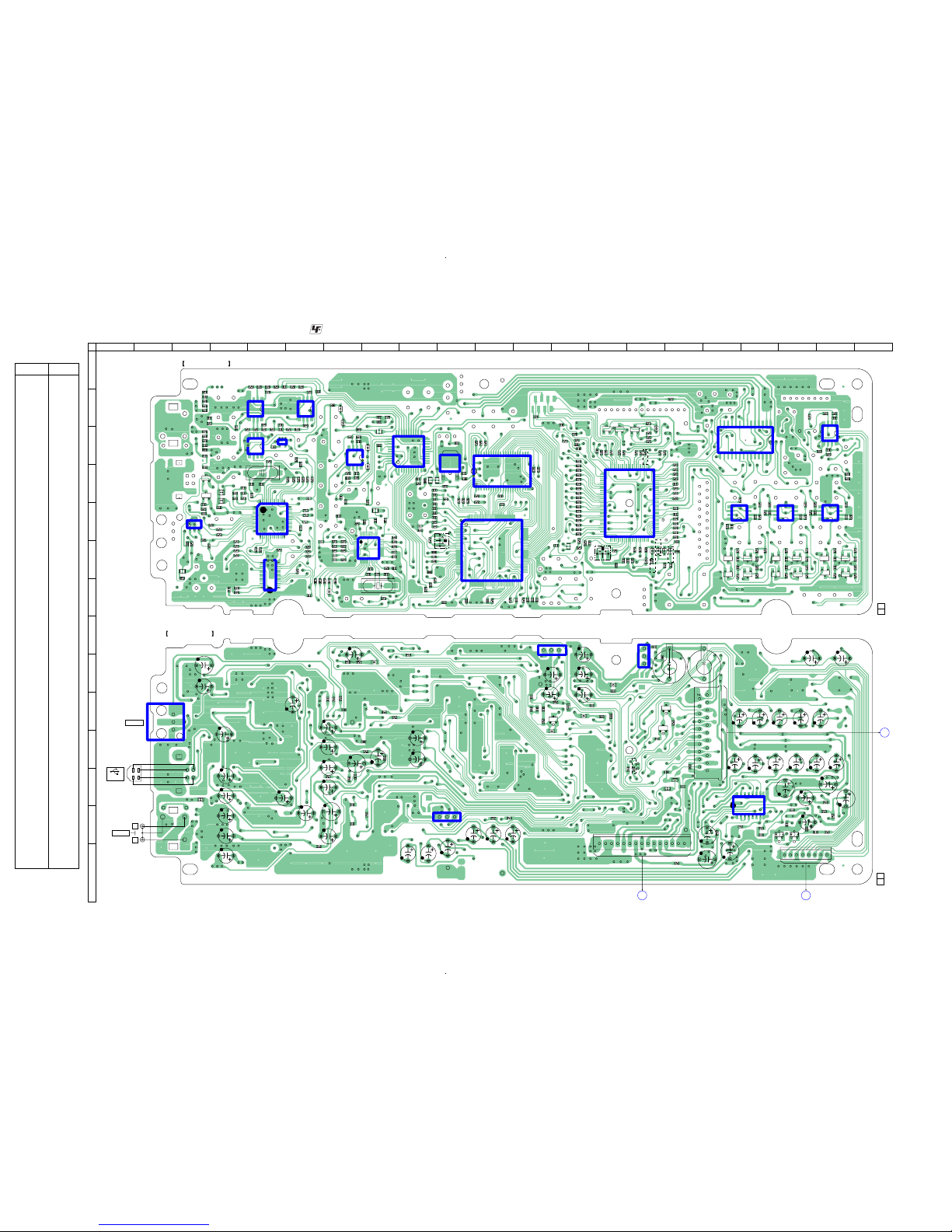

5-4. Printed Wiring Board – DIGITAL Board – ................... 12

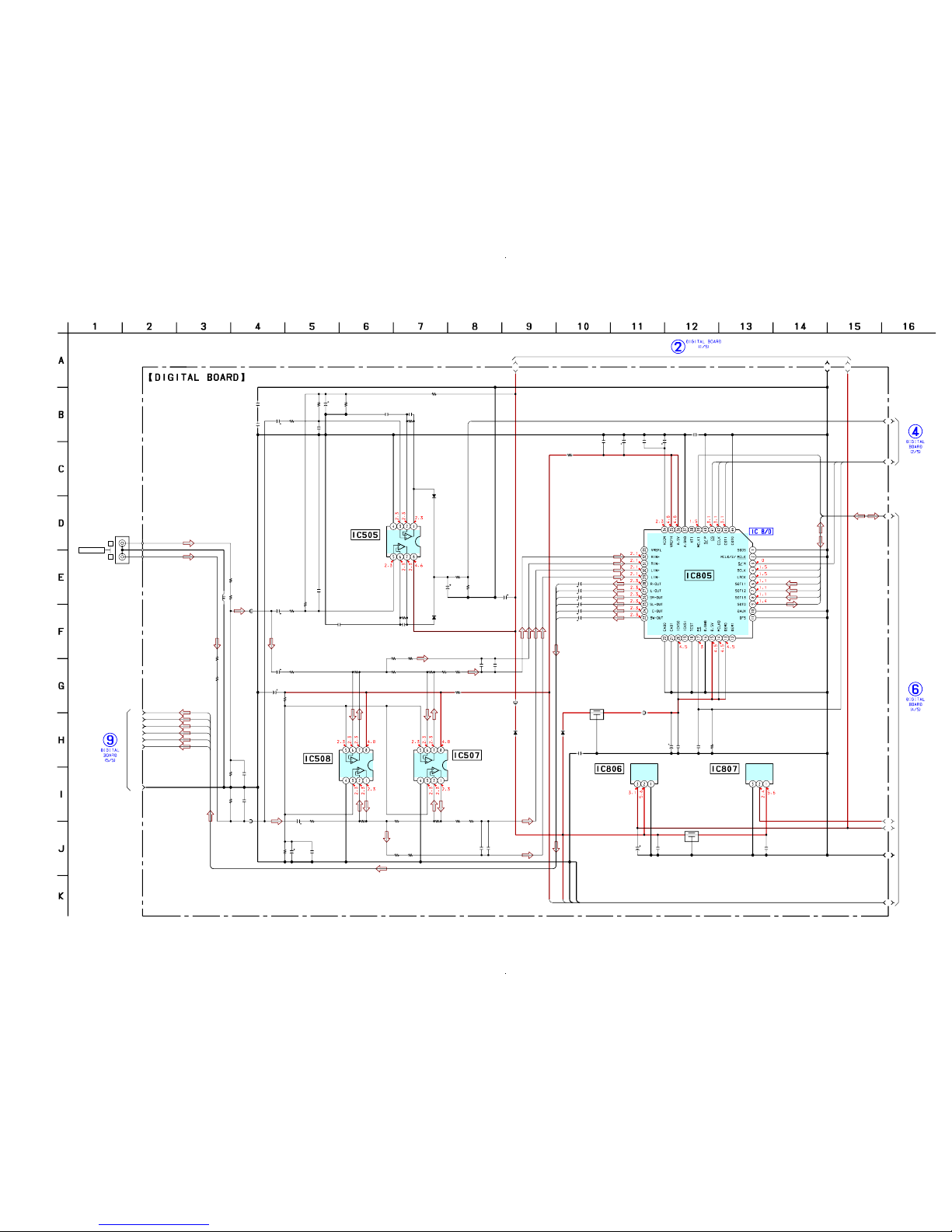

5-4. Schematic Diagram – DIGITAL Board (1/5) –............. 13
5-5. Schematic Diagram – DIGITAL Board (2/5) –............. 14
5-6. Schematic Diagram – DIGITAL Board (3/5) –............. 15
5-7. Schematic Diagram – DIGITAL Board (4/5) –............. 16
5-9. Schematic Diagram – DIGITAL Board (5/5) –............. 17

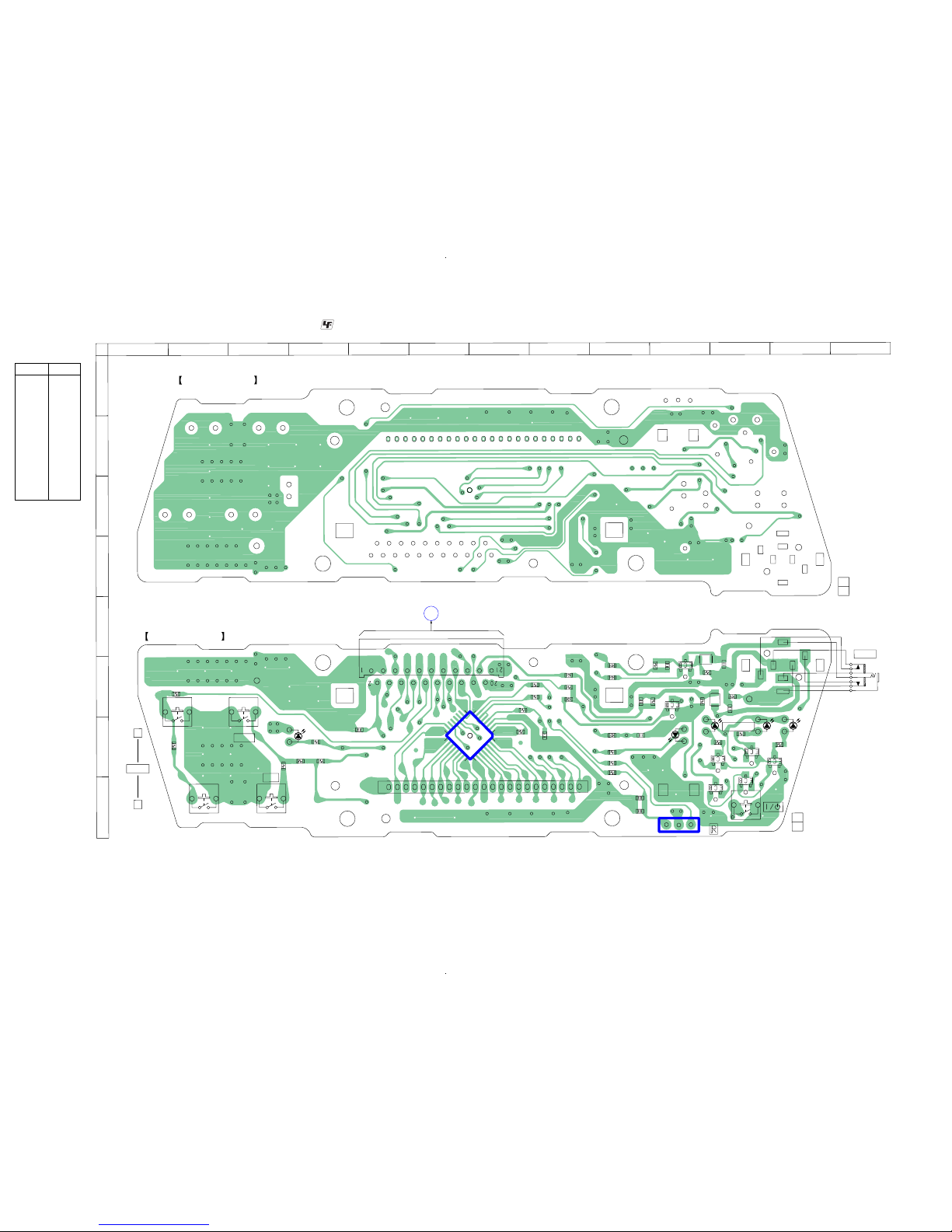

5-10. Printed Wiring Board – DISPLAY Board – .................. 18
5-11. Schematic Diagram – DISPLAY Board – ..................... 19
5-12. Printed Wiring Board – AMP Board – .......................... 20
5-13. Schematic Diagram – AMP Board – ............................. 21
5-14. Printed Wiring Board
– SUB Board (Except US model) –................................ 22
5-15. Schematic Diagram
– SUB Board (Except US model) –................................ 22
6. EXPLODED VIEWS
6-1. Overall Section................................................................ 33
6-2. Front Cabinet Section ..................................................... 34
6-3. Main Section ................................................................... 35
6-4. Rear Chassis Section....................................................... 36
6-5. Front/Surround Speaker Section..................................... 37
7. ELECTRICAL PARTS LIST .............................. 38
FRONT
CENTER
SURROUND
RL
USB
OPTICAL IN
ANALOG IN
SPEAKER
RL
– Rear View –
PART No.
SECTION 1
SERVICING NOTE
•MODEL IDENTIFICATION
MODEL PART No.
UK model (WHITE) 4-254-202-0[]
Singapore model 4-254-615-0[]
Hong Kong model 4-254-915-0[]
AEP model (BLACK) 4-255-268-0[]
UK model (BLACK) 4-255-269-0[]
US model 4-255-394-0[]
AEP model (WHITE) 4-255-469-0[]

4
SS-US501/SW-US501/UZ-US501 SECTION 2
GENERAL This section is extracted from
instruction manual.
Index to Parts and Controls
Subwoofer (Front Panel)
PHONES
VOLUME
AUTO POWER
INPUT
S-MODE
1HEADPHONE jack
Connect headphones here.
2AUTO POWER indicator
When the system is in the AUTO
POWER ON mode, the indicator lights
up green.
3?/1(POWER) indicator
When turned on, lights up green.
When turned off, lights up red (STAND-
BY MODE).
4?/1(POWER)
Turns on and off the power of the
system.
5(remote sensor)
Receives the remote control signals.
6Display
Indicates the speaker setting, input
signal, sound field mode, etc.
7INPUT
Select the input signal.
8VOLUME +/−
Adjust the volume and select settings.
9S-MODE
Adjust the sound field mode and select
settings.
R
SPEAKER
L
FRONT
CENTER
SURROUND
ANALOG IN
USB
R
L
OPTICAL IN
1ANALOG IN (L/R) jacks
Connect to the audio output of a TV,
VCR, etc.
2USB jack
Connect to the computer.
Subwoofer (Rear Panel)
3OPTICAL IN jack
Connect to the DIGITAL OUT
(OPTICAL IN) jack of a DVD player,
etc.
4SPEAKER jacks
Connect to the supplied satellite
speakers.
5AC power cord (mains lead)

5
SS-US501/SW-US501/UZ-US501
WOOFER
SELECT
SELECT
VOLUME
INPUT
CENTERSURR
SET UP
TEST TONE
S-MODE
SHIFT
MUTING
Remote
1MUTING, TEST TONE
Mutes the sound.
Pressing this button while pressing
SHIFT will sound the test tone.
2S-MODE, SET UP
Selects the sound field mode.
Pressing this button while pressing
SHIFT will select the system menu.
3SHIFT
Switches the function of the buttons on
the remote.
4SURR +/−
Adjust the surround speakers volume.
5CENTER +/−
Adjust the center speaker volume.
6?/1(POWER)
Turns on and off the system.
7INPUT
Selects the input signal.
8VOLUME +/−, SELECT C/c
Makes the speaker settings or adjusts the
volume of the system.
Pressing this button while pressing
SHIFT will set the system setup
parameters.
9WOOFER +/−
Adjust the subwoofer volume.
Connection
R
SPEAKER
L
FRONT
CENTER
SURROUND
ANALOGIN
USB
R
L
OPTICALIN
R
SPEAKER
L
FRONT
CENTER
SURROUND
ANALOG IN
USB
R
L
OPTICAL IN
To wall outlet
(mains)
Front /Center
speaker (R)
Front/Center
speaker (L)
Subwoofer (this system)
To USB port
Speaker cords Speaker cords
Front (R)
Center (R)
Front (L)
Center (L)
Hole for attaching the floor
stand (not supplied)
Hole for attaching the floor
stand (not supplied)
Speaker cord Speaker cord
Surround speaker (R) Surround speaker (L)
Hole for attaching
the floor stand
(not supplied)
Hole for attaching
the floor stand
(not supplied)
To USB port
USB cable (supplied)
To your computer
RedGreen WhiteGray Blue Purple
A

6
SS-US501/SW-US501/UZ-US501 SECTION 3
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.
3-2. TOP CHASSIS
• This set can be disassembled in the order shown below.
3-1. DISASSEMBLY FLOW
Set
3-2. TOP CHASSIS
(Page 6)
3-3. DIGITAL BOARD
(Page 7) 3-4. FRONT CABINET SECTION (Page 7)
1 two case screws
3 three screws
(BVTP3
× 10)
4 top chassis
2 two case screws

7
SS-US501/SW-US501/UZ-US501
3-3. DIGITAL BOARD
3 harness
2 screw
(BVTP3
× 8)
5 connector
(CN602)
4 connector
(CN601)
1 wire (flat type)
(21 core) (CN801)
9 DIGITAL board
8 two screws
(BVTP3
× 8)
6 screw
(BVTT3
× 8)
7 two screws
(BVTP3
× 10
)
6 Insert a flat-tip screwdriver into a recess
in the bottom of the set
to raise the front cabinet section a little.
7 Insert the jig
(J-2051-238-A)
into a space made by
inserting the screwdriver,
and raise the front cabinet
section gradually.
8 front cabinet section
boss
boss
boss
1 wire (flat type) (21 core)
(CN801)
2 screw
(BVTP3
× 8)
5 screw
(BVTP3
× 8)
4 screw
(BVTP3
× 8)
3 harnness
Note : Take care not to damage the set by applying an excessive force.
3-4. FRONT CABINET SECTION

8
SS-US501/SW-US501/UZ-US501
[TEST MODE]
Procedure:
1. Press the I/1button on the main set once while pressing the
[S-MODE] button on the remote commander (RM-Z7S101)
and the [INPUT] button on the main set.
2. When the test mode is activated, “USB” and “VOL” are
displayed on the liquid crystal display.
3. Press the [VOLUME +] button on the main set, and the display
on liquid crystal display will change over from “VOL” to
“LCD”, “SWP” “ALLOC”, version number, and “VOL” in
this order (in reverse order if the [VOLUME - ]button on the
main set is pressed).
4. Press the [INPUT] button on the main set, and the displayed
test item will start (except version display).
5. Press the I/1button to turn the power OFF, and the test mode
will be deactivated and the cold reset will be executed.
Test Items:
Item Description
VOLUME TEST The display on liquid crystal display changes
over from “VOL” to “0”, “10”, “20”, “30”, “40”,
and “VOL” in this order, and along with the
change of display, the volume is also changed.
LCD TEST The liquid crystal display all blink, and after 5
seconds, they return to original state.
SWAP (DSP TEST) The input signal is outputted to 5.1ch speakers.
This mode is deactivated if the [INPUT] button
on the main set is pressed again.
KEYALLOC TEST If the button displayed on the liquid crystal
display is pressed, the next button is displayed.
When all buttons are pressed, the original display
is restored.
Version Display The version number of microcomputer software
is displayed.
Note: During the test mode, theAPC (auto power control) turns ON, and
it turns OFF if the [INPUT] button on the main set is not pressed for
5 seconds.
SECTION 4
TEST MODE

SS-US501/SW-US501/UZ-US501
99
SECTION 5
DIAGRAMS
5-1. BLOCK DIAGRAM – MAIN Section –
51
XTALI
10
MRST
15
2
AVDD
50
XTALO
X501
6MHz
USB CODEC
IC501
R-CHR
ANALOG IN
L
J502
LINE AMP
IC508
LOW-PASS
FILTER
IC507
BUFFER
IC505
+
D503
D504
R-CH
30 4LIN+ LINA
10 LINC
7 LINB
22 RINB
29 LIN–
6 SDTI1
CODEC,
A/D, D/A CONVERTER,
IC805
ELECTRICAL VOLUME
IC604
27L-OUT 3LOUTA
9LOUTC
6LOUTB
23ROUTB
25SL-OUT
24C-OUT
23SW-OUT
9SDTO
15
DATA
14
CK
16
STB
LEVEL SHIFT
IC601
SD1
7 SDTI2
SD3
8 SDTI3
SD2
4 BCLK
BCK
5 LRCK
LRCK
39 MCLKI
MCLKI
70
VOL-DATA
69
VOL-CLK
68
VOL-STB
27
MUTE-FL, FR
65
HP MUTE
1 CO-DI
43CDTI
2 CO-CLK
42CCLK
100 CO-CS
41CS
98 CO-S/MUTE
3S/M
99 CO-PD
81 AUDIO DEC
17PD
USB
J501
2
3
4
D+
D–
VBUS
7 DP
8 DM
41 SDA
42 SCL
6 PUR
5
SDA
6
SCL
EEPROM
IC504
RESET SIGNAL
GENETATOR
IC510
9, 21, 37
DVDD
USB ON/OFF
SWITCH
Q501, 502
USB
+3.3V
13 SDATA 3 DIN0 30 SDI2
18 SDI1
4 DIN1
36DOUT1 18TX+ 16DATA 25SDO3
24SDO2
23SDO1
29 BCKI2
14BCK
28 LRCKI2
15LRCK
22 KFSIO
13CKOUT
59 EXLOCK
34ERROR
69 GP8
44 CS0
24AUDIO
11 SCLK
34BCK
12 SYNC
35LRCK
6 MCLK
44MCLKO
5 CLK0
15P3.1
4 CLK1
24P1.0
3 L
19P3.4 RST
DIGITAL AUDIO
TRANSMITTER
IC502
OPTICAL
RECEIVER
IC503
OPTICAL IN
35
DO
36
DI
38
CL
37
CE
24
DIR-DO
17
XSTATE
35
HDOUT
20
DIR-XST
18
DIR-ERR
6
DSP-DO
32
HACN
14
DSP-HACN
7
PLOCK
17
DSP-PLOCK
68
GP9
16
DSP-GP9
22
DIR-AD
19
DIR-CE
48
XMODE
23
DIR-XMODE
33
HDIN
7
DIG-DI
D804
85
DIGITAL DEC
D807
22
XIN
21
XOUT
X803
12.288MHz
108, 107, 105 – 102, 99,
98, 80 – 77, 75 – 72
112, 110, 109, 97 – 92,
82 – 85, 66 – 64
7 – 10, 13 – 16,
29 – 32, 35 – 38
5 – 1, 44 – 42,
27 – 24, 21 – 18
D0 – D15A0 – A15 D0 – D15A0 – A15
6CS
45 WE017WE
9
MCLK1
12
MCLK2
X804
13.5MHz
34
HCLK
8
DIG-CLK
36
HCS
13
DSP-CS
56
BST
15
DSP-BST
113
PM
12
DSP-PM
2
XRST
11
DSP-RST
DIGITAL AUDIO
INTERFACE RECEIVER
IC801
S-RAM
IC810
SD1
SD2
SD3
14SCKOUT
67GP10
19LRCKO
20BCKO BCK
LRCK
MCLK
AUDIO DIGITAL
SIGNAL PROCESSOR
IC808
PRE AMP
IC607
PRE AMP
IC606
PRE AMP
IC608
MUTING
Q608
MUTING
CONTROL SWITCH
Q605, 606
28
MUTE-SL, SR, C
MUTING
Q603
MUTING
Q611
MUTING
CONTROL SWITCH
Q601, 602
29
MUTE-SW
MUTING
Q612
MUTING
CONTROL SWITCH
Q609, 610
66
HP S/W
MUTING
CONTROL SWITCH
Q821, 822
MUTING
CONTROL SWITCH
Q710, 711
HEADPHONE AMP
IC605
MUTING
Q613
MUTING
Q700
11
14
15
9
7
5
3
17
19
21
23
SP101
(SUB WOOFER)
POWER AMP
IC401
4
ST-BY
22
MUTE
12
D454
D451
R
L
+
–
D452
+
–
D453
+
+
–
–
FRONT
R
L
CENTER
SPEAKER
J404 (1/2) TO FRONT/CENTER
SPEAKER (L)/(R)
(SS-US501)
SPEAKER
J404 (2/2) TO SURROUND
SPEAKER (L)/(R)
(SS-US501)
R-CH
2
15
16
11
12
7R
L
+
–
+
–
SURROUND
R-CH
R-CH
J701
PHONES
A
(Page 10)
HP MUTING
B
(Page 10)
MTR CTL
D
(Page 10)
STANDBY
C
(Page 10)
AMP MUTING
44AMP-MUTE
4
ST-BY
1
MUTE
SURROUND
AMP
IC402
SYSTEM CONTROLLER
IC802 (1/2)
: AUDIO
: USB
SIGNAL PATH
: OPTICAL IN
R-ch is omitted due to same as L-ch.
(EXCEPT US)

SS-US501/SW-US501/UZ-US501
1010
5-2. BLOCK DIAGRAM – DISPLAY/POWER SUPPLY Section –
(AC IN)
RECT
D992 – 995
T902
SUB POWER
TRANSFORMER
+5.6V
REGULATOR
IC991
RESET SIGNAL
GENETATOR
IC803
RESET
SWITCH
Q804
RY992
RELAY DRIVE
Q992
RY991
RELAY DRIVE
Q991
F901
LINE FILTER
LF901(EXCEPT US),
LF902
RECT
D902
TH901
3
POWER CONTROL
IC901
D
4VCC
1FB/OCP
D906 D907
D905
+20V
REGULATOR
Q901
ISOLATOR
PC901
SWITCHING
IC902
T901
MAIN POWER
TRANSFORMER (US)
(EXCEPT US)
+3.3V
REGULATOR
IC804
D821
D +3.3V
D822
µCOM +3.3V
µCOM +5V
LED B+
D811, 812
D802, 803
RECT
D911
RECT
D920
RECT
D909
B+ SWITCH
Q451, 452
+10V
REGULATOR
Q453
FAN401
(FAN)
M
B+ SWITCH
Q904, 905
AU +15V
AUDIO +5V
POWER/SURROUND AMP
(IC401, 402) B+
+5V
REGULATOR
IC906
POWER ON/OFF
CONTROL SWITCH
Q902, 906
IC903
(US)
RECT
D914
MUTING
CONTROL SWITCH
Q915
(EXCEPT US)
+5V
REGULATOR
IC905
+2.5V
+2.5V
REGULATOR
IC807
READY +3.3V
READY +5V
+3.3V
REGULATOR
IC806
USB +3.3V
+3.3V
REGULATOR
IC506
B+ SWITCH
Q910, 911
(US)
B+ SWITCH
Q907, 908
(EXCEPT US)
D813
D702, 703
(LCD BACK LIGHT)
( US)
D946
46P-CONT
62READY-H
39
X1
38
X2
X801
16MHz
34
90STOP
RESET
S701 – 705 KEY ACTIVE
SWITCH
Q801, 803
82 KEY1
93 INT
91 SIRCS
83 V/R
D806
SIRCS BUFFER
Q802
REMOTE CONTROL
RECEIVER
IC702
67 APC LED
LED DRIVE
Q702
D705
AUTO POWER
73 STAND BY LED
LED DRIVE
Q705
D707
(STANDBY)
71 POWER LED
LED DRIVE
Q703
D706
(POWER ON)
54 LCD-DATA
8SD
53 LCD-CLK7SCK
56 LCD-CS
9CS
35 LCD-C/D10C/D
11 – 14
COM0 – COM3
15 – 32
SEG0 – SEG17
LCD701
LIQUID
CRYSTAL
DISPLAY
LIQUID CRYSTAL
DISPLAY DRIVER
IC701
SYSTEM CONTROLLER
IC802 (2/2)
D
(Page 9)
STANDBY
B
(Page 9)
MTR CTL
C
(Page 9)
AMP MUTING
(EXCEPT US)
A
(Page 9) HP MUTING

SS-US501/SW-US501/UZ-US501
1111
5-3. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS
Note on Schematic Diagram:
•All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
•All resistors are in Ωand 1/4W or less unless otherwise
specified.
•f: internal component.
•2: nonflammable resistor.
•C: panel designation.
•A: B+ Line.
•Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : ANALOG
():USB
[]: OPTICAL
•Voltagesare taken withaVOM(Inputimpedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
•Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
•Circled numbers refer to waveforms.
•Signal path.
F: AUDIO
N: USB
J: OPTICAL IN
Note on Printed Wiring Boards:
•X: parts extracted from the component side.
•Y: parts extracted from the conductor side.
•f: internal component.
•: Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
Caution:
Pattern face side: Partsonthepattern facesideseenfrom
(Conductor Side) the pattern face are indicated.
Parts face side: Parts on the parts face side seen from
(Component Side) the parts face are indicated.
C
BThese are omitted. E
Q
B
These are omitted.
CE
Q
•Indication of transistor.
Note: The components identified by mark 0or dotted line
with mark 0are critical for safety.
Replace only with part number specified.
•Waveforms
– DIGITAL Board –
1IC501 t; (XTALO) (USB mode)
3.1 Vp-
p
167 ns
2IC801 qd (CKOUT)
3.1 Vp-
p
81.4 ns
3IC801 qf (BCK)
3.2 Vp-p
326 ns
4IC801 qg (LRCK)
3.3 Vp-
p
20.8 µs
5IC801 wa (XOUT)
3 Vp-
p
81.4 ns
6IC802 ek (X2)
2.3 Vp-
p
62.5 ns
7IC808 qs (MCLK2)
2.6 Vp-
p
74.1 ns
8IC808 qf (SCKOUT)
3.6 Vp-
p
81.4 ns
9IC808 ql (LRCKO)
3.3 Vp-
p
20.8 µs
q; IC808 w; (BCKO)
3.4 Vp-
p
326 ns
– DISPLAY Board –
qa IC701 2(OSC2)
3.3 Vp-p
27.4 µs

SS-US501/SW-US501/UZ-US501
1212
5-4. PRINTED WIRING BOARD – DIGITAL Board – :Uses unleaded solder.
R890
C583
R529
IC805
X501
IC508 IC507
IC504
X803
X804
IC802
IC808
IC801
C818
C570
Q501
IC605
IC608
IC506
R506
R580
C550
FB508
R505
R504
R543
R509
L501
R503
C560
R581
R513
R510
R519
R515
R518
R512
R537
R516
R560
R517
R514
C501
C502
C506
C508
C505
X801
R534
R533
R532
R521
R531
C504
C511
IC505
R809
R592
R593
R520
R594
R544
R551
R552
C887
R577
R524
R527
R528
R525
C519
C514
C507
C512
R579
FB503
R501
R553 R555
R569
R559
R511
C849
C884
D503
D504
C527
C531
C530
C526
R561
R564
R563 R568
R565
R567
R570
R562
R571
R574
R573
R572
R110
R575
R578
R526
R818
R803
R808
R805
R804
R806
R807
C834
C835
C831
C838
C513
C836
FB825
FB831
R811
R813
R591
R812
R835
R815
D804
C515
R817
C839
R824
C842
C859
C844
C847
FB832
FL804
R558
FL806
C826
C552
R827 C890
D814 R557
R590
C529
D813
FB826
FB834
C857
C551
FL822
FL821
FB823
FB822
C814
C885
C889
R823
R828
R834
R833
R840
R830
R832
R831
R836
C881
C823
C811
FB824
FB821
C832
C898
C812
IC807
R841
R839
R108
C897
C899 C813
C891
C822C892
FB504
R829
FB809
R111
R112
R118
R119
R113
R114
R115
R116
R117
R842 C893
R844
R845
R846
C801
C602
C830
R605
R862
R870
R868
R873
R631
R872
FL802
R876
R877
D808
D802
D803
D811
D812
FB801 FB810
FB803
C895
C804
C806
C827
R875
R878
R869
IC810
C886
C848
R874
R894
R891
R892
R896
R887
R897
R895
R893
R106
R107
R104
R899
R105
R898
R888
D806
R630
R632 R633
R666
C617
R576
FB828
R508
C518
IC604
C622
R641
R634
R644
R643
R661
C624
C634
R665
R638
C618
Q604
Q803
Q502
Q602
Q603
Q606 Q608
R647
Q607
Q610
Q611
Q612
Q601
R660
R651
R646 R650
Q605
R648
C641
R657
R652
R656
R653
R654
R659
R655
R658
R649
R662
R664
R663
C643
C638
C639
C640
C635
C642
IC502
R645
FL507
R863
Q801
Q802
C824
Q609
IC606
R636
R635
R642
R637
C627
C630
IC607
R640
R639
L502
R867
R866
R684
R838
IC510
C862
IC501
C810
R880
R881
R882
R883
R884
R885
C809
R886
R879
R847
R848
R849
R850
R851
R852
R853
R854
R855
R856
R857
R858
R859
R860
R861
C840
R819
R820
R821
C561
IC503
CN601
C607
C837
C509
C534
CN602
C609
C524
C523
C584
C860
C503
C532
C525
C528
C608
C856
C803
C510
C858
C520
C843 C894
C817
IC803
C802
IC804
C819
C845
C896
C808
C680
C533
CN801
C619
C888
C854
C855
C637
C644
C636
C625C633
C616
IC806
C613
C623
C631
C632
C621
C629 C626
C620
C670
C870
C853 C852 C851
C681
C540
C850
R843
Q822
Q821
FB806
FB807
L801
L802
D805
R597
R629
C601 C603
C604
C605
C606
Q613 Q614
R601
R602
R628
R680
R682
R685
IC601
R670
R825
R889
Q804
C820
C880
C815
R865
R871
FB805
R864
FB804
FB808
R120
C805
C807
D820
D821
D822
C882
D807
C580
C879
L505
R539
R542
R816
R801
R814
R810
FB830
R826
C582
C833
R822
R802
R598
R595
R596
C581
R121
R122
C651
3
1
14
85
1
EEEEEE
E
E
EEEE
4
8
5
1
4
8
5
1
15 28
14 1
4
8
5
E
E
E
80
81100
5031
51
1
221
221
1
111
33 23
22
12
34
44
3
30
61
90
30
1
6131
91120
1
13
54 4
8
1
39
4052
E
E
2614
14
1
15
28
27
1
13
14
85
14
85
13
12
36
25
2413
3748
5
14
85
(COMPONENT SIDE)
DIGITAL BOARD
1-860-901-
11
(11)
(US)
(EXCEPT US)
(EXCEPT US)
(EXCEPT US)
81
17
14 8
E
E
(US)
E
(CONDUCTOR SIDE)
DIGITAL BOARD
1-860-901-
11
(11)
1
3
OPTICAL IN
IC503
1
2
4
3
J501
USB
ANALOG IN
J502 L
R
13
13
++
20
21
151
C
AMP BOARD
CNP423
B
AMP BOARD
CNP401
A
DISPLAY
BOARD
CN702
12345678910 11 12 13 14 15 16 17 18 19 20 21
A
B
C
D
E
F
G
H
I
J
K
L
M
N
(Page 18)
(Page 20)(Page 20)
D503 C-8
D504 D-8
D802 F-15
D803 F-15
D804 G-7
D805 K-13
D806 C-15
D807 I-8
D808 F-15
D811 F-15
D812 F-16
D813 B-7
D814 B-7
D820 I-14
D821 J-13
D822 J-13
IC501 E-5
IC502 F-5
IC503 J-2
IC504 C-5
IC505 C-7
IC506 C-5
IC507 B-6
IC508 B-5
IC510 E-3
IC601 L-18
IC604 C-18
IC605 C-20
IC606 E-19
IC607 E-20
IC608 E-17
IC801 F-8
IC802 D-15
IC803 H-13
IC804 I-15
IC805 C-9
IC806 M-10
IC807 C-10
IC808 F-11
IC810 D-11
Q501 D-3
Q502 D-3
Q601 F-18
Q602 F-18
Q603 F-19
Q604 F-19
Q605 F-20
Q606 F-20
Q607 F-20
Q608 F-20
Q609 F-17
Q610 F-17
Q611 F-18
Q612 F-18
Q613 M-19
Q614 M-19
Q801 C-15
Q802 C-14
Q803 C-14
Q804 J-13
Q821 J-16
Q822 J-15
•Semiconductor
Location
Ref. No. Location

SS-US501/SW-US501/UZ-US501
1313
5-5. SCHEMATIC DIAGRAM – DIGITAL Board (1/5) – • See page 11 forWaveforms. •See page 23 for IC Block Diagrams. • See page 26 for IC Pin Function Description.
C505
R501
Q501
C504
C503
X501
C506
R513
R514
R579
R515
FL507
C507
R581
R590
R506
R505
R504
R503
C502 C501
R512
R511R510
FB508
R508
R509
R516R537
R519R518
IC504
L502
C550
C561
R580
C560
C837 L501
IC510
C570
R517
IC506
R520
R521
C511
C510
R534
R533
R532
R594
R593
R592
R591
R531
R551 R552C518R544R543
C513
D804
R813 R814 R816
C817
R810
R817
R801
R802
C879
R806
R807
C834 R803
C835
C833
FB831
FB832
R811
R812
C836
C862
R808
R809
C831
FB834
FL804
FB830
C844 R824 C842 C843 C847
R823
C840
R819
R820
R821
R822
C832
X803
R815
C838 C839
IC502
R804 R805
R818
D807
Q502
IC503
J501
C534
C509 C508
IC501
IC801
0.1
220k
2SA1182
0.1
47
35V
6MHz
18p
220
0
0
0
18p
1M
1k
0
22
22
1.5k
100p 0.001
2.2k
910910
4.7k
4.7k
4.7k100
100100
AT24C64N
0.1
470
16V
10
0.1
47
35V
M62703ML
0.1
4.7k
TPS78833DBVR
4.7k
4.7k
0.1
22
25V
100
100
75
0
4.7k
0
0
4.7k
4.7k 10k0.1100100
0.1
1SS355
1k 100 1k
1
50V
100
1M
100
100
33p
1k
4.7k
0.1 100
0.01
0.1
100
100
0.1
47p
4.7k
1k
0.01 0.01 10k 0.1 220
10V 0.001
10k
0.1
1k
100
100
100
100p
12.288MHz
1M
47p 22p
DIT4096
22k 10k
100
1SS355
2SC2712
TORX141L
1
50V
4.7
50V 0.1
TUSB3200ACPAH
LC89056W
A1
A2
A3
A4
B1
B2
B3
C1
822
885
SDATA
SYNC
SCLK
MCLK
CLK0
CLK1
L
820
CKOUT
BCK
LRCK
SDI2
AUDIO
824
DI
CE
CL
XMODE
CLK0
L CLK1
MCLK
SDATA
SYNC
SCLK
PLLFILO
AVDD
PWMO
PLLO
DVSS
PUR
DP
DM
DVDD
TEST
EXTEN
RSTO
P3.0
P3.1
DVSS
XINT
P3.3
P3.4
P3.5
DVDD
NC
PLLOEN
P1.0
P1.1
P1.2
DVDD5
P1.3
P1.4
P1.5
P1.6
P1.7
DVSS
LRCK
BCK
DOUT1
DOUT2
DVDD
SDIN1
SDA
SCL
DVDD5
MCLKO
MCLKO2
DVSS
MCLKI
MCLKI2
AVSS
XTALO
XTALI
PLL
FILI
CRESET
USB
GND
D+
D-
VBUS
1
4
(1/5)
SDATA
SYNC
SCLK
FMT1
FMT0
DGND
VIO
MCLK
CLK0
CLK1
L
CSS
COPY/C
/S
M
DGND
TX-
TX+
VDD
MDAT
MONO
BLSM
BLS
V
U
MODE
RST AUDIO EMPH
DIGITAL AUDIO
INTERFACE RECEIVER
USB CODEC
AUDIO
TRANSMITTER
EEPROM
Q501,502
USB ON/OFF
SWITCH
OPTICAL
RECEIVER
OPTICAL IN
IC503
VIN
RST
GND
RESET SIGNAL
GENERATOR
+3.3V REGULATOR
MRST
DIGITAL
4.7µH
4.7µH
(Page 14)
(Page 16)
(Page 15)

SS-US501/SW-US501/UZ-US501
1414
5-6. SCHEMATIC DIAGRAM – DIGITAL Board (2/5) – • See page 11 forWaveform. • See page 26 for IC Pin Function Description.
R867
L802
FB807
FB806
L801
D802
R120
CN801
FB801
R882
R881
R880
R879
R878
R877
R876
R875
R886
R885
R884
R883
R874
C809
FB805 D822
C845
Q822
C886C880 D820
D808 R870
R868 R869
C819 R872
D805
R865 C815
C818
C807
R864C882
R846
R847
R848
R849
R850
R851
R852
R853
R854
R855
R856
R857
R858
R859
R860
R861
R862
C805
FB803
D803
C803
C827
FB809
FB804
C806
C802
R894
D806
R898
R896
Q801
Q802
R897
Q804
R899
Q803
R105
R106
C848
C602
C830
R826
R888
R887
C801
R893
FB810
R873
R107
R825
R890
R104
R844
R845
C870
FL802
IC804
C808
X801
R866
C804
R863
R108
IC803
R895
D811 D812
C810
Q821
R843
FB808
D821
R871
R889
R892 R891
C820
IC802
1M
1SS355
100k
21P
1k
1k
1k
100
1k
1k
1k
1k
100k
100k
100k
100k
100
0.1
1SS355
22
25V
2SC2712
0.11 1SS355
1SS355 100
100 100
1
50V 100
1SS355
10k 0.22
1
0.1
47k0.01
100
100
100
100
100
100
100
100
1k
1k
100
1k
1k
1k
1k
1k
1k
0.1
1SS355
220
10V
0.1
0.1
22
25V
100k
1SS355
470k
100k
DTA114TKA-T
2SC2712
100k
2SC2712
1k
2SC2712
1k
1k
100p
100p
100p
100
10k
10k
0.1
47k
0
1k
1k
47k
100k
1k
1k
0.22F
5.5V
S-81233SGY
0.22F
5.5V
16MHz
10k
0.001
1k
1k
PST592C
47k
1SS355 1SS355
0.1
SRA2203S/F
1k
1SS355
100
10k
100k 100k
0.1
-M53-3BA-A
A1
A2
A3
A4
D1
D2
E1
E2
E3
E4
E5
FL,FR-MUTE
AU 15V S/W
SW-MUTE
SL, SR, C-MUTE
HEAD PHONE BUS
HP MUTE
816
808
853
854
855
856
854
853801
802
824
898
899
900
870
869
868
844
846
827
828
829
881
885
HP S/W
855
856
HP S/W
A-GND
HP.L
HP.R
806
807
811
812
813
814
815
817
820
822
862
DI
CE
CL
XMODE
SIRCS
SIRCS
APC
APC
VR
VR
KEY
KEY
STND
STND
PWR
PWR
STAND BY 5.6V
5.6V UNSW FOR SUB
DIGITAL 5.6V-SW
827
828
829
GND(SHIELD)
READY 3.3V
GND
D-3.3V
BACK LIGHT
LCD-CS
LCD-C/D
LCD-CLK
LCD-DATA
SIRCS
V/R
KEY
STAND BY LED
GND
HP.L
HP.R
HP.SW
HP-MUTE
STAND BY 5.6V
APC LED
(2/5)
POWER ON LED
Q821,822
MUTING
CONTROL
SWITCH
(US)
(EXCEPT US)
SWITCH
Q801,803
KEY ACTIVE
SIRCS
BUFFER
(US)
(EXCEPT US)
SYSTEM CONTROLLER
+3.3V REGULATOR
RST
GND
VIN
RESET SIGNAL
GENERATOR
SWITCH
RESET
µPD703033BYGF
1µH
1µH
(Page 13)
(Page 15)
(Page 16)
(Page 17)
(Page 19)
(Page 17)

SS-US501/SW-US501/UZ-US501
1515
5-7. SCHEMATIC DIAGRAM – DIGITAL Board (3/5) – • See page 23 for IC Block Diagram.
FB826
C856
C855
C854
C853
C852
C851
C531
C532
R577
C533
FB504
C514R528
C515R529
R524
R525
R526
L505
R527
FB503
C519
J502
C523
C525
R560
R562 R563
R564
C528 R569 R570
R571 R572
R578
R596R559
R553
C520
C582
R595
C580
IC508
R573
C529
R576R575
R565 R567 R568R561 C527
C581 C552
R555
R558
C551C583
R539
C540
IC505
C524
R598
R557
C584
C526
C530
R574
FL821
C887
C888 C890
R597
FB828
C826
FL806
R838
C859 C857 C858
C884
C512
IC807
R542
C849
C850 R827
D503
D504
IC805
IC806
D814D813
IC507
C885
C860
4.7 50V
4.7 50V
4.7 50V
4.7 50V
4.7 50V
4.7 50V
0.1
10
50V
4.7k
100
10V
220p22k
220p22k
10k
0
10k
0
0.1
2P
1
50V
22
25V 47k
220 100
10k
22
25V
47k 22k
220 100
4.7k
100k10k
10k
1
50V
220p
100k
220p
NJM4565M
10k
470p
100220
10k 220 10022k 470p
0.1 0.001
330k
330k
0.0010.1
4.7k
1
50V
NJM4565M
1
50V
0
220k
100
10V
0.001
0.001
10k
0.1
22
25V 0.1
47
0.1
10
0.1 0.1 22
25V
0.1
0.1
TA48M025F
4.7k
0.1
470
16V 100k
1SS355
1SS355
AK4527B
S-81233SGY
1SS3551SS355
NJM4565M
0.1
470
16V
B1
B2
B3
D1
D2
F1
F2
F3
F4
F5
R
SR
SL
L
A-GND
C
SW
899
898
801
802
900
C-28
C-27
C-24
C-23
C-26
C-25
881
READY 5.6V
AUDIO 5V
A-GND
A-GND
C-23
C-24
C-25
C-26
C-27
C-28
SDT11
SDT12
SDT13
BCKO
LRCKO
SDI1
SOUT
(3/5)
GND
VDD
BUFFER
+2.5V REGULATOR+3.3V REGULATOR
VOUT
VIN
GND
GND
VOUT
VIN
GND
VDD
FILTER
LOW-PASS
VDD
GND
LINE AMP
R
L
ANALOG IN
CODEC,
A/D,D/A CONVERTER
4.7µH
(Page 17)
(Page 16)
(Page 13)
(Page 14)

SS-US501/SW-US501/UZ-US501
1616
5-8. SCHEMATIC DIAGRAM – DIGITAL Board (4/5) – • See page 11 forWaveforms. • See page 26 for IC Pin Function Description.
FB823 FL822
R842
C814
C892 C893
R117
R116
R115
R114
R113
R119
R121
R122
R110
R111
R112
C813
R839
R840
C899
C898
C897
C891
C812
R841
R835
R836
R834
C823
C822R828C811
R829
R830
FB821
FB824
R831
R118
C824 C894 C889
FB825
FB822
C881
C896
C895
R833
X804
IC810
IC808
R832
10k
0.1
0.1 0.1
100
100
100
100
100
100
10k
10k
100
100
100
0.1
0
0
0.1
100p
100p
0.1
0.1
1k
100
100
100
0.1
0.11k0.01
10k
10k
1M
100
0.1 22
25V 0.1
0.1
22
25V
0.1
100
13.5MHz
IS61LV6416-15-
EL10(ISSI)
CXD9617R
100
C1
E1
E2
E3
E4
E5
F1
F2
F3
F4
F5 POWER_BUS
VOL-STB
VOL-DATA
VOL-CLK
D-GND
814
816
844
846
815
817
807
808
806
813
869
870
868
862
A1
A2
A3
A4
A5
A6
A7
A8
D0
D1
D2
D3
D4
D5
D6
D7
A0
A13
A14
A15
D12
D13
D14
D15
A12
A13
A14
A15
CS0
WE0
WE0
CS0
A5
A6
A7
A8
D0
D1
D2
D3
D4
D5
D6
D7
D-GND
P.CONT
READY-H
AMP MUTE
812
A0
A1
A2
A3
A4
CKOUT
BCK
LRCK
SDI2
AUDIO
SDT11
SDT12
SDT13
BCKO
SDI1
SOUT
D15
A11
A10
A9
D8
D9
D10
D11
D12
D13
D14D8
D9
D10
D11
A9
A10
A11
A12
811
LRCKO
(4/5)
AUDIO DIGITAL
SIGNAL PROCESSOR
S-RAM
(Page 13)
(Page 15)
(Page 17)
(Page 14)

SS-US501/SW-US501/UZ-US501
1717
5-9. SCHEMATIC DIAGRAM – DIGITAL Board (5/5) – • See page 23 for IC Block Diagram.
R684
R650
R648
R656
R654
R629
C613
R628
C609
IC601
C651
R645
C635
IC608
C634
C637
R666R665
C616
R644
C636
R664
C630
R641
C633
C631
R639
Q614
Q613
R602R601
C601 C603
C606
C604
C605
C681
R685
R633
IC605
C618
C619
C644
R631
C617
C680
R680
R635
C622
R634
C620
IC607
IC606
R638
C626
C623
R636 R637
C624
C627
C628
C625
C621
C670
Q610
Q609
Q606
Q605
Q602
Q601
Q611
Q612
R663
R662
R660
R661
R658
C642
C643
R659
Q608
Q607
C641
C640
R655
R653
R657
Q604
Q603
R646
R647
C639
C638
R649
R651
R652
CN601
CN602
IC604
C629 R640
C632
R642
R682
R605
C607
R643
R670
R630
R632
220
100k
100k
100k
100k
10k
220
25V
10k
220
25V
74HCT04AF
0.1
220k
47p
NJM4565M
47p
1
50V
22k22k
220
25V
47k
1
50V
4.7k
47p
100k
0.47
50V
0.47
50V
100k
DTC343TK
DTC343TK
22k22k
0.1 0.1
1
0.1
0.1
0.47
50V 220
2.2k
NJM4565M
100p
100
25V
100
25V
2.2k
100p
0.47
50V
100k
100k
47p
47k
0.47
50V
NJM4565M
NJM4565M
47k
0.47
50V
0.47
50V 47k 100k
47p
47p
0.47
50V
0.47
50V
0.47
50V
220
25V
DTC124EKA-T146
DTA124EKA-T
DTC124EKA-T146
DTA124EKA-T
DTC124EKA-T146
DTA124EKA-T
2SD1938
2SD1938
2.2k
100k
100k
10k
2.2k
0.001
0.001
10k
2SD1938
2SD1938
0.001
0.001
10k
10k
2.2k
2SD1938
2SD1938
2.2k
10k
0.001
0.001
10k
2.2k
2.2k
8P
15P
TC9482F
0.47 50V 47k
0.47
50V 47k
100k
10
220
25V
100k
4.7
6.8k
6.8k
POWER_BUS
SL
SR
R
A-GND
L
AU 15V S/W
D-GND
VOL-CLK
VOL-DATA
VOL-STB
FL,FR-MUTE
SL, SR, C-MUTE
SW-MUTE
C
SW
HEAD PHONE BUS
HP MUTE
D-GND
READY-H
P.CONT
STAND BY 5.6V
5.6V UNSW FOR SUB
AUDIO 5V
A-GND
A-GND
AMP MUTE
HP.R
A-GND
DIGITAL 5.6V-SW
READY 5.6V
DIGITAL 5.6V-SW
A-GNDHP.L
5.6V UN S/W
AU 15V S/W
HP GND
AUDIO 5V
AMP MUTE
A-GND
A-GND
D-GND
D-GND
READY-H
P.CONT
STAND BY 5.6V
5.6V UNSW FOR SUB
READY 5.6V
DIGITAL 5.6V-SW
WOFER
C
A-GND
A-GND
FR
FL
SR
SL
(5/5)
MUTING
MUTING
MUTING
MUTING
MUTING
MUTING
MUTING
CONTROL
SWITCH
Q601,602
MUTING
CONTROL
SWITCH
Q605,606
MUTING
CONTROL
SWITCH
Q609,910
PRE AMP
VDD
GND
PRE AMP
GND
VDD
PRE AMP
GND
VDD
GND
VDD
HEADPHONE AMP
ELECTRICAL VOLUME
MUTING
MUTING
LEVEL SHIFT
(Page 16)
(Page 14)
(Page 14)
(Page 15)
(Page 21)
(Page 21)

SS-US501/SW-US501/UZ-US501
1818
5-10. PRINTED WIRING BOARD – DISPLAY Board – :Uses unleaded solder.
D702
D703
S702 S704
S701
D705
S705
IC702
CN702
S703
D706 D707
LCD701
R722
C713
R716
R720
C701 R714
FB702
R717
R704
R705
R706
R715
R701
R702
R721
Q704
R723
R710
R709
R711
R718
C710
Q702
Q700
FB701
R719
FB704
R725
C703
C711
C705
C709 FB705
FB706
L701
IC701
FB703
C712
R708
R707
C706
L702
Q703
Q710
Q705
Q711
1-860-902-
11
(11)
(COMPONENT SIDE)
DISPLAY BOARD
1
32
16
17
89
2524
(CONDUCTOR SIDE)
DISPLAY BOARD
1-860-902-
11
(11)
A
DIGITAL BOARD
CN801
J701
PHONES
(STANDBY)(POWER ON)
(LCD BACK LIGHT)
AUTO POWER
13
1
LIQUID CRYSTAL DISPLAY
23
INPUT
S-MODE
VOLUME
+
–
S701
S702 (LCD BACK LIGHT)
12345678910 11 12 13
A
B
C
D
E
F
G
H
(Page 12)
D702 G-10
D703 G-4
D705 G-11
D706 G-11
D707 G-12
IC701 G-6
IC702 H-10
Q700 F-10
Q702 G-11
Q703 G-11
Q704 F-10
Q705 G-12
Q710 H-11
Q711 H-11
•Semiconductor
Location
Ref. No. Location

SS-US501/SW-US501/UZ-US501
1919
5-11. SCHEMATIC DIAGRAM – DISPLAY Board – • See page 11 forWaveform. •See page 23 for IC Block Diagram.
R711
R705
R722
FB705
R720
FB703
FB706
FB701
FB702
FB704
R717
Q704
C709
C711R719
R718
C710
C712
L701
L702
C713
Q711
Q710
R725
C705
C703
C706
R715
R714
D702D703
C701
R702
R701
R710
R709
D706
R723R708
R707
Q702Q705Q703
R721R704
S702
S701
WP702
CN702
J701
IC701
IC702
S703
S705
S704
R706
Q700
LCD701
R716
D707
D705
100
2.2k
2.2k
4.7k
100
DTC343TK
0.0047
0.014.7k
120
0.0047
0.01
0.1
DTC124EKA-T146
DTA124EKA-T
47
0.1
0.1
0.1
220
220
SELS2B14CSELS2B14C
0.1
470k
470k
100
100
SLR-342MGT32
470470
470
DTC124EKA-T146DTC124EKA-T146DTC124EKA-T146
1k1k
21P
BU9735K
NJL74H400A
2.2k
DTC343TK
68
SLR-342VRT32
SLR-342MGT32
GND
LCD-C/D
LCD-CS
LCD-CLK
SIRCS
KEY
READY3.3V
BACKLIGHT
D-3.3V
LCD-DATA
(CHASSIS)
HP.SW
HP-MUTE
HP.L
HP.R
STANDBYLED
V/R
GND
STANDBY5.6V
SEG2
SEG3
SEG4
SEG5
SEG6
SEG7
SEG8
SEG9
SEG1
SEG0
COM3
COM0
COM1
COM2
SD
SCK
VDD
VLCD
VC
VSS
OSC2
OSC1
SEG10
SEG11
SEG12
SEG13
SEG14
SEG15
SEG16
SEG17 CS
C/D
GND
RMC
3.3V
APCLED
POWERONLED
GND(SHIELD)
D702,703
(LCDBACKLIGHT)
LIQUID CRYSTALDISPLAY
COM3
COM2
COM1
COM0
SEG17
SEG16
SEG15
SEG14
SEG13
SEG12
SEG11
SEG10
SEG9
SEG8
SEG7
SEG6
SEG5
SEG4
SEG3
SEG2
SEG1
SEG0
NC
PHONES
DISPLAYDRIVER
LIQUID CRYSTAL
REMOTE
CONTROL
RECEIVER
CONTROL
Q710,711
MUTING
SWITCH
MUTING
MUTING
(POWERON)
(STANDBY)
LEDDRIVELEDDRIVELEDDRIVE
INPUT
S-MODE
-
+VOLUME
AUTOPOWER
33µH
33µH
(Page 14)

SS-US501/SW-US501/UZ-US501
2020
5-12. PRINTED WIRING BOARD – AMP Board – :Uses unleaded solder.
JW453
JW401
JW452
JW901
JW902
JW455
JW406
JW456
JW412
JW446
JW441
IC402
D903
Q909
CN421
LF901
JW449
JW450
JW421
JW444
JW408
C417
L903
C418
C419
Q453
C414
JW445
C412
CN401
C420
C901
JW420
D920
JW438
CNP423
JW426
JW414
JW422
JW425
R903
JW442
D909
C911
C914
C981
C951
TH901
C451
C927
C401
C921
IC901
D906
JW435
C903
C925
C458
JW433
C461
FH902
R934
C455
C922
R911
JW405
R923
L901
EB902
C913
IC906
C912
Q907
JW419
JW423
JW403
JW424
Q901
IC902
R919
JW410
JW402
C904
JW411
R907
R935
EB901
R912
R930
D905
CNP401
D907
D908
D947
R908
PC901
CN451
C916
JW431
J404
R920
D902
C406
L902
C928
C902
R917
LF902
R918
C402
JW409
C923
C920
C915
R913
T901
C457
C456
R901
D901
C453
C929
C403
C409
C410
IC401
C404
JW413
C405
R909
D911
R914
D904
JW404
C905
C906
JW418
IC905
JW443
JW447
JW440
JW436
JW415
JW439
Q451
JW437
JW416
C917
FB901
R900
JW417
JW427
JW432
JW448
JW430
FH901
F901
Q904
JW434
CN902
JW903
JW904
JW905
JW906
JW907
JW908
JW910
JW912
C924
C473
C470
C471
C474
C415
R456
R458
D402
C408
R950
C416
R425
C952
C956
Q915
C950
C962
R457
R401
R413
R417
R420
R415
R419
R416
R414
R409
C953
Q452
D451
R418
R452
D454
R916 D914
Q902
R421
C411
R915
R921
R927
C454
R937
R926
R410
R932
Q906
R931
C919
R922
Q905
IC903
R455
Q910
R928
D913
D910
R412
R925
C932
C413
C931
D453
C955
D452
R404
R407
R411
D401
C472
R451
R453
R454
R405
R406
R929
Q908
C954
R933
C475
D946
C407
R408
R430
JW911
JW909
CNP403
CNP402
E
E
E
E
E
E
(EXCEPT US)
(EXCEPT US)
(EXCEPT US)
(EXCEPT US)
(US)
(US)
(EXCEPT US)
E
E
1
1
14
15
3
E
18
E
EE
E
AMP BOARD
1-862-114-
11
(11)
103
9
4
5
6
12
11
1
2
7
8
+
–
+
–
+
–
+
–
+
–
+
–
SPEAKER
FRONT
CENTER
SURROUND
R L
TO FRONT/CENTER
SPEAKER (L)/ (R),
SURROUND SPEAKER
(L)/(R) (SS-US501)
41
24
3
M
42 3
FAN401
(FAN)
2
1
12
SP101
(SUB WOOFER)
1
2
25
24
C
DIGITAL BOARD
CN602
E
SUB BOARD
CNP922
15
2
1
13
3
54
4
A
K
A
B
DIGITAL BOARD
CN601
D
SUB BOARD
CN991
117
162
(AC IN)
12
(US)
(US)
(US)
(US)
(EXCEPT US)
C908
(EXCEPT US)
(EXCEPT US)
(CHASSIS)
41
MAIN POWER
TRANSFORMER
1
5
4
2
(CHASSIS)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
A
B
C
D
E
F
G
H
I
J
K
(Page 12)
(Page 22)
(Page 22)
(Page 12)
D910 C-9
D911 E-10
D913 B-12
D914 C-10
D920 D-10
D946 C-16
D947 H-18
IC401 H-15
IC402 H-10
IC901 D-5
IC902 B-8
IC903 C-9
IC905 C-12
IC906 D-15
Ref. No. Location
Ref. No. Location
D401 G-11
D402 F-11
D451 G-18
D452 H-18
D453 G-18
D454 G-18
D901 E-4
D902 G-3
D903 C-5
D904 B-4
D905 B-5
D906 B-4
D907 B-3
D908 F-5
D909 C-11
•Semiconductor Location
Ref. No. Location
PC901 B-7
Q451 H-17
Q452 H-17
Q453 H-17
Q901 B-4
Q902 C-9
Q904 E-14
Q905 D-14
Q906 C-9
Q907 C-14
Q908 B-14
Q909 C-14
Q910 B-13
Q915 E-10
