EXPLODED VIEWS
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• Abbreviation
MX : Mexican model
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Accessories are given in the last of this
parts list.
Ref. No. Part No. Description Remark

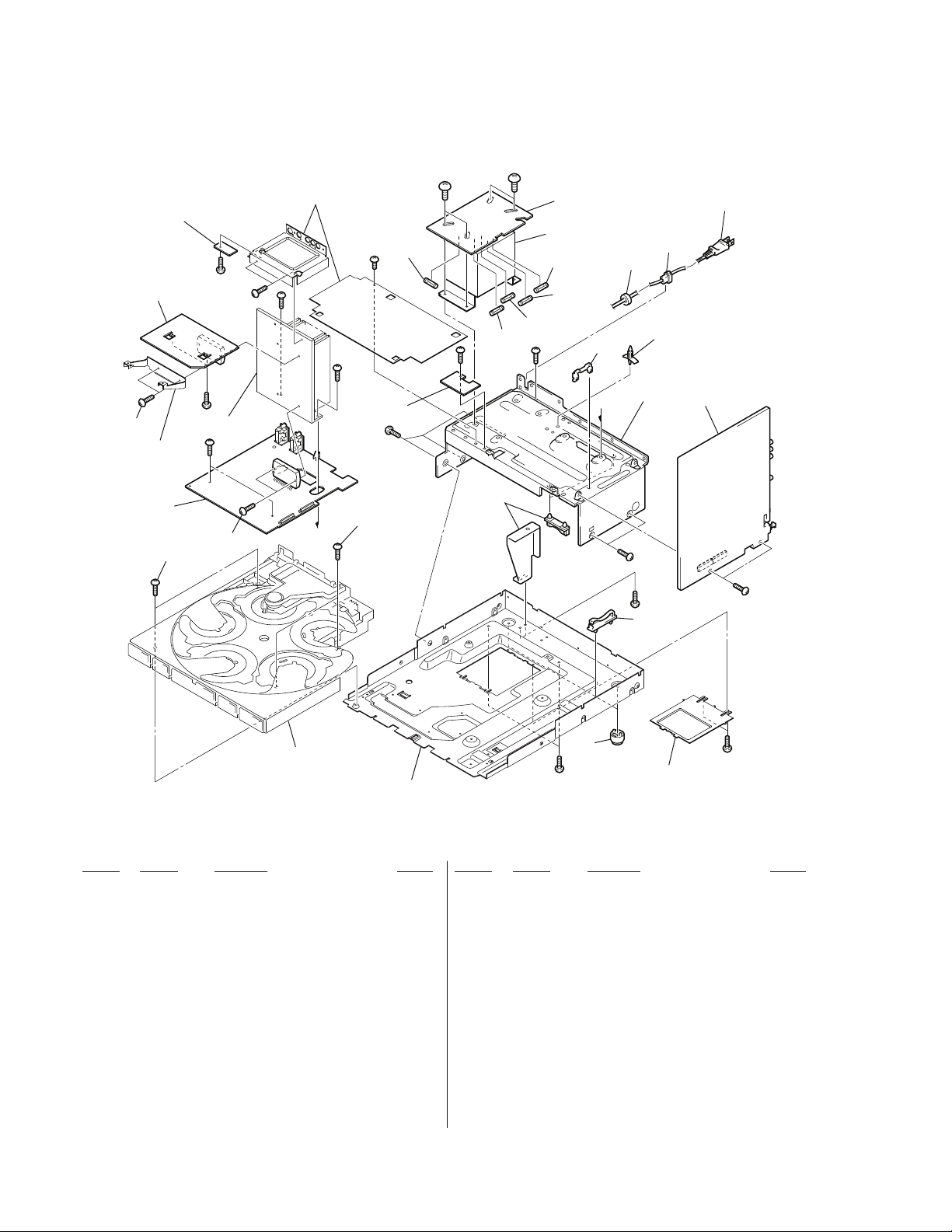

8-1. BACK PANEL SECTION
Ref. No. Part No. Description Remark
1 4-252-686-02 LOADING PANEL (US)
1 4-252-686-21 LOADING PANEL (MX)
2 3-363-099-02 SCREW (CASE 3 TP2) (US)
2 3-363-099-32 SCREW (CASE 3 TP2) (MX)
3 4-237-661-51 CASE
4 4-252-685-01 COVER (TOP) (US)
4 4-252-685-21 COVER (TOP) (MX)
5 1-769-939-11 WIRE (FLAT TYPE) (11 CORE)
06 1-468-737-51 SWITCHING, POWER (MX)
06 1-468-737-71 SWITCHING, POWER (US)
7 1-861-384-11 VOLTAGE SELECTOR BOARD
8 3-559-407-21 CUSHION, STOPPER (MX)
8 3-831-441-99 CUSHION, STOPPER (US)
*9 3-378-433-01 CUSHION, SARANET
FAN901 1-763-372-11 FAN, DC
TU901 1-693-603-11 TUNER (FM/AM) (MX)
TU901 1-693-623-31 TUNER (FM/AM) (US)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
1
2
2
3
4
58
9
6
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
FAN901
TU901
not supplied
not supplied
(LIGHTING board)
not supplied
#1
#1
#1
A
A
7
Ver. 1.1
72
HCD-ZX9
8-2. FRONT PANEL SECTION (1)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 4-252-682-01 KNOB (ENTER)
52 4-252-684-01 KNOB (VOLUME)
53 3-087-053-01 +BVTP 2.6 (3CR)
54 A-1052-687-A VOL BOARD, COMPLETE (MX)
54 A-4751-069-A VOL BOARD, COMPLETE (US)
55 A-4751-072-A PANEL BOARD, COMPLETE (US)
55 A-4753-562-A PANEL BOARD, COMPLETE (MX)
56 4-253-178-01 HOLDER, FL
57 1-773-163-11 WIRE (FLAT TYPE) (21 CORE)
58 1-796-487-71 DECK, MECHANICAL
59 4-243-609-01 BELT (AF)
60 4-243-610-01 BELT (AL)
61 4-243-608-01 BELT (BR)
62 1-769-992-11 WIRE (FLAT TYPE) (13 CORE)
63 A-1052-746-A TC-B BOARD, COMPLETE (MX)
63 A-4751-063-A TC-B BOARD, COMPLETE (US)
FL901 1-518-978-11 VACUUM FLUORESCENT DISPLAY
51
52
53
53
53
53
53
53
53
53
53
53
53
53 53 58
53
53
54
55
56
57
59
60
61
62
63
not supplied
not supplied
(POWER SWITCH board)
not supplied
(TC-A board)
not supplied
(CURSOR board)
FL901
not supplied
not supplied
(FUNCTION SW board
)
supplied with S975
Ver. 1.1
73
HCD-ZX9
8-3. FRONT PANEL SECTION (2)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 4-252-649-51 LID (TC) (MX)
101 4-252-649-61 LID (TC) (US)
102 4-252-650-01 WINDOW (TC)
103 3-087-053-01 +BVTP 2.6 (3CR)
104 4-252-677-01 SPRING (LID)
105 4-252-679-01 SPRING (R)
106 4-252-678-01 SPRING (L)
107 4-224-104-11 DAMPER
108 4-252-651-01 HOLDER (TC-L)
109 4-959-229-11 DETENT, CASSETTE
110 4-252-652-01 HOLDER (TC-R)
111 4-237-635-11 KNOB (MIC)
112 A-4751-053-A GAME-IN/HP BOARD, COMPLETE (US)
112 A-4753-550-A GAME-IN/HP BOARD, COMPLETE (MX)
113 4-252-683-01 KNOB (JOG)
114 X-2148-524-1 BRACKET CD ASSY (MX)
114 X-4956-237-1 BRACKET CD ASSY (US)
115 A-1053-210-A JOG BOARD, COMPLETE (MX)
115 A-4751-078-A JOG BOARD, COMPLETE (US)
116 4-252-654-02 BUTTON (EJECT-B)
117 4-254-779-01 SPRING (EJECT)
118 4-252-653-02 BUTTON (EJECT-A)
119 4-225-252-21 CUSHION (FOOT)
120 4-252-633-31 FRONT PANEL (MX)
120 4-252-633-41 FRONT PANEL (US)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
not supplied
(CD-L board)
not supplied
(CD-R board)
not supplied
(MIC board)
not supplied
not supplied
not supplied
supplied with jack
supplied
with jack
not supplied
not supplied
not supplied
not supplied
101 119
102
103
103
103
103
103
103
103
103
103
103
103
103
103
103
120
103
106
103
104 105
107
107
108
109
109
110
112
113
114
111
115
116
117
117
118
#1
Ver. 1.1
74
HCD-ZX9
8-4. CHASSIS SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 4-965-822-01 FOOT
152 3-905-609-41 SCREW (TRANSISTOR)
153 A-4751-050-A POWER BOARD, COMPLETE (US)
153 A-4753-555-A POWER BOARD, COMPLETE (MX)
154 A-1052-527-A SURROUND BOARD, COMPLETE (MX)
154 A-4751-060-A SURROUND BOARD, COMPLETE (US)
155 A-1198-352-A MAIN BOARD, COMPLETE (MX)
155 A-1227-336-A MAIN BOARD, COMPLETE (US)
*156 3-703-244-00 BUSHING (2104), CORD (US)
156 3-703-571-11 BUSHING (S) (4516), CORD (MX)
0157 1-783-820-11 CORD, POWER (US)
0157 1-829-627-11 POWER-SUPPLY CORD (MX)
*158 4-954-051-41 HOLDER, PC BOARD
*159 4-988-533-01 HOLDER, PWB
160 3-077-331-01 +BV 3 (3-CR)
0F1141 1-533-949-33 FUSE, CYLINDRICAL (TIME LAG) (8A/250V) (US)
0F1141 1-576-655-12 FUSE, GLASS TUBE (DIA. 5) (8A/250V) (MX)
0F1151 1-533-949-33 FUSE, CYLINDRICAL (TIME LAG) (8A/250V) (US)
0F1151 1-576-655-12 FUSE, GLASS TUBE (DIA. 5) (8A/250V) (MX)
0F1161 1-533-949-33 FUSE, CYLINDRICAL (TIME LAG) (8A/250V) (US)
0F1161 1-576-655-12 FUSE, GLASS TUBE (DIA. 5) (8A/250V) (MX)
0F1171 1-533-949-33 FUSE, CYLINDRICAL (TIME LAG) (8A/250V) (US)
0F1171 1-576-655-12 FUSE, GLASS TUBE (DIA. 5) (8A/250V) (MX)
0F1181 1-532-504-33 FUSE (TIME LAG) (4A/250V) (US)
0F1181 1-533-471-12 FUSE, GLASS TUBE (DIA. 5) (4A/250V) (MX)
FC901 1-500-868-11 CORE, FERRITE
0T1100 1-443-195-11 TRANSFORMER, POWER (MX)
0T1100 1-445-175-11 TRANSFORMER, POWER (US)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#2 7-685-881-09 SCREW +BVTT 4X8 (S)
151
152
152
153
154
156
157
158
159
155
160
160
B
B
CDM79B-F1BD81
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
(SENSOR board)
not supplied
(TRANS board)
not supplied
(RETAINER board)
#1
#1
#1
#1 #1
#1
#1 F1181
T1100
F1141
F1161
F1171
FC901
F1151
#2 #2
#1
#1
#1
#1
#1
#1
#1
#1
Ver. 1.2
75
HCD-ZX9
8-5. CD MECHANISM SECTION (1)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
201 3-074-737-01 PLATE (GUIDE)
202 A-6060-642-A SE-130 BOARD, COMPLETE
203 A-6060-640-B UNIT ASSY, TD
204 3-074-725-01 BELT, TD
205 3-074-717-21 TRAY
206 4-218-252-52 SCREW (+PTPWH M2.6), FLOATING
207 1-823-921-11 FMS-18
#3 7-682-544-04 SCREW +P 3X3
#4 7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S
not
supplied
not
supplied
205
206
207
203
202
204
#3
#4
#4
#4
#4
201
CD mechanism deck section-
2
(CDM79B-F1BD81)
not supplied
not supplied
not supplied
Ver. 1.1
76
HCD-ZX9
8-6. CD MECHANISM SECTION (2)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
251 4-218-252-52 SCREW (+PTPWH M2.6), FLOATING
252 3-074-744-01 GEAR (LOADING A)
253 3-074-745-01 BELT (LOADING)
254 3-074-742-01 GEAR (SHAFT)
255 4-951-619-01 CUSHION (A)
256 3-074-735-01 GEAR (IDOLER)
257 3-074-736-01 GEAR (CHUCK)
258 3-074-741-01 GEAR (LOADING B)
259 3-074-738-01 GEAR (SWING)
260 3-074-739-01 COLLAR (SWING)
261 3-016-533-11 WASHER (FR), STOPPER
262 3-074-740-01 GEAR (LOADING C)
263 X-4956-104-A HOLDER (BU) ASSY
264 4-227-549-11 INSULATOR
0265 8-820-244-01 OPTICAL PICK-UP (KSM-215DCP/C2NP)
266 4-227-045-11 SPRING (INSULATOR), COIL
267 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
268 4-231-151-01 STOPPER (BU)
269 A-4751-045-A BD81A BOARD, COMPLETE
270 3-087-053-01 +BVTP 2.6 (3CR)
271 A-4713-281-A CHUCK ASSY
272 1-832-404-21 CABLE, FLEXIBLE FLAT (16 CORE)
273 1-452-925-21 MAGNET ASSY
274 4-231-777-02 SHEET (KH2)
275 X-4953-195-3 PULLEY (AT) ASSY
M901 X-3952-411-1 MOTOR ASSY, LOADING (LOADING)
RE901 1-418-746-11 ENCODER, ROTARY
S101 1-771-853-11 SWITCH, DETECTION (LIMIT)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#4 7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S
#5 7-621-259-25 SCREW +P 2.6X4
not
supplied
not
supplied
not supplied
not supplied
(MD-94 board)
M901
RE901
251
252
253
254
255
256
258
259
260 261
275
273
274
262
257
263
264
264
264
265 266
266
266
266
268
267
272
269
270
270
271
268
264
251
#4
#1
#5
not supplied
S101
C
C
Ver. 1.1
77
HCD-ZX9
SECTION 9
ELECTRICAL PARTS LIST
NOTE:
• Due to standardization, replacements in
the parts list may be different from the
parts specified in the diagrams or the
components used on the set.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• RESISTORS
All resistors are in ohms.
METAL:Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F:nonflammable
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• SEMICONDUCTORS
In each case, u : μ, for example:
uA.. : μA.. uPA.. : μPA..
uPB.. : μPB.. uPC.. : μPC.. uPD.. : μPD..
• CAPACITORS
uF : μF
• COILS
uH : μH
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
When indicating parts by reference
number, please include the board.
A-4751-045-A BD81A BOARD, COMPLETE
**********************
< CAPACITOR >
C10 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C11 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C14 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C15 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C16 1-115-156-11 CERAMIC CHIP 1uF 10V
C17 1-126-246-11 ELECT CHIP 220uF 20% 4V
C18 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C111 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V
C112 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C113 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V
C114 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C115 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C116 1-128-995-21 ELECT CHIP 100uF 20% 10V
C122 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C123 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C124 1-162-959-11 CERAMIC CHIP 330PF 5% 50V
C125 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C131 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C132 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V
C133 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C134 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C141 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C142 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V
C143 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C151 1-128-995-21 ELECT CHIP 100uF 20% 10V
C161 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C162 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C163 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C171 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C172 1-162-920-11 CERAMIC CHIP 27PF 5% 50V
C174 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C181 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C182 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C183 1-124-778-00 ELECT CHIP 22uF 20% 6.3V
C184 1-124-778-00 ELECT CHIP 22uF 20% 6.3V
C185 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C186 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C194 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C195 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C196 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C201 1-128-995-21 ELECT CHIP 100uF 20% 10V
C203 1-128-995-21 ELECT CHIP 100uF 20% 10V
C209 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C210 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C211 1-164-230-11 CERAMIC CHIP 220PF 5% 50V
C212 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C213 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C251 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V
C252 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C255 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C257 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C258 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C259 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C260 1-128-394-11 ELECT CHIP 220uF 20% 10V
C302 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C303 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C305 1-126-246-11 ELECT CHIP 220uF 20% 4V
C306 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C307 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C308 1-126-208-21 ELECT CHIP 47uF 20% 4V
C309 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C310 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C311 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C312 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C313 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C314 1-126-208-21 ELECT CHIP 47uF 20% 4V
C315 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C316 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C317 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C318 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C320 1-216-864-11 SHORT CHIP 0
< CONNECTOR >
CN101 1-770-425-51 CONNECTOR, FFC/FPC 16P
CN201 1-818-350-51 CONNECTOR, FFC (LIF(NON-ZIF)) 27P
< FERRITE BEAD >
FB301 1-500-445-21 FERRITE, EMI (SMD) (2012)
< IC >
IC101 8-752-425-12 IC CXD3059AR
IC251 6-705-808-01 IC BA5947FM-E2
IC301 6-705-365-01 IC TC94A34FG-002
IC303 6-705-807-01 IC BH15FB1WG
BD81A
• Abbreviation
MX : Mexican model
Ver. 1.1
78
HCD-ZX9
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
< TRANSISTOR >
Q10 6-551-120-01 TRANSISTOR 2SA2119K
< RESISTOR >
R10 1-216-791-11 METAL CHIP 3.3 5% 1/10W
R11 1-216-864-11 SHORT CHIP 0
R12 1-216-845-11 METAL CHIP 100K 5% 1/10W
R13 1-218-446-11 METAL CHIP 1 5% 1/10W
R111 1-216-821-11 METAL CHIP 1K 5% 1/10W
R112 1-216-835-11 METAL CHIP 15K 5% 1/10W
R113 1-216-821-11 METAL CHIP 1K 5% 1/10W
R114 1-216-835-11 METAL CHIP 15K 5% 1/10W
R121 1-216-835-11 METAL CHIP 15K 5% 1/10W
R131 1-216-857-11 METAL CHIP 1M 5% 1/10W
R132 1-216-833-11 METAL CHIP 10K 5% 1/10W
R133 1-216-848-11 METAL CHIP 180K 5% 1/10W
R141 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R142 1-216-821-11 METAL CHIP 1K 5% 1/10W
R143 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R151 1-216-864-11 SHORT CHIP 0
R161 1-216-809-11 METAL CHIP 100 5% 1/10W
R162 1-216-841-11 METAL CHIP 47K 5% 1/10W
R163 1-216-809-11 METAL CHIP 100 5% 1/10W
R165 1-216-864-11 SHORT CHIP 0
R171 1-216-817-11 METAL CHIP 470 5% 1/10W
R172 1-216-857-11 METAL CHIP 1M 5% 1/10W
R173 1-216-295-11 SHORT CHIP 0
R181 1-216-809-11 METAL CHIP 100 5% 1/10W
R182 1-216-809-11 METAL CHIP 100 5% 1/10W
R191 1-216-864-11 SHORT CHIP 0
R201 1-500-445-21 FERRITE, EMI (SMD) (2012)
R203 1-216-864-11 SHORT CHIP 0
R204 1-500-445-21 FERRITE, EMI (SMD) (2012)
R205 1-216-864-11 SHORT CHIP 0
R251 1-216-833-11 METAL CHIP 10K 5% 1/10W
R252 1-216-837-11 METAL CHIP 22K 5% 1/10W
R253 1-216-833-11 METAL CHIP 10K 5% 1/10W
R301 1-216-845-11 METAL CHIP 100K 5% 1/10W
R302 1-216-833-11 METAL CHIP 10K 5% 1/10W
R303 1-216-845-11 METAL CHIP 100K 5% 1/10W
R305 1-216-845-11 METAL CHIP 100K 5% 1/10W
R306 1-216-864-11 SHORT CHIP 0
R307 1-216-833-11 METAL CHIP 10K 5% 1/10W
R313 1-216-813-11 METAL CHIP 220 5% 1/10W
R351 1-216-809-11 METAL CHIP 100 5% 1/10W
R352 1-216-809-11 METAL CHIP 100 5% 1/10W
R353 1-216-809-11 METAL CHIP 100 5% 1/10W
R354 1-216-809-11 METAL CHIP 100 5% 1/10W
R401 1-216-809-11 METAL CHIP 100 5% 1/10W
R402 1-216-809-11 METAL CHIP 100 5% 1/10W
R403 1-216-809-11 METAL CHIP 100 5% 1/10W
R404 1-216-809-11 METAL CHIP 100 5% 1/10W
R405 1-216-809-11 METAL CHIP 100 5% 1/10W
R406 1-216-809-11 METAL CHIP 100 5% 1/10W
R407 1-216-809-11 METAL CHIP 100 5% 1/10W
R408 1-216-809-11 METAL CHIP 100 5% 1/10W
R409 1-216-809-11 METAL CHIP 100 5% 1/10W
R410 1-216-809-11 METAL CHIP 100 5% 1/10W
R411 1-216-809-11 METAL CHIP 100 5% 1/10W
R412 1-216-809-11 METAL CHIP 100 5% 1/10W
R419 1-216-809-11 METAL CHIP 100 5% 1/10W
< VIBRATOR >
X171 1-767-408-21 VIBRATOR, CRYSTAL (16.9344MHz)
*************************************************************
CD-L BOARD
***********
< CONNECTOR >
CN911 1-564-718-11 PIN, CONNECTOR (SMALL TYPE) 2P
< RESISTOR >
R834 1-216-835-11 METAL CHIP 15K 5% 1/10W
R866 1-216-839-11 METAL CHIP 33K 5% 1/10W
R896 1-216-837-11 METAL CHIP 22K 5% 1/10W
< SWITCH >
S937 1-771-410-21 SWITCH, TACTILE (EDIT)
S938 1-771-410-21 SWITCH, TACTILE (REPEAT)
S939 1-771-410-21 SWITCH, TACTILE (PLAY MODE)
*************************************************************
CD-R BOARD
***********
< DIODE >
D926 8-719-060-27 LED SLR-325MCT31 (u)
< TRANSISTOR >
Q917 8-729-027-43 TRANSISTOR DTC114EKA-T146
< RESISTOR >
R872 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R873 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R874 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R875 1-216-833-11 METAL CHIP 10K 5% 1/10W
R876 1-216-835-11 METAL CHIP 15K 5% 1/10W
R877 1-216-837-11 METAL CHIP 22K 5% 1/10W
R878 1-216-819-11 METAL CHIP 680 5% 1/10W
R879 1-216-819-11 METAL CHIP 680 5% 1/10W
R881 1-216-809-11 METAL CHIP 100 5% 1/10W
< SWITCH >
S950 1-771-410-21 SWITCH, TACTILE (J)
S951 1-771-410-21 SWITCH, TACTILE (j)
S952 1-771-410-21 SWITCH, TACTILE (>)
S953 1-771-410-21 SWITCH, TACTILE (.)
S954 1-771-410-21 SWITCH, TACTILE (x)
S955 1-771-410-21 SWITCH, TACTILE (u)
*************************************************************
BD81A CD-L CD-R
79
HCD-ZX9
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
CURSOR BOARD
**************
< RESISTOR >
R978 1-216-833-11 METAL CHIP 10K 5% 1/10W
R979 1-216-835-11 METAL CHIP 15K 5% 1/10W
R980 1-216-837-11 METAL CHIP 22K 5% 1/10W
R981 1-216-839-11 METAL CHIP 33K 5% 1/10W
R982 1-216-843-11 METAL CHIP 68K 5% 1/10W
< SWITCH >
S970 1-771-879-11 SWITCH, TACTILE (ENTER)
*************************************************************
FUNCTION SW BOARD
******************
< RESISTOR >
R832 1-216-837-11 METAL CHIP 22K 5% 1/10W
< SWITCH >
S930 1-771-410-21 SWITCH, TACTILE (FUNCTION)
*************************************************************
A-4753-550-A GAME-IN/HP BOARD, COMPLETE
***************************
< CAPACITOR >
C840 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C841 1-216-864-11 SHORT CHIP 0
C842 1-216-864-11 SHORT CHIP 0
< CONNECTOR >
*CN801 1-564-720-11 PIN, CONNECTOR (SMALL TYPE) 4P
CN802 1-785-328-11 PIN, CONNECTOR (LIGHT ANGLE) 2P
CN803 1-564-719-11 PIN, CONNECTOR (SMALL TYPE) 3P
< GROUND TERMINAL >
EPT803 1-537-738-21 TERMINAL, GROUND
EPT804 1-537-738-21 TERMINAL, GROUND
< JACK >
J850 1-764-592-11 JACK, PIN 3P (GAME INPUT VIDEO,AUDIO L/R)
J851 1-770-226-11 JACK (LARGE TYPE) (PHONES)
< RESISTOR >
R826 1-216-809-11 METAL CHIP 100 5% 1/10W
R827 1-216-845-11 METAL CHIP 100K 5% 1/10W
R828 1-216-845-11 METAL CHIP 100K 5% 1/10W
R829 1-216-821-11 METAL CHIP 1K 5% 1/10W
R830 1-216-821-11 METAL CHIP 1K 5% 1/10W
*************************************************************
A-1053-210-A JOG BOARD, COMPLETE (MX)
A-4751-078-A JOG BOARD, COMPLETE (US)
********************
< CAPACITOR >
C964 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C965 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
< DIODE >
D925 8-719-061-96 LED SLR-325DCT31 (X-ROUND ON/OFF)
< TRANSISTOR >
Q916 8-729-027-43 TRANSISTOR DTC114EKA-T146
< RESISTOR >
R871 1-216-809-11 METAL CHIP 100 5% 1/10W
R882 1-216-819-11 METAL CHIP 680 5% 1/10W
R883 1-216-817-11 METAL CHIP 470 5% 1/10W
R884 1-216-821-11 METAL CHIP 1K 5% 1/10W
R885 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R886 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R887 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R888 1-216-819-11 METAL CHIP 680 5% 1/10W
R889 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R890 1-216-819-11 METAL CHIP 680 5% 1/10W
R891 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R893 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R894 1-216-833-11 METAL CHIP 10K 5% 1/10W
R895 1-216-835-11 METAL CHIP 15K 5% 1/10W
< SWITCH >
S956 1-771-410-21 SWITCH, TACTILE (DISC 1)
S957 1-478-133-11 ENCODER, ROTARY (JOG)
S958 1-771-410-21 SWITCH, TACTILE (DISC 2)
S959 1-771-410-21 SWITCH, TACTILE (DISC 3)
S960 1-771-410-21 SWITCH, TACTILE (DISC 4)
S961 1-771-410-21 SWITCH, TACTILE (DISC 5)
S962 1-771-410-21 SWITCH, TACTILE (ZOPEN/CLOSE)
S963 1-771-410-21 SWITCH, TACTILE (EX-CHANGE)
S964 1-771-410-21 SWITCH, TACTILE (DISC SKIP)
S965 1-771-410-21 SWITCH, TACTILE (FLASH)
S966 1-771-410-21 SWITCH, TACTILE (MODE SPEAKER)
S967 1-771-410-21 SWITCH, TACTILE (X-ROUND ON/OFF)
*************************************************************
LIGHTING BOARD
***************
< CAPACITOR >
C06 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C07 1-164-156-11 CERAMIC CHIP 0.1uF 25V
< CONNECTOR >
CN01 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P
< DIODE >
D01 6-501-193-01 DIODE 1SS355WTE-17
D02 6-501-193-01 DIODE 1SS355WTE-17
D03 8-719-083-60 DIODE UDZSTE-174.7B
< CONNECTOR >
J01 1-820-048-11 CONNECTOR (LIGHTING)
JOGGAME-IN/HPFUNCTION SWCURSOR LIGHTING
Ver. 1.1
80
HCD-ZX9
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
< TRANSISTOR >
Q01 8-729-056-46 TRANSISTOR 2SC5053T100Q
< RESISTOR >
R01 1-216-809-11 METAL CHIP 100 5% 1/10W
R03 1-216-819-11 METAL CHIP 680 5% 1/10W
R05 1-216-864-11 SHORT CHIP 0
*************************************************************
A-1198-352-A MAIN BOARD, COMPLETE (MX)
A-1227-336-A MAIN BOARD, COMPLETE (US)
*********************
7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
< CAPACITOR >
C101 1-126-964-11 ELECT 10uF 20% 50V
C102 1-126-964-11 ELECT 10uF 20% 50V
C103 1-126-964-11 ELECT 10uF 20% 50V
C104 1-126-964-11 ELECT 10uF 20% 50V
C105 1-126-964-11 ELECT 10uF 20% 50V
C106 1-126-960-11 ELECT 1uF 20% 50V
C107 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C108 1-126-947-11 ELECT 47uF 20% 35V
C109 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C110 1-126-964-11 ELECT 10uF 20% 50V
C111 1-126-959-11 ELECT 0.47uF 20% 50V
C112 1-126-964-11 ELECT 10uF 20% 50V
C115 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C116 1-126-933-11 ELECT 100uF 20% 16V
C117 1-126-961-11 ELECT 2.2uF 20% 50V
C118 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C119 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C120 1-126-964-11 ELECT 10uF 20% 50V
C121 1-100-436-11 CERAMIC CHIP 0.033uF 10% 25V
C122 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C123 1-162-961-11 CERAMIC CHIP 330PF 10% 50V
C124 1-126-964-11 ELECT 10uF 20% 50V
C126 1-162-963-11 CERAMIC CHIP 680PF 10% 50V
C128 1-126-959-11 ELECT 0.47uF 20% 50V
C133 1-162-963-11 CERAMIC CHIP 680PF 10% 50V
C134 1-162-963-11 CERAMIC CHIP 680PF 10% 50V
C135 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C136 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C137 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C138 1-137-194-81 FILM 0.47uF 5% 50V
C139 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C140 1-136-170-00 FILM 0.27uF 5% 50V
C141 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C142 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C143 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C144 1-100-436-11 CERAMIC CHIP 0.033uF 10% 25V
C145 1-126-964-11 ELECT 10uF 20% 50V
C146 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C147 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C148 1-126-961-11 ELECT 2.2uF 20% 50V
C149 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C150 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C151 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C152 1-137-427-11 MYLAR 120PF 5% 50V
C153 1-126-964-11 ELECT 10uF 20% 50V
C154 1-137-427-11 MYLAR 120PF 5% 50V
C155 1-136-495-11 FILM 0.068uF 5% 50V
C156 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C157 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C158 1-137-194-81 FILM 0.47uF 5% 50V
C159 1-126-964-11 ELECT 10uF 20% 50V
C160 1-126-960-11 ELECT 1uF 20% 50V
C161 1-126-964-11 ELECT 10uF 20% 50V
C162 1-126-964-11 ELECT 10uF 20% 50V
C163 1-126-964-11 ELECT 10uF 20% 50V
C164 1-126-964-11 ELECT 10uF 20% 50V
C165 1-126-964-11 ELECT 10uF 20% 50V
C166 1-126-964-11 ELECT 10uF 20% 50V
C167 1-126-960-11 ELECT 1uF 20% 50V
C168 1-130-483-00 MYLAR 0.01uF 5% 50V
C169 1-126-947-11 ELECT 47uF 20% 35V
C170 1-162-961-11 CERAMIC CHIP 330PF 10% 50V
C171 1-136-170-00 FILM 0.27uF 5% 50V
C172 1-126-933-11 ELECT 100uF 20% 16V
C173 1-126-933-11 ELECT 100uF 20% 16V
C174 1-126-935-11 ELECT 470uF 20% 16V
C175 1-137-194-81 FILM 0.47uF 5% 50V
C176 1-162-963-11 CERAMIC CHIP 680PF 10% 50V
C177 1-126-947-11 ELECT 47uF 20% 35V
C178 1-126-960-11 ELECT 1uF 20% 50V
C179 1-130-483-00 MYLAR 0.01uF 5% 50V
C180 1-126-964-11 ELECT 10uF 20% 50V
C182 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C186 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C187 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C191 1-137-150-11 FILM 0.01uF 5% 100V
C192 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C194 1-130-481-00 MYLAR 0.0068uF 5% 50V
C195 1-126-965-11 ELECT 22uF 20% 50V
C196 1-126-947-11 ELECT 47uF 20% 35V
C200 1-104-658-11 ELECT 100uF 20% 10V
C204 1-126-964-11 ELECT 10uF 20% 50V
C205 1-126-964-11 ELECT 10uF 20% 50V
C219 1-104-658-11 ELECT 100uF 20% 10V
C220 1-137-189-11 FILM 0.18uF 5% 50V
C221 1-137-193-11 FILM 0.39uF 5% 50V
C222 1-137-189-11 FILM 0.18uF 5% 50V
C223 1-137-193-11 FILM 0.39uF 5% 50V
C226 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C227 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C233 1-126-964-11 ELECT 10uF 20% 50V
C235 1-126-964-11 ELECT 10uF 20% 50V
C236 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C237 1-126-964-11 ELECT 10uF 20% 50V
C238 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C241 1-126-964-11 ELECT 10uF 20% 50V
C242 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C243 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C251 1-126-923-11 ELECT 220uF 20% 10V
C300 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
MAINLIGHTING
Ver. 1.1
81
HCD-ZX9
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C301 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C302 1-126-947-11 ELECT 47uF 20% 35V
C303 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C304 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C305 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C306 1-126-947-11 ELECT 47uF 20% 35V
C307 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C318 1-126-964-11 ELECT 10uF 20% 50V
C319 1-126-964-11 ELECT 10uF 20% 50V
C320 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C321 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C322 1-126-925-11 ELECT 470uF 20% 10V
C324 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C325 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C328 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C329 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C341 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V
C342 1-126-916-11 ELECT 1000uF 20% 6.3V
C386 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C387 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C395 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C402 1-126-964-11 ELECT 10uF 20% 50V
C403 1-136-497-81 FILM 0.1uF 5% 50V
C404 1-136-497-81 FILM 0.1uF 5% 50V
C410 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C411 1-162-917-11 CERAMIC CHIP 15PF 5% 50V
C412 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C414 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C416 1-126-916-11 ELECT 1000uF 20% 6.3V
C462 1-104-658-11 ELECT 100uF 20% 10V
C464 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C497 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C498 1-126-964-11 ELECT 10uF 20% 50V
C499 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C500 1-126-947-11 ELECT 47uF 20% 35V
C501 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C502 1-126-947-11 ELECT 47uF 20% 35V
C503 1-136-159-00 FILM 0.033uF 5% 50V
C504 1-136-159-00 FILM 0.033uF 5% 50V
C505 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C506 1-126-933-11 ELECT 100uF 20% 16V
C507 1-130-473-00 MYLAR 0.0015uF 5% 50V
C508 1-130-473-00 MYLAR 0.0015uF 5% 50V
C509 1-130-479-00 MYLAR 0.0047uF 5% 50V
C510 1-130-479-00 MYLAR 0.0047uF 5% 50V
C511 1-162-953-11 CERAMIC CHIP 100PF 5% 50V
C512 1-126-961-11 ELECT 2.2uF 20% 50V
C513 1-126-961-11 ELECT 2.2uF 20% 50V
C514 1-162-953-11 CERAMIC CHIP 100PF 5% 50V
C515 1-126-964-11 ELECT 10uF 20% 50V
C516 1-126-964-11 ELECT 10uF 20% 50V
C517 1-162-953-11 CERAMIC CHIP 100PF 5% 50V
C518 1-162-953-11 CERAMIC CHIP 100PF 5% 50V
C519 1-162-957-11 CERAMIC CHIP 220PF 5% 50V
C520 1-162-957-11 CERAMIC CHIP 220PF 5% 50V
C521 1-162-961-11 CERAMIC CHIP 330PF 10% 50V
C522 1-162-961-11 CERAMIC CHIP 330PF 10% 50V
C523 1-162-957-11 CERAMIC CHIP 220PF 5% 50V
C524 1-162-957-11 CERAMIC CHIP 220PF 5% 50V
C525 1-126-964-11 ELECT 10uF 20% 50V
C526 1-126-964-11 ELECT 10uF 20% 50V
C527 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C528 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C529 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C530 1-126-963-11 ELECT 4.7uF 20% 50V
C531 1-126-963-11 ELECT 4.7uF 20% 50V
C532 1-126-960-11 ELECT 1uF 20% 50V
C533 1-126-960-11 ELECT 1uF 20% 50V
C534 1-126-960-11 ELECT 1uF 20% 50V
C535 1-126-960-11 ELECT 1uF 20% 50V
C538 1-126-960-11 ELECT 1uF 20% 50V
C539 1-126-960-11 ELECT 1uF 20% 50V
C543 1-107-714-11 ELECT 10uF 20% 50V
C555 1-104-658-11 ELECT 100uF 20% 10V
C586 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C587 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C590 1-128-548-11 ELECT 4700uF 20% 25V
C591 1-104-658-11 ELECT 100uF 20% 10V
C593 1-126-933-11 ELECT 100uF 20% 16V
C594 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C595 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C597 1-130-483-00 MYLAR 0.01uF 5% 50V
C598 1-130-483-00 MYLAR 0.01uF 5% 50V
< CONNECTOR >
*CN104 1-569-930-11 SOCKET, CONNECTOR 13P
CN501 1-779-295-11 CONNECTOR, FFC (LIF(NON-ZIF)) 27P
CN502 1-564-706-11 PIN, CONNECTOR (SMALL TYPE) 4P
CN504 1-569-906-11 SOCKET, CONNECTOR 11P
CN505 1-778-982-11 CONNECTOR, BOARD TO BOARD 13P
CN506 1-778-982-11 CONNECTOR, BOARD TO BOARD 13P
CN507 1-568-838-11 CONNECTOR, FFC 21P
CN509 1-785-323-11 PIN, CONNECTOR (STRAIGHT) 11P
CN513 1-564-506-11 PLUG, CONNECTOR 3P
< DIODE >
D192 8-719-404-50 DIODE MA111-TX
D193 8-719-404-50 DIODE MA111-TX
D194 8-719-404-50 DIODE MA111-TX
D402 8-719-404-50 DIODE MA111-TX
D403 8-719-404-50 DIODE MA111-TX
D404 8-719-404-50 DIODE MA111-TX
D405 8-719-404-50 DIODE MA111-TX
D406 8-719-404-50 DIODE MA111-TX
D407 8-719-404-50 DIODE MA111-TX
D408 6-500-522-21 DIODE 10EDB40-TB3
D501 8-719-028-23 DIODE D3SBA20-4101
D503 6-500-522-21 DIODE 10EDB40-TB3
D504 6-500-522-21 DIODE 10EDB40-TB3
D506 6-500-522-21 DIODE 10EDB40-TB3
D554 8-719-083-63 DIODE UDZSTE-1713B
< GROUND TERMINAL >
EPT501 1-537-738-21 TERMINAL, GROUND
MAIN
82
HCD-ZX9
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
< FERRITE BEAD >
FB300 1-469-152-11 FERRITE, EMI (SMD) (2012)
FB301 1-469-152-11 FERRITE, EMI (SMD) (2012)
FB302 1-216-864-11 SHORT CHIP 0
FB303 1-469-152-11 FERRITE, EMI (SMD) (2012)
FB304 1-216-864-11 SHORT CHIP 0
FB305 1-216-864-11 SHORT CHIP 0
FB306 1-216-864-11 SHORT CHIP 0
FB416 1-414-864-11 FERRITE, EMI (SMD) (1608)
FB462 1-414-864-11 FERRITE, EMI (SMD) (1608)
FB500 1-216-864-11 SHORT CHIP 0
FB501 1-216-864-11 SHORT CHIP 0
FB502 1-216-864-11 SHORT CHIP 0
FB503 1-216-864-11 SHORT CHIP 0
FB555 1-216-864-11 SHORT CHIP 0
< IC >
IC101 6-705-667-01 IC M61537FP-RF0G
IC401 6-804-699-01 IC M3062CMEN-A17FPU0
IC402 6-705-809-01 IC BD4929G-TR
IC501 6-703-651-11 IC M61530FP-D60G
IC503 6-600-465-11 IC TOTX147 (CD DIGITAL OUT (OPTICAL))
IC510 6-703-550-01 IC TA7809LS
IC511 6-703-550-01 IC TA7809LS
IC513 6-702-771-01 IC TA78033LS
IC514 8-759-598-69 IC BA6956AN
IC515 8-759-598-69 IC BA6956AN
IC519 8-759-710-97 IC NJM4565M-D
< JACK >
J701 1-774-411-11 JACK, PIN 6P (PHONO IN L/R,
VIDEO/MD IN L/R,VIDEO/MD OUT L/R)
J716 1-794-970-11 JACK, PIN 1P (VIDEO OUT)
< JUMPER RESISTOR >
JR100 1-216-864-11 SHORT CHIP 0
JR101 1-216-864-11 SHORT CHIP 0
JR105 1-216-864-11 SHORT CHIP 0
JR107 1-216-296-11 SHORT CHIP 0
JR109 1-216-296-11 SHORT CHIP 0
JR110 1-216-296-11 SHORT CHIP 0
JR111 1-216-864-11 SHORT CHIP 0
JR112 1-216-864-11 SHORT CHIP 0
JR113 1-216-864-11 SHORT CHIP 0
JR114 1-216-864-11 SHORT CHIP 0
JR115 1-216-864-11 SHORT CHIP 0
JR116 1-216-864-11 SHORT CHIP 0
JR118 1-216-296-11 SHORT CHIP 0
JR119 1-216-864-11 SHORT CHIP 0
JR121 1-216-864-11 SHORT CHIP 0
JR131 1-216-864-11 SHORT CHIP 0
JR205 1-216-296-11 SHORT CHIP 0
JR207 1-216-864-11 SHORT CHIP 0
JR208 1-216-296-11 SHORT CHIP 0
JR209 1-216-296-11 SHORT CHIP 0
JR210 1-216-296-11 SHORT CHIP 0
JR211 1-216-296-11 SHORT CHIP 0
JR212 1-216-864-11 SHORT CHIP 0
JR213 1-216-296-11 SHORT CHIP 0
JR215 1-216-296-11 SHORT CHIP 0
JR216 1-216-296-11 SHORT CHIP 0
JR218 1-216-864-11 SHORT CHIP 0
JR300 1-216-296-11 SHORT CHIP 0
JR400 1-216-296-11 SHORT CHIP 0
JR401 1-216-296-11 SHORT CHIP 0
JR402 1-216-864-11 SHORT CHIP 0
JR403 1-216-864-11 SHORT CHIP 0
JR404 1-216-864-11 SHORT CHIP 0
JR405 1-216-296-11 SHORT CHIP 0
JR406 1-216-296-11 SHORT CHIP 0
JR407 1-216-296-11 SHORT CHIP 0
JR408 1-216-296-11 SHORT CHIP 0
JR409 1-216-296-11 SHORT CHIP 0
JR440 1-216-864-11 SHORT CHIP 0
JR441 1-216-864-11 SHORT CHIP 0
JR475 1-216-296-11 SHORT CHIP 0
JR500 1-216-296-11 SHORT CHIP 0
JR501 1-216-864-11 SHORT CHIP 0
JR502 1-216-296-11 SHORT CHIP 0
JR503 1-216-296-11 SHORT CHIP 0
JR504 1-216-296-11 SHORT CHIP 0
JR505 1-216-296-11 SHORT CHIP 0
JR506 1-216-864-11 SHORT CHIP 0
JR509 1-216-864-11 SHORT CHIP 0
JR510 1-216-296-11 SHORT CHIP 0
JR515 1-216-864-11 SHORT CHIP 0
JR517 1-216-864-11 SHORT CHIP 0
JR518 1-216-864-11 SHORT CHIP 0
JR519 1-216-864-11 SHORT CHIP 0
JR553 1-216-864-11 SHORT CHIP 0
< COIL >
L102 1-412-064-11 INDUCTOR 100uH
L103 1-410-780-11 INDUCTOR 27mH
L104 1-410-780-11 INDUCTOR 27mH
L300 1-412-058-11 INDUCTOR 10uH
< TRANSISTOR >
Q101 8-729-141-75 TRANSISTOR 2SD596DV345
Q102 8-729-802-80 TRANSISTOR 2SC3661
Q103 8-729-802-80 TRANSISTOR 2SC3661
Q104 6-550-185-01 TRANSISTOR RT1P137P-TP-1
Q105 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q106 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q107 8-729-027-31 TRANSISTOR DTA124EKA-T146
Q108 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q109 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q110 8-729-216-22 TRANSISTOR 2SA812-T1-M5M6
Q111 8-729-802-80 TRANSISTOR 2SC3661
Q112 8-729-802-80 TRANSISTOR 2SC3661
Q113 8-729-802-80 TRANSISTOR 2SC3661
Q114 8-729-802-80 TRANSISTOR 2SC3661
Q115 6-550-889-01 TRANSISTOR 2SC5938-T112-1B
Q116 6-550-889-01 TRANSISTOR 2SC5938-T112-1B
Q140 8-729-120-28 TRANSISTOR 2SC1623-L5L6
MAIN
Ver. 1.1
83
HCD-ZX9
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Q145 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q165 6-550-889-01 TRANSISTOR 2SC5938-T112-1B
Q180 6-550-889-01 TRANSISTOR 2SC5938-T112-1B
Q190 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q191 8-729-903-46 TRANSISTOR 2SB1132-P
Q192 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q193 8-729-903-46 TRANSISTOR 2SB1132-P
Q194 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q195 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q196 8-729-903-46 TRANSISTOR 2SB1132-P
Q198 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q199 6-550-889-01 TRANSISTOR 2SC5938-T112-1B
Q200 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q201 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q203 6-550-889-01 TRANSISTOR 2SC5938-T112-1B
Q204 6-550-889-01 TRANSISTOR 2SC5938-T112-1B
Q401 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q523 6-550-889-01 TRANSISTOR 2SC5938-T112-1B
Q524 6-550-889-01 TRANSISTOR 2SC5938-T112-1B
Q528 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q529 8-729-027-31 TRANSISTOR DTA124EKA-T146
Q530 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q533 8-729-027-31 TRANSISTOR DTA124EKA-T146
Q534 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q535 8-729-027-31 TRANSISTOR DTA124EKA-T146
Q536 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q537 8-729-027-31 TRANSISTOR DTA124EKA-T146
Q538 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q539 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q540 8-729-027-31 TRANSISTOR DTA124EKA-T146
Q550 6-550-889-01 TRANSISTOR 2SC5938-T112-1B
Q551 6-550-889-01 TRANSISTOR 2SC5938-T112-1B
Q552 6-550-185-01 TRANSISTOR RT1P137P-TP-1
Q553 8-729-026-68 TRANSISTOR 2SD2525(TP)
Q554 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q555 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q557 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q563 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q870 8-729-120-28 TRANSISTOR 2SC1623-L5L6
< RESISTOR >
R101 1-216-841-11 METAL CHIP 47K 5% 1/10W
R102 1-216-864-11 SHORT CHIP 0
R103 1-216-864-11 SHORT CHIP 0
R104 1-216-833-11 METAL CHIP 10K 5% 1/10W
R105 1-216-833-11 METAL CHIP 10K 5% 1/10W
R106 1-216-817-11 METAL CHIP 470 5% 1/10W
R107 1-216-821-11 METAL CHIP 1K 5% 1/10W
R108 1-216-838-11 METAL CHIP 27K 5% 1/10W
R109 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R110 1-216-835-11 METAL CHIP 15K 5% 1/10W
R111 1-216-835-11 METAL CHIP 15K 5% 1/10W
R112 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R113 1-216-809-11 METAL CHIP 100 5% 1/10W
R114 1-216-833-11 METAL CHIP 10K 5% 1/10W
R115 1-216-821-11 METAL CHIP 1K 5% 1/10W
R117 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R118 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R119 1-216-833-11 METAL CHIP 10K 5% 1/10W
R120 1-216-833-11 METAL CHIP 10K 5% 1/10W
R121 1-216-833-11 METAL CHIP 10K 5% 1/10W
R122 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R123 1-216-833-11 METAL CHIP 10K 5% 1/10W
R124 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R125 1-216-841-11 METAL CHIP 47K 5% 1/10W
R126 1-216-817-11 METAL CHIP 470 5% 1/10W
R127 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R128 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R129 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R132 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R133 1-216-857-11 METAL CHIP 1M 5% 1/10W
R134 1-216-817-11 METAL CHIP 470 5% 1/10W
R135 1-216-817-11 METAL CHIP 470 5% 1/10W
R136 1-216-830-11 METAL CHIP 5.6K 5% 1/10W
R137 1-216-830-11 METAL CHIP 5.6K 5% 1/10W
R138 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R139 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R140 1-216-833-11 METAL CHIP 10K 5% 1/10W
R141 1-216-841-11 METAL CHIP 47K 5% 1/10W
R142 1-216-838-11 METAL CHIP 27K 5% 1/10W
R143 1-216-838-11 METAL CHIP 27K 5% 1/10W
R145 1-216-833-11 METAL CHIP 10K 5% 1/10W
R147 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R148 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R150 1-216-821-11 METAL CHIP 1K 5% 1/10W
R151 1-216-833-11 METAL CHIP 10K 5% 1/10W
R152 1-216-809-11 METAL CHIP 100 5% 1/10W
R154 1-216-833-11 METAL CHIP 10K 5% 1/10W
R155 1-216-833-11 METAL CHIP 10K 5% 1/10W
R156 1-216-805-11 METAL CHIP 47 5% 1/10W
R157 1-216-797-11 METAL CHIP 10 5% 1/10W
R158 1-216-803-11 METAL CHIP 33 5% 1/10W
R159 1-216-864-11 SHORT CHIP 0
R160 1-216-841-11 METAL CHIP 47K 5% 1/10W
R161 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R162 1-216-857-11 METAL CHIP 1M 5% 1/10W
R164 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R165 1-216-841-11 METAL CHIP 47K 5% 1/10W
R166 1-216-821-11 METAL CHIP 1K 5% 1/10W
R167 1-216-834-11 METAL CHIP 12K 5% 1/10W
R168 1-216-851-11 METAL CHIP 330K 5% 1/10W
R169 1-216-812-11 METAL CHIP 180 5% 1/10W
R170 1-216-864-11 SHORT CHIP 0
R171 1-216-821-11 METAL CHIP 1K 5% 1/10W
R172 1-216-864-11 SHORT CHIP 0
R173 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R174 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R175 1-216-819-11 METAL CHIP 680 5% 1/10W
R176 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R177 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R178 1-216-851-11 METAL CHIP 330K 5% 1/10W
R179 1-216-834-11 METAL CHIP 12K 5% 1/10W
R180 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R181 1-216-833-11 METAL CHIP 10K 5% 1/10W
R182 1-216-809-11 METAL CHIP 100 5% 1/10W
R183 1-216-809-11 METAL CHIP 100 5% 1/10W
MAIN
84
HCD-ZX9
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R184 1-216-809-11 METAL CHIP 100 5% 1/10W
R185 1-216-809-11 METAL CHIP 100 5% 1/10W
R186 1-216-809-11 METAL CHIP 100 5% 1/10W
R187 1-216-809-11 METAL CHIP 100 5% 1/10W
R188 1-216-809-11 METAL CHIP 100 5% 1/10W
R189 1-216-819-11 METAL CHIP 680 5% 1/10W
R190 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R191 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R192 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R193 1-216-833-11 METAL CHIP 10K 5% 1/10W
R194 1-216-819-11 METAL CHIP 680 5% 1/10W
R195 1-216-833-11 METAL CHIP 10K 5% 1/10W
R196 1-216-833-11 METAL CHIP 10K 5% 1/10W
R197 1-216-837-11 METAL CHIP 22K 5% 1/10W
R198 1-216-833-11 METAL CHIP 10K 5% 1/10W
R199 1-216-845-11 METAL CHIP 100K 5% 1/10W
R200 1-216-841-11 METAL CHIP 47K 5% 1/10W
R201 1-216-841-11 METAL CHIP 47K 5% 1/10W
R206 1-216-833-11 METAL CHIP 10K 5% 1/10W
R207 1-216-833-11 METAL CHIP 10K 5% 1/10W
R214 1-220-373-11 METAL CHIP 620 5% 1/10W
R215 1-220-373-11 METAL CHIP 620 5% 1/10W
R225 1-216-821-11 METAL CHIP 1K 5% 1/10W
R226 1-216-841-11 METAL CHIP 47K 5% 1/10W
R227 1-216-833-11 METAL CHIP 10K 5% 1/10W
R228 1-216-833-11 METAL CHIP 10K 5% 1/10W
R229 1-216-821-11 METAL CHIP 1K 5% 1/10W
R231 1-216-841-11 METAL CHIP 47K 5% 1/10W
R232 1-216-833-11 METAL CHIP 10K 5% 1/10W
R234 1-216-833-11 METAL CHIP 10K 5% 1/10W
R239 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R240 1-216-841-11 METAL CHIP 47K 5% 1/10W
R241 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R245 1-216-841-11 METAL CHIP 47K 5% 1/10W
R247 1-216-841-11 METAL CHIP 47K 5% 1/10W
R248 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R249 1-216-841-11 METAL CHIP 47K 5% 1/10W
R250 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R252 1-216-817-11 METAL CHIP 470 5% 1/10W
R253 1-216-817-11 METAL CHIP 470 5% 1/10W
R257 1-216-833-11 METAL CHIP 10K 5% 1/10W
R258 1-216-833-11 METAL CHIP 10K 5% 1/10W
R282 1-216-833-11 METAL CHIP 10K 5% 1/10W
R283 1-216-833-11 METAL CHIP 10K 5% 1/10W
R284 1-216-833-11 METAL CHIP 10K 5% 1/10W
R285 1-216-833-11 METAL CHIP 10K 5% 1/10W
R286 1-216-841-11 METAL CHIP 47K 5% 1/10W
R287 1-216-841-11 METAL CHIP 47K 5% 1/10W
R299 1-216-845-11 METAL CHIP 100K 5% 1/10W
R300 1-216-845-11 METAL CHIP 100K 5% 1/10W
R301 1-216-841-11 METAL CHIP 47K 5% 1/10W
R302 1-216-821-11 METAL CHIP 1K 5% 1/10W
R303 1-216-845-11 METAL CHIP 100K 5% 1/10W
R304 1-218-285-11 METAL CHIP 75 5% 1/10W
R305 1-216-841-11 METAL CHIP 47K 5% 1/10W
R306 1-216-842-11 METAL CHIP 56K 5% 1/10W
R307 1-216-835-11 METAL CHIP 15K 5% 1/10W
R308 1-216-839-11 METAL CHIP 33K 5% 1/10W
R309 1-216-821-11 METAL CHIP 1K 5% 1/10W
R310 1-216-841-11 METAL CHIP 47K 5% 1/10W
R311 1-216-809-11 METAL CHIP 100 5% 1/10W
R312 1-216-809-11 METAL CHIP 100 5% 1/10W
R313 1-216-809-11 METAL CHIP 100 5% 1/10W
R314 1-216-797-11 METAL CHIP 10 5% 1/10W
R315 1-216-797-11 METAL CHIP 10 5% 1/10W
R316 1-216-809-11 METAL CHIP 100 5% 1/10W
R317 1-216-821-11 METAL CHIP 1K 5% 1/10W
R318 1-216-809-11 METAL CHIP 100 5% 1/10W
R319 1-216-821-11 METAL CHIP 1K 5% 1/10W
R320 1-216-821-11 METAL CHIP 1K 5% 1/10W
R321 1-216-839-11 METAL CHIP 33K 5% 1/10W
R322 1-216-839-11 METAL CHIP 33K 5% 1/10W
R323 1-216-833-11 METAL CHIP 10K 5% 1/10W
R324 1-216-833-11 METAL CHIP 10K 5% 1/10W
R325 1-216-833-11 METAL CHIP 10K 5% 1/10W
R326 1-216-833-11 METAL CHIP 10K 5% 1/10W
R328 1-216-864-11 SHORT CHIP 0
R331 1-216-821-11 METAL CHIP 1K 5% 1/10W
R332 1-216-822-11 METAL CHIP 1.2K 5% 1/10W
R341 1-216-812-11 METAL CHIP 180 5% 1/10W
R391 1-216-811-11 METAL CHIP 150 5% 1/10W
R393 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R395 1-216-809-11 METAL CHIP 100 5% 1/10W
R400 1-216-809-11 METAL CHIP 100 5% 1/10W
R401 1-216-837-11 METAL CHIP 22K 5% 1/10W
R402 1-216-809-11 METAL CHIP 100 5% 1/10W
R403 1-216-809-11 METAL CHIP 100 5% 1/10W
R404 1-216-809-11 METAL CHIP 100 5% 1/10W
R405 1-216-864-11 SHORT CHIP 0
R406 1-216-864-11 SHORT CHIP 0
R407 1-216-864-11 SHORT CHIP 0
R409 1-216-833-11 METAL CHIP 10K 5% 1/10W
R411 1-216-851-11 METAL CHIP 330K 5% 1/10W
R412 1-216-833-11 METAL CHIP 10K 5% 1/10W
R413 1-216-864-11 SHORT CHIP 0
R417 1-216-833-11 METAL CHIP 10K 5% 1/10W
R418 1-216-864-11 SHORT CHIP 0
R419 1-216-809-11 METAL CHIP 100 5% 1/10W
R420 1-216-821-11 METAL CHIP 1K 5% 1/10W
R421 1-216-809-11 METAL CHIP 100 5% 1/10W
R422 1-216-809-11 METAL CHIP 100 5% 1/10W
R423 1-216-809-11 METAL CHIP 100 5% 1/10W
R424 1-216-809-11 METAL CHIP 100 5% 1/10W
R425 1-216-809-11 METAL CHIP 100 5% 1/10W
R426 1-216-837-11 METAL CHIP 22K 5% 1/10W
R427 1-216-821-11 METAL CHIP 1K 5% 1/10W
R428 1-216-813-11 METAL CHIP 220 5% 1/10W
R429 1-216-809-11 METAL CHIP 100 5% 1/10W
R430 1-216-809-11 METAL CHIP 100 5% 1/10W
R431 1-216-833-11 METAL CHIP 10K 5% 1/10W
R432 1-216-809-11 METAL CHIP 100 5% 1/10W
R434 1-216-833-11 METAL CHIP 10K 5% 1/10W
R436 1-216-833-11 METAL CHIP 10K 5% 1/10W
R437 1-216-833-11 METAL CHIP 10K 5% 1/10W
R439 1-216-833-11 METAL CHIP 10K 5% 1/10W
R444 1-216-833-11 METAL CHIP 10K 5% 1/10W
MAIN
85
HCD-ZX9
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R445 1-216-833-11 METAL CHIP 10K 5% 1/10W
R446 1-216-833-11 METAL CHIP 10K 5% 1/10W
R447 1-216-833-11 METAL CHIP 10K 5% 1/10W
R448 1-216-833-11 METAL CHIP 10K 5% 1/10W
R449 1-216-833-11 METAL CHIP 10K 5% 1/10W
R450 1-216-833-11 METAL CHIP 10K 5% 1/10W
R451 1-216-833-11 METAL CHIP 10K 5% 1/10W
R452 1-216-833-11 METAL CHIP 10K 5% 1/10W
R453 1-216-833-11 METAL CHIP 10K 5% 1/10W
R454 1-216-833-11 METAL CHIP 10K 5% 1/10W
R465 1-216-809-11 METAL CHIP 100 5% 1/10W
R466 1-216-809-11 METAL CHIP 100 5% 1/10W
R467 1-216-809-11 METAL CHIP 100 5% 1/10W
R468 1-216-809-11 METAL CHIP 100 5% 1/10W
R473 1-216-833-11 METAL CHIP 10K 5% 1/10W
R474 1-216-833-11 METAL CHIP 10K 5% 1/10W
R475 1-216-833-11 METAL CHIP 10K 5% 1/10W
R476 1-216-833-11 METAL CHIP 10K 5% 1/10W
R477 1-216-809-11 METAL CHIP 100 5% 1/10W
R481 1-216-809-11 METAL CHIP 100 5% 1/10W
R482 1-216-833-11 METAL CHIP 10K 5% 1/10W
R486 1-216-833-11 METAL CHIP 10K 5% 1/10W
R487 1-216-833-11 METAL CHIP 10K 5% 1/10W
R492 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R493 1-216-821-11 METAL CHIP 1K 5% 1/10W
(MX)
R493 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
(US)
R494 1-216-833-11 METAL CHIP 10K 5% 1/10W
R500 1-216-815-11 METAL CHIP 330 5% 1/10W
R501 1-216-821-11 METAL CHIP 1K 5% 1/10W
R502 1-216-821-11 METAL CHIP 1K 5% 1/10W
R503 1-216-821-11 METAL CHIP 1K 5% 1/10W
R504 1-216-845-11 METAL CHIP 100K 5% 1/10W
R505 1-216-845-11 METAL CHIP 100K 5% 1/10W
R506 1-216-821-11 METAL CHIP 1K 5% 1/10W
R507 1-216-821-11 METAL CHIP 1K 5% 1/10W
R508 1-216-841-11 METAL CHIP 47K 5% 1/10W
R509 1-216-841-11 METAL CHIP 47K 5% 1/10W
R510 1-216-854-11 METAL CHIP 560K 5% 1/10W
R511 1-216-854-11 METAL CHIP 560K 5% 1/10W
R512 1-216-821-11 METAL CHIP 1K 5% 1/10W
R513 1-216-821-11 METAL CHIP 1K 5% 1/10W
R514 1-216-841-11 METAL CHIP 47K 5% 1/10W
R515 1-216-841-11 METAL CHIP 47K 5% 1/10W
R516 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R517 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R518 1-216-809-11 METAL CHIP 100 5% 1/10W
R519 1-216-821-11 METAL CHIP 1K 5% 1/10W
R520 1-216-821-11 METAL CHIP 1K 5% 1/10W
R521 1-216-845-11 METAL CHIP 100K 5% 1/10W
R522 1-216-845-11 METAL CHIP 100K 5% 1/10W
R523 1-216-821-11 METAL CHIP 1K 5% 1/10W
R524 1-216-845-11 METAL CHIP 100K 5% 1/10W
R525 1-216-845-11 METAL CHIP 100K 5% 1/10W
R526 1-216-821-11 METAL CHIP 1K 5% 1/10W
R527 1-216-821-11 METAL CHIP 1K 5% 1/10W
R528 1-216-821-11 METAL CHIP 1K 5% 1/10W
R529 1-216-821-11 METAL CHIP 1K 5% 1/10W
R530 1-216-821-11 METAL CHIP 1K 5% 1/10W
R531 1-216-822-11 METAL CHIP 1.2K 5% 1/10W
R554 1-216-833-11 METAL CHIP 10K 5% 1/10W
R555 1-216-833-11 METAL CHIP 10K 5% 1/10W
R556 1-216-841-11 METAL CHIP 47K 5% 1/10W
R557 1-216-841-11 METAL CHIP 47K 5% 1/10W
R558 1-216-821-11 METAL CHIP 1K 5% 1/10W
R559 1-216-833-11 METAL CHIP 10K 5% 1/10W
R560 1-216-821-11 METAL CHIP 1K 5% 1/10W
R561 1-216-833-11 METAL CHIP 10K 5% 1/10W
R566 1-216-843-11 METAL CHIP 68K 5% 1/10W
R567 1-216-843-11 METAL CHIP 68K 5% 1/10W
R568 1-216-843-11 METAL CHIP 68K 5% 1/10W
R569 1-216-835-11 METAL CHIP 15K 5% 1/10W
R571 1-216-835-11 METAL CHIP 15K 5% 1/10W
R572 1-216-835-11 METAL CHIP 15K 5% 1/10W
R573 1-216-853-11 METAL CHIP 470K 5% 1/10W
R575 1-216-853-11 METAL CHIP 470K 5% 1/10W
R576 1-216-853-11 METAL CHIP 470K 5% 1/10W
R578 1-216-845-11 METAL CHIP 100K 5% 1/10W
R579 1-216-833-11 METAL CHIP 10K 5% 1/10W
R584 1-216-837-11 METAL CHIP 22K 5% 1/10W
R585 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R586 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R587 1-216-845-11 METAL CHIP 100K 5% 1/10W
R588 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
< TRANSFORMER >
T101 1-433-372-11 TRANSFORMER, BIAS OSCILLATION
< VIBRATOR >
X401 1-760-252-12 VIBRATOR, CRYSTAL (32.768kHz)
X402 1-795-482-11 VIBRATOR, CERAMIC (16MHz)
*************************************************************
MD-94 BOARD
************
< CONNECTOR >
CN001 1-506-490-21 PIN, CONNECTOR 11P
CN002 1-784-767-11 CONNECTOR, FFC 6P
*CN003 1-564-013-11 PIN, CONNECTOR 3P
CN004 1-506-481-11 PIN, CONNECTOR 2P
< SWITCH >
S001 1-786-514-21 SWITCH, LEVER (SLIDE)
(TRAY POSITION DETECT)
*************************************************************
MIC BOARD
**********
< CAPACITOR >
C801 1-126-934-11 ELECT 220uF 20% 16V
C802 1-126-961-11 ELECT 2.2uF 20% 50V
C804 1-164-217-11 CERAMIC CHIP 150PF 5% 50V
C805 1-126-964-11 ELECT 10uF 20% 50V
C806 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C807 1-126-961-11 ELECT 2.2uF 20% 50V
C808 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C809 1-126-961-11 ELECT 2.2uF 20% 50V
MAIN MICMD-94
Ver. 1.1
86
HCD-ZX9
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C810 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C811 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C812 1-126-960-11 ELECT 1uF 20% 50V
C813 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V
C814 1-126-961-11 ELECT 2.2uF 20% 50V
C815 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C817 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C818 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
< CONNECTOR >
CN920 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P
< GROUND TERMINAL >
EPT801 1-537-738-21 TERMINAL, GROUND
< IC >
IC850 8-759-710-97 IC NJM4565M-D
< JACK >
J801 1-770-226-11 JACK (LARGE TYPE) (MIC 1)
J802 1-770-226-11 JACK (LARGE TYPE) (MIC 2)
< RESISTOR >
R800 1-216-864-11 SHORT CHIP 0
R801 1-216-845-11 METAL CHIP 100K 5% 1/10W
R802 1-216-833-11 METAL CHIP 10K 5% 1/10W
R803 1-216-833-11 METAL CHIP 10K 5% 1/10W
R804 1-216-809-11 METAL CHIP 100 5% 1/10W
R805 1-216-847-11 METAL CHIP 150K 5% 1/10W
R806 1-216-833-11 METAL CHIP 10K 5% 1/10W
R807 1-216-809-11 METAL CHIP 100 5% 1/10W
R808 1-216-841-11 METAL CHIP 47K 5% 1/10W
R809 1-216-821-11 METAL CHIP 1K 5% 1/10W
R810 1-216-845-11 METAL CHIP 100K 5% 1/10W
R811 1-216-833-11 METAL CHIP 10K 5% 1/10W
R812 1-216-821-11 METAL CHIP 1K 5% 1/10W
R813 1-216-821-11 METAL CHIP 1K 5% 1/10W
R814 1-216-833-11 METAL CHIP 10K 5% 1/10W
< VARIABLE RESISTOR >
RV801 1-227-452-11 RES, VAR, CARBON 50K (MIC LEVEL)
*************************************************************
A-4751-072-A PANEL BOARD, COMPLETE (US)
A-4753-562-A PANEL BOARD, COMPLETE (MX)
**********************
4-253-178-01 HOLDER, FL
< CAPACITOR >
C900 1-126-163-11 ELECT 4.7uF 20% 50V
C903 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C904 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C905 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C910 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C916 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C917 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C918 1-126-518-11 ELECT 470uF 20% 4V
C919 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C920 1-126-947-11 ELECT 47uF 20% 35V
C921 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V
C922 1-126-964-11 ELECT 10uF 20% 50V
C923 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C924 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C925 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C926 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C927 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C928 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C929 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C930 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C931 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C932 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C933 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C934 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C935 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C936 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C937 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C938 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C939 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C940 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C941 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C942 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C944 1-126-964-11 ELECT 10uF 20% 50V
C945 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V
C946 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C947 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V
C948 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C949 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V
C950 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C951 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V
C952 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C953 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V
C954 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C955 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V
C956 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C957 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V
C958 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C959 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C960 1-126-960-11 ELECT 1uF 20% 50V
C961 1-126-963-11 ELECT 4.7uF 20% 50V
C973 1-126-916-11 ELECT 1000uF 20% 6.3V
< CONNECTOR >
CN906 1-569-914-11 S0CKET, CONNECTOR 21P
CN908 1-564-721-11 PIN, CONNECTOR (SMALL TYPE) 5P
CN913 1-785-341-11 PIN, CONNECTOR (LIGHT ANGLE) 15P
< DIODE >
D900 8-719-404-50 DIODE MA111-TX
D901 8-719-404-50 DIODE MA111-TX
D902 8-719-404-50 DIODE MA111-TX
D903 8-719-404-50 DIODE MA111-TX
D904 6-500-508-01 DIODE RR263M-400FTR
D905 8-719-976-99 DIODE DTZ5.1B
D906 8-719-060-27 LED SLR-325MCT31 (TUNER/BAND)
D927 6-500-508-01 DIODE RR263M-400FTR
MIC PANEL
Ver. 1.1
87
HCD-ZX9
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
< JUMPER RESISTOR >
FB901 1-216-864-11 SHORT CHIP 0
< VACUUM FLUORESCENT DISPLAY >
FL901 1-518-978-11 VACUUM FLUORESCENT DISPLAY
< IC >
IC901 6-803-974-01 IC MB90M407PF-G-142-BNDE1
IC902 6-600-174-01 IC RPM7240-H4 (IR)
IC903 6-705-678-01 IC NJM2760V-TE2
< JUMPER RESISTOR >
JR916 1-216-864-11 SHORT CHIP 0
JR917 1-216-864-11 SHORT CHIP 0
JR921 1-216-864-11 SHORT CHIP 0
< TRANSISTOR >
Q901 8-729-027-56 TRANSISTOR DTC143TKA-T146
Q902 8-729-027-56 TRANSISTOR DTC143TKA-T146
Q903 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q904 8-729-903-46 TRANSISTOR 2SB1132-P
Q905 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q906 8-729-903-46 TRANSISTOR 2SB1132-P
Q908 8-729-027-43 TRANSISTOR DTC114EKA-T146
< RESISTOR >
R898 1-216-819-11 METAL CHIP 680 5% 1/10W
R899 1-216-819-11 METAL CHIP 680 5% 1/10W
R900 1-216-833-11 METAL CHIP 10K 5% 1/10W
R901 1-216-833-11 METAL CHIP 10K 5% 1/10W
R902 1-216-833-11 METAL CHIP 10K 5% 1/10W
R903 1-216-809-11 METAL CHIP 100 5% 1/10W
R904 1-216-809-11 METAL CHIP 100 5% 1/10W
R905 1-216-835-11 METAL CHIP 15K 5% 1/10W
R906 1-216-835-11 METAL CHIP 15K 5% 1/10W
R907 1-216-835-11 METAL CHIP 15K 5% 1/10W
R908 1-216-835-11 METAL CHIP 15K 5% 1/10W
R909 1-216-835-11 METAL CHIP 15K 5% 1/10W
R910 1-216-835-11 METAL CHIP 15K 5% 1/10W
R911 1-216-864-11 SHORT CHIP 0
R912 1-216-833-11 METAL CHIP 10K 5% 1/10W
R913 1-216-864-11 SHORT CHIP 0
R914 1-216-833-11 METAL CHIP 10K 5% 1/10W
R915 1-216-809-11 METAL CHIP 100 5% 1/10W
R916 1-216-821-11 METAL CHIP 1K 5% 1/10W
R917 1-216-833-11 METAL CHIP 10K 5% 1/10W
R918 1-216-821-11 METAL CHIP 1K 5% 1/10W
R919 1-216-833-11 METAL CHIP 10K 5% 1/10W
R922 1-216-857-11 METAL CHIP 1M 5% 1/10W
R938 1-216-845-11 METAL CHIP 100K 5% 1/10W
R939 1-216-845-11 METAL CHIP 100K 5% 1/10W
R940 1-216-837-11 METAL CHIP 22K 5% 1/10W
R941 1-216-809-11 METAL CHIP 100 5% 1/10W
R942 1-216-809-11 METAL CHIP 100 5% 1/10W
R944 1-216-805-11 METAL CHIP 47 5% 1/10W
R945 1-216-842-11 METAL CHIP 56K 5% 1/10W
R946 1-216-845-11 METAL CHIP 100K 5% 1/10W
R947 1-216-821-11 METAL CHIP 1K 5% 1/10W
R948 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R949 1-216-821-11 METAL CHIP 1K 5% 1/10W
R950 1-216-821-11 METAL CHIP 1K 5% 1/10W
R951 1-216-830-11 METAL CHIP 5.6K 5% 1/10W
R952 1-216-821-11 METAL CHIP 1K 5% 1/10W
R953 1-216-821-11 METAL CHIP 1K 5% 1/10W
R954 1-216-833-11 METAL CHIP 10K 5% 1/10W
R956 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R957 1-216-821-11 METAL CHIP 1K 5% 1/10W
R958 1-216-819-11 METAL CHIP 680 5% 1/10W
R959 1-216-817-11 METAL CHIP 470 5% 1/10W
R983 1-216-817-11 METAL CHIP 470 5% 1/10W
R984 1-216-819-11 METAL CHIP 680 5% 1/10W
R985 1-216-821-11 METAL CHIP 1K 5% 1/10W
R986 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R987 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R988 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R989 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R990 1-216-817-11 METAL CHIP 470 5% 1/10W
R993 1-216-817-11 METAL CHIP 470 5% 1/10W
R994 1-216-821-11 METAL CHIP 1K 5% 1/10W
R997 1-216-817-11 METAL CHIP 470 5% 1/10W
R998 1-216-821-11 METAL CHIP 1K 5% 1/10W
R999 1-216-864-11 SHORT CHIP 0
R1350 1-216-837-11 METAL CHIP 22K 5% 1/10W
R1351 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1352 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
< SWITCH >
S900 1-771-410-21 SWITCH, TACTILE (ILLUMINATION)
S901 1-771-410-21 SWITCH, TACTILE (CLOCK TIMER SET)
S902 1-771-410-21 SWITCH, TACTILE (CLOCK TIMER SELECT)
S903 1-771-410-21 SWITCH, TACTILE (SLEEP)
S921 1-771-410-21 SWITCH, TACTILE (TUNER/BAND)
S922 1-771-410-21 SWITCH, TACTILE (TUNING –)
S923 1-771-410-21 SWITCH, TACTILE (TUNING +)
S924 1-771-410-21 SWITCH, TACTILE (TUNER ENTER)
S925 1-771-410-21 SWITCH, TACTILE (MEMORY)
S926 1-771-410-21 SWITCH, TACTILE (FM MODE)
S927 1-771-410-21 SWITCH, TACTILE (TUNING MODE)
S928 1-771-410-21 SWITCH, TACTILE (DISPLAY)
< VIBRATOR >
X601 1-781-282-51 VIBRATOR, CERAMIC (4MHz)
*************************************************************
A-4751-050-A POWER BOARD, COMPLETE (US)
A-4753-555-A POWER BOARD, COMPLETE (MX)
***********************
7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
< CAPACITOR >
C600 1-126-963-11 ELECT 4.7uF 20% 50V
C601 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C602 1-104-658-11 ELECT 100uF 20% 10V
C604 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C605 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
PANEL POWER
Ver. 1.1
88
HCD-ZX9
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C608 1-126-965-11 ELECT 22uF 20% 50V
C609 1-128-560-11 ELECT 22uF 20% 100V
C610 1-128-560-11 ELECT 22uF 20% 100V
C616 1-136-495-11 FILM 0.068uF 5% 50V
C617 1-136-495-11 FILM 0.068uF 5% 50V
C627 1-126-961-11 ELECT 2.2uF 20% 50V
C628 1-126-933-11 ELECT 100uF 20% 16V
C629 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C634 1-104-665-11 ELECT 100uF 20% 25V
C635 1-104-665-11 ELECT 100uF 20% 25V
C636 1-107-721-11 ELECT 4.7uF 20% 100V
C637 1-107-721-11 ELECT 4.7uF 20% 100V
C648 1-104-658-11 ELECT 100uF 20% 10V
C649 1-126-964-11 ELECT 10uF 20% 50V
C650 1-126-963-11 ELECT 4.7uF 20% 50V
C651 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C652 1-104-658-11 ELECT 100uF 20% 10V
C654 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C655 1-126-964-11 ELECT 10uF 20% 50V
C656 1-127-815-11 ELECT 3300uF 20% 100V
C657 1-137-749-11 MYLAR 0.1uF 100V
C658 1-127-812-11 ELECT 3300uF 20% 63V
C659 1-136-497-81 FILM 0.1uF 5% 50V
C662 1-126-964-11 ELECT 10uF 20% 50V
C663 1-126-968-11 ELECT 100uF 20% 50V
C666 1-136-495-11 FILM 0.068uF 5% 50V
C667 1-136-495-11 FILM 0.068uF 5% 50V
C676 1-127-815-11 ELECT 3300uF 20% 100V
C677 1-137-749-11 MYLAR 0.1uF 100V
C678 1-127-812-11 ELECT 3300uF 20% 63V
C679 1-136-497-81 FILM 0.1uF 5% 50V
C690 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C691 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C692 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C694 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C695 1-162-974-11 CERAMIC CHIP 0.01uF 50V
< CONNECTOR >
CN600 1-564-707-11 PIN, CONNECTOR (SMALL TYPE) 5P
CN601 1-778-981-21 CONNECTOR, BOARD TO BOARD 13P
CN602 1-778-981-21 CONNECTOR, BOARD TO BOARD 13P
*CN606 1-564-511-11 PLUG, CONNECTOR 8P
< DIODE >
D609 8-719-404-50 DIODE MA111-TX
D611 8-719-056-93 DIODE UDZ-TE-17-18B
D612 8-719-056-93 DIODE UDZ-TE-17-18B
D620 8-719-404-50 DIODE MA111-TX
D624 8-719-404-50 DIODE MA111-TX
D627 8-719-404-50 DIODE MA111-TX
D646 8-719-404-50 DIODE MA111-TX
D654 8-719-404-50 DIODE MA111-TX
D655 8-719-404-50 DIODE MA111-TX
D656 8-719-073-32 DIODE D25XB60
D658 8-719-073-32 DIODE D25XB60
D660 8-719-404-50 DIODE MA111-TX
D661 8-719-404-50 DIODE MA111-TX
D664 8-719-083-87 DIODE UDZSTE-1733B
D670 8-719-404-50 DIODE MA111-TX
D700 8-719-988-61 DIODE 1SS355TE-17
D701 8-719-988-61 DIODE 1SS355TE-17
< GROUND TERMINAL >
EP605 1-537-738-21 TERMINAL, GROUND
< IC >
IC600 6-600-169-01 IC STK412-240M-E
IC627 6-703-610-01 IC RT8H015C-T112-1
< JUMPER RESISTOR >
JR647 1-216-864-11 SHORT CHIP 0
< TRANSISTOR >
Q604 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q606 8-729-821-00 TRANSISTOR 2SA1207
Q610 8-729-924-99 TRANSISTOR 2SC3722K-E
Q618 8-729-924-99 TRANSISTOR 2SC3722K-E
Q628 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q629 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q630 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q634 8-729-027-31 TRANSISTOR DTA124EKA-T146
Q635 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q640 8-729-802-80 TRANSISTOR 2SC3661
Q641 8-729-802-80 TRANSISTOR 2SC3661
Q644 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q647 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q648 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q664 8-729-024-93 TRANSISTOR 2SB1565E
Q668 8-729-924-99 TRANSISTOR 2SC3722K-E
< RESISTOR >
R600 1-216-821-11 METAL CHIP 1K 5% 1/10W
R601 1-216-841-11 METAL CHIP 47K 5% 1/10W
R602 1-216-815-11 METAL CHIP 330 5% 1/10W
R603 1-216-841-11 METAL CHIP 47K 5% 1/10W
R604 1-216-833-11 METAL CHIP 10K 5% 1/10W
R605 1-216-833-11 METAL CHIP 10K 5% 1/10W
R606 1-216-841-11 METAL CHIP 47K 5% 1/10W
R607 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R608 1-216-845-11 METAL CHIP 100K 5% 1/10W
R609 1-216-843-11 METAL CHIP 68K 5% 1/10W
R610 1-216-843-11 METAL CHIP 68K 5% 1/10W
R611 1-216-839-11 METAL CHIP 33K 5% 1/10W
0R612 1-245-605-51 FUSIBLE 100 5% 1/4W F
0R613 1-215-869-11 METAL OXIDE 1K 5% 1W F
0R614 1-215-869-11 METAL OXIDE 1K 5% 1W F
0R615 1-245-605-51 FUSIBLE 100 5% 1/4W F
0R616 1-217-637-00 FUSIBLE 1 5% 1/4W F
R617 1-216-845-11 METAL CHIP 100K 5% 1/10W
0R618 1-234-499-21 ENCAPSULATED COMPONENT 0.22X2 5W
R619 1-216-821-11 METAL CHIP 1K 5% 1/10W
R620 1-216-835-11 METAL CHIP 15K 5% 1/10W
R621 1-216-847-11 METAL CHIP 150K 5% 1/10W
R622 1-245-711-31 CARBON 10 5% 1/2W F
R623 1-216-842-11 METAL CHIP 56K 5% 1/10W
POWER
89
HCD-ZX9
Ref. No. Part No. Description Remark
R624 1-216-837-11 METAL CHIP 22K 5% 1/10W
R625 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R626 1-216-845-11 METAL CHIP 100K 5% 1/10W
R628 1-216-839-11 METAL CHIP 33K 5% 1/10W
R629 1-216-809-11 METAL CHIP 100 5% 1/10W
R630 1-216-845-11 METAL CHIP 100K 5% 1/10W
R631 1-216-845-11 METAL CHIP 100K 5% 1/10W
R632 1-216-854-11 METAL CHIP 560K 5% 1/10W
R633 1-216-841-11 METAL CHIP 47K 5% 1/10W
R634 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R635 1-216-833-11 METAL CHIP 10K 5% 1/10W
0R636 1-215-891-11 METAL OXIDE 680 5% 2W F
0R637 1-215-891-11 METAL OXIDE 680 5% 2W F
R638 1-216-845-11 METAL CHIP 100K 5% 1/10W
R639 1-216-845-11 METAL CHIP 100K 5% 1/10W
R640 1-216-833-11 METAL CHIP 10K 5% 1/10W
R641 1-216-833-11 METAL CHIP 10K 5% 1/10W
R642 1-216-806-11 METAL CHIP 56 5% 1/10W
R643 1-216-806-11 METAL CHIP 56 5% 1/10W
R644 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
0R646 1-215-863-11 METAL OXIDE 100 5% 1W F
R647 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R649 1-216-841-11 METAL CHIP 47K 5% 1/10W
R650 1-216-821-11 METAL CHIP 1K 5% 1/10W
R651 1-216-841-11 METAL CHIP 47K 5% 1/10W
R652 1-216-815-11 METAL CHIP 330 5% 1/10W
R653 1-216-841-11 METAL CHIP 47K 5% 1/10W
R654 1-216-841-11 METAL CHIP 47K 5% 1/10W
R655 1-216-841-11 METAL CHIP 47K 5% 1/10W
R656 1-216-849-11 METAL CHIP 220K 5% 1/10W
R657 1-216-849-11 METAL CHIP 220K 5% 1/10W
R658 1-216-849-11 METAL CHIP 220K 5% 1/10W
R659 1-216-849-11 METAL CHIP 220K 5% 1/10W
R660 1-216-837-11 METAL CHIP 22K 5% 1/10W
R661 1-216-837-11 METAL CHIP 22K 5% 1/10W
R662 1-216-832-11 METAL CHIP 8.2K 5% 1/10W
R663 1-216-832-11 METAL CHIP 8.2K 5% 1/10W
R664 1-216-821-11 METAL CHIP 1K 5% 1/10W
R665 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
0R668 1-234-499-21 ENCAPSULATED COMPONENT 0.22X2 5W
R669 1-216-821-11 METAL CHIP 1K 5% 1/10W
R670 1-216-835-11 METAL CHIP 15K 5% 1/10W
R671 1-216-847-11 METAL CHIP 150K 5% 1/10W
R672 1-245-711-31 CARBON 10 5% 1/2W F
R673 1-216-843-11 METAL CHIP 68K 5% 1/10W
R674 1-216-837-11 METAL CHIP 22K 5% 1/10W
R676 1-216-849-11 METAL CHIP 220K 5% 1/10W
R677 1-216-849-11 METAL CHIP 220K 5% 1/10W
R678 1-216-849-11 METAL CHIP 220K 5% 1/10W
R679 1-216-849-11 METAL CHIP 220K 5% 1/10W
R690 1-216-841-11 METAL CHIP 47K 5% 1/10W
R691 1-216-845-11 METAL CHIP 100K 5% 1/10W
R692 1-216-845-11 METAL CHIP 100K 5% 1/10W
R693 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R694 1-216-843-11 METAL CHIP 68K 5% 1/10W
R698 1-216-845-11 METAL CHIP 100K 5% 1/10W
R699 1-216-845-11 METAL CHIP 100K 5% 1/10W
R700 1-216-841-11 METAL CHIP 47K 5% 1/10W
R701 1-216-841-11 METAL CHIP 47K 5% 1/10W
< RELAY >
RY646 1-755-500-11 RELAY
< TERMINAL BOARD >
TM607 1-816-048-11 TERMINAL BOARD (SPEAKER)
TM609 1-816-048-11 TERMINAL BOARD (SPEAKER)
*************************************************************
POWER SW BOARD
****************
< DIODE >
D920 8-719-053-43 LED SLR-325VCT31 (?/1)
< TRANSISTOR >
Q900 8-729-027-43 TRANSISTOR DTC114EKA-T146
< RESISTOR >
R1338 1-216-819-11 METAL CHIP 680 5% 1/10W
R1341 1-216-809-11 METAL CHIP 100 5% 1/10W
R1342 1-216-817-11 METAL CHIP 470 5% 1/10W
< SWITCH >
S929 1-771-410-21 SWITCH, TACTILE (?/1)
*************************************************************
A-6060-642-A SE-130 BOARD, COMPLETE
***********************
< CONNECTOR >
CN101 1-750-243-11 SOCKET, CONNECTOR 6P
CN102 1-573-383-11 PIN, CONNECTOR (PC BOARD) 2P
< PHOTO SENSOR >
PH101 8-749-017-45 PHOTO SENSOR RPR-220C1N
< IC >
PH102 6-600-072-01 IC RPI-392
*************************************************************
SENSOR BOARD
**************
< CONNECTOR >
CN605 1-785-328-11 PIN, CONNECTOR (LIGHT ANGLE) 2P
< THERMISTOR >
TH630 1-807-796-11 THERMISTOR
*************************************************************
A-1052-527-A SURROUND BOARD, COMPLETE (MX)
A-4751-060-A SURROUND BOARD, COMPLETE (US)
**************************
< CAPACITOR >
C700 1-126-963-11 ELECT 4.7uF 20% 50V
Ref. No. Part No. Description Remark
POWER POWER SW SURROUNDSENSORSE-130
Ver. 1.1
90
HCD-ZX9
C701 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C702 1-104-658-11 ELECT 100uF 20% 10V
C703 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C721 1-126-965-11 ELECT 22uF 20% 50V
C730 1-136-495-11 FILM 0.068uF 5% 50V
C731 1-136-495-11 FILM 0.068uF 5% 50V
C750 1-126-963-11 ELECT 4.7uF 20% 50V
C751 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C752 1-104-658-11 ELECT 100uF 20% 10V
C753 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C780 1-136-495-11 FILM 0.068uF 5% 50V
C781 1-136-495-11 FILM 0.068uF 5% 50V
C791 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C795 1-128-560-11 ELECT 22uF 20% 100V
C796 1-128-560-11 ELECT 22uF 20% 100V
< DIODE >
D720 8-719-404-50 DIODE MA111-TX
D730 8-719-404-50 DIODE MA111-TX
D760 8-719-404-50 DIODE MA111-TX
D761 8-719-404-50 DIODE MA111-TX
D780 8-719-404-50 DIODE MA111-TX
D790 8-719-056-93 DIODE UDZ-TE-17-18B
D791 8-719-056-93 DIODE UDZ-TE-17-18B
< GROUND TERMINAL >
EP790 1-537-738-21 TERMINAL, GROUND
< IC >
IC701 6-600-169-01 IC STK412-240M-E
< TRANSISTOR >
Q720 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q721 8-729-821-00 TRANSISTOR 2SA1207
Q722 8-729-924-99 TRANSISTOR 2SC3722K-E
Q730 8-729-924-99 TRANSISTOR 2SC3722K-E
Q762 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q765 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q780 8-729-924-99 TRANSISTOR 2SC3722K-E
< RESISTOR >
R700 1-216-821-11 METAL CHIP 1K 5% 1/10W
R701 1-216-841-11 METAL CHIP 47K 5% 1/10W
R702 1-216-815-11 METAL CHIP 330 5% 1/10W
R710 1-216-841-11 METAL CHIP 47K 5% 1/10W
R711 1-216-841-11 METAL CHIP 47K 5% 1/10W
R720 1-216-833-11 METAL CHIP 10K 5% 1/10W
R721 1-216-833-11 METAL CHIP 10K 5% 1/10W
R722 1-216-841-11 METAL CHIP 47K 5% 1/10W
R723 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R724 1-216-845-11 METAL CHIP 100K 5% 1/10W
R725 1-216-843-11 METAL CHIP 68K 5% 1/10W
R726 1-216-843-11 METAL CHIP 68K 5% 1/10W
R727 1-216-839-11 METAL CHIP 33K 5% 1/10W
R728 1-216-841-11 METAL CHIP 47K 5% 1/10W
R729 1-216-845-11 METAL CHIP 100K 5% 1/10W
0R730 1-234-499-21 ENCAPSULATED COMPONENT 0.22X2 5W
R731 1-216-821-11 METAL CHIP 1K 5% 1/10W
R732 1-216-835-11 METAL CHIP 15K 5% 1/10W
R733 1-216-847-11 METAL CHIP 150K 5% 1/10W
R734 1-216-842-11 METAL CHIP 56K 5% 1/10W
R735 1-245-711-31 CARBON 10 5% 1/2W F
R736 1-216-843-11 METAL CHIP 68K 5% 1/10W
R737 1-216-845-11 METAL CHIP 100K 5% 1/10W
R750 1-216-821-11 METAL CHIP 1K 5% 1/10W
R751 1-216-841-11 METAL CHIP 47K 5% 1/10W
R752 1-216-815-11 METAL CHIP 330 5% 1/10W
0R764 1-215-863-11 METAL OXIDE 100 5% 1W F
R766 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
0R780 1-234-499-21 ENCAPSULATED COMPONENT 0.22X2 5W
R781 1-216-821-11 METAL CHIP 1K 5% 1/10W
R782 1-216-835-11 METAL CHIP 15K 5% 1/10W
R783 1-216-847-11 METAL CHIP 150K 5% 1/10W
R784 1-216-843-11 METAL CHIP 68K 5% 1/10W
R785 1-245-711-31 CARBON 10 5% 1/2W F
R788 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R792 1-216-845-11 METAL CHIP 100K 5% 1/10W
0R793 1-217-637-00 FUSIBLE 1 5% 1/4W F
0R794 1-245-605-51 FUSIBLE 100 5% 1/4W F
0R795 1-245-605-51 FUSIBLE 100 5% 1/4W F
0R796 1-215-869-11 METAL OXIDE 1K 5% 1W F
0R797 1-215-869-11 METAL OXIDE 1K 5% 1W F
R798 1-216-845-11 METAL CHIP 100K 5% 1/10W
R799 1-216-845-11 METAL CHIP 100K 5% 1/10W
< RELAY >
RY760 1-755-500-11 RELAY
*************************************************************
TC-A BOARD
***********
< CONNECTOR >
CN914 1-785-329-11 PIN, CONNECTOR (LIGHT ANGLE) 3P
CN915 1-785-333-11 PIN, CONNECTOR (LIGHT ANGLE) 7P
< DIODE >
D918 8-719-060-27 LED SLR-325MCT31 (g)
D919 8-719-060-27 LED SLR-325MCT31 (G)
< JUMPER RESISTOR >
JR903 1-216-864-11 SHORT CHIP 0
< TRANSISTOR >
Q907 8-729-027-43 TRANSISTOR DTC114EKA-T146
< RESISTOR >
R833 1-216-819-11 METAL CHIP 680 5% 1/10W
R835 1-216-819-11 METAL CHIP 680 5% 1/10W
R837 1-216-833-11 METAL CHIP 10K 5% 1/10W
R840 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R842 1-216-809-11 METAL CHIP 100 5% 1/10W
R843 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R844 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
SURROUND TC-A
Other manuals for HCD-ZX9 - Receiver Cd
1
Table of contents
Other Sony Stereo System manuals
Sony
Sony HCD-XG60 User manual
Sony
Sony ZS-X1 - Cd Boombox User manual
Sony
Sony MHC-V44D User manual
Sony
Sony ZS-S2iP User manual
Sony
Sony 4548736019614 User manual
Sony
Sony FH-SR1D User manual
Sony
Sony CX-LFA500 User manual
Sony
Sony GAME SYNC MHC-DX10 User manual
Sony
Sony MHC-V71D Quick start guide
Sony
Sony MHC-EC79I User manual
