Sony WRT-805A User manual

i
Operating Instructions
Bedienungsanleitung
Wireless Channel Lists / Übertragungskanallisten
EN
D
3-860-341-23(1)
WRT-805A
UHF
Synthesized Transmitter
1997 by Sony Corporation [CE62] [CE69]

ii
Notice for customers in Europe
Spécifications particulières pour les consommateurs européens
Hinweis für Kunden in Europa
Aviso para los usuarios en Europa
0889
U.K. 854.125 - 862 MHz
Belgium 854.125 - 862 MHz
Luxembourg 854.125 - 862 MHz, 800 - 814 MHz
Germany 800 - 814 MHz
Norway 800 - 814 MHz
Denmark 800 - 814 MHz
France 800 - 814 MHz
Ireland 800 - 814 MHz
Italy 800 - 814 MHz
Portugal 800 - 814 MHz
Sweden 800 - 814 MHz
Switzerland 800 - 814 MHz
Finland 800 - 814 MHz
Iceland 800 - 814 MHz
Hereby, Sony Corporation, declares that this WRT-805A is
in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
Note:
In some countries additional frequency bands may be used
with the agreement of the national authority.
Sony Corporation déclare par la présente que ce WRT-805A
est conforme aux exigences fondamentales et aux autres
dispositions applicables de la Directive 1999/5/CE.
Remarque:
Des bandes de fréquence supplémentaires peuvent être
utilisées dans certains pays, avec l'accord des autorités
nationales.
Hiermit erklärt die Sony Corporation, daß das Modell
WRT-805A die grundlegenden Anforderungen und sonstigen
relevanten Bestimmungen der Richtlinie 1999/5/EU erfüllt.
Hinweis:
In einigen Ländern können mit dem Einverständnis
nationaler Behörden weitere Frequenzbereiche verwendet
werden.

iii
Por la presente, Sony Corporation, declara que este
WRT-805A cumple con los requisitos esenciales y otras
disposiciones pertinentes de la Directiva 1999/5/EC.
Nota:
En algunos países, es posible utilizar bandas de frecuencias
adicionales con el consentimiento de las autoridades
nacionales.
Note for customers in Switzerland:
Before use, a request of concession for a wireless
microphone (Frequency Class 3) has to be submitted to
Bakom.
Note concernant les utilisateurs en Suisse:
Une demande de concession de microphone sans fil
(fréquence classe 3) doit être présentée au Bakom avant
d'utiliser l'appareil.
Hinweis für Kunden in der Schweiz:
Vor Inbetriebnahme ist eine Konzessionsanforderung für ein
drahtloses Mikrofon (Frequenzklasse 3) bei Bakom
einzureichen.
Note for customers in Finland:
To own and use, it is necessary to obtain an individual
licence of the Telecommunications Administration
Center.
Hinweis für Kunden in der Luxemburg:
Vor Inbetriebnahme eines Geräts müssen die Frequenzen
gegebenenfalls nach den geltenden Vorschriften vor dem
Gebrauch von der “ILT” zugewiesen werden.
Nota per i clienti in Italia
L’uso del prodotto sul territorio italiano è soggetto alle
regolamentazioni del Codice Postale e delle
Telecomunicazioni art. 334.
Hinweis für Kunden in der Deutschland:
Vor Inbetriebnahme muß bei der zuständigen Außenstelle
der Regulierungsbehörde (Reg TP) eine Kanalzuweisung
beantragt werden.

iv

1
EN
Precautions
•The unit is designed for use in ambient temperature range
of 0°C to 50°C (32°F to 122°F).
•Do not place the unit on or near heat sources, such as
lighting equipment, power amplifiers, or in a place subject
to direct sunlight or excessive moisture. In such places,
the external finish or internal parts of the unit may be
damaged.
•If the unit is used in a very humid or dusty place or in a
place subject to an active gas, clean its surface as well as
the connectors with a dry, soft cloth soon after use.
Lengthy use of the unit in such places or not cleaning it
after its use in such places may shorten its life.
•When cleaning the unit, never use organic solvents such
as thinners or benzine, which will damage the finish of the
unit.
•The unit has been factory adjusted precisely. Do not
tamper with its internal parts or attempt to repair it.
Table of Contents
Precautions ......................................................................... 1
Introduction ....................................................................... 2
Transmitting Channel Band ........................................... 2
Features .......................................................................... 3
Parts Identification ............................................................ 5
Power Supply ..................................................................... 7
Connections ........................................................................ 9
Notes on Microphone System Operation....................... 10
Settings.............................................................................. 10
Initiating Setting Mode ................................................ 10
Changing the Transmitting Channel ............................ 11

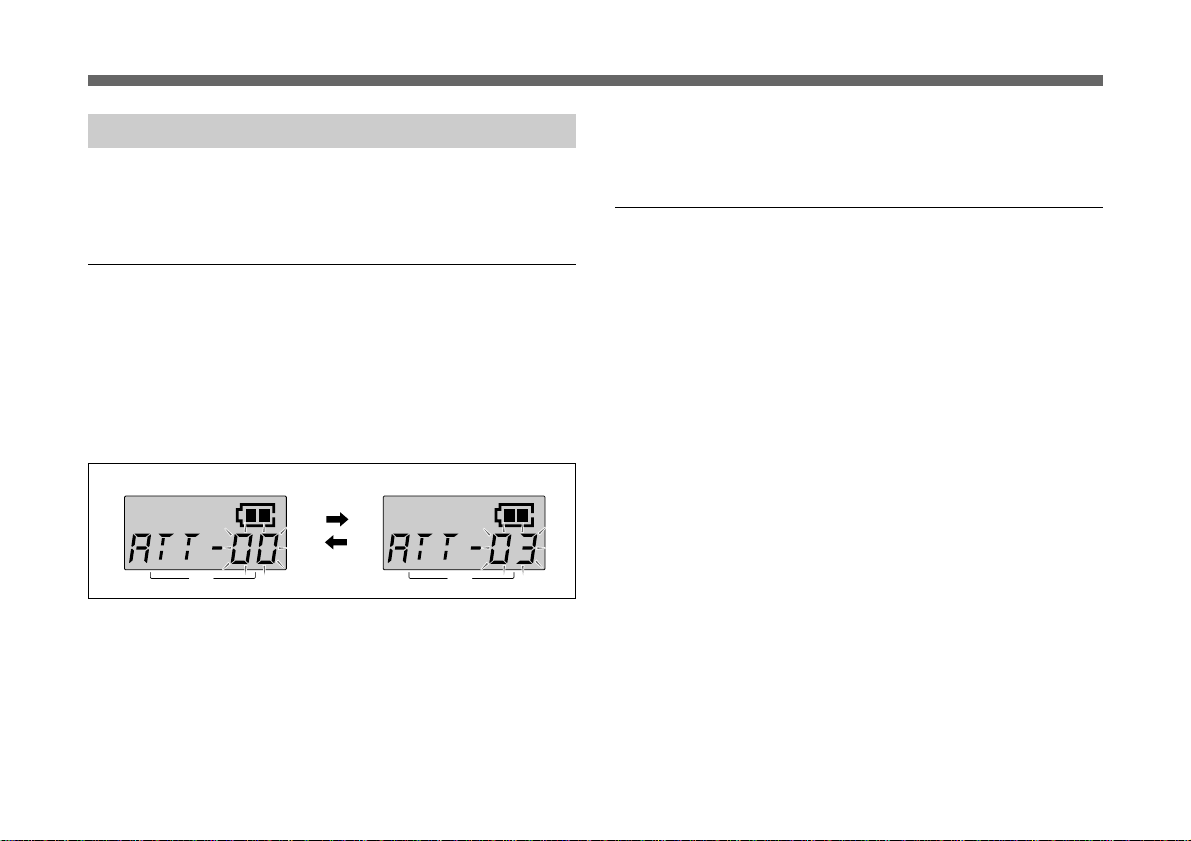

Changing the Input Attenuation Setting ...................... 13

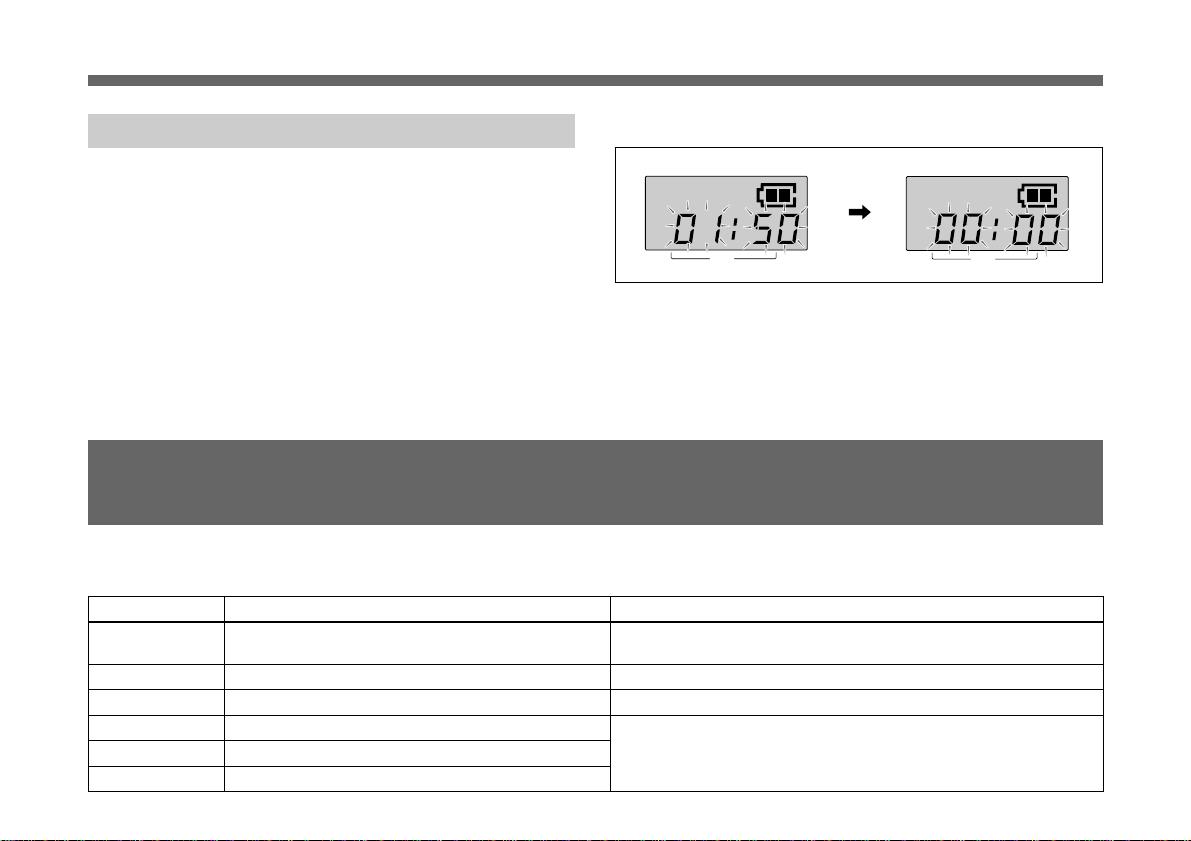

Resetting the Accumulated Time Indication ............... 14
Error Messages ................................................................ 14
Specifications.................................................................... 15
English
EN
English

2
EN
Introduction
The WRT-805A is a transmitter to be used in combination
with the WRR-800A/801A UHF Synthesized Diversity
Tuner for an 800-MHz band UHF synthesized wireless
microphone system.
Transmitting Channel Band
The microphone/transmitter and tuners of the wireless
microphone system are classified by frequency band.
A 14-MHz frequency band (or two consecutive-numbered
TV channels, such as 62 and 63 of the WRT-805A/CE62
model) or an 8-MHz frequency band (or TV channel 69 and
UK General Use) is assigned to each microphone/transmitter
and tuner model.
In building a UHF wireless microphone system, be sure to
combine a microphone/transmitter and a tuner having the
same TV channel number.
CE62 model
A 14-MHz frequency band is assigned to the WRT-805A/
CE62 model, permitting it to operate on any of 111 carrier
frequencies in 125-kHz steps of Sony original channel plan
or 561 carrier frequencies in 25-kHz steps of German User
Groups in the range of TV channels 62 and 63.
CE69 model
An 8-MHz frequency band is assigned to the WRT-805A/
CE69 model, permitting it to operate on any of 64 carrier
frequencies in 125-kHz steps of Sony original channel plan
in the range of TV channel 69 or 14 carrier frequencies in
25-kHz steps of UK General Use.
For the selectable wireless channels and frequencies, see
“Wireless Channel Lists.”

3
EN
Features
Phase Locked Loop (PLL) synthesized system
The WRT-805A has a refined phase locked loop (PLL)
systhesizer circuit.
Preprogrammed wireless channel plans for simultaneous
multichannel operation
The WRT-805A has many preprogrammed channel groups,
meaning combination of wirelss channels to permit
simultanous operation of multiple channels without
intermodulation.
Any available group and channel can be selected with a
simple button operation.
Compact and lightweight
Innovative high-density mounting technology has enabled
the creation of this compact and lightweight transmitter,
which lets you move anywhere for Electronic News
Gathering (ENG) and Electronic Field Production (EFP).
The curved design of the moulded case allows a comfortable
fit to your waist.
Remote battery alarm on tuner
This transmitter has capability of transmitting “Battery
status information” to the WRR-800A/801A to give advance
warning of battery depletion.
The information is sent to the WRR-800A/801A in approx.
1 hour advance to battery exhaust so that they can safely
replace battery of the transmitter.
When the WRR-800A/801A receives the information, the
LED and the LCD on the panel start flashing.
Operation powered by easily available battery
The built-in high efficiency DC-DC converter allows stable
operation, for about 6 hours continuously, with just a single
LR6 (size AA) alkaline battery.
LCD for coordinated operation control
The LCD shows the current channel number, the residual
battery power, input attenuation setting, AF input level and
RF output.
An accumulated operation time indication is also provided for
simple control of the time of battery use (in 1-minute increments).
Saved channel and input attenuation settings
The unit stores the channel and the input attenuation setting
when it is turned off. The saved settings are retained even if
the battery is removed. Therefore, when using the unit next
time, you need not make the same settings again.
Highly reliable electronic attenuator
The built-in input level attenuator is adjustable in a range of
0 to 21 dB in 3-dB steps. It reduces signal distortion when
an excessively strong audio signal is inputted.

4
EN
RF carrier with tone signal
The unit transmits the RF carrier accompanied by a tone
signal, enabling the tuner with a tone squelch circuit to take
out only the target audio signal received.
Wide dynamic range and low noise
The compander (compressor/expander) system enables
transmission over a wide dynamic range with minimum
noise.
Audio input connector (3.5-mm dia.) with locking
mechanism
The screw-type locking mechanism ensures reliable
connection.
Introduction

5
EN
POWER
OFFON
INPUTPHASE
SETCH
AF
RF
BATT
+
–

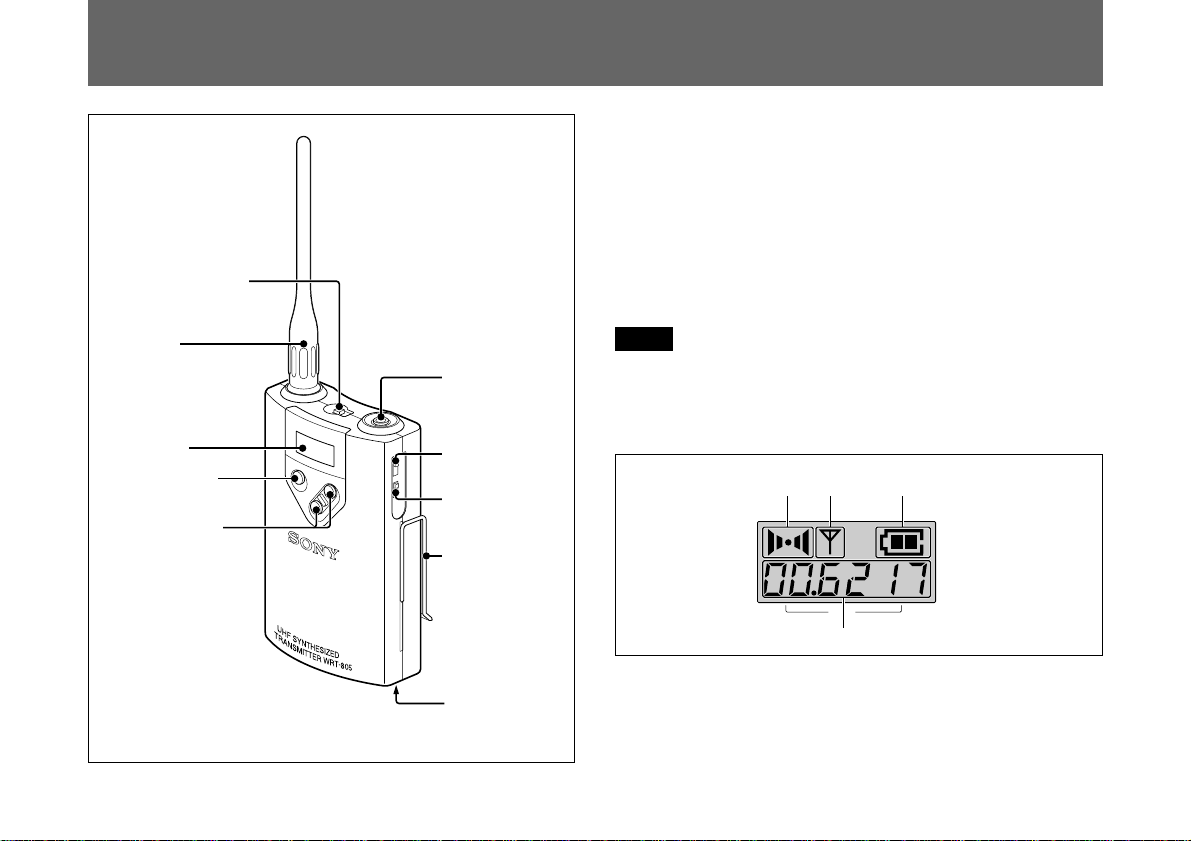

Parts Identification
Location of parts
1POWER switch
Turns the power of the transmitter ON or OFF.
When you set this switch to ON without holding any other
button, the transmitter is set to normal Transmit mode and
transmits the signal of the selected channel.
When you set this switch to ON while holding the SET
button down, Setting mode is initiated. No signal is
transmitted in Setting mode.
For setting mode, see “Settings” on page 10.
Note

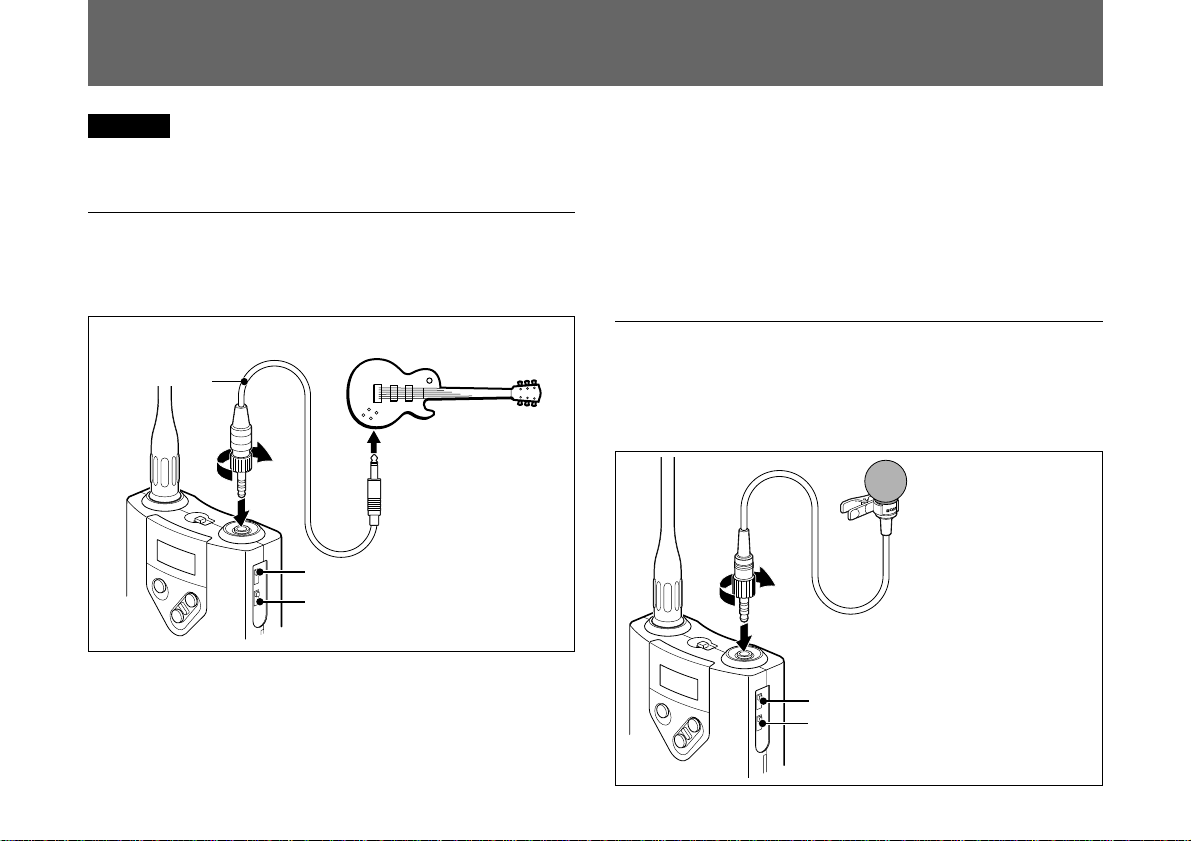

Be sure to connect a microphone or guitar cable before
turning the power ON.
2Liquid-crystal display
AF RF BATT
CH
a b c
d
Display example
for CE62 model
aAF (audio input) indication
Lights when an audio signal over the reference level is being
supplied.

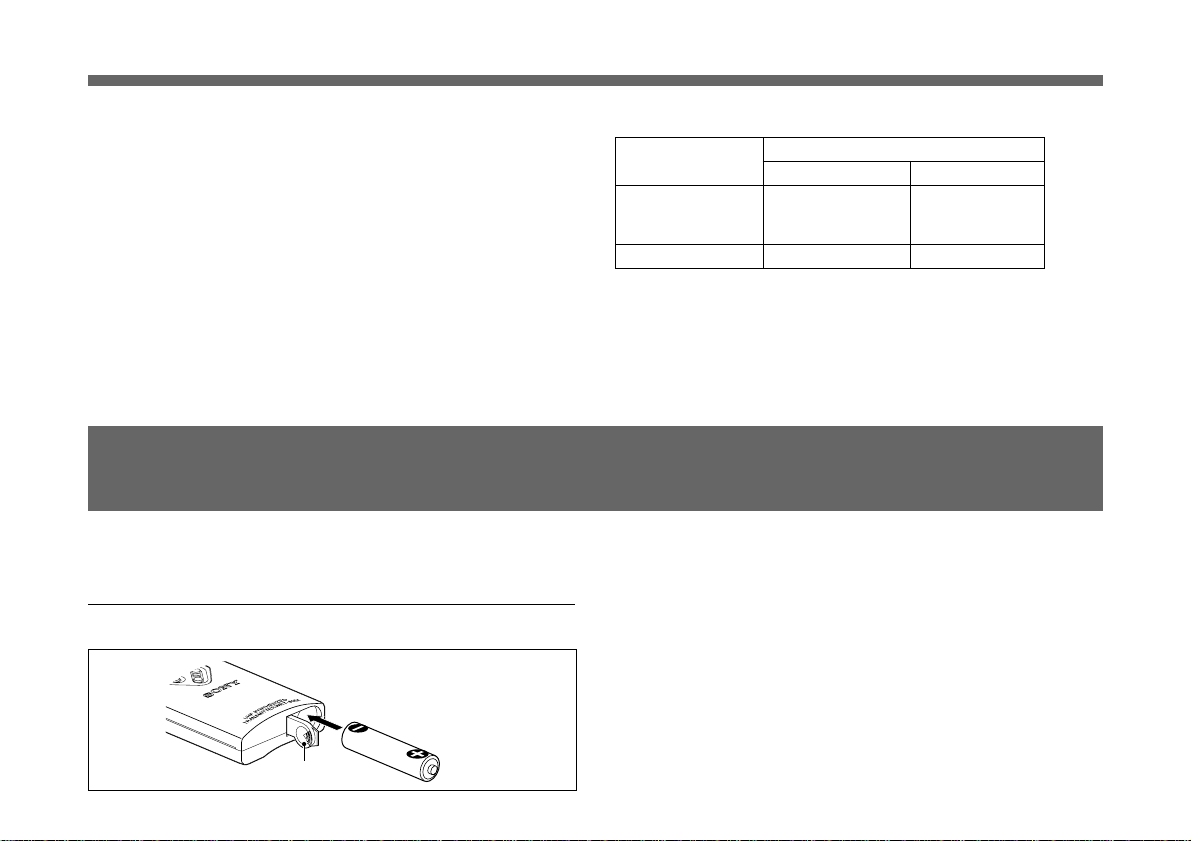

Battery
compartment
(See page 7.)
2Liquid-crystal
display
4+/–buttons
3SET button
8Belt clip
6INPUT level
switch
7PHASE switch
Antenna
1POWER switch
5Audio input
connector

6
EN
Parts Identification
bRF (antenna output) indication
Lights when a signal is being transmitted from the antenna.
cBATT (battery) indication
Displays the status of the battery.
See “Battery indication” on page 8.
dCH (channel) indication
Displays the transmission channel.

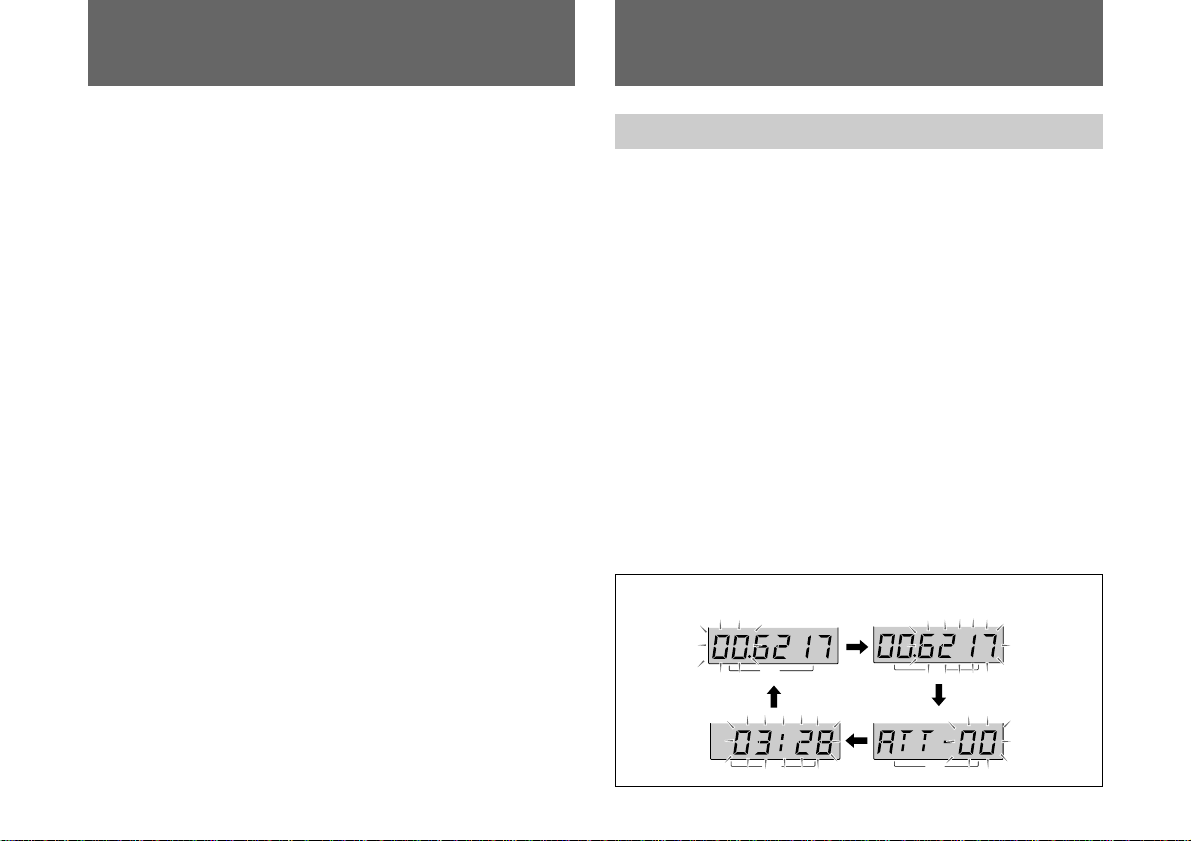

Each time you press the SET button in normal Transmit
mode, the channel indication changes to the input
attenuation and accumulated time indications.
3SET button
In normal transmit mode, press this button to change the
indication items in the lower half of the liquid-crystal
display.
When you set the POWER switch to ON while holding this
button down, setting mode is initiated. In Setting mode,
press this button to select the item to be set.
For Setting mode, see “Settings” on page 10.
4+ (+ selection) / – (– selection/reset) buttons
In setting mode, select the transmission channel and
attenuator level using either of these buttons, or reset the
time-of-use indication to “00:00” with the – button.
For Setting mode, see “Settings” on page 10.
5Audio input connector (ø3.5 mm, with locking
mechanism)
To connect a microphone or other audio source.
GND +5 V (output)
INPUT
Channel
indication Attenuation indication Accumulated time
indication
CH CH CH
In Attenuation indication mode, it displays the input
attenuation setting in dB, which can be changed in a range
of 0 to 21 dB in 3-dB steps.
In Accumulated time indication mode, it displays the
accumulated time of battery use (in 1-minute increments).
For adjustments, see “Changing the Transmitting Channel”
on page 11, “Changing the Input Attenuation Setting” on page 13
or “Resetting the Accumulated Time Indication” on page 14.
Display example for CE62 model
See “Connections” on page 9.

7
EN
Switch functions
SET
CH
+
–
PUSH
6INPUT level switch
Select the reference input level appropriate for the connected
audio source.
–60 dBV: For a microphone
–40 dBV: For an electric guitar
7PHASE switch
Select the input phase appropriate for the connected audio
source.
= : For a microphone other than the ECM-44BMP or an
electric guitar
ø : For the ECM-44BMP
Power Supply
The transmitter can operate on one LR6 (size AA) alkaline
battery continuously for about 6 hours at 25°C (77°F).
Inserting the battery
1Slide the lid in the direction of the arrow ($) to open the
battery compartment.
2Match the polarities and insert the battery.
3Close the lid and slide it in the reverse direction to lock.
Lid
8Belt clip
You can easily carry the transmitter attached to your
clothing on your belt, etc. Depending on your selection of
the mount holes for the belt clip, you can adjust the position
or even carry the unit with the antenna downward.
7hctiwsESAHP 6hctiwslevelTUPNI VBd06–VBd04–
=PMB121-MCE PMB221-MCE PMB013-MCE PM7.0-CG
øPMB44-MCE —

8
EN
Battery indication
When you turn the power on, the battery status appears in
the BATT indication on the liquid-crystal display.
1234
TTAB noitacidni
sthgiLsthgiLsehsalFffoseoG
yrettaB noitidnoc dooG nahtsseL egrahc-flah tsomlA detsuahxe yletelpmoC detsuahxe
When the battery reaches stage 3 shown in the table, the
BATT indication on the WRR-800A/801A also starts
flashing.
Promptly replace the battery when the indications flash.
Note
The indication may be incorrect if the battery is not new
when inserted. If you plan to use the transmitter for a long
period, it is best to replace the battery with new one.
Notes on battery
•Use a new alkaline battery.
•Be careful to insert the battery with the correct polarity.
•When not using the transmitter for a long period, remove the
battery to avoid leakage. If the battery does leak, clean all
leakage from the unit and insert a new battery. Leakage left
in the unit may cause poor battery contact. If there seems to
be poor battery contact, consult your Sony dealer.
Power Supply

9
EN
Connections
Caution
When connecting a microphone or electric guitar to the unit,
be sure to turn the unit off.
To connect an electric guitar
For connection of an electric guitar, use the optional GC-0.7
MP Guitar Cable.
To obtain the proper output level
The optimum level setting depends on type of guitar. Set the
INPUT level switch and the ATT (attenuator) level of this unit
according to the guitar to be used.
INPUT switch: –60 dBV
Set the PHASE switch to “ø” when
using the ECM-44BMP.
For other microphone, set it to “=.”
INPUT level switch: –40 dBV
PHASE switch: =
Loud noise: If noise is not negligible even if the INPUT
switch is set at “–40 dBV” and the ATT level is “0 dB,” set
the INPUT switch to “–60 dBV” and adjust the ATT level
for an optimum result.
Distortion: If the guitar sound is distorted even if the
INPUT switch is set at “–40 dBV” and the ATT level is “0
dB,” increase the ATT level by 3 dB (0 to 3 to 6 . . . 21 dB).
For the ATT level adjustment, see page 13.
To connect a microphone
When using one of the following optional Sony Electret
Condenser Microphones equipped with a miniature phone
plug, connect it as illustrated below.
Sony
Electret Condenser
Microphones (optional):
ECM-44BMP
ECM-122BMP
ECM-121BMP
ECM-310BMP
POWER
OFF ON
INPUTPHASE
SETCH
AF
RF
BATT
+
–
1
2
POWER
OFF ON
INPUTPHASE
SETCH
AF
RF
BATT
+
–
1
2
GC-0.7 MP
guitar cable
(optional)

10
EN
Settings
Initiating Setting Mode
In Setting mode, you can change the transmission channel
and the attenuation level, or reset the accumulated time
indication.
To enter Setting mode
While holding down the SET button, set the POWER switch
to ON.
Hold the SET button down until a display appears on the
liquid-crystal display.
The transmitter enters Setting mode and the indication
before the transmitter was previously turned OFF flashes on
the liquid-crystal display.
Each time you press the SET button, Group selection mode
(page 11), Channel selection mode (page 12), Attenuator
adjustment mode (page 13) and Accumulated time
indication reset mode (page 14) are cyclically switched.
Notes on Microphone
System Operation
•To operate with 2 or more channels, maintain a distance of
at least 30 cm (1 ft.) between each pair of transmitters.
For details of operation with 2 or more channels, refer to
the Operating Instructions for the WRR-800A/801A UHF
Synthesized Diversity Tuners.
•Ensure that the tuners set to channels not being used are
either turned off or set to the minimum output level.
•When powering the transmitter on or off, to keep the noise
to a minimum, set the audio output level from the tuner or
mixer to a minimum.
•Powering the transmitter on without checking the channel
selection first may interfere with the operation of other
microphones/transmitters, if the current setting is already
being used.
•Separate the reception antennas and the transmitter by more
than 3 meters (10 ft.).
Channel
selection
Attenuator
adjustment
Accumlated
time
indication
reset
Group
selec-
tion CH
CH
CH
CH
Pressing the SET button switches the mode in the direction of /.

11
EN
+ button
–button
Changing the Transmitting Channel
To change the group selection
1Set the unit to Setting mode.
If the group indication is not flashing on the display,
press the SET button so that the group indication flashes.
2Press the + or – button to select the group.
Pressing the + button cyclically changes the group
indication in the order of “Overview of Channel Plan”
tables (page L-1). Pressing the – button changes it in the
reversed order.
If you hold either button pressed, the group setting will
change successively.
Display example for CE62 model
For the CE62 model, the indication will cycle from group
00 through 63.
For the CE69 model, the indication will cycle from group
00 through H.
See “Overview of Channel Plan” in the “Wireless
Channel Lists” section.
3Once the desired group indication appears, press the SET
button to switch to the channel selection mode.
AF RF BATT
CH
AF RF BATT
CH
00 01 02 03
62C 62B 62A 04
62D 62E 63A 63B
62 63E 63D 63C
63

12
EN
+ button
–button
2Once the desired channel number appears, set the
POWER switch to OFF to release Setting mode.
Or, press the SET button to continue operations in Setting
mode.
The next time you turn on the power only by setting the
POWER switch to ON, the transmitter will be set to
Transmit mode with the selected channel.
Notes
•The unit cannot transmit in Setting mode.
•Make sure that the channel selected is the same as that
selected on the tuner used in the same system.
•Depending on the noise or interference conditions, the
selectable channels may not necessarily all be usable. If
necessary, you can determine the usable channels by
stepping the channel selection through a number of
channels on a tuner with the transmitter set to OFF. Those
channels on which the RF indicator of the tuner does not
light are usable.
•If there is a TV broadcasting station near by, do not use
the station's channel.
•The unit may not operate correctly if it is turned on again
immediately after turning off the power while in setting
mode. Pause for a few seconds or more before turning on
the power again.
To change the channel selection
If the channel number is not flashing on the display, press
the SET button so that the channel number flashes.
1Press the + or – button to select the channel.
Pressing the + button cyclically changes the channel
indication in the order shown in the table of the selected
group in “Wireless Channel Lists.” Pressing the – button
changes it in reversed order.
If you keep either button pressed, the channel number
will be incremented or decremented successively.
Example: when the group 00 is selected for CE62 model
6217 6218 6263
6363 6301 6300
Display example for CE62 model
AF RF BATT
CH
AF RF BATT
CH
Settings

13
EN
Changing the Input Attenuation Setting
You can change the input attenuation setting in 3-dB steps
in a range of 0 to 21 dB. You can change it either in Setting
mode or in Transmit mode.
Changing in Setting mode
1Set the unit to Setting mode.
2If the attenuation level is not displayed, press the SET
button to obtain the attenuation indication.
3Press the + or – button to select the attenuation setting.
If you keep either button pressed, the level will be
incremented or decremented successively.
4Once the desired level appears, set the POWER switch to
OFF to release Setting mode.
Or, press the SET button to continue operations in Setting
mode.
+ button
–button
The next time you turn on the power only by setting the
POWER switch to ON, the transmitter will be set to
Transmit mode with the selected attenuation setting.
Changing in Transmit mode
You can also change the input attenuation setting during
transmission.
1If the attenuation level is not displayed, press the SET
button to obtain the attenuation indication.
2Press the + or – button to select the attenuation setting.
AF RF BATT
CH
AF RF BATT
CH

14
EN
When a problem occurs, one of the following error messages
may appear on the display.
Error Messages
Resetting the Accumulated Time Indication
The time indication accumulates time in hours and minutes
when the WRT-805A is on.
Reset the indication to “00:00” whenever you replace the
battery so that it can display the running time of the battery.
1Set the unit to Setting mode.
2If the accumulated time is not displayed, press the SET
button to obtain the accumulated time indication.
3Press the – button.
The time indication resets to “00:00.”
While you see “00:00” indication, you can go back to
previous value by pressing the + button.
4Set the POWER switch to OFF to release Setting mode.
AF RF BATT
CH
AF RF BATT
CH
segasseMstnetnoCserusaeM
11rorrE.atadyromempukcabniderruccororrenA dnalennahcgnittimsnartehtteS.dezilaitinisawatadehT .niaganoitaunettatupnieht
12rorrE.elbuortnisitiucricdezisehtnysLLPehT .relaedynoSruoytcatnoC
13rorrE.eulavelbawollaehtsdeecxeegatlovyrettabehT .yrettabdeificepsehtesU
14rorrEtiucriclanretninafotcefeD .relaedynoSruoytcatnoC15rorrEtiucricretrevnocD/AehtfotcefeD
16rorrEtiucriclanretninafotcefeD
Settings

15
EN
Specifications
Transmitter and modulator section
Oscillator Crystal controlled PLL synthesizer
Type of emission F3E
Carrier frequencies
CE62 model: 800.000 to 814.000 MHz
CE69 model: 854.125 to 862.000 MHz
RF power output 10 mW (50-ohm load)
Frequency stability Within ±15 kHz
Tone signal 32.768 kHz
Type of antenna 1/4-wavelength wire
Pre-emphasis 50 µs
Deviation ±16 kHz (–40 dBV1), 1 kHz input)2)
±5 kHz (–60 dBV1), 1 kHz input)2)
Frequency response 70 to 13,000 Hz
Signal-to-noise ratio 57 dB or more
(A-weighted, modulation frequency
1 kHz, with ±5 kHz deviation at
WRR-800A/801A)
Audio attenuator 0 to 21 dB, variable in 3-dB steps
Input level –60 or –40 dBV1) switchable
(at audio attenuator 0 dB)
Power section
Power requirements 1.5 V DC
(one LR6/size AA alkaline battery)
Battery life Approx. 6 hours at 25°C or 77°F
with Sony LR6 alkaline battery
General
Color of antenna ring
CE62 model: Black
CE69 model: Blue
Operating temperature 0°C to +50°C (32°F to 122°F)
Storage temperature –30°C to +60°C (–22°F to +140°F)
Dimensions 58 ×95 ×21 mm (w/h/d)
(23/8×33/4×27/32 inches)
Mass Approx. 100 g (3.5 oz) including
battery
Supplied accessory
Operating Instructions (1)
Design and specifications are subject to change without
notice.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2) INPUT switch at –60 dBV position1) 0 dBV = 1 Vrms

iv
