Sony Hcd-wz5 User manual

HCD-WZ5

AEP Model

UK Model

E Model

Australian Model

SERVICE MANUAL

COMPACT DISC TUNER

SPECIFICATIONS

Ver 1.0 2003. 04

•HCD-WZ5 is the tuner, and CD

section in MHC-WZ5.

CD player section

System Compact disc and digital

audio system

Laser Semiconductor laser

(λ=780 nm)

Emission duration:

continuous

Frequency response 2 Hz – 20 kHz (±0.5 dB)

Wavelength 780 – 790 nm

Signal-to-noise ratio More than 90 dB

Dynamic range More than 90 dB

OPTICAL CD DIGITAL OUT (European and

Australian models only)

(Square optical connector jack, rear panel)

Wavelength 660 nm

Tuner section

FM stereo, FM/AM superheterodyne tuner

FM tuner section

Tuning range 87.5 – 108.0 MHz

antenna FM lead antenna

antenna terminals 75 ohms unbalanced

Intermediate frequency 10.7 MHz

AM tuner section

Tuning range

European model: 531 – 1,602 kHz

(with the tuning interval

set at 9 kHz)

Latin American model:

Other model:

General

Power requirements

Power consumption

European model: 150 watts

0.3 watts (at the Power

Saving Mode)

Except for European model:

180 watts

Dimensions (w/h/d)

CD player/Tuner: Approx. 255 ×1 35 ×

355 mm

Mass

CD player/Tuner: Approx. 2.8 kg

Design and specifications are subject to change

without notice.

Power

voltage

is

D

9V

and

fed

with

STEREO

CASSETTE

DECK

AMPLIFIER

(DXA-WZ5)

from the external SYSTEM CONTROL connectors.

530 – 1,710 kHz

(with the tuning interval

set at 10 kHz)

531 – 1,710 kHz

(with the tuning interval

set at 9 kHz)

530 – 1,710 kHz

(with the tuning interval

set at 10 kHz)

531 – 1,602 kHz

(with the tuning interval

set at 9 kHz)

antenna AM loop antenna

antenna terminals External antenna terminal

Intermediate frequency 450 kHz

Sony Corporation

Home Audio Company

Published by Sony Engineering Corporation

9-877-331-01

2003D1600-1

Model Name Using Similar Mechanism NEW

CD CD Mechanism Type CDM77B-K6BD47S

Section Base Unit Name BU-K6BD47S

Optical Pick-up Name KSS-213D

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

2

HCD-WZ5

Laser component in this product is capable

of emitting radiation exceeding the limit for

Class 1.

CAUTION

Use of controls or adjustments or performance of procedures

other than those specified herein may result in hazardous radiation

exposure.

Notes on chip component replacement

•Never reuse a disconnected chip component.

•Notice that the minus side of a tantalum capacitor may be

damaged by heat.

Flexible Circuit Board Repairing

•Keep the temperature of soldering iron around 270˚C

during repairing.

•Do not touch the soldering iron on the same conductor of the

circuit board (within 3 times).

•Be careful not to apply force on the conductor when soldering

or unsoldering.

TABLE OF CONTENTS

1. GENERAL ·········································································· 4

2. DISASSEMBLY

2-1. Case··············································································· 7

2-2. Front Panel Assy ··························································· 8

2-3. PANEL Board, CD-TC-SW Board, ENTER-SW

Board, BACK-LIGHT Board, LCD Board ··················· 8

2-4. Tuner (FM/AM), WOOFER Board ······························ 9

2-5. MAIN Board, REGULATOR Board, HP-AMP Board··· 9

2-6. CD mechanism deck (CDM77B-K6BD47S)·············· 10

2-7. Tray (AU) ···································································· 10

2-8. MS-128 Board ···························································· 11

2-9. Base Unit (BU-K6BD47S) ········································· 11

2-10. CD Board, Optical Pick-Up Block

(KSM-213DCP/Z-NP) ············· 12

2-11. Optical Pick-Up (KSS-213D/Q-RP) ··························· 12

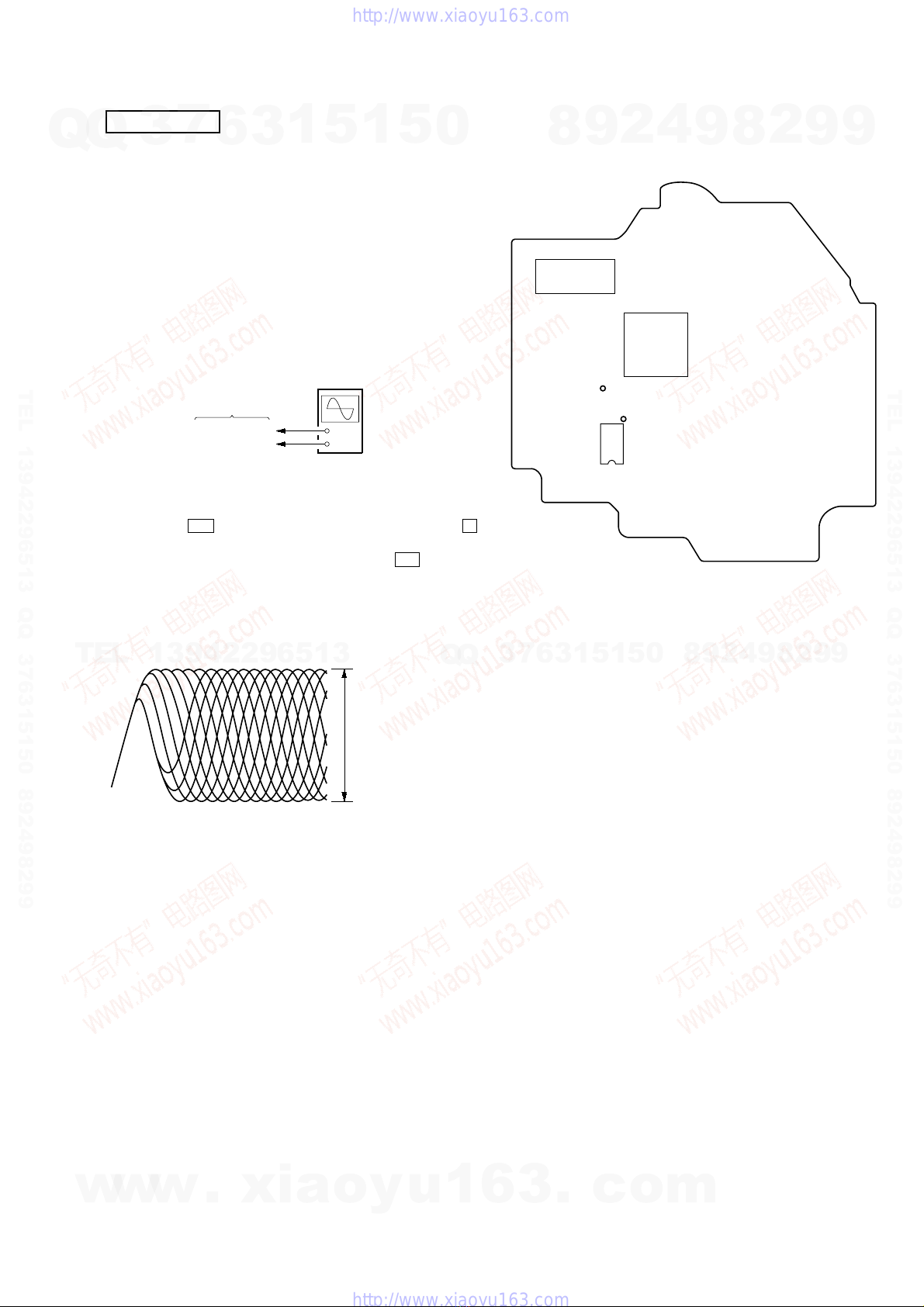

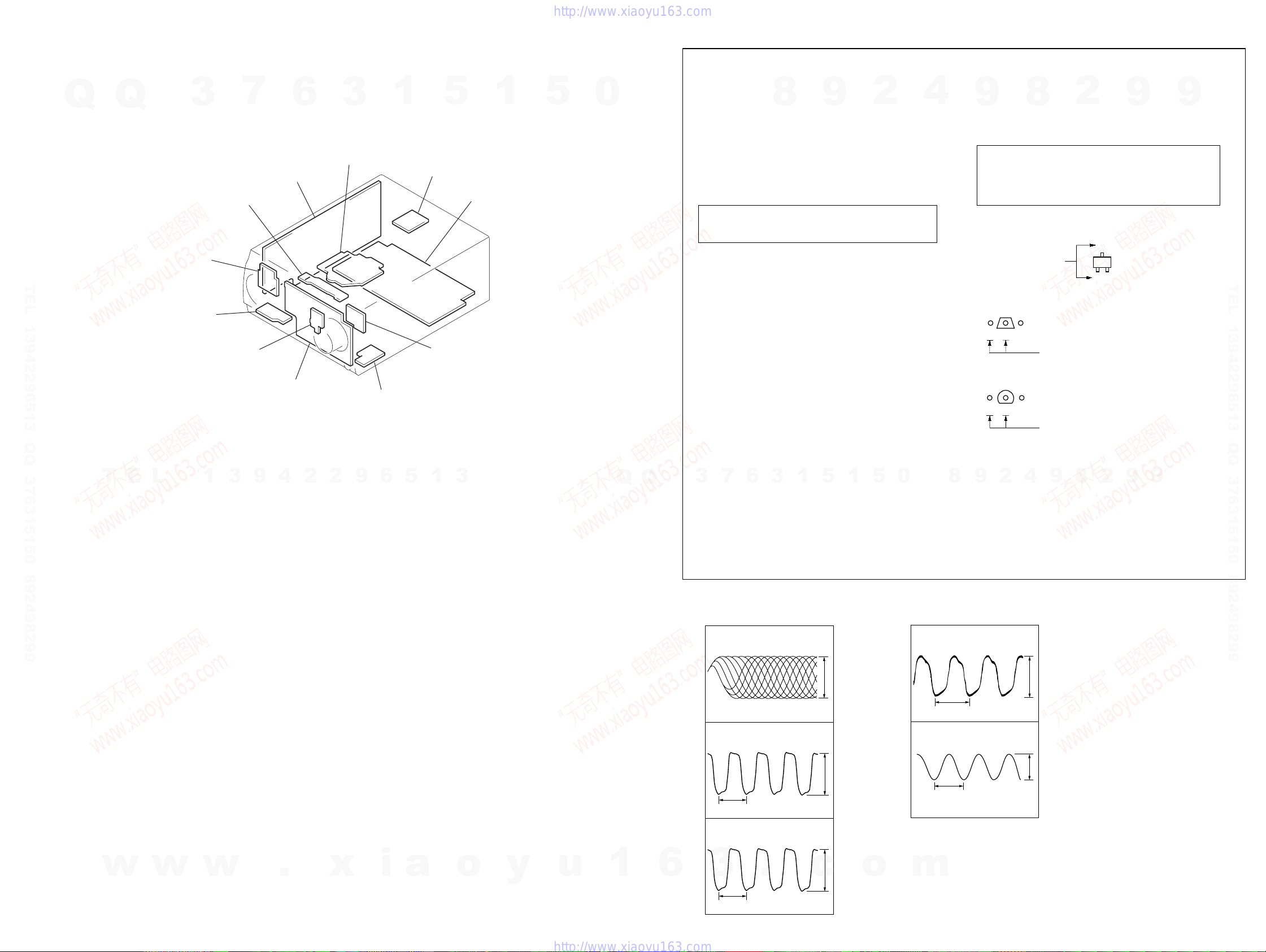

3. ELECTRICAL ADJUSTMENTS ······························· 13

4. TEST MODE ···································································· 14

5. DIAGRAMS

5-1. Circuit Boards Location·············································· 15

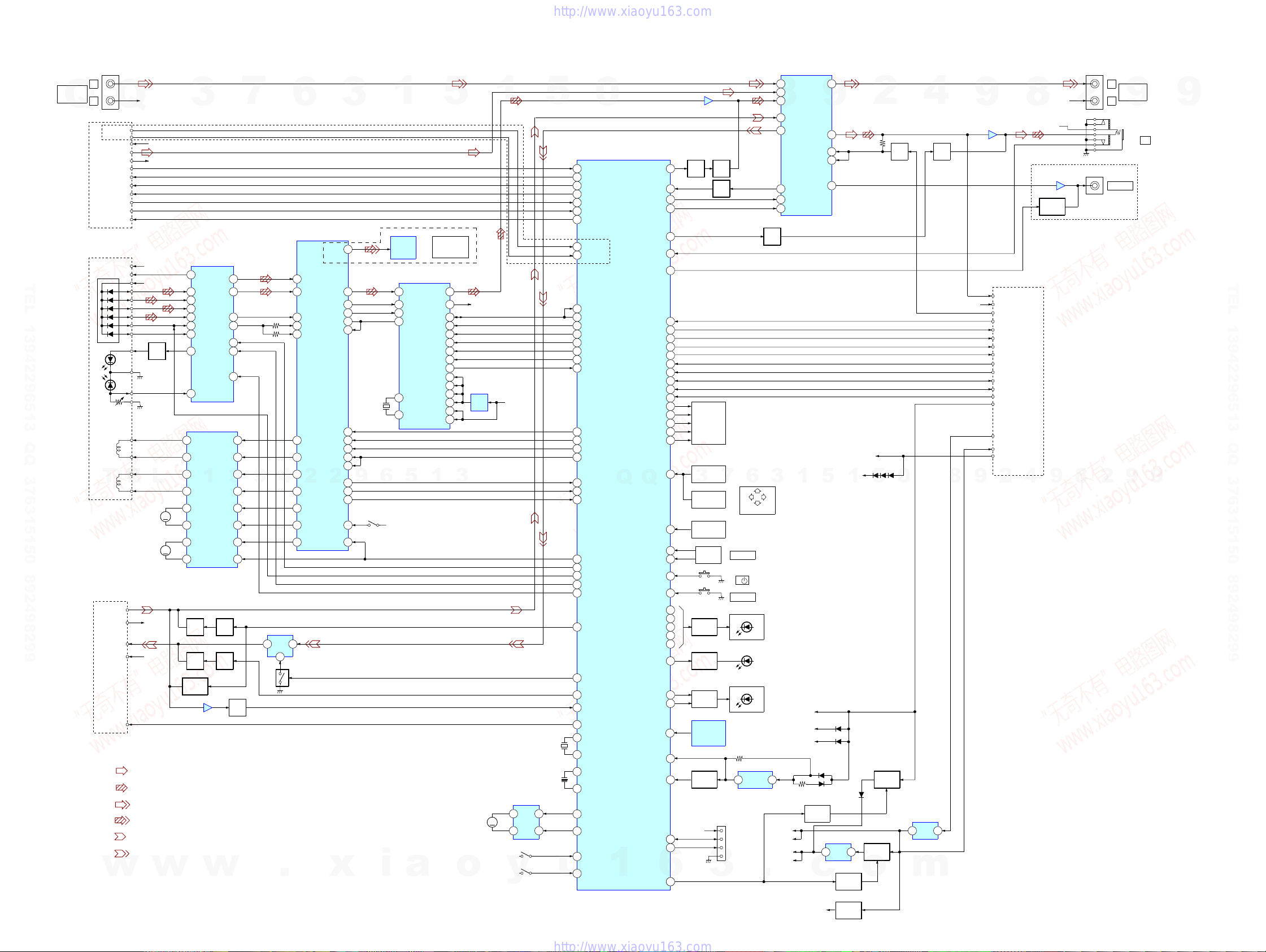

5-2. Block Diagrams - Main Section - ······························· 16

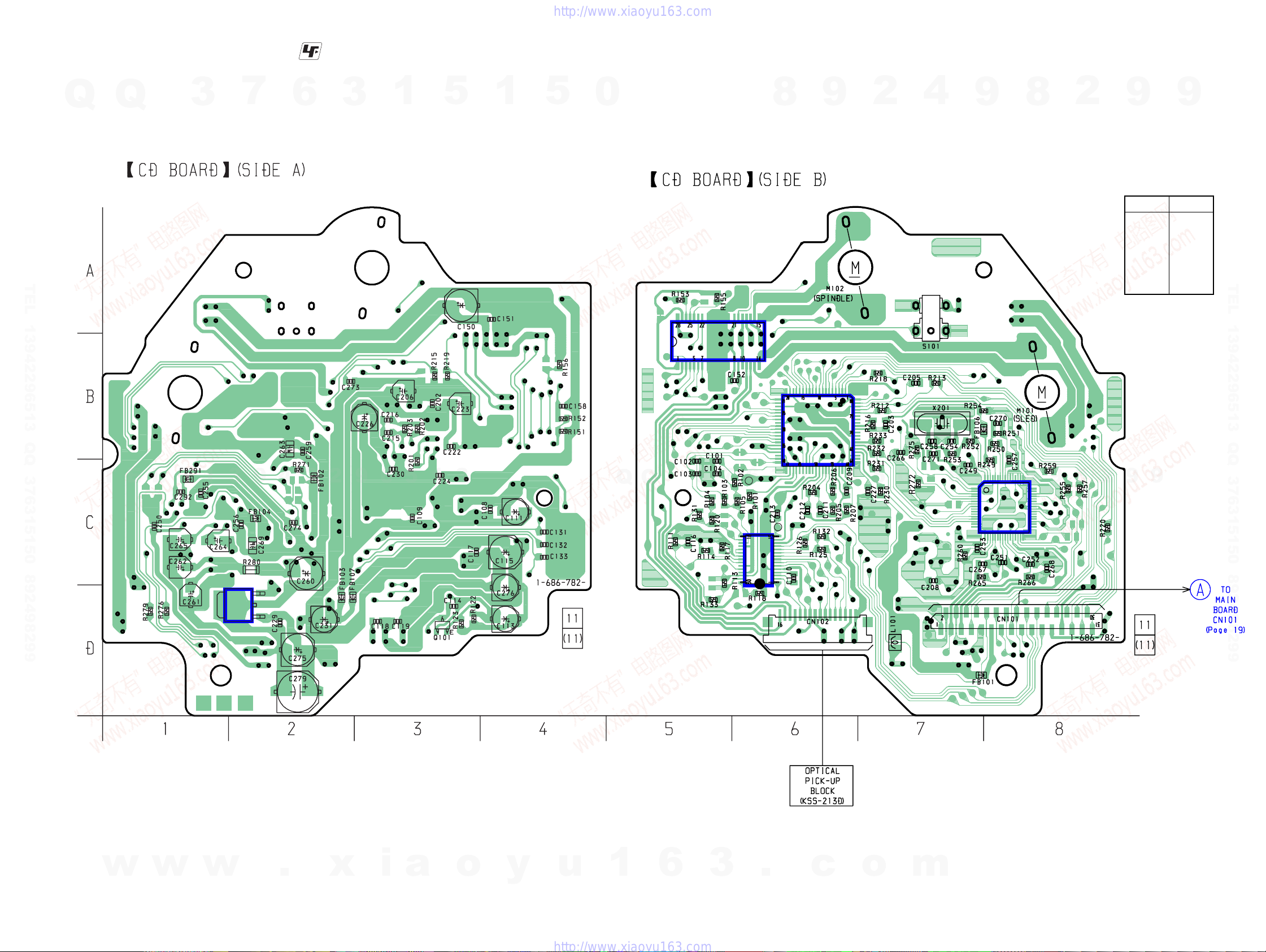

5-3. Printed Wiring Board - CD Board - ···························· 17

5-4. Schematic Diagram - CD Board - ······························· 18

5-5. Printed Wiring Board - MAIN Section- ······················ 19

5-6. Schematic Diagram - MAIN Section (1/2) - ··········· 20

- MAIN Section (2/2) - ··········· 21

5-7. Printed Wiring Board - PANEL Board - ····················· 22

5-8. Schematic Diagram - PANEL Board - ························ 23

5-9. Printed Wiring Board - LCD/SWITCH Section - ······· 24

5-10. Schematic Diagram - LCD/SWITCH Section -·········· 25

5-11. Printed Wiring Board - REGULATOR Board - ·········· 26

5-12. Schematic Diagram - REGULATOR Board - ············ 27

5-13. IC Block Diagrams ····················································· 28

5-14. IC Pin Function Description ······································· 29

6. EXPLODED VIEWS

6-1. Front Panel Section ····················································· 31

6-2. Chassis Section ···························································· 32

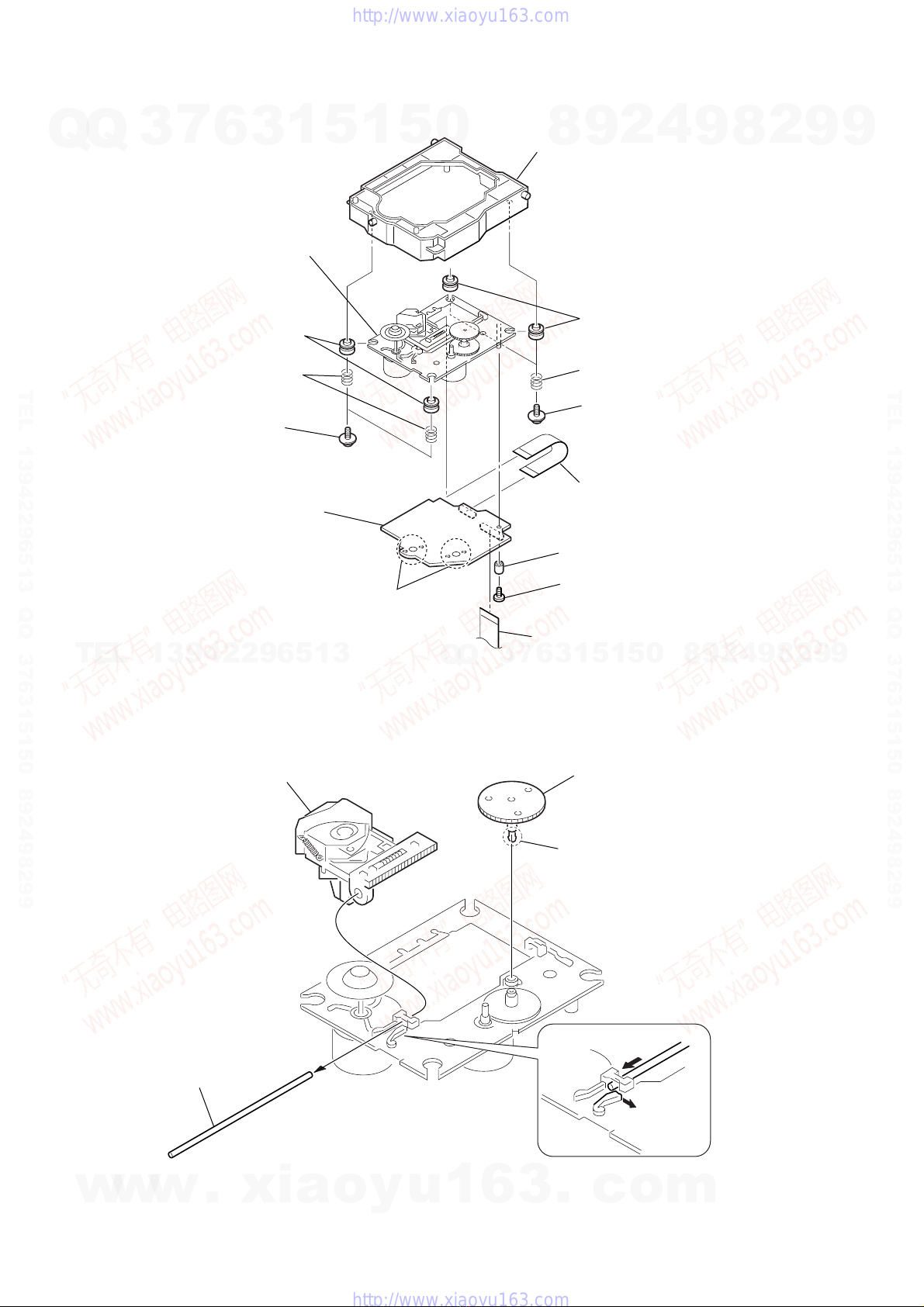

6-3. CD Mechanism Deck Section ····································· 33

6-4. KSM-213DCP/Z-NP ··················································· 34

7. ELECTRICAL PARTS LIST ······································· 35

The laser diode in the optical pick-up block may suffer electrostatic

break-down because of the potential difference generated by the

charged electrostatic load, etc. on clothing and the human body.

During repair, pay attention to electrostatic break-down and also

use the procedure in the printed matter which is included in the

repair parts.

The flexible board is easily damaged and should be handled with

care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused on

the disc reflective surface by the objective lens in the optical pick-

up block. Therefore, when checking the laser diode emission,

observe from more than 30 cm away from the objective lens.

NOTES ON HANDLING THE OPTICAL PICK-UP

BLOCK OR BASE UNIT

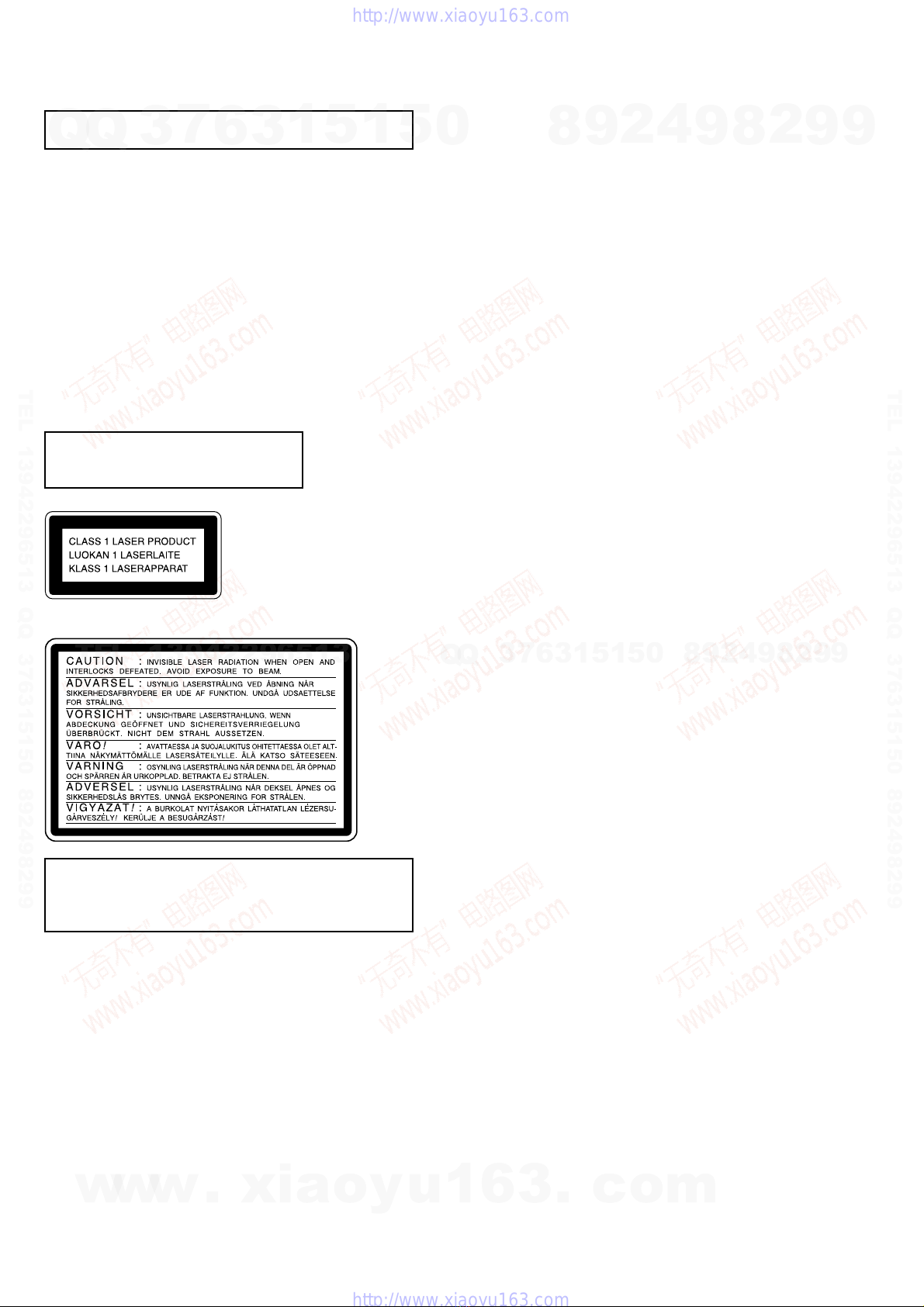

This appliance is

classified as a CLASS 1

LASER product. This

label is located on the

rear exterior.

The following caution label is located inside the apparatus.
