SERVICE MANUAL
Published by Sony Techno Create Corporation
Sony Corporation
Audio Business Group
SPECIFICATIONS
9-887-972-01
2008A04-1
© 2008.01
US Model
Ver. 1.0 2008.01

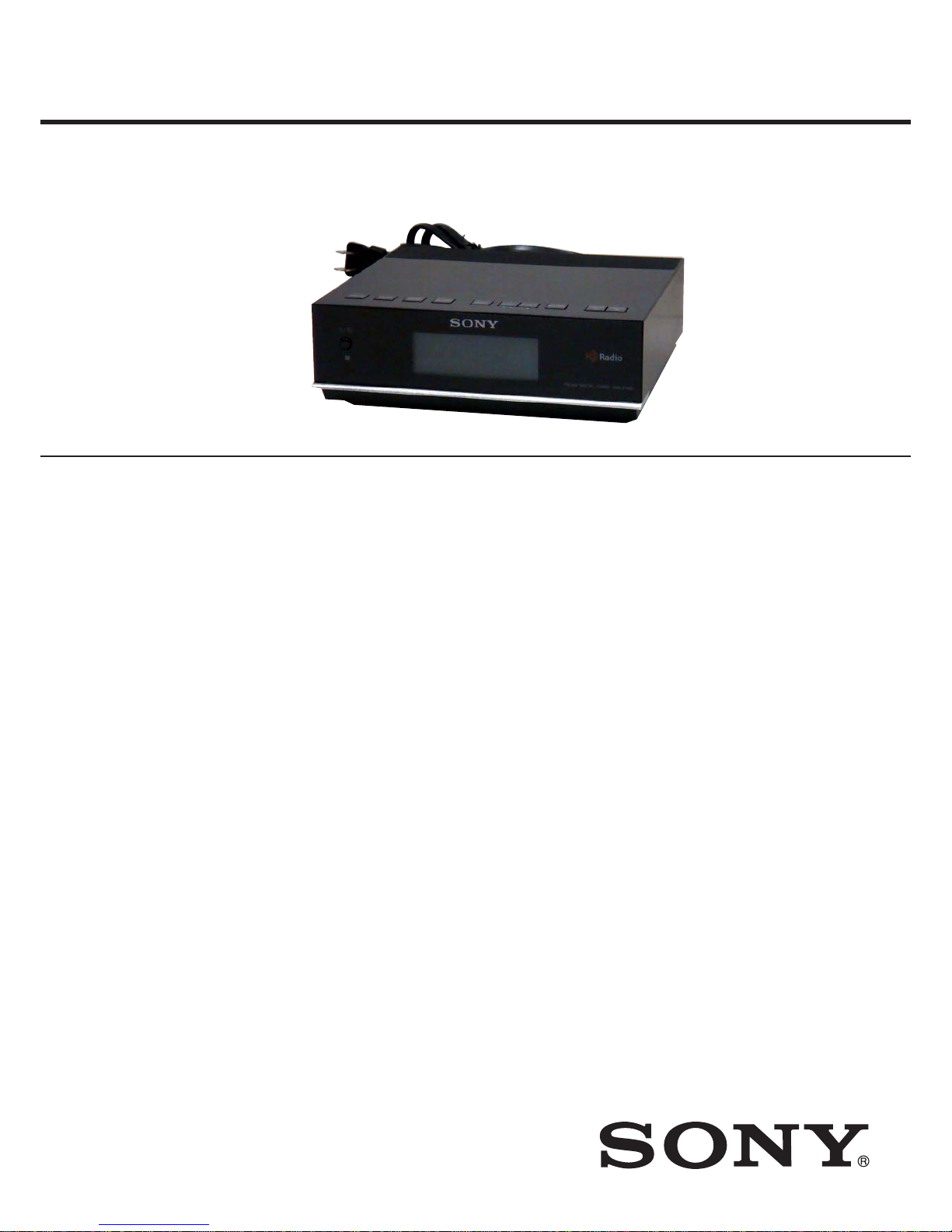

XDR-F1HD
FM/AM DIGITAL TUNER
HD Radio Broadcasting was approved by the Federal
Communications Commission in October 2002 as the system for digital
AM and FM broadcasting in the U.S.
HD Radio technology features include:
– Static-free, clear radio reception.
– FM Multicasting – the ability to broadcast multiple program streams over
a single FM frequency.
– A variety of “data services,” including text-based
information – artist name, song title, etc. scrolled across your
receiver display.
– Digital broadcasts in the same frequencies as analog
broadcasts; listeners do not need to learn a new station
number and today’s stations remain at their current place on the dial.
HD Radio technology is developed and licensed by iBiquity Digital Corpo-
ration and supported by the leaders of the
broadcasting, consumer electronics and automotive industries.
HD RadioTM Technology Manufactured Under License From iBiquity Digi-
tal Corp. U.S. and Foreign Patents. HD RadioTM and the HD Radio logo are
proprietary trademarks of iBiquity Digital Corp.
Time display 12-hour system
Frequency range FM: 87.5 – 108 MHz
AM: 530 – 1,710 kHz
Audio output Output level 0.7 Vrms at 47 kΩ
Recommended load impedance over 10 kΩ
Antenna terminal 75 Ωantenna terminal for FM
Antenna terminal for AM
Power requirements 120 VAC, 60 Hz
Dimensions Approx. 180 × 60 × 160 mm (w/h/d)
(7
1/8× 2 3/8× 6 3/8inches) not incl. projecting
parts and controls
Mass Approx. 1.1 kg (2 lb 6.8 oz)
Supplied accessories Remote commander (1)
FM dipole antenna (1)
AM loop antenna (1)
Design and specifications are subject to change
without notice.

XDR-F1HD
2
SAFETY-RELATED COMPONET WARNING!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINE
WITH MARK 0ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
SAFETY CHECK-OUT
After correcting the original service problem, perform the follow-
ing safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs,
screws, and all other exposed metal parts for AC leakage.
Check leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes.).
Leakage current can be measured by any one of three methods.
1. Acommercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’ instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operatedAC voltmeter. The “limit” indication
is 0.75 V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples
of a passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2 VAC range are suitable. (See
Fig. A)
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
• Unleaded solder melts at a temperature about 40 °C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 °C.
Caution: The printed pattern (copper foil) may peel away if the
heated tip is applied for too long, so be careful!
• Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
• Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
Notes on chip component replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
1. GENERAL .................................................................. 3
2. DISASSEMBLY
2-1. Cabinet Upper Assy ....................................................... 6
2-2. KEY Board...................................................................... 7
2-3. MICON Board Assy........................................................ 7
2-4. MAIN Board................................................................... 8
2-5. POWER Board................................................................ 8
3. DIAGRAMS
3-1. Block Diagram................................................................ 11
3-2. Printed Wiring Board –Main Section–............................ 12
3-3. Printed Wiring Board –Power Section–.......................... 13
3-4. Schematic Diagram –Main/Power Section–................... 14

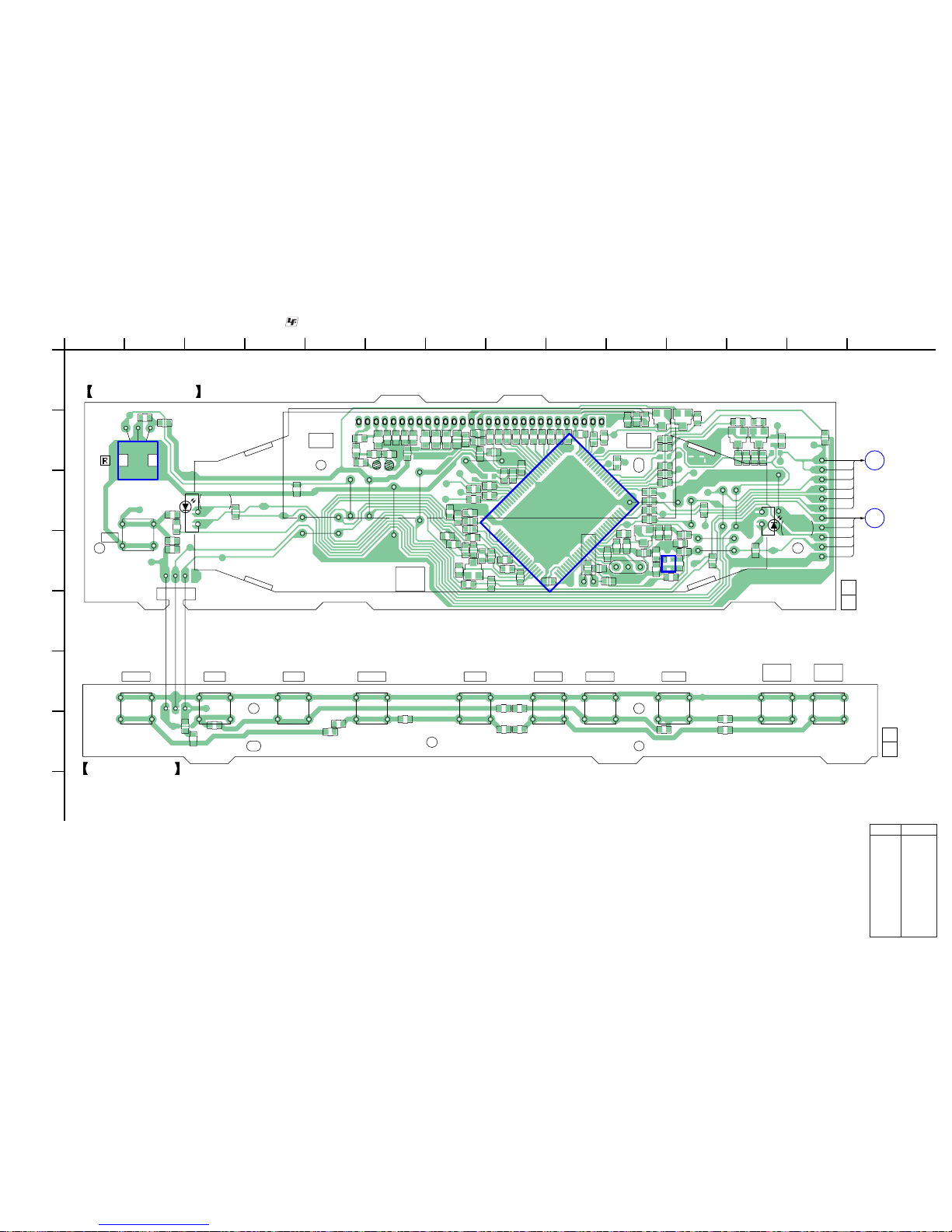

3-5. Printed Wiring Board –Micon Section–.......................... 15
3-6. Schematic Diagram –Micon Section– ............................ 16
4. EXPLODED VIEWS
4-1. Cabinet Upper Section.................................................... 20
4-2. Cabinet Lower Section.................................................... 21
4-3. MICON Board Section ................................................... 22
5. ELECTRICAL PARTS LIST .............................. 23
TABLE OF CONTENTS
1.5 kΩ0.15 μFAC
voltmeter
(0.75 V)
To Exposed Metal
Parts on Set
Earth Ground

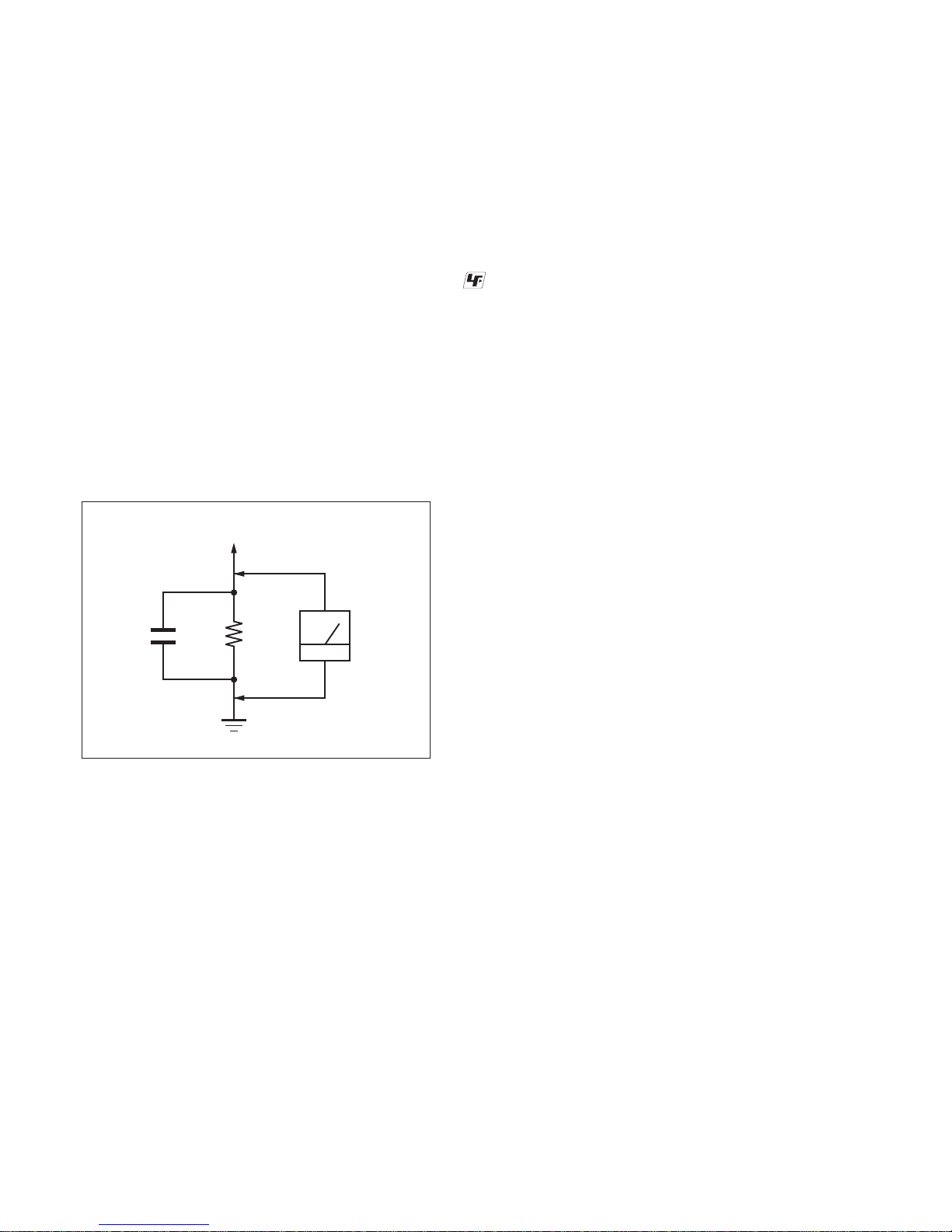

Fig. A. Using an AC voltmeter to check AC leakage.

XDR-F1HD
3
SECTION 1
GENERAL This section is extracted
from instruction manual.
B
4Press SELECT Mor muntil current hour
appears in the display, then press ENTER.
5Repeat step 4to set the minute.
Note
If you do not set the menu within 65 seconds, the setting
mode is canceled.
To change the display to the
daylight saving time (summer
time) indication
1Press MENU to show the menu display.
2Press SELECT Mor mto select “DST,” then
press ENTER.
3Press SELECT Mor mto select “ON,” then
press ENTER.
“” appears and the time indication changes to
summer time.
To deactivate the DST function, select “OFF” in step 3.
Playing the radio
–Manual tuning
1Press ?/1to turn on the radio.
2Press BAND to select the band AM or FM.
3Press TUNE + or –to tune in to a desired
frequency.
Note
of the remote commander.
–Preset tuning
You can preset 20 stations each for AM and FM.
Presetting a station
1Follow steps 1to 3in “Manual tuning” to tune
the frequency you wish to preset.
2Press and hold ENTER for a few seconds.
FM
3Press PRESET + or –to select the preset
number, then press ENTER.
number.
To preset another station, repeat these steps.
Note
If you try to store another station in the same preset
number, the previously stored station will be replaced.
Tuning in to a station
1Press ?/1to turn on the radio.
2Press BAND to select the band AM or FM.
3Press PRESET + or –to select the desired
preset number.
Tip
of the remote commander. Press ENTER
number is selected.
–Scan tuning
In HD scan, HD Radio stations are scanned.
1Press ?/1to turn on the radio.
2Press BAND to select the band AM or FM.
3Press SCAN or HD SCAN on the unit or
remote commander.
Scanning of the selected band starts.
When a station is received, scanning pauses for 3
seconds and then continues.
4When the unit tunes in to the desired station,
do any of the following operations to stop
scanning.
–PressENTER on the unit or remote commander.
–Press
SCAN or HD SCAN.
5If necessary, press TUNE + or –to tune in to
the station more precisely.
SLEEP
123
456
78
0
9
BRIGHTMENU
BAND
HD SCAN
SCAN
DISPLAY
PRESET
TUNE/
SELECT
ENTER
The number 5 and the PRESET +
buttons have a tactile dot.
Size AAA (R03)
×2
Preparing the remote
commander
Installing the batteries into the remote com-
mander (See Fig. B)
Insert two size AAA (R03) batteries (not supplied).
When to replace the batteries
With normal use, the batteries should last for about
six months. When the remote commander no longer
operates the unit, replace all the batteries with new ones.
Notes
• Do not charge dry batteries.
• When you are not going to use the remote commander
for a long time, remove the batteries to avoid any
damage caused by leakage and corrosion.
Setting the clock
1Plug in the unit.
2Press MENU to show the menu display.
3Press SELECT Mor mto select “TIME SET,”
then press ENTER.
A
ANTENNA
AUDIO OUT
AM
RESET
L
R
FM
AM FM
SLEEP
HD SCAN
SELECT
BAND
PRESET PRESET
SCAN
DISPLAY
MENU ENTERTUNETUNE
AC power cord
?/1

XDR-F1HD
4

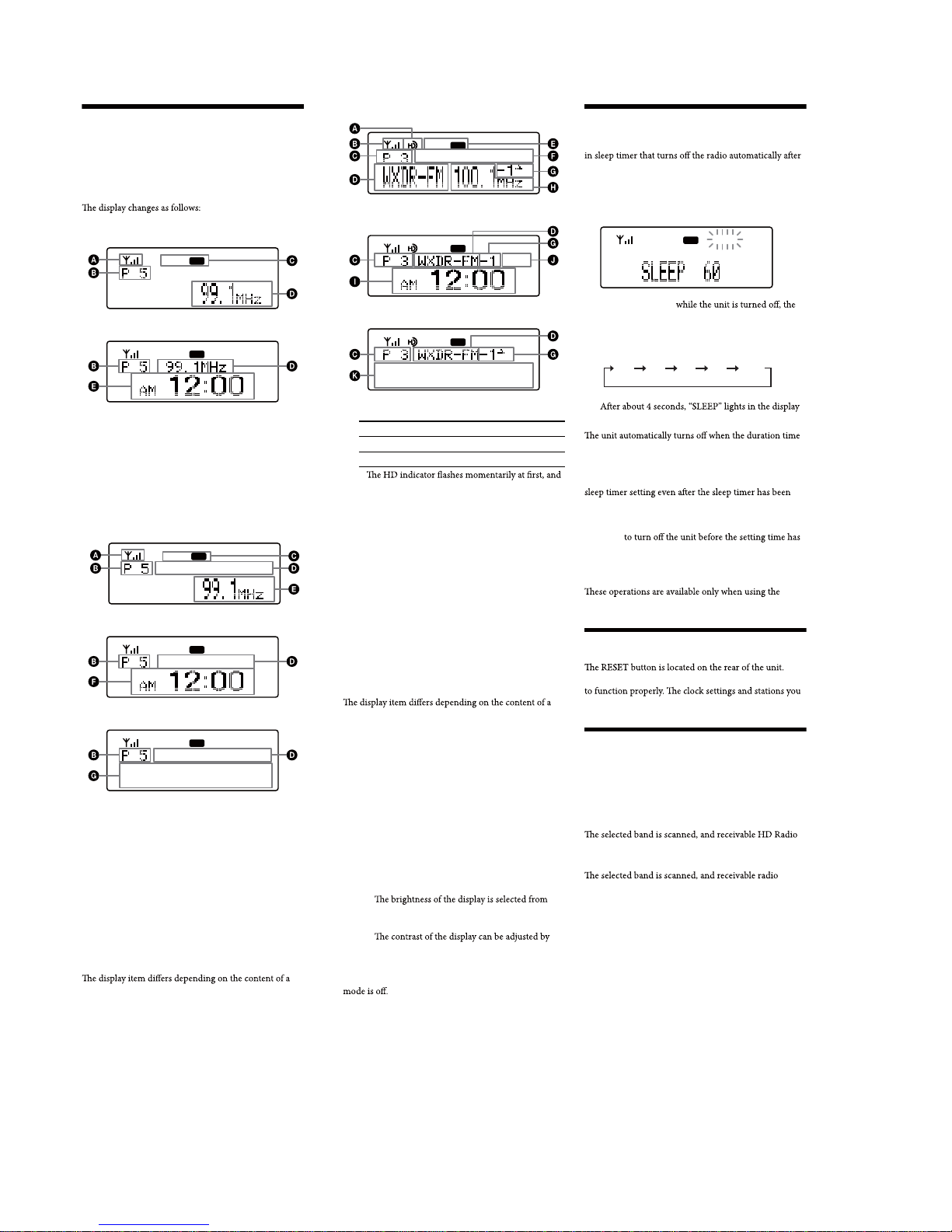

Changing the display
mode and settings
To change the display mode
Press DISPLAY.
When an analog radio station is received
FM
x
FM
AField strength level indicator
BPreset number*
CBand
DFrequency
ECurrent time
*When you tune in a station by selecting a preset
number.
When an analog FM broadcast that supports RBDS
(Radio Broadcast Data System) is received
FM
x
FM
x
FM
AField strength level indicator
BPreset number*
CBand
DStation name
Name of station currently tuned in.
EFrequency
FCurrent time
GText information
Text information transmitted from station.
*When you tune in a station by selecting a preset
number.
Note
broadcast or the station.
When an HD Radio station is received
FM
x
FM
x
FM
AHD indicator
HD indicator Reception status
Stays lit Strong HD signal, digital reception*
Flashes Weak HD signal, analog reception
Not displayed
No HD signal, analog reception
*
then stays lit.
BField strength level indicator
CPreset number*
DCall sign
EBand
FSong title/artist name
GChannel number (FM only)
Appears when HD Radio broadcasts multiple
program.
Press TUNE + or –to select a sub channel.
HFrequency
ICurrent time
JStation name
KText information
*When you tune in a station by selecting a preset
number
Note
broadcast or the station.
To change the display settings
(BRIGHTNESS/CONTRAST)
1Press MENU to show the menu display.
2Press SELECT Mor mto select
“BRIGHTNESS” or “CONTRAST,” then press
ENTER.
3Press SELECT Mor mto select the setting or to
adjust the level, then press ENTER.
BRIGHTNESS:
“HIGH,” “MIDDLE” or “LOW.”
CONTRAST:
11 levels.
Note
If you do not set the menu within 10 seconds, the setting
Tip
You can adjust “BRIGHTNESS” directly by pressing
BRIGHT on the remote commander.
Setting the sleep timer
You can enjoy falling asleep to the radio using the built-
a preset duration.
1Press SLEEP on the remote commander.
“SLEEP” and the digits for the sleep timer duration
appear.
FM
SLEEP
If you press SLEEP
unit is turned on.
2Press SLEEP repeatedly to select the desired
sleep timer setting.
Each press changes the setting time as follows:
60 45 1530 OFF
when the duration time is set.
is passed.
To change the sleep timer setting
You can press SLEEP repeatedly to select the desired
activated.
To deactivate the sleep timer
Press ?/1
elapsed, or press SLEEP repeatedly to set the sleep timer
to “SLEEP OFF” in step 2.
Note
remote commander.
Resetting the unit
Press this button with a pointed object if the radio fails
have preset, etc., will revert to the factory preset.
Using the remote
commander
Buttons shared on both the remote commander and the
unit control the same functions.
HD SCAN button
stations are received for 3 seconds in order of frequency.
SCAN button
stations are received for 3 seconds in order of frequency.
BRIGHT button
To adjust the brightness of the display.

XDR-F1HD
5

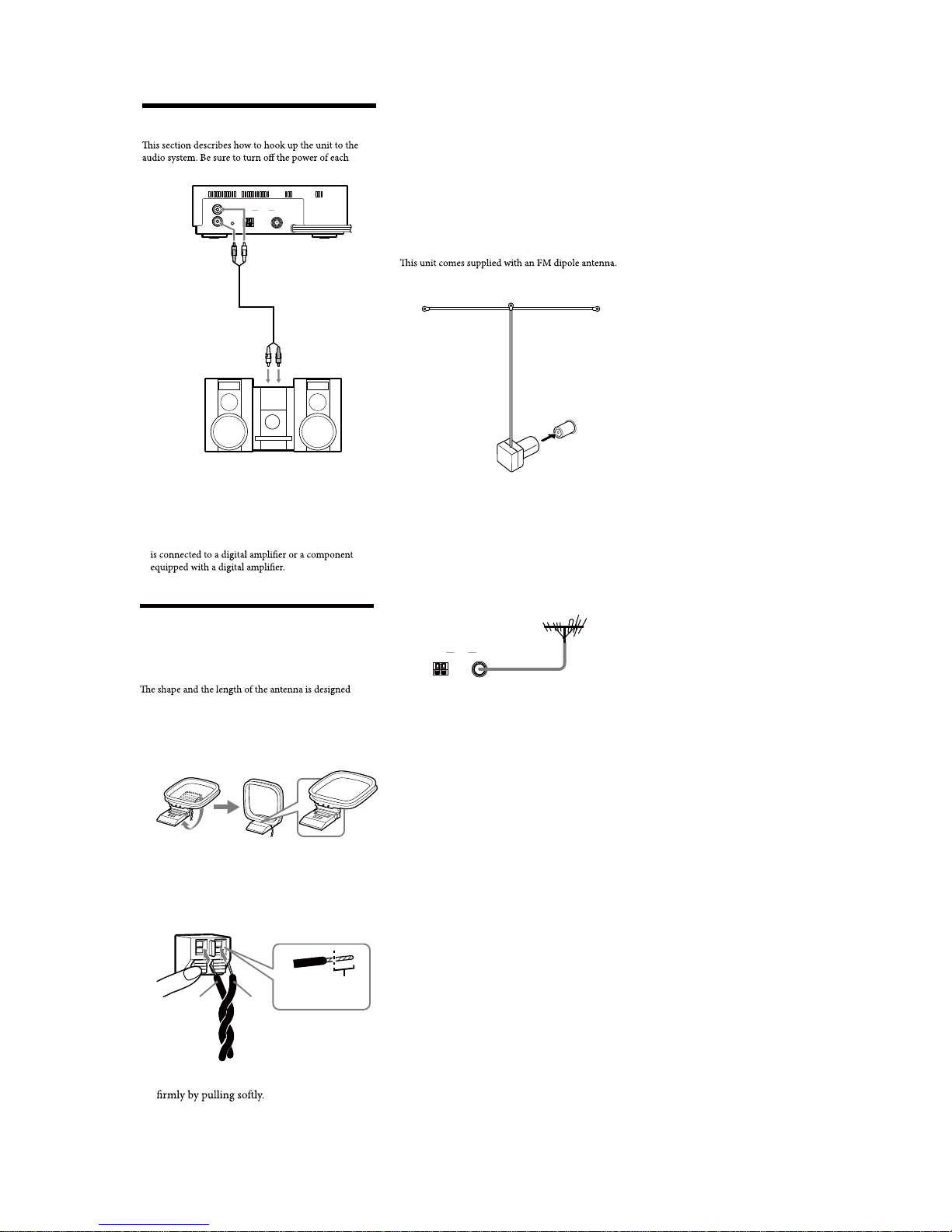

Connecting the antenna
To connect the AM loop
antenna
to receive AM signals. Do not dismantle or roll up the
antenna.
1Remove only the loop part from the plastic
stand.
2Set up the AM loop antenna.
3Connect the cords to the AM antenna
terminals.
Cord (A) or cord (B) can be connected to either
terminal.
AB
Only inser t up
to here.
Insert the cord while
pushing down the
terminal clamp.
4Make sure the AM loop antenna is connected
Connecting the system
component before making the connections.
ANTENNA
AUDIO OUT
AM
RESET
L
R
FM
AUDIO OUT
(Stereo pin plug)
(Red) (R)
AUDIO OUT
(Stereo pin plug)
(White) (L)
Audio input
(White) (L)
Audio input
(Red) (R)
Audio cable (Not supplied)
Notes
• Install this system so that the power cord can be
unplugged from the wall socket immediately in the
event of trouble.
• If noise occurs, separate the unit from other
components.
• Noise may occur during AM reception if the unit
Adjusting the AM loop antenna
Find a place and an orientation that provide good
reception.
• Do not place the AM loop antenna near the unit or
other AV equipment, as noise may result.
Tip
Adjust the direction of the AM loop antenna for best AM
broadcast sound.
To connect the FM antenna
Connect an antenna that provides good reception to the
FM antenna terminal.
FM dipole antenna
(supplied)
Adjusting the FM dipole antenna
Be sure to fully extend the FM dipole antenna. Attach the
antenna in the shape of a T to a high position on a wall
away from this unit.
Tip
If you have poor FM reception, use a 75 Ωcoaxial cable
(not supplied) to connect the unit to an outdoor FM
antenna as shown below.
Outdoor FM antenna
ANTENNA
AM FM

XDR-F1HD
6
SECTION 2
DISASSEMBLY
Note: This set can be disassemble according to the following sequence.
2-1. CABINET UPPER ASSY
(Page 6)
2-2. KEY BOARD
(Page 7)
SET
2-3. MICON BOARD ASSY
(Page 7)
2-4. MAIN BOARD
(Page 8)
2-5. POWER BOARD
(Page 8)
Note: Follow the disassembly procedure in the numerical order given.
2-1. CABINET UPPER ASSY
two (+) P tapping screws
(B 2.6)
cabinet upper assy

three (+) P tapping screws
(B 2.6)
two claws

XDR-F1HD
7
2-2. KEY BOARD
2-3. MICON BOARD ASSY
three screws
Remove the three solders.
red
KEY board

two screws
Remove the eleven solders.

red red
MICON board assy

XDR-F1HD
8
2-4. MAIN BOARD
2-5. POWER BOARD
two (+) P tapping screws
(B 2.6)
Remove the two solders.
POWER board
retainer plate (trans)
white
cabinet (lower)
black
When assembling the set, route the power cord
as shown below and install it.
three screws
MAIN board
Remove the three solders.
two (+) P tapping screws
(B 2.6)
(+) BV tapping screws
(B 3)

XDR-F1HD
9
MEMO

XDR-F1HD
10
SECTION 3
DIAGRAMS
Note: The components identified by mark 0or dotted
line with mark 0are critical for safety.
Replace only with part number specified.
For Schematic Diagrams.
Note:
• All capacitors are in μF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ωand 1/4W or less unless otherwise
specified.
• % : indicates tolerance.
• f: internal component.
• C: panel designation.
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
• A : B+ Line.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM1
• Voltages are taken with VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal production
tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production
tolerances.
• Circled numbers refer to waveforms.
• Signal path.
F: FM
f: AM
For Printed Wiring Boards.
Note:
• X: Parts extracted from the component side.
• : Pattern from the side which enables seeing.
• Waveforms
– MICON Board –
2.5 Vp-p
1 V/DIV, 10 μsec/DIV
32 kHz
5.53 MHz
IC401 RB (XCOUT)
3.2 Vp-p
1 V/DIV, 0.1 μsec/DIV
IC401 RE (XOUT)

XDR-F1HD
XDR-F1HD
1111
3-1. BLOCK DIAGRAM
30
88
49
44
48
45
27
25
55
I
61
•
63
11
10
XCOUT
XCIN
DTUNER_RESET
DTUNER_SDA
94 KEY1
95 KEY2
29 DTUNER_SCL
R-CH
AUDIO_L
26
AUDIO_R
1FMANT
2AMANT 8
E2P_SDA
12
RESET
23
BLEND
13
I2C_SDA
12
I2C_SCL
3
RESET
18
BLEND
16
SD_IBOC_OUT_Q
8
7
E2P_SCL
14
SDA
13
SCL
RDS
LIGHT2
12
RESET
LED+B
LIGHT1
83
AUDIO_MUTE
RST
47
CSB
50WRB
51RDB
RST
A0
D0
I
D7
R-CH
R-CH
89
DTUNER_POWER
D401
(LCD BACK LIGHT R)
D402
(LCD BACK LIGHT L)
97
KEY OFF
POWER
CONTROL
Q406
RESET
Q402,405
LCD BACK
LIGHT CONTROL
Q403
LCD BACK
LIGHT CONTROL
Q404
KEY
NETWORK
IDM MODULE
IDM1
S801–811
19 DTUNER_RDS
DSP TUNER UNIT
TU1
SYSTEM CONTROL
IC401
LIQUID CRYSTAL
DISPLAY PANEL
LCD401
D913
10.5V
5.2V
D915
D912,914
D905
F901
T901
POWER
TRANSFORMER
LED+B
MICON3.3V
VDD1.8V
CVDD1.8V
~ AC IN
RESET
IC402 1
2
13
X401
32kHz
15
13
XIN
XOUT
X402
5.53MHz
17
SD_IBOC_OUT_I
9
18
BCK_IBOC_OUT
10
19
WS_IBOC_OUT
11
20
I2S_DATA
15
21
I2S_BCK
16
22
I2S_WS
IF_I2S_Q1
IF_I2S_I1
IF_I2S_BCLK
IF_I2S_WS
AUDIO_I2S_DATA
AUDIO_I2S_BCLK
AUDIO_I2S_WS
17
8.5V
VDD3.3V DIG
VDD3.3VANA
VDD3.3V VDD
CN1
CN2
ANTENNA
FM
AM
S1
KEY3.3V
RESET
3RMT
18 VDET
MICON3.3V
MICON3.3V
POWER
CONTROL
Q909,910
POWER
CONTROL
Q901,902
RECT
D701-704
AUDIO
MUTE
Q201,204
AUDIO
PREAMP
Q202,203
+3.3V REG
IC905
2
+3.3V REG
IC901
1
12
4
+8.5V REG
IC902 13
2
3
BVDD3.3V
+3.3V REG
IC903
1
43
+4.7V REG
IC907
2
13
REMOTE CONTROL
SIGNALRECEIVER
IC403 1
VOLTAGE
DETECT
Q401
• R-CH is omitted due to same as L-CH.
• Signal path
: FM
:AM
13
POWER
CONTROL
Q903,904
POWER
CONTROL
Q907,908
POWER
CONTROL
Q905,906
+1.8V REG
IC904
+1.8V REG
IC906
CN3
L
R
-1
-2 AUDIO OUT

XDR-F1HD
XDR-F1HD
1212
3-2. PRINTED WIRING BOARD – MAIN Section – • : Uses unleaded solder.
1
A
B
C
D
E
F
G
H
I
234567891011
CPOWER
BOARD
W701
1-875-767-
(11)
11
B
MICON BOARD
W2
A
MICON BOARD
W1
MAIN BOARD
R903
R904
C1
R302
R2
R1
R3
C10
C302
C2
R8
R9
R10
R11
C19
R4
C915
JW5
C7
IC903
IC904
JW4
IC907
Q910
C918
W701 BLU
WHT
RED
3
1
Q909
D913 JW3
R912
R915
R916
R913
R914
D914
R935
R924
R925
C914
Q904
Q903
Q906
Q905
C20
C17
C18
IC906
R110
C911
D906
C16
JW22
JW25
IC905
W2
SL901
W1
Q907 Q908
R927
Q202
Q203 R206
R205
R212
R213
R202 Q102
Q103 R108
R109
C102
R106
R105
R211
R208
R209
R214
Q201
Q204
C928 JW10
JW29
FB101
FB301
S1
RESET
CN1
TU1 1
21
1
1
1
43
2
3
2
151
3
15
2
5
27
201
AM
CN2
FM
ANTENNA
CN3
-1
L
-2
R
AUDIO OUT
Q104 Q101
Q902
Q901
EB
C
EB
C
IC901
R919
4
1
R6
R7
R210
C201 R101
R201
JW16
IDM1
JW18
R929
R928
R910
C15
JW15
JW14
JW13
JW12
IC902
C912
C9
JW7
JW9
JW8
C8
C5
JW6
D907
C6
C202
R923
R921
R926
D908
D909
R922
R936
C924
JW11
C921
D912
C925
R934 R930
R933
R931
JW1
C917
JW26
C926
D911 FB6
FB5 FB4 FB3
C21
C22
C11
C12
R204
C910 R917
R918 R920
R104
JW28
FB201
C301
R102
R113
R114
C101 R103
R203
R909
D915
C919
R5
R905
R906
R907 R908
JW17
JW20
RED WHT RED WHT BLU BLU YEL YEL BLK BLK
BRN
D910
JW21
FB2
FB1
C916
R902
R937
6151
EB
C
C
EB
C
EB
C
EB C
EB
C
EB
C
EB
C
EB
EB
C
EB
C
EB
C
C
EB
C
EB
C
EB
C
EB C
EB
D906 F-2
D907 C-8
D908 E-7
D909 E-7
D910 G-4
D911 G-5
D912 H-7
D913 G-7
D914 H-6
D915 G-2
IC901 D-2
IC902 C-7
IC903 E-7
IC904 F-7
IC905 G-3
IC906 G-5
IC907 G-7
Q101 C-4
Q102 D-4
Q103 C-4
Q104 C-4
Q201 D-4
Q202 E-4
Q203 E-4
Q204 D-4
Q901 D-1
Q902 C-1
Q903 D-8
Q904 D-7
Q905 E-7
Q906 E-7
Q907 G-3
Q908 G-4
Q909 G-7
Q910 H-7
Ref. No. Location
• Semiconductor Location
Ref. No. Location
(Page 15) (Page 15)
(Page 13)

XDR-F1HD
XDR-F1HD
1313
3-3. PRINTED WIRING BOARD – POWER Section – • : Uses unleaded solder.
1
A
B
C
D
E
F
G
H
234567891011121314
POWER BOARD
C
MAIN BOARD
W701
1-875-766- (11)
11
C907 PS901
WHT
BLK
C904
D901
D902
D903
D904
D905
C909
BLU WHT RED
C902
C901
C906
C905
C908
T901
POWER TRANSFORMER
JW901
F901
W701
31
C903
*
NOT REPLACEABLE:
BUILT IN TRANSFORMER.
~AC IN
*
Ref. No. Location
• Semiconductor
Location
D901 F-14
D902 F-13
D903 E-12
D904 E-11
D905 F-11
(Page 12)

XDR-F1HD
XDR-F1HD
1414
3-4. SCHEMATIC DIAGRAM – MAIN / POWER Section – • See page 17 for IC Block Diagrams.
IC B/D
IC B/D
IC B/D
FB3
FB4
FB5
FB6
TP1
TP2
TP3
TP4
CN1
CN2
IDM1
C9
R1
R2
C1
C2
C5
C6
C8
C7
R8
R9
R10
R11
C19
C20
R5
C15 C16
FB2
FB1
C18
R3
R101
R201
R6
R7
C921D911
D909
C916
R902
R903
R904
R937
C912
IC902
R921
C915 C914
D908
Q905
R926
R924
IC905
R909
R908
R907
R906
R905
C919
Q907
R929 R928
Q908
R927
Q906
Q903
Q904
IC907
R916
R915
R914
R912 R913
C924
Q909
R934
R933
Q910
R931
D913
W1
W2
IC901
Q901
R919
R918 R917
Q902
R920
C910
C911
D906
D915
Q102 Q103 Q202 Q203
C101 R103
R104
R105 R205
R203
R204 R212
C202 R209
R109 FB101
FB201
FB301
R208
R108
R114
R113
R102
R213
R202
Q104 Q204
Q101 Q201
C925 C926
D914
D912
R936
D907
R210
R110
SL901
C917
C918
W701 W701
D910
R935
C928
C10
D905
D902
D901
D903
D904
C907
C901
C902
C903
C904
C906
C909
C908
C905
F901
TP905
TP904
TP902
C301
R910
C17
R925
R923 R922
CN3
TP901
TP903
R930
S1
TU1
R4
C11 C12
C21 C22
IC906
IC903
R106 R206
R214 R211
T901
R302 C302
IC904
C102
C201
PS901
(Page 16)
(Page 16)

XDR-F1HD
XDR-F1HD
1515
3-5. PRINTED WIRING BOARD – MICON Section – • : Uses unleaded solder.
1
A
B
C
D
E
F
G
H
234567891011121314
MICON BOARD
KEY BOARD
1-875-769- (11)
11
1-875-768- (11)
11
BMAIN
BOARD
W2
AMAIN
BOARD
W1
S807
DISPLAY
S801
R802
R803
R804
IC403 IC403
C435 R475
R805 R809 R814
R810 R811
R815 R816 R812
R813
R817
R808
R806
R807
123
JW404
JW405
   
S801
S802
RED WHT BLU
RED
R801
R433
C401
R464
R463
R465
R456
R483
C431
R466
R467
R468
R469
R470
R401
Q406
BE
C
R472
R458
R455
R457
R427 R424
R423
R421
R420
R419
R418
R411
R410
R409
R431 R430
C418
R480
R450
LCD401
LIQUID CRYSTALDISPLAY PANEL
R494
R495
C428
R459
C427 C426 C425 C424
C420
C423
C422
C421
R449
R462
R447
R448
R446
R441
R445
R444
R443
R442
R453 R454
R426
R425
R422
R461
R460
C417
Q405
EB
C
EB
C
Q402
R429
R438
R479
R478
R432
R477
C410
R416
C409 R414
R413
R437
Q404 Q403
R436
R435
R434
R428
R481
C416
C429
C430
R482
R471
C433
R473
C432
R474
C434
WHT BLU
W702
W702
13
13
BAND
S803
SCAN
S808
HD SCAN
S809
MENU
S810
TUNE 㸫
SELECT .N
S804
TUNE 㸩
S805
ENTER
S806
PRESET
㸫
S811
PRESET
㸩
SL402
JW412
JW411
JW410
JW409
JW406
JW403
JW402
JW401
SL401
29 1
50
51
1
100
80
81
31
30
JW414
JW413
X402
X401
JW407
JW408
R402
R403
C405
R407
R415
C403
R408 Q401
R476
R404
IC402
R412
R417
12 43
R406
C402
IC401 D401
BRN
BLK
YEL
BLU
WHT
RED
BLK
YEL
BLU
WHT
RED
LCD BACK
LIGHT R
D402
LCD BACK
LIGHT L
W2
W1
6
1
5
1
EB
C
EB
C
EB
C
Ref. No. Location
• Semiconductor
Location
D401 C-13
D402 C-3
IC401 C-9
IC402 D-11
IC403 B-2
Q401 D-10
Q402 B-11
Q403 B-12
Q404 B-12
Q405 B-10
Q406 D-7
(Page 12)
(Page 12)

XDR-F1HD
XDR-F1HD
1616
3-6. SCHEMATIC DIAGRAM – MICON Section – • See page 10 for waveforms. • See page 17 for IC Block Diagrams. • See page 18 for IC Pin Function Description.
IC B/D
IC401
TP405
TP404
TP402
TP403
C401
C402 C403
R403
R404
R401
R402
TP401
TP417
TP416
TP420
TP415
TP419
TP424
TP423
TP422
TP418
R479
W1
W2
R466
C429
C430 R467
R477
R472
R471
C432
C433 R469
R470
C434
R474 R473
Q406
R483
R482
R804 R803 R802 R801
S801
R813 R812 R811 R810 R805
R817 R816 R815 R814 R809 R808 R807
S806 S805 S804 S803 S802
S811 S810 S809 S808 S807
TP801
W702W702
TP802
TP803
TP804
IC403
C435 R475
R406
R415
R416 R417
IC402C410C409
R414R413
R412
Q401
R476
TP425
X402
C405
R407
R408
R409
R410
R411
R429
R421
R420
R419
R418
R422 TP406
TP408TP407
R423
R424
TP409
R425
R426
R427
R430
R431 Q403 Q404
R438
R437R436R435R434
R432 R433
TP414
TP413
TP412
TP411
R453
R454
C416
TP410
R450
R449
R448
R447
R446
R445
R443
R442
R481
R441
R444
R428
Q402
Q405
C417
R459
R461
R460
R480
C420 R462
C418
C421
C422
C423
C424
C425
C426
C427
C428
R464
R495
R465
R494
SL402
SL401
LCD401
D401 D402
R806
R478
TP421
C431 R468
R458
R457
R456
R455
R463
X401
(Page 14)
(Page 14)

XDR-F1HD
17
IC902 NJM2387ADL3(TE2) (MAIN BOARD)
IC905 NJM2387ADL3(TE2) (MAIN BOARD)
IC907 NJM2387ADL3(TE2) (MAIN BOARD)
IC402 XC61CN2702NR (MICON BOARD)

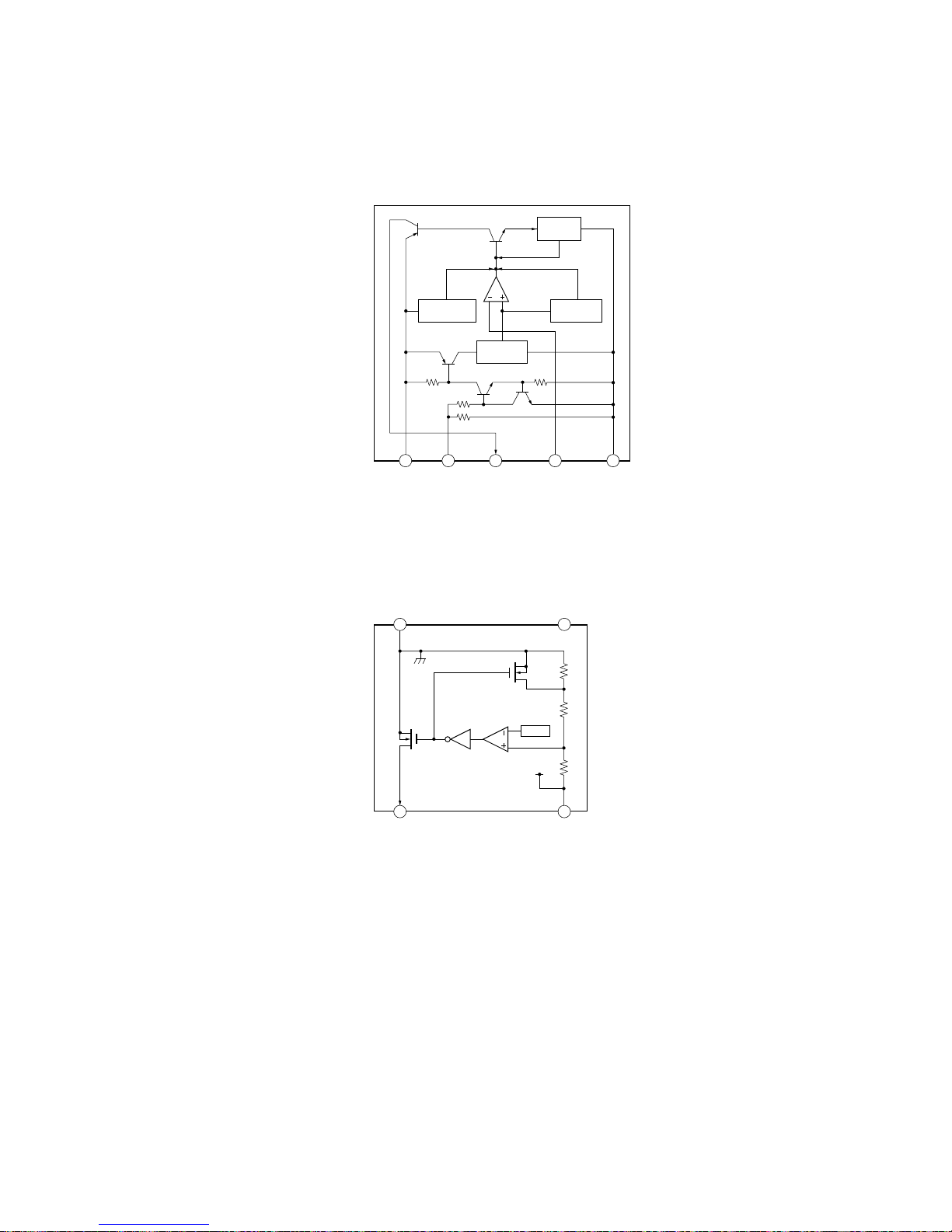

• IC Block Diagrams
1 2 3 4 5
CURRENT
LIMIT
THERMAL
PROTECTION
OVERVOLTAGE
PROTECTION
BANDGAP
REFERENCE
VIN CONTROL VOUT VADJ GND
VREF
VSSVOUT
1
4
NCVIN
2
3

XDR-F1HD
18
・IC Pin Function Description
MICON BOARD IC401 M3062LFGPFP (SYSTEM CONTROL)
Pin No. Pin Name I/O Description
1 P9_6/NC O Fixed at L level (Not used)
2 P9_5/NC O Fixed at L level (Not used)
3 P9_4/RMT I Remote commander signal input
4 P9_3/NC O Fixed at L level (Not used)
5 P9_2/NC O Fixed at L level (Not used)
6 P9_1/NC O Fixed at L level (Not used)
7 P9_0/NC O Fixed at L level (Not used)
8 BYTE I Not used. (Connect to VSS)
9 CNVSS I Not used. (Fixed at L level)
10 XCIN I System sub clock signal input (32 kHz)
11 XCOUT O System sub clock signal output (32 kHz)
12 RESET I Micon reset input (L: Micon reset)
13 XOUT O System main clock signal output (5.53 MHz)
14 VSS — Ground
15 XIN I System main clock signal input (5.53 MHz)
16 VCC1 — Power supply pin (+3.3 V)
17 NMI I NMI interruption signal input (Fixed at H level)
18 INT2/VDET I Power failure detection signal input (H: backup mode)
19 INT1/DTUNER_RDS I RDS data interruption signal input
20 INT0/NC O Fixed at L level (Not used)
21 P8_1/NC O Fixed at L level (Not used)
22 P8_0/NC O Fixed at L level (Not used)
23 P7_7/NC O Fixed at L level (Not used)
24 P7_6/NC O Fixed at L level (Not used)
25 P7_5/NC O Fixed at L level (Not used)
26 P7_4/NC O Fixed at L level (Not used)
27 P7_3/NC O Fixed at L level (Not used)
28 P7_2/NC O Fixed at L level (Not used)
29 RXD2/DTUNER_SCL — Communication pin for digital tuner.
30 TXD2/DTUNER_SDA — Communication pin for digital tuner.
31 P6_7/SDA O Flash write pin (Normally: output port)
32 P6_6/SCL1 O Flash write pin (Normally: output port)
33 P6_5/CLK1 O Flash write pin (Normally: output port)
34 P6_4/CTS0 O Flash write pin (Normally: output port)
35 P6_3/NC O Fixed at L level (Not used)
36 P6_2/NC O Fixed at L level (Not used)
37 P6_1/NC O Fixed at L level (Not used)
38 P6_0/NC O Fixed at L level (Not used)
39 P5_7/NC O Flash write pin (Normally: output port)
40 P5_6/NC O Fixed at L level (Not used)
41 P5_5/EPM O Flash write pin (Normally: output port)
42 P5_4/NC O Fixed at L level (Not used)
43 P5_3/NC O Fixed at L level (Not used)
44 P5_2/LIGHT2 O LCD back light control signal output
45 P5_1/LIGHT1 O LCD back light control signal output
46 P5_0/CE O Flash write pin (Normally: output port)
47 P4_7/CSB O LCD driver control signal output
48 P4_6/RST O LCD driver reset signal output (H: driver reset)
49 P4_5/A0 O LCD driver control signal output
50 P4_4/WRB O LCD driver control signal output
51 P4_3/RDB O LCD driver control signal output
52 P4_2/NC O Fixed at L level (Not used)
53 P4_1/NC O Fixed at L level (Not used)
54 P4_0/NC O Fixed at L level (Not used)

XDR-F1HD
19
Pin No. Pin Name I/O Description
55 P3_7/D0 O LCD data output
56 P3_6/D1 O LCD data output
57 P3_5/D2 O LCD data output
58 P3_4/D3 O LCD data output
59 P3_3/D4 O LCD data output
60 P3_2/D5 O LCD data output
61 P3_1/D6 O LCD data output
62 VCC2 — Power supply pin (+3.3 V)
63 P3_0/D7 O LCD data output
64 VSS — Ground
65 P2_7/AN2_7/
SHIMUKE2 I Destination select signal input (Fixed at L level)
66 P2_6/AN2_6/
SHIMUKE1 I Destination select signal input (Fixed at L level)
67 P2_5/AN2_5/NC O Fixed at L level (Not used)
68 P2_4/AN2_4/NC O Fixed at L level (Not used)
69 P2_3/AN2_3/NC O Fixed at L level (Not used)
70 P2_2/AN2_2/NC O Fixed at L level (Not used)
71 P2_1/AN2_1/ENC2_
DATA O Flash write pin (Normally: output port)
72 P2_0/AN2_0/ENC1_
DATA O Flash write pin (Normally: output port)
73 P1_7/INT5/ENC1_
CLK O Flash write pin (Normally: output port)
74 P1_6/INT4/ENC2_
CLK O Flash write pin (Normally: output port)
75 P1_5/INT3/KEY_IN O Fixed at L level (Not used)
76 P1_4/NC O Fixed at L level (Not used)
77 P1_3/KEY_LED O Fixed at L level (Not used)
78 P1_2/NC O Fixed at L level (Not used)
79 P1_1/E2PROM_SCL O Fixed at L level (Not used)
80 P1_0/E2PROM_SDA O Fixed at L level (Not used)
81 P0_7/AN0_7/NC O Fixed at L level (Not used)
82 P0_6/AN0_6/NC O Fixed at L level (Not used)
83 P0_5/AN0_5/AU-
DIO_MUTE O Audio mute detection signal output (H: mute ON)
84 P0_4/AN0_4/NC O Fixed at L level (Not used)
85 P0_3/AN0_3/NC O Fixed at L level (Not used)
86 P0_2/AN0_2/NC O Fixed at L level (Not used)
87 P0_1/AN0_1/NC O Fixed at L level (Not used)
88 P0_0/AN0_0/DTUN-
ER_RESET O DSP tuner/DSP reset signal output (L: reset)
89 P10_7/AN7/DTUN-
ER_POWER O DSP tuner power control signal output (L: radio function)
90 P10_6/AN6/NC O Fixed at L level (Not used)
91 P10_5/AN5/NC O Fixed at L level (Not used)
92 P10_4/AN4/NC O Fixed at L level (Not used)
93 P10_3/AN3/NC O Fixed at L level (Not used)
94 P10_2/AN2/KEY1 I A/D converter analog signal input
95 P10_1/AN1/KEY2 I A/D converter analog signal input
96 AVSS — Ground for A/D converter.
97 P10_0/KEY OFF O A/D key and remote control receiver power control signal output. (L: normally, H: backup)
98 VREF — Reference voltage input for A/D converter. (+3.3 V)
99 AVCC — Power supply pin for A/D converter. (+3.3 V)
100 P9_7/NC O Fixed at L level (Not used)

20
XDR-F1HD SECTION 4
EXPLODED VIEWS
1 3-254-070-01 SCREW
2 3-284-318-01 PLATE, ORNAMENTAL
3 3-284-315-01 BUTTON (PWR)
4 X-2190-218-1 CABINET (UPPER) SUB ASSY
5 3-254-151-01 SCREW (B2.6), (+) PTAPPING
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
RR
Parts Color Cabinet’s Color
• Accessories are given in the last of the
electrical parts list.
4-1. CABINET UPPER SECTION
The components identified by mark 0
or dotted line with mark 0are critical for
safety.
Replace only with part number specified.
1
1
3
4
5
5
2
cabinet lower section
