Additional Information for Using Sony Wall-Mount Bracket (SU-WL700)
Additional Information for
Using Sony Wall-Mount Bracket (SU-WL700)
Compatible TV models for this Wall-Mount Bracket information:
XBR-52LX905/XBR-52LX900/XBR-46LX900/XBR-40LX900/KDL-55NX817/KDL-55NX811/
KDL-55NX810/KDL-46NX810/KDL-52NX807/KDL-46NX807/KDL-52NX800/
KDL-46NX800/KDL-46NX717/KDL-40NX717/KDL-46NX715/KDL-40NX715/
KDL-46NX711/KDL-40NX711/KDL-46NX710/KDL-40NX710/KDL-46NX705/
KDL-40NX705/KDL-46NX700/KDL-40NX700
For product protection and safety reasons, Sony strongly recommends that you use the
Wall-Mount Bracket model designed for your TV and that the wall-mounting of your TV
is performed by Sony dealers or licensed contractors.
To Customers
Please provide your licensed contractor with this installation supplement as well as the instructions
(supplied with the SU-WL700 Wall-Mount Bracket). Read these documents carefully for safety and proper
installation.
To Sony Dealers and Contractors
Provide full attention to safety during the installation, periodic maintenance and examination of this
product.
Sufficient expertise is required in installing this product, especially to determine the strength
of the wall for withstanding the TV’s weight. Be sure to entrust the attachment of this product
to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during
the installation. Sony is not liable for any damage or injury caused by mishandling or improper
installation.
For proper installation, follow your wall-mount bracket instructions and the directions below.
A-DNT-100-15(1)

− 2 −
Additional Information for Using Sony Wall-Mount Bracket (SU-WL700)
Installing the Wall-Mount Bracket
Install the Base Bracket and Mounting Bracket.
1 Open the Wall-Mount Bracket package and check for all the required parts
along with the Instructions.
2 Decide where you want to install your TV. Refer to the TV installation
dimensions table.
Dimension Table
Screen center point
Unit: inches (mm)
Model Name Display
dimensions
Screen center
dimensions
Length for each mounting angle
Angle (0°) Angle (20°)
       
XBR-52LX90*49 3/4
(1,261)
31 3/4
(804)
17/32
(13)
17 1/8
(434)
3
(75)
15 3/8
(390)
29 3/4
(753)
19 1/2
(495)
XBR-46LX900 44 3/8
(1,127)
28 5/8
(727)
2 1/8
(52)
17 1/8
(434)
3
(75)
14 3/8
(364)
26 7/8
(681)
19 1/2
(495)
XBR-40LX900 39 1/4
(994)
25 3/4
(652)
3 5/8
(89)
17 1/8
(434)
3
(75)
13 3/8
(338)
24 1/8
(610)
19 1/2
(495)
KDL-55NX81*50 1/4
(1,276)
30 3/8
(770)
11/16
(17)
16 3/8
(413)
2 1/8
(52)
14 3/8
(363)
28 1/2
(723)
18 5/8
(471)
KDL-46NX81*42 3/4
(1,083)
26
(660)
2 7/8
(72)
16 3/8
(413)
2 1/8
(51)
12 7/8
(325)
24 1/2
(620)
18 5/8
(471)
KDL-52NX80*49 3/4
(1,261)
31
(787)
17/32
(13)
16 5/8
(421)
3
(75)
15 3/8
(389)
29 3/8
(745)
19 1/4
(488)
KDL-46NX80*44 3/8
(1,127)
28
(710)
2 1/8
(52)
16 5/8
(421)
3
(75)
14 3/8
(362)
26 1/2
(673)
19 1/4
(488)
KDL-46NX71*42 3/4
(1,083)
26
(660)
2 7/8
(72)
16 3/8
(413)
2 1/8
(51)
12 7/8
(325)
24 1/2
(620)
18 5/8
(471)
KDL-40NX71*37 1/4
(944)
23
(582)
4 3/8
(109)
16 3/8
(413)
2
(51)
11 3/4
(299)
21 5/8
(547)
18 5/8
(471)
KDL-46NX70*44 3/8
(1,127)
28 1/4
(716)
2 1/8
(52)
16 7/8
(427)
3
(75)
14 3/8
(362)
26 3/4
(679)
19 1/2
(493)
KDL-40NX70*39 1/4
(994)
25 1/4
(641)
3 5/8
(89)
16 7/8
(427)
3
(75)
13 3/8
(337)
24
(608)
19 1/2
(493)
*In the actual model names, the “” indicates numbers and/or characters specic to each model.
Figures in the above table may dier slightly depending on the installation.

− 3 −
Additional Information for Using Sony Wall-Mount Bracket (SU-WL700)
CAUTION
e wall that the TV will be installed on should be capable of supporting a weight of at least four times that of the TV.
Refer to your TV’s operating instructions for its weight.
3 Install the Base Bracket on the wall.
Refer to the Instructions for SU-WL700.
4 Detach the Table-Top Stand from the TV, if necessary.
Remove the bottom cover and terminal cover rst before detaching the Table-Top Stand.
Remove the screws indicated by the arrow marks on the TV.
For XBR-52LX905/52LX900/46LX900/40LX900/KDL-52NX807/46NX807/52NX800/
46NX800/46NX705/40NX705/46NX700/40NX700
Bottom cover
Terminal cover
For KDL-55NX817/55NX811/55NX810/46NX810/46NX717/40NX717/46NX715/
40NX715/46NX711/40NX711/46NX710/40NX710
Table-Top Stand attached to TV. Table-Top Stand not attached to TV.
Joint

− 4 −
Additional Information for Using Sony Wall-Mount Bracket (SU-WL700)
✍
• Do not remove the Table-Top Stand for any reason other than to install corresponding accessories on
the TV.
• When removing the Table-Top Stand from the TV, lay the TV face down on a stable work surface that is
larger than the TV.
• To prevent damaging the surface of the TV, make sure to place a so cloth on the work surface.
• When liing or moving the TV, keep a so cloth underneath to prevent damage.
• e number and position of the screws on the rear of the TV diers, depending on the model of TV; be
sure to read the operating instructions of your TV.
• Be sure to remove the joint when the Table-Top Stand is not attached to the TV. (KDL-55NX817/
55NX811/55NX810/46NX810/46NX717/40NX717/46NX715/40NX715/46NX711/40NX711/46NX710/
40NX710 only)
CAUTION
• If pressure or shock is applied to the surface of the TV, the TV may break or become damaged.
• Lay the TV face down on a stable and level surface with the Table-Top Stand hanging over the edge of
the surface. Having the TV face and the base of the Table-Top Stand on the same level surface will create
an unstable working condition and can damage the TV.
• When detaching the Table-Top Stand from the TV, hold the Table-Top Stand securely with both hands.

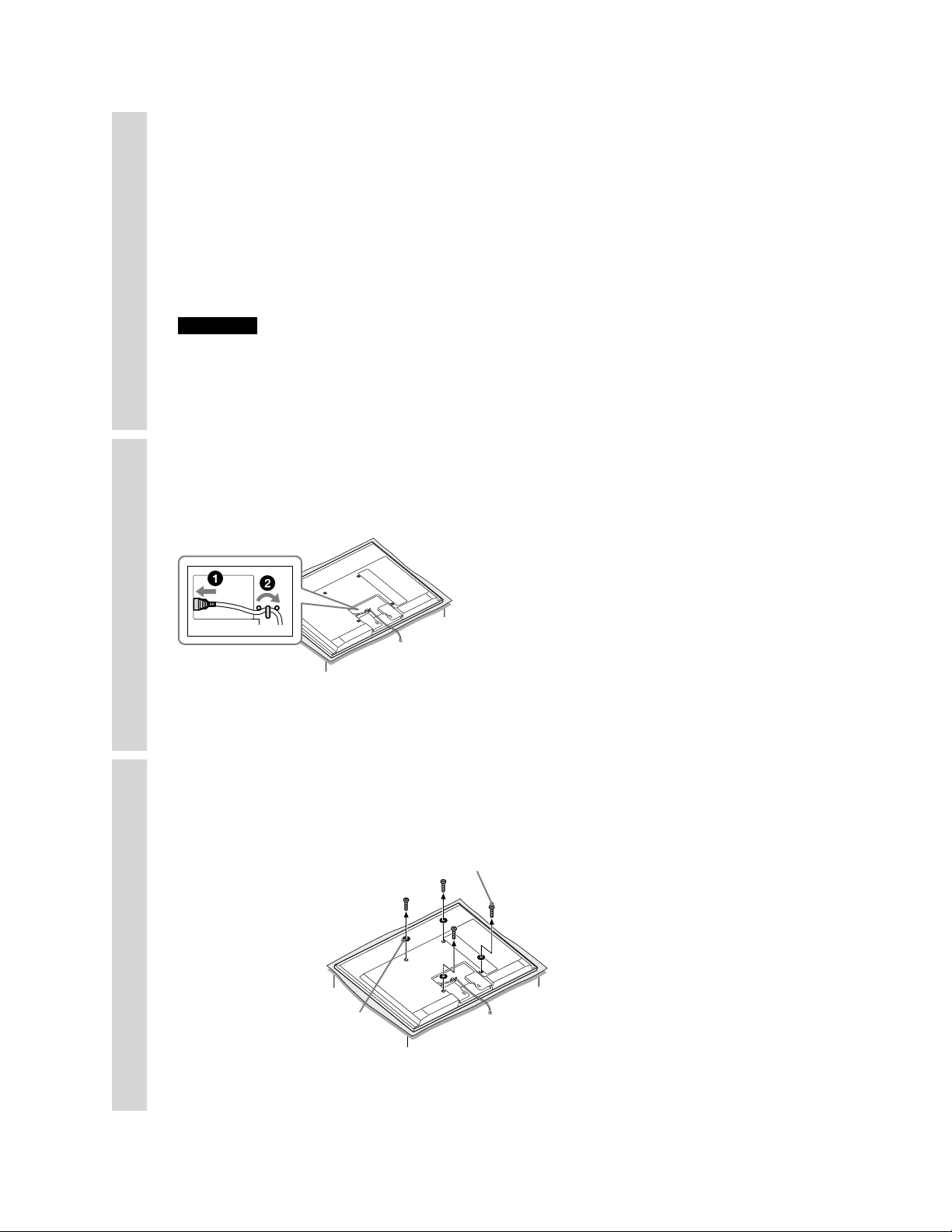

5 Connect the supplied AC power cord. (XBR-52LX905/52LX900/46LX900/
40LX900/KDL-52NX807/46NX807/52NX800/46NX800/46NX705/40NX705/
46NX700/40NX700 only)
✍
• Do not attach the bottom cover and terminal cover.
6Place the Spacers. (XBR-LX90*/KDL-NX80*only)
Place the four spacers (supplied).
Remove the four screws, and be sure
to store them in a safe place, keeping
them away from children.
*In the actual model names, the “” indicates numbers and/or characters specic to each model.

− 5 −
Additional Information for Using Sony Wall-Mount Bracket (SU-WL700)
7 Attach the Mounting Bracket to the rear of the TV temporarily.
Temporarily tighten the top of the Mounting Bracket using two screws (+PSW M6 × 16).
Screw
Mounting
Bracket
KDL-55NX81*/
KDL-46NX810/
KDL-46NX71*/
KDL-40NX71*only
8 Attach the Lock Bracket to the bottom of the Mounting Bracket.
Temporarily move the bottom of the Mounting Bracket outwards.
✍
• If the bottom of the Mounting Bracket does not move, loosen the screws (return to step 7).
Insert the pins of the Mounting Bracket through the holes of the Lock Bracket. Return the
Mounting Bracket to their original position to attach the Lock Bracket.



Lock Bracket

− 6 −
Additional Information for Using Sony Wall-Mount Bracket (SU-WL700)
9 Secure the Mounting Bracket to the rear of the TV.
When using an electric screwdriver, set the torque setting to approximately 2 N•m {20 kgf•cm}.
Tighten the bottom of the Mounting Bracket using two screws (+PSW M6 × 16).
Be sure that all screws are securely tightened with equal torque to the rear of the TV.
Screw
10 Adjust the angle of the Mounting Bracket.
Use the supplied hexagon wrench.
When installing the Display parallel to the wall (0 degrees), adjustment of the Mounting Bracket angle
(procedures  and  below) is not necessary.
Remove the two angle adjusting screws from the Mounting Bracket.
Secure the screws to the corresponding holes for the desired angle (“,” “5,” “10,” “15” or
“20”).


Hexagon
wrench
✍
• Be sure that both the le and right sides are set to the same angle, and secure the screws to the
corresponding angle holes (two screws for each side, le and right).
• Make sure that the two arms of the Mounting Bracket are screwed in securely.
CAUTION
Be careful not to pinch your ngers when adjusting the angle of the Mounting Bracket.

− 7 −
Additional Information for Using Sony Wall-Mount Bracket (SU-WL700)
11 Install the TV on the wall.
Refer to the Instructions for SU-WL700.
Make sure that you carry out this task with at least two or three people.
Do not attempt to li the TV by yourself.
For holding and carrying the TV, refer to your TV’s instructions.
✍
• When you put the TV back on the stand, reverse the above steps.
• Remove the screws or install the Mounting Bracket on a stable and level surface.
• Available TV models vary depending on the country/region.
• e availability of this Wall-Mount Bracket (SU-WL700) varies depending on the country/region.
