Sound Leisure 1015 User manual

1015 & 1015 SLIMLINE USER MANUAL
V1.4 February 2014 - Series 2

22
Contents
1) Introduction Pg 3
2) Taking Delivery / Transit Mode Pg 5
3) Inserting title cards and compact discs Pg 8
4) Playing the jukebox Pg 12
5) Connecting external audio devices Pg 14
6) Adding additional speakers Pg 16
7) Adjusting amplifier settings Pg 17
8) Diamond pack lighting Pg 20
9) Bluetooth Accessory (Optional) Pg 22
10)iPod Dock Accessory (Optional) Pg 24
11)Troubleshooting Pg 25
12)Contact Information Pg 28

3
1. Introduction
Thank you for purchasing a Classic Jukebox from Sound eisure, the world’s premier
jukebox manufacturer. This product has been designed and built to give you many years
of enjoyment and trouble free use.
This owner’s guide provides all the information you will need to install and operate the
jukebox safely.
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturers instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves
or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has 2 blades with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide blade or the third prong are
provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only the cart, stand, bracket or table specified by the manufacturer, or
sold with the apparatus. When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of
time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as if a power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally or has
been dropped.

4
Additionally
This jukebox contains high voltage & high temperature parts. Do not attempt to carry
out any work that is not specifically instructed in this manual. If the jukebox fails to
operate correctly, switch off and consult the trouble shooting guide at the end of this
manual. No user serviceable parts inside.
This jukebox is heavy. DO NOT attempt to lift the unit.
This appliance must be connected to a mains socket with a protective earth connection.
The mains plug is the designated ‘disconnection device’ and as such should be readily
operable.
‘WARNING’ To reduce the risk of fire or electric shock, do not expose this apparatus
to rain or moisture.
Fuses should be replaced like for like at all times.
Terminals marked with the symbol below are considered hazardous live and external
wiring connected to these terminals requires installation by an instructed person or
the use of ready made contact leads.
Bubble Tubes
The bubble tubes in the top & side pilasters must only be handled by trained personnel.
They contain small amounts of the harmful chemical DCM (dichloromethane). In the
event of accidental leakage the chemical will generally evaporate. However please take
the following precautions. Ventilate the room immediately by opening doors & windows.
Vacate the room until any residual odour disperses. Extinguish any source of ignition.
Avoid breathing vapours & contact with skin. If skin contact occurs wash immediately
with soapy water, remove contaminated clothing & wash before reuse.

5
2. Taking Delivery / Transit Mode
Once the jukebox has been positioned in its designated space the following instructions
will allow you to prepare it for use. The keys to open the jukebox will be found attached
to the rear of the cabinet. The keys will open the side lock and the rear cabinet lock.
See below (FIG 1) The key will also open the cash box located inside the jukebox. (Not
available in 1015 slimline)

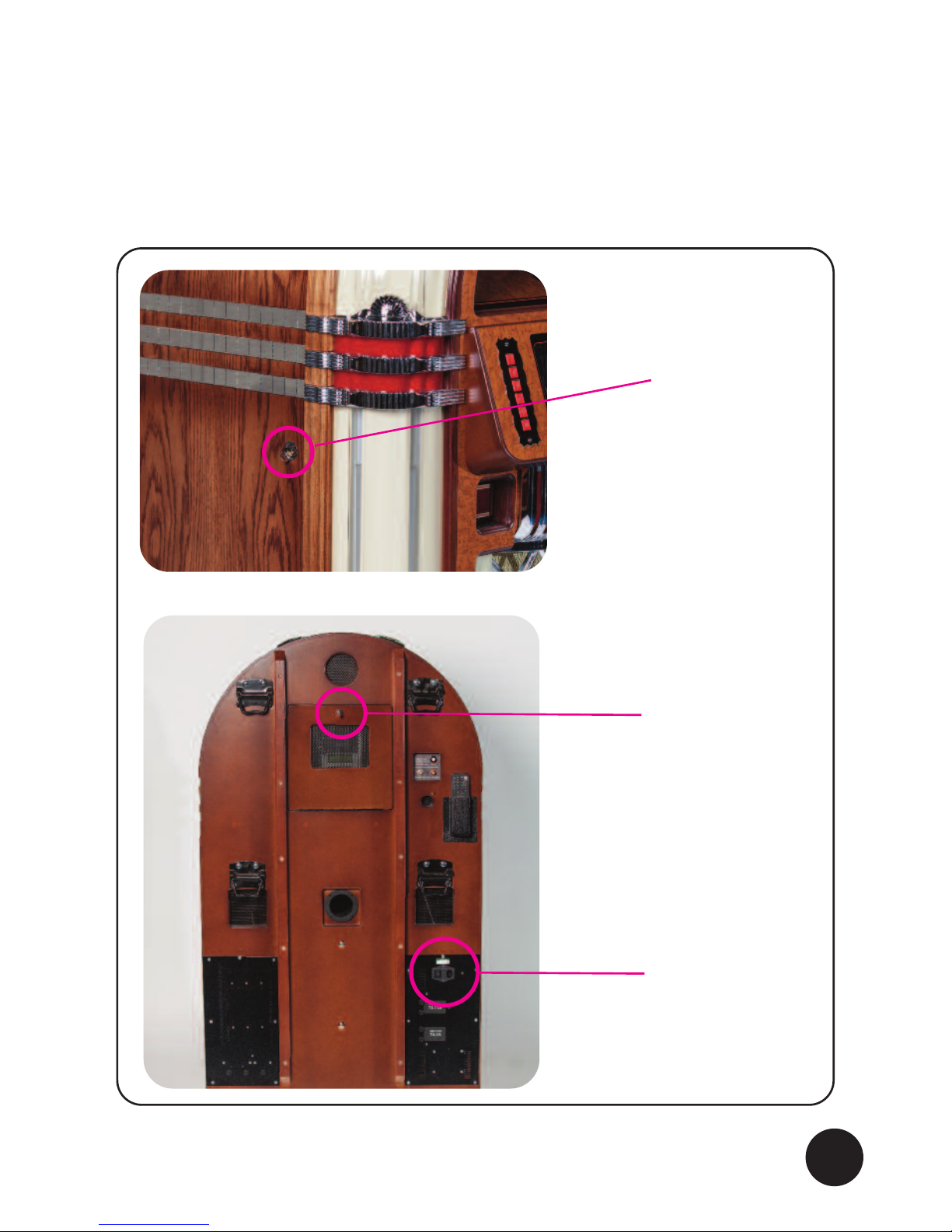

OCK OCATIONS
MAIN CABINET
OCK.
REAR CABINET
DOOR OCK
MAINS POWER
SWITCH
FIG 1

6
Upon delivery the Jukebox will be in Transit mode. Follow the guide below to put the
Jukebox into Operation mode.
i) Unlock the main cabinet lock, and open the jukebox door.
ii) Remove the horizontal transit bar (see fig. 2) by unscrewing the black capped retaining
screws at either end. Re-insert the screws once the bar is removed.
This transit bar should be retained for future use. Do not store this inside the machine.
iii) Remove the transit bracket plate.
MECHANISM IN
TRANSIT MODE
HORIZONTA
TRANSIT BAR
RETAINING
SCREWS
HORIZONTA
TRANSIT BAR
TRANSIT SWITCH
FIG 2

7
iii) ocate the 4 wing nuts underneath the CD mechanism shelf. (see below fig. 3)
Unscrew the wing nuts until they spin freely, (this helps the mechanism ‘float’, for
optimum performance).
iv) Plug the jukebox in and switch the mains power switch on. (location of power switch
is shown in Fig 1 on page 5) The front ED display (located on the shelf in front of the
CD mechanism) will show “TRANSIT”.
v) ocate the transit switch on the inside right of the cabinet. (see fig.3) Switch to
Operate mode, the CD lifting mechanism will traverse to the left, and then return to
its central position. The front ED display will show “OPE”.
vi) Close the jukebox door. The display will show “CH-01” along the top. Below this
will be displayed “100 - 01”
vii) The jukebox is now ready to play.

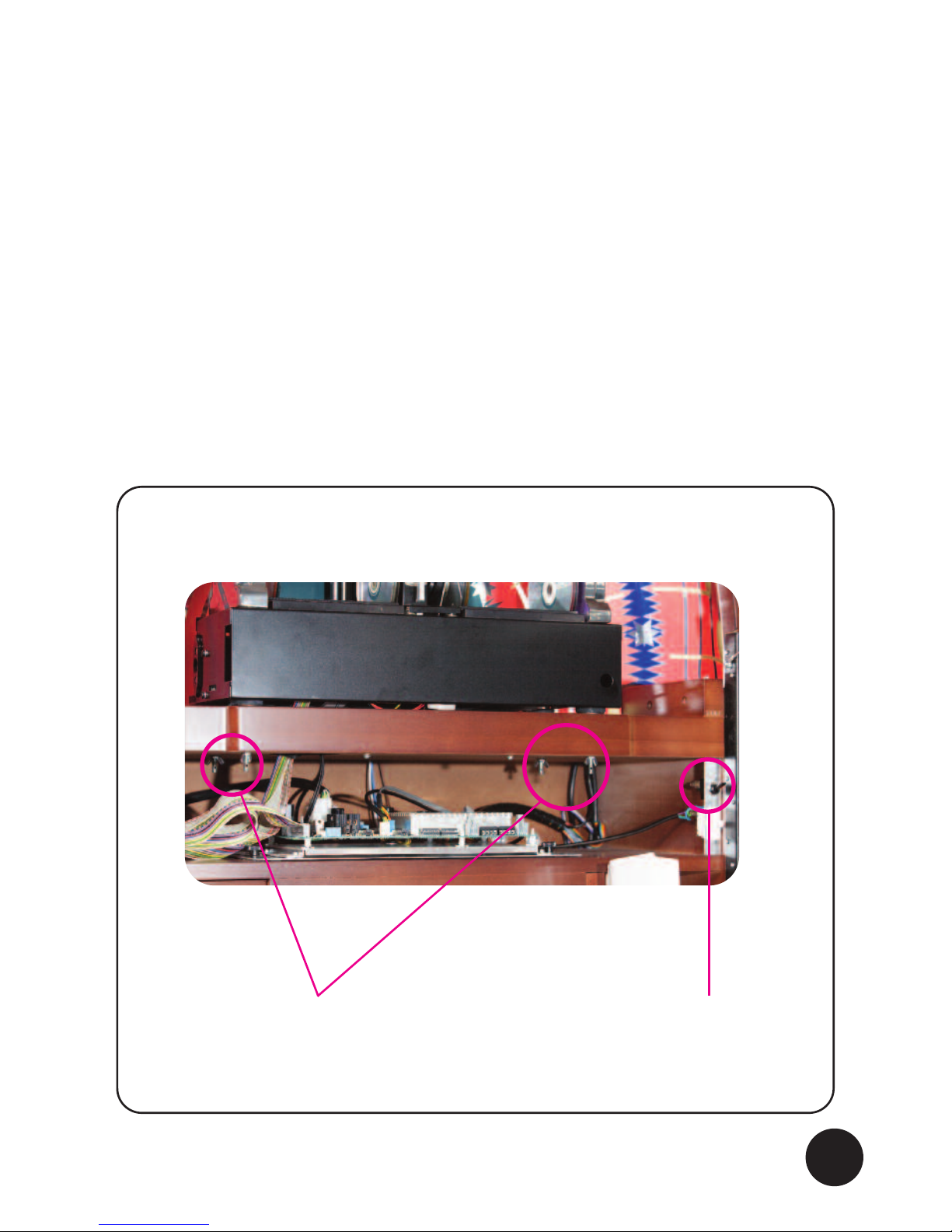

VIEW OF OCATION OF MECHANISM RETAINING SCREWS AND
TRANSIT SWITCH
Wing nuts x 4. loosen to allow
mechanism “floating”
Transit switch
FIG 3

8
3) Inserting title cards and compact discs
Title cards
Blank CD title cards and a software CD are provided with your jukebox. This will assist
you in printing title cards without having to type each song individually or handwrite the
cards.
Please note:
The CD software is unable to read home produced compilation albums.
Types of Title cards
The cards that are required for the jukebox title rack are an “S split - 2 part title card.”
These are perforated horizontaly and, once printed, should be torn along the
perforations and inserted into the title rack.
Additional cards are available to purchase through our webiste at
www.classicjukeboxes.co.uk/Title-Cards/
Moving the Jukebox
If you are moving the Jukebox over a distance or intend tipping the machine, it is
recommended that it is placed back in Transit mode. There is no need to remove CD’s
as the horizontal transit bar will hold them in position. Follow the guide below to put
the Jukebox back into Transit mode.
i) Open the front door while the Jukebox is switched on.
ii) Put the transit switch back into the Transit position.
iii) The lifting mechanism will return to the central position
iv) Re-tighten the mechanism securing wing nuts and, ensuring the display is
now showing TRANSIT, re-attach the two transit bars.
v) Switch off the Jukebox and close the door.
The Jukebox is now safe to move.

9
Brass retaining bolts
Title rack “flip” button Title rack holder
Title rack wiring clips
FIG 4
The title cards start at selection no. 100 and finish at 179.
The following guide instructs how to change the title cards in the title card rack.
S SP IT - 2
part title
card for use
in the title
rack of your
Jukebox

10
i) Unlock and open the jukebox door. On the inner side of the door you will find the
title rack holder.
ii) Gently release the wiring from the title rack wiring clips. This will allow you to
remove the title rack.
iii) Slide the brass bolts shown in Fig 4 across to the unlocked position.
iv) Remove the title rack from the jukebox as shown in fig 5.
v) With the title rack removed from the jukebox you can now insert the title cards into
the title rack. To rotate the title rack to the next page use the title rack “flip” button
located on the side of the title rack (shown in fig 4)
DO NOT ROTATE THE TIT E RACK BY HAND AS THIS CAN DAMAGE THE TIT E
RACK MECHANISM.
vi) Once you have finished inserting the cards, place the title rack back into the cabinet
and secure with the brass retaining bolts. Then coil the wiring securely back into the clips.

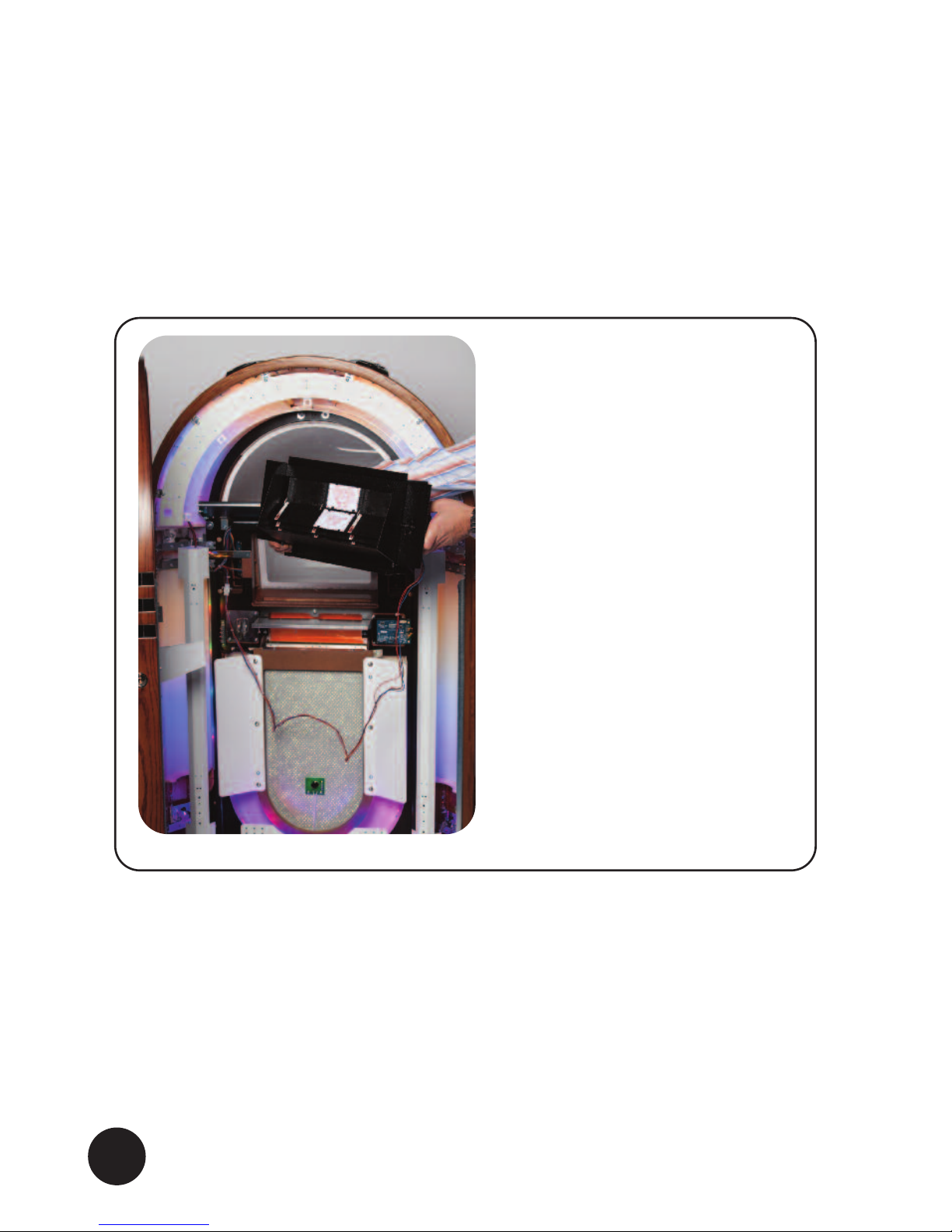

Image shows the title rack
holder removed from the
jukebox cabinet.
FIG 5

11
Compact Discs
The rack that holds the CDs is numbered to correspond with the title selection
cards.
Slot 00 = title card 100
Slot 01 = title card 101
Slot 02 = title card 102 etc.
Insert the CDs with the CD label facing to the right, (see fig 6).
Fig 6 : Note the CD’s are facing with their labels to the RIGHT
The mechanism holds 80CDs.
P EASE ENSURE THAT THE CDs ARE INSERTED ABSO UTE Y STRAIGHT.
Failure to do so can result in the mechanism mishandling the CD’s which can cause
damage to the CD’s or the mechanism.
If the jukebox is moved for any reason, please check again that all the CDs are aligned
correctly, and none have been displaced.
FIG 6

12
4) Playing the jukebox
Making Selections
When the discs and labels are installed, selections can be made using the keyboard at the
front of the jukebox or via the remote control.
To “flip” the title rack pages press the red button located underneath the number “9” on
the button bank.
To play a track, select the 3 digit number for the disc, and then the 2 digit number of the
individual track. These numbers will show up on the display as they are entered.
To play the whole of an album, without keying all the tracks individualy, select the 3 digit
disc number then enter the 2 digit track number as ‘00’.
To eject an entire disc press ‘EJECT DISC’ on the infra red remote.
To reject a single track press ‘EJECT TRACK’ on the infra red remote.
If you make a mistake while entering a selection press ‘KYBRD CANCE ’ on the infra red
remote to re-start the selection process, or press “C” on the jukebox button bank.
For continuous random play, press ‘SHUFF E ON’ on the remote, the display will briefly
show ‘SH On’ and a small dot will appear in the bottom right corner of the ED display.
To turn off this function, press ‘SHUFF E OFF’, the display will briefly show ‘SH OFF’ and
the dot in the bottom right corner will clear.
Please note: If the door is opened while the jukebox is playing, the CD will reject and the
CD mechanism will return to its central position.
Adjusting Volume
As a precaution against overloading the speakers when switching the jukebox on, the
volume is preset to a low level. To raise the volume to the preferred level, select a track,
wait until the CD is playing, then adjust the volume using the ‘Channel 1/2’ volume keys
on the remote control unit (See fig 7 opposite for remote control layout - the volume
adjustment buttons are shown highlighted in blue).
The display will briefly show the volume level as ‘ -’. The number will vary dependant on
the volume level with 0 for off and 50 for full volume.
The ‘Channel 3/4’ volume keys (on the remote) are used to adjust the volume of the
spare amplifier channels, please refer to section 6 “Adding additional speakers”.
Pressing the ‘MUTE’ key on the remote, will instantly mute the amplifier and the display
will show ‘ —‘, to return the volume to the previous level press any of the volume keys.

13

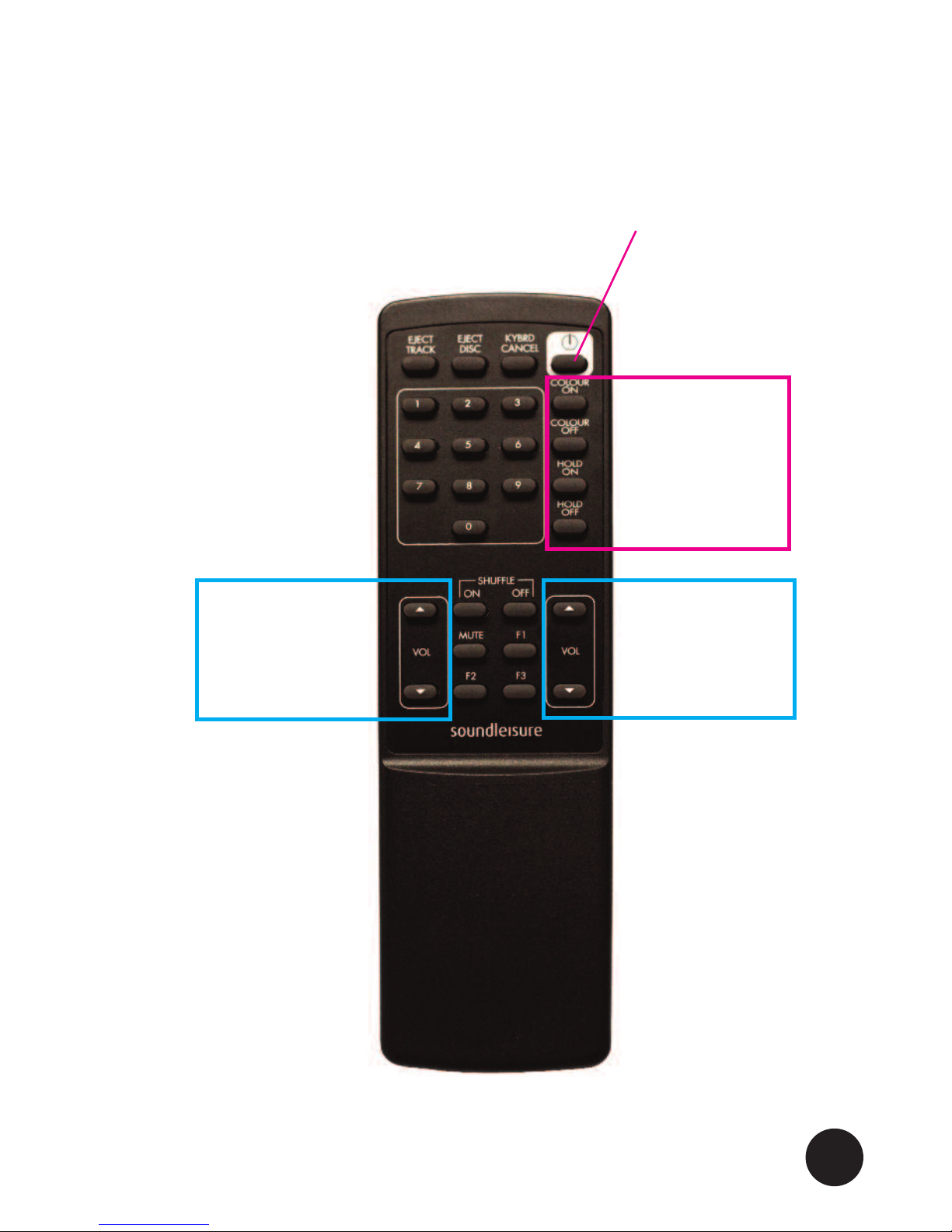

FIG 7
CHANNE 1/2
(stereo pair)
jukebox
speakers
CHANNE 3/4
(stereo pair)
external
speakers
DIAMOND
PACK IGHTING
See section on
Diamond Pack
lighting
Please note the
standby button is
not yet
implemented.
INFRA RED REMOTE CONTRO

14

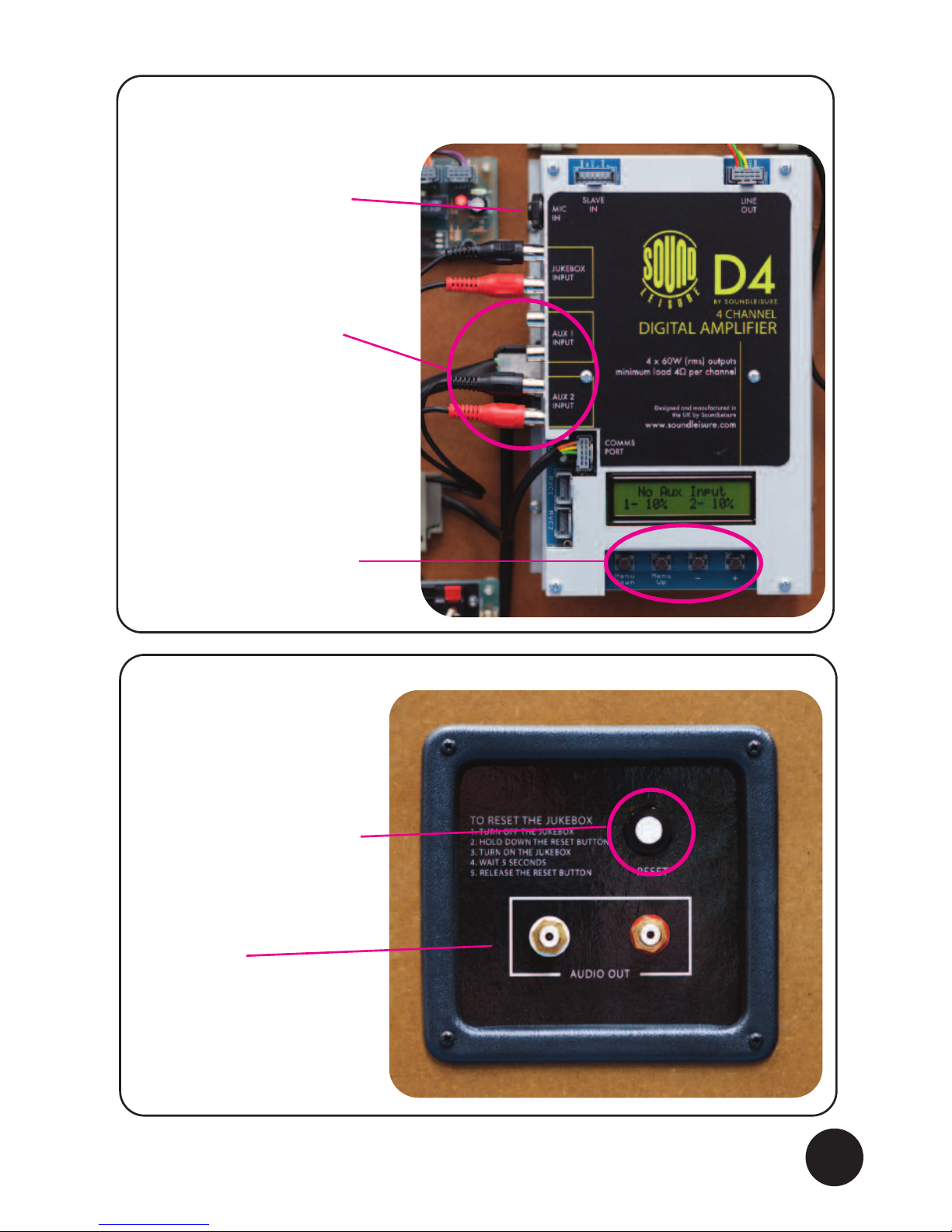

5) Connecting external audio devices
The Jukebox has the facility to connect to external audio devices.
Audio sources, such as DAB radios or MP3 players can be connected to the auxiliary
inputs to allow them to play through the Jukebox speakers.
An audio output is provided to allow the Jukebox to play through another amplifier, such
as Surround Sound or Multi-room audio system. Connect a stereo phono lead to the
audio output on the break-out connections located on the rear of the jukebox (fig 9). The
audio level is approximately 2Vp-p but will vary depending upon the audio being played.
To play an external audio source through the jukebox, simply connect its output leads to
one of the AUX inputs on the D4 amplifier. (see Fig 8)
By default the amplifier is in automatic switch over mode, this means the 3 audio inputs
are prioritised.
If a CD is playing on the Jukebox, this has highest priority and the display will show ‘Ch 1’.
If a CD is not playing the amplifier will prioritise ‘AUX 1 INPUT’, if audio is detected on
this input for 10 seconds, this input will become active and the display will show ‘Ch 2’
If a CD is not playing and no audio is detected on ‘AUX 1 INPUT’, ‘AUX 2 INPUT is
prioritised, if audio is detected on this input for 10 seconds, this input will become active
and the display will show ‘Ch 3’.
Please note:
It is recommended that the audio output level of the connected device is kept at
between ¾ and full and the volume is adjusted using the volume control of the Jukebox.
The connected device should be connected in stereo. Although 2 AUX inputs are
available, one of these will be used by any accessories such as the Bluetooth receiver or
iPod dock.
It is possible to manually switch the audio inputs using the F1, F2, F3 keys on the remote,
if you would like to do this please contact Sound eisure.

15
Amplifier breakout box
located on the rear of
the jukebox
VIEW OF D4 DIGITA AMP IFIER
Auxiliary inputs x 2 pairs.
(Aux 1 left and right /
Aux 2 left and right)
Phono
Digital Amp menu
selection buttons.
Menu down,
Menu up, - minus,
+ plus
Jukebox Reset Button
Amplifier Audio Out
sockets
phono
Microphone Input
6.35mm Jack
FIG 8
FIG 9

16
6) Adding additional speakers
The D4 Digital Amplifier has 4 independent outputs, configured as 2 stereo pairs.
2 outputs are used to drive the Jukebox’s internal speakers (Shown on amplifier as
Channel 1) leaving 2 outputs (left and right) free for the connection of additional
speakers (Shown on amplifier as Channel 3). If you have a D2 amplifier channels 3/4
are unavailable.
In the rear of the Jukebox is the ‘Speaker Matching Pad’ (Fig 10 above) Additional
speakers should ideally be set-up in a stereo configuration where the left speaker is
connected to CH3 and the right speaker is connected to CH4.
The volume for these speakers is controlled using the ‘Channel 3/4’ volume keys on
the remote control. These keys are the VO buttons on the RIGHT hand side of the
control. The keys on the left hand side control Channels 1/2. (see fig 7 on page 13) All
volume controls are highlighted in blue on the diagram.
The additional speakers should not present a load lower than 4 Ohms to each
amplifier channel, please contact Sound eisure if you are unsure which speakers are
suitable or would like a different speaker set-up to the one described above.
FIG 10. (Shown with internal speakers connected)

17
7) Adjusting amplifier settings
It is possible to adjust the audio equalisation of the amplifier to suit a specific
environment or taste. There are separate settings for the internal Jukebox speakers
(Shown on amplifier as Channel 1) and any additional speakers that may be connected
(Shown on amplifier as Channel 3).
Pressing the ‘MENU UP’ or ‘MENU DOWN’ buttons on the D4 amplifier will cycle
through the available menus. Pressing the ‘+’ or ‘-‘ buttons will increment or
decrement the value of the current menu. Any changes will be automatically saved.
(The location of these buttons is shown in Fig 8 on page 15) If no buttons are
pressed for 1 minute, the amplifier will revert back to its default display mode.
Below is a description of the available menus for Channel 1. To adjust the settings for
Channel 3 (additional speakers) press the “Menu Up” button until “Channel 3” is
displayed then repeat the same steps as shown below.
Channel 1 Stereo / Mono Switch
This menu is used to set the amplifier in Stereo or 2 channel Mono
This should be left as ‘Stereo’.
Channel 1 Master
This menu sets the maximum volume level that can be achieved with the remote and
should be used to set a maximum level for the Jukebox speakers.
Channel 1 Bass
This menu sets the bass level of the Jukebox speakers.
It can provide a cut or boost of 15dB.
Channel 1 Middle
This menu sets the middle level of the Jukebox speakers.
It can provide a cut or boost of 15dB.
Channel 1 Treble
This menu sets the treble level of the Jukebox speakers.
It can provide a cut or boost of 15dB.
Channel 1 Microphone Volume
If you wish to use a microphone we recommend a wired low impedence mic. If you
wish to use a wireless microphone please contact Sound eisure.

18
Aux Input 1
This Menu sets the master volume level for Auxiliary Input 1.
This allows the volume of the Auxiliary input to be balanced against the volume of
the CD mechanism.
Aux Input 2
This Menu sets the master volume level for Auxiliary Input 2.
See Aux Input 1 for description.
Aux Input Auto/Manual
Changes from auto input selection to manual input selection.
Contact Sound eisure for more information.
Aux Input Time
This menu sets the time that an auxiliary input must be present before the amplifier
will make it active and is defaulted to 10 seconds.
The value can be set between 2 and 60 seconds.
Microphone Voiceover / Karaoke
If karaoke is selected the music and microphone will be heard together.
If voiceover is selected whenever the microphone is used the music will be muted,
the music will un-mute when the microphone is no longer being used.
Microphone Bass
This menu sets the Bass level of the microphone input.
It can provide a cut or boost of 15dB.
Microphone Middle
This menu sets the Middle level of the microphone input.
It can provide a cut or boost of 15dB.
Microphone Treble
This menu sets the Treble level of the microphone input.
It can provide a cut or boost of 15dB.
ine Out Master
This menu sets the volume level of the Audio Output.

19
ine Out Microphone Volume
This menu sets the volume of the microphone sent to the ine Output.
ine Out Voiceover / Karaoke
If karaoke is selected the ine Out music and microphone will be heard together.
If voiceover is selected, whenever the microphone is used the ine Out music will be
muted, the music will un-mute when the microphone is no longer being used.
oudness
When switched on the loudness control will provide a dynamic boost to the bass and
treble when the Jukebox is used at low volume, the lower the volume the higher the
boost. This is a subtle effect that adds clarity to music at low volumes.
Please note: The amplifier supports many more features that are not covered in this
Jukebox user guide, if more information is required please contact Sound eisure for
the dedicated D4 amplifier manual.
If you have a D2 amplifier channels 3/4 are unavailable.

8) Diamond ack (Optional)
lease note: This is an optional accessory and will not be fitted to your Jukebox unless
specified at the time of order.
The Diamond ack is a full LED lighting system that allows the user to select a
lighting pattern from 10 pre-loaded patterns or pause the program on any colour to
create a custom Jukebox illumination.
To use the Diamond ack, press the “Colour On” button on the remote control.
This turns on the lower left display panel situated below the title rack.
The following patterns are available to select using the number keys on the remote
control:
attern Number Colour attern
1 Antique
2 i od
3 Slow Disco
4 Red-Green mix
5 Blue-Red mix
6 Disco
7 Rotisserie
8 Ladder
9 Sound To Light Slow
0 Sound To Light Fast
20
Lower left display panel as activated by
pressing the “colour on” button on the
remote. Notice this display shows that
pattern 9 - sound to light slow is
selected.
