SOUNDMASTER URD470SW User manual

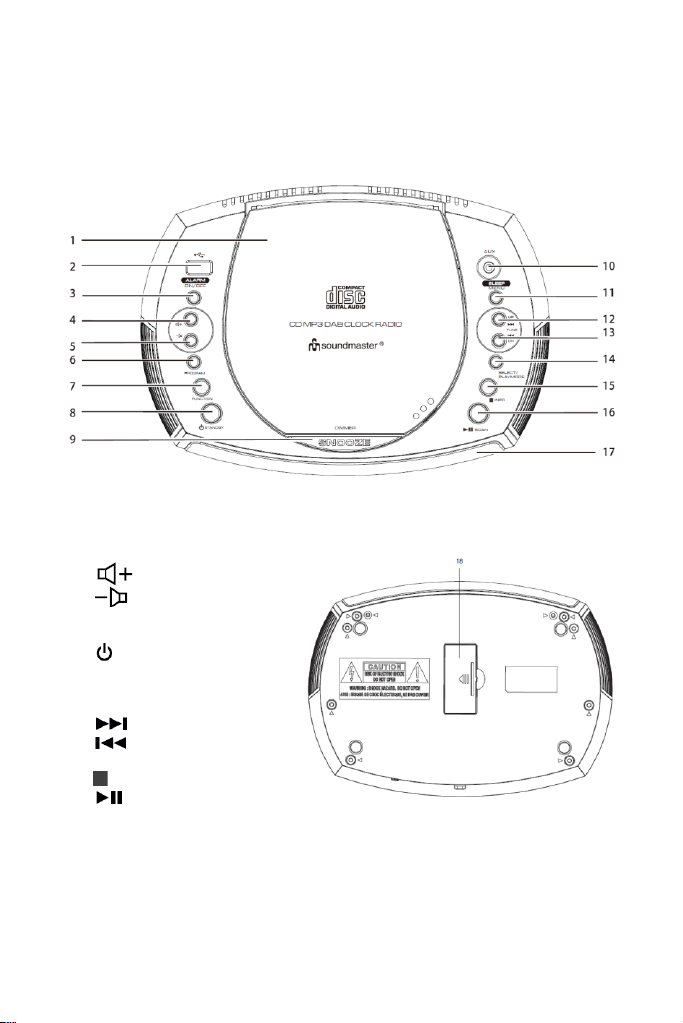

CONTROLS & CONNECTIONS
1. CD DOOR
2. USB PLAYBACK AND CHARGING
3. ALARM SETUP –ON/OFF
4.
5.
6. PROGRAM
7. FUNCTION
8. STANDBY
9. SNOOZE / DIMMER
10. 3.5MM AUX-IN JACK
11. SLEEP/ MENU
12. / TUNE UP
13. / TUNE DN
14. SELECT/ PLAYMODE
15. INFO
16. SCAN
17. LCD DISPLAY
18. BATTERY COMPARTMENT FOR CLOCK BACKUP ONLY

GETTING STARTED
DAB/FM AERIAL
Before usingyour radio for DAB or FM reception, unwire and extend its length of FM
antenna at the back of unit. You may need to adjust the position of the antenna wire for maxing
signal strength.
CONNECTING POWER
Before connecting the power, check that the mains voltage on the rating plate is the
same as the voltage in your area.
· Plug the AC cord into the AC socket at the back of the unit.
· Plug the VDE plug into the wall socket.
· Press Standby button.
The unit is now ready for use.
NOTE:

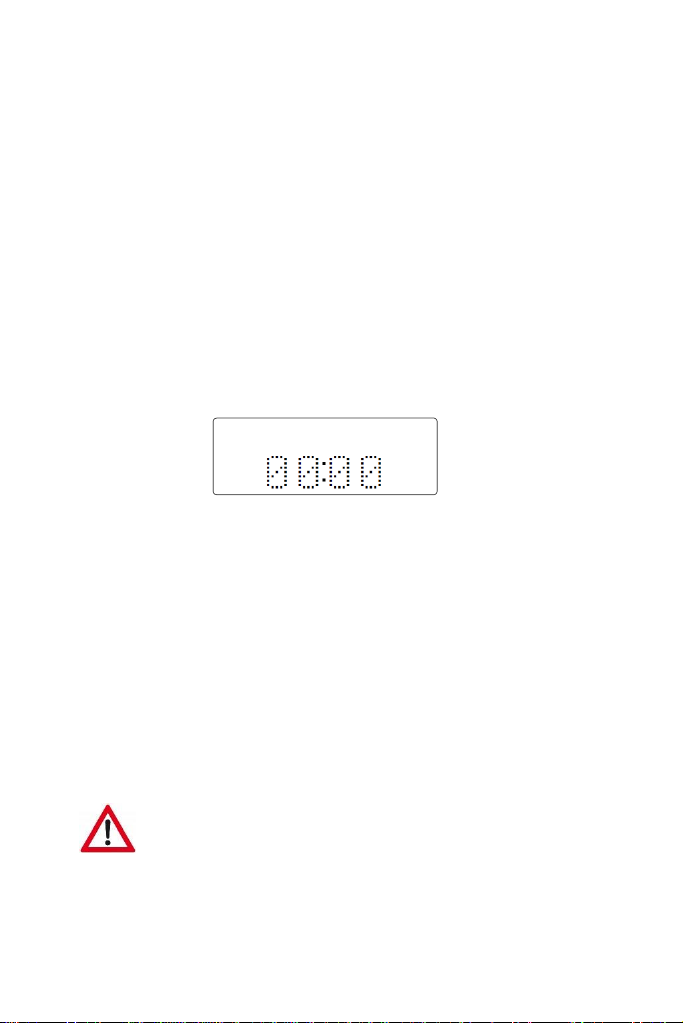

When first connected to the power, the clock display will show “zeros”.
SETTING THE CLOCK
The clock on yourradiois automatically set when first used fromthe time signal b r o a dc a s t
with DAB radio stations.
If a DAB station is not available, the clock may be set manually .
( Pl e a se refer to CLOCK SET page ).
POWER CONTROL
STANDBY CONTROL
To turn the unit on:
· Press the STANDBY button on the top panel.
The display will light and the unit will switch on. To
turn the unit in STNADBY mode :
· Press the STANDBY button on the top panel briefly.
This unit will switch off. The clock will continue to run whilst mains power isconnected.
ENERGY SAVING/ ERP2 REGULATION
This device is equipped with an AUTOMATIC SWITCH OFF / STANDBY SYSTEM for energy-saving
requirements. This is regulated by an EU-standard and is NOT A MALFUNCTION.

INTIAL SCAN

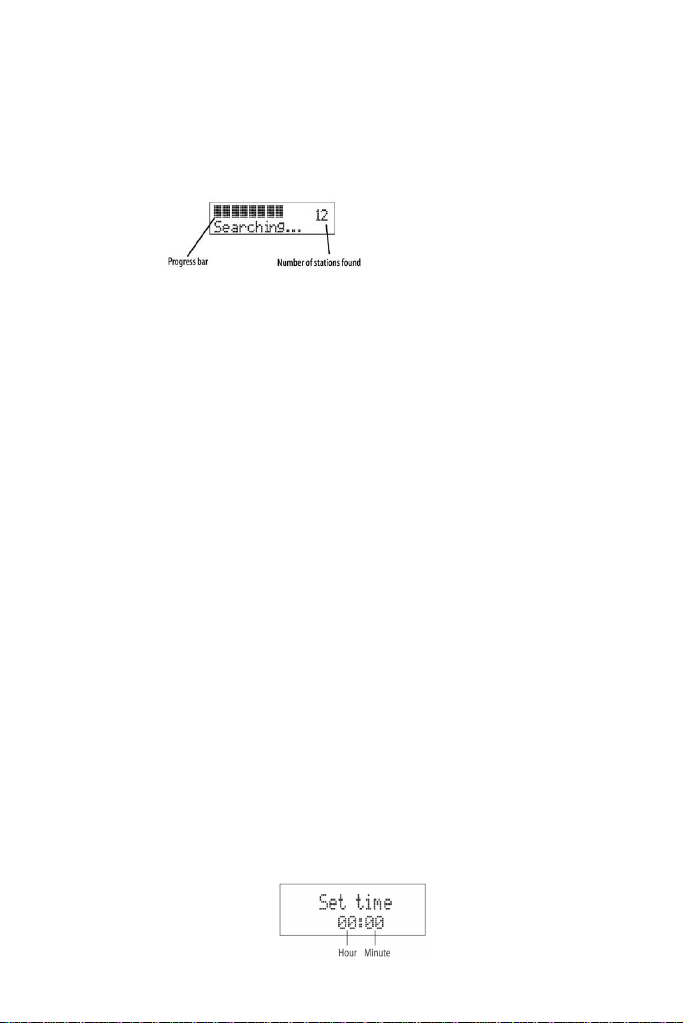

When this unit is switched onfor the first time at TUNER mode, then press FUNCTION
button switching to DAB , the scanning display willbe shown while the scanning process
takes place:
The radioscansall usable stations (full scan) and stores them alphanumerically -1
Radio,2
Radio, AA Radio, AB Radio…The initial scan will takea few minutes. After the scan, the
clock
will be set and the radio will play the name of the first station in the sequence. To browse
for
another station, refer to the next section.
BROWSING FOR A STATION
To browse for another DAB station from the top panel controls:
· Press the TUNE UP/ TUNE DN button.
<Station list> will be displayed.
ADJUSTING THE VOLUME
To adjust the volume from the top panel controls:
Press the VOLUME +/- button to increase or decrease the volume level.
CLOCK SET
SET TIME/DATE: This main option enables the clock tobe set manually if these is no
available DAB transmission.
To set the time and data ma nu all y:
• When unit during Standby mode , press MENU button to enter Set Clock.
• Set the clock mode 12/ 24 Hour, press the TUNE UP/DN button to choose 12 or 24 time
format then press SELECT button again to next setting.
• Set Hour, press the TUNE UP/DN button to set the hour, then press SELECT button to
confirm.
• Set Min, press the TUNE UP/DN button to set the minute, then press SELECT button
again to confirm.

SW VERSION CHECK
During Standby mode, press MENU button then press TUNE UP/ DN button to select SW
Version.
Press SELECT knob to confirm.
Display will show the current software version.
SW VERSION: This option will display the version number of the control software
currently installed in your radio.
This will be helpful to a technician who is servicing this product .
SLEEP function
During each operation mode (CD/DAB/FM/AUX), press SLEEP/ MENU button to adjust the
sleep time (00/10/ 20/ 30…….90). The unit stops playing after the chosen time has elapsed.
Display will show the SLEEP icon.
To cancel the sleep function, press STANDBY button.
ALARM function
You can setup 2 Alarms and setup only apply in STANDBY mode.
To activate the Alarm
• Press ALARM button on top panel
• Display show SELECT ALARM (1) or (2)
• Press TUNE UP/DN button to select ALARM 1 or 2 which you want to setup
• Press ALARM button to confirm, display show ALARM ON/OFF
• Press TUNE UP/DN button to select ALARM ON or OFF time, then press ALARM button
to confirm
• Press TUNE UP/DN button to set the Alarm Hour then press ALARM button to confirm
• Press TUNE UP/DN button to set the Alarm Minute then press ALARM button to
confirm
• Press TUNE UP/DN button to set the sound source to play the alarm activates
Note: Sound source can be wake to Buzzer, CD, USB, DAB or FM.
If sound source set to CD or USB, the buzzer will be set as default if no CD disc or USB
inserted.
• After setup complete, ALARM icon will be appear on display.
• Note: ALARM 2 setup is same as ALARM 1
To deactivate the Alarm
• When the ALARM sound ON, press the ALARM ON/OFF or STANDBY button to deactivate
the ALARM sound.
SNOOZE
• To snooze the alarm sound, press SNOOZE button, the alarm sounds again after 9minutes

SELECTING A SOURCE
SOUND SOURCES
· Press the FUNCTION button repeatedly to desired function.
You can choose to listen to following
sou r ces -
· DAB
· FM
· CD/ MP3 p la yback
· USB MP3 playback
· Aux source (when connected via the AUX jack on the top of unit .)
DAB SCANNING
RE-SCANNING FOR DAB STATIONS
When first used, your radio scanned the DAB band for available stations. The station
se rvices found were then stored in your system's m e m o ry .
You can r e -scan the band at any time if you move to a different area or just to refresh the
s t o r ed list of available stations.
FULL SCAN: Press SCAN button to enable Auto scan
MANUAL TUNING: Press and Hold the SELECT button in few second until display show
“ Manual tuning”, then press TUNE UP/DN button enables you to search the band manually,
stepping t h r ough the ensemble numbers to check if any have usable signal strength.
Press SELECT button again to confirm.
Manual tuning is not necess ar yin normal operation where scanning will have
automatically established a s tati on list of all useable stations.
DAB DISPLAY MODES
DISPLAY MODE OPTIONS
The bottom line of the display can be switched to show different items of information that
may be transmitted with a DAB station.
Choosing the information
d i sp la y :
Press the INFO button on the top panel repeatedly to change the information
d i sp la yed while playing a DAB radio station.
The full rangeof display options are shown below. Some stations may not broadcast
all of these options.
DLS Scrolling Text > Program Type > Ensemble name> Ensemble Frequency >
Audio Bit Rate> Signal Strength > Time/ Date
DLS (Dynamic Label Segment): This is a sc r o lli ng message giving real-time information-
song titles, news headlines, e t c .
PROGRAMME TYPE: This describes the style of the program being
b r o a dc a s t .
ENSEMBLE NAME: DAB Digital radio stations are broadcast in multiplexes. Each
multiplex is a bundle of radio stations transmitted in a signal fr equency . There are

national and local multiplexes; local ones contain stations specific to your area. This
option displays the name of the ensemble name that contains the station you are listening
to
SIGNAL ST RENGTH : This setting will display a signal strength barograph. The
longer barograph means the stronger signal. Setting the display to show signal strength
is useful when setting up the aerial for the strongest signal.
TIME/DATE: Time and date are updated by broadcasted i n f o rmati on .
ENSEMBLE FREQ: This option will display the multiplex number and fr equency that
contains the station you are listening to.
AUDIO BIT RATE: DAB allows broadcasters to v ar y the BIT RATE (or the amount by
which an a ud i o signal can be compressed) depending on the type of broadcast. This
enables the amount of stations on a multiplex to be maximized. Speech and News are
often broadcast at a lower Bit Rate; music needs a higher Bit Rate for good fidelity.
DAB/ FM STATION PRESETS
To store any preset 1-20 either DAB or FM radio.
• Tune to the station you want to store as a preset.
• Press and hold the PROGRAM bu tt on in 3 seconds . “ P 1 ” will be displayed and
flashing.
•Press the TUNE UP/DN button repeatedly to find the preset number you want to store.
For each preset number the preset station currently stored will be displayed o r “ E m p t y ”if
none isstored.
• Press the SELECT or PROGRAM button to confirm if you want to store the station in
the displayed preset number.
To recall any preset 1-20
• Press the PROGRAM button .
•Press the TUNE UP/ DN button repeatedly to find the preset number you want to play.
• Press the SELEC T button briefly to play the preset .
FAC TORY RESET: This option will restore all settings to ' fa c t o r y original’. All
clock, station lists and stored preset stations will be cleared. After fa c t o r y reset the
radio will automatically r e - scan the DAB band.
•During DAB mode, press and hold INFO button 3 seconds until display show
“ P r e s s E N T E R k e y t o r e s e t ”
• Press SELECT button to enter.

LISTENING TO FM RADIO
This unit can also receive FM band radio stations and display RDS data ( where
broadcast ).
To change to the FM band
· Press the FUNCTION button to select FM.
Tune to FM stations
· Press the SCAN button to search for the next station in the
b a nd .
or
· Press and hold the TUNE UP/DN button for auto search the next station.
· Press the TUNE UP/DN button for manual tune.
The radio will search and the tuning
fr equency will be displayed whilst
se ar ch i ng .
When a usable station is detected the radio will stop tuning and play the station.
If RDS data is present, the station name and scrolling radio text willbe displayed.
If RDS data is not p r esen t , the tuned fr equenc y will be d i sp la yed .
FM DISPLAY MODE OPTIONS
The bottom line of the display can be switched to show different items of information that
may be transmitted with a FM station.
Choosing the information
d i sp la y :
Press the INFO button on the front panel repeatedly to change the information
d i sp la yed while playing a FM radio station.
The full rangeof display options are shown below. Some stations may not broadcast
all of these options.
Audio mode (Stereo/ Mono)> Radio Text > Program Type > Signal Strength >
Time/ Date > Frequency
FM MONO/ STEREO/ AUTO OPTIONS
AUDIO SET TINGS: This option enables you to set the radio
to receive FM in Auto m ode (Mono/Stereo) or in Mono only.
This may be useful if the signal is weak and the broadcast is
noisy
During FM mode,
Press the SELECT button repeatedly to set Audio mode in AUTO or MONO .
AUTO: receive the FM STEREO automatically if available.
MONO: receive the FM station in MONO only.

LISTENING TO A CD
LOADING DISCS
This player can playback CD and MP3 audio format.
To select CD operation:
•Press the FUNCTION button to CD mode.
Loading a disc:
• Press the CD Door edge marked “OPEN/CLOSE” position.
• Gently place a disc on the center spindle with the label side upward.
• Once in place, press the center of the disc until it clicks into place on the turntable.
• Close the CD door. After a few seconds the disc will read and the disc data.

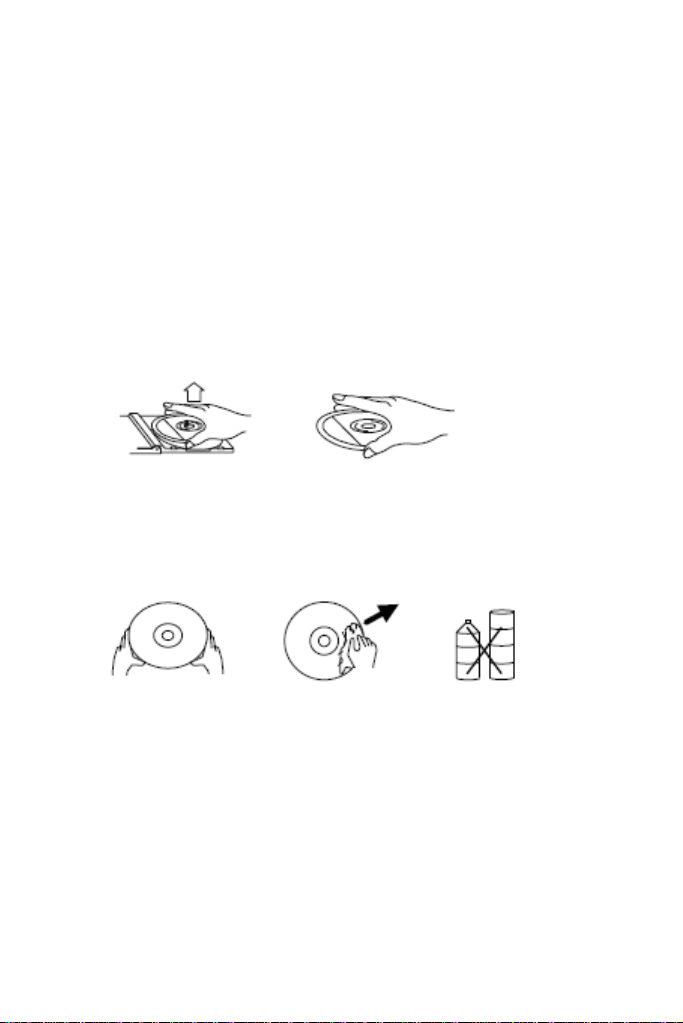

Unloading a disc:
•If the disc is playing, press the STOP button and wait a few seconds for the disc to stop.
• Press the CD Door edge marked “OPEN/CLOSE” position . Grip the disc at the sides
and lift it out of the disc co m p artment .
CD PLAYBACK , PAUSE:
• Load the CD.
• Press theSCAN button to s tar t the CD playing
• When a CD is playing, pressing the SCAN button at any time will pause
playback. Press this button again to resume playback.
Selecting tracks:
•Press the TUNE button , briefly to select the previous or next track from the
disc.
CD REPEAT AND RANDOM
REPEAT AND SHUFFLE FUNCTIONS
You can repeat a single track, the whole disc or select random to play the tracks in a
random sequence.
To set a repeat or random mode:
PressSELECT button to cycle through the options of “ R ep 1” (repeat current track),
“ RepA ”(Repeat the disc) or “ R and ” (play tracks ina random sequence).
The Repeat, Repeat All or Random symbol will be displayed.

PROGRAM PLAY
REPEAT AND RANDOM FUNCTIONS
When playinga CD, you can store a random sequence of up to 20 CD tracks to play
in your
preferred order.
To store a CD program:
•In CD Stop mode, press the PROGRAM button. Display show MEM P01 and flashing.
•Press the TUNE UP/ DN button to select the track number for the first track you want to
program. Displays showing T000 (“000” means your desired track number)
• Press the PROGRAM button to store this track into the program memory. The track will
be store and the program counter will increase to “P02”.
•Repeat the above two steps to store the next and subsequent tracks in your
program sequence.
• When you have finished entering all tracks in your program, press the SCAN
button to s tar t the program playing.
To clear a program
• During program playing, press the STOP button twice.
• Open the CD door.
LISTENING TO AN USB
This USB port provide music playback and charging function
1. Press the FUNCTION button to select USB.
2. Press SCAN button to playback the music.
3. The operation procedures are the same as CD playback. Refer to general control for details.
NOTE:
- USB charging at 5V 1A
- Compatible storage device (up to 32GB) .
- Please do NOT use a USB extension cable to connect your USB flash drive. Such
cable can pick up additional interference which can corrupt the data flow.
- Always connect your USB flash drive directly to the USB port without USB extension cable.
- Due to some USB drive manufacturer’s non-compliance with the full USB 1.1/ 2.0
standard. A small percentage (about 5%) of USB flash drive might not be
compatible
AUX IN JACK
To play music from an external Audio player
Connected to the 3.5mm AUX IN jack
•Press the FUNCTION button to select AUX .
• Set the volume level on your Personal Audio player up
To about half level.
• Set the volume on your audio system to the level you require. I f the volume will not set
high enough you may need to increase the volume setting on the player.
NOTE: - I t is not possible to navigate the menu system from your external audio device
with this player if it is connected via the AUX IN jack.

CARE AND MAINTENANCE
CARE AND CLEANING
All care and cleaning operations should be carried out with the unit unplugged from the
mains power.
The su rface of the unit can be cleaned with a barely damp cloth and then dried carefully.
Never use abrasives, abrasive cloths or chemical solvents.
Care and maintenance
Compact Disc Care
To remove a disc from its storage case, press down on the center of the case and lift
the disc out, holding it carefully by the edges.
Finger prints and dust should be carefully wiped off the disc’s recorded surface with
a soft cloth. Unlike conventional records, compact discs have no grooves to collect
dust and microscopic debris, so gently wiping with a soft cloth should remove most
particles. Wipe in a straight line from the inside to the outside of the disc. Small dust
particles and light stains will have absolutely no effect on reproduction quality.
Clean the disc periodically with a soft, lint-free, dry cloth. Never use detergents or
abrasive cleaners to clean the disc. If necessary, use a CD cleaning kit. Never write
on or stick any labels to the surface of compact discs.
Care of the cabinet
If the cabinet becomes dusty, wipe it with a soft dry dust cloth. Do not use any wax,
polish sprays or abrasive cleaners on the cabinet.
Caution
Never allow any water or other liquids to get inside the unit while cleaning.

TROUBLESHOOTING
Poor quality radio reception
The aerial signal may notbe adequate. Try repositioning the aerial w h ile watching the
signal strength. Signal strength can be displayed by tuning to a DAB station. Press the
INFO button then turn the TUNING knob,
.
PROBLEM
CAUSE /
SOLUTI
ON
No sound / power
• Volume not adjusted. Adjust the volume.
• Mains cable not securely connected. Connect the mains cable
properly.
• CD contains non-audio/ Mp3 files. Press the TUNE button
repeatedly to skip to a CD or MP3 audio track, instead of the data file.
• Ensure the FUNCTION is select to the correct operation mode .
• Ensure the current MODE is correctly selected.
CD display does not
function properly / No
reaction to operation of
any of the controls
• Electrostatic discharge. Switch off and unplug the unit.
Reconnect after a few seconds.
• No CD inserted. Insert aCD.
• CD badly scratched or dirty. Replace or clean the CD, see
Maintenance.
• Laser lens steamed up. Wait until lens has cleared.
• CD-R / CD-RW is blank or not finalized. Use a finalized CD-R / CD-
RW or a suitable CD Audio disc only.
• Make sure the CD is not encoded with Copyright protection
technologies, as some do not conform to the Compact Disc standard.
• Press the FUNCTION button to select CD mode.
The CD skips tracks
• CD damaged or dirty. Replace or clean CD.
• Program is active. Quit program mode.
• A CD badly scratched or dirty may result in improper operation.
Poor DAB/ FM reception
• Make sure FM aerial wire is fully extended.
• Electrical interference in your home can cause poor r ec eption. Move
the unit away from them (especially those with motors and transformers).
USB mode no reaction to
operation of any of the
controls
• Electrostatic discharge. Switch off and unplug the unit.
Reconnect after a few seconds.
• No USB memory stick inserted. Insert aUSB memory stick.
• Make sure the USB memory stick is not encoded with Copyright protection
technologies.
• Press the FUNCTION button to select USB mode.
• USB drive manufacturer’s non-compliance with the full USB 1.1/ 2.0
standard. Try others USB memory stick.

SPECIFICATIONS
SPECIFICATIONS
Supply voltage: AC 230V ~ 50Hz
DC 3V (AAA x 2( for Clock backup only)
USB rating: DC 5V 1A
Power consumption: 16W
Output power : 2 x 1W
F r equency range : 174.928-239.200 MHz (DAB), 87.5-108 MHz ( F M )
Dimensions (W x D x H) : 226 x 158 x 76 mm
Weight : 1 kg
