Space-Ray SRB 38 Manual

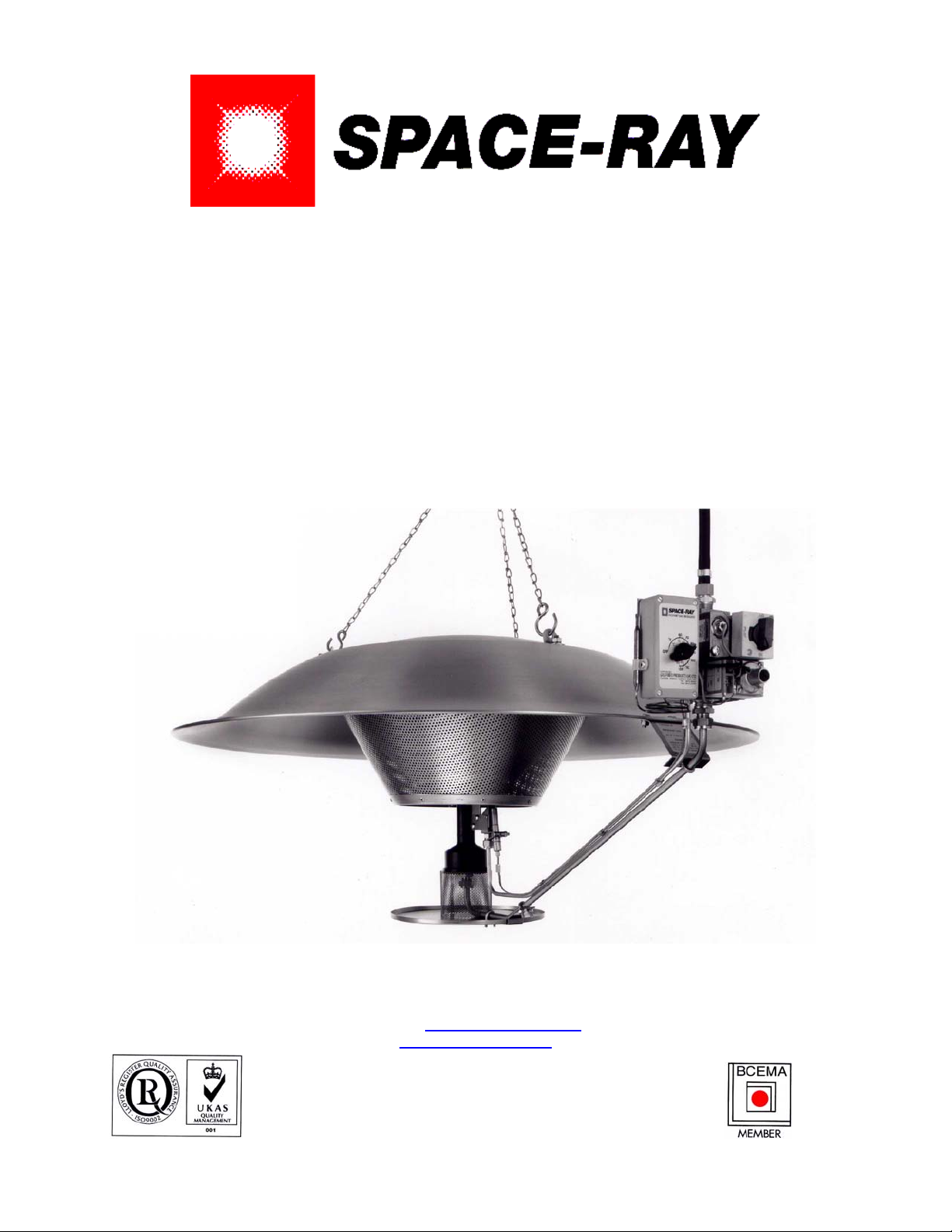

SRB 38 RADIANT BROODER
INSTALLATION AND SERVICING INSTRUCTIONS
This heater is for use with both Natural Gas and Liquid Petroleum Gas. It
must be installed by a Competent Person as stated in the Gas Safety
(Installation and Use) Regulations 1984.
Leave these Instructions with the Person/Department responsible for the
Safe Installation and Operation of the heater.
Gas Fired Products (UK) Ltd.
Chapel Lane, Claydon, Ipswich
Suffolk IP6 0JL, England
Tel: [phone] Fax: [phone]
E-mail: [email protected]
www.spaceray.co.uk

Page 1 of 10
INSTALLATION, SERVICING AND OPERATING INSTRUCTIONS
Before installation, check that the local distribution conditions, nature of gas and pressure, and adjustment of
appliance are compatible.
INDEX
SectionTitle Page
1. Warning Information 2
2. Technical Data 3 - 4
2.1 Specifications 3
2.2 Ventilation 3 - 4
3. Assembling Brooder from Kit Form 4 - 5
3.1 Unpacking 4
3.2 Emitter to Reflector 5
3.3 Control Arm 5
4. Installation 5
5. Brooder Ignition 6 - 7
5.1 Lighting (All Controls) 6
5.2 No. 1 Control and No. 9 Control 6
5.3 No. 2 Control 6 - 7
5.4 MBC and MOD Control 7
6. Maintinance 7 - 8
6.1 General Maintenance 7 - 8
6.2 No.1 Control 8
6.3 No. 2 Control 8
6.4 MBC and MOD Control 8
7. Fault Finding 9
7.1 Fails to ignite 9
7.2 Flame not established 9

Page 2 of 10
WARNING
1. Warning Information:
FOR SAFE AND EFFICIENT OPERATION THIS APPLIANCE NEEDS A FREE SUPPLY OF
FRESH AIR.
IN THE ABSENCE OF SUFFICIENT OXYGEN CARBON MONOXIDE (C0) WILL BE
PRODUCED.
CARBON MONOXIDE EVEN IN SMALL CONCENTRATIONS CAN CAUSE DEATH
IN ADDITION CONCENTRATION OF CARBON DIOXIDE (CO2) MUST BE LIMITED TO SAFE
LEVELS.
ADEQUATE VENTILATION MUST THEREFORE BE PROVIDED AT ALL TIMES, THIS CAN
BE ACHIEVED BY HAVING 2 OPENINGS, ONE ABOVE AND BELOW THE HEATERS OF AT
LEAST:-
512 Square Centimetres (80 square inches) EACH - PER
SRB38 HEATER.
BS: 6896:1991. - Installation of Gas Fired Overhead
Radiant Heaters refers:-
Clause 7.3.1. 7.3.2. and 7.3.3.
The total installation shall be designed, installed and operated such that the concentration of
carbon dioxide at positions where person may be present shall not exceed 2,800 p.p.m.
To provide for the above using natural ventilation, high and low level ventilation shall be
provided by permanent openings of 46 CM2/KW total heat input. The lower level inlet shall be
below the appliance(s) and the high level outlet shall be above the appliance(s). The vertical
distance between the centre line of the high and low level grilles shall not be less than 3M. The
required air flow rate using mechanical ventilation shall be 33 M3/h per kW of total rated heat
input.
N.B. INSPECT ALL OPENINGS REGULARLY AND CLEAR IF NECESSARY, AS LITTER,
DUST, FEATHERS AND OTHER MATTER MAY BLOCK THEM.

Page 3 of 10
SRB38 BROODER INSTALLATION & SERVICING INSTRUCTIONS
2.0 TECHNICAL DATA
2.1 SPECIFICATION
Model - SRB38
Heat Input - 11.13 kW (38,000 Btu/h)
GAS TYPE NATURAL PROPANE PROPANE
Setting Pressure 12.5 mbar
(5 in w.g.)
27.5 mbar
(11 in w.g.)
35.0 mbar
(14 in w.g.)
Jet Size 0 2.7 mm No. 49 0 1.75 mm
Gas Consumption 40.1 MJ/h
(0.38 therm/h)
0.79 kg/h
(1.571/h)
0.79 kg/h
(1.571/h)
Brooder Weight - 12.0 KG (26.4 lbs)
Mounting Height - Shallow Reflector:-
1525 mm (60 in)
Deep Reflector:-
1830 mm (72 in)
Minimum Clearance Side - 900 mm (36 in)
From Combustibles - Below - 900 mm (36 in)
Shallow Reflector - Above - 230 mm ( 9 in)
Deep Reflector - Above - 900 mm (36 in)
Electrical Supply 24V 50Hz 16VA (Hold)
(No. 2 Control) - 26VA (Inrush)
2.2 VENTILATION
It is IMPORTANT that correct ventilation at all times is provided in poultry houses heated
by Space-Ray brooders.
The temptation particularly during the winter months to close up the poultry houses to
conserve heat and save money must be resisted, even during the heating up period prior
to the arrival of the stock.
The WARNING notice on the facing page contains details of the correct size and position
of ventilation openings for the safe and efficient operation of this appliance. It also
contains details of the required air flow rate when using mechanical ventilation.
If you are in any doubt as to the required ventilation contact SPACE-RAY direct, by
telephone or fax.
3.0 TO ASSEMBLE BROODER IN KIT FORM

Page 4 of 10
3.1 UNPACKING
The Brooder is supplied as follows:-
REF: QTY. DESCRIPTION:
1 1 REFLECTOR
2 3 HANGING LUG
3 3 M8 NUT AND WASHER (SHALLOW)M10(DEEP)
4 1 EMITTER ASSEMBLY
5 1 HANGING CHAIN SET
6 2 M6 BOLT, NUT AND WASHER
7 1 CONTROL ARM ASSEMBLY
8 3 M5 NUT AND WASHER

Page 5 of 10
3.2. ASSEMBLE EMITTER TO REFLECTOR
3.2.1. Stand Emitter Assembly (4) on bench with M8 (Shallow or M10 (Deep) setscrews (large
diameter of cone) uppermost.
3.2.2. Place reflector (1) over Emitter Assembly (4) such that the 3 x M8 (M10) setscrews pass
through the 3 holes in the Reflector.
3.2.3. Place one Hanging Lug (2) over each M8 (M10) setscrew with vertical leg facing the
center of the reflector and secure with M8 (M10) nuts and washers (3) provided.
3.3. ASSEMBLE CONTROL ARM
3.3.1. Invert the Emitter/Reflector assembly and place the flame arrester into burner cap,
ensuring that the mesh covers the inner face of the burner parts fully. Position the
Control Arm Assembly (7) such that the control valve mounting bracket is aligned with 2
holes in the rim of the reflector. Pass the 3 x M5 setscrews protruding from the burner
cap through the 3 holes in the burner base and secure with the 3 x M5 Nuts and
Washers (8) provided.
3.3.2. Attach Control Arm (7) to Reflector (1) by passing 2 x M6 Bolts (6) down through
Reflector (1) and Support Bracket, assemble Nuts and Washers (6) and tighten down
Nuts.
4.0. TO INSTALL BROODER
4.1. Select hanging point.
4.2. Attach Hanging Chain Set (5) to Hanging Lugs (2) with the large hook to gas inlet side of
brooder.
4.3. Suspend brooder 1525 mm (60 inches) - Shallow Reflector: 1830 mm (72 inches) Deep
Reflector, above floor (litter) level.
4.4. Connect ON/OFF ball valve, attached to end of Connecting Kit hose to gas supply pipe.
4.5. Connect plain end of Connecting Kit hose to gas control valve inlet connection.
N.B. DO NOT CONNECT TO OLD GAS TAPS. THIS COULD CAUSE BAD
COMBUSTION.

Page 6of 10
5.0. BROODER IGNITION
5.1. Lighting (All Controls)
5.1.1. Turn on gas taps.
5.1.2. On initial operation, slacken hose connection to control valve inlet and purge air from gas
line. Tighten hose connection to control valve inlet.
5.1.3. Ensure all gas connections are sound.
N.B. DO NOT USE NAKED FLAME TO TEST FOR GAS SOUNDNESS.
5.2. NO. 1 CONTROL & NO. 9 CONTROL
5.2.1. Turn gas cock dial on control valve to PILOT position, depress dial and apply lighted
taper to pilot burner.
5.2.2. Hold dial in for 60 seconds after lighting pilot. Release dial. If pilot flame fails to
establish, repeat procedure.
5.2.3. If pilot flame fails to establish after second attempt, refer to fault finding chart.
5.2.4. When pilot flame established, turn gas cock dial to ON position and set thermostat to call
for heat. Main burner will ignite.
5.2.5. To turn OFF main burner, turn gas cock dial to pilot position.
5.2.6. To turn OFF pilot, press in gas cock dial and turn to OFF position.
5.2.7. If the brooder is to be taken down for inspection or maintenance turn the ON/OFF ball
valve on the connecting kit hose to the OFF position and disconnect the hose from the
control valve inlet.
NO. 9 CONTROL
Thermostat
Range Control Knob Position
1 2 3 4 5 6 7
°C 21 26 30 33 39 43 47
°F 70 79 86 91 102 109 117
Temperature versus Control Knob position
5.3. NO. 2 CONTROL
5.3.1. Depress flame failure valve button and apply lighted taper to pilot burner.
5.3.2. Hold button in for 30 seconds after lighting pilot. Release button. If pilot fails to
establish, repeat procedure.

Page 7of 10
5.3.3. If pilot flame fails to establish after second attempt, refer to fault finding chart.
5.3.4. When pilot flame is established, switch on 24V electrical supply to main burner valve and
adjust thermostat to call for heat. Main burner will ignite.
5.4. MBC & MOD CONTROL
5.4.1 Depress flame failure valve button and apply lighted taper to main burner.
5.4.2 Hold button in for 30 seconds after lighting burner. Release button. If burner fails to
establish, repeat procedure.
5.4.3 If burner flame fails to establish after second attempt, refer to fault finding chart.
5.4.4 When main burner flame established adjust central thermostat on Multi brooder Control
Unit (MBC) or individual thermostat (MOD) to desired temperature.
6.0. MAINTENANACE
6.1. General Maintenance
6.1.1 During the brooding period the air filter should be brushed at regular intervals to shed
dust from the filter element.
6.1.2. At the end of each crop, clean the brooder as follows:-
6.1.3. Unscrew burner gas tube nuts at outlet from valve and burner base and remove burner
tube/pan assembly.
6.1.4. Unscrew jet holder from base of burner, unscrew main jet from jet holder and clean by
soaking in acetone and blowing through with airline applied to outlet end of orifice.
N.B. DO NOT ATTEMPT TO CLEAN JET BY PASSING WIRE THROUGH ORIFICE.
Apply thread sealant (Calor-tite or similar) to jet and replace.
6.1.5. Slide air filter element off burner base and clean by brushing and blowing through with air
line.
6.1.6 Use small brush to clear venturi of accumulated dust, and clear burner cap and ports by
directing air line up through base of burner.
In extremely dirty conditions or where ports have become partially blocked through lack
of regular maintenance, unscrew 3 x M5 Nuts (8) securing burner base to burner cap and
remove burner base. Brush ports in burner cap and ensure burner base is clean.

Page 8of 10
6.1.7 Brush both inside and outside surfaces of perforated emitter with large brushto
remove any burnt dust particles.
6.2. PILOT - NO. 1 CONTROL
6.2.1 Unscrew pilot burner gas tube nut from jet holder in base of burner frame, and
unscrew jet holder from pilot burner frame. Unscrew jet from jet holder and
clean by soaking in acetone and blowing withair line applied to outlet end of
orifice.
N.B. DO NOT ATTEMPT TO CLEAN JET BY PASSING WIRE THROUGH ORIFICE.
6.2.2. No. 1 Control:
Slacken brass screw clampingthermogenerator to pilot burner frame, draw out
thermogenerator and clean. Clean pilot burner frame using small brush andair
line.
To change thermogenerator slacken 2 setscrews securingthermogenerator
cable to control valve and withdraw cable.
6.3. PILOT - NO. 2 CONTROL
6.3.1 Unscrew pilot burner gas tube nut from jet holder in base of burner frame, and
unscrew jet holder from pilot burner frame. Unscrew jet from jet holder and
clean by soaking in acetone and blowing withair line applied to outlet end of
orifice.
N.B. DO NOT ATTEMPT TO CLEAN JET BY PASSING WIRE THROUGH ORIFICE.
6.3.2. No. 2 Control:
Unscrew upper lock nut securing thermocouple to pilot burner frame, draw out
thermocouple and clean. Clean pilot burner frame using small brush andair line.
To change thermocouple, unscrew tube nut securing capillary tube to flame
failure valve, and withdraw capillary tube from valve.
6.4. THERMOCOUPLE - MBC CONTROL AND MOD CONTROL.
Clean thermocouple using small brush. To change thermocouple, unscrew upper
locknut securing thermocouple to bracket and draw out. Unscrew tube nut
securing capillary tube to flame failure valve and withdraw capillary tube from
valve.

Page 9of 10
7. 0 FAULT FINDING
7.1 PILOT/MAIN BURNER FAILS TO IGNITE
7.1.1. Gas turned OFF.
7.1.2. Blocked pilot/main jet.
7.1.3. Faulty valve.
7.2 GAS IGNITES BUT FLAME NOT ESTABLISHED
7.2.1. Flame failure valve not depressed correct length of time.
7.2.2. Faulty flame failure valve.
7.2.3. Thermocouple not positioned close enough to flame.
7.2.4. Thermocouple electrical connection to valve not tight (No. 1).
7.2.5. Thermocouple capillary tube nut not tight (No. 2, No. 9, MBC & MOD).
7.2.6. Faulty thermogenerator (No. 1) or thermocouple (No. 2, No. 9, MBC & MOD).
7.2.7. Low gas pressure.
7.2.8. Partially blocked jet.
7.2.9. Kink in hose.

Page 10 of 10
04/02 GB 326S
